Montigo PL38DF Instruction Manual

®
C US
Read and understand this manual. Improper installation, adjustment, alteration,
serviceormaintenancecancauseseriousinjury,propertydamageorevendeath.
For assistance or additional information consult a qualified installer, service
agency or the gas supplier.
DANGER
Donotstoreorusegasolineorany other flammable vapors andliquidsin the vicinity of
this or any other gas burning appliance. A fire or explosion my occur causing serious
injury, property damage or even death.
WARNING
Installer: Leave this manual with the appliance. Do not remove.
Consumer: Retain this manual for maintenance and future reference. Do not Discard.
NOTICE
IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
DANGER
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
Lowtemperature
Strongmagnetic field
Opticalradiation
Nonionizing
radiation
Radiation
Hazardousto the
Environment
Dangerof harming
yourhands
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
Lowtemperature
Strongmagnetic field
Opticalradiation
Nonionizing
radiation
Radiation
Hazardousto the
Environment
Dangerof harming
yourhands
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
Lowtemperature
Strongmagnetic field
Opticalradiation
Nonionizing
radiation
Radiation
Hazardousto the
Environment
Dangerof harming
yourhands
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
XG0216 160215.1
PL38DF Indoor
PL Series
Residential
Fireplace
Installation & Maintenance Manual
Canadian Heating Products Inc. Langley, BC V4W 4A1 | Montigo Del Ray Corp. Ferndale, WA 98248

Page 2
You must read and understand this manual prior to installation, operation or
troubleshootingthis appliance.Please retainthis owner’smanual forfuture reference
and maintenance.
NOTICE
Table of Contents
PL38DF* Indoor Gas Fireplace
XG0216 - 160215.1
Instruction Manual Contents
SafetyAlerts 3
Introduction 3
Product Specications 3
SectionA: Before You Start 4
Typical Installation Overview 4
Standard Installation Checklist 5
Rating Plate Sample 6
Section 1: Installation Overview 7
Product Dimensions 7

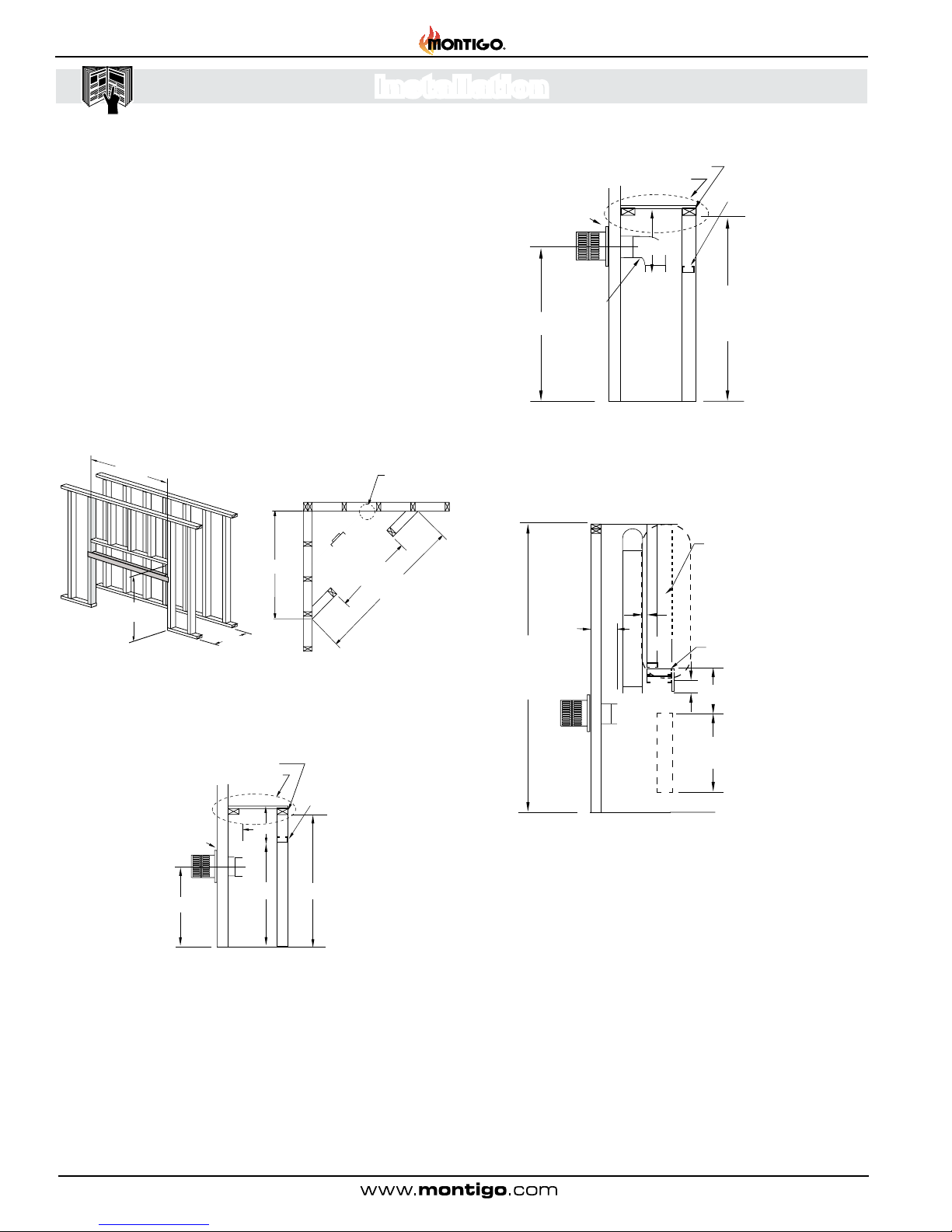

Section 2: Framing 8
Clearances 9
Section 3: Venting 10
Section 3-1: Converting to Rear Vent 10
Section3-2: InstallingaRoofMountedDirectVentTermination(PVTK-1)
11

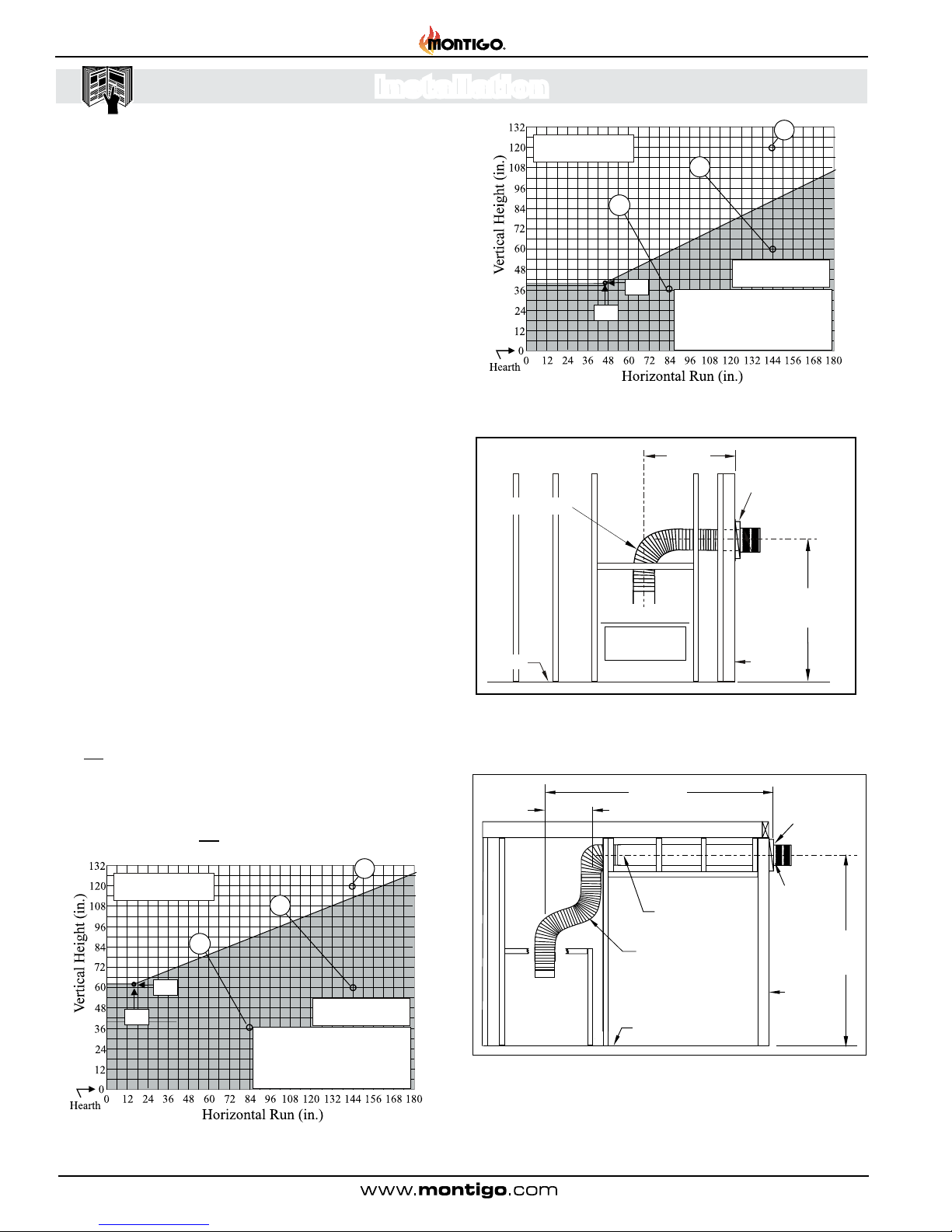

Section 3-2-1: Venting Layout 11
Section 3-3: Installing a Wall Mounted Direct Vent Termination 13
Section 3-3-1: Venting Layout: Wall Mounted Termination 14
Section 3-3-2: Venting Components 17
Section 3-3-3: Heat Shields 18
Section 4: Wiring 19
CPI [Continuous Pilot Ignition] / IPI [Intermittent Pilot Ignition] Jumper
Cable Installation 20
Section 5: Installing the Gas Line 21
Section 5-1: FUEL CONVERSION 21
Section 5-2: GAS PRESSURE 21
Section 5-3: GAS CONNECTION 21
Section 6: Finishing 22
Section 7: Screen Installation and Removal 23
Section 8: Installing & Removing the Door 24
Section 9: Installing theAccessories 26
Installing Optional Speckled Stones 27
SIT Proame 2 Electronic Ignition 30
Operation 30
Remote Operation 31
Maintenance 36
General 36
Cleaning 36
Troubleshooting: 37
SIT Proame 2: 37
Replacement Parts: 38
AppendixA: Venting Terminations 39
Appendix B: Warranty 40
Appendix C: State of Massachusetts 41

Page 3
Indicates a hazardous situation which, if not
avoided, WILL result in death or serious
injury or property damage.
Indicates a hazardous situation which, if not
avoided, COULD result in death or serious
injury or property damage.
Indicates a hazardous situation which, if not
avoided, WILL result in minor or moderate
injury.
Addresses practices that are important, but
not related to personal injury
DANGER WARNING
CAUTION NOTICE
PL38DF* Indoor Gas Fireplace
Safety Alert Key
Introduction
XG0216 -160215.1
Introduction
Congratulations on your purchase of a Montigo Fireplace.
Withover35yearsofexperience,Montigoiscommittedtoproviding
you with a gas replace that is not only a beautiful addition to
your space, but that is also designed and manufactured to the
highest safety, reliability and engineering standards.
We strongly encourage you to read and carefully follow the
instructionslaidoutinthisInstallation,OperationandMaintenance
Manualandretainitforyourfuturereference. Payspecialattention
to all cautions, warnings, and notices throughout this manual
intended to ensure your safety.
This manual covers installation, operation and maintenance.
Lighting, operation and care of this replace can be easily
performed by the homeowner. All installation and service work
should be performed by a qualied or licensed installer, plumber
or gas tter as certied by the state, province, region or governing
body where the replace is being installed.
Thisinstallation,operationandmaintenancemanualisapplicable
tothemodels described to the right. Refer toyourratingplateto
verify included options.
Warranty and Installation Information: (See Appendix B)
The Montigo warranty will be voided by, and Montigo disclaims
any responsibility for the following actions:
► Modication of the replace and/or components including
Direct-Vent assembly or glass doors.
► Use of any component part not manufactured or approved
by Montigo in combination with this Montigo replace system.
► Installation other than as instructed in this manual.
Consult your local Gas Inspection Branch on installation
requirements for factory-built gas replaces. Installation & repairs
should be done by a qualied contractor.
Safety Alerts
MODEL Natural Gas Liquid Propane Gas Rating (BTU hr) Linear Burner w/ Glass mediaAccessories SIT Electronic Ignition
PL38DFNI X 25,000 X X
PL38DFLI X 25,000 X X
Model Number PL38DFN-I PL38DFL-I
Input Rating 25,000 25,000
Gas Supply Pressure 5.5" WC 11" WC
Manifold Pressure 3.5" WC 10" WC
Orice Size (DMS) 51 DMS 58 DMS
Fireplace Electrical
Requirement 115VAC, 60Hz, 5 Amps 115VAC, 60Hz, 5 Amps
Vent Size 5"/8" 5"/8"
Maximum Vent Length 32' 32'
Shipping Dimensions 41 x 22 x 38 41 x 22 x 38
Shipping Weight 169 lbs 169 lbs
Fireplace Weight 34 lbs 34 lbs
Certication(s) ANSI Z21.50-2014 / CSA2.22-2014
Vented Gas Fireplaces
CGA2.17-M91 - Gas-Fired
Appliances for Use at High
Altitudes
Product Specications

Page 4
PL38DF* Indoor Gas Fireplace
XG0216 - 160215.1
Installation
IMPORTANT MESSAGE: SAVE THESE INSTRUCTIONS
The PL38DF* Direct Vent replace must be installed in accordance
with these Instructions. Carefully read all the Instructions in this
manual rst. Consult the Local Gas Branch to determine the need
fora permit prior tostarting the installation. Itis the responsibility
of the installer to ensure this replace is installed in compliance
with the manufacturers instructions and all applicable codes.
BEFORE YOU START:
Due to high operating temperatures, this appliance should be located out of traffic &
away from furniture and draperies.
Children and adults should be alerted to the hazards of the high surface temperature,
which could cause burns or clothing ignition.
Youngchildren shouldbe carefully supervised whenthey are in thesame room as the
appliance.
Clothing or other flammable materials should not be placed on or near the appliance.
CAUTION
Whenthis applianceis installed directlyon anycombustiblematerial otherthan wood
flooring, it must be installed on a metal or wood panel extending the full width and
depth of the appliance or a fire will occur causing serious injury, property damage or
even death.
DANGER
Typical Installation Overview
Determine the desired install location of your replace.
See Section 1, Dimensions on Page 7, and refer to the
Framing Section 2 on Page 8 for details.
Selectthelocationofyourterminationandresultingventrun.
Yourselectedterminationlocationmustbethehighestpoint
in the Direct Vent installation.
Shoulditbeimpossibletomeettheventingrequirementslaid
outinSection 3: Venting on Page10,pleasecontacta local
Montigodealerregardingtheuse of a Montigo Power Vent.
Lay out the Vent run; calculating the required elbows and
straight runs of 5"/8" flex and/or rigid pipe.
Layout Electrical Requirements Refer to Section 4: Wiring
on Page 19, for Details.
Refer to Section 5: Installing the Gas Line on Page 21, for
details on the gas connection and access.
Refer to local codes and guidelines for installation
requirements.
Installation and repairs should be done by a qualied
contractor and must conform to:
• Installations in Canada must conform to the local codes or
intheabsenceof local codes to the current versionofNaturalGas
and Propane Installation Code, CSA B149. Electrical Installations
must conform to the local codes or, in the absence of local codes,
to the current version of Canadian Electrical Code, CSAC22.1.1
• Installations in the USA must conform to the local codes or
in the absence of local codes to the current version of National
FuelGasCode,ANSI Z223.1/NFPA54.ElectricalInstallationsmust
conformto the localcodesor,inthe absence oflocalcodes,to the
currentversionoftheNationalElectricalCode,ANSI/NFPA70. See
Appendix C for installation within the State of Massachusetts.
Installation and repairs should be done by an authorized gas fireplace service technician.
Theapplianceshouldbeinspectedbeforeuseandatleastannuallybyaprofessional.More
frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
thefireplace are kept clean.
NOTICE
WARNING
Abarrier designed to reduce theriskof burns from hot viewingglass is provided with this
applianceand shall be installed fortheprotection of children and otherat-risk individuals.
Ifthe barrier becomes damaged, thebarriershall be replaced with themanufacturer’s
barrierfor this appliance.
WARNING
Anysafety screen, guard, or barrierremovedfor servicing an appliance mustbe replaced
priorto operating the appliance.
Section A: Before You Start
Young children should be carefully supervised when they are
in the same room as the applicance. Toddlers, young children
and others may be susceptible to accidental contact burns. A
physical barrier is recommended if there are at risk individuals
in the house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddles, young children and
other at risk individuals out of the room and away from hot
surfaces.
CAUTION

Page 5
PL38DF* Indoor Gas Fireplace
XG0216 -160215.1
Installation
Standard Installation Checklist
This standard installation checklist is to be used by the installer in conjunction with, not instead of, the instructions contained within
this installation manual.
Customer Date Installed:
InstallAddress: Location of Fireplace:
Installer:
Model (circle one): PL38DFN PL38DFL Dealer Phone:
Serial #:
YES NO IF NO, WHY NOT?
Appliance Install: Section 2
Framing complies with install manual.
Standoffs have been installed.
Proper clearances have been maintained.
Venting: Section 3
Venting conguration complies with vent diagrams.
Venting installed, fastened, and secured in place maintaining
proper clearance.
Firestops installed.
Exterior wall/roof ashing installed and sealed in compliance with
local building code.
Terminations installed and sealed in compliance with local building
code.
Direct vent termination is highest point in vent assembly.
Wiring/Electrical: Section 4
Unswitched power provided to the appliance PPO box.
Low voltage wire connected to dry contact wall switch (non-
powered)
Gas: Section 5
Proper appliance for fuel type.
Was a conversion performed?
Leak check performed & inlet pressure veried.
Finishing: Section 6
Only non-combustible materials installed in non-combustible areas.
Clearances meet installation manual requirements
Mantels and/or projections comply with install manual
Appliance Setup: Section 7 through 9
Media, door, and screen installed according to install manual
Manual given to home owner.
Started apliance and veried no gas leaks exist.
Comments:

Page 6
PL38DF* Indoor Gas Fireplace
XG0216 - 160215.1
Installation
Rating Plate Sample
FigureA: Rating Plate for PL38DF-F IPI Electronic Ignition



 












LB1223-V5.2 SIT IPI -with screen AUG.17.2015
  










 


    




  

  







    






 
 
 


 


Teklynx LabelView Demo
Rating Plate Location:
The rating place may be found under the rebox.
To access, remove the screen and valve cover. See
Section 7: Screen Installation and Removal and
Section 8: Installing & Removing the Door.

Page 7
PL38DF* Indoor Gas Fireplace
XG0216 -160215.1
Installation
Section 1: Installation Overview
Figure 1. Fireplace dimensions, (Tolerance ± ⅛") [3mm].
Please review the Typical Installation Overview on Page 4 for
general information on preparing for a successful installation of
your replace.
The PL38DF* replace may be installed in any location that maintains
proper clearances to air conditioning ducts, electrical wiring and
plumbing. Safety, as well as efciency of operation, should be
considered when selecting the replace location. Try to select
a location that does not interfere with room trafc, has adequate
ventilationandoffersanaccessiblepathforDirectVentinstallation.
The replace dimensions are shown below:
Top View
FrontView
35 1
4
"
894
37 3
4
"
958
29 1
2
"
750
19 3
8
"
493
45
8
"
119
51
2
"
138
5"
127
8"
203
77
8
"
201
39 1
4
"
998
22 1
8
"
561
37 1
4
"
946
11 5
8
"
295
33 3
4
"
857
19 1
2
"
496
20 1
4
"
513
26 3
8
"
669
POWER
5"
[127]
8"
[203]
36 5
8
"
931
GAS
SUPPLY
Left Side View RightSideView
Product Dimensions

Page 8
PL38DF* Indoor Gas Fireplace
XG0216 - 160215.1
Installation
Section 2: Framing
The install size requirements of your replace are dependent on
several factors. Gas line location, electrical connection, gas line
type and decorative surround options can play into the install sizing.
Thesefactorsshouldbeconsideredwhendeterminingframingand
layout of your replace.
Note: four sided surrounds will require a raised installation.
1). Frame in the enclosure for the unit with framing materials.
The framed opening for the assembled replace is 37 3/4" wide, x
41 1/4" high x 20 1/8" deep, see Figure 2 .
NOTE: When constructing the framed opening, please ensure
there is access to install the gas line when the unit is installed.
See Figure 22.
Figure 2. Framing dimensions, (Straight wall & Corner
Installation).
Figure 5. Non Combustible Framing for Top Vent or Rear
Vent, with alcove. Note: Straight through the wall rear
vent available for Natural Gas only.
Figure4. Combustible Framing for shelves over the replace,
Top vent.
Figure3.Combustible Framing for shelves over the replace,
Rear vent. Note:RearventavailableforNaturalGasonly.
78 1/2”
0" c
l
earance
to corners
37 3/4
55 1/2”
* When steetrock is not used behind the
fireplace, framing depth 20 1/8” may be
reduced by 5/8”
2
01/8”
37 3/4”
411/ 4”
41 1/4”
9”
33 3/4”
Combustible Header
Combustible Shelf
26 3/8”
12”
max.
REAR VENT
N.G ONLY
Non Combustible
Stud 1/2” Above Top
RHS102
39”
MEL Short
90° elbow
49 3/4
”
17 1/2”
Combustible Header
Combustible Shelf
RHS102
Non Combustible
Stud 1/2” Above Top
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.
MIN
96”
10.5”
door
opening
3”
Rear
Vent
Ceiling
Floor
Alcove
area over
Fireplace,
Top Vent
N.
G
.
&
L.P.
12”
max. Non-combustible
header
Min 1”
REAR VENT
N.G ONLY
Non-Combustibl
e
Materials Only
Fireplace with standard screen.

Page 9
PL38DF* Indoor Gas Fireplace
XG0216 -160215.1
Installation
Clearances
When installing a shelf over the top of the replaces, the following
guidelines must be adhered to:
For Rear Vent applications, the minimum clearance is 0" from the
rear of the replace to a wall, or any combustible materials, and
9" clearance from the top of the replace to the underside of any
combustible shelf materials.
For Top Vent applications, the minimum clearance is 0" from the
rear of the replace to a wall, or any combustible materials, and 17
1/2" to the underside of any combustible shelf materials.
1” clearance is maintained on sides and bottom of vent runs and
2” above horizontal vent runs to any combustible material.
MODEL Top - Rear vent † Top - Top vent † Rear Sides Floor†† Mantel
PL38DF* 9" 17 1/2" 0" 0" 0"
See Section
6 Finishing
around the
replace
† NOTE: Clearance from top of replace to a ceiling within the
replace enclosure.
†† Four sided surrounds require a raised installation.
Figure 7c. Securing the Nailing Flange Extension.
Thesuppliednailingextensionmustbeplacedalong the top edge
of the replace and securely fastened into place, as shown in gure
7c. Note: The nailing ange extension can be substituted with a
piece of NON-Combustible material of the same size and thermal
characteristics, ie: cement board or equivalent.
4"
Before installing the supplied nailing ange extension, fold tabs
at bottom of nailing ange to a 90 degree angle.
Figure 7. Bottom of Nailing Flange Extension
Figure 7a. Bottom of Nailing Flange Extension with tab folded at
90 degree angle
Figure 7b. Insert folded tabs into slots above the front of the replace
Front of Nailing Flange
Front of Fireplace
Installing the Nailing Flange Extension
Installing The Standoffs
To avoid elevated mantel temperatures, all PL38DF* gas
replaces are required to have the supplied standoffs installed.
The replace is supplied with two standoffs. Bend and install these
standoffs on top of the replace ensuring that the height of the
standoff maintains a 7 1/2" clearance.
7½”
Figure 6. Installing standoffs

Page 10
PL38DF* Indoor Gas Fireplace
XG0216 - 160215.1
Installation
Section 3: Venting

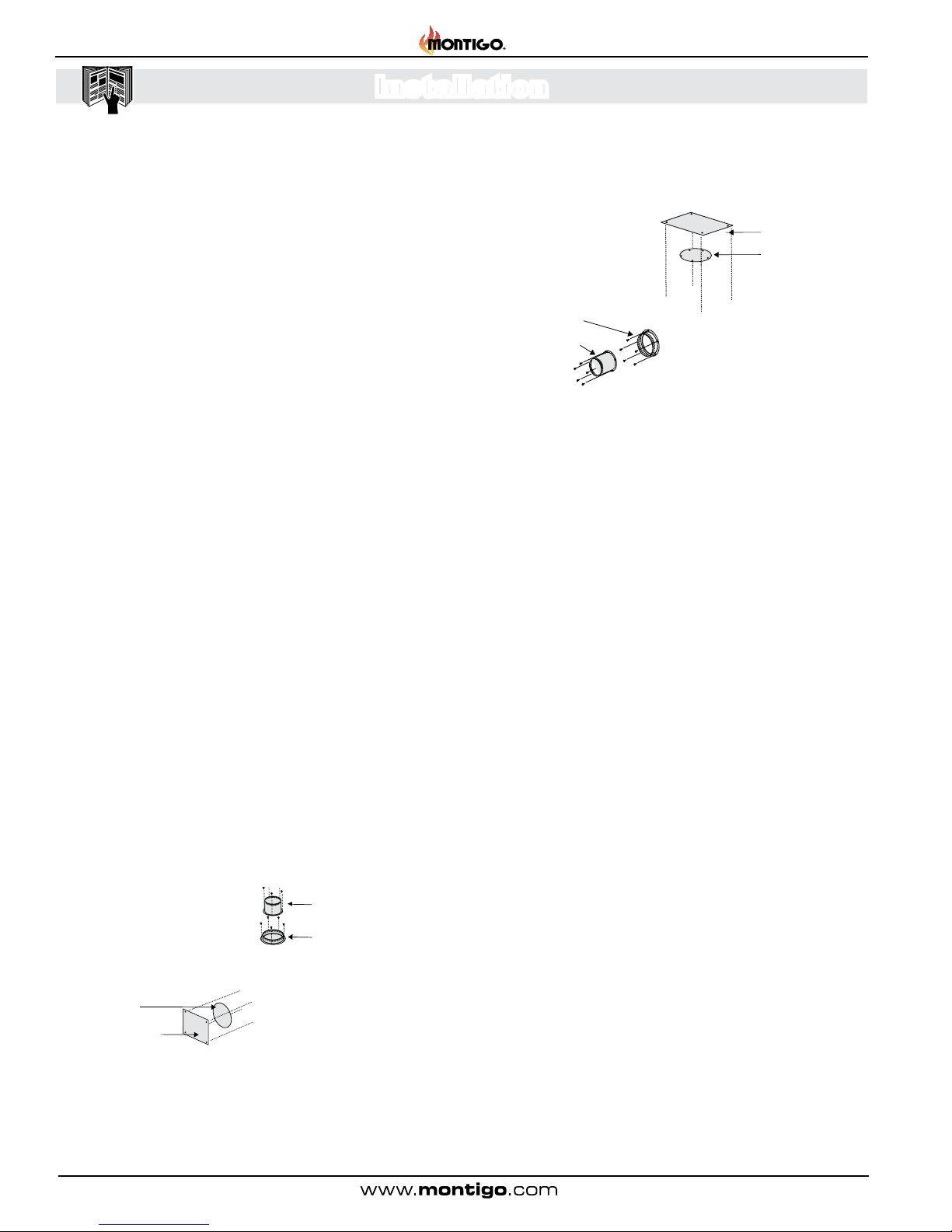

Figure 8. Flue cover and collar removal, Top Vented
replace.
Figure 8a. Flue cover and collar installation, Rear Vented
replace.
Section 3-1: Converting to Rear Vent
Use the following instructions to convert an PL38DF* for Rear
Vent use:
1. Remove the Rear ue cover and gasket (5" and 8") on the
ue outlet, as shown in Figure 8.
2. Next, Remove the Top ue collar's (5" and 8") on the ue
outlet, as shown in Figure 8.
3. Install the (removed) Rear ue cover and gasket material, to
theTopventoutlet.Fastenthecoverwithincludedhardware,
as illustrated Figure 8a.
4. Installthe(5"and8")collarstotherearvent outlet using the
included hardware, as illustrated Figure 8a.
5”Inner Flue Collar
8”Outer Flue Collar
Flue Gasket
Flue Cover Plate
Flue Gasket
Flue Cover Plate
8” Outer Flue Collar
5” Inner Flue Collar
Montigosuppliesavarietyofdirectventingandterminationoptions.
ThedirectventterminationlocationMUSTbeselectedsuchthatitis
thehighestpointintheventingassembly. Itshouldalsobeselected
such that it provides the shortest vent run possible. Should it be
impossible to ensure that the termination is the highest point or
to meet the venting guidelines laid out below please contact your
Montigo dealer to discuss power venting options.
NOTES FOR PLANNING VENTING:
Venting can originate from the unit through the top or
through the rear
Venting can terminate through the roof or through an
exterior wall.
Refer toAppendix A- Termination Locations to ensure the
planned termination location is acceptable.
Once the termination location has been established, refer
to the appropriate section below for installation details
All replaces shipped from the factory are Top vent.
Silicone application is NOT required when joining Montigo
vent pipes and components.
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.

Page 11
PL38DF* Indoor Gas Fireplace
XG0216 -160215.1
Installation
Figure 9. Top vent, Roof mounted termination with no offset in
vent run.
Figure 9a. Top vent, Roof mounted with 1 offset (1 offset= two 90°
bends).
Figure 9b. Top vent, Roof mounted with 2 offsets (1 offset= two
90° bends).
Roof mounted Terminations
The following details are some possible congurations for Roof
mounted terminations.
Support ring
Support plate
Firestop
32’ max.
2’ min.
Obstacle
PVTK1
Termination
Section 3-2: Installing a Roof Mounted Direct Vent
Termination (PVTK-1)
This section applies to installations where the direct vent termi-
nation will be roof mounted.
Section 3-2-1: Venting Layout
Selection of components and details of venting lay out should
adhere to the following guidelines:
The maximum termination point is 32’ above the replace
(NOTE: if the maximum termination height is used, the ame
pattern may be affected).
The Vertical termination must be a minimum 2’higher than
where the termination exits the roong materials, (asphalt
shingles, cedar shakes, etc). This distance should be
measured from the high side of the roof slope where the
ue ashing intersects the roong materials. (see Figures
9 to 9c).
Terminationlocationmustbeaminimum6’fromamechanical
air inlet.
Foramoredetaileddiagramofallowedterminationlocations,
seeAppendix A.
Amaximum of two offsets (each offset is made up of 2-90°
bends) may be made for vertical vent runs.
Firestops must be installed as required by National & local
codes
Ensure all horizontal runs are supported with a minimum
of 3 supports per 10’of venting.
Install all roof ashing and storm collars as shown.
Support ring
Support plate
Firestop
32’ max.
2’ min.
PVTK1
Termination
PEXT
PXT-10
Adaptor
Flue
Collar
Support straps or
support plate & rin
2’ min.
Firestop
Firestop
Firestop
32’ max Support plate
& ring
Obstacle
PVTK1
Termination

Page 12
PL38DF* Indoor Gas Fireplace
XG0216 - 160215.1
Installation
Figure 9c. Rear vent, Roof mounted venting (1 = 90° bend).
Support ring
Support plate 32’ max
Termination
12”
Max.
PVTK1
PEXT Sections
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.

Page 13
PL38DF* Indoor Gas Fireplace
XG0216 -160215.1
Installation
1
12”
2”
12”
12”
Section 3-3: Installing a Wall Mounted Direct Vent
Termination
Thissectionappliestoinstallationswherethedirectventtermination
will be wall mounted.
1). Installation of Termination with built in frame
A Termination with a Built-In Frame is installed during framing of
a structure.
1. Frame the termination opening to 11" x 11".
2. Install exterior sheathing to the structure framing.
3. Fasten the termination to the sheathing using a minimum of 4 screws.
MSR Frame
PTO-4 (5"/8")
Termination
PTO-4F (5"/8")
Termination
Figure 10. Installing a PTO4-F termination.
Figure 10a. Installing a PTO termination with the MSR frame.
Figure 10d. Installing the VSS Vinyl Shield.
5). Installation of a termination shield for Vinyl Siding
The VSS Termination shield is installed when the exterior of a
structure is clad with Vinyl siding. It is placed directly above, and
on-center with the termination.
2). Installation of termination frame at time of framing
Terminations with a MSR frame allow the installation of the frame
prior to installation of the termination.
1. Frame the termination opening to 12" x 12".
2. Secure the MSR Frame to the exterior sheathing of the structure.
3. FastentheterminationtotheMSRFrameusingaminimumof4screws.
Figure 9b. Installing a PTO termination with the BSR frame.
3). Installation of termination frame at time of framing in Masonry
Terminations with a BSR frame allow the installation of the frame
in masonry prior to the installation of the termination
1. Frame the BSR opening to 12" x 12".
2. Secure the BSR Frame to the exterior sheathing of the structure.
3. FastentheterminationtotheBSRFrameusingaminimumof4screws.
1. Frame the MOSR opening to 12" x 12".
2. Fasten the MOSR frame to the interior side of the studs,
concrete, or nished wall construction using a minimum of 4
screws.
3. Insert the termination into the MOSR frame as shown here,
(from the inside) and attach to the MOSR by installing a min.
quantityof4boltsintothethreadednutsontheMOSRFrame.
4). Installation of termination from inside structure
A Termination with a MOSR Frame is installed from the inside of
thestructure.Thesearecommonlyusedinhigh-riseconstruction.
MOSR Frame
PTO-4 (5"/8")
Termination
Figure10c. Installing a PTO termination with MOSR frame.
BSR Frame MTKOG (5"/8")
Installing Heat Guards over Terminations is recommended in
installations where the termination is located within 7' feet above
grade, or above a pedestrian walkway, and may be Required by
code in Public areas.
1. Ensure that the two long mounting brackets are facing the
bottom of the termination. (See inset). This will provide more
heatprotectionatthetopofthetermination,wheretemperatures
are highest.
2. Attach to the faceplate of the termination using four sheet
metal screws.
Figure 11. Installing a PTO termination heat guard.
1
1”
11”
Framing
Exterior
Sheathing Fastening Hardware,
minimum 4-screws
Framing
Exterior
Sheathing Fastening Hardware,
minimum 4-screws
PTO-4 (5"/8")
Termination
Framing
Exterior
Sheathing
Fastening Hardware,
minimum 4-screws
12”
12”
Fastening Hardware,
minimum 4-screws
Framing, con-
crete or other
materials
Exterior Sheath-
ing, concrete or
other materials
Exterior Vinyl
siding
PTO-4 (5"/8")
Termination
VSS Vinyl shield

Page 14
PL38DF* Indoor Gas Fireplace
XG0216 - 160215.1
Installation

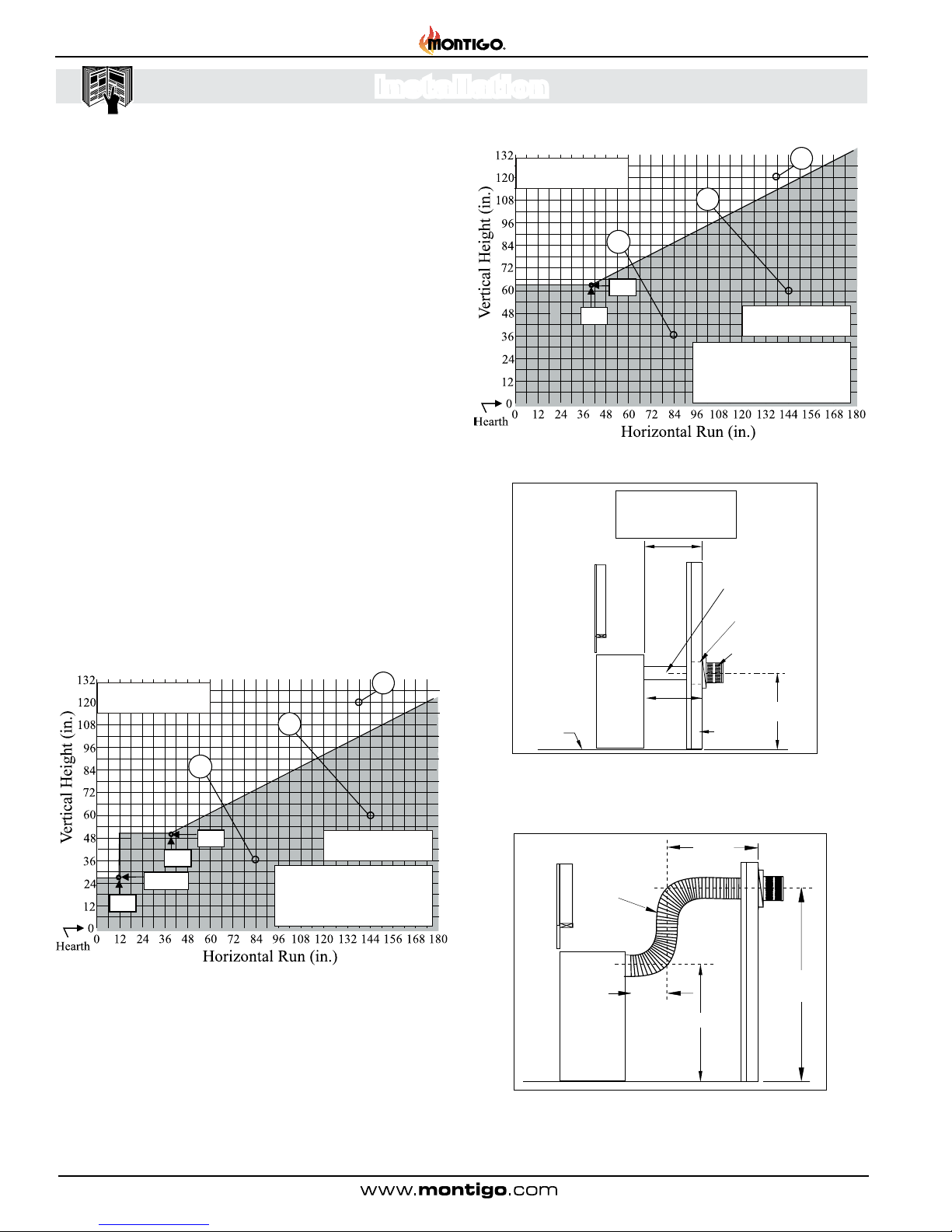

The Venting Graph:
Measure the vertical height from the replace hearth to the centre
of the termination and the horizontal run from the replace ue
collar to the wall ange of the termination. Plot on the Venting
Graph Figure 12 or 12a with an 'X'.
Ifthe'X' falls on orabovethetopboundary of the shadedarea,the
installation is acceptable.
ExampleA: (Acceptable Installation)
If the vertical dimension from the hearth is 120" and the
horizontal run to the wall ange of the vent termination is
144", this would be an acceptable installation.
Example B: (Unacceptable Installation)
If the vertical dimension from the hearth is 36" and the horizontal
run to the wall ange of the vent termination is 84", this would
not be an acceptable installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the oor of the replace is 60"
and the horizontal run to the wall ange of the vent termination
is 144", this would not be an acceptable installation.
Figure 13. Top Vented, wall mounted installation with one 90°
bend. The vent run must comply with Venting Graph for Top
vent, wall mounted terminations, Figure 12 or 12a.
Figure 13a. Top Vented, wall mounted Multi-elbow installation. See
Venting Graph for Top vent, wall mounted terminations, Figure 12
or 12a.
Section 3-3-1: Venting Layout: Wall Mounted
Termination
Selectionofcomponentsanddetailsofventinglayoutshouldadhere
to the following guidelines:
Vent terminations must not be recessed in walls or siding.
ForHeatShieldrequirementsseeSection3-3-3onpage18.
Once the proposed venting layout has been determined
refer to Figure 12, 12a, 15, or 15a to ensure the layout is
acceptable.
Notes Wall Mounted Terminations: TOP VENT
All measurements for vertical or horizontal runs are measured
from center of the vent pipe.
Venting runs must fall within the limits set by the venting
graph, see Figure 12 or 12a.
Wall mounted Terminations
The following details are some possible congurations for Wall
mounted terminations. See below.
Figure 12. PL38DF* LP Top Vent Venting Graph for wall mounted
terminations.
Figure 12a. PL38DF* NG Top Vent Venting Graph for wall mounted
terminations.
Heat
Shield
Termination
Hearth Exterior
Wall
39" Min. (NG)
44" Max. (NG)
Flex section
63" Min. (LP)
16" Max. (LP)
Solid Section
Flex Section
Hearth
30”min 15’Max. Heat
Shield
Termination
Exterior
Wall
8' MIN AT MAX
Horizontal
44”
39”
A
C
B
Unacceptable vent run
within shaded area.
Acceptable vent run
within non-shaded area.
If your installation does not fall
within the venting parameters,
please contact a local Montigo
dealer for Power Venting options.
16”
63”
A
C
B
Unacceptable vent run
within shaded area.
Acceptable vent run
within non-shaded area.
If your installation does not fall
within the venting parameters,
please contact a local Montigo
dealer for Power Venting options.

Page 15
PL38DF* Indoor Gas Fireplace
XG0216 -160215.1
Installation
Figure 14. Corner (Rigid) installation. (NG Models Only) Figure 14a. Corner (Flex) installation. (NG Models Only)
45° Corner Installation.
Attach an PEL-45 (45° elbow) directly onto the ue collar. Cut the
PXT-20 to suit, and attach it to the PEL-45. Slide the replace into
position and attach to the termination.
45° or less Corner Installation.
Use a PTO-4 termination and an PFL-1 or PFL-2 (12" or 24"
compressed length) and a frame, if appropriate. Flex may be
turnedtoobtaindesired degree of angle required but mustnot
exceed 45°.
Note: Through the wall venting kits are also available for both
theStraightandtheCornerInstallation.TheKitincludesaheat
shield, a PFL-18 (f/f) exible pipe, and a termination with or
without a mounting frame.
PEL-45 Elbow
PEL-90 Elbow
PXT-18
IMPORTANT:
Corner Installation is available for
PL38DF Top Vent Units Only. Ensure
minimum Vertical Venting Height of 40"
is maintained in corner installations.
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.

Page 16
PL38DF* Indoor Gas Fireplace
XG0216 - 160215.1
Installation
Figure15.RearVentVentingGraphforNGwallmountedterminations.
Figure 16a. Rear Vented, wall mounted Multi-elbow termination
installationforNGorLP.Installationmust complywiththeVenting
Graph for Rear vent, wall mounted terminations, Figure 15 or 15a.
Figure16.Straightrun,RearVented,wallmountedtermination.Note:
Straight through the wall rear vent available for Natural Gas only.
Notes Wall Mounted Terminations: REAR VENT
■ All dimension lengths for vertical or horizontal runs are
measured from center of the vent pipe.
■ Venting runs must fall within the limits set by the venting
graphs, see Figure 15 or 15a.
■ Fireplace must be converted to Rear Vent conguration
prior to running vent, see Figure 8 and 8a.
The Venting Graph
Measure the vertical height from the replace hearth to the centre
of the termination and the horizontal run from the replace ue
collar to the wall ange of the termination. Plot on the Venting
Graph Figure 15 or 15a with an 'X'.
Ifthe 'X' fallsonorabove the topboundaryofthe shaded area,the
installation is acceptable.
ExampleA: (Acceptable Installation)
If the vertical dimension from the hearth is 120" and the horizontal
run to the wall ange of the vent termination is 138", this would be
an acceptable installation.
Example B: (Unacceptable Installation)
If the vertical dimension from the hearth is 36" and the horizontal
run to the wall ange of the vent termination is 84", this would not
be an acceptable installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the oor of the replace is 60" and
the horizontal run to the wall ange of the vent termination is 144",
this would not be an acceptable installation.
Figure15aRearVentVentingGraphforLPwallmountedterminations.
26 3/8”
PXT Extension
RHS101 Heat
Shield
Termination
Hearth Exterior
Wall
NOTE:
12” MAX. horizontal
run with no vertical lift.
12” MAX.
30” Max.
49” Min NG
12”
Max.
Flex or Rigid
Section
26 3/8”
63” Min LP
42”
63”
A
C
B
Acceptable vent run
within non-shaded area.
Unacceptable vent run
within shaded area.
If your installation does not fall
within the venting parameters,
please contact a local Montigo
dealer for Power Venting options.
42”
49”
A
C
B
Acceptable vent run
within non-shaded area.
Unacceptable vent run
within shaded area.
12”
26.3/8” If your installation does not fall
within the venting parameters,
please contact a local Montigo
dealer for Power Venting options.

Page 17
PL38DF* Indoor Gas Fireplace
XG0216 -160215.1
Installation
A- Termination PTO4 (3" Length)
PTO4F (3" Length)
PVTK1SS
B - Frame Kits MSR (Stucco Frame)
MOSR (Stucco Frame)
BSR-4 (4" Brick Frame)
BSR-6 (6" Brick Frame)
C - Flex Sections PFL - 1 (12" f/f Section)
PFL - 18 (18" f/f Section)
PFL - 2 (24" f/f Section)
PFL - 3 (36" f/f Section)
PFL - 4 (48" f/f Section)
PFL - 6 (72" f/f Section)
D - Rigid Sections PXT - 5 (5" f/f Section)
PXT - 10 (10" f/f Section)
PXT - 20 (20" f/f Section)
PEXT - 1 (12" f/m Section)
PEXT - 2 (24" f/m Section)
PEXT - 3 (36" f/m Section)
PEXT - 4 (48" f/m Section)
PEXT - 6 (72" f/m Section)
E - Elbows PEL-90MM (m/m 90º Elbow)
PEL-90FF ( f/f 90º Elbow)
PEL-90FM ( f/m 90º Elbow)
PEL-45FM ( f/m 45º Elbow)
F - Support Ring & Plate PSPXT-8
G - Firestop FS-8
H - Roof Flashing PRF-7 (1/12 - 7/12 pt.)
PRF-12 (7/12 - 12/12 pt.)
I - Heat Shield RHS101
J - Heat Guard MTKOG
Connection and installation of the vent components
should adhere to the following guidelines:
Montigo recommends the use of a ex section for the nal
pipe connected directly to the replace offering greater
exibility of installation and absorption of movement.
Firestops must be installed as required by National & local
codes.
Montigorecommendsthatallexteriorcornersandjointsbe
sealedwithexteriorcaulking.However,weencourageyouto
consult your Building Envelope Engineer or Waterproong
Consultant for further recommendations.
Section 3-3-2: Venting Components
The following components and associated Montigo part num-
bers for installation of a roof or wall mounted termination. Use
only Montigo Vent Components. Use of non-Montigo parts will
VOID the warranty and may impede operation of the replace.
Use any combination of rigid and ex pipe as required and in
anyorientation(Maleconnectorscanfaceinanydirection).
Flexsectionsmaybestretchedupto50%oftheirtotallength
(e.g. a 24” section maybe stretched to 36”).
Connect all vent sections using a minimum of three sheet
metal screws on the outer pipe ue.
Ensure the pipe ends male to female slide in a minimum of
1 1/2” of overlap.
Ensure all horizontal runs are supported with a minimum
of 3 supports per 10’of venting.
Whenhanging/supportingventing,ensurethat1”clearance
ismaintainedonsidesandbottomofventrunsand2”above
horizontal vent runs to any combustible material.
Rigid pipe may be cut less than half way from the female
end only.
Ensure when cutting sections of rigid pipe to maintain
integrity of internal supports.
Place the springs, supplied with the pipe kit, between the
outerand inner pipesto keep the pipes separate and avoid
any possible hot spots.
IMPORTANT:
PleaseRefertoyourBuildingEnvelopeEngineer
or Waterproong Consultant for a review of ALL
penetrations through exterior walls or the roof.

Page 18
PL38DF* Indoor Gas Fireplace
XG0216 - 160215.1
Installation
Section 3-3-3: Heat Shields
Installing a Wall Mounted RHS8 Heat shield
The RHS8 Heat shield CANNOT be used when the Termination is
WITHIN (36" Min. horizontal and 60" Min. vertical) from the replace,
or directly off the rear of the replace, as shown gure 17a. The
RHS101Heat Shield(Figure18cand 18d)MUSTbeused within the
noted dimensions.
ToinstalltheRHS8,frameanopeningincombustibleconstruction,
Figure 17 below. Slide the Heat shield in place over the vent pipe
which attaches to the replace. After the replace and vent pipe
has been installed, clearances should match the dimensions in
Figure 17a.
Installing a Wall Mounted RHS101 Heat shield.
TheRHS101HeatshieldMUSTbeusedwheretheRHS8Termination
(Figure 17 and 17a) CANNOT be used. Use the RHS101 where any
of the dimensions are within the parameters shown, gure 17a.
To install the RHS101, Slide the Inner Section over the vent pipe
that will connect to the replace. Then fasten the vent pipe to the
back of the replace with a minimum of three sheet metal screws.
FromtheoutsideslidetheRHS101outersectiononseeFigure 18.
To complete the installation fasten the Heat Shield Outer Section
& Termination frame to the structure Figure 18a.
Figure 17. RHS8 Installation. (Install by sliding over vent pipe where it
passes through the combustible construction).
Figure 18. RHS101 Installation. (Install by sliding Outer Section over vent
pipe where it passes through the combustible construction.
Figure 17a. RHS8 Installation. (Minimum requirements).
RHS8 Heat Shield
1” Min. Both sides Typical
1” Min.
1” Min.
Combustible Framing
Figure 18b. RHS101 Installation.
Outer Shield 10 1/4”
3/8” Min. Both sides Typical
3/8” Min.
3/8” Min .
Combustible Framing
12” x 12”
Inner Shield 9 3/8”
Figure 18a. RHS101 Heat Shield after sliding the outer section in place.
Termination
Drywall / sheetrock
RHS101 Heat Shield, inner Section
RHS101 Heat Shield
Outer Section
Combustible
framing
Termination
Drywall / sheetrock
RHS101 Heat Shield, inner Section
RHS101 Heat Shield
Outer Section
Vent pipe, from fireplace
RHS8 Heat
Shield
36” Min
60” Min.
PTO Termination
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.

Page 19
PL38DF* Indoor Gas Fireplace
XG0216 -160215.1
Installation
5 1
2
"
7
8
"
6 5/8
2 1
2
"
Section 4: Wiring
Models
PL38DFNI
PL38DFLI
NOTE:If any of the original wire supplied with the appliance is
replaced,itmustbe replaced with the same type, or itsequivalent. Figure 20. Electrical connection access.
Figure 19. Wiring diagram for PL38DF with SIT Proame 2 Electronic Ignition
1.5V AA type
1.5V AA type
1.5V AA type
1.5V AA type
BLACK
WHITE
BLACK
WHITE
GREEN
VARIABLE SPEED
COMFORT FANS
MAIN
Power
120VAC 60 Hz
6 Amps
SPARK
SENSOR
RED
BLACK
BATTERY
PACK
MAIN ON/OFF
SWITCH
YELLOW/GREEN
885 PROFLAME
PILOT
BURNER
ORANGE
GREEN
BLACK
BROWN
YELLOW
ORANGE
6
10
4
6
3
4
Blk
Blk
Wht
Wht
CPI/IPI SWITCHBLUE
WHITE
X10
X11
X12
X13
X1
X6
X5
X4
X3
X2
LED Lights
LED1 - Red LED
LED2 Amber LED
3.15A FUSE
SW1
jumper OPTIONAL
To PPO
MAIN Power
120VAC 60 Hz
6 Amps

Page 20
PL38DF* Indoor Gas Fireplace
XG0216 - 160215.1
Installation
CPI [Continuous Pilot Ignition] / IPI [Intermittent
Pilot Ignition] Jumper Cable Installation
“Why use CPI mode”?
There are several reasons why you may choose to use
CPI mode. When a ue is cold it can be difcult to light
the appliance. It can take a bit of time (particularly on tall
vents) to initialize vent action. This can result in “lifting” or
“ghosting” of the ames during the rst two to three minutes
of operation. It is also possible to encounter times when
the replace fails to light successfully. The replace will
then attempt to re-light a second or third time depending
on prevailing temperatures or altitude. When in CPI mode
thepilot also keeps the systemwarm. Duringa “cold”start,
condensation will normally form on the inner glass surface
of the door. This condensation will quickly dry, however,
the condensation tends to run down the glass and cause
some streaking. CPI mode helps to resolve this issue. If
CPI mode is used during the winter months the energy it
takes to run the pilot is partially recovered as heat into the
building, so it does not waste as much energy as running
a pilot in the off season.
A connector is supplied with this unit that can be plugged
into the controller. This Jumper Cable gives the Remote
ControltheabilitytooperatetheCPI/IPIswitchandsetthe
unit to operate in either condition. CPI means “Continuous
Pilot Ignition” or “Standing Pilot” as it is commonly known.
IPImeans “Intermittent Pilot Ignition”,which only initializes
the pilot when you are going to be using the appliance.
The difference between IPI and CPI:
IPI(IntermittentPilotIgnition)Mode: isafuelsavingmode
in which the pilot is only used when the main burner is on.
CPI (Continuous Pilot Ignition) Mode: The Pilot runs
continuously even when the main burner is off.
Installing the CPI Jumper Cable
Figure 21.
Figure 21a.
Figure 21b.
1). Remove the door and valve blind.
2). Remove the bag containing the Jumper Cable from
the wire harness connected to the controller as shown in
Figure 21.
3).Findthecorresponding plugattachedto thecontrolwire
harness and connect the CPI jumper.
4). See operation section to turn remote into CPI mode.
