Regency Fireplace Products I31-NG3 Service manual

Model: I31-NG3
I31-LPG3
Owners &
Installation
Manual
09/10/12
LISTINGS AND CODE APPROVALS
These gas appliances have been tested in
accordance with AS4553, NZS 5262 and
have been certified by the Australian Gas
Associationforinstallationandoperationas
describedintheseInstallationandOperating
Instructions.
Yourunitshouldbeserviced annuallyby
an authorised service person.
918-001d
I31-3 Gas Inbuilt
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appli-
ance
Do not touch any electrical
switch:donotuseanyphone
in your building.
Immediately call your gas
supplier from a neighbour's
phone. Follow the gas sup-
plier's instructions.
Ifyou cannotreachyourgas
supplier, call the fire depart-
ment.
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional in-
formation consult an authorised installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flam-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
byan authorisedinstaller, serviceagencyor
the gas supplier.
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE

2Regency I31-3 Gas Fireplace Inbuilt
REGENCY
GAS FIREPLACE INBUILT FIREPLACE
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by Regency
Industries.TheRegencyGasFireplaceSeriesofhandcraftedapplianceshasbeendesigned
to provide you with all the warmth and charm of a fireplace, at the flick of a switch. The
model I31-3 of this series has been approved by Australian Gas Association for both safety
and efficiency. As it also bears our own mark, it promises to provide you with economy,
comfort and security for many trouble free years to follow. Please take a moment now to
acquaint yourself with these instructions and the many features of your Regency Fireplace.
40-1/4" (1022mm)
26-1/4" (667mm)
20-1/4" (514mm)
5/8"
(16mm)
1-3/8" (35mm)
27-7/8" (708mm) 13-1/2" (343mm)
11-3/4"
(298mm)
3-3/4"
(95mm)
38mm

3
Regency I31-3 Gas Fireplace Inbuilt
TABLE OF CONTENTS
REGENCY GAS FIREPLACE INSERT
Unit Dimensions ..........................................................2
Safety Label.................................................................4
Installation
For Your Safety............................................................5
Specifications ..............................................................5
Installation Checklist....................................................5
Materials Required .....................................................5

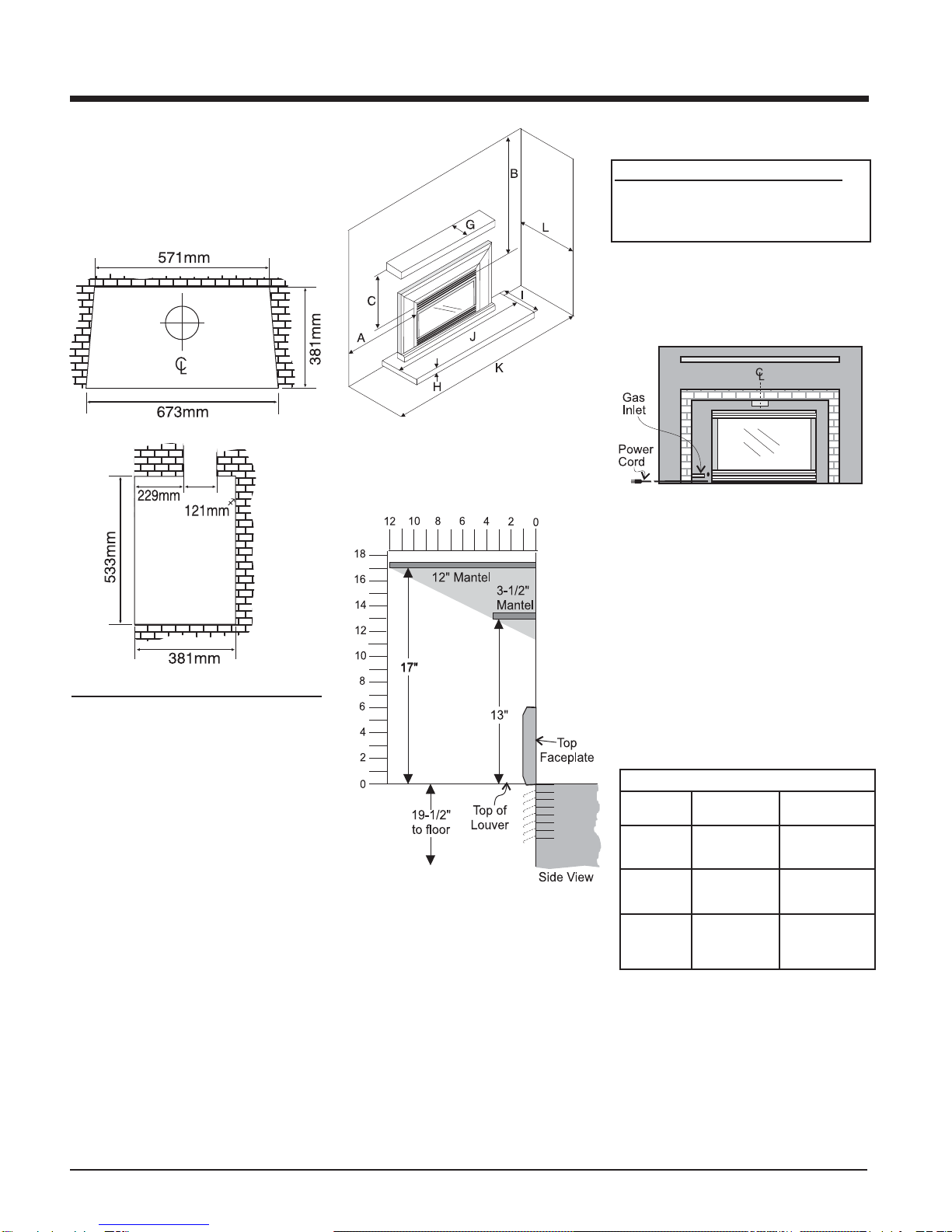

Minimum Fireplace Dimension....................................6
Clearances to Combustibles........................................6
Gas Connection...........................................................6
Draft Diverter Connection............................................7
Flueing .................................................................7
- Combustion & Ventilation........................................7
Gas Pressure Test.......................................................7
Test for Flue Spillage...................................................7
Optional Brick Panel ...................................................8
Log Installation ............................................................8
Faceplate & Trim .......................................................10
Glass Front Installation
- Standard Flush Door (1 panel)..............................10
- Flush Louvres........................................................10
- Optional Bay Door (3 panel)..................................11
- Bay Louvres ..........................................................11
Hampton Cast Faceplate Installation.........................12
Hampton Cast Grill Installation..................................13
Barossa Curved Front ...............................................14
Optional Remote Control ..........................................15
Optional Wall Thermostat..........................................15
Wiring Diagram..........................................................15
Operating Instructions
Operating Instructions ...............................................16
Lighting Procedure ....................................................16
Shutdown Procedure.................................................16
First Fire ...............................................................16
Automatic Convection Fan Operation........................16
Normal Operating Sounds of Gas Appliances...........16
Copy of Lighting Instruction Plate..............................17
Maintenance
Maintenance..............................................................18
- Gold Plated Trim...............................................18
- Log Replacement..............................................18
- Door Glass Replacement..................................18
- Bay Glass Removal..........................................18
- Flush Glass Replacement.................................18
- Glass Gasket....................................................19
- Fan Maintenance..............................................19
Trouble Shooting ......................................................20
Parts List ...............................................................21
Warranty
Warranty ...............................................................27

4Regency I31-3 Gas Fireplace Inbuilt
DATA BADGE
(Australia Only)
This is a copy of the label that accompanies
each Regency I31-3 Gas Inbuilt fireplace. We
have printed a copy of the contents here for
your review.
DATABADGE NOTE: Regency units are con-
stantlybeingimproved. Check the label on the
unitand if there isa difference,the label onthe
unit is the correct one.
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTIONS BOOKLET.
PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
STORE CHEMICALS OR FLAMMABLE MATERIALS
SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IN OPERATION.
OPERATE WITH PANELS, COVERS OR GUARDS
REMOVED FROM THIS APPLIANCE.
ENCLOSE THIS APPLIANCE.
DO NOT MODIFY THIS APPLIANCE.
NEAR THIS APPLIANCE.
DO NOT
908-602a
Electrical Conforms to AS3100 240V 50Hz 1.0 amp Max.
Serial
Number
908-062f
Regency Gas Fireplace
Model
Gas Type NG LPG NG LPG
Model
AGA 5815G/5498G
AS4553 5815 5815 5498 5498
P36-NG P36-LPG I31-3NG I31-3LPG
Gas Consumption 33mj. 31mj. 31mj. 31mj.
Manifold Pressure 1.0kPa 2.7kPa .9kPa 2.59kPa
Injector Size 1x#37 1x#52 1x#37 1x#52
2.65mm 1.6mm 2.65mm 1.6mm
N2134 241
Distributed by:
Western Australia:
To be installed by an authorised person in
accordance with installation instructions
provided with the appliance.
Air Group Australia
28-30 Division St
Welshpool, WA 6106
Fireplace Products
Australia Pty. Ltd.
21-23 South Link Blvd.
Dandenong, VIC 3175
Eastern Australia:

5
Regency I31-3 Gas Fireplace Inbuilt
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The Regency Gas Fireplace must be installed
inaccordancewith theseinstructions.Carefully
read all the instructions in this manual first.
Note: Failure to follow these instructions
could cause a malfunction of the
heater which could result in death,
serious bodily injury, and/or prop-
erty damage. Failure to follow these
instructions may also void your fire
insurance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combus-
tion. Alwaysprovideadequatecombustionand
ventilation air. Follow instructions and informa-
tion in the current AS5601-2004, NZS 5261
or local codes. Consult the "authority having
jurisdiction" to determine the need for a permit
prior to starting the installation.
GAS PIPE TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shutoff valve during any pressure
testing of the gas supply piping system at
test pressures equal to or less than 3.45 kPa.
Specifications:
Fuel: NG or LPG (see page 7)
Electrical:240 volt 50 hz system
Fan/Blower:2-speed, 127 CFM
Log Sets: Ceramic fibre
BEFORE YOU START
Installation is to be carried out ONLY by an
authorised person.
1) The appliance shall be installed in accord-
ance with the manufacturer'sinstallation
instructions,local gas fitting regulations,
municipal building codes, water supply
regulations,electricalwiringregulations,with
AS5601-2004.(AGA gas installation code)
NZS 5261(New Zealand)
2) Installation and repair should be done
ONLY by an authorised person.
3) The appliance should be inspected before
use and at least annually by an authorised
serviceperson.Morefrequentcleaningmay
berequiredduetoexcessivelintfromcarpet-
ing, bedding material, etc. It is imperative
that control compartments, burners and
circulatingairpassagewaysoftheappliance
be kept clean and free from excessive lint
from carpeting.
4) See general construction and assembly
instructions.This appliance mayonlybe in-
stalledinaflued,non-combustiblefireplace.
The appliance and flue should be enclosed
when installed or passing through a living
area, where children may come in contact
with it.
5) Alwaysconnectthisspaceheatertoachim-
ney and flue to the outside of the building
envelope.Neverfluetoanotherroom. Make
sure that the flue is properly sized and is of
adequateheighttoprovidetheproperdraft.
6) Inspect the flueing system annually for
blockage and any signs of deterioration.
7) Anysafetyglassremovedforservicingmust
bereplacedpriortooperatingtheappliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Installer must mechanically attach the sup-
plied label to the inside of the firebox of the
fireplace into which the gas fireplace insert
is installed.
“WARNING:This fireplace hasbeenconverted
forusewithagasfireplaceinsertonlyandcannot
be used for burning wood or solid fuels unless
all original parts have been replaced, and the
fireplace re-approved by the authority having
jurisdiction.”.
INSTALLATION
CHECKLIST
The Regency Gas Insert is installed as listed
below.
1) Unit Location - check Clearances to Com-
bustibles on page 6.
2) Make the gas connections (see page 6).
3) Install the flue or liner to the sliding draft
diverter. See page 7.
4) InstallFlueing,page7.Slidetheunitintothe
fireplace. Attach draft diverter to the insert.
5) Test gas pressure, page 7. Check aeration,
page 7.
6) Test for flue spillage, page 7.
7) Install the optional brick panels. See page
8.
8) Install the log set. See page 8.
9) Assembleandinstallthefaceplateandtrim.
See page 10.
10) Installtheglassfront(page10)andoptional
Bay Front (page 11).
11) Install both louvres, flush (page 10) or Bay
(page 11).
12) InstallOptionalRemoteControlandOptional
Wall Thermostat, page 15.
13) Finalcheck:Beforeleavingthisunitwiththe
customer,theinstallermustensurethatthe
appliance is firing correctly. This includes:
a) Clocking the appliance to ensure the
correct firing rate.
b) Adjusting the primary air, if required, to
ensure that the flame does not carbon.
See page 7.
c) Ensuring that the appliance is flueing
correctly. See page 7.
MATERIALS REQUIRED
Noelectric power supplyis required forthe gas
control to operate.A240 VoltAC power cord is
hooked up to the fan switch and blower. Plug 3
wire cord into a suitable receptacle. Do not cut
thegroundterminaloffunderanycircumstances.
When connected with 240 volts, the appliance
must be electrically grounded in accordance
with local codes.
Note: Thisunitisequippedwithaheatsen-
sorthermodiscwhichwillpreventthe
blower from operating until the unit
reaches the correct temperature.

6Regency I31-3 Gas Fireplace Inbuilt
GAS CONNECTION
GAS CONNECTION WARNING:
Onlypersonslicensedtoworkwith
gaspipingmaymakethenecessary
gas connections to this appliance.
1) If the appliance is to be installed into an
existing chimney system, thoroughly clean
the masonry or factory built fireplace.
2) The gas connection is 12" BSP.
3) Locate the center point where the flue will
passthroughthe chimney abovetheappli-
ance. Move the appliance into the exact
location where it is to be installed. Ensure
that the Insert is level.
4) The installer must provide a valve with a
pluggedtapping,accessiblefor test gauge
connection, immediately upstream of the
gas supply connection to the appliance.
CAUTION:Iftheglassisremovedoropened
forservicing,itmustbereplacedandclosed
prior to operating the appliance. The glass
must be fixed in the door when operating.
SPECIFICATIONS
INSTALLATION
NOTE:MantelclearancesforInstallationinto
a Zero Clearance Kit are different.
Please refer to the Zero Clearance
Kit Manual for details.
Mantel Clearances with
Bay and Flush Louvres in
Masonry Installation
MINIMUM FIREPLACE
DIMENSIONS
The minimum fireplace dimensions for the
Regency gas space heater are shown in the
following diagrams:
Note: A non-combustible mantel may be
installedatalowerheightifthefram-
ing is made of metal studs covered
with a non-combustible board.
Note: A minimum of 38mm must be main-
tained for the rear of the unit and the
rearofthefireplacetoensurecorrect
operation of down draught divert.
Ensure the standoff tabs at the rear
of the unit are in position.
MINIMUM
CLEARANCES TO
COMBUSTIBLES
The minimum fireplace clearances for the
Regency gas space heater are shown in the
following diagrams:
From Unit
Sides A255 mm
Ceiling B1205 mm
Mantle C see Mantel
Clearances
From Surround
(660 mm x 1016 mm)
Max. Mantle Depth G 305 mm
Hearth Height H 0 mm
Hearth Depth I 405 mm
Hearth Width J 1015 mm
Min. Alcove Width K1220 mm
Max. Alcove Depth L 915 mm
NG LPG
INJECTOR #37 #52
SIZE 2.65mm 1.6mm
INPUT Min. 17 mj/h Min. 17 mj/h
RATING Max. 31 mj/h Max. 31 mj/h
MANIFOLD
PRESSUREMax. 0.9 kPa Max. 2.59 kPa

7
Regency I31-3 Gas Fireplace Inbuilt
TEST FOR FLUE
SPILLAGE
A " spillage" test must be made before the
installedunitisleftwiththecustomer.Follow
the procedure below:
1) Start all exhaust fans in the home and then
close all external doors and windows in the
house.
2) Light the unit and set controls to maximum.
Turn fan off.
3) After five minutes, test that there is a “pull”
on the flue by placing a smoke match,
cigarette or similar device which gives off
smoke,in frontofthe spilltube.Toensurea
validtest,placeascrappieceofsheetmetal
(orothernoncombustiblematerial)between
the spill tube and the upper louvre, this will
prevent the natural convection of the unit
from interfering with the test. See diagram
1.
Diagram 1
INSTALLATION
Diagram 1
Diagram 2
FLUEING
THEAPPLIANCE MUST NOT BE CONNECT-
ED TO A CHIMNEY FLUE SERVING A SEPA-
RATE SOLID FUEL BURNING APPLIANCE.
This appliance is designed to attach to a 100
mm diameter twin skin or listed gas fuel type
fluelinerrunningthefulllengthofthechimney.A
minimumflueheightof3.6 m.isrecommended.
The Regency Inbuilt Fireplace incorporates
its own internal draft diverter, so no additional
external draftdiverter is required.
Periodically check that the flue is unrestricted
and an adequate draft is present when the unit
is in operation. (See page 7 for spillage test.)
Before installing flue system ensure that the
damper plate is open and secure to prevent
the damper plate from falling down and crush-
ing the liner.
Install to AS5601-2004,(Australia) NZS 5261
(New Zealand).
Combustion and Ventilation Air
WARNING: This appliance needs
freshairforsafeoperationandmust
be installed with provisions for ad-
equate combustion and ventilation
air available to the room in which it
is to be operating.
Air for combustion is drawn in through the front
of the unit, therefore, the front of the unit must
be kept clear of any obstructions.
GAS PRESSURE TEST
The unit is preset to give the correct gas input
at the specified manifold pressures shown on
the label. The maximum gas manifold pressure
is:
NG 0.9 kPa
LPG 2.65 kPa
Themanifoldpressureiscontrolledbyaregulator
builtintothegascontrol,andshouldbechecked
at the pressure test point. The pressure check
should be carried out with the unit burning and
the setting should be within the limits specified.

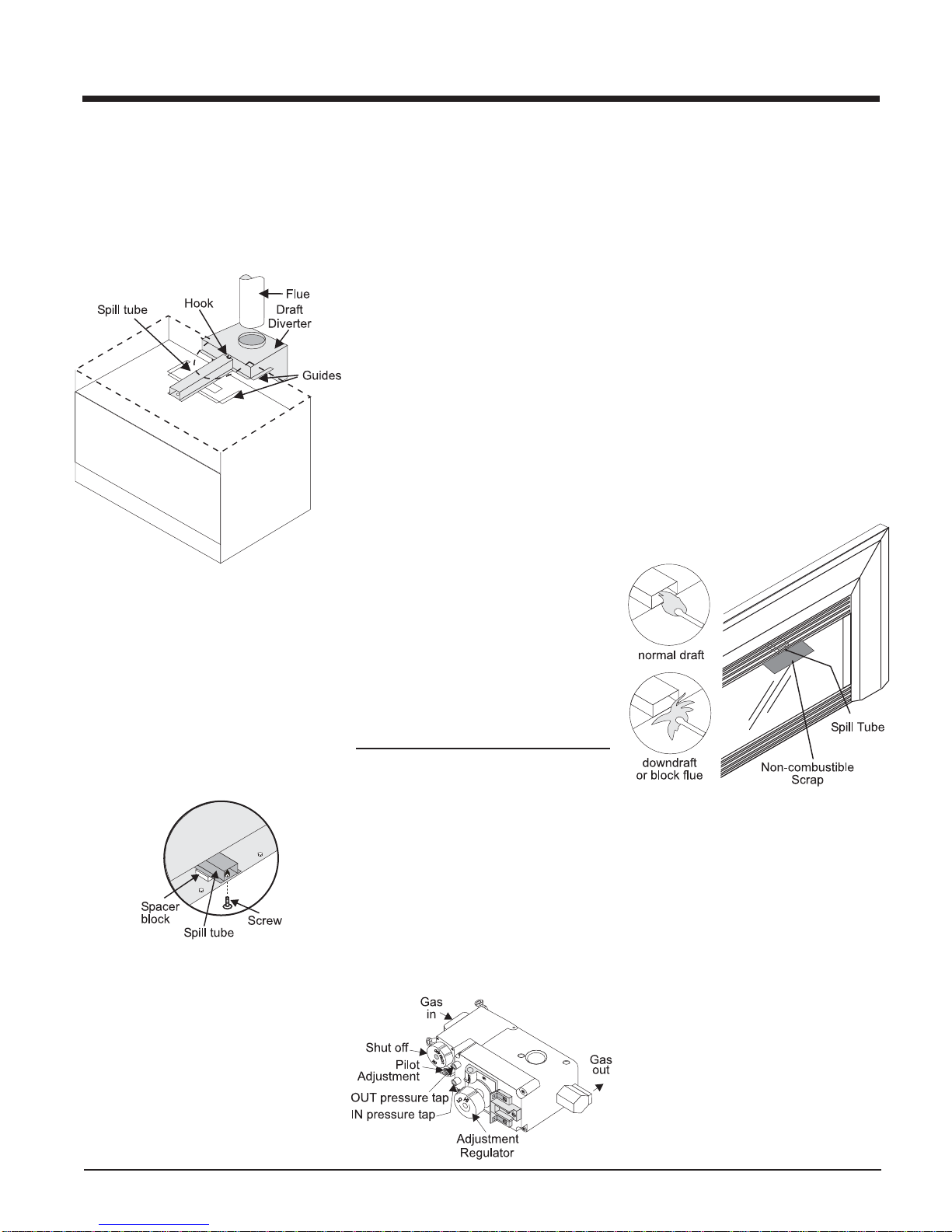

DRAFT DIVERTER
CONNECTION
1) Attach the flue to the flue collar on the
detachable draft diverter. The flue collar of
the appliance will fit inside a standard flue
and may be fastened directly to the flue by
sheet metal screw. Diagram 1.
2) Before pushing the appliance into position
inside the fireplace, align the draft diverter
with the guides on the insert top and push
forward. While pushing the unit back into
placekeep pullingthe draftdiverter forward
until the screw hole in the spill tube aligns
with the screw hole in the top of the firebox.
Thescrewissecuredthroughtheinsidetop
of the firebox into the bottom of the spill
tube. (If screw holes do not line up then
draft diverter is not positioned correctly.)
Diagram 2.
NOTE: Final gas connection should be after
unitisinplacetoavoiddamagetoline
when pushing the unit into position.

8Regency I31-3 Gas Fireplace Inbuilt
LOG SET
INSTALLATION
Readtheinstructionsbelowcarefullyandre-
fertothediagrams. Iflogsarebrokendonot
use the unit until they are replaced. Broken
logs can interfere with the pilot operation.
The gas log kit contains the following:
a) 02-43 Rear Log 902-227
b) 02-45 Front Right Log 902-229
c) 02-56 Middle Left Log 902-230
d) 02-46 Left Top Log 902-231
e) 02-47 Center Log 902-232
f) 02-48 Middle Right Log 902-226
g) 02-44 Front Left Log 902-228
h) Embers and Rockwool
i) Vermiculite and Ember combination
Note: Install Optional Brick Panels prior to
installing logs.
Vermiculite and
embers. Vermiculite and
embers.
Vermiculite and
embers.
The "02" refer numbers (i.e. 02-43) are
molded into the rear of each log.
INSTALLATION
The smoke should be drawn into the spill tube.
If the smoke is still not drawn into the spill tube,
turn the unit off and check for the cause of the
lack of draft. If necessary, rectify.
Diagram 1
Diagram 2
Diagram 3
Forwindturbulentsites,awindcapmayremedy
the problem.
Note: The thermally activated safety switch
willsensethechangeintemperatureandshut
down the gas valve in the event of a severe
downdraft or a blocked or disconnected
flue. The switch acts as a safety shut-off to
preventabuild-upofcarbonmonoxide. Ifthe
flue is blocked or has no "draw", the switch
will automatically shut off the supply of gas
within 5 - 10 minutes. Tampering with the
switch can result in carbon monoxide (CO)
poisoning and possible death.
Iftheheaterturnsoffbecauseoflackofdraft
during the spillage test, check for the cause
and if necessary, rectify.
The thermally actuated safety switch will
automatically reset after it has cooled off.
The switch will continue to cycle until the
draftproblemiscorrected.DONOTBYPASS
OR DISCONNECT THIS SWITCH.
OPTIONAL
BRICK PANEL
1) Unwrap the brick pattern panels from the
protective wrapping.
2) Removetheglassfrontifitisalreadyinstalled
(see manual).
3) Puttherearbrickpanelflatagainsttheback
of the unit.
4) Beforeinstallingthesidebrickpanels,loosen
thescrews forthe bricktabsenough sothat
youcanslidethebricktabsontothescrews
easily but that the tabs are secure. For the
location of the side brick tab screws see
diagram 1.
5) Remove the brick tabs and slide the side
brick panels into position. See diagram 3.
Install the brick tabs. See diagram 2.

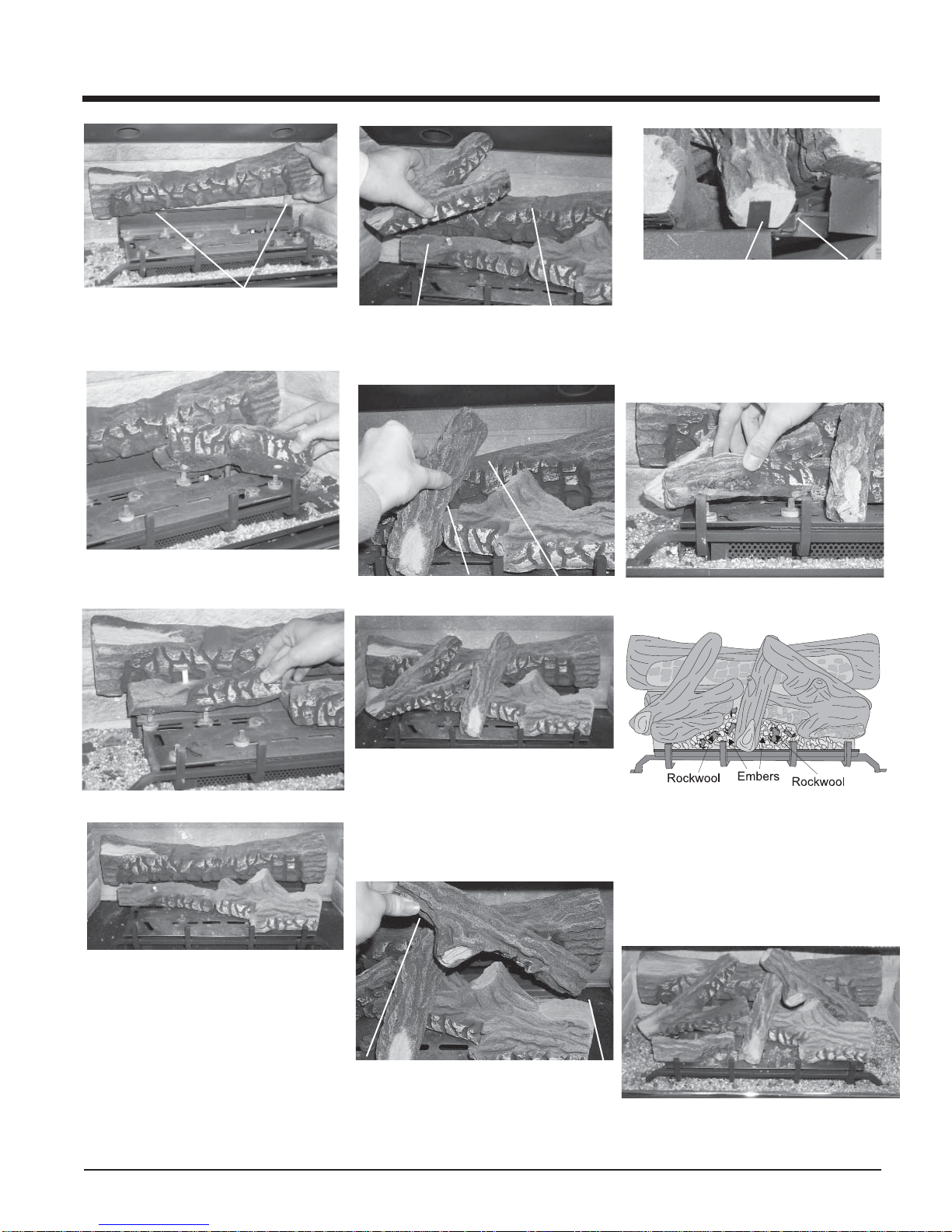

1) Carefully remove the logs from the box and
unwrap them. The logs are fragile, handle
with care - do not force into position.
2) Sprinklethevermiculiteandembercombina-
tion around the firebox base.
3) Place Rear LogA)02-43 on the two pins on
the rear log support.

9
Regency I31-3 Gas Fireplace Inbuilt
Logs D)02-46 and E)02-47 in position.
6) Place the Left Top Log D)02-46 on the pin
on Log C)02-56 and on top of the cutout
on Log A)02-43.
7) Place the notch in Center Log E)02-47 over
Log B)02-45 and across the cutout on Log
A)02-43.
Cutout
Pin
Cutout
Notch
8) Position notch in Front Right Log F)02-48
on Log E)02-47 and push the bottom right
edgeagainstthe bracket on theburnertray
and the front edge of the rear burner.
Notch Bracket
9) PlaceFrontLeftLogG)02-44ontothe2front
pins as shown.
10) Place the embers and Rockwool on the
exposed front burner tray.
11) Test fire to ensure proper light off (make
sure flame flows smoothly from one end
of burner to the other. If there is any flame
hesitation,checkthatareaforanyblockage
of the burner port.
12) Install flush glass and optional bay glass as
D)02-46
E)02-47
F)02-48
per instructions in this manual.
G)02-44
C)02-56
A)02-43
B)02-45
A)02-43
B)02-45
E)02-47
C)02-56
A)02-43
B)02-45
F)02-48
D)02-46
G)02-44
E)02-47
F)02-48
B)02-45
Bracket
A)02-43
Front edge of
rear burner
The bottom right edge of Log F)02-48 must sit
snugly against the bracket and the front edge
of the rear burner.
Side View
Pins on Rear Log Support
Logs A)02-43, C)02-56, and
B)02-45 in position
A)02-43
B)02-45
C)02-56
INSTALLATION
5) Place the Middle Left Log C)02-56 on the
two pins as shown.
4) Place Front Right Log B)02-45 on the two
pins as shown.

10 Regency I31-3 Gas Fireplace Inbuilt
FLUSH FRONT
INSTALLATION
1) InstallLogsbeforegoingontothenextstep.
SeetheLogInstallation instruction sheet or
page 8 in the manual.
2) Install the bottom glass trim by hooking the
triminto thelipon thefirebox base.Thetrim
will not fit into place if the glass is installed
first.
Diagram 1
Diagram 3
Diagram 4

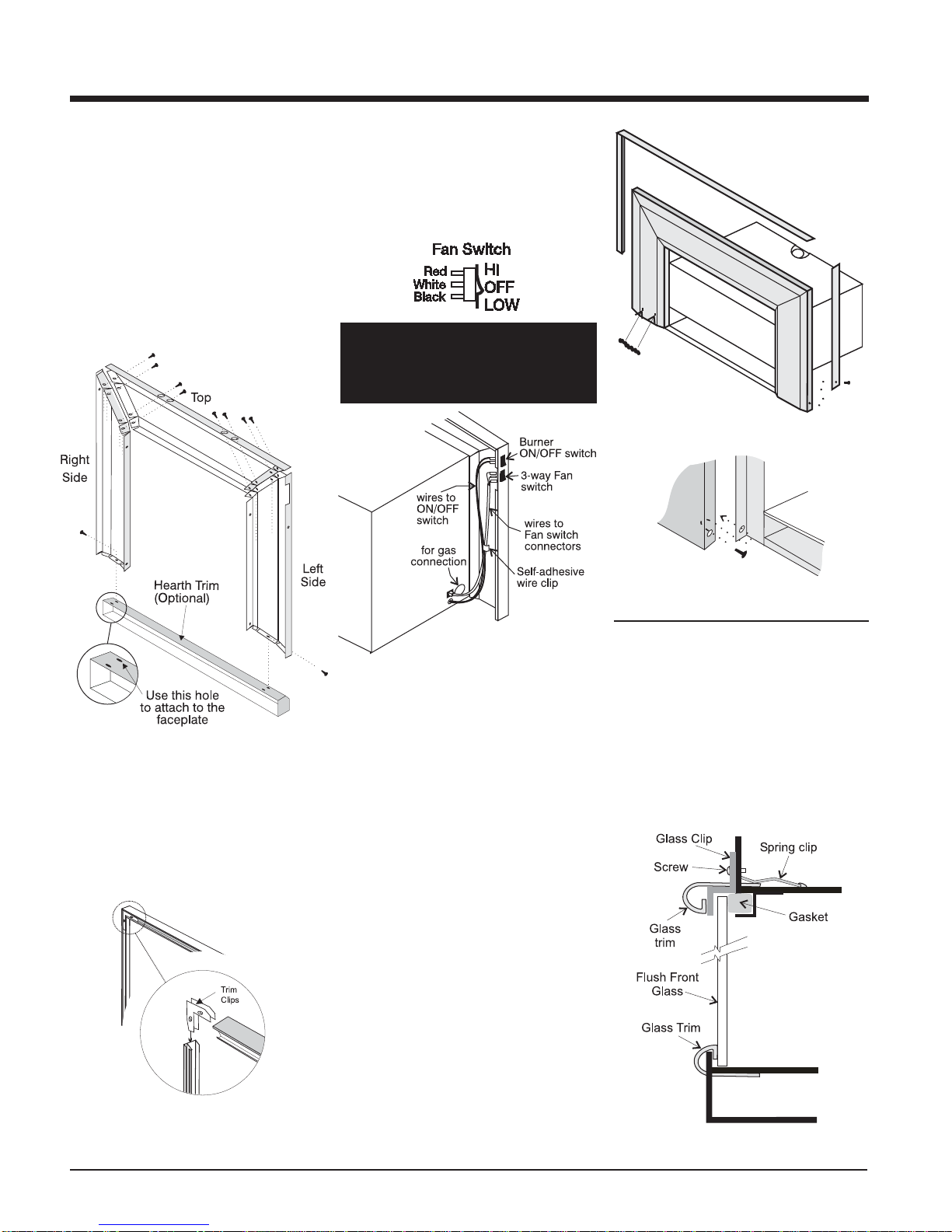

FACEPLATE & TRIM
INSTALLATION
1) Lay the faceplate panels flat, face down on
something soft so they don't scratch.
2) Take the top faceplate and align the holes
in it with the holes in the side panels. Us-
ing the screws provided, attach from the
top of the panel (the holes in the top panel
are slightly larger than the holes in the side
panel to facilitate easier installation). See
diagram 1.
Diagram 2
Rear View: Trim Assembly
Diagram 5
Hint: Don't tighten the trim to the bottom
of the faceplate side panels with the screws
provided. See diagram 1.
3) Using the connectors provided, join the left
side trim (with the ON/OFF switch) to the
top trim. Connect the right side trim to the
top trim.See diagram 2.
4) Place the trim on the assembled faceplate
panels, aligning the wire connections from
the switches with the notch on the left side
panel.
5) Hookup the 3 Fan Switch wires to the fan
switch on the left side trim. Diagram 3.
WARNING: The 3 wires are to the
Fanand the2 wiresareto theON/
OFF burner switch. DO NOT con-
nect to the wrong switch.
WARNING:
Ensure that the wires do NOT
touch the firebox
INSTALLATION
6) Connectthe2burnerON/OFFswitchwires
by taking the yellow and orange wires with
the female ends and connecting them to
the burner ON/OFF switch.
7) Tuck the wires into the faceplate to keep
them away from the inbuilt fireplace using
theclipprovided. Attach the clip totherear
of the faceplate to ensure that the wires do
not touch the side of the unit. See diagram
3.
8) The power cord should be run behind the
faceplate panel.
9) Attach the brass trim to the faceplate by
drillinga1/8"holethroughintothefaceplate
usingtheholeinthetrimasaguide. Fasten
the trim to the faceplate panels using the
plated screws. See diagram 4.
10) Attach the faceplate panels* to the inbuilt
fireplace body using the 4 remaining black
screws. See diagram 5.
11) Push the Regency logo plate into the two
holes in the bottom left corner of the face-
plate. See diagram 4.

11
Regency I31-3 Gas Fireplace Inbuilt
BAY FRONT
INSTALLATION
1) Place the bay door onto the 2 pins on the
top of the unit.
2) Install bottom louvre by sliding the two
bracket clips into the brackets located
underneath the bay door and secure with
2 screws into the bracket on the bottom of
the Bay Front as per diagram above.
3) Slide the valve extension knobs onto the
valve knobs. match the correct ext. knob
with the valve knob.
BAY LOUVRES
1) Install top louvre by sliding the two bracket
clips into the brackets located on top of the
baydoor.Seebelow.Thefittedlouvreleaves
a small gap between faceplate bottom and
louvre top.
INSTALLATION
FLUSH LOUVRES
1) The top louvre is held in place by friction fit,
ifthelouvreneeds to be adjusted; bend the
bracket out as shown in the diagram.
3) Place the bottom of the flush glass behind
the bottom glass trim.
4) Securethe glass with thetwo glass clips at
the top corners of the glass. Secure glass
clipswith the screwsprovided. Do notover
tighten as this could break the glass.
5) Slide in the top glass trim under the spring
clips.
2) Position2magnetsonthebackofeachtrim
piece close to the ends. Place the top and
bottom trim pieces on the bay front.
3) Install top and bottom louvres.
Note: The top and
bottom trim pieces
are different, check
diagramsaboveand
below.
6) Install safety screen (only in Australia) by
inserting the 4 brackets into the 4 slots.
Note: Optional safety screen only in
Australia.
Note: Topandbottomlouvresandbrackets
are different.
2) The bottom louvre has a hinge that is at-
tached (2 screws per hinge) to the lip on
bottom of the unit.

12 Regency I31-3 Gas Fireplace Inbuilt
HAMPTON CAST

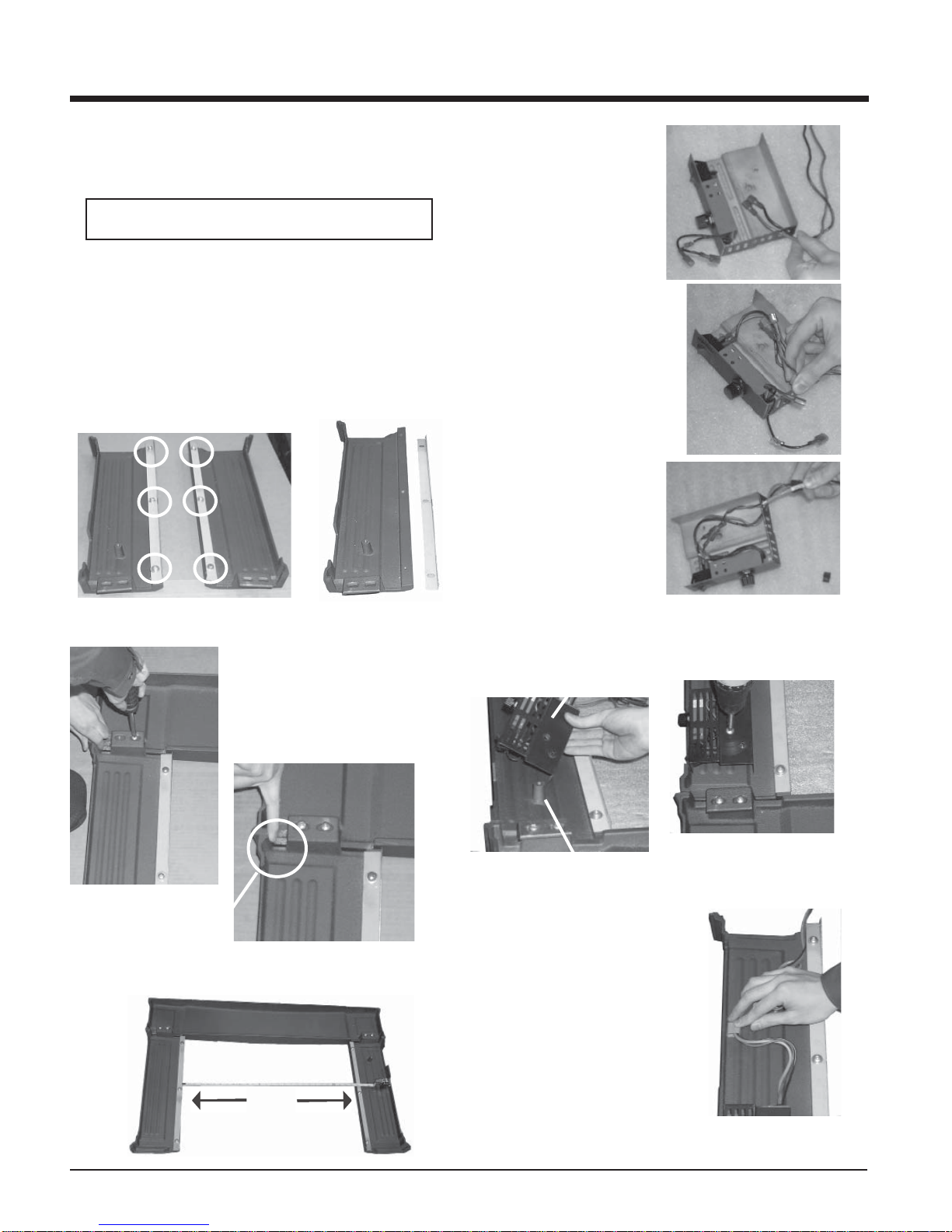

FACEPLATE INSTALLATION
1) Laythefaceplatepanels flat, face down on something softsothey
don't scratch.
2) Attach the side filler brackets to the left and right sides using 3
screws and washer per side.
3) Attach the right and left cast sides to the top using 2 screws per
side.
4) Use a measuring tape to ensure that the distance between the
left and right side pieces is 28" (711mm).
Ensure that the
top and sides are
aligned.
5) Connect the ON/OFF switch
wires by taking the black and
redwires withtheblue female
ends thru the hole provided
and connecting them to the
ON/OFF switch.
6) Connect the fan switch wires
by taking the black and red
wires with the male ends (in
thegreyharness)thruthehole
provided and connect them
with the wire connectors from
the fan speed control.
7) Insert wires into the strain
relief and install into switch
box assembly.
Switch Box Assembly
Boss on rear left side
piece.
8) Place the switch box assembly over the boss on the rear left side
piece and secure with one screw.
NOTE: Do not install Cast Faceplate when unit is installed
into a Zero Clearance Unit.
28"
9) Tuck the wires into the faceplate to keep
them away from the insert using the clip
provided. Attach the clip to the rear of the
faceplate to ensure that the wires do not
touch the side of the unit.
10) The power cord should be run behind the
faceplate panel.
INSTALLATION
NOTE: There are filler brackets specifically for each side. The
way to differentiate this is that on the side of the brackets there
are 2 mounting holes. The side where there is a 7/16" gap from
the top of the bracket to the mounting hole, must face the top.

13
Regency I31-3 Gas Fireplace Inbuilt
11) Mount the cast faceplate panels onto the insert body, sliding
the side filler brackets into the space between the glass and the
firebox. Secure using the 4 remaining black screws, 2 per side.
12) Install the glass trim by inserting the side hooks on the glass trim
into the 4 slots between the faceplate and the glass. Push the
glass trim down firmly with both hands to lock into place.
Slide side filler bracket
into gap between
glass and fire box.
Side Hook
Slots
INSTALLATION
13) To put on the Regency logo, peel the sticker from the back of the
logo and place it centered on the bottom left hand corner of the
faceplate.
Regency Logo Left Hand
Side Faceplate
HAMPTON CAST
GRILL INSTALLATION

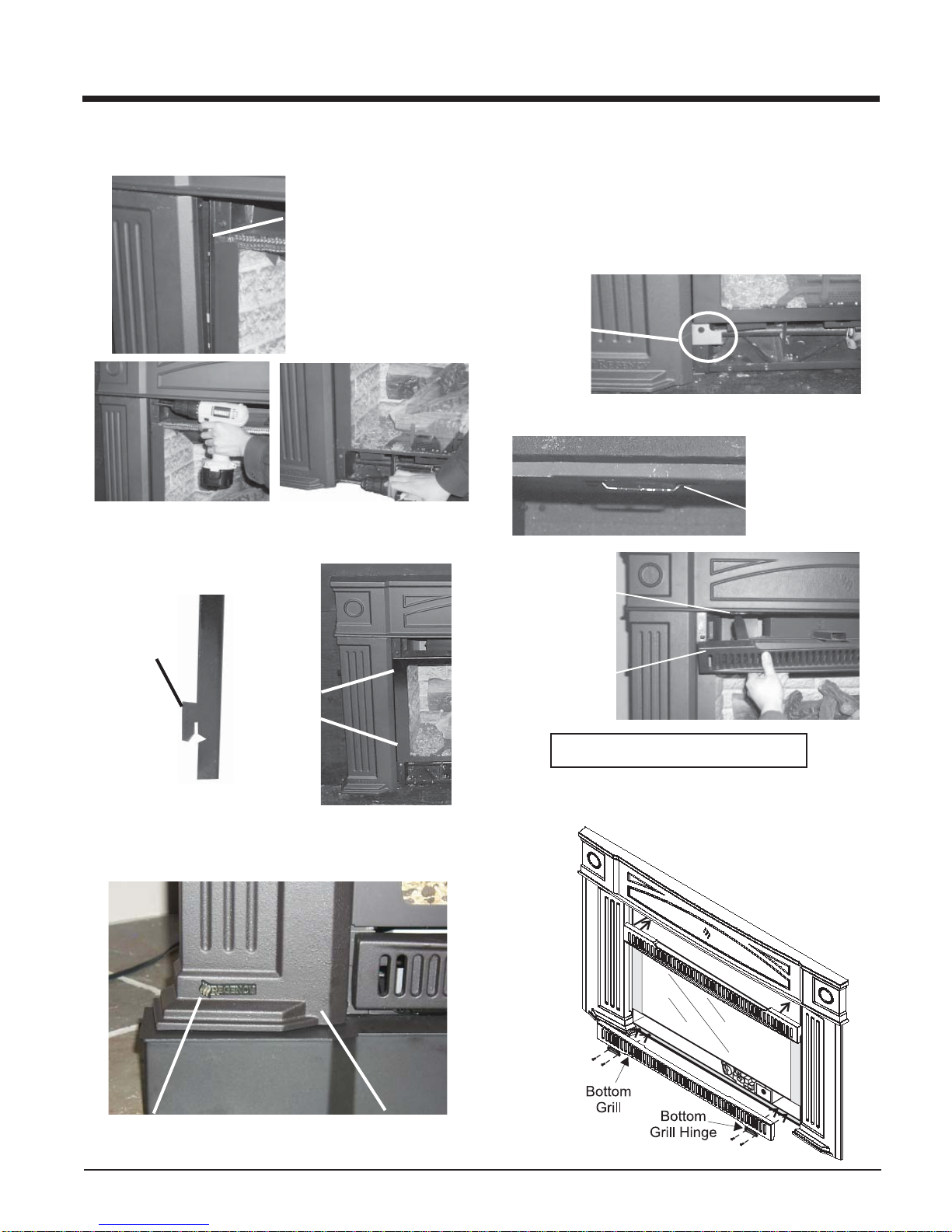

Note:Thetoplouvershould be placedwith
the curved cut-out facing up.
Beforethe grillsareinstalled, agrill stopbracketneeds tobe putinplace.
1) The grill stop bracket is installed in the bottom left corner just under
the firebox with the screw supplied as shown below.
Grill Stop
Bracket
2) Place top grill into brackets located inside top of firebox as shown.
Bracket inside
top of firebox.
Bracket
Top Grill
3) The bottom louver, shown in the diagram below, has 2 hinges that
are attached to the lip on bottom of the unit. Secure using 2 screws
per hinge.

14 Regency I31-3 Gas Fireplace Inbuilt

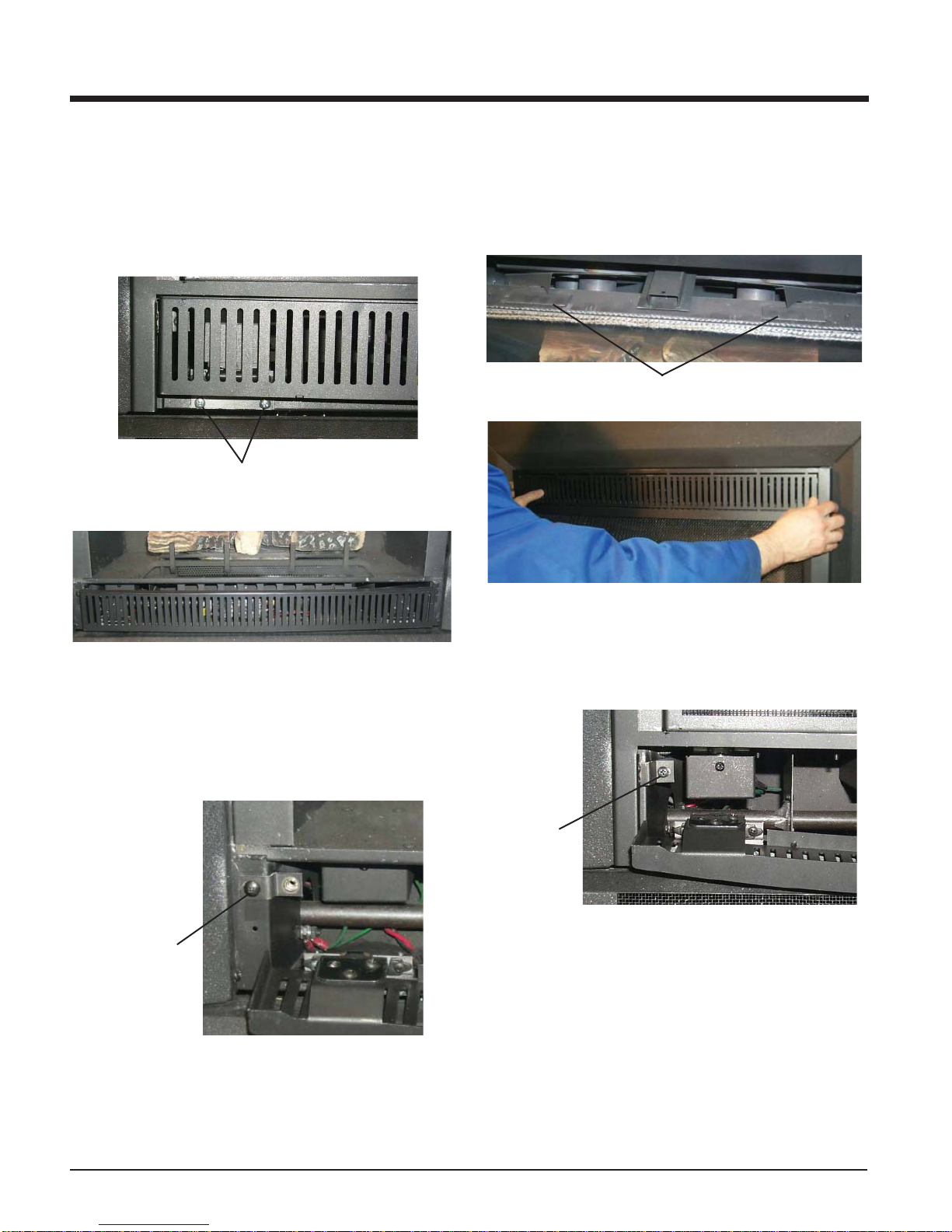

BAROSSA CURVED
FRONT INSTALLATION
1) Install bottom louver by matching the holes in louver bracket with
holes in firebox frame and secure using 2 screws on each side.
2) Pull down louver.
3) Fix brackets onto firebox, one on each side using 1 screw per side.
4) Fit plates on back of screen into brackets on top of firebox. Press in
to secure from top.
Secure bracket
with screw.
5) Secure bottom of screen using 1 screw on each side into the
brackets fixed onto the firebox in step 3.
Brackets on firebox.
6) Close louver.
INSTALLATION
Secure louver by using 2 screws.
Secure
with screw.

15
Regency I31-3 Gas Fireplace Inbuilt
INSTALLATION
Thermostat Wire Table
CAUTION
Do not connect the millivolt
wall thermostat wires
to the 240 V wires.
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP-2 System)
OPTIONAL REMOTE
CONTROL
Use the Optional Remote Control Kit approved
for this unit. Use of other systems may void
your warranty.
The remote control kit comes with a hand held
transmitter,areceiverandawallmountingplate.
1) Choose a convenient location on the wall
to install the receiver and the receptacle
box (protection from extreme heat is very
important). Run wires from the fireplace to
that location. Use Thermostat Wire Table.
2) Connect the two wires to the gas valve.
3) Install a 9V alkaline battery in both receiver
and the transmitter. Install the receiver and
cover in the wall. The remote control is now
ready for operation.
Wire Size Max. Length
14 GA.
16 GA.
18 GA.
20 GA.
22 GA.
15.24 m
9.75 m
6.10 m
3.66 m
2.71 m
WIRING
CAUTION:
Label all wires prior to
disconnection when
servicing controls.
Wiring errors can cause
improper and dangerous
operation.
WARNING: Electrical Grounding Instructions
Thisapplianceisequippedwithathreepronged
(grounding) plug for your protection against
shock hazard and should be plugged directly
intoaproperlygroundedthree-prongrecepta-
cle.Donotcutorremovethegroundingprong
from this plug.
Noelectricalpowersupplyisrequiredforthegas
controltooperate.However, a240VA.C.power
supply is needed for the fan/blower operation.
Caution: Ensure that the wires do not
touch any hot surfaces and are away
from sharp edges.
OPTIONAL WALL
THERMOSTAT
Awallthermostatmaybeinstalledifdesired. Use
chartbelowtodeterminethermostatwirelength.
Note: Preferableifthethermostatisinstalled
on an interior wall.
Use a CSA, UCL or UL approved millivolt ther-
mostat,250-750millivoltrated.Anon-anticipator
type thermostat must be used.
CAUTION
Do not connect the millivolt
remote control wires to
the 240V wires.
Gas
In
Pilot
Gas
Thermo-
couple
IN
Robertshaw
Valve
P
I
L
O
T
P
I
L
O
T
ON
OFFOFF
VENT
H
I
H
I
L
O
L
O
Gas Pilot
Thermopile
Thermocouple
Electrode
Piezo Ignitor
To
Thermocouple IN
To
Pilot
Gas
Yellow
Orange
White
Pilot
Assembly
Thermostat
(Optional)
(Millivolt)
Remote
Receiver
(Optional)
(Millivolt)
Remote Transmitter
(Optional)
Flue Spill
Switch
(Auto Reset)
(Normally closed)
ONOFF
Burner
ON
OFF
Brown
OUT Pressure Tap
IN
Pressure
Tap
Grounding
Lug Detail
Lockwasher Fan ground
Power cord
ground wire
Star washer
Nut
Nut
#8 Ground Lug
Star washer
HIGH
OFF
LOW
Red
Black
Yellow/Green
Ground
Brown
(Live)
White Molex
Connector
White
Red
Blue
(Neutral)
Fan Thermodisc
(Normally open)
240V AC
50 HZ
Terminal
Block
Green
Ground
Fan
Red/Black
Stripe

16 Regency I31-3 Gas Fireplace Inbuilt
OPERATING INSTRUCTIONS
OPERATING
INSTRUCTIONS
Beforeoperatingthisappliance,proceedthrough
the following check list.
1) Read and understand these Instructions
before operating this appliance.
2) Check to see that all wiring is correct and
enclosed to prevent possible shock.
3) Check to ensure there are no gas leaks.
4) Make sure the glass door is in place. Never
operate the appliance with the door glass
removed.
5) Verify that all flueing and the cap is unob-
structed.
6) Verify log placement. If the pilot cannot be
seen when lighting the unit - the logs or the
embers have been incorrectly positioned.
7) The unit should never be turned off and on
again without a minimum of a 60 second
wait.
8) When lighting the appliance, the inside of
the glass may fog up. This will burn off after
a few minutes of operation.
DO NOT BURN THE APPLIANCE
WITH THE GLASS ASSEMBLY RE-
MOVED.
LIGHTING
PROCEDURE
IMPORTANT: Gas cock knob cannot be
turned from "PILOT" to "OFF" unless it is
partially depressed.
1) Open the bottom louvre assembly
2) If the control knob is in the "OFF" position
proceed to Step 5.
3) Push in gas control knob slightly and turn
clockwiseto"OFF". Knobcannotbeturned
from"PILOT"to"OFF"unlessknobispushed
in slightly. Do not force.
4) Wait five minutes to allow gas, that may
have accumulated in the main burner
compartment, to escape. If you do smell
gas, follow the instructions on the front of
thismanual.Ifyoudon'tsmellgascontinue
on to the next step.
5) Turn the gas control counter clockwise to
"PILOT".
6) Push in control knob all the way and hold
in. Continually push and release the black
button on spark igniter until pilot lights.
Continue to hold the control knob in for
approximately one minute, then release
thegascontrolknob.Thepilotflameshould
continuetoburn.Ifthepilotdoesnotremain
lit,repeatoperationallowingalongerperiod
before releasing gas control knob.
7) Turngas controlknob counterclockwise to
"ON".
8) Use the rocker switch to operate main
burner.

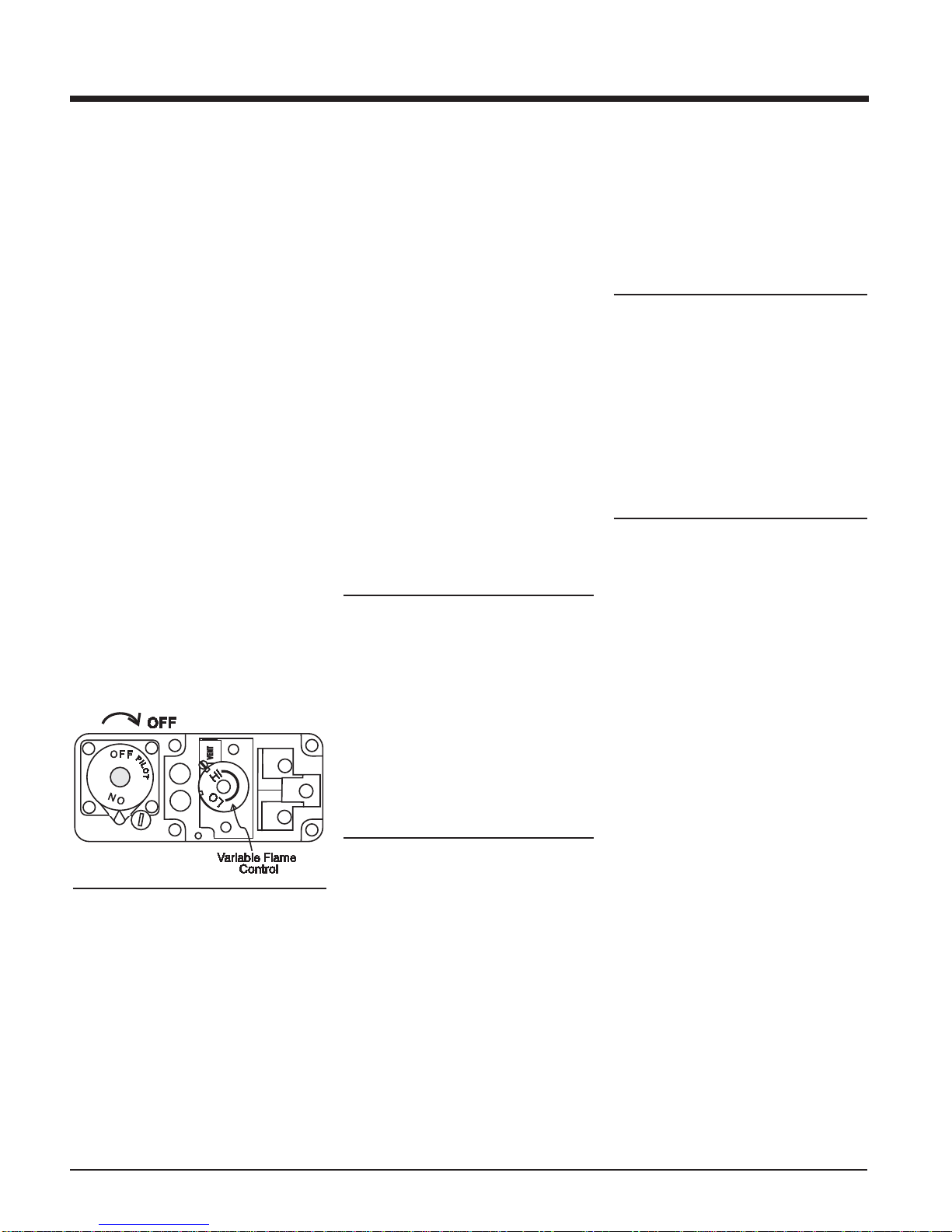

9) Rotate the variable flame control to adjust
the flame height higher or lower.
10) Close the bottom louvre assembly.
SHUTDOWN
PROCEDURE
1) Use the rocker switch to turn off the main
burner.
2) Open the bottom louvre assembly.
3) Push in the gas control knob slightly and
turn clockwise to "OFF". Do not force.
4) Disconnectallelectricpowerandgastothe
appliance if service is to be performed.
FIRST FIRE
The first fire in your stove is part of the paint
curing process. To ensure that the paint is
properly cured, it is recommended that you
burn your fireplace for at least four (4) hours
the first time you use it with the fan on. When
first operated, the unit will release an odour
caused by the curing of the paint, the burning
off of any oils remaining from manufacturing.
Smoke detectors in the house may go off at
this time. Open a few windows to ventilate the
room for a couple of hours.
The glass panel may require cleaning after the
unit has cooled down.
DO NOT ATTEMPT TO CLEAN THE GLASS
WHILE IT IS HOT.
Note: When the glass is cold and the appli-
anceislit,itmaycausecondensation
andfogtheglass.Thiscondensation
is normal and will disappear in a few
minutes as the glass heats up.
DO NOT BURN THE APPLIANCE
WITHOUT THE GLASS FRONT IN
PLACE.
AUTOMATIC
CONVECTION
FAN OPERATION
The fan operates automatically, press the
High/LowFanswitchonthesideofthefaceplate
toadjusttothedesiredspeed.Thefanwillturnon
asthestovecomesuptooperatingtemperature.
After the unit has been turned off and the unit
cooled to below a useful heat output range the
fan will shut off automatically.
NORMAL OPERATING
SOUNDS OF
GAS APPLIANCES
It is possible that you will hear some sounds
fromyourgasappliance.Thisisperfectlynormal
due to the fact that there are various gauges
and types of steel used within your appliance.
Listedbelowaresomeexamples.Allarenormal
operatingsoundsandshouldnotbeconsidered
as defects in your appliance.
Blower:
Regencygas appliances usehightech blowers
topushheatedair farther into the room. It isnot
unusual for the fan to make a "whirring" sound
whenON.This soundwillincrease or decrease
in volume depending on the speed setting of
your fan speed control.
Burner Tray:
The burner tray is positioned directly under the
burner tube(s) and logs and is made of a differ-
ent gauge material from the rest of the firebox
andbody.Therefore,thevaryingthicknessesof
steelwillexpandandcontractatslightlydifferent
rates which can cause "ticking" and "cracking"
sounds.Youshouldalso beaware that asthere
are temperature changes within the unit these
sounds will likely re-occur.Again, this is normal
for steel fireboxes.
Blower Thermodisc:
When this thermally activated switch turns ON
itwillcreate a small "clicking"sound.This isthe
switch contacts closing and is normal.

17
Regency I31-3 Gas Fireplace Inbuilt
MAINTENANCE
INSTRUCTIONS
1) Always turn the gas valve to off
beforecleaning.Forrelighting,refer
to lighting instructions. Keep the
burner and control compartment
clean by brushing and vacuuming
at least once a year.
When cleaning the logs, use a
clean soft paint brush as the logs
are fragile and easily damaged.
2) Clean (never when unit is hot) ap-
pliance, door and louvres with a
dampcloth. Neveruseanabrasive
cleaner. The gold louvres (and op-
tional gold door) may be scratched
ifabrasivesareusedtocleanthem.
The heater is finished in a heat
resistant paint and should only be
refinished with heat resistant paint
(not with wall paint). Regency uses
StoveBrite Paint - Metallic Black
#6309.
3) Make a periodic check of burner
for proper position and condition.
Visually check the flame of the
burner periodically, making sure
the flames are steady; not lifting or
floating. If there is a problem, call
an authorised service person.
4) The appliance and flueing system
must be inspected before use, and
at least annually, by an authorised
field service person, to ensure that
the flow of combustion and ventila-
tion air is not obstructed.
During the annual service call, the
burnersshouldberemovedfromthe
burner tray and cleaned. Replace
theembersbutdonotblockthepilot.
5) Keep the area near the appliance
clear and free from combustible
materials, gasoline and other flam-
mable vapours and liquids.
COPY OF LIGHTING INSTRUCTION PLATE
OPERATING INSTRUCTIONS
ANY SERVICING OR
REPAIRS SHOULD BE
CARRIED
OUT ONLY BY AN
AUTHORISED
PERSON.
WARNING: CHILDREN AND
ADULTS SHOULD BE ALERTED
TO THE HAZARDS OF HIGH
SURFACE TEMPERATURE AND
SHOULD STAY AWAY TO AVOID
BURNSORCLOTHINGIGNITION.
YOUNG CHILDREN SHOULD BE
CAREFULLYSUPERVISEDWHEN
THEY ARE IN THE SAME ROOM
AS THE APPLIANCE.
FOR YOUR SAFETY READ BEFORE LIGHTING
DO NOT REMOVE THIS INSTRUCTION PLATE
LIGHTING INSTRUCTIONS
TO TURN OFF GAS APPLIANCE
1) Push in the gas control knob slightly and turn
clockwise to OFF. Do not force.
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property
damage, personal injury or loss of life Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage Refer to the owners information manual provided
with this appliance For assistance or additional information consult a qualified installer, service agency
or gas supplier
Release knob and it will o back u . Pilot should
remain lit. If it goes out, re eat ste s 3) and 4). If
knob does not o u when released, sto and
immediately call your service technician or gas
su lier. If the ilot will not stay lit after several
tries, turn the gas control knob to OFF and call
your service technician or gas su lier.
5) Turn gas control knob counterclockwise to
ON.
6) Use rocker switch to o erate main burner.
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI 223.1/NFPA 54,
or Natural Gas and Propane Installations Codes, CSA B149.1. (Australia: AS5601-2004/ New ealand: N S 5261)
2) Turn off all electric ower to the a liance if
service is to be erformed.
a qualified service technician. Force or attem ted
re air may result in a fire or ex losion.
D) Do not use this a liance if any art has been
under water. Immediately call a qualified service
technician to ins ect the a liance and to re lace
any art of the control system and any gas control
which has been under water.
908-401c
STOP! Read the safety information above on this
label.
1) Push in gas control knob slightly and turn
clockwise to OFF. Knob cannot be turned
from PILOT to OFF unless knob is ushed in
slightly. Do not force.
2) Wait five (5) minutes to clear out any gas. If you
then smell gas STOP! follow B in the safety
information above on this label. If you do not
smell gas, go to the next ste .
3) Turn knob on gas control counterclockwise
to PILOT .
4) Push in control knob all the way and hold in.
Immediately ush black button on s ark igniter
until ilot lights. Continue to hold the control
knob in for about 1/2 minute after the ilot is lit.
A ) This a liance has a ilot which must be lighted
by hand, following the instructions below
exactly.
B) BEFORE LIGHTING smell all around the a liance
area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
- Do not try to light any a liance.
- Do not touch any electric switch, do not use any
hone in your building.
- Immediately call your gas su lier from a
neighbors hone. Follow the gas su liers
instructions.
- If you cannot reach your gas su lier, call the
fire de artment.
C) Use only your hand to ush in or turn the gas
control knob. Never use tools. If the knob will not
ush in or turn by hand, do not try to re air it, call
This a liance needs fresh air for safe o eration and
must be installed so there are rovisions for
adequate combustion and ventilation air.
CAUTION: Hot while in operation. Do not touch.
Severe Burns ma result. Due to high surface
temperatures keep children, clothing and furniture,
gasoline and other liquids having flammable vapors
awa . Keep burner and control compartment clean.
See installation and operating instructions
accompan ing appliance.
You may shut off the pilot during prolonged non use periods to conserve fuel.
Pilot Flame:
While the pilot flame is on it can make a very
slight "whisper" sound.
Gas Control Valve:
As the gas control valve turns ON and OFF, a
dullclickingsoundmaybeaudible,thisisnormal
operation of a gas regulator or valve.
Unit Body/Firebox:
Different types and thicknesses of steel will
expand and contract at different rates resulting
in some "cracking" and "ticking" sounds will be
heard throughout the cycling process.

18 Regency I31-3 Gas Fireplace Inbuilt
CAUTION: ANY SAFETY SCREEN
OR GUARD REMOVED FOR SERV-
ICING AN APPLIANCE MUST BE
REPLACEDPRIORTOOPERATING
THE APPLIANCE.
CLOTHING OR OTHER FLAMMA-
BLE MATERIAL SHOULD NOT BE
PLACED ON OR NEAR THE APPLI-
ANCE.
6) Each time the appliance is lit, it may cause
condensation and fog the glass. This con-
densation and fog is normal and will disap-
pearin a fewminutesas theglassheats up.
Never operate the appliance without the
glass properly secured in place, with
broken glass or with the door open.
7) Verify proper operation after servicing.
8) Periodically check the pilot flames, there
should be three strong blue flames approx.
3/4" long - 1 flame to the front burner, and
1 to the thermopile and one to the left. See
diagrams below.
Top View of pilot flame
Correct flame pattern has two strong blue
flames:1flowingaroundthethermopileand
1 reaching towards the rear burner (it does
not have to be touching the burner).
Top View of pilot flame
Incorrectflamepatternwillhavesmall,prob-
ably yellow flames, not coming into proper
contact with the rear burner or thermopile.
MAINTENANCE
If you have an incorrect flame pattern,
contact your Regency dealer for further
instructions.
GOLD-PLATED TRIM
The 24 carat gold plated finish on the trim
requires little maintenance, and need only be
cleanedwithadampcloth.DONOTuseabrasive
materials or chemical cleaners, as they may
harm the finish and void the warranty.
Clean any fingerprints off before turn-
ing the unit on. If the top louvres start to
discolour, check the door gasket seal and
replace if necessary.
LOG REPLACEMENT
Theunitshouldneverbeusedwithbrokenlogs.
Turn off the gas valve and allow the unit to cool
beforeopeningdoortocarefullyremovethelogs.
The pilot light generates enough heat to burn
someone. If for any reason a log should need
replacement,you mustuse theproper replace-
mentlog.Theposition ofthese logsmustbe as
shown in the diagram under Log Installation.
NOTE: Improper positioning of logs may
create carbon build-up and will alter
the unit’s performance which is not
covered under warranty.
WARNING
Do not spray aerosols in the
vicinity of this appliance while
in operation.
DOOR GLASS
REPLACEMENT
Your Regency stove is supplied with high tem-
perature, 5 mm Neoceram ceramic glass that
will withstand the highest heat that your unit will
produce. In the event that you break your glass
by impact, purchase your replacement from an
authorised Regency dealer only, and follow our
step-by-step instructions for replacement.
WARNING: do not operate appli-
ance with the glass front removed,
cracked or broken. Replacement
of the glass should be done by
a licensed or authorised service
person.
Bay Glass Removal
1) Remove the door from the unit and place on
a soft surface to prevent scratching.
2) Removethenutsholdingthe glassretainers
in place.
3) Remove the glass retainers (sides, top and
bottom).
4) Replace the glass. The glass must have
gasketing around it.
5) Reverse the previous steps, replace the
retainers and fasten with the nuts but do not
over tighten, as this can break the glass.
6) Replace door on the stove and check the
seal.
Flush Glass Replacement
Slide old glass out of the side frames and
replace with new glass.

19
Regency I31-3 Gas Fireplace Inbuilt
FAN MAINTENANCE
Ifyourfanrequiresmaintenanceorreplacement,
accesstothefanisthroughthe plateontherear
wall of the firebox. NOTE: the unit MUST NOT
be operated without the fan access panel
securely in place.
CAUTION: Label all wires prior
to disconnection when servic-
ing controls. Wiring error can
cause improper and dangerous
operation.
Remove the 2 screws holding the
grate in position.
Remove the 2 screws,
push Burner Tray to the left, and lift off.
MAINTENANCE
To remove fan:
1) Turn the unit off and allow it to cool to room
temperature.
2) Unplugordisconnectpowersourcetostove.
3) Remove glass front (see page 10).
4) Remove logs.
5) Remove brick panels.
6) Remove the Grate by removing the screws
on each side of the grate.
7) Remove the Burner Tray by removing the
screws on each side of the tray. Push the
tray to the left and lift up.
8) Remove the 11 screws holding the Access
Panel in place.
9) Remove the Fan Air Duct by removing 4
screws, 2 per side.
10) Unplug the black wires from the fan motor
(from inside the stove).
11) LiftFanAssemblyoffofthe2pins,tipforward
and pull through firebox opening.
12) Disconnect green wire from power cord.
Replacing fan:
Reverseabovesteps.Hintforpushingfandown
ontopins- rubabit ofdishsoaponthegrommet
so it will slide more easily onto the pin. Check
to make sure the fan is seated properly on the
pins, this is very important- try to move the fan
backandforth,thereshouldbenonoise,ifthere
ischeck thatthe grommetshaven'tcome loose.
P
I
L
O
T
ON
OFF
VENT
H
I
L
O
HIGH
OFF
LOW
Red
Black
Yellow/Green
Ground
Brown
(Live)
White Molex
Connector
White
Red
Blue
(Neutral)
Fan Thermodisc
(Normally open)
240V AC
50 HZ
Terminal
Block
Green
Ground Fan
GLASS GASKET
If the glass gasket requires replacement use
7/8" flat glass gasket (Part # 936-243) for the
Bay Front and for the Flush Front.

20 Regency I31-3 Gas Fireplace Inbuilt
SERVICE SHOULD BE CARRIED OUT BY AUTHORIZED PERSONNEL ONLY
ABNORMAL OPERATION
If main burner does not light but pilot
stays on, shut down heater and contact
your dealer. If excessive carbon on logs
or glass contact your dealer for service.
TROUBLE SHOOTING REGENCY GAS SPACE HEATER
SYMPTOM
1) Thinblackcoating [soot]formsonview-
ing glass.
2) Achangeinflameappearanceorburner
operations
3) No air flow
4) Burners will not light.
5) Pilot goes out.
PROBABLE CAUSE
a) Incorrect gas pressure
b) Not enough combustion
air
a) A change in gas pressure
b) Carbon dirt or lint
a) Fan failure
a) Pilot flame out
b) Control knob on pilot
c) Low voltage from Thermopile.
*280mil volts on pilot
*120mil volts when main burner is on
a) Check thermocouple voltage
CORRECTIVE ACTION
Check and correct gas pressure if sooting
continues open aeration shutter on burner.
Note: To clean glass, remove and wipe with
cloth or paper towel
Check gas pressure.
Clean out carbon, spider webs, lint etc. from
burner area.
Check and replace fan assembly
Check and replace fan switch
Check and replace thermodisc
Relight [follow lighting procedure completely]
Adjust pilot.
Thermopile, check and replace if faulty
Replace thermocouple.
MAINTENANCE
THE MAJOR CAUSE OF
OPERATING PROBLEMS WITH
GAS HEATERS IS IMPROPER
GAS PRESSURE
Suchproblemsaschangesinflamecolour
or configuration, burner outages, intermit-
tent operations, changes in heat output,
excessiveburner noise, arenearly always
theresultofchangesingaspressureorim-
propergas pressure attimeof installation.
THEMOSTIMPORTANTITEMTOCHECK
DURING THE INSTALLATION AND THE
FIRSTTHING TO CHECK WHEN PROB-
LEMS OCCUR IS GAS PRESSURE.
CHECK DATA PLATE FOR
CORRECT PRESSURE SETTINGS
INCORRECT INSTALLATION OR GAS
PRESSURE SETTINGS ARE NOT COV-
ERED BY WARRANTY, A SERVICE OR
CALLOUT FEE WILL BE CHARGED IN
THESE CIRCUMSTANCES
