Follett 25FB425A Operation manual

Symphony Plus™25 and 50 Series
Ice and Water Dispensers
25FB425A/W, 50FB425A/W
Installation and Service Videos:
www.follettice.com/servicevideolibrary
01234616R02
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com
Operation and Service Manual
After serial numbers L78614
Please visit https://www.follettice.com/technicaldocuments
for the Operation and Service manual for your unit.
25CR425A/W
50CR425A/W
25HR425A/W
50HR425A/W
25FB425A/W
50FB425A/W
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide carefully
before you begin your installation.
Should you have need technical help, please call our Technical Service group at [phone] or [phone].
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.
Getting Started
After uncrating and removing all packing material. Inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notied within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.

2 25FB425A/W, 50FB425A/W
Contents
Welcome to Follett. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before you begin.......................................................................... 3
Specications .............................................................................. 4
Electrical ................................................................................ 4
Ambient................................................................................. 4
Plumbing................................................................................ 4
Ventilation clearances...................................................................... 4
Approximate shipping weight ................................................................ 4
Installation ................................................................................. 5
Before you begin.......................................................................... 5
Installing freestanding dispensers ............................................................ 5
User information ............................................................................ 7
How the dispenser works ................................................................... 7
Cleaning and sanitizing ...................................................................... 7
Weekly ................................................................................. 8
Monthly ................................................................................. 8
Semi-Annually (more often if conditions dictate) ................................................. 8
Ice Machine and Dispenser ................................................................. 9
Dispenser troubleshooting .................................................................. 13
Lever model troubleshooting guide .......................................................... 13
SensorSAFE model troubleshooting guide .................................................... 14
Disassembly and replacement instructions..................................................... 15
Ice transport tube replacement ............................................................. 16
Thermostat locations ..................................................................... 17
Replacement parts ......................................................................... 18
Dispenser exterior........................................................................ 18
Dispense chute and splash panel (models with lever dispensing) .................................. 20
Dispense chute and splash panel (models with SensorSAFE infrared dispensing) ..................... 21
Dispenser electrical box – SensorSAFE models ................................................ 22
Dispenser electrical box – lever models....................................................... 23
Hopper components ...................................................................... 24
Ice transport tubing....................................................................... 25
Chilled water components ................................................................. 25
Water treatment accessories for Symphony Plus ice and water dispensers.......................... 26

25FB425A/W, 50FB425A/W 3
Check your paperwork to determine which model you have. Follett model numbers are designed to provide
information about the type and capacity of Follett ice dispensing equipment. Following is an explanation of the
different model numbers.
Condenser type, A = air-cooled
Ice machine capacity in lb per day
Ice machine location, B = ice machine in base of freestanding units
Dispenser conguration, F = freestanding
Approximate storage capacity in lb
50FB425A
CAUTION!
§Do not tilt unit further than 30° off vertical during uncrating or installation.
§Dispenser bin area contains mechanical, moving parts. Keep hands and arms clear of this area at all times. If
access to this area is required, power to unit must be disconnected rst.
§Follett recommends a Follett water lter system be installed in the ice machine inlet water line (standard capacity
#00130299, high capacity #00978957, carbonless high capacity #01050442).
§Prior to operation clean the dispenser in accordance with instructions found in this manual.
§Ice is slippery. Be sure counters and oors around dispenser are clean, dry and free of ice.

4 25FB425A/W, 50FB425A/W
Specications
Electrical
§Freestanding models (25FB425A/W, 50FB425A/W) require a dedicated circuit.
Total system Max. fuse
Basic electrical: 115 V/60 Hz/1 phase 11.0A 15A
§Dispensers and RIDE ice machines are supplied with 7-foot power cord with NEMA 5-15 hospital-grade plug.
Connect to a dedicated 15A dedicated circuit.
Note: It is preferred that circuit be protected by a GFCI.
Model Electrical connection Circuits required
25FB425A/W, 50FB425A/W cord & plug provided 115/60/1, 20A max. fuse size
Ambient
Air temp 100 F/38 C Max. 50 F/10 C Min. (Best performance below 80 F/27 C)
Water temp 90 F/32 C Max. 45 F/7.2 C Min. (Best performance below 70 F/21 C)
Water pressure (psi/bar) 70/5 Max. 10/0.7 Min.
Plumbing
25/50 FB with ice machine in base
Dispenser drain 3/4" MPT
Ice machine drain 3/4" MPT
Dispenser water inlet 3/8" FPT
RIDE IM water inlet –
Cond. inlet – w/c only 3/8" FPT
Cond. drain – w/c only 3/8" FPT
Note: Water shut-off recommended within 10 ft. (3 m) of dispenser. Drain to be hard-piped and insulated. Maintain
at least 1/4" per foot (20 mm per 1 m) run of slope.
Ventilation clearances
§4" (10.2 cm) required at rear for freestanding models (25FB425A/W, 50FB425A/W).
Note: 12" (30.5 cm) at top advised for service.
Dry weight
§25/50 FB 212 lb (96 kg)

25FB425A/W, 50FB425A/W 5
Installation
Before you begin
§All dispensers must be installed level in both directions to ensure proper operation.
§SensorSAFE™ dispensers are shipped with a plastic, protective lm on sensor lenses. For proper operation,
plastic lm must be removed after installation.
Installing freestanding dispensers
1. Position dispenser in desired location and adjust legs to level in both directions.
2. Connect water supply to 3/8" FPT tting on back of dispenser (Fig. 1).
3. Connect separate drain lines to 3/4" MPT dispenser drain tting, and 3/4" MPT ice machine drain tting
on back of dispenser.
4. Run drain lines to wall or oor drain. If ice machine drain tting is below an intended wall drain, a
condensate pump must be used.
5. If ice machine is a water-cooled unit, connect water-cooled condenser supply line to 3/8" FPT condenser
inlet tting on back of dispenser.
Note: Do not run condenser supply water through ice machine water lter system.
6. Connect condenser drain line to 3/8" FPT condenser outlet tting on back of dispenser.
Important: Do not connect condenser drain line to any other drain lines.
7. Plug dispenser into 15A rated NEMA 5-15 wall socket.
8. Remove front cover of base section by removing two screws at bottom corners of cover. Allow cover to
drop approximately 3/8" (5 mm) and pull forward.
9. Turn on water supply and check for leaks.

6 25FB425A/W, 50FB425A/W
Fig. 1 – Rear connections, freestanding models
2.81" (7.2 cm)
2.775" (6.9 cm)
3.75" (9.5 cm)
2.9" (7.6 cm)
10.62" (27 cm)
9.62" (24.4 cm)
12.38" (31.4 cm)
14" (35.7 cm)
31.5" (80 cm)
33.75" (85.8 cm)
50fb
3/8" FPT condenser outlet location
(water-cooled only)
3/4" MPT icemaker drain location
access panel
3/8" FPT
water inlet
3/4" MPT drain
power cord
3/8" FPT condenser outlet location
(water-cooled only)
10. Remove top front cover by removing two screws at bottom corners of cover. Lift cover slightly and pull
forward.
11. If dispenser is equipped with SensorSAFE remove protective plastic coating from dispense sensor labels.
12. Turn on dispenser power and bin signal rocker switches. Check dispenser and ice machine operation.
13. Clean ice machine according to cleaning section. Discard ice made during cleaning process.
14. Turn off ice machine bin signal switch.
15. Remove dispenser hopper lid; clean dispenser according to instructions in Cleaning section.
16. Turn ice machine bin signal switch on and replace front covers, securing with screws.

25FB425A/W, 50FB425A/W 7
User information
How the dispenser works
Follett’s 25/50 series automatic-load ice and water dispensers are equipped with Follett’s 425 lb (181kg)/day
ice machine. In the continuous icemaking process, water freezes to the inside wall of the evaporator. A rotating
stainless steel auger carries the ice to the top of the evaporator where it is compressed and extruded through an
outlet port. The ice is then pushed through a tube to the storage hopper. When the hopper is full, a bin thermostat
opens and shuts the ice machine off. When the dispense mechanism is activated, a dispense motor is turned on,
causing the wheel to turn. This moves ice to the dispense chute where it drops by gravity into the container held
below the chute.
How SensorSAFE infrared dispensing works
Follett’s SensorSAFE infrared dispensing maximizes sanitation and minimizes the possibility of cross-contamination
by eliminating physical contact between the cup or container and dispenser. Sensors in the panel use reected
infrared light to detect the presence of the container and send a signal to a control board which then activates the
appropriate components for ice or water dispensing.
The SensorSAFE infrared dispensing package includes a cleaning switch under the left side of the front cover
which temporarily shuts off dispensing to allow cleaning of the panel and lenses. If the switch is not turned back on
after cleaning, the dispenser automatically resets after two minutes for normal operation.
SensorSAFE infrared dispensing also includes a time limit safety feature which automatically stops ice dispensing
after one minute of continuous dispensing. Dispensing can be resumed by moving the container away from the
dispenser and returning it to the activation zone.
Cleaning and sanitizing
Follett ice machines and dispensers, and their associated cleaning and sanitizing procedures, are designed for
use with potable water sources. The presence, or suspected presence, of infectious agents may call for additional
measures, including the replacement of components and more comprehensive disinfection measures. Follett
recommends that these cleaning and sanitizing procedures be reviewed with the appropriate infectious agent
subject matter experts to assure complete remediation.
Periodic cleaning of Follett’s ice and water dispenser and ice machine system is required to ensure peak
performance and delivery of clean, sanitary ice. The recommended cleaning procedures that follow should be
performed at least as frequently as recommended and more often if environmental conditions dictate.
Follett recommends sanitizing the pressurized water lines prior to cleaning the ice machine/dispenser. Follett
offers two kits: order P/N 01089572 when a Follett lter system with a pre-lter bowl is present, or P/N 01089580
when a Follett lter system is not present. Follow the instructions provided with the respective kits to sanitize the
pressurized water lines immediately before cleaning the ice machine/dispenser.
Cleaning of the condenser can usually be performed by facility personnel. Cleaning of the ice machine system
should be performed by your facility’s trained maintenance staff or a Follett authorized service agent. Regardless
of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed according to
the schedule below. Service problems resulting from lack of preventive maintenance will not be covered under the
Follett warranty.
Recommended cleaning intervals*
Symphony Plus Frequency
Drain Line weekly
Drain Pan/Drip Pan weekly
Exterior, Water Station Tube as needed
Condenser monthly (air-cooled only)
Dispenser and Components semi-annually
Ice Machine semi-annually
Transport Tube semi-annually
Ice Storage Area/Bin semi-annually
Pressurized Water Sanitizing semi-annually
* Ice machine and dispenser must be cleaned prior to start-up.

8 25FB425A/W, 50FB425A/W
Weekly
CAUTION!
§Do not use solvents, abrasive cleaners, metal scrapers or sharp objects to clean any part of the dispenser.
Dispenser drain pan and drain line
§Pour 1 gal. (3.8 L) of hot tap water into drain pan to ush drains.
Splash panel front, SensorSAFE infrared dispensing
1. Deactivate dispensing by pressing and releasing clean switch located on left side of unit under top front
cover.
2. Clean lens and splash panel front using a soft cloth and mild, non-abrasive, non-chlorine based cleaner.
3. Reactivate dispensing by pressing and releasing clean switch again.
Monthly
CAUTION!
§Do not use solvents, abrasive cleaners, metal scrapers or sharp objects to clean any part of the dispenser.
Condenser (air-cooled ice machine only)
§Use a vacuum cleaner or stiff brush to carefully clean condenser coils of lint and debris to ensure optimal
performance.
Semi-Annually (more often if conditions dictate)
§A cleaning procedure should always include both the ice machine and dispenser; ice machine should be cleaned
rst, followed by the dispenser.
§Icemaking system can be cleaned in place.
CAUTION!
§Wear rubber gloves and safety goggles (or face shield) when handling SafeCLEAN Plus™ and IMS-III solutions.
§Use only Follett approved cleaners.
§It is a violation of Federal law to use the Nu-Calgon®IMS-III solution in a manner inconsistent with its labeling.
§Do not use solvents, abrasive cleaners, metal scrapers or sharp objects to clean any part of the dispenser.
Cleaning & Sanitizing Tool Checklist
§(1 or 2) 1.5 Gallon (or larger) plastic bucket
§(2) clean cloths
§Sanitary gloves
§Safety glasses
§(2) SaniSponge™ (P/N 00131524 - single sponge)
§SafeCLEAN Plus ice machine cleaner
§[OPTIONAL] Nu-Calgon IMS-III no-rinse sanitizer (P/N 00979674 – 16  oz. bottle)
SafeCLEAN Plus Solution: Follow the directions on the Follett Follett SafeCLEAN Plus packaging to mix 1 gal.
(3.8 L) of cleaning solution. Use 100 F (38 C) water.
[OPTIONAL] No-rinse Sanitizing Solution: Follow the directions on the Nu-Calgon IMS-III Plus packaging to
mix 1 gal. (3.8 L) of IMS-III solution. Use 100 F (38 C) water.

25FB425A/W, 50FB425A/W 9
Ice Machine and Dispenser
Cleaning Procedure
Note: Check drains and drain cup to ensure they are open and owing freely.
1. If ice machine was running recently, ensure that the evaporator is completely free of ice before
proceeding. If there is ice in the evaporator, complete steps 2-7 using only hot water to remove the ice,
then begin Cleaning/Descaling Procedure again.
2. Remove front cover of the dispenser and turn OFF bin signal switch.
3. Dispense all ice from storage hopper and discard.
4. Remove the cover of the base stand.
5. Press CLEAN switch. The MAINTENANCE light will turn on and the machine will drain. Wait for the LOW
WATER light to turn on.
6. Remove lid from cleaning cup and ll (about 1 quart) until SafeCLEAN Plus solution completely lls the
reservoir. Place lid back on cup. Save remainder of SafeCLEAN Plus solution.
7. CLEANER FULL light will turn on and machine will start cleaning cycle, then rinse three times; this
process takes approximately 15 minutes.
8. While ice machine is cleaning/descaling, clean dispenser as follows:
a. Turn OFF dispenser power.
b. Remove hopper lid.
c. Remove knurled nuts from front of storage hopper.
d. Remove stud assembly, baffle, wheel, and any remaining ice.
e. Remove dispense chutes from splash panel.
f. Submerse drain grille in SafeCLEAN Plus solution and allow to soak to remove any scale buildup.
g. Wipe inside of hopper lid, stud assembly, baffle, wheel, inside of storage area, dispense chutes, drain grille
and drain pan with damp cloth wrung out in SafeCLEAN Plus solution. Thoroughly rinse all parts with damp
cloth wrung out with clean water.
Note: To avoid possible damage to motor assembly, only use a damp cloth to clean storage hopper. Do
not allow water to run through motor shaft hole in bottom of hopper.
9. When machine is nished cleaning, the MAINTENANCE light will turn off.
Finish cleaning – SafeCLEAN Plus only
10. If the dispenser is equipped with a Chilled Water Accessory continue to Step 10.a; if not, skip to Step11.
a. Remove four screws securing splash panel.
b. Disconnect 3/4" (19 mm) drain line from bottom of chilled water canister.
c. Loosen (do not remove) screw securing front bracket of chilled water canister to bottom of dispenser hopper.
d. Rotate canister clockwise to release front bracket, then pull canister forward to disengage rear bracket.
e. Remove chilled water coil from canister and clean with cloth wrung out in SafeCLEAN Plus solution.
f. Wipe inside of chilled water canister with cloth wrung out in SafeCLEAN Plus solution.
g. Rinse all above items with damp cloth wrung out in clear water.
h. Reinstall chilled water coil into canister (rubber alignment grommet on coil tubing must be located outside
chilled water canister to hold coil securely against canister wall).
i. Reinstall chilled water assembly on dispenser and tighten screw securing front bracket.
j. Reconnect 3/4" (19 mm) drain line to chilled water canister.
11. Reinstall dispense chutes, wheel, baffle, stud assembly and knurled nuts.
12. Remove top bearing insulation, loosen Phillips-head screw on nozzle connected to evaporator. Remove
nozzle from evaporator side only, leave other side of nozzle connected to transport tube.
13. Soak one SaniSponge in remaining SafeCLEAN Plus solution.
14. Insert the sponge soaked in cleaning solution into nozzle, then insert a dry sponge into the nozzle.
15. Replace nozzle onto evaporator and tighten screw. Ensure drain is connected to reservoir and vent tubes
are connected to evaporator drain pan. Replace top bearing insulation.
16. Turn ON bin signal switch. Wait for ice to push sponges through transport tube.

10 25FB425A/W, 50FB425A/W
1 7. Collect sponges from ice storage bin.
18. Replace hopper lid, base stand cover, turn ON dispenser power and install dispenser front cover.
19. After 10 minutes, dispense all ice and discard.
[OPTIONAL] Finish cleaning – No-rinse sanitizing with Nu-Calgon IMS-III
10. Press CLEAN switch. The MAINTENANCE light will turn on and the machine will drain. Wait for the LOW
WATER light to turn on.
11. Remove lid from cleaning cup and ll (about 1 quart) until sanitizing solution completely lls the reservoir.
Place lid back on cup. Save remainder of sanitizing solution.
12. CLEANER FULL light will turn on and machine will start sanitizing cycle, then rinse three times; this
process takes approximately 15 minutes.
13. While ice machine is sanitizing, sanitize dispenser as follows:
a. Wipe inside of hopper lid, stud assembly, baffle, wheel, inside of storage area, dispense chutes, drain grille
and drain pan with damp cloth wrung out in sanitizing solution. Do not rinse off the sanitizing solution.
Note: To avoid possible damage to motor assembly, only use a damp cloth to clean storage hopper. Do
not allow water to run through motor shaft hole in bottom of hopper.
14. Reinstall dispense chutes, wheel, baffle, stud assembly and knurled nuts.
15. When machine is nished rinsing, the MAINTENANCE light will turn off.
16. If the dispenser is equipped with a Chilled Water Accessory continue to Step 16.a; if not, skip to Step17.
a. Remove four screws securing splash panel.
b. Disconnect 3/4" (19 mm) drain line from bottom of chilled water canister.
c. Loosen (do not remove) screw securing front bracket of chilled water canister to bottom of dispenser hopper.
d. Rotate canister clockwise to release front bracket, then pull canister forward to disengage rear bracket.
e. Remove chilled water coil from canister and clean with cloth wrung out in sanitizing solution.
f. Wipe inside of chilled water canister with cloth wrung out in sanitizing solution.
g. Do not rinse off the sanitizing solution.
h. Reinstall chilled water coil into canister (rubber alignment grommet on coil tubing must be located outside
chilled water canister to hold coil securely against canister wall).
i. Reinstall chilled water assembly on dispenser and tighten screw securing front bracket.
j. Reconnect 3/4" (19 mm) drain line to chilled water canister.
1 7. Remove top bearing insulation. Loosen Phillips-head screw on nozzle connected to evaporator. Remove
nozzle from evaporator side only, leave other side of nozzle connected to transport tube.
18. Soak one SaniSponge in remaining sanitizing solution. Insert the sponge soaked in sanitizing solution
into nozzle, then insert a dry sponge into the nozzle.
19. Replace nozzle onto evaporator and tighten screw. Ensure drain is connected to reservoir and vent tubes
are connected to evaporator drain pan. Replace top bearing insulation.
20. Turn ON bin signal switch. Wait for ice to push sponges through transport tube.
2 1. Collect sponges from ice storage bin.
22. Replace hopper lid, base stand cover, and install dispenser front cover.
23. After 10 minutes, dispense all ice and discard.
User Interface and Exterior Cabinet
§Clean stainless steel panels with stainless steel cleaner.

25FB425A/W, 50FB425A/W 11
Wiring diagram - Lever only
4 2 3
1
8 9 5 7
6
BIN T-STAT
1 2 3 4
POWER
1 2
99 BLACK
93 BLACK
94 WHITE
95 GREEN
44 RED
98 BLACK
100 BLACK
97 WHITE
98 BLACK
43 BLACK
41 GREEN 49 BLACK
44 RED
45 BLUE
46 PURPLE
42 WHITE
48 WHITE 47 ORANGE
GROUND SCREW
LEVER DISPENSERS CONTROL BOX
1
2
MDISPENSE
MOTOR
91 WHITE
92 PURPLE
LEVER DISPENSERS SPLASH PANEL
1
4 2 3 5
1
2
S
87 WHITE
86 WHITE
88 BLUE
89 PURPLE
82 BLUE
83 PURPLE
81 WHITE
84 RED
4
1
3 2 7
6
5 8
9
1
POWER
BOX
4x4
SCREW GROUND
4 2 3
1 2 3 1 2
5
4
77 RED
35 BLUE
37 ORANGE
76 WHITE
36 PURPLE
39 BLACK
38 WHITE
74 GREEN
75 BLACK
72 BLACK
73 WHITE
74 GREEN
79 BLACK
78 WHITE
NEUTRAL-WHITE
GROUND-GREEN
115/1/60-BLACK
TO ICE
MACHINE
POWER
TO ICE MACHINE
BIN SIGNAL
(CONTACT CLOSURE)
31 GREEN
32 WHITE
33 BLACK
39 BLACK 38 WHITE
34 RED
35 BLUE
36 PURPLE 37 ORANGE

12 25FB425A/W, 50FB425A/W

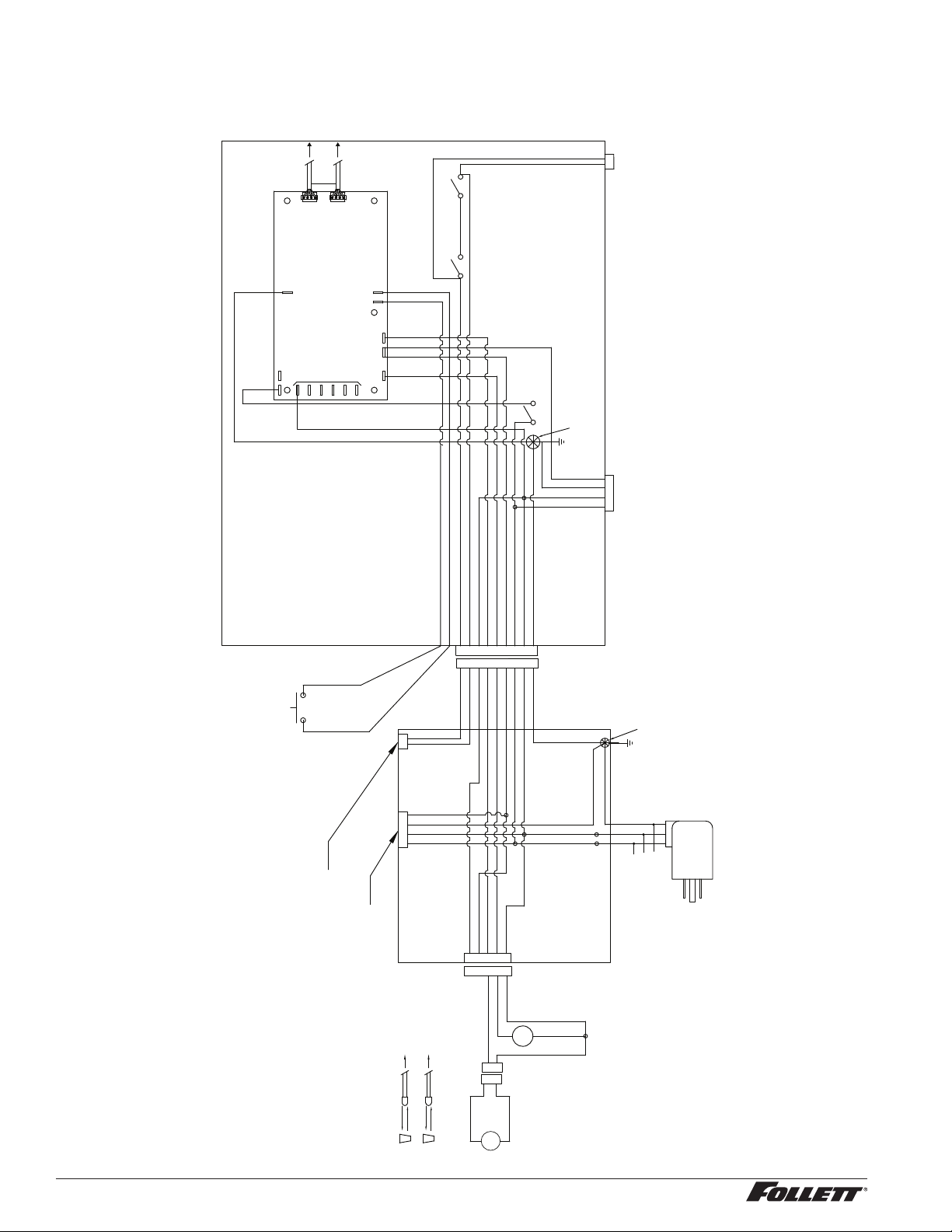

Wiring diagram - SensorSafe only
4 2 3
1
8 5 7
6
43 BLACK
41 GREEN
44 RED
45 BLUE
46 PURPLE
42 WHITE
48 WHITE 47 ORANGE
CLEAN
SWITCH
105 WHITE
106 BLACK
949 BLACK
BIN T-STAT
1 2 3 4
POWER
1 2
ICE
NEUTRAL
WM
SOL
WTR
CLN
WTR
L1
GND
102 WHITE
99 BLACK
93 BLACK
94 WHITE
95 GREEN
96 BLACK
49 BLACK
48 WHITE
102 WHITE
101 BLACK
100 BLACK
103 GREEN
96 BLACK
45 BLUE
44 RED
106 BLACK
46 PURPLE
105 WHITE
103 GREEN
97 WHITE
98 BLACK
98 BLACK
SCREW GROUND
SensorSAFE DISPENSERS CONTROL BOX
TO SPLASH PANEL
1
2
MDISPENSE
MOTOR
91 WHITE
92 PURPLE
4
1
3 2 7
6
5 8
9
1
POWER
BOX
4x4
SCREW GROUND
4 2 3
1 2 3 1 2
5
4
77 RED
35 BLUE
37 ORANGE
76 WHITE
36 PURPLE
39 BLACK
38 WHITE
74 GREEN
75 BLACK
72 BLACK
73 WHITE
74 GREEN
79 BLACK
78 WHITE
NEUTRAL-WHITE
GROUND-GREEN
115/1/60-BLACK
TO ICE
MACHINE
POWER
TO ICE MACHINE
BIN SIGNAL
(CONTACT CLOSURE)
31 GREEN
32 WHITE
33 BLACK
39 BLACK 38 WHITE
34 RED
35 BLUE
36 PURPLE 37 ORANGE
1
4 2 3 5
S
1
2
WATER
SOLENOID
87 WHITE
86 WHITE
82 BLUE
83 PURPLE
81 WHITE
SensorSAFE DISPENSERS SPLASH PANEL
WATER SENSOR
ICE SENSOR
BOX
TO

25FB425A/W, 50FB425A/W 13
Dispenser troubleshooting
CAUTION!
§Disconnect power to unit before putting hands or arms in storage area or attempting any repair or service to
equipment.
Before calling for service
1. Check that no ice is in the dispenser bin area.
2. Check that congealed ice is not causing a jam.
3. Check that all switches and circuit breakers are on.
4. Check that all drains are clear.
5. Check that water is supplied.
Lever model troubleshooting guide
Problem Indicators Corrective Action
Does not dispense ice. 1. Power switch off or faulty.
2. Faulty dispense switch.
3. Wheel motor malfunction.
1. Check switch – turn on or replace if
faulty.
2. Replace switch.
3. Check motor and capacitor and replace
Does not dispense water. 1. Dispense switch contacts
burned shut.
2. Debris preventing valve from
closing.
1. Replace water solenoid valve.
2. Replace dispense switch.
3. Check switch - turn on or replace if faulty.
Water runs continuously. 1. Faulty water solenoid valve.
2. Faulty dispense switch.
3. Power switch off or faulty.
1. Check switch and replace if faulty
2 Remove and clean valve
Dispense wheel rotates
continuously.
Dispense switch contacts are
burned out.
Replace dispense switch.
Ice machine runs continuously. Faulty or incorrectly positioned
bin stat.
Check for proper positioning. If stat does
not open when ice is placed on capillary
tube, replace stat.
Ice dispenses by itself. 1. Baffle not adjusted properly.
2. Faulty dispense switch.
1. See Adjustment Instructions.
2. Replace dispense switch.
Not making ice. 1. Dispenser is in sleep mode. 1. Verify sleep mode LED is illuminated on
control board.
2. Dispense 5 seconds worth of ice to reset.

14 25FB425A/W, 50FB425A/W
SensorSAFE model troubleshooting guide
Problem Action
SensorSAFE Board LED
Status
Corrective ActionPWR CLN
ICE/
WTR
Does not
dispense ice
and/or water.
Check
LEDs on the
SensorSAFE
control board.
OFF OFF OFF Check circuit breakers and power switch.
Restore power or replace defective switch.
ON ON OFF Press clean switch on lower left side of electrical
enclosure to return board to normal operation.
Place cup
under drop
zone (in front
of lens)
ON OFF OFF Troubleshoot appropriate lens/sensor
and replace if required (see lens/sensor
troubleshooting).
ON OFF ON Verify power on appropriate output terminal
(WTR or WM) on control board and replace
board if required. If board tests okay,
troubleshoot appropriate dispenser component.
Dispenses ice
and/or water
continuously.
Check LEDs
on control
board.
ON OFF ON Troubleshoot appropriate lens/sensor
and replace if required (see lens/sensor
troubleshooting).
ON OFF OFF If there is power on any output terminal (WTR or
WM) on control board, replace board.
Board guide
LEDs, when illuminated, indicate the following: PWR (board power), CLN (cleaning, no dispensing cycle), ICE (ice
dispensing activated), WTR (water dispensing activated).
Terminals: LI (incoming power, hot), L2 (neutral terminals), WTR (power terminal for water solenoid), WM (power
terminal for wheelmotor), CLN (terminals for clean cycle switch).
Note: SOL terminal not used in 12 series dispensers.
Lens/sensor troubleshooting
1. Turn dispenser power switch off and remove slash panel.
2. Disconnect wires from WTR and WM terminals on board.
3. Gently remove sensor/mounting block from splash panel.
4. Inspect lens and sensor, clean if necessary.
5. Restore dispenser power and test sensor by passing hand in front of sensor.
6. If LED on board turns on, sensor is operational. Re-assemble dispenser.
7. If LED does not come on switch sensor leads on board and retest.
8. If opposite LED comes on – replace defective board.
9. If opposite LED does not come on – replace defective sensor.

25FB425A/W, 50FB425A/W 15
Disassembly and replacement instructions
Dispense chute removal
1. Remove dispenser front cover.
2. Slide plastic dispense chute up and out to
remove.
Dispense wheel and drive bar removal
1. Remove all ice from storage area of
dispenser.
2. Remove center thumbnut from dispense
wheel.
3. Remove thumbnuts holding baffle inside bin
and remove baffle.
4. Tilt rear of wheel up and lift off motor drive
shaft.
5. After reinstalling wheel, secure baffle
loosely with thumbnuts, but do not tighten.
6. Place a 1/8" (3.2 mm) spacer against wheel
and allow baffle to drop until it touches
spacer.
7. Tighten thumbnuts and remove spacer.
Drive bar removal
1. Remove dispense wheel from dispenser
(see above).
2. Pull drive bar out of its channel in bottom of
wheel.
Wheelmotor removal
1. Shut water off. Remove front cover.
2. Remove dispense wheel and dispense
chute covers (see above).
3. Remove splash panel. Water line to
solenoid valve can be disconnected from
water inlet valve by pulling on ring at end of
inlet tting.
4. Disconnect wiring to panel and set panel
aside.
5. Disconnect wires on motor.
6. Remove four bolts (7/16" socket) holding
motor assembly to bottom of dispenser.
7. Remove motor assembly.

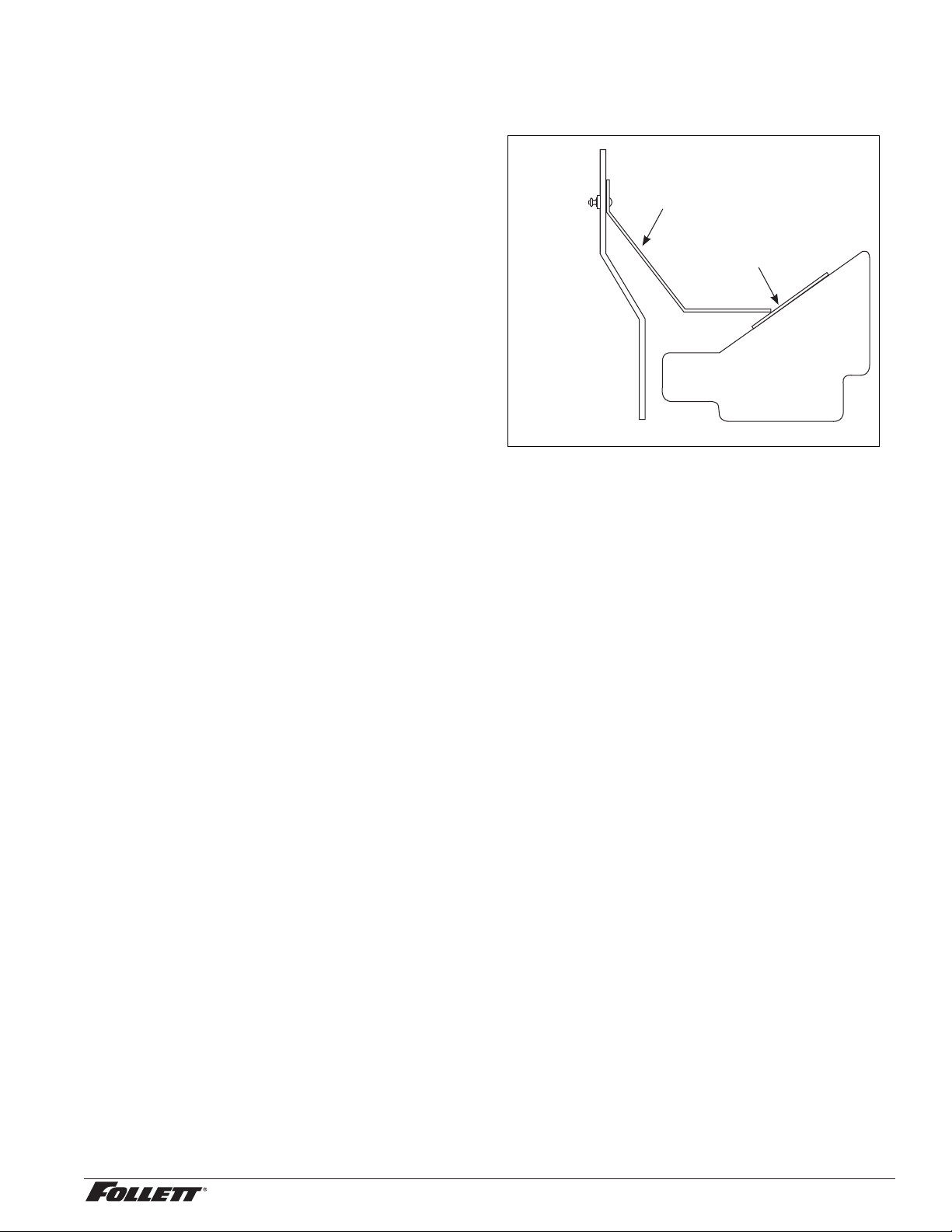

Fig. 2
side view wheel section
dispenser
front
baffle
1/8" (3.2 mm)
spacer

16 25FB425A/W, 50FB425A/W

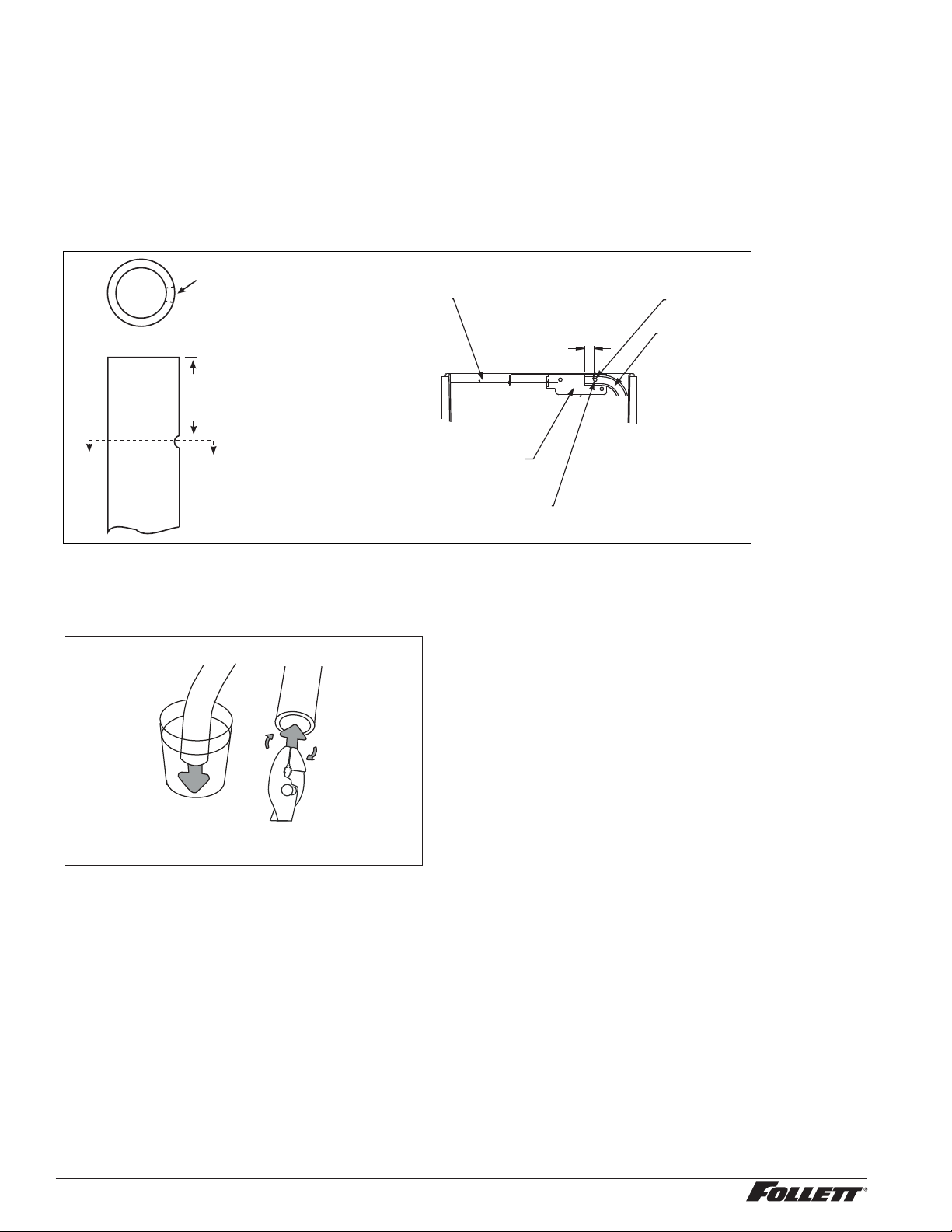

Ice transport tube replacement
1. Remove top and rear access panel from dispenser (lower front panel in freestanding unit).
2. Disconnect existing ice tube from engaging pin on transport tube bracket in ice storage bin and pull down
through dispenser chase.
3. Disconnect opposite end of tube from ice machine.
4. Run end of new ice transport tube with 3/16" (5 mm) hole through internal chase in rear inside corner of
dispenser (left side as you face dispenser) and push up into storage area.
5. Push the 3/16" (5 mm) hole near end of tube into pin on ice tube bracket (Fig 3).
Fig. 3
AA
1"
(26mm)
Section A – A
.3/16" (5mm)
dia. hole engaging pin
3/16 (5mm) ice tube hole
ice hose mounting bracket
ice level control stat
ice tube
1"
(26mm)
6. Slip supplied hose clamp on opposite end of new ice transport tube. Place end of tube in cup of hot water
to soften and spread with pliers to ease assembly and prevent coupler edge from cutting inner wall of
tube (Fig 4).
Fig. 4
Hot Water
160 F (71 C)
7. Carefully push tube onto icemaker. Do not twist hose when securing to evaporator.
Note: Only use tubing supplied by Follett Corporation.
8. Fasten tube on port with hose clamp, ensure that clamp is positioned on evaporator side of nozzle ange.
9. Tighten clamp.

25FB425A/W, 50FB425A/W 17

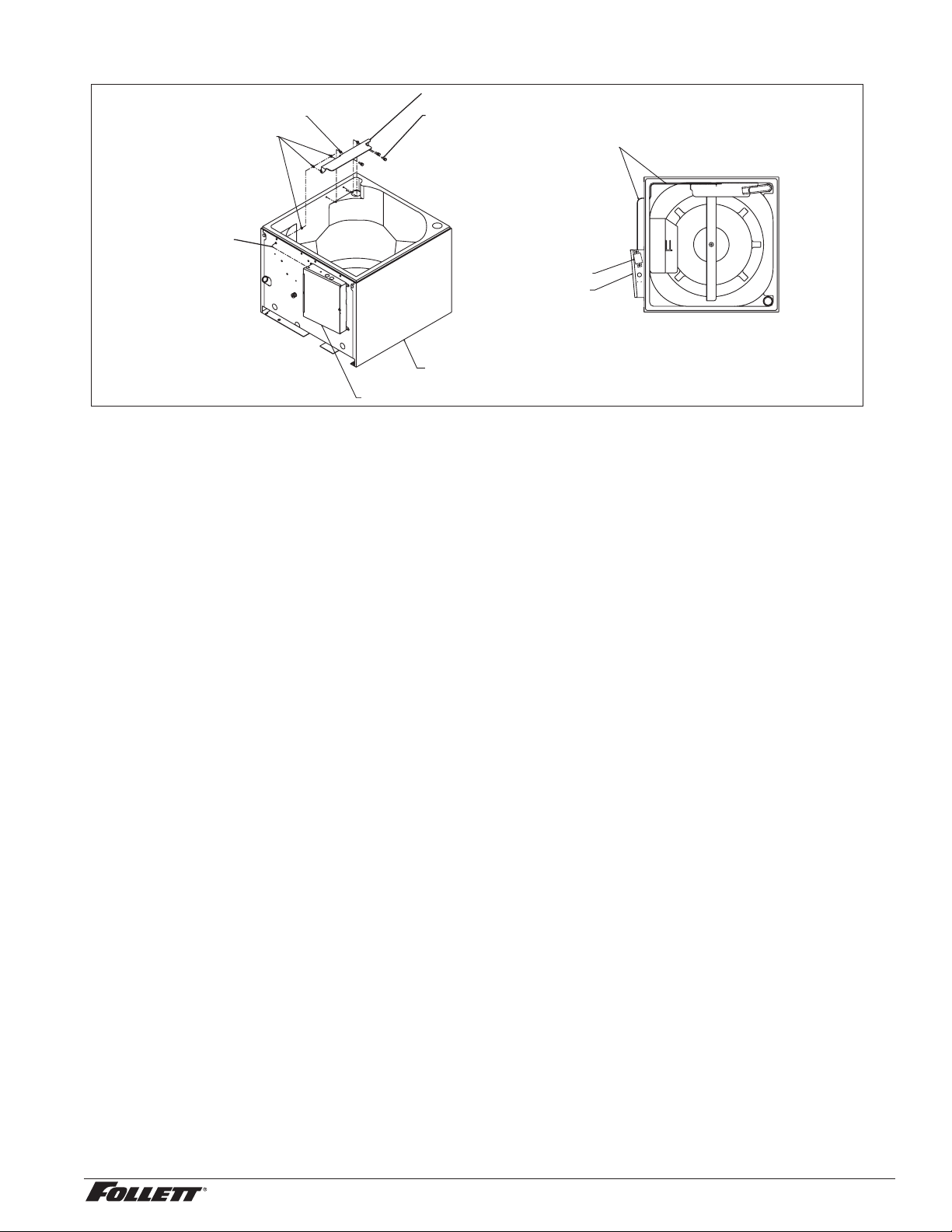

Thermostat locations
well nut
ice level
control stat
rubber grommet
control box assembly
ice mounting hose bracket
knurled screw
hopper assembly
ice level control stat
bin thermostat
control box assembly

18 25FB425A/W, 50FB425A/W
Replacement parts

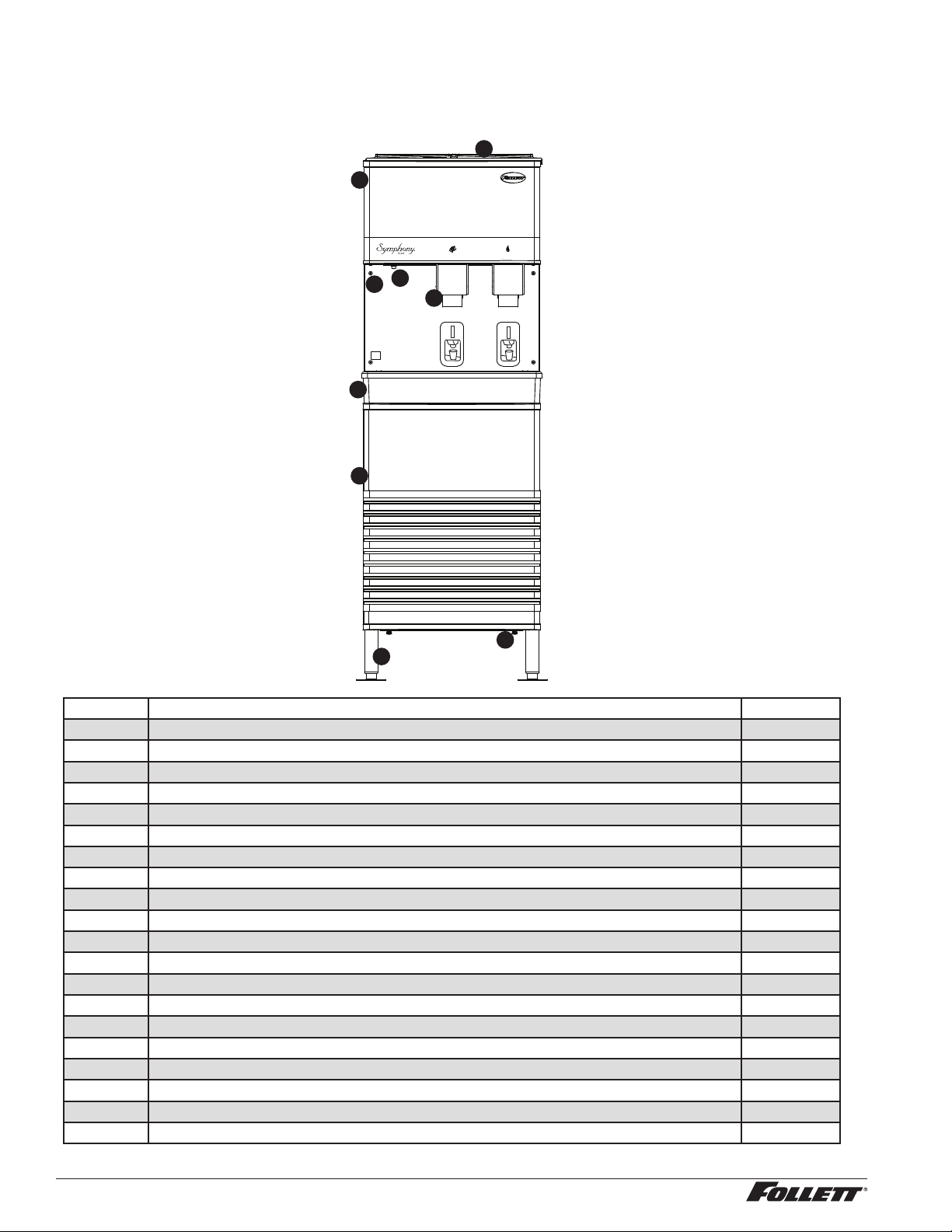

Dispenser exterior
8
6
5
3
2
4
1
7
9
Reference Description Part #
1 Cover, top front, 25 FB, ice and water 01072719
1 Cover, top front, 50 FB, ice and water 01072727
2 Cover, lower section, stainless, 25/50 FB 502694
3 Cover, dispense chute 502681
4 Knurled screws, front cover 01085703
5 Drain pan 502682
Not shown Grille, drain pan 01050277
6 Lid, bin, secured 01072776
Not shown Rear panel, base stand, perforated 01074194
7 Leg kit, 6" (15.3 cm), adjustable, for freestanding units – set of 4 502088
Not shown Single leg, for freestanding units 502298
Not shown Drain tting, plastic, ice machine, freestanding units (includes screws) 00109728
Not shown Cord and plug, power, dispenser 01027648
8 Clean switch, SensorSAFE 502359
Not shown Cord and plug, bin signal, freestanding dispensers, 3 ft 01074210
Not shown Caster 502805
Not shown Grille, drain pan, case of 12 01071232
Not shown Tubing, bin drain 01047562
Not shown Cord and plug, power, FB units, dispenser box to ice machine box 01074848
9 Screw, knurled, 1/4-20 x 1" 01059855

25FB425A/W, 50FB425A/W 19
Wheel motor and drive system
1
5
4
2
10
7
8
5
9
62
3
Reference # Description Part #
1Wheel motor, 120V, 60Hz 501861
2Washer, thrust 501026
3Shaft, drive (includes key and stud) 501619
4Fan blade, wheel motor 501607
Not shown Chain, pitch 67, link 00168781
5Sprocket, drive shaft, 35T (includes drive shaft key) 502692
6Sprocket, wheel motor, 10T 501019
7Bearing, drive shaft 501024
Not shown Connecting link, chain 500799
8Key, drive shaft 500367
9Key, wheel motor 205991
10 Dispenser drive assembly (parts 1-9 above) 00192971

20 25FB425A/W, 50FB425A/W

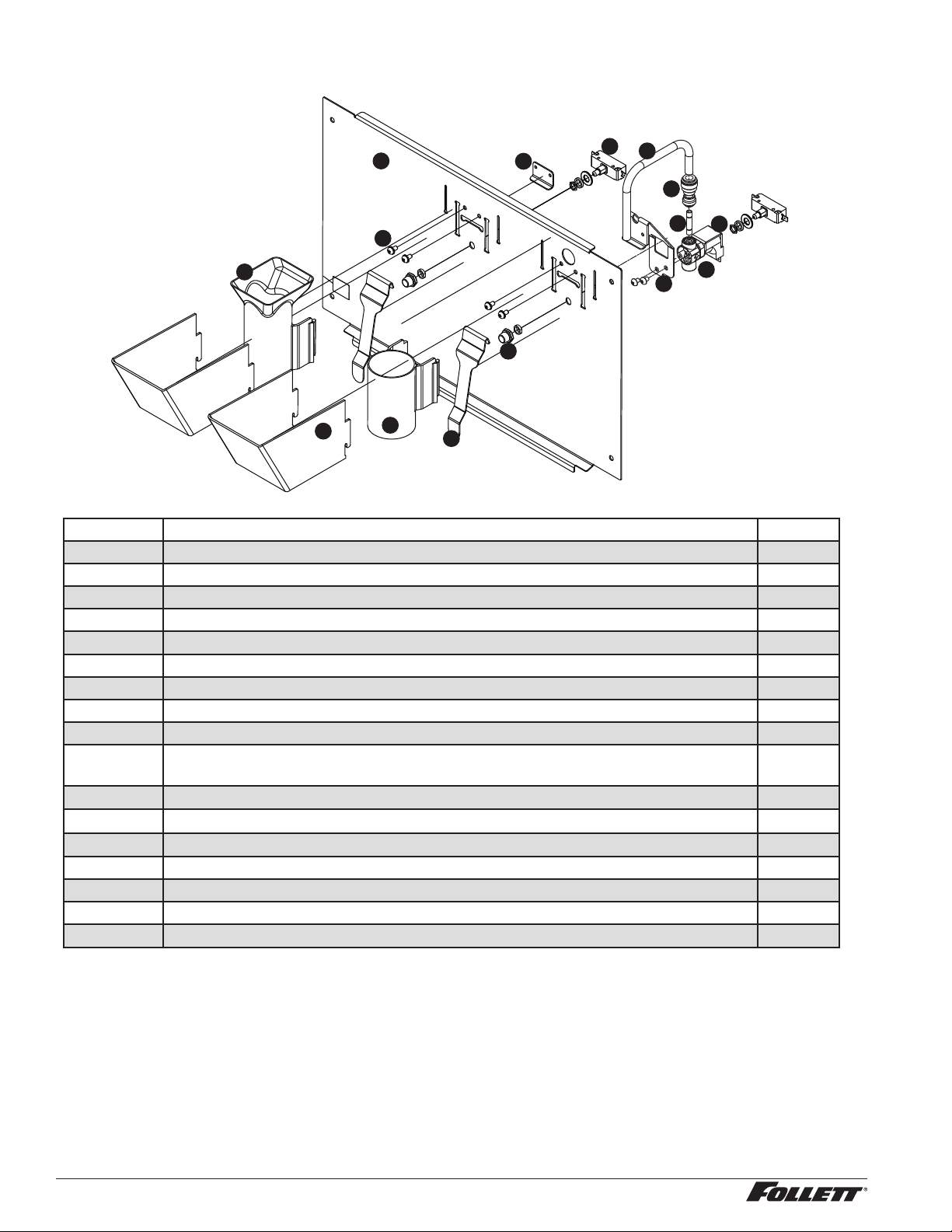

Dispense chute and splash panel (models with lever dispensing)
9
6
15
1
14
7
3
4
5
8
2
12
10
13
11
Reference Description Part #
1 Fastener, 10-32 x 3/8" stainless steel 00982421
2 Tube, water station 502356
3 Cover, dispense chute 502681
4 Switch, dispense, lever actuated (includes 501841) 502359
5Bracket, lever and water solenoid (After S/N L78614) 01352574
6 Bracket, lever 00958793
7 Lever, dispense 00976845
8Chute, ice (with Agion®antimicrobial product protection1) 01041201
9Chute, water (with Agion) 01042266
10 Solenoid assembly, water, 120V 60Hz (includes solenoid valve, mounting bracket, outlet
ttings, dispense tube) (After S/N L78614)
01352608
11 Tube, connector, 1/4" stainless steel (After S/N L78614) 01352517
12 Fitting, 1/4" tube to 3/8" tube (After S/N L78614) 01230671
13 Solenoid valve, water, 120 V, 60Hz (After S/N L78614) 01352483
14 Boot, dispense switch button 501841
15 Splash panel, lever dispense 01038603
Not shown Tubing, water station, thermoplastic, 1/4" OD (sold by the foot) 502079
Not shown Splash panel, lever dispense complete assembly (After S/N L78614) 01352681
1Disclaimer: Antimicrobial protection is limited to the treated components and does not treat water or ice.
