FONESTAR KW-855 User manual

KW-855
PAIR OF WIRELESS INTERCOMS
INSTRUCTION MANUAL
161124_KW-855_MANUAL_(EN)_Maqu tación 1 23/2/17 11:28 Página 1

- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
E ECTRICA SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
OCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTI ATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
EN
161124_KW-855_MANUAL_(EN)_Maqu tación 1 23/2/17 11:28 Página 2

EN
- 3-
SIGNIFICANCE OF THE S MBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILIT
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
161124_KW-855_MANUAL_(EN)_Maqu tación 1 23/2/17 11:28 Página 3

EN
- 4-
DESCRIPTION
- Pair of intercoms. Transmission via mains power supply. Bidirectional communication, operates in manual,
hands-free and monitor mode for use as intercom and for looking after babies, the sick, etc.
- 4 selectable transmission channels; several intercoms can be used in each channel at the same time. Easy
installation. Suitable for domestic use, offices, warehouses, shops, etc.
CONTROLS AND FUNCTIONS

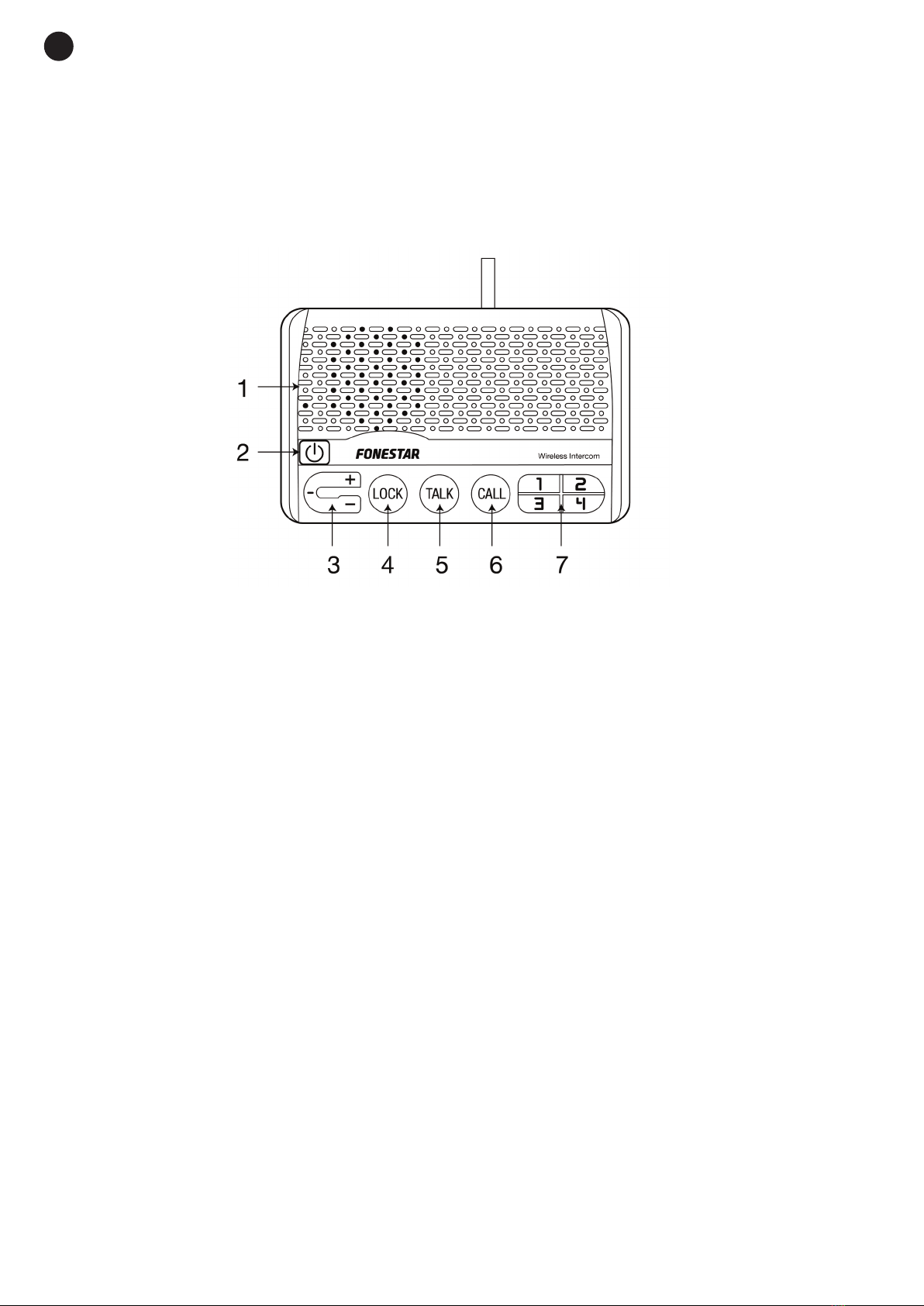

1.- oudspeaker.
2.- q: intercom on/off button.
3.- Volume control.
4.- LOCK: press this button once to activate the hands-free/monitor mode. The ED indicator on the button
itself will light up red and remain lit until it is pressed again to deactivate the function.
5.- TALK: press and hold this button to be able to talk in manual mode.
6.- CALL: button to send a call tone to the rest of the intercoms on the same channel. Press and hold this
button the length of time you wish the call tone to last.
7.- 1-2-3-4: number buttons to select the transmission channel. The intercoms must have the same
transmission channel selected to be able to communicate with each other.
INSTRUCTIONS FOR USE
- Connect each intercom’s mains cable to the corresponding mains socket and switch them on. Adjust the
volume to the appropriate level.
- With the number buttons select the same channel for both intercoms.
- Press the CA button on one of the intercoms to send a call tone to the other intercom. The other user
will receive the sound of the call tone in their intercom.
- Press and hold the TA K button to talk and release it when you have finished talking.
- In order to use the hands-free/monitor function press the OCK button. The ED OCK indicator will light
up red. In this way, it is possible to hold a conversation without needing to press the TA K button while
you are talking. In order to cancel this option, press the same button again.
161124_KW-855_MANUAL_(EN)_Maqu tación 1 23/2/17 11:28 Página 4

INSTALLATION

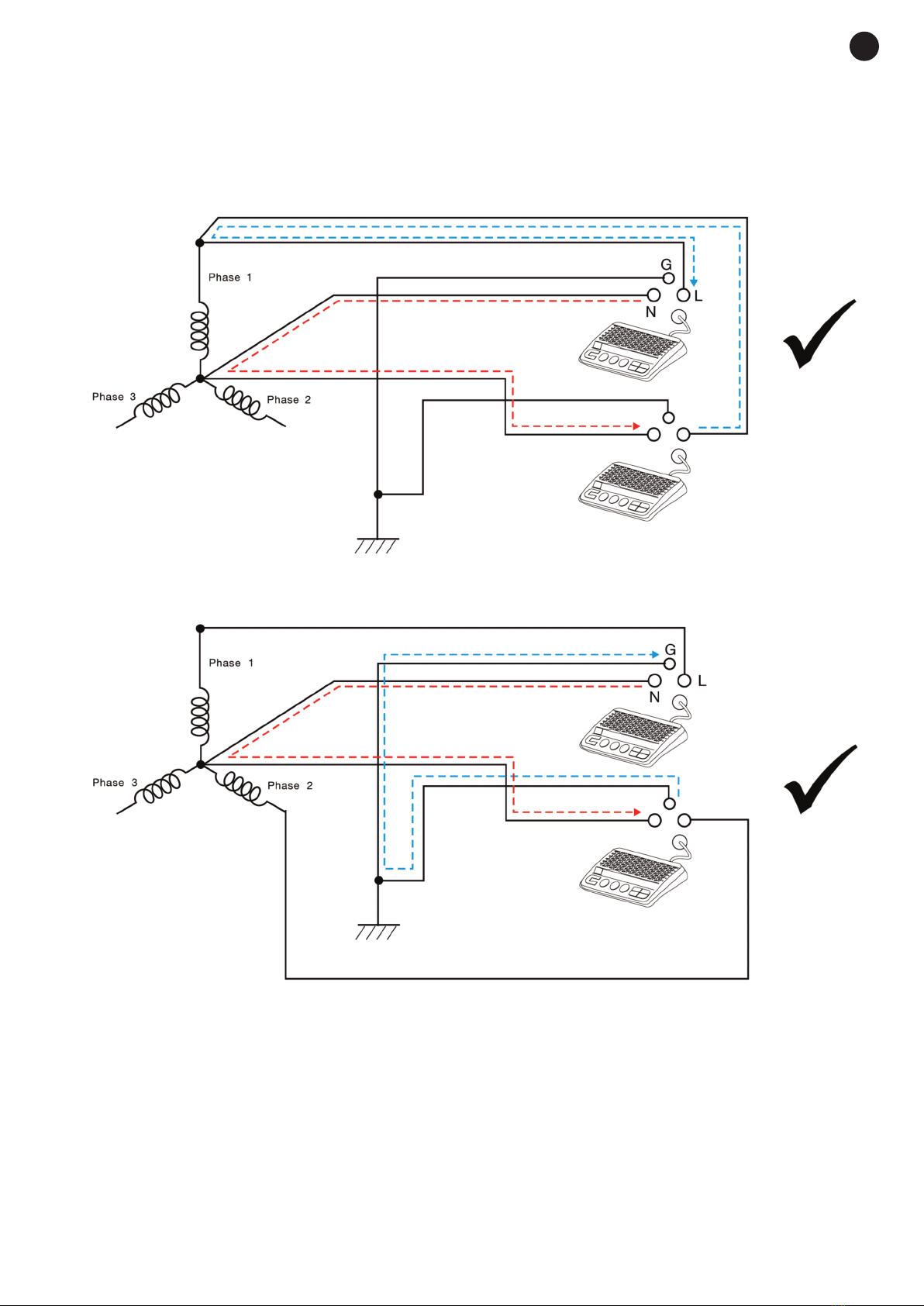

The intercoms are designed to work in 1, 2 and 3-phase installations. Bear in mind the following diagrams
of the different types of installation:
CORRECT OPERATING IN SING E PHASE INSTA ATIONS
CORRECT OPERATING IN 2 OR 3- PHASE INSTA ATIONS
- 5-
EN
161124_KW-855_MANUAL_(EN)_Maqu tación 1 23/2/17 11:28 Página 5

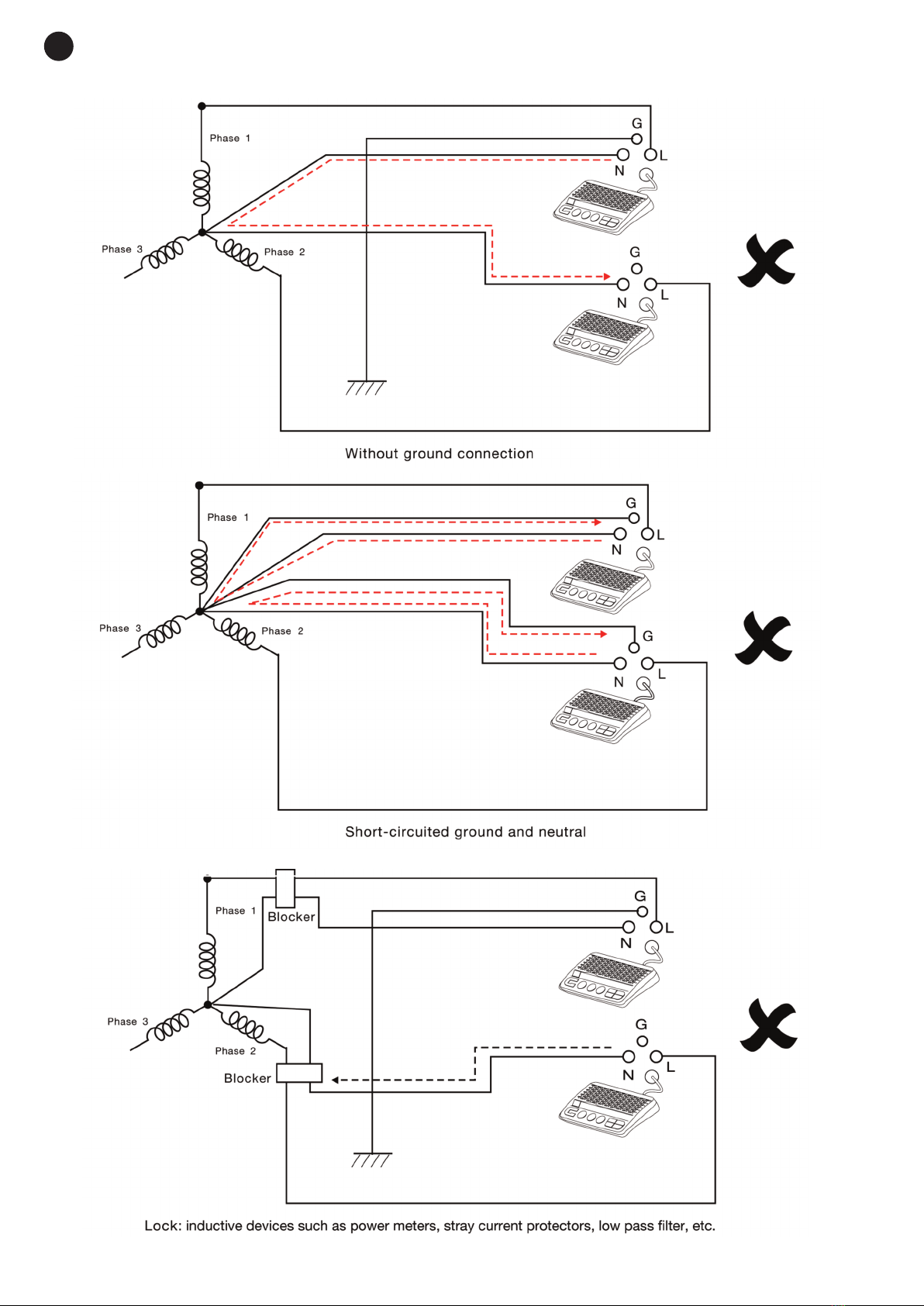

EXAMP ES OF INCORRECT OPERATING IN 2 OR 3-PHASE INSTA ATIONS
- 6-
EN
161124_KW-855_MANUAL_(EN)_Maqu tación 1 23/2/17 11:28 Página 6

TECHNICAL SPECIFICATIONS
KW-855
CHARACTERISTICS Pair of wireless intercoms.
Specially designed for single phase (with and without earth) and two and three-
phase (with earth) electrical installations.
Manual, hands-free and monitor mode.
Transmission via mains power supply.
Maximum communication distance approximately 100m.
4 transmission channels.
Possibility to use several intercoms at the same time.
Easy installation.
Wall or desktop format.
POWER SUPPL 100-240 V AC, 2 W
DIMENSIONS 160 x 32 x 105 mm depth
- 7-
EN
161124_KW-855_MANUAL_(EN)_Maqu tación 1 23/2/17 11:28 Página 7

WARRANT
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and
commits itself to repair or substitute the goods as expressed in the Spanish law ‘ a ey General para la Defensa de los
Consumidores y Usuarios, Real Decreto egislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more than
showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of the product being sold with
that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use,
breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and internal manipulation of the
device, the software or its components by unauthorized persons, and in general any use that is unrelated to the nature and
purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor
where the product was purchased in no more than 2 months after being conscious of the problem. It is only necessary to
contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or
crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by the Spanish
law ‘ a ey General para la Defensa de los Consumidores y Usuarios, Real Decreto egislativo 1/2007 16 Noviembre.
FONESTAR is a member of ECOEMBA AJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
FONESTAR, S.A. - NIF: A28780443 - Poligono Trascueto - 39600 - Revilla de Camargo, Cantabria (SPAIN)
www.fonestar.com
