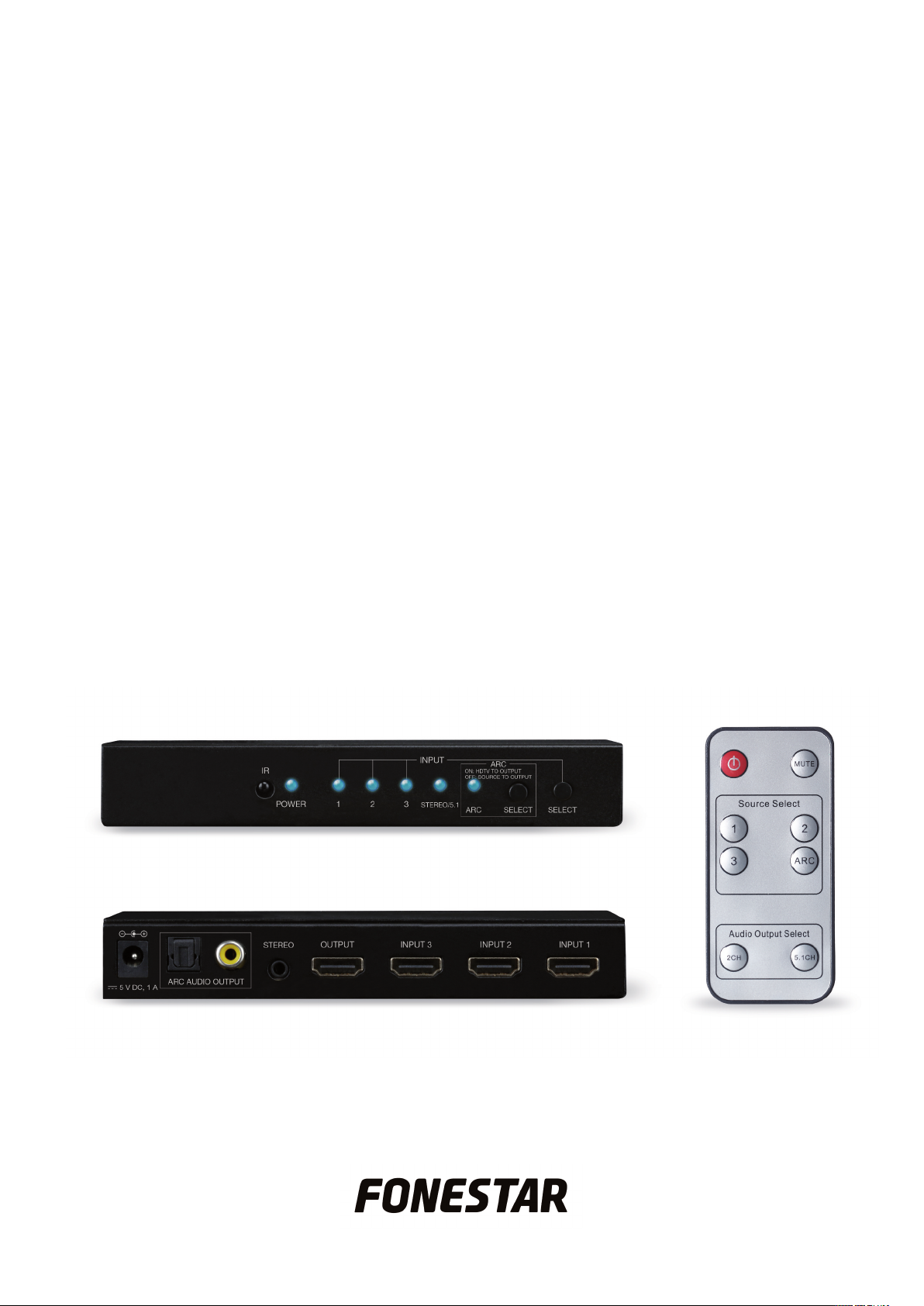

FONESTAR FO-14SW31 User manual

FO-14SW31
3 x 1 HDMI SWITCHER
INSTRUCTION MANUAL
160804_FO-14SW31_MANUAL_(EN)_M quet ción 1 29/11/16 7:56 Págin 1

EN
- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURIT AND THE ENVIRONMENT
E ECTRICA SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
OCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTI ATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
160804_FO-14SW31_MANUAL_(EN)_M quet ción 1 29/11/16 7:56 Págin 2

EN
- 3-

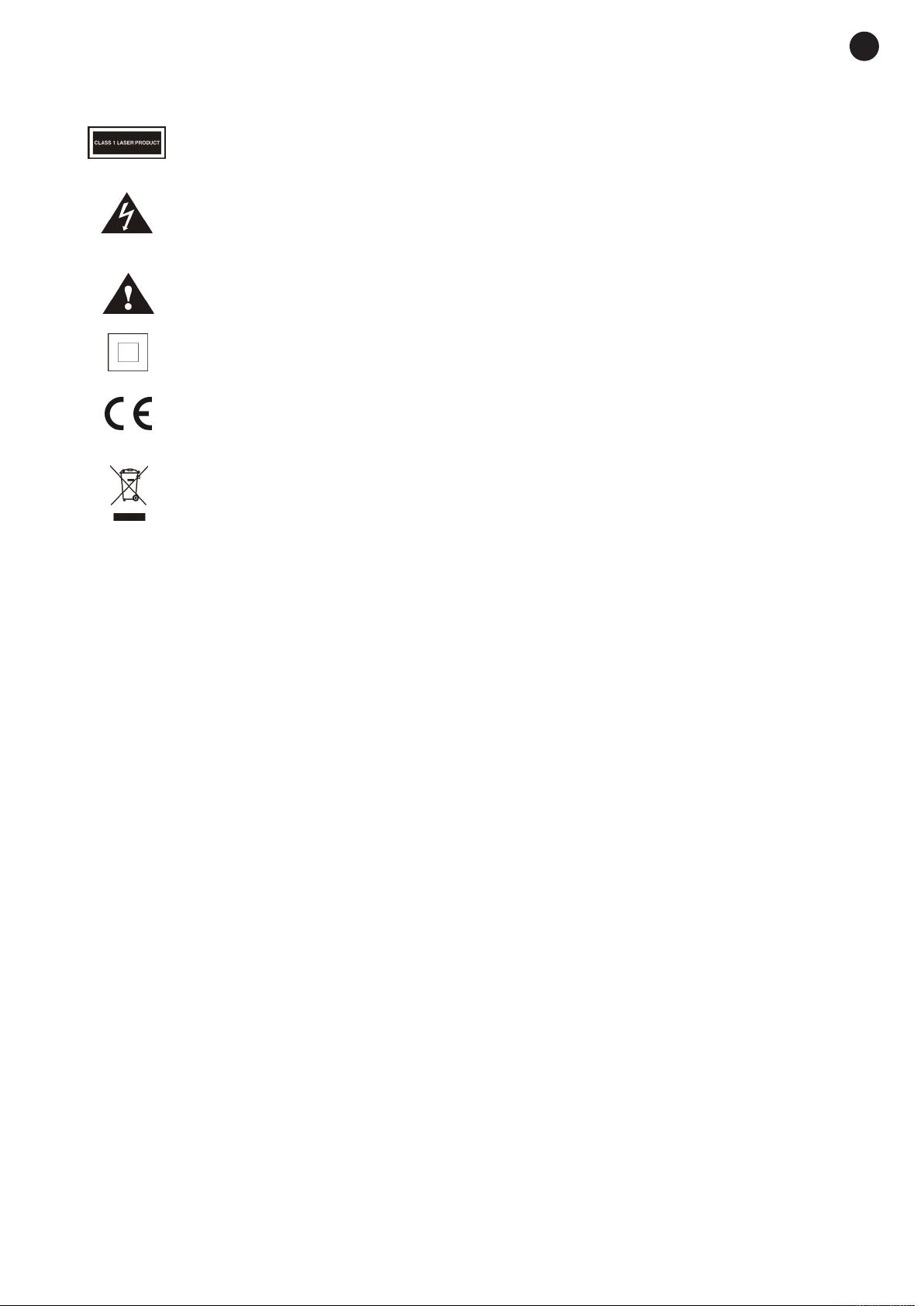

SIGNIFICANCE OF THE S MBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct expose to
the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILIT
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
160804_FO-14SW31_MANUAL_(EN)_M quet ción 1 29/11/16 7:56 Págin 3

EN
- 4-
DESCRIPTION
3 x 1 HDMI switcher with remote control. Allows selection of required HDMI input among the three available.
If the television has the ARC function, it will be possible to transmit audio from it to the amplifier simply by
activating the ARC function with the switch, without the need for additional cables between the television
and the amplifier.
CONTROLS AND FUNCTIONS
1.- Power supply input for the mains adapter provided.
2.- ARC AUDIO OUTPUT: Optical digital audio and coaxial SPDIF outputs, toslink and RCA connectors.
3.- STEREO: stereo audio output, 3.5 mm jack connector.
4.- OUTPUT: digital signal output, HDMI connector.
5.- INPUT 1-3: digital signal inputs, HDMI connectors.
6.- IR: remote control infrared receiver.
7.- POWER: ED power indicator.
8.- 1-3: ED indicators of selected HDMI input.
9.- STEREO/5.1: ED indicator which remains permanently lit when audio 5.1 is selected and remains
permanently switched off when stereo audio is selected.
10.- ED ARC function indicator. It lights up when the ARC function is activated and remains off when the
ARC function is not activated.
11.- ARC SELECT: button which activates/deactivates the ARC function. If the ARC function is activated,
the ED indicator will light up and the audio played by the loudspeakers connected to the amplifier will
be that of your TV. If the ARC function is deactivated, the ED indicator will remain switched off and the
audio that is played by the loudspeakers connected to the amplifier will be that of the source selected.
For more information, consult the Connection and Operating section.
12.- SELECT: button to select the INPUT 1-3 required.
REMOTE CONTROL
1.- q: switcher on/off button in standby mode.
2.- MUTE: button which activates/deactivates the audio output.
3.- INPUT 1-3: buttons to directly select the HDMI input required.
4.- ARC: button to activate/deactivate the ARC function. For more information,
consult the Controls and Functions section.
5.- 2 CH: button which allows the digital stereo audio output format to be
selected.
6.- 5.1 CH: button which allows the digital audio 5.1 output format to be selected.
Note: the selection of the audio digital output signal format between stereo or 5.1 CH (with the corresponding
buttons on the remote control) is only possible if the digital audio source has 5.1 CH output. If the
source only has digital audio output 2 CH, the STEREO or 5.1 buttons will have no effect.
160804_FO-14SW31_MANUAL_(EN)_M quet ción 1 29/11/16 7:56 Págin 4

EN
- 5-
CONNECTION AND OPERATING
- Connect the required sources to the inputs INPUT 1-3 on the switcher using HDMI cable.
- Connect the receiver OUTPUT to the TV screen using HDMI cable.
- If you wish, connect the optical audio, coaxial or stereo outputs to an amplifier and this to some
loudspeakers.
- Power the FO-14SW31 switcher with the mains adapter provided.
- Switch on the connected digital sources, the TV screen and select the required input with the
corresponding controls.
Note: if the ARC function is activated, the audio that is played by the loudspeakers will be that of your TV.
If the ARC function is deactivated, the audio that is played by the loudspeakers connected to the
amplifier will be that of the source selected.
TECHNICAL SPECIFICATIONS
FO-14SW31
CHARACTERISTICS 3 x 1 HDMI switcher.
Compatible with Full HD 1080p, 3D, ARC.
On/off selection for the audio return channel (ARC).
HDMI audio extractor.
Accepts PCM 7.1, DTS Digital and Dolby Digital.
Allows simultaneous SPDIF audio and stereo output.
Stereo submix or 5.1 output selection.
Remote control.
Bandwidth 9 Gbps.
INPUTS 3 gold-plated female HDMI connectors
OUTPUTS 1 gold-plated female HDMI connector
Optical SPDIF, Toslink
Coaxial SPDIF, RCA
Stereo audio, 3.5 mm stereo jack
CONTROLS Input selection button
ARC activation button
Audio output type selection button (remote control)
MUTE button
INDICATORS ED power indicator, selected input, ARC and audio output type
POWER SUPPL 5 V DC, 1 A with adapter included
DIMENSIONS 154 x 23 x 75 mm depth
160804_FO-14SW31_MANUAL_(EN)_M quet ción 1 29/11/16 7:56 Págin 5

EN
160804_FO-14SW31_MANUAL_(EN)_M quet ción 1 29/11/16 7:56 Págin 6

-7-
WARRANT
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the
delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘ a ey General
para la Defensa de los Consumidores y Usuarios, Real Decreto egislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with
no more than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof
of the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts
due to use, breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and
internal manipulation of the device, the software or its components by unauthorized persons, and in general any
use that is unrelated to the nature and purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business
or distributor where the product was purchased in no more than 2 months after being conscious of the problem.
It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no
corrections or crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected
by the Spanish law ‘ a ey General para la Defensa de los Consumidores y Usuarios, Real Decreto egislativo
1/2007 16 Noviembre’.
FONESTAR is a member of ECOEMBA AJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
FONESTAR, S.A. - NIF A28780443 - Poligono Trascueto - 39600 Revilla de Camargo, Cantabria (Spain)
www.fonestar.com
