FONESTAR FO-535R User manual

FO-535R
5 x 1 HDMI SWITCHER
INSTRUCTION MANUAL
160503_FO-535R_MANUAL_(EN)_Maqueta ión 1 3/5/16 11:11 Página 1

EN
- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
E ECTRICA SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
OCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTI ATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
160503_FO-535R_MANUAL_(EN)_Maqueta ión 1 3/5/16 11:11 Página 2

EN
- 3-

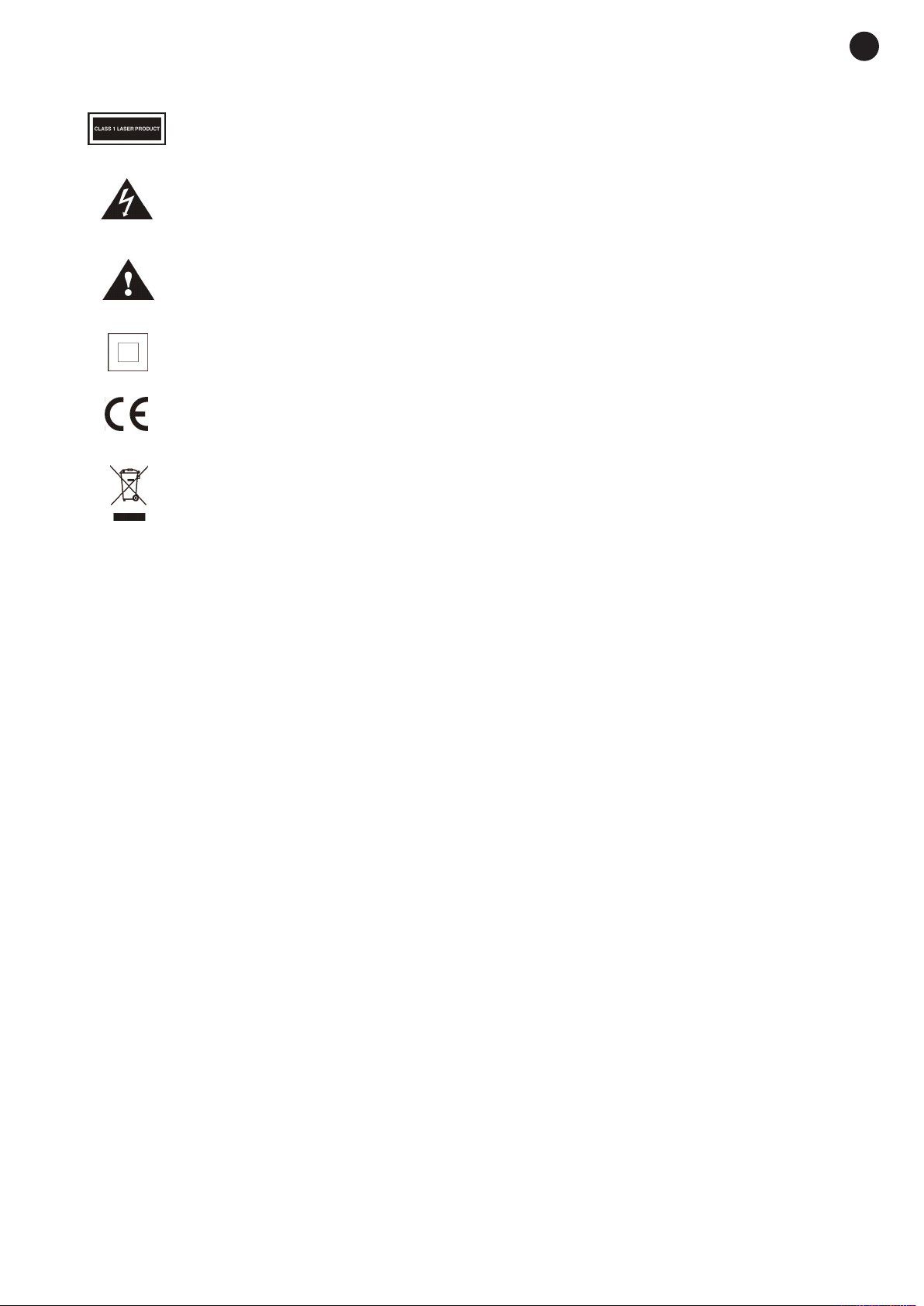

.SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct expose to
the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
160503_FO-535R_MANUAL_(EN)_Maqueta ión 1 3/5/16 11:11 Página 3

EN
-4-
DESCRIPTION
- The HDMI switcher mod. FO-535R allows the connection of up to 5 HDMI input signals to be visualised
in a monitor with a HDMI input, conditioning the signal for optimum reproduction. It allows the input to be
selected both manually and using the remote control which is provided.
CONTROLS AND FUNCTIONS
1.- INPUT 1-5: A/V digital signal inputs, HDMI connectors.
2.- OUTPUT: A/V digital signal output, HDMI connector.
3.- 5 V DC: power supply input for the mains adapter provided.
4.- IR: infrared receiver for the remote control.
5.- INPUT 1-5: ED input power indicators. They switch on individually when the corresponding input is
connected.
6.- SELECT: HDMI input selection button which is sent to the switcher’s output.
REMOTE CONTROL
1.- 1, 2, 3, 4, 5: input signal direct selection buttons
160503_FO-535R_MANUAL_(EN)_Maqueta ión 1 3/5/16 11:11 Página 4

EN
-5-
CONNECTION AND OPERATING
- Connect the A/V digital sources required to the switcher inputs INPUT 1-5 using HDMI cable.
- Connect the switcher’s OUTPUT to the TV screen using HDMI cable.
- Power the switcher FO-535R with the mains adapter provided.
- Switch on the A/V digital sources connected, the TV monitor and select the A/V input required using the
SE ECT button on the switcher itself or using the remote control.
TECHNICAL SPECIFICATIONS
FO-535R
CHARACTERISTICS 5 x 1 HDMI switcher.
Compatible with Full HD 1080p, 3D
Intelligent automatic selection function on detecting an input signal.
Remote control.
Bandwidth 2.5 Gbps/250 MHz
INPUTS 5 gold-plated female HDMI connectors
OUTPUTS 1 gold-plated female HDMI connector
CONTROLS Input selection button
INDICATORS ED selected input indicator
POWER SUPPLY 5 V DC, 1 A with adapter included
DIMENSIONS 80 x 18 x 58 mm depth
ACCESSORIES Remote control extension lead
160503_FO-535R_MANUAL_(EN)_Maqueta ión 1 3/5/16 11:11 Página 5

DECLARATION OF CONFORMITY
FONESTAR SISTEMAS S.A.
Polígono de Trascueto s/n
39600 Revilla de Camargo, Cantabria (Spain)
Declares, under its responsibility, that the following equipment:
Description: 5 x 1 HDMI switcher
Br nd: FONESTAR
Model: FO-535R
complies with the European Community directives 2004/108/EC on Electromagnetic Compatibility,
2006/95/EC on ow Voltage and 2011/65/EU on the restriction on the use of certain dangerous
substances in electrical and electronic appliances (RoHS).
Santander, 23rd January 2015
Juan Vallejo
Technical Engineer, Sales Department
WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the
delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘ a ey General
para la Defensa de los Consumidores y Usuarios, Real Decreto egislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with
no more than showing the proof of purchase. After six months FONESTAR reserves the right to demand proof of
the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts
due to use, breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and
internal manipulation of the device, the software or its components by unauthorized persons, and in general any
use that is unrelated to the nature and purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or
distributor where the product was purchased in no more than 2 months after being conscious of the problem. It
is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no
corrections or crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by
the Spanish law ‘ a ey General para la Defensa de los Consumidores y Usuarios, Real Decreto egislativo 1/2007
16 Noviembre’.
FONESTAR is a member of ECOEMBA AJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our
products carry the symbol, backed by our membership and subscription to the above mentioned organization with
the recycling and subsequent management of our packaging.
FONESTAR, S.A. - NIF: A28780443 - Apartado 191 - 39080 Santander, Cantabria (SPAIN)
www.fonest r.com
