Fostoria SUN-MITE FES-1024-1CA User manual

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 1 of 24
FOSTORIA INDUSTRIES, INC.
1200 North Main Street
Fostoria, OH 44830-1911
Phone: [phone]
Fax: [phone]
www.fostoriaindustries.com
A DIVISION OF
FES - Series
Portable Electric Heaters
IMPORTANT SAFETY
INFORMATION INSIDE
• Serious injury or death possible.
• Read, understand, and follow all
safety information and
instructions in this manual
before using or servicing this
product.
• Retain these instructions for
future reference.
CONTENTS
Specifications Page 2
YES Installation Page 3
FES Assembly Page 4
Wiring Page 4,5,6,7,8
Operating Page 9

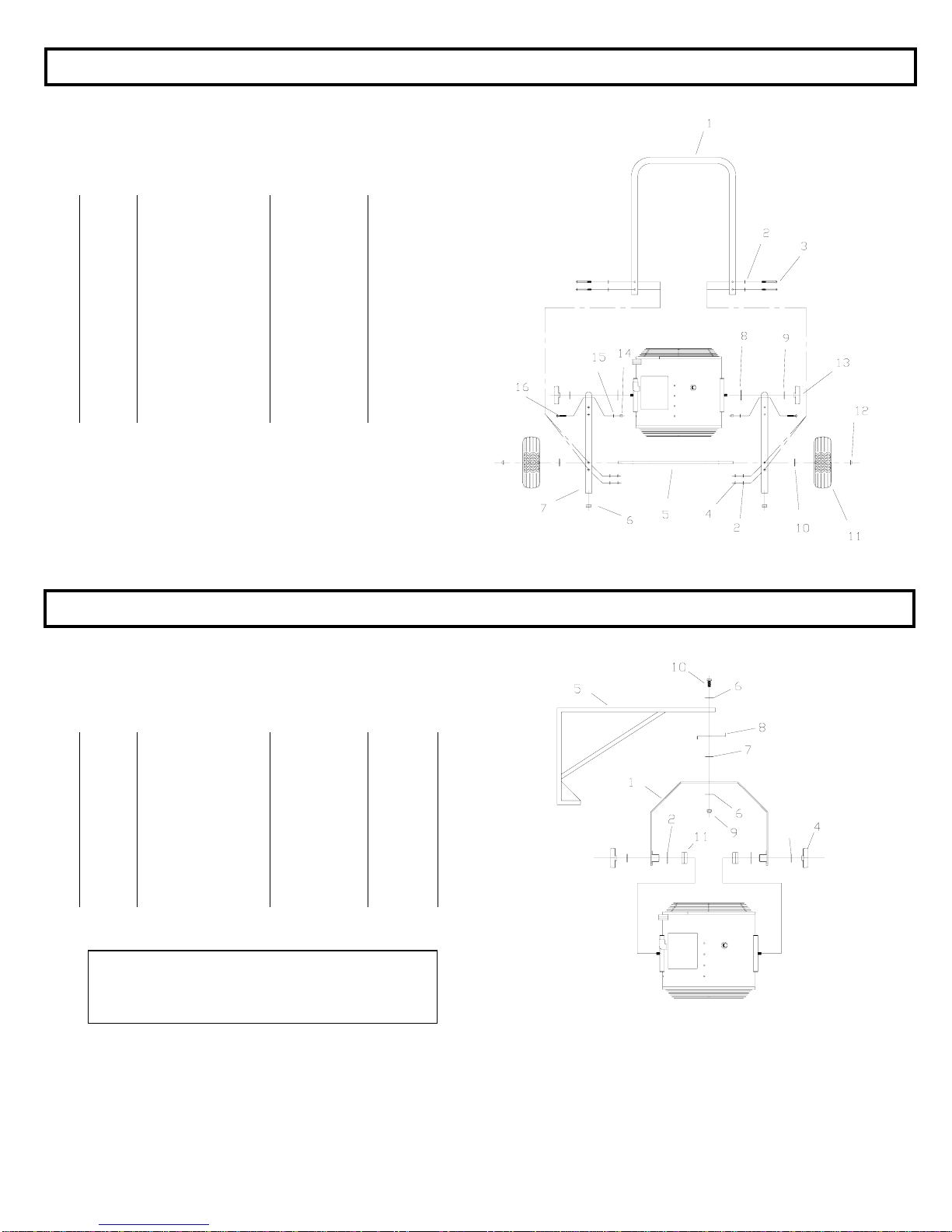

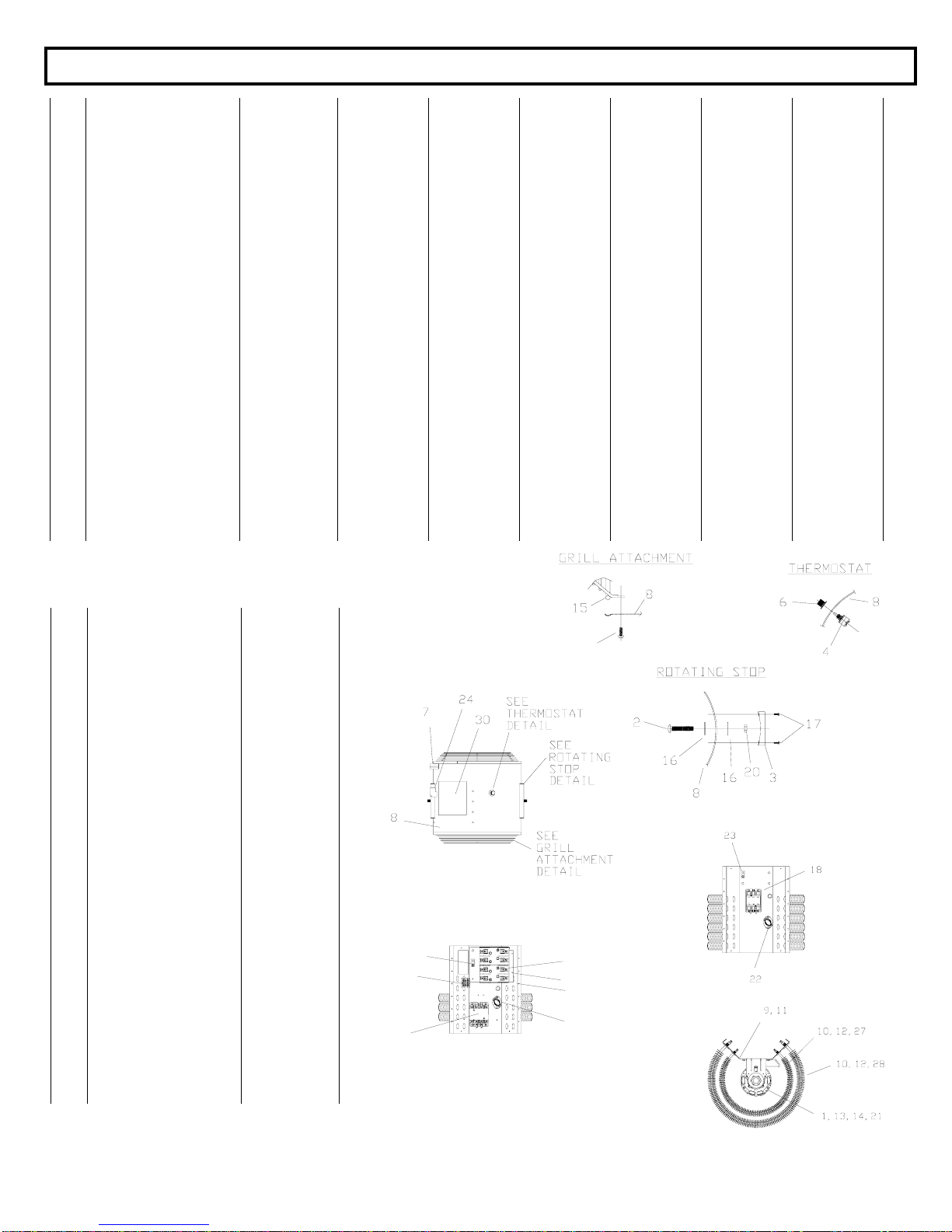

Replacement Parts Page 10,11
Maintenance Page 12
Limited Warranty Page 12
YES - Series
Suspended Electric Heaters
(FES-1524-3E shown)

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 2 of 24
Description – Fostoria portable and suspended electric heaters provide clean, quiet, odor-free, fan-forced heat. They are
designed to circulate room air continuously; gradually heating a confined space. The best results will be obtained when using these
heaters in smaller, insulated spaces. Features include a safety-yellow enclosure with front and rear safety screens; reliable stainless
steel finned heating elements; a high-limit temperature switch with automatic reset; an automatic thermostat control with fan-only
option; and a long-life motor and fan assembly with sealed bearings. The portable (FES) models come mounted on a two-wheele
d
cart with wheels designed to be easily pushed or pulled over uneven surfaces.

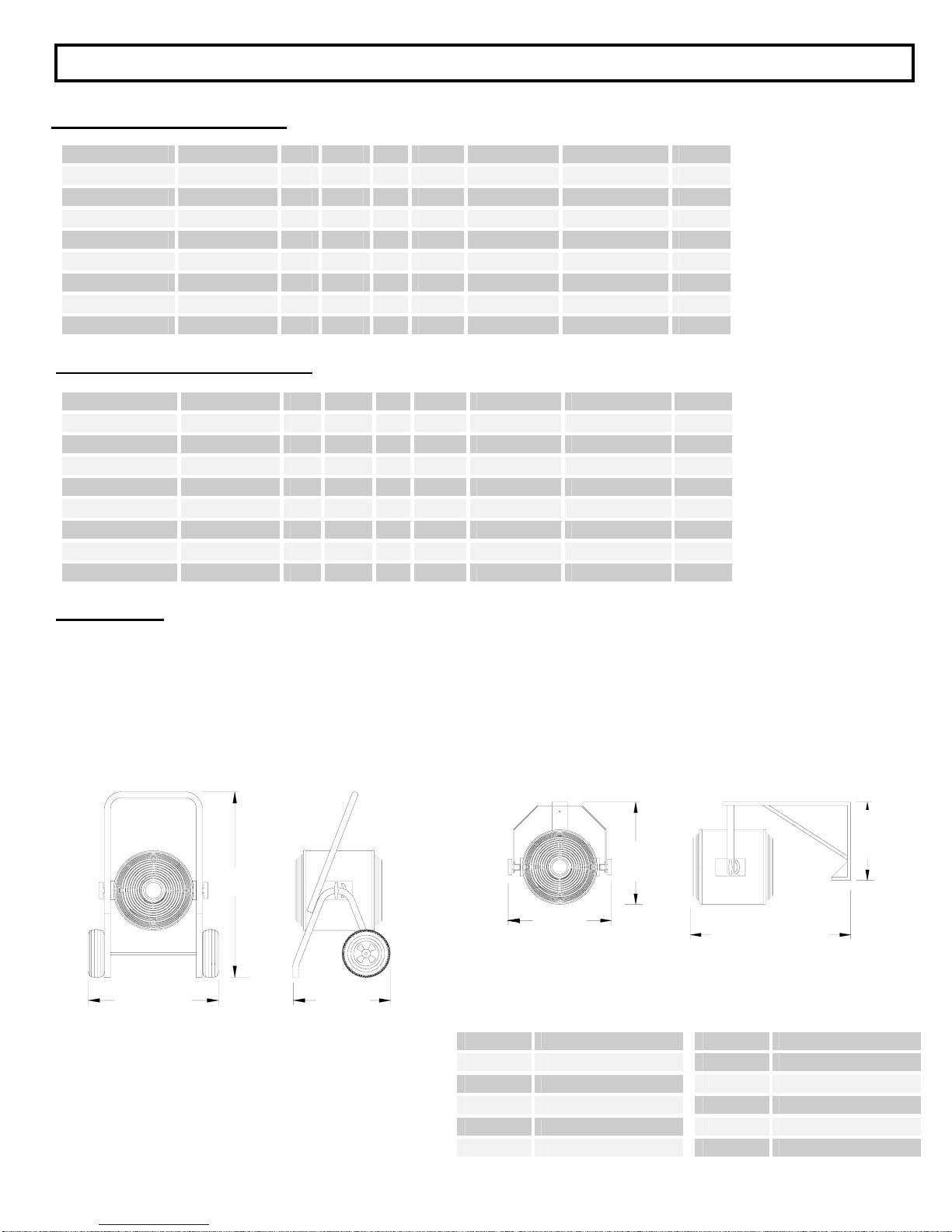

SPECIFICATIONS
Model Part number kW Volts PH Amps Fan Output Heat Output Dim B
YES-1024-1CA 08861510 10 240 1 42 800 CFM 34152 BTUH 36”
YES-1520-3A 08860810 15 208 3 41.5 800 CFM 51228 BTUH 36”
YES-1524-1A 08861810 15 240 1 62.5 800 CFM 51228 BTUH 38”
YES-1524-3E 08860910 15 240 3 36 800 CFM 51228 BTUH 36”
YES-1548-3E 08861010 15 480 3 18 800 CFM 51228 BTUH 36”
YES-1560-3A 08861110 15 600 3 14.4 800 CFM 51228 BTUH 36”
YES-3048-3A 08861210 30 480 3 36 1100 CFM 102455 BTUH 38”
YES-3060-3A 08861310 30 600 3 30 1100 CFM 102455 BTUH 38’
Model Part number kW Volts PH Amps Fan Output Heat Output Dim A
FES-1024-1CA 08860010 10 240 1 42 800 CFM 34152 BTUH 21”
FES-1520-3A 08860110 15 208 3 41.5 800 CFM 51228 BTUH 21”
FES-1524-1A 08860710 15 240 1 62.5 800 CFM 51228 BTUH 23”
FES-1524-3E 08860210 15 240 3 36 800 CFM 51228 BTUH 21”
FES-1548-3E 08860310 15 480 3 18 800 CFM 51228 BTUH 21”
FES-1560-3A 08860410 15 600 3 14.4 800 CFM 51228 BTUH 21”
FES-3048-3A 08860510 30 480 3 36 1100 CFM 102455 BTUH 23”
FES-3060-3A 08860610 30 600 3 30 1100 CFM 102455 BTUH 23”
Portable Electric Heaters – UL file number E154159
Suspended Electric Heaters – UL file number E32304
27”
39”
FES Models
23”
23”
17.5”
YES Models
A
B
Quantity Description
1 Bracket wall/ceiling
1 Hanger
2 Washer steel
2 Knob
2 Washer rubber
Quantity Description
1 Rotating stop - Top
1 Nut stop ½ -13
1 Bolt ½-13 x 1-1/2
1 Nylon washer
2 Rotating stop – side
All Fostoria FES models come fully-assembled
except the handle is attached in a lowered shipping
position when shipped from the factory. Dimensions
above are for handle in operating position. See page
4 for final assembly of handle.
YES models are shipped with the following items. Check to make
certain all parts are at hand prior to beginning the installation.

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 3 of 24
Tools required: (2) ¾” socket or box wrenches.
Parts required: the two screws required to secure
wall/ceiling bracket to a suitable surface are no
t
supplied with heater. You must use 5/16” bolts an
d
flat washers to mount this bracket.

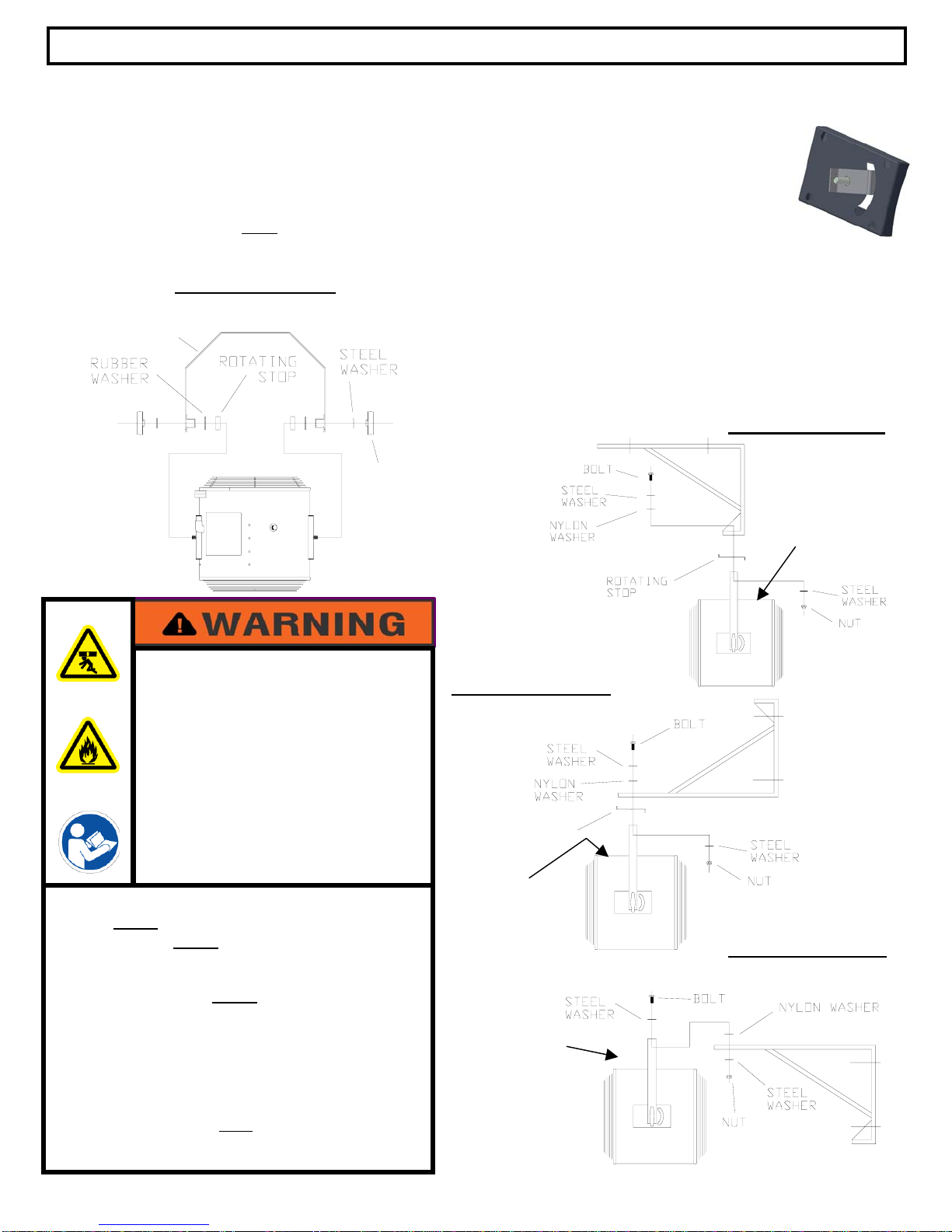

Hanger Assembly Detail
YES - SERIES INSTALLATION
HANGER
Step 1: Install (1) side rotating stop ove
r
b
olt and into curved slot (as shown a
t
right) on each side of heater.
Step 3: Secure wall/ceiling mounting bracket to appropriate
surface that will support a min. weight of 100lbs continuously.
N
OTE: all mounting hardware to mount hanger to wall/ceiling
bracket is supplied with heater.
KNOB
ALL Fostoria YES models require some assembly. Four steps are required to complete the assembly and installation.
TOP of
Heater
Step 2: Assemble hanger to heater per hanger
assembly detail. No tools are required.
Ceiling Mount Option
Step 4: Assemble unit to mounting bracket following
instructions of chosen mounting option below.
Wall Mount Option #1
TOP ROTATING
STOP
TOP
of
Heater
FALLING OBJECTS HAZARD
FIRE HAZARD
• Serious injury or death
may occur.
• Read and follow all safety
information and
instructions in box below.
• Mounting bracket supplied with YES models
MUST be used to support heater.
• Installer MUST be certain surface that
bracket is mounted to will support 100 lbs of
weight continuously.
• Rotating stops MUST be installed as shown
above.
• Do not mount heater upside down (See
nameplate label for “TOP” of heater.)
• The bottom of these units must be mounted at
least 6 ft. off the floor and the top 2 ft. from
the ceiling.
• Do not suspend ANY other equipment from
this bracket. One heater per bracket
maximum.
Wall Mount Option #2
TOP
of
Heater

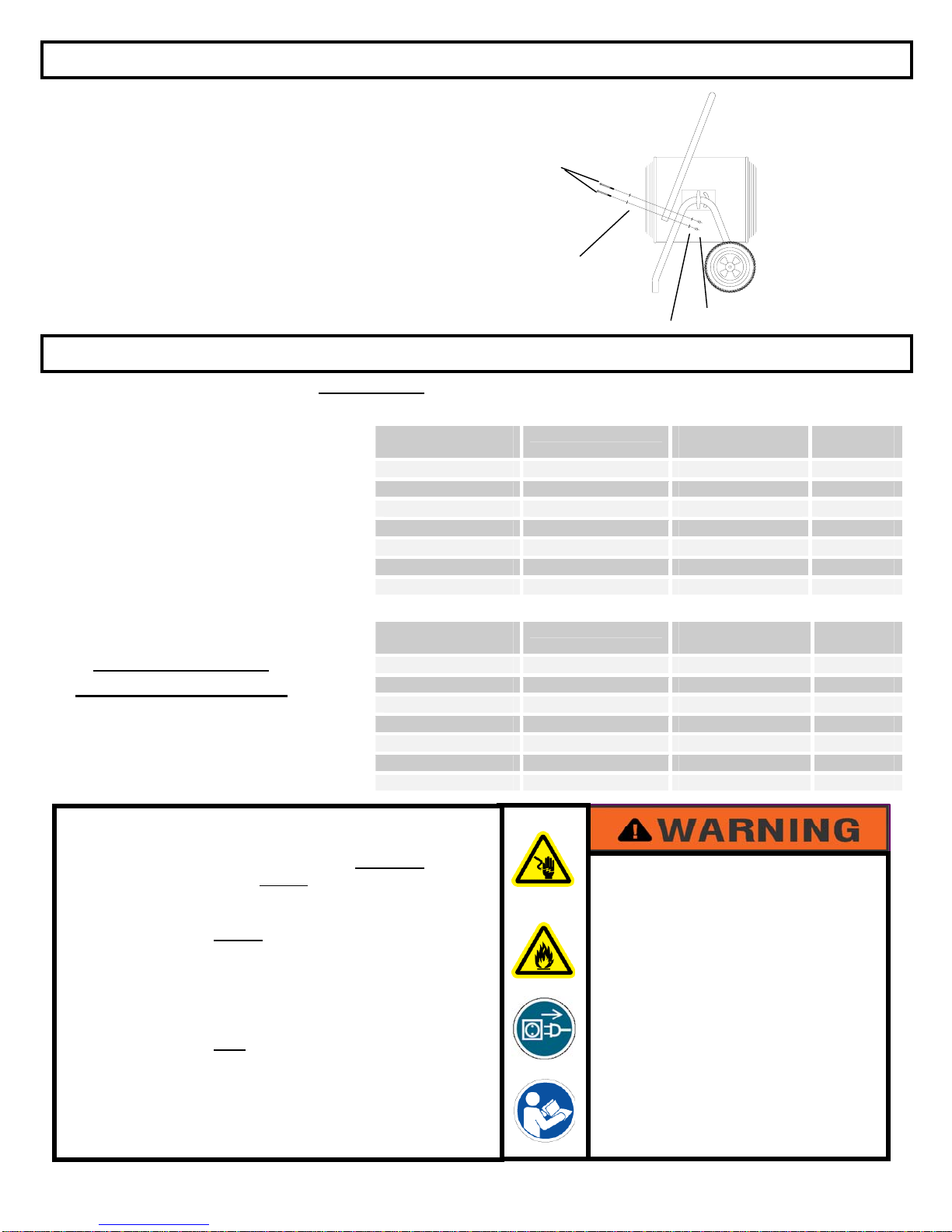

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 4 of 24
Tools Required: (2) 7/16” socket or box wrenches.
To position the handle at operating height:
Step 1: Remove and keep the hardware securing the
handle to the legs.
Step 2: Raise handle until holes align with the uppe
r
holes in the legs.
Step 3: Re-insert hardware as shown, and fasten
securely.
FES – SERIES ASSEMBLY
Bolts
Washers
Washers Nuts
To order cable kits
Phone: [phone]
Model
Table 2 Unit Rating Cable Size
–
Over
50ft. long Max. Cable Length (ft)
FES & YES 1520-3A 15kW, 208 Volt, 3-Ph 4/4 120
FES & YES 1524-1A 15kW, 240 Volt, 1-Ph 2/3 215
FES & YES 1524-3E 15kW, 240 Volt, 3-Ph 6/4 150
FES & YES 1548-3E 15kW, 480 Volt, 3-Ph 12/4 140
FES & YES 1560-3A 15kW, 600 Volt, 3-Ph 12/4 190
FES & YES 3048-3A 30kW, 480 Volt, 3-Ph 6/4 300
FES & YES 3060-3A 30kW, 600 Volt, 3-Ph 6/4 350
THE PROPER SIZE SO- type feeder cable MUST BE USED for the electrical hook-up of this heater. The proper cable size is shown
in the tables below (A.W.G./ # of conductors.) Table 1 is for cable 50ft. in length or less. Table 2 is for cable longer than 50ft.
ELECTRICAL SHOCK
HAZARD
FIRE HAZARD
• Serious injury or death may
occur.
• Disconnect from electrical
supply before installing feeder
cable to these heaters.
• Read and follow all safety
information in box to the left.
• Feeder cable or cable kit assembly MUST BE made b
y
licensed electricians ONLY.
• Service panel or receptacle used to supply power to
these heaters MUST have a
g
round bus or
g
round pole
that is securely bonded to earth ground.
• Connect green ground conductor on feeder cable or
cable kit to grounding lug on heaters.
• Comply with ALL local electrical codes and the
National Electric Code (NFPA70) when providing
electrical power to these heaters.
Model
Table 1 Unit Rating Cable Size - Unde
r
50ft. long Cable Kit Number
FES & YES 1520-3A 15kW, 208 Volt, 3-Ph 6/4 03164001
FES & YES 1524-1A 15kW, 240 Volt, 1-Ph 4/3 08805300
FES & YES 1524-3E 15kW, 240 Volt, 3-Ph 6/4 03164001
FES & YES 1548-3E 15kW, 480 Volt, 3-Ph 12/4 03164201
FES & YES 1560-3A 15kW, 600 Volt, 3-Ph 12/4 03164201
FES & YES 3048-3A 30kW, 480 Volt, 3-Ph 6/4 03164001
FES & YES 3060-3A 30kW, 600 Volt, 3-Ph 6/4 03164001
WIRING
A
25ft. cable kit can be purchased from the
factory. Refer to the kit part numbers in table a
t
right.
CABLE KITS INCLUDE:
• 25 feet of Type SO cable, with either 3-
conductors or 4-conductors, depending on
the heater requirements.

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 5 of 24

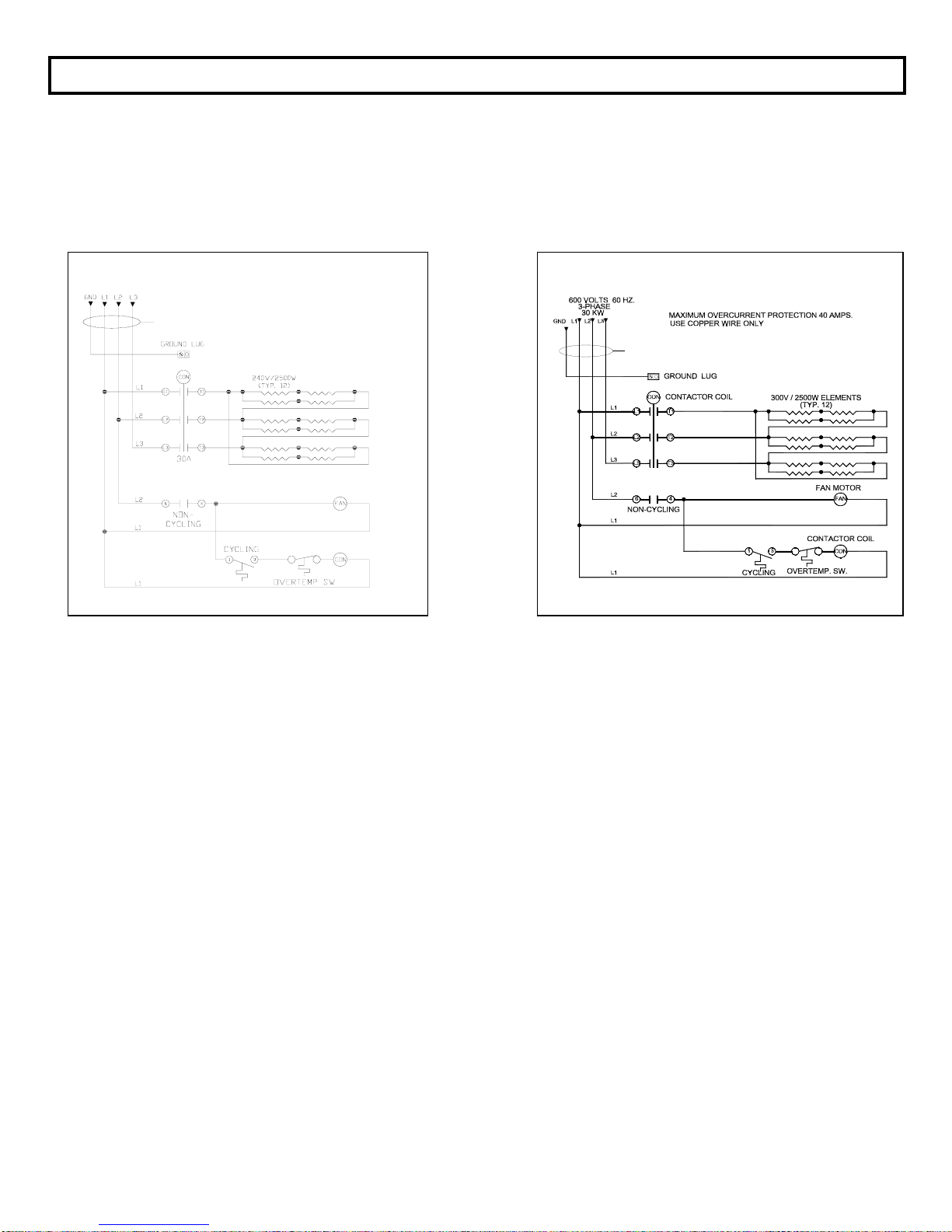

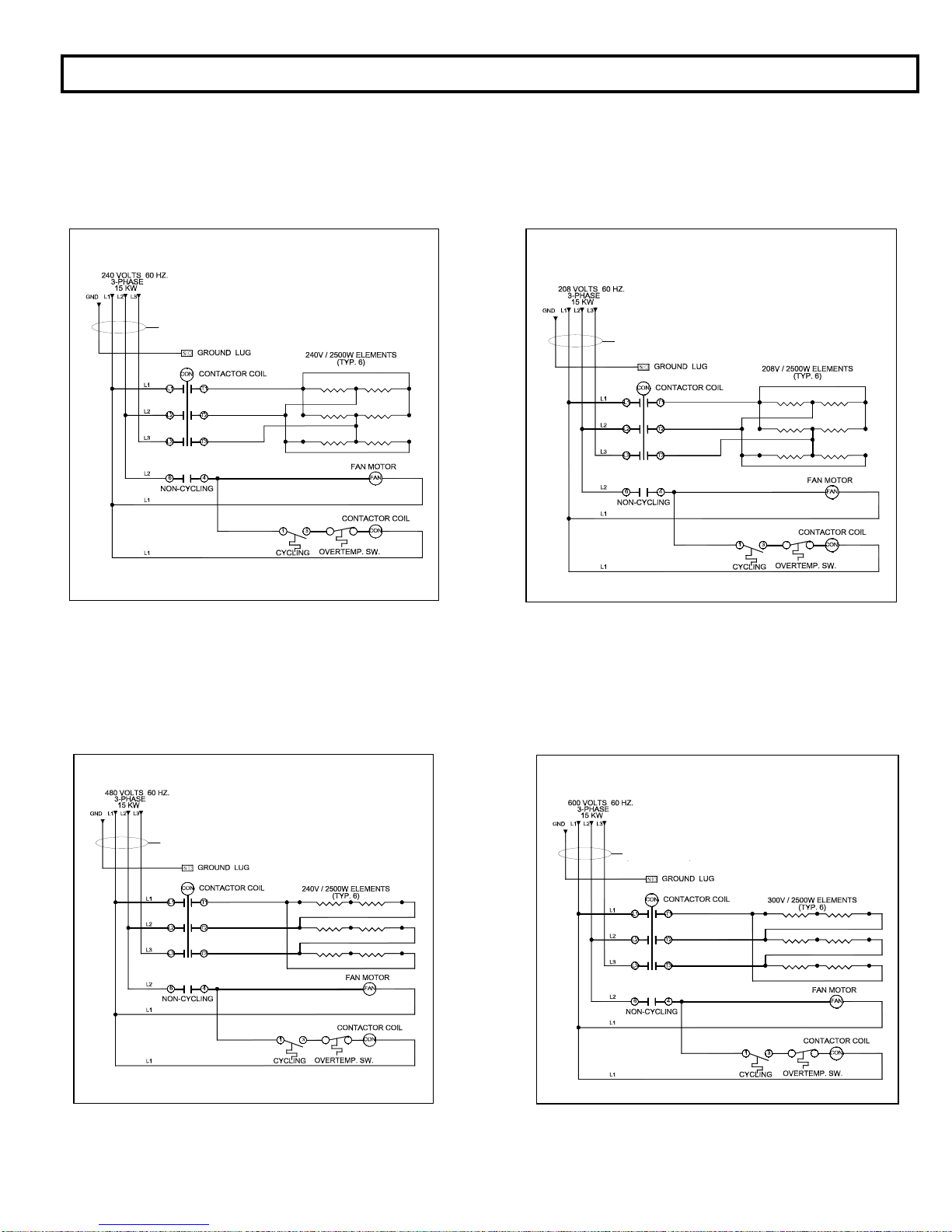

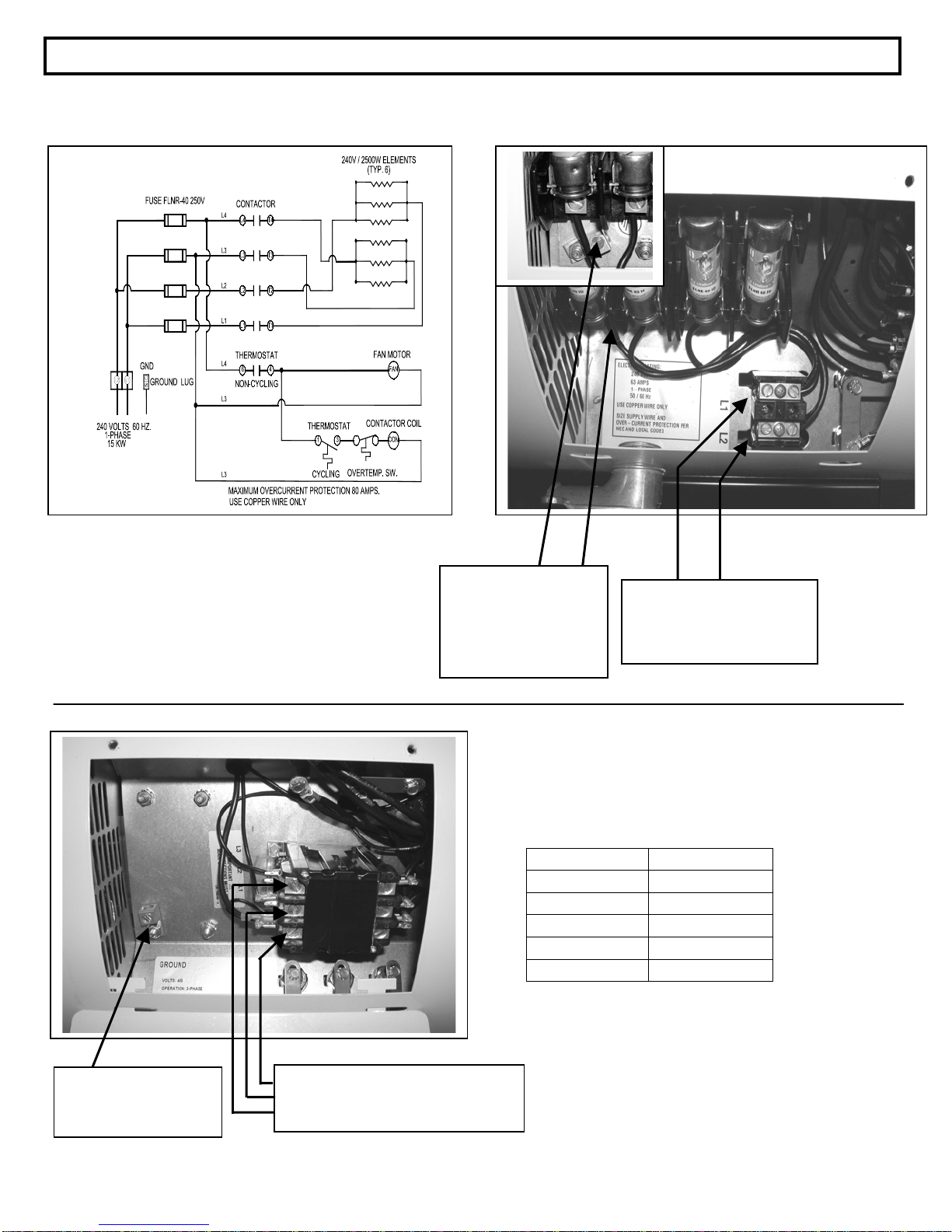

WIRING
(
continued
)
FES-1024-1CA YES-1024-1CA
Models FES-1024-1CA and YES-1024-1CA are
shipped with a cordset factory-installed. This cordse
t
contains a plug for use with a 50A household range
receptacle. The blade configuration on the plug
included on these heaters is represented in fig. 1
below (4-wire circuit).
fi
g
. 2
fig. 1
The range receptacle you choose to use may have
a
blade configuration compatible with the plug shown
in fig. 2 (3-wire circuit). This is an older branch
circuit design that does not include a separate
equipment grounding conductor (green wire). The
configuration in fig. 1 has been implemented o
n
newer branch circuit installations for increase
d
safety, and is now the required circuit configuratio
n
by the National Electric Code. Changing a 3-wire
branch circuit and receptacle to 4-wire design may
involve changes to your range and must only be done
by
a licensed electrician.
ELECTRICAL SHOCK
HAZARD
• Serious injury or death
may occur.
• Plug heater into a 4-wire
circuit receptacle rated
50A.
• Any and all changes to
branch circuits and
receptacles MUST be
done by a licensed
electrician ONLY.
