Foxtech EH30-TIR User manual

User Manual
V1.0
EH30-TIR Dual Sensor 30X Optical
Zoom Camera with 3-axis Gimbal
2021.08

Thank you for purchasing this product. This is a special web page for gimbal and cameras, you can enter
this page for the latest product information, technical support and user manuals.
https://www.foxtechfpv.com/industrial-drone/camera-for-drones.html
We recommend that you download and use the latest user manual. And no further update notice will be
given separately. Due to different production batches, the appearance or function parameters are slightly
different, which does not affect the normal use of the product.
Please read this statement carefully before use. Once used, it is deemed to be an endorsement and
acceptance of the entire contents of this statement. Please read the instruction manual carefully and
strictly follow the requirements of this manual to install and use this product. Foxtech will not bear any legal
responsibility for any results or losses caused by improper use, installation, final assembly and modification
by users.
Note
Disclaimer
Intellectual Property Rights
The intellectual property rights of this product and manual are owned by Foxtech Trade Co., Ltd. Without
written permission, no organization or individual may copy, reproduce or distribute in any form. If quotation is
needed, the source must be indicated, and this manual must not be modified, deleted or quoted against its
original intention.

©2020 FOXTECH All Rights Reserved 1
Note
Disclaimer
Intellectual Property Rights
System Composition
Product System Atlas
Pod
IDU/IDUS
Video Transmission System
Ground Station Software
Extension Module
Installation (with notes)
Hardware Installation
Software Installation and Conguration
Installation and setup methods of third-party videolink
GCS Software Usage Instructions
Connection
Operating Pods
Operating Pods
Frequently Asked Questions
2
2
2
2
2
3
4
4
4
4
5
5
5
6
10
10
10
12
13
Contents

©2020 FOXTECH All Rights Reserved 2
System Composition
Product System Atlas

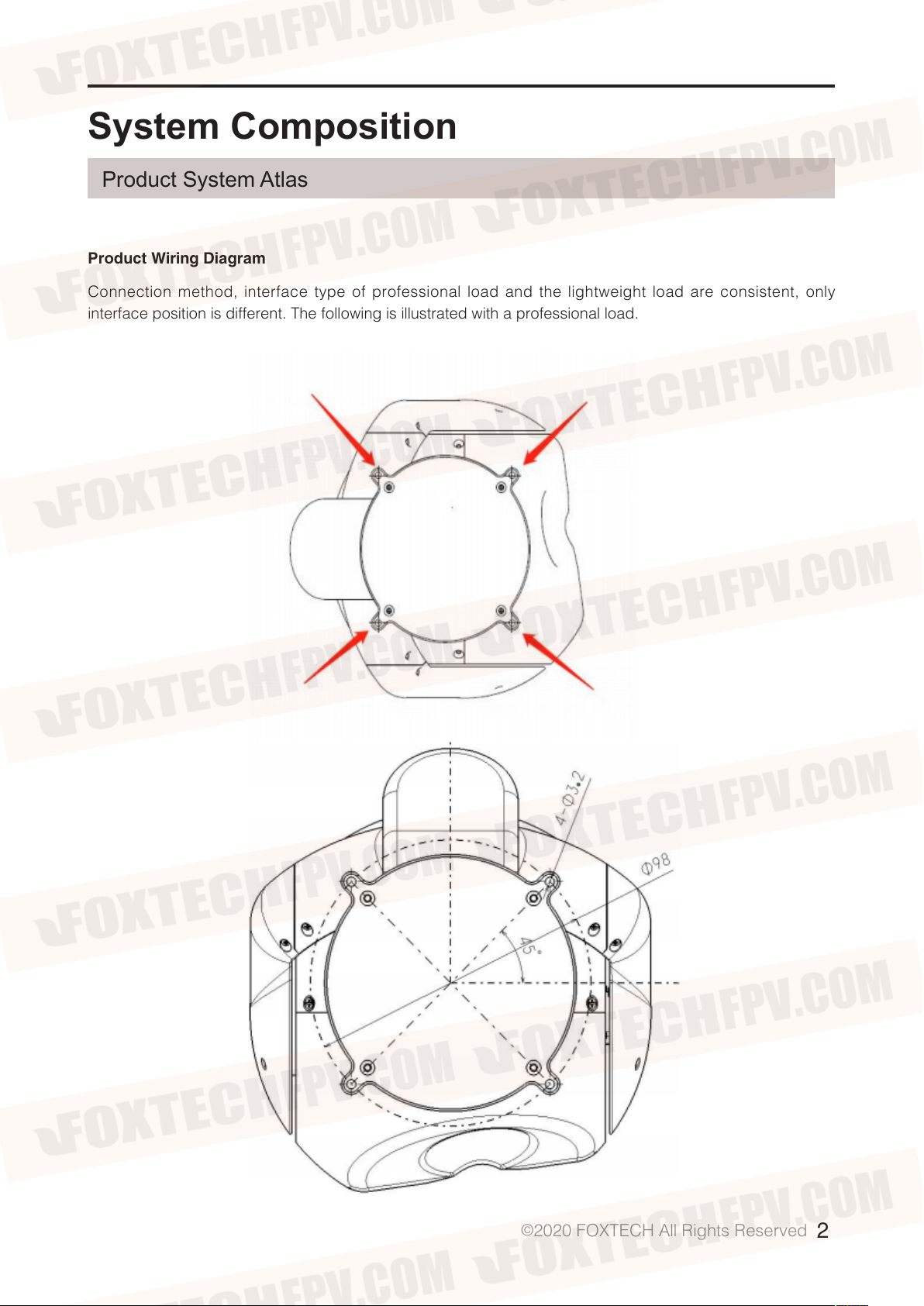

Product Wiring Diagram
Connection method, interface type of professional load and the lightweight load are consistent, only
interface position is different. The following is illustrated with a professional load.

©2020 FOXTECH All Rights Reserved 3
SBUS, professional pod wiring diagram
The receiver needs separate power supply, and adapt module need to be powered through the
receiver. please connect the serial port in the process of parameter adjustment, needn’t connect
series port during normal operation.
1.Make sure the Network segment of pod and third party videolink is consistent.
2.Make sure the third party videolink is double-way transmission, otherwise, otherwise you may not
be able to control the pod
3.Make sure the pod and videolink wire sequence are correct: TX+ ---- TX+, TX - ---TX -,
RX+ ----- RX+, RX - ---- RX -.
Third party videolink and professional pod wiring notices:
Pod
Brief functional description, supported pod type, etc.
The pod system is divided into two levels: professional load, lightweight load. Adapt to different levels
of multi-rotor drones or unmanned straight-lifts. Different levels of load, shock absorption quick-detach
mounting plate can not be replaced with each other, but GCS software and the data chain is unified.
Foxtech EH30-TIR Dual Sensor 30X Optical Zoom Camera User Manual

©2020 FOXTECH All Rights Reserved 4

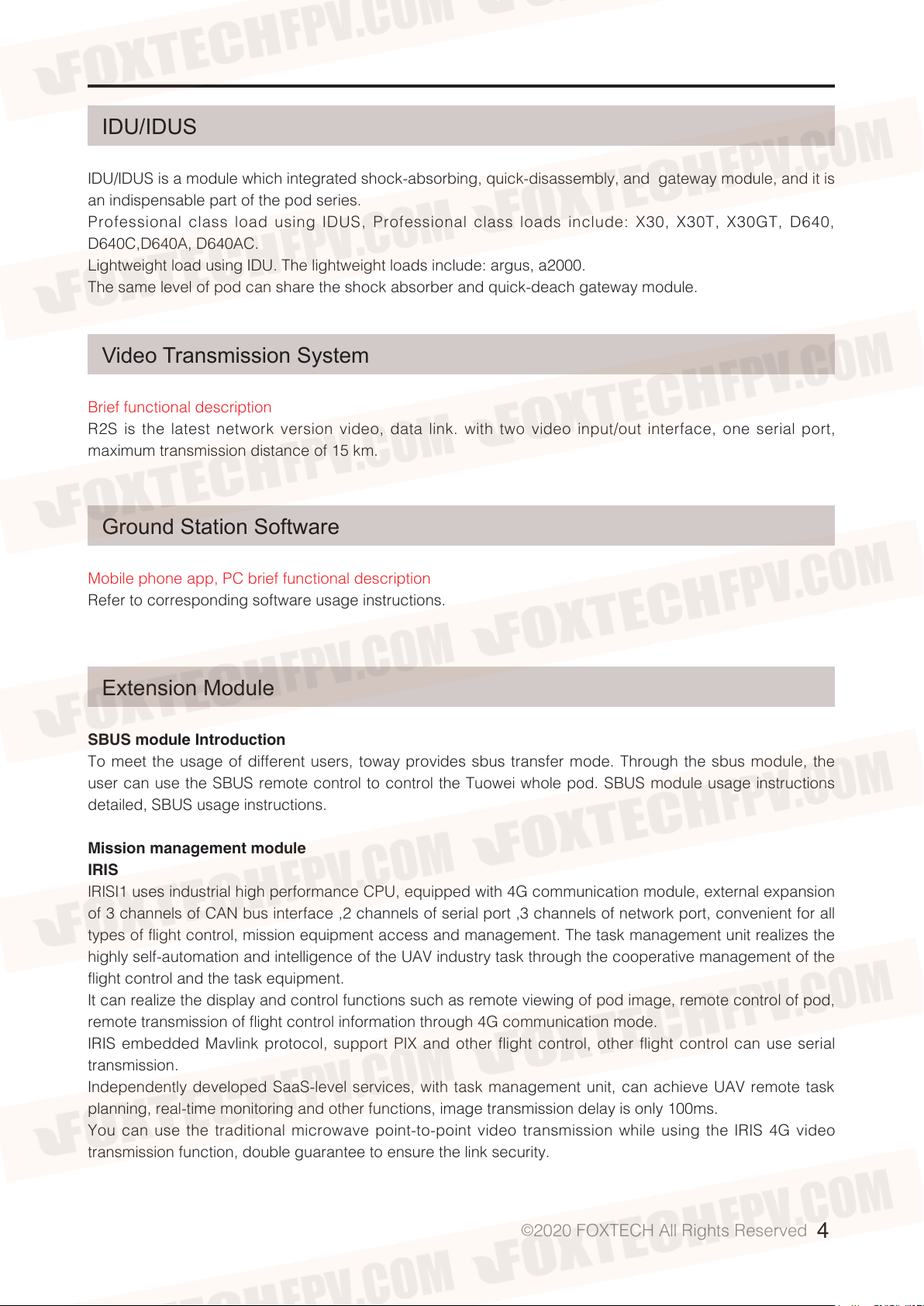

IDU/IDUS
IDU/IDUS is a module which integrated shock-absorbing, quick-disassembly, and gateway module, and it is
an indispensable part of the pod series.
Professional class load using IDUS, Professional class loads include: X30, X30T, X30GT, D640,
D640C,D640A, D640AC.
Lightweight load using IDU. The lightweight loads include: argus, a2000.
The same level of pod can share the shock absorber and quick-deach gateway module.
Video Transmission System
Ground Station Software
Extension Module
Brief functional description
R2S is the latest network version video, data link. with two video input/out interface, one serial port,
maximum transmission distance of 15 km.
Mobile phone app, PC brief functional description
Refer to corresponding software usage instructions.
SBUS module Introduction
To meet the usage of different users, toway provides sbus transfer mode. Through the sbus module, the
user can use the SBUS remote control to control the Tuowei whole pod. SBUS module usage instructions
detailed, SBUS usage instructions.
Mission management module
IRIS
IRISI1 uses industrial high performance CPU, equipped with 4G communication module, external expansion
of 3 channels of CAN bus interface ,2 channels of serial port ,3 channels of network port, convenient for all
types of flight control, mission equipment access and management. The task management unit realizes the
highly self-automation and intelligence of the UAV industry task through the cooperative management of the
flight control and the task equipment.
It can realize the display and control functions such as remote viewing of pod image, remote control of pod,
remote transmission of flight control information through 4G communication mode.
IRIS embedded Mavlink protocol, support PIX and other flight control, other flight control can use serial
transmission.
Independently developed SaaS-level services, with task management unit, can achieve UAV remote task
planning, real-time monitoring and other functions, image transmission delay is only 100ms.
You can use the traditional microwave point-to-point video transmission while using the IRIS 4G video
transmission function, double guarantee to ensure the link security.

©2020 FOXTECH All Rights Reserved 5

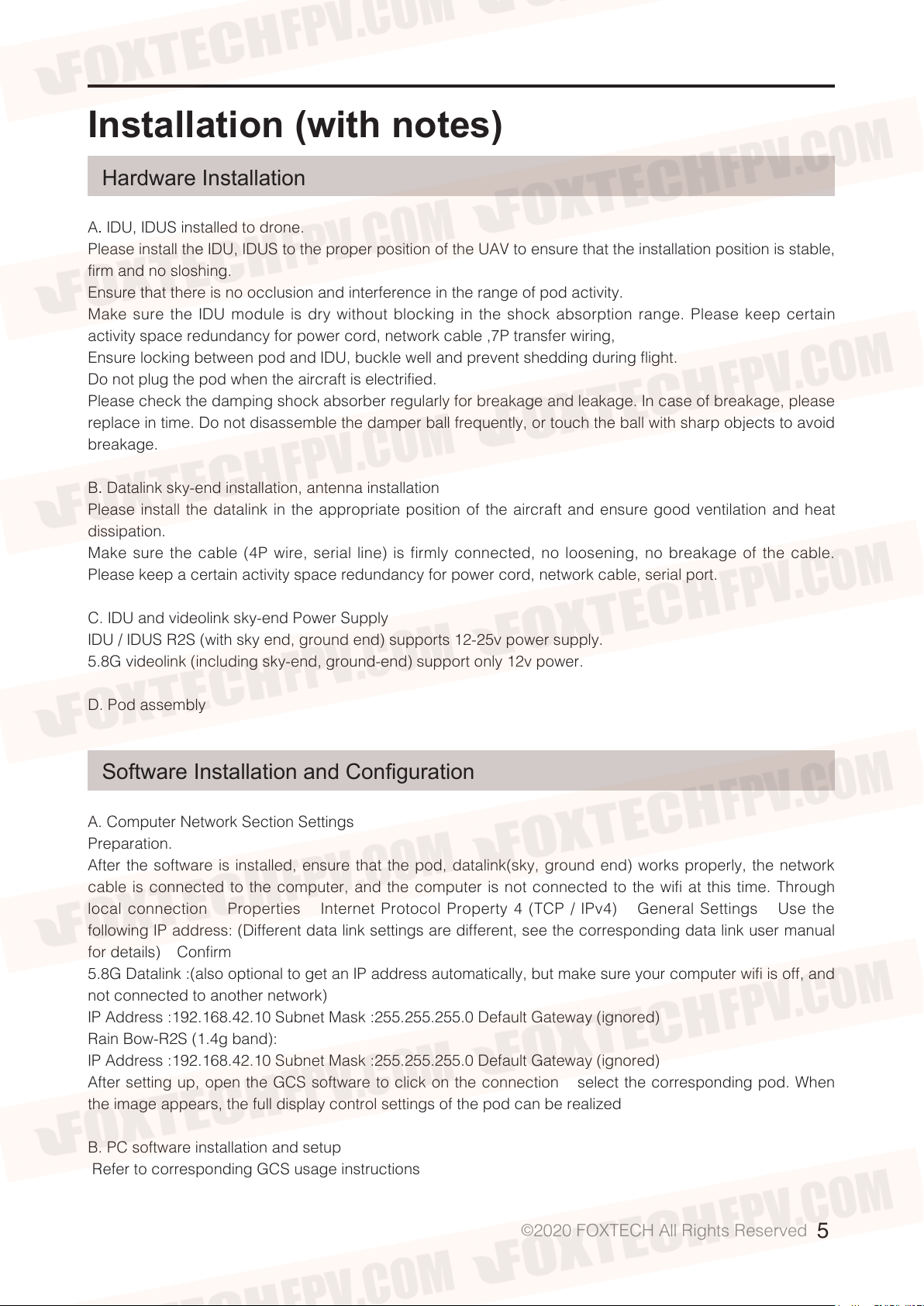

Installation (with notes)
Hardware Installation
Software Installation and Conguration
A. IDU, IDUS installed to drone.
Please install the IDU, IDUS to the proper position of the UAV to ensure that the installation position is stable,
firm and no sloshing.
Ensure that there is no occlusion and interference in the range of pod activity.
Make sure the IDU module is dry without blocking in the shock absorption range. Please keep certain
activity space redundancy for power cord, network cable ,7P transfer wiring,
Ensure locking between pod and IDU, buckle well and prevent shedding during flight.
Do not plug the pod when the aircraft is electrified.
Please check the damping shock absorber regularly for breakage and leakage. In case of breakage, please
replace in time. Do not disassemble the damper ball frequently, or touch the ball with sharp objects to avoid
breakage.
B. Datalink sky-end installation, antenna installation
Please install the datalink in the appropriate position of the aircraft and ensure good ventilation and heat
dissipation.
Make sure the cable (4P wire, serial line) is firmly connected, no loosening, no breakage of the cable.
Please keep a certain activity space redundancy for power cord, network cable, serial port.
C. IDU and videolink sky-end Power Supply
IDU / IDUS R2S (with sky end, ground end) supports 12-25v power supply.
5.8G videolink (including sky-end, ground-end) support only 12v power.
D. Pod assembly
A. Computer Network Section Settings
Preparation.
After the software is installed, ensure that the pod, datalink(sky, ground end) works properly, the network
cable is connected to the computer, and the computer is not connected to the wifi at this time. Through
local connection → Properties → Internet Protocol Property 4 (TCP / IPv4) → General Settings → Use the
following IP address: (Different data link settings are different, see the corresponding data link user manual
for details) → Confirm
5.8G Datalink :(also optional to get an IP address automatically, but make sure your computer wifi is off, and
not connected to another network)
IP Address :192.168.42.10 Subnet Mask :255.255.255.0 Default Gateway (ignored)
Rain Bow-R2S (1.4g band):
IP Address :192.168.42.10 Subnet Mask :255.255.255.0 Default Gateway (ignored)
After setting up, open the GCS software to click on the connection → select the corresponding pod. When
the image appears, the full display control settings of the pod can be realized
B. PC software installation and setup
Refer to corresponding GCS usage instructions

©2020 FOXTECH All Rights Reserved 6
C. QGC Installation and Installation
Refer to corresponding GCS usage instructions
D. Mobile app installation and setup
Refer to corresponding GCS usage instructions
A. Modify IP of Pod and IDU (segment to meet videolink requirements)
Pod segment modification, take “change 42 segment to 1 segment” as an example:
1→pod electrified, and connected the pod to the computer through the wire, the pod works normally after
about 15 seconds, the computer recognizes the camera network.
2→TCPIPV4 settings, as shown below, are saved after confirmation
3. Use GCS ground station for gateway setting
Click to search device, then double-click the pop-up IP bar, save it after modification, and restart the gimbal.
Installation and setup methods of third-party videolink
192 168 42 10
255 255 255 0
192 108 42 0

©2020 FOXTECH All Rights Reserved 7
4.→Camera IP modification
Open any browser, enter 192.168.42.108
After entering the following interface, username, password are admin
Confirmation

©2020 FOXTECH All Rights Reserved 8
Then the following password modification interface appears, click cancel
After entering the setup interface, click Settings → Network Settings → General Settings
Change the IP address and default gateway “42” to “1”, then click Save.
Do not modify the password, otherwise the software will not working properly.

©2020 FOXTECH All Rights Reserved 9

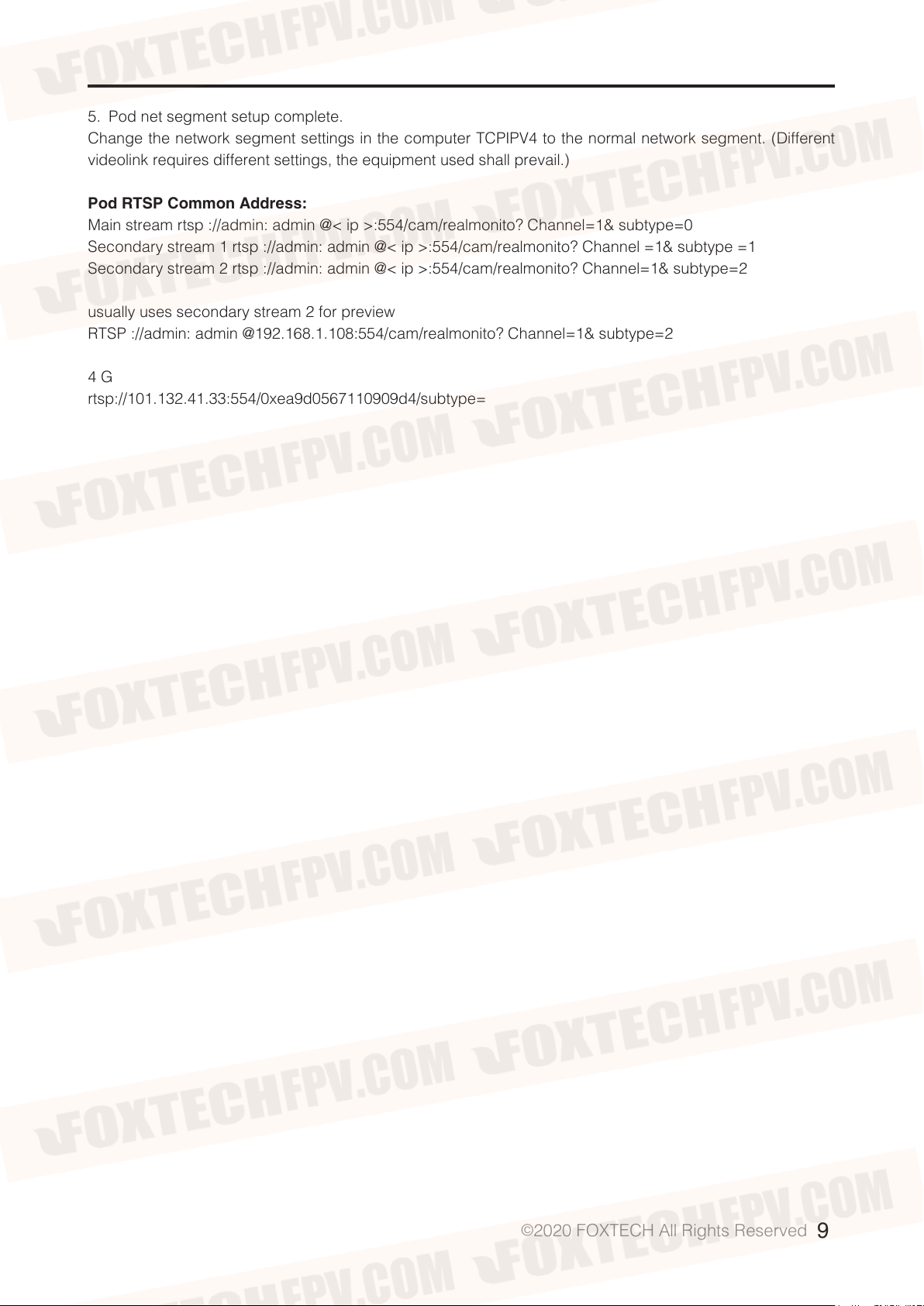

5.→Pod net segment setup complete.
Change the network segment settings in the computer TCPIPV4 to the normal network segment. (Different
videolink requires different settings, the equipment used shall prevail.)
Pod RTSP Common Address:
Main stream rtsp ://admin: admin @< ip >:554/cam/realmonito? Channel=1& subtype=0
Secondary stream 1 rtsp ://admin: admin @< ip >:554/cam/realmonito? Channel =1& subtype =1
Secondary stream 2 rtsp ://admin: admin @< ip >:554/cam/realmonito? Channel=1& subtype=2
usually uses secondary stream 2 for preview
RTSP ://admin: admin @192.168.1.108:554/cam/realmonito? Channel=1& subtype=2
4 G
rtsp://101.132.41.33:554/0xea9d0567110909d4/subtype=

©2020 FOXTECH All Rights Reserved 10
Setting area
Interface shifting
Camera setting
REC
One key downward
One key forward
Yaw following
Manual focus+
Auto focus
Manual focus-
Target following
GCS Software Usage Instructions
Connection
Operating Pods
A. Preparation.
After the software is installed, ensure that the pod, datalink(sky, ground end) works properly, the network
cable is connected to the computer, and the computer is not connected to the wifi at this time. Through
local connection → Properties → Internet Protocol Property 4 (TCP / IPv4) → General Settings → Use the
following IP address: (Different data link settings are different, see the corresponding data link user manual
for details) → Confirm
5.8G Datalink :(also optional to get an IP address automatically, but make sure your computer wifi is off, and
not connected to another network)
IP Address :192.168.42.10 Subnet Mask :255.255.255.0 Default Gateway (ignored)
Rain Bow-R1S (1.4g band):
IP Address :192.168.2.10
Subnet Mask :255.255.255.0
Default Gateway :192.168.2.129
B. After setting up, open the GCS software to click on the connection → select the corresponding pod.
When the image appears, the full display control settings of the pod can be realized.
GCS pod software through the mouse, virtual keys, USB joystick to achieve the full operation of the pod.

©2020 FOXTECH All Rights Reserved 11
Tablet (or touch screen) mouse, virtual button operation:
1. Yaw, Pitch adjustment
Hold down the left button of the mouse (slides on the screen if using the touch screen) and move up and
down in the interface. the lens move following the mouse position. Loosen the mouse left button, the lens
stops moving and stays in the current position.
2. Point zoom
Double-click the mouse left button (double-click if it is the touch screen), the double-click position move to
the center of the screen and zoom in 2 times, accumulating to the maximum focal segment.
Sliding mouse wheel, can also control the zoom in and out of the lens.
Click the mouse right button (long press for 3 second on the touch-screen ), and the screen automatically
returns to the 1X focus section.
3. Focus
Camera default auto-focus mode, when the screen background is complex, can use the virtual keys "focus
plus" and "focus-" for manual focus.
If the screen blurred for a long time, you can click on the "focus A" virtual button, actively focus.
4. Calibration
If the user does not use the topgun series flight control, not connect digital link, CAN transfer. When
operating in an environment with large pre- and post-flight temperature differences (e.g., winter aircraft
moving from indoors to outside). Calibration is recommended before flight to reduce heading drift.
5. Auto tracking
Click on the target tracking button, then the mouse moves to the real-time screen display area, press and
hold the left mouse button, drag to select the desired tracking target area, release the left mouse button will
appear a box. the pod will automatically track the target inside the box.
6. Calibration steps
pod initialization is complete, into normal working state. Clicking on the calibration virtual button (setting →
calibration), the pod will enter the calibration state (the gimbal motor does not work at this time) ensure that
the aircraft and the gimbal is in a static state (the gimbal does not need to keep horizontal), after waiting for
5 to 10 seconds, the pod is re-initialized to complete the calibration.
Game Joystick Operation:
GCS supports USB game joystick control pods (take Northlink Bat DFBTP-2126F as an example)
Manual focus+
Auto focus
Manual focus-
Camera zooming
Down press return to 1X
pod up, down, left and right control
Down press then Yaw following
1.Photo
2.REC
3.One key downward
4.One key right front
5.View size shifting
6.Dual sensor mode shifting
7.Dual sensor window shifting
8.Window shifting

©2020 FOXTECH All Rights Reserved 12
Operating Pods
gcs support remote real-time download of camera side video, photos.
1. Operational steps
view → download interface (as shown below) can download video (MP4 style), photo (jpg) offline. And the
photos support real-time preview.
Photo preview window
Download type switch

©2020 FOXTECH All Rights Reserved 13
Frequently Asked Questions
No Image
Hardware checking:
pod power supply is normal, pod and idu module are properly connected. The pod works properly.
Datalink (sky end, ground end) power supply is normal. The datalink sky end is properly connected to the
IDU module, and the connection wire is not broken. The datalink ground end and the computer is connected
normally, the network wire does not have the damage to break the circuit.
Software setup check:
Make sure the computer network is set correctly and the computer turns off the wifi when connecting the
datalink. The computer is not connected to any network other than the data link.
Software network IP address is incorrect :(when the gimbal, camera IP address changes, need to
synchronously modify this software IP)
Open GCS software → network settings
Modify the IP address.
This content is subject to change.
Download the latest version from
https://www.foxtechfpv.com/eh30-tir-30x-optical-zoom-camera-3-axis-gimbal.html
For everyday updates, please follow Foxtech facebook page"Foxtechhobby".
YouTube Channel: Foxtech
