Foxwell T2000 User manual

1
T2000 TPMS Service Tool Manual_English_V1.01
Trademarks
FOXWELL is the trademark of Shenzhen Foxwell Technology Co., Ltd.
All other marks are trademarks or registered trademarks of their respective holders.
Copyright Information
©2020 Shenzhen Foxwell Technology Co., Ltd.
All rights reserved.
Disclaimer
The information, specifications and illustrations in this manual are based on the latest information
available at the time of printing.
Foxwell reserves the right to make changes at any time without notice.
Visit our website at
www.foxwelltech.us
For Technical Assistance, send us email at
suppor[email protected]

2
T2000 TPMS Service Tool Manual_English_V1.01
One-Year Limited Warranty
Subject to the conditions of this limited warranty, Shenzhen Foxwell Technology Co., Ltd
(“Foxwell”) warrants its customer that this product is free of defects in material and
workmanship at the time of its original purchase for a subsequent period of one (1) year.
In the event this product fails to operate under normal use, during the warranty period, due to
defects in materials and workmanship, Foxwell will, at its sole option, either repair or replace the
product in accordance with the terms and conditions stipulated herein.
Terms and Conditions
1 If Foxwell repairs or replaces the product, the repaired or replaced product shall be warranted
for the remaining time of the original warranty period. No charge will be made to the customer
for replacement parts or labor charges incurred by Foxwell in repairing or replacing the
defective parts.
2 The customer shall have no coverage or benefits under this limited warranty if any of the
following conditions are applicable:
a) The product has been subjected to abnormal use, abnormal conditions, improper storage,
exposure to moisture or dampness, unauthorized modifications, unauthorized repair, misuse,
neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of
Foxwell, including damage caused by shipping.
b) The Product has been damaged from external causes such as collision with an object, or from
fire, flooding, sand, dirt, windstorm, lightning, earthquake or damage from exposure to weather
conditions, an Act of God, or battery leakage, theft, blown fuse, improper use of any electrical
source, or the product was used in combination or connection with other product, attachments,
supplies or consumables not manufactured or distributed by Foxwell.
3 The customer shall bear the cost of shipping the product to Foxwell. And Foxwell shall bear
the cost of shipping the product back to the customer after the completion of service under this
limited warranty.
4 Foxwell does not warrant uninterrupted or error-free operation of the product. If a problem
develops during the limited warranty period, the consumer shall take the following step-by-step
procedure:
a) The customer shall return the product to the place of purchase for repair or replacement
processing, contact your local Foxwell distributor or visit our website www.foxwelltech.us to get
further information.
b) The customer shall include a return address, daytime phone number and/or fax number,
complete description of the problem and original invoice specifying date of purchase and serial
number.
c) The customer will be billed for any parts or labor charges not covered by this limited warranty.
d) Foxwell will repair the Product under the limited warranty within 30 days after receipt of the
product. If Foxwell cannot perform repairs covered under this limited warranty within 30 days, or
after a reasonable number of attempts to repair the same defect, Foxwell at its option, will
provide a replacement product or refund the purchase price of the product less a reasonable
amount for usage.
e) If the product is returned during the limited warranty period, but the problem with the product is
not covered under the terms and conditions of this limited warranty, the customer will be notified
and given an estimate of the charges the customer must pay to have the product repaired, with all
shipping charges billed to the customer. If the estimate is refused, the product will be returned
freight collect. If the product is returned after the expiration of the limited warranty period,
Foxwell’ normal service policies shall apply and the customer will be responsible for all
shipping charges.
5 ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A PARTICULAR
PURPOSE OR USE, SHALL BE LIMITED TO THE DURATION OF THE FOREGOING LIMITED
WRITTEN WARRANTY. OTHERWISE, THE FOREGOING LIMITED WARRANTY IS THE

3
T2000 TPMS Service Tool Manual_English_V1.01
CONSUMER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. FOXWELL SHALL NOT BE LIABLE FOR SPECIAL,
INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED
TO LOSS OF ANTICIPATED BENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE,
LOSS OF DATA, PUNITIVE DAMAGES, LOSS OF USE OF THE PRODUCT OR ANY
ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT
OR FACILITIES, DOWNTIME, THE CLAIMS OF ANY THIRD PARTIES, INCLUDING
CUSTOMERS, AND INJURY TO PROPERTY, RESULTING FROM THE PURCHASE OR USE
OF THE PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF
CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL OR EQUITABLE
THEORY, EVEN IF FOXWELL KNEW OF THE LIKELIHOOD OF SUCH DAMAGES. Foxwell
SHALL NOT BE LIABLE FOR DELAY IN RENDERING SERVICE UNDER THE LIMITED
WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE PRODUCT IS BEING
REPAIRED.
6 Some states do not allow limitation of how long an implied warranty lasts, so the one-year
warranty limitation may not apply to you (the Consumer). Some states do not allow the exclusion
or limitation of incidental and consequential damages, so certain of the above limitations or
exclusions may not apply to you (the Consumer). This limited warranty gives the Consumer
specific legal rights and the Consumer may also have other rights which vary from state to state.

4
T2000 TPMS Service Tool Manual_English_V1.01
Safety Information
For your own safety and the safety of others, and to prevent damage to the equipment and
vehicles, read this manual thoroughly before operating your TPMS trigger tool. The safety
messages presented below and throughout this user’s manual are reminders to the operator to
exercise extreme care when using this device. Always refer to and follow safety messages and
test procedures provided by vehicle manufacturer. Read, understand and follow all safety
messages and instructions in this manual.
Safety Message Conventions Used
We provide safety messages to help prevent personal injury and equipment damage. Below are
signal words we used to indicate the hazard level in a condition.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor
injury to the operator or to bystanders.
Important Safety Instructions
And always use your TPMS Service Tool as described in the user’s manual, and follow all
safety messages.
●Do not route the test cable in a manner that would interfere with driving controls.
●Do not exceed voltage limits between inputs specified in this user’s manual.
●Always wear ANSI approved goggles to protect your eyes from propelled objects as well as hot
or caustic liquids.
●Fuel, oil vapors, hot steam, hot toxic exhaust gases, acid, refrigerant and other debris produced
by a malfunction engine can cause serious injury or death. Do not use the TPMS Service Tool
in areas where explosive vapor may collect, such as in below-ground pits, confined areas,
or areas that are less than 18 inches (45 cm) above the floor.
●Do not smoke, strike a match, or cause a spark near the vehicle while testing and keep all
sparks, heated items and open flames away from the battery and fuel / fuel vapors as they are
highly flammable.
●Keep a dry chemical fire extinguisher suitable for gasoline, chemical and electrical fires in work
area.
●Always be aware of rotating parts that move at high speed when an engine is running and keep
a safe distance from these parts as well as other potentially moving objects to avoid serious
injury.
●Do not touch engine components that get very hot when an engine is running to avoid severe
burns.

5
T2000 TPMS Service Tool Manual_English_V1.01
●Block drive wheels before testing with engine running. Put the transmission in park (for
automatic transmission) or neutral (for manual transmission). And never leave a running engine
unattended.
●Do not wear jewelry or loose fitting clothing when working on engine.

6
T2000 TPMS Service Tool Manual_English_V1.01
Table of Contents
One-Year Limited Warranty.................................................................................................................................. 2
Safety Information...................................................................................................................................................4
Safety Message Conventions Used............................................................................................................................................................. 4
Important Safety Instructions.........................................................................................................................................................................4
Table of Contents.................................................................................................................................................... 6
1 Using This Manual............................................................................................................................................... 8
1.1 Bold Text....................................................................................................................................................................................................8
1.2 Symbols and Icons...................................................................................................................................................................................8
1.2.1 Solid Spot...............................................................................................................................................................................................8
1.2.2 Arrow Icon.............................................................................................................................................................................................. 8
1.2.3 Note and Important Message.............................................................................................................................................................. 8
2 Introduction........................................................................................................................................................... 9
2.1 About T2000..............................................................................................................................................................................................9
2.1.1 Descriptions..........................................................................................................................................................................................9
2.1.2 Accessories............................................................................................................................................................................................ 9
2.1.3 TechnicalSpecifications.................................................................................................................................................................... 10
3 Getting Started................................................................................................................................................... 10
3.1 Power on/off the TPMS Service Tool.................................................................................................................................................. 10
3.2 Charging the TPMS Service Tool........................................................................................................................................................ 10
3.3 Application Overview............................................................................................................................................................................. 11
3.4 Tool Symbols and Icons........................................................................................................................................................................ 11
4 OBD II....................................................................................................................................................................12
5 TPMS Operations...............................................................................................................................................12
5.1 TPMS Sensor Activate.......................................................................................................................................................................... 13
5.2 TPMS Diagnose..................................................................................................................................................................................... 15
5.3 TPMS Sensor Programming................................................................................................................................................................ 21
5.4 Study Help.............................................................................................................................................................................................. 27
6 RKE & RF Monitor..............................................................................................................................................27
7 Latest Test............................................................................................................................................................28
8 Settings................................................................................................................................................................ 29
8.1 Language................................................................................................................................................................................................ 29
8.2 About....................................................................................................................................................................................................... 30
8.3 Keypad Test........................................................................................................................................................................................... 31
8.4 Beeper Set..............................................................................................................................................................................................31
8.5 Display Test............................................................................................................................................................................................32
8.6 Automatic Power-off Interval................................................................................................................................................................. 32
8.7 ID Format................................................................................................................................................................................................ 33

7
T2000 TPMS Service Tool Manual_English_V1.01
8.8 Pressure Unit..........................................................................................................................................................................................33
8.9 Temperature Unit....................................................................................................................................................................................34
8.10 Area....................................................................................................................................................................................................... 34
9 Update...................................................................................................................................................................35
9.1 Create a Foxwell ID............................................................................................................................................................................... 35
9.2 Register Your Scanner..........................................................................................................................................................................40
9.3 Update the Scanner...............................................................................................................................................................................42
*-+

8
T2000 TPMS Service Tool Manual_English_V1.01
1 Using This Manual
We provide tool usage instructions in this manual. Below are the conventions we used in the
manual.
1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu options.
Example:
Press the ENTER button to select.
1.2 Symbols and Icons
1.2.1 Solid Spot
Operation tips and lists that apply to specific tool are introduced by a solid spot ●.
Example:
When System Setup is selected, a menu that lists all available options displays. Menu options
include:
●Languages
●Unit
●Beep
●Keypad Test
●LCD Test
1.2.2 Arrow Icon
An arrow icon indicates a procedure.
Example
To change menu language:
1. Scroll with the arrow keys to highlight Language on the menu.
2.Press the Yes button to select.
1.2.3 Note and Important Message
Note
A NOTE provides helpful information such as additional explanations, tips, and comments.
Example:
NOTE
Test results do not necessarily indicate a faulty component or system.
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage to the test
equipment or vehicle.
Example:
IMPORTANT
Do not soak keypad as water might find its way into the TPMS Service Tool.

10
T2000 TPMS Service Tool Manual_English_V1.01
2 Introduction
2.1 About T2000
T2000 is a professional TPMS diagnostic and maintenance tool which is capable of activating and
decoding universal TPMS Sensors, programming TPMS sensors and diagnosing the original car
tire pressure monitoring system. It can provide a complete solution for the TPMS service segment
of the automotive aftermarket.
2.1.1 Descriptions
This section illustrates external features, ports and connectors of the tool.
Figure 2-1 Front View
1LCD Display - Shows menus, test results and operation tips.
2Function Keys / Shortcut keys - three keys that correspond with “buttons” on some screens for
executing special commands or provide quick access to most frequently used applications or
functions.
3No Key - Cancels a selection (or action) from a menu or generally returns to previous screen.
4Trigger Key - Executes sensor trigger function.
5HELP Key - Displays help information.
6Yes Key - Confirms a selection (or action) from a menu.
7Direction Keys - select an option or scroll through a screen of data or text.
8Power Switch - Turns on/off the TPMS Service Tool and press and hold for 5 seconds
for emergency reboots.
9USB Port - Provides a USB connection between the TPMS Service Tool and PC / laptop.
10 TF Card Port - holds the TF memory card for data backup and software update.
IMPORTANT
Do not use solvents such as alcohol to clean keypad or display. Use a mild nonabrasive detergent
and a soft cotton cloth.
2.1.2 Accessories
This section lists the accessories that go with the TPMS Service Tool. If you find any of the
following items missing from your package, contact your local dealer for assistance.

10
T2000 TPMS Service Tool Manual_English_V1.01
1T10 Programmable Sensor (8 pcs) - for changing the original broken sensor.
2USB Cable - provides connection between the TPMS Service Tool and a computer to
upgrade the tool and charges the built-in battery.
3OBDII Cable - connecting with the vehicle to test OBDII function and TPMS system.
4Magnet - triggers early TPMS sensors which need a magnet to activate.
5Battery Charger - charges built-in battery via wall plug.
6Blower Molding Case - stores the TPMS Service Tool and its accessories.
7Warranty Card - A warranty card is required if you need any repair or replacement from us.
8Quick Start Guide - provides brief operation instructions for the usage of the scanner.
2.1.3 Technical Specifications
Display: Backlight, 240*320 TFT color display
Working Temperature: 0 to 55 ℃(32 to 140℉)
Storage Temperature: -20 to 70℃(-4 to 158℉)
Power Supply: 3.7V/2200mAH Li-polymer battery, 3.3V USB power
Dimensions (L*W*H): 200*100*38mm
Gross Weight: 1.3kg
Radio reception: 315 MHz and 433MHz
3 Getting Started
This section describes how to provide power to the TPMS Service Tool. It provides a brief
introduction of applications loaded on the TPMS Service Tool, an introduction of symbol and
icons displayed on the screen and how to power on/off and charge the tool.
3.1 Power on/off the TPMS Service Tool
The T2000 is powered on/off by pressing the power switch.
To power on/off the tool
1. Press the power switch to power on the tool, and the unit will display the Main Menu.
2. Hold the power switch for one 1 seconds and the release to power down the T2000. The tool
powers down automatically after a period of inactivity. Please refer to 8.6 Auto Power-off
Interval for details.
3.2 Charging the TPMS Service Tool
The T2000 is shipped with fully charged battery, but due to self-drain it may require charging, it is
recommended to charge the tool over 3 hours before first use.
The unit charges on any of the following sources
●12-volt wall plug
●USB connection to personal computer
IMPORTANT
Use the battery charger or USB cable included in the T2000 tool kit ONLY. The use of un-
approved power supplies may damage the tool and will void the tool warranty.
3.2.1 Charging via Wall Plug

10
T2000 TPMS Service Tool Manual_English_V1.01
To charge via wall plug
1. Find the power port at left side of the tool.
2. Connect the tool to power source with the battery charger provided.
3.2.2 Charging via Personal Computer with USB Cable
The TPMS Service Tool can also be charged through the USB port.
To charge via USB cable
1.Insert the small end of the USB cable to the USB port at the right side of the TPMS Service
Tool and the large end to a computer.
3.3 Application Overview
When the TPMS Service Tool boots up, the Main Menu displays. This screen shows all applications
loaded on the unit.
The following applications are preloaded into the TPMS Service Tool
●OBDII – leads to OBDII screens for all 9 generic OBD system tests.
●TPMS – leads to screens for TPM sensor activation, programming, TPMS Diagnose and
sensor learning process.
●RKE&RF – leads to screens for checking RF Remote Keyless Entry (key FOB).
●Latest Test – leads to screens for access the last tested sensor data.
●Settings – leads to screens for adjusting default settings to meet your own preference.
●Data Manager – leads to screens for access to data records.
●Update – leads to screen for updating the scanner.

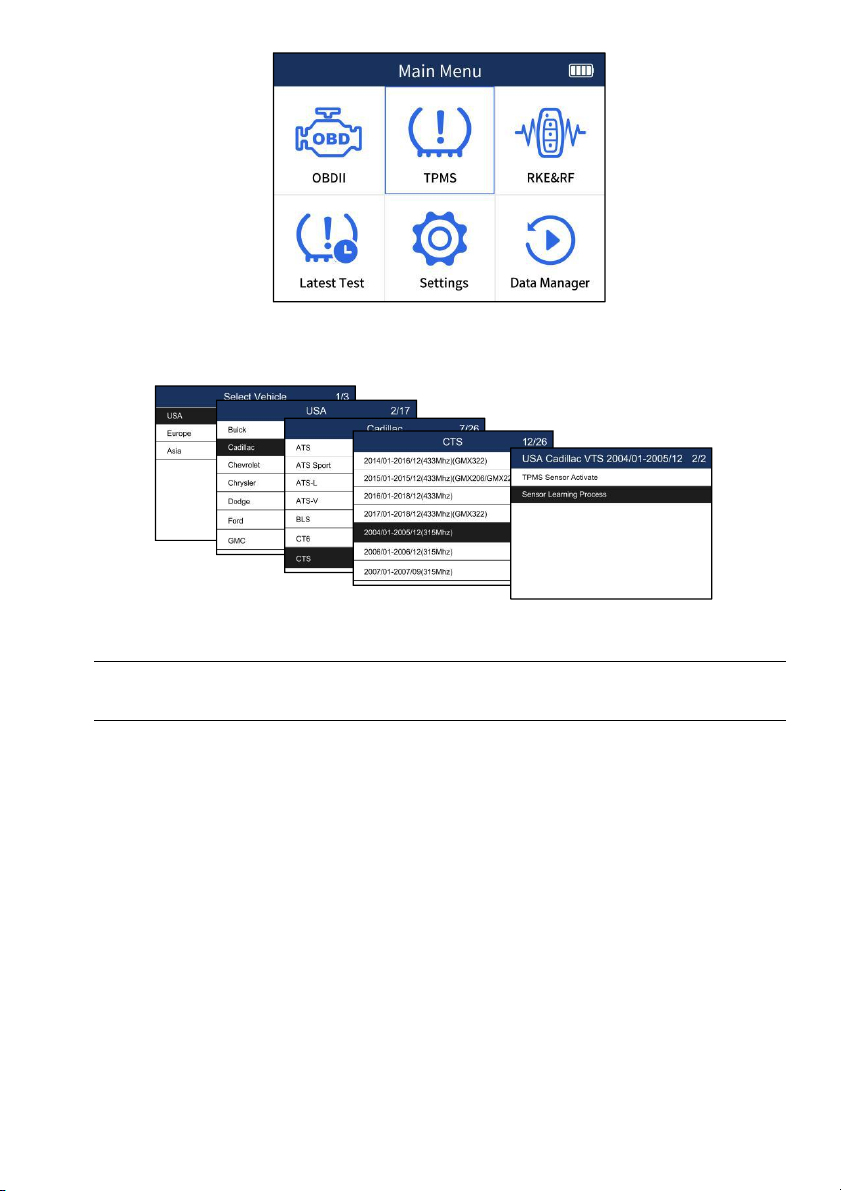

Figure 3-1 Sample Home Screen
3.4 Tool Symbols and Icons
This section provides a brief introduction of symbols and icons of tool display.
No.
Indicator
Description
1
Indicates internal battery volume.
2
Indicates the TPMS tool is sending signals to
the tire sensor for activation and test.
3
Indicates battery charging.

10
T2000 TPMS Service Tool Manual_English_V1.01
4 OBD II
OBD II menu lets you access all OBD service modes. According to ISO 9141-2, ISO 14230-4, and
SAE J1850 standards, the OBD application is divided into several sub programs, called ‘Service
$xx’. Below is a list of OBD diagnostic services:
●Service $01 - request current powertrain diagnostic data
●Service $02 - request powertrain freeze frame data
●Service $03 - request emission-related diagnostic trouble codes
●Service $04 - clear/reset emission-related diagnostic information
●Service $05 - request oxygen sensor monitoring test results
●Service $06 - request on-board monitoring test results for specific monitored systems
●Service $07 - request emission-related diagnostic trouble codes detected during current
or last completed driving cycle
●Service $08 - request control of on-board system, test or component
●Service $09 - request Vehicle Information
When OBD II application is selected from Home screen, the scanner starts to detect the
communication protocol automatically. Once the connection has established, a menu that lists all of
the tests available on the identified vehicle displays. Menu options typically include:
●System Status
●Read Codes
●Freeze Frame Data
●Clear Codes
●Live Data
●I/M Readiness
●O2 Sensor Test
●On-board Monitor Test
●Component Test
●Vehicle Information
●Modules Present
●Code Lookup
NOTE
Not all function options listed above are applicable to all vehicles. Available options may vary by the
year, model, and make of the test vehicle. A “Not supported the mode!” message displays if the
option is not applicable to the vehicle under test.
5 TPMS Operations
This section illustrates how to use the TPMS Service Tool including how to activate & decode TPM
sensor data, how to do TPMS diagnosis and how to program OEM sensors etc.
To test the TPMS:
1. Choose Settings--Area from the Main Menu and select the area you work.
2. Highlight TPMS from the Main Menu and press the YES key to start.

10
T2000 TPMS Service Tool Manual_English_V1.01
Figure 5-1 Sample Application Menu
3. On each screen that appears, select the correct option and then press the YES key. Do this
until the complete vehicle information is entered.
Figure 5-2 Sample Vehicle Selection Menu
NOTE
The selected vehicle is remembered by the tool when a test is started. It is very convenient for
workshops to trigger TPM sensors of the same vehicle.

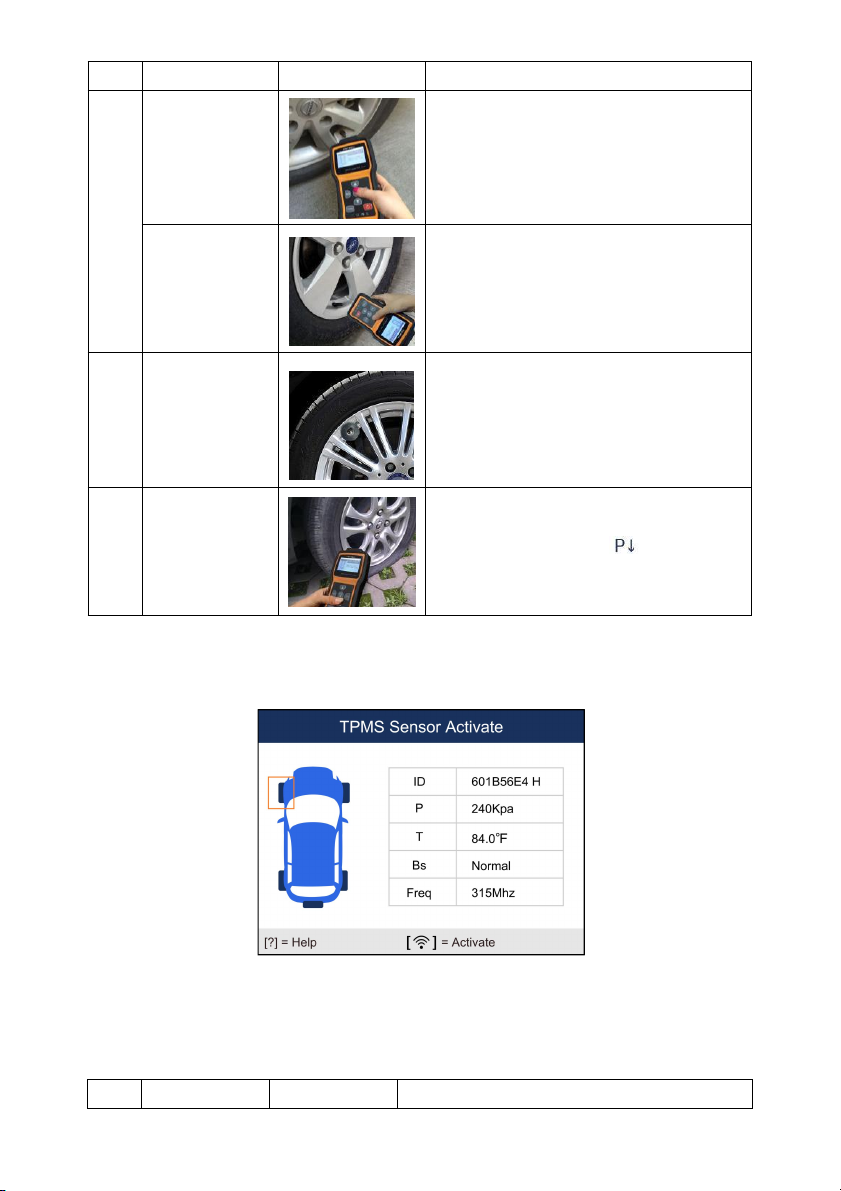

5.1 TPMS Sensor Activate
It enters all wheel mode which provides a vehicle icon on the screen to give user prompts for
each wheel. In this mode, each TPM has wheel locations of LF (Left Front), RF (Right Front),
RR (Right Rear), LR (Left Rear) and spare (if the car has a spare tire).
1. In all wheel mode, the solid spot flashes at the wheel to be tested. Depending on the sensor
type, place the tool to the correct position to insure sensor activation and decode. Below is a
chart illustrating how to correctly place the tool.

14
T2000 TPMS Service Tool Manual_English_V1.01
No.
Sensor Type
Illustration
Description
1
LF Activated
Sensors
The tool should be placed alongside the
valve stem.
Ford branded
LF Activated
Sensors
The tool should be held 180°away from the
valve stem.
2
Magnet
Activated
Sensors
If the TPM requires a magnet, place the
magnet over the stem and then place the
tool alongside the stem
3
Delta P
activated
sensors
If the sensor requires tire deflation (of the
order of 10PSI), the icon will appear
on screen. Please deflate the tire and place
the tool alongside the stem
Table 5-1
2. Press Activate to test the TPM. If test passes, TPM data is briefly displayed for 3 seconds
and then the solid spot on the vehicle icon moves around to prompt that the next wheel
should be tested. Or manually move around vehicle using UP/DOWN arrow keys.
Figure 5-5 Sample All Wheel Test Data Screen
3. TPM data is stored and can be accessed by selecting a wheel location and press the YES
key.
4. Depending on test results, one of the following possible scenarios may display.
No.
Sensor Type
Illustration
Description

15
T2000 TPMS Service Tool Manual_English_V1.01
Table 5-2
NOTE
Operator can press the NO key to abort the sensor activation and return to previous menu at any
time.
5.2 TPMS Diagnose
The TPMS Diagnose function lets users retrieve/clear TPMS DTCs, read live data and perform
special functions, helping technicians to quickly find out faulty TPMS and turn off MILs.
5.2.1 Read Sensor ID
To Read Sensor ID
1. Select TPMS--Diagnose from the available Menu.
2. Choose Read ID after the tool communicate with the car successfully.
Figure 5-6 Sample Sensor ID Menu
3. The sensor ID information will be displayed. Press F2 button to save the sensor ID or F1 or N
button to exit.
1
Successful
Sensor Read
TPMS sensor was successfully activated and
decoded. The T2000 emits a series of tones
and displays pressure at wheel location.
2
Failed Sensor
Read
The search period expires without reading a
TPM. The T2000 emits a single audible beep
and displays “No sensor detected.” Repeat the
test process to verify.
3
Duplicate ID
A sensor with a duplicate ID has been read.
The T2000 emits three audible beep and
displays “Sensor ID duplicate.” Clear data and
re-read sensors.

16
T2000 TPMS Service Tool Manual_English_V1.01
Figure 5-7 Sample Sensor ID Screen
5.2.2 Read Version Information
To Read Version Information
1. Select TPMS--Diagnose from the available Menu.
2. Choose Read Version Information after the tool communicate with car successfully.
Figure 5-8 Sample ECU Information Menu
3.The version information will be displayed. Press F2 button to save the version information or F1
or Nbutton to exit.

17
T2000 TPMS Service Tool Manual_English_V1.01
Figure 5-9 Sample ECU Information Screen
5.2.3 Read Codes
To Read Codes
1. Select TPMS--Diagnose from the available Menu.
2. Choose Read Codes after the tool communicate with the car successfully.
Figure 5-10 Sample Read Codes Menu
3.The fault codes will be displayed if have. Press F1 button to save the fault codes or F3 or N
button to exit.

18
T2000 TPMS Service Tool Manual_English_V1.01
Figure 5-11 Sample Read Codes Screen
5.2.4 Erase Codes
To Erase Codes
1. Select TPMS--Diagnose from the available Menu.
2. Choose Erase Codes after the tool communicate with the car successfully.
Figure 5-12 Sample Clear Codes Menu
3.There will be a notice displayed. Press F3 button to continue the operation or F1 or Nbutton to
exit.
Figure 5-13 Sample Clear Codes Screen
5.2.5 Live Data
To check Live Data
1. Select TPMS--Diagnose from the available menu.
2. Choose Live Data after the tool communicate with the car successfully.

19
T2000 TPMS Service Tool Manual_English_V1.01
Figure 5-14 Sample Live Data Menu
3.The live data will be displayed. Press F1 button to Pause, F2 button to enter graph screen, F3
button to Save or Nbutton to exit.
Figure 5-15 Sample Live Data Screen
Figure 5-16 Sample Single Graph Screen
5.2.6 OBD Learning
To enter OBD Learning
1.Select TPMS--Diagnose from the available Menu.
2.Choose OBD Learning after the tool communicate with the car successfully.

20
T2000 TPMS Service Tool Manual_English_V1.01
Figure 5-17 Sample OBD Relearn Menu
3. The screen will show as Figure 4 if all sensors are activated. If not, you need to input sensor ID
manually and press F1 button to continue the operation.
Figure 5-18 Sample OBD Relearn Screen
4.If learning successfully, please re-activate the sensors and sensor pressure
information will be displayed on the cluster. If failed, the cluster will not display the
sensor pressure information and the TPMS MILs will turn on.
Figure 5-19 Sample OBD Relearn Screen
