INSTRUCTION MANUAL FORDISPLAY COOLERV068Please read this manual carefully, and make sure to keep this manual in the place accessible by the user at any time. display coolerSC68/V068EN 55014-1:2017. EN 55014-2:2015EN 61000-3-2:2014, EN 61000-3-3:201330-05-2022CVC

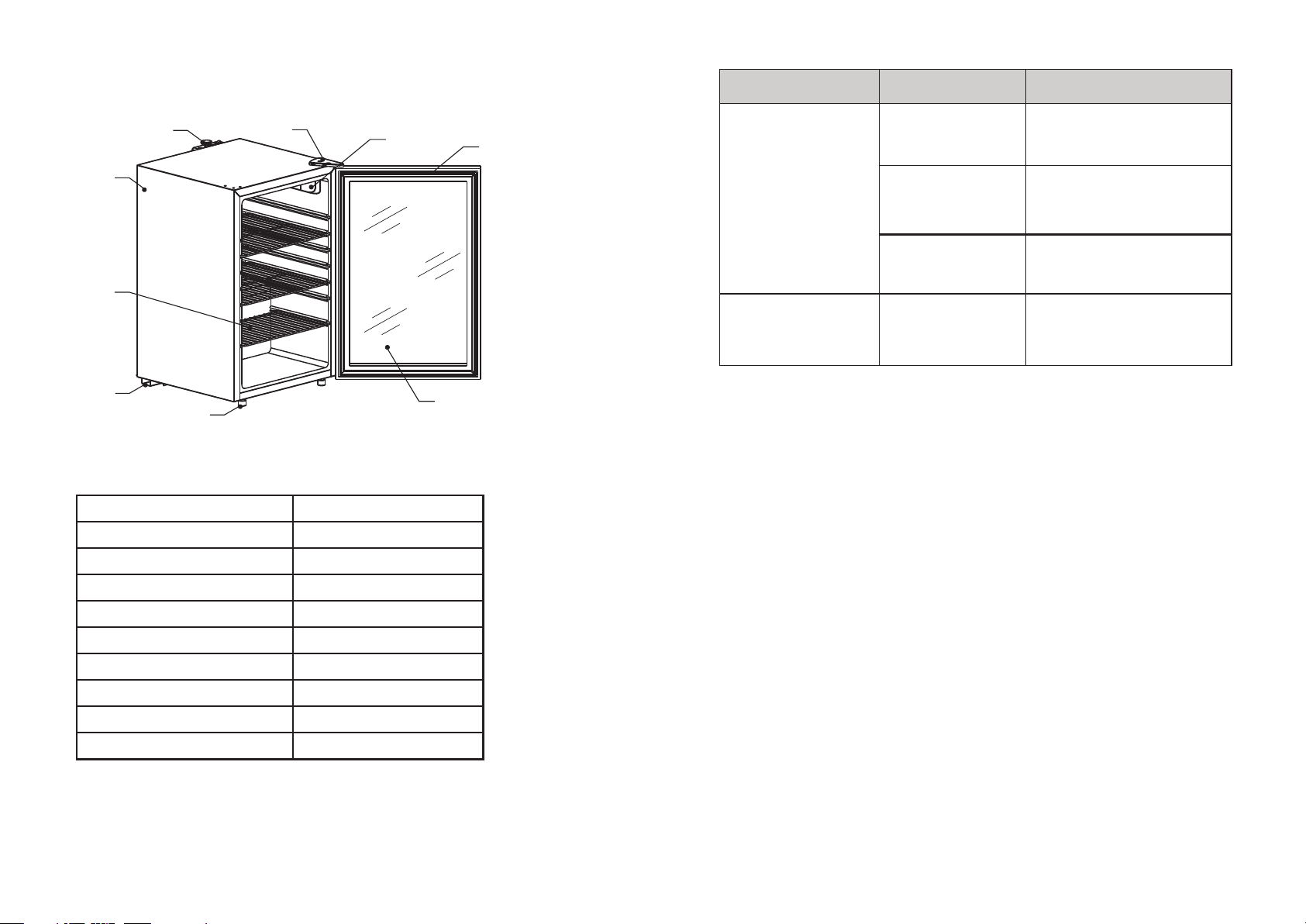

1、Structural diagram 2、Specifications ModelClimatic classStorage Temperature ( ℃)Anti-shock protection classCapacity (L)Rated Voltage (V)Rated Frequency (Hz)LAMP max power(W)Power consumption:(kW·h/24h)Refrigerant/Charging (g)V068N0～10Ⅰ68220V50Hz100.8R600a/30The above specifications are subject to improvements. Caution: Dismantling the unit by non-professionalstaff is prohibited, it will cause hazard.

ProblemsPossible causeWays to solve problemsThe unit is not levelAdjust the adjustable legsThe fastener of theunit is looseFasten the loose fastenerPipes are touchingthe compressorCareful separate the touchedpipesLight is not onThe light is burnedoutReplace the lightToo high noise

ShelfFootGlass doorMagnetic sealHinge coverBraceControl panelCaseInner light

3. Safety Cautions1) This unit uses AC220V/50Hz power, there should be a 500va stabilizer if the voltage fluctuation exceed AC198V～242V2) The usershould hold the plug when the power is on/off, dragging or pulling the power cord is prohibited. 3) Do not remove the power cord or plug4) Must use dependent socket and reliable ground wire. Ground wire must not connect with the null line of the gas pipe, warm gas pipe, water pipe and must be single power5) Never splash water on the unit directly.6) Keep away from explosive, hazardous goods such as ether, gas, alcohol, bonding agents, gunpowder etc. 7) Keep away from spray of inflammables such as paints, coating materials etc. 8) After the unit is switched off, it should not be restarted within 5 minutes.9) Do not leave the power cord under any heavy objects including the unit itself. 10) Do not drill holes or install other objects on the casing. 11) This cooler is not suitable for storage pharmaceutical products.4. Portage and storage1) Keep the unit vertical when carrying the unit, the angle to the °horizontal line should not be over 50，otherwise it will damage the compressor and affect normal operation of the unit. 2) The unit should be place on a solid and firm ground, take away the bottom pack to lower the shock and noise. 3) Leave at least 20 cm of distance between the back of the unit and the °wall for ventilation and leave a space with an open angle of 160 for the door.4) Keep the unit away from heat sources and avoiding direct sunlight.5) Never place the unit on a location where water can reach or with high moisture. Splashed water and dirt should be wiped off in time by using a soft cloth.6) Do not place the unit in the environment cold enough to be iced.5. Preparation1) Remove the carton and packing foam (including the bottom foam) before using.2) Clean the unit before using.3) Adjust the foot to make the unit steady according to the ground

ProblemsPossible causeWays to solve problemsAbnormal operation ofthe compressor or hasbuzz soundThe power voltageis out of the ratedrange.Disconnect the power supplyimmediately and reconnectwith it after normal voltage.It is necessary to have avoltage stabilizer in case ofpoor power supply.Compressor operatestoolong time and no froston the surface of innercabinetRefrigeration systemis at fault (leakageor blocked)Send the unit to servicedepartment for repairThere is frost or ice onthe walls of the innercabinet and too lowinternal temperature,the compressoroperates never stopThermostat does notworkAsk service department forrepairBad heat issipationand ventilation ofcasing, the ambienttemperature is toohighImprove ventilation and owerthe ambient mperature.Too much warmfood was put in atone timeTake out some foodDoor open requentlyand long time dooropeningDecrease number and time ofdoor opening.The internaltemperature is toohigh and thecompressor operatesnever stop

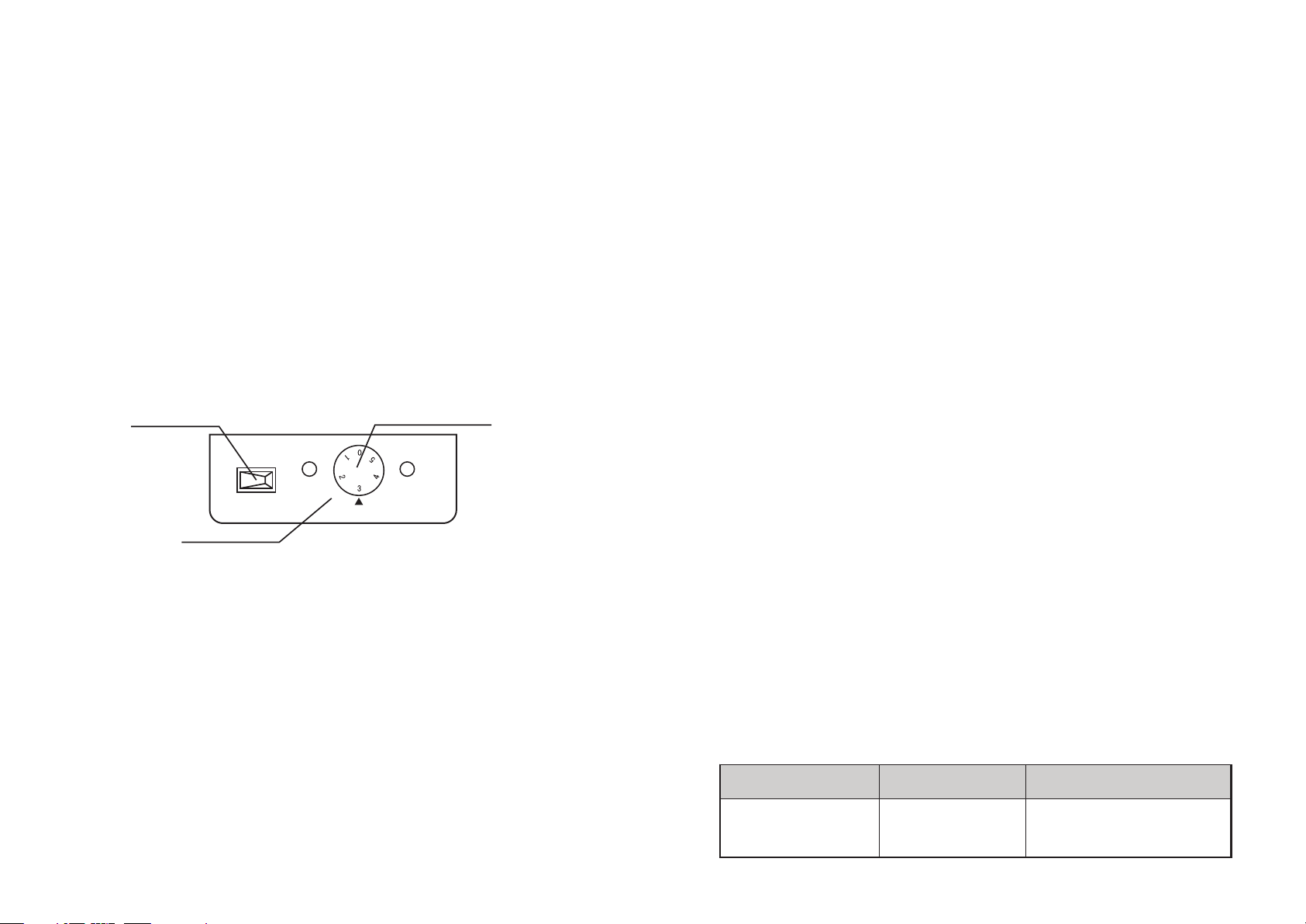

4) After moving the unit, place the unit for 30 minutes before switching it on. Running: close the door and connect the power, turn on the lamp switch on the control panel, the lamp is on. Half an hour later, the temperature inside the case lower apparently, it indicates the unit on be normally used5) After connecting the power, the unit should be kept empty for one hour.6. Setting and adjustment of temperature1) Adjust the storage temperature through the temperature controller located on the back of the case(see the picture), adjust the temperature according to the ambient temperature and the foodstuff.2) See the following picture about the knob scale. The temperature adjustable capacity is from “1”-“5”, adjust the storage temperature by turning the temperature controller clockwise. The higher of the number shows the lower of the storage temperature. The knob can turn freely but can't turn clockwise from “5”to “1”. Factory setting position is on “3”.Lamp SwitchThermostat knobControl Panelon off3) Check if the scale is on an appropriate position before using,frequent adjustment is not appropriate when using. Normally in summer, the ambient temperature is high, anti clockwise turn the knob to “2”, while in winter, the ambient temperature is low, clockwise turn the knob to “4”.4) Position “0” represent stop running.7. Storage of articles1) Do not put large amount of articles into the unit at one time, you should leave some space around the foodstuff to let cold air inside the cabinet counter to flow. Keep bottled articles away from the walls of interior cabinet so as not to freeze it until broken.2) Do not put warm food into the unit directly until they are cooled under normal temperature, it will facilitate to lower its energy consumption and prolong service life of the compressor.8. Maintenance Disconnect the power supply before maintenance for the machine!1) Keep the door gasket clean, remove it from the door and wash it. Dry and seal it as before. Putting some talcum powder on the magnetic surface would prolong its service life.2) Bulb replacement： remove the lamp shade, take out the bulb, replace with a new bulb, then mount it again.3) If there is heavy frost on the evaporator after long usage, take out the stuff inside the case, disconnect the power, the frost will melt automatically, clean up the water and connect the power again. 4) Use a soft cloth and dip some water or soap (Non-caustic, neutral detergent is also available) to clean the unit. Dry the unit after cleaning to avoid rust.5) Do not use organic liquid, boiled water, washing powder or acid stuff to clean the unit. Rinsing the case by water is not allowed, don't use hard brush, steel brush to clean the case.6) If the unit will not be used for a long time, disconnect the power, clean it by following the above steps, wipe off the water inside the case with a soft cloth. 9、 Caution1) The unit is not suitable for storage of blood, pharmaceutical products and biological products2) Do not place heavy articles on the top of the unit. 3) In case of trouble, please ask professional person for service, do not dismantle the unit without prior authority to avoid hazard. 10、Normal Phenomena1) Sometime hear light sound of water flowing in the unit, this is the sound of refrigerant flowing inside the pipe.2) the top ,and the two sides of the casing will be warm, even too hot.3) In a humidity place, there is dew on the casing or the door, it can dry by dry cloth.11、Troubleshooting guide
