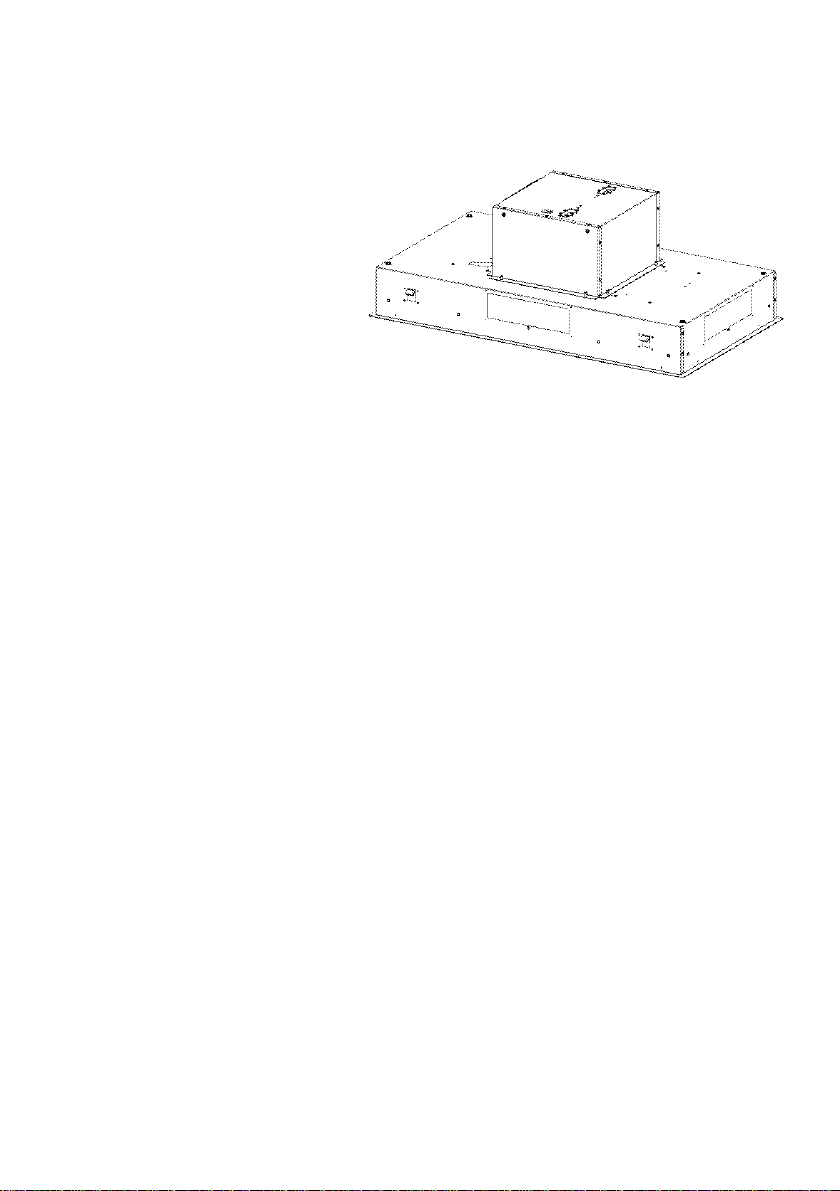

Franke FCBI 1204 C X User manual

Instructions Manual
Manual de Instruções
FCBI 1204 C X

2
2
INDEX
RECOMMENDATIONS AND SUGGESTIONS .............................................................................................................. 3
CHARACTERISTICS.................................................................................................................................................... 6
INSTALLATION............................................................................................................................................................ 7
USE............................................................................................................................................................................. 8
MAINTENANCE......................................................................................................................................................... 10
ÍNDICE
CONSELHOS E SUGESTÕES ................................................................................................................................... 12
CARACTERÍSTICAS.................................................................................................................................................. 15
INSTALAÇÃO ............................................................................................................................................................ 16
UTILIZAÇÃO.............................................................................................................................................................. 17
MANUTENÇÃO.......................................................................................................................................................... 19
EN
PT

EN
3
3

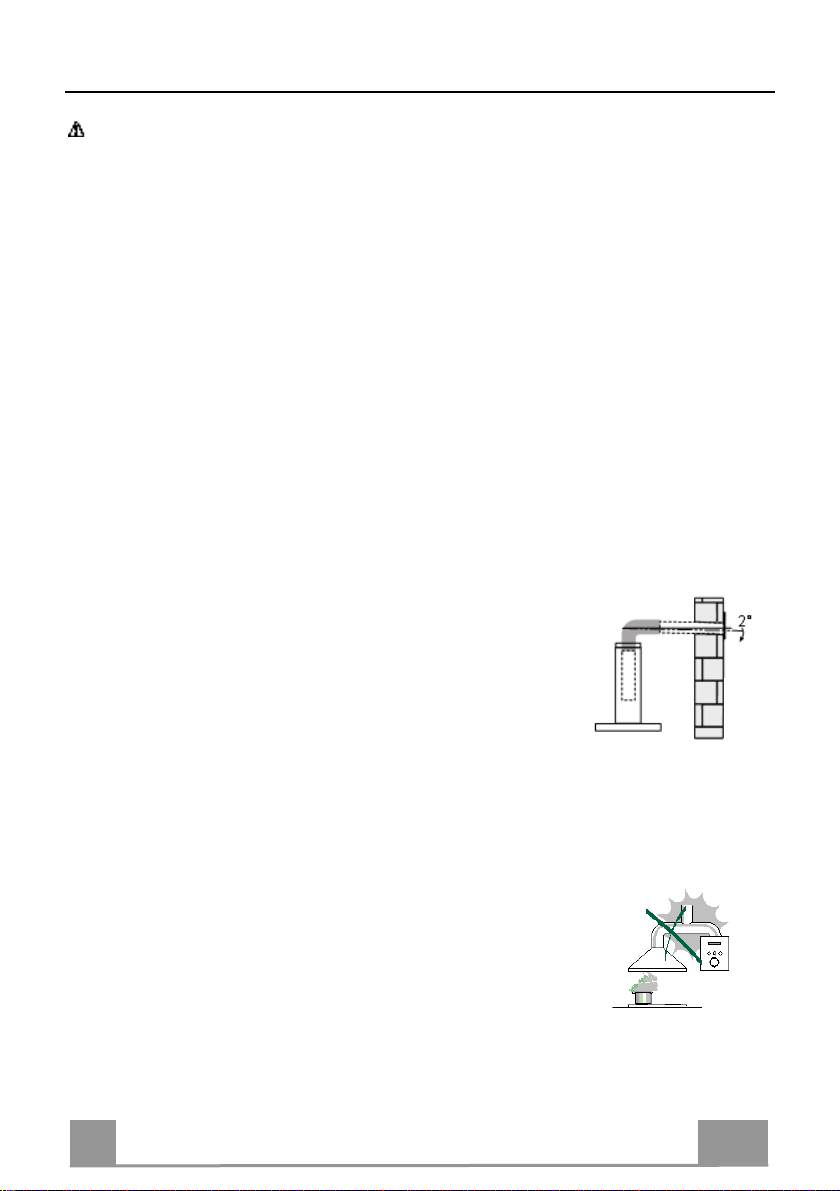

RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do not
apply to your specific appliance.
INSTALLATION
•The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
•The minimum safety distance between the cooker top and the extractor hood
is 650 mm (some models can be installed at a lower height, please refer to
the paragraphs on working dimensions and installation).
•Check that the mains voltage corresponds to that indicated on the rating
plate fixed to the inside of the hood.
•For Class I appliances, check that the domestic power supply guarantees
adequate earthing.

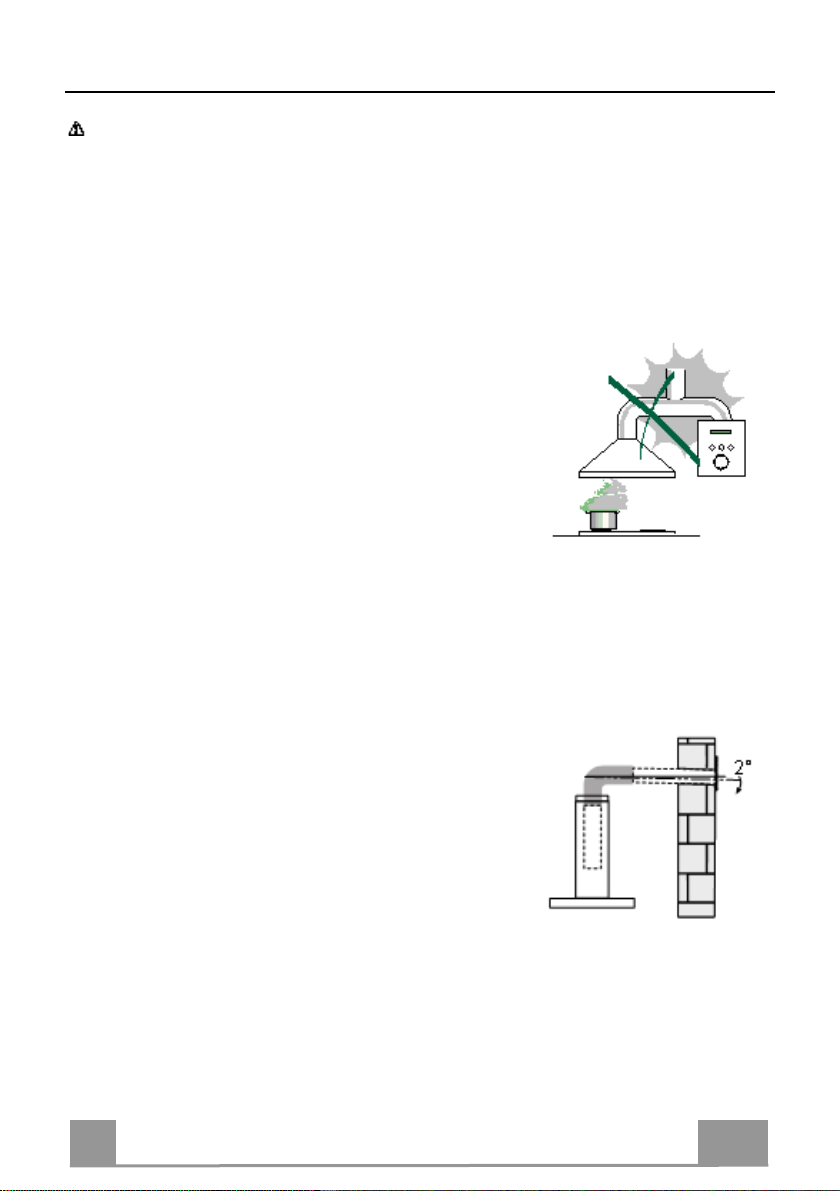

Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
•Do not connect the extractor hood to exhaust ducts
carrying combustion fumes (boilers, fireplaces, etc.).
•If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufficient
degree of aeration must be guaranteed in the room in
order to prevent the backflow of exhaust gas. The
kitchen must have an opening communicating directly
with the open air in order to guarantee the entry of clean air. When the
cooker hood is used in conjunction with appliances supplied with energy
other than electric, the negative pressure in the room must not exceed 0,04
mbar to prevent fumes being drawn back into the room by the cooker hood.
•The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels (not applicable to appliances that only discharge the
air back into the room).
•In the event of damage to the power cable, it must be
replaced by the manufacturer or by the technical service
department, in order to prevent any risks.

EN
4
4
•If the instructions for installation for the gas hob specify a greater distance
specified above, this has to be taken into account. Regulations concerning
the discharge of air have to be fulfilled.
•Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards.
•Connect the hood to the mains through a two-pole switch having a contact
gap of at least 3 mm.
USE
•The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
•Never use the hood for purposes other than for which it has been designed.
•Never leave high naked flames under the hood when it is in operation.
•Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
•Deep fat fryers must be continuously monitored
during use: overheated oil can burst into flames.

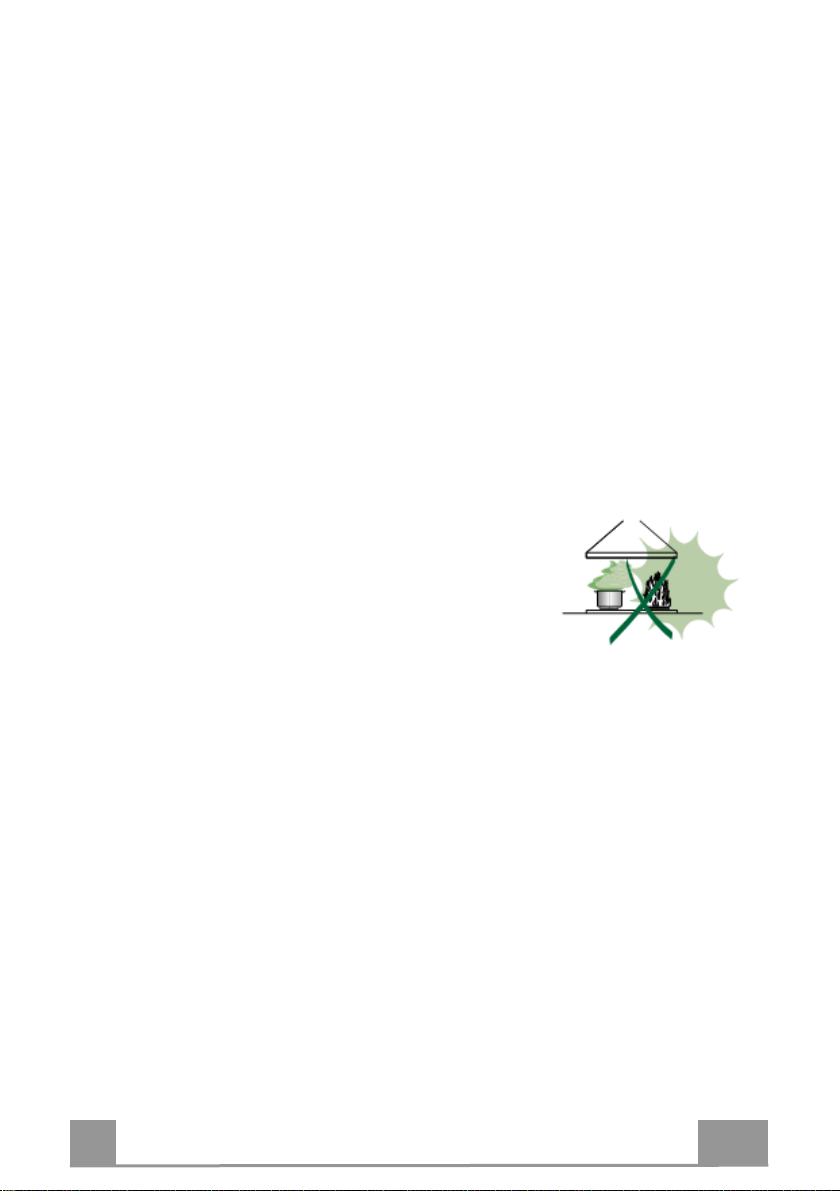

•Do not flambè under the range hood; risk of fire.
•This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

EN
5
5
•“CAUTION: Accessible parts may become hot when used with cooking
appliances.”
MAINTENANCE
•Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
•Clean and/or replace the Filters after the specified time period (Fire hazard).
•The Grease filters must be cleaned every 2 months of operation, or more
frequently for particularly heavy usage, and can be washed in a dishwasher.
•The Activated charcoal filter is not washable and cannot be regenerated,
and must be replaced approximately every 4 months of operation, or more
frequently for particularly heavy usage.
•"Failure to carry out cleaning as indicated will result in a fire hazard".
•Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or
the shop where you purchased the product.

EN
6
6
CHARACTERISTICS
Dimensions

EN
7
7
INSTALLATION
Fixing the Hood
•In all cases where the ceiling is not strong enough at the suspension point, the installer must
provide strengthening using suitable plates and backing pieces anchored to the structurally
sound parts.
ELECTRICAL CONNECTION
•Connect the hood to the mains through a two-pole switch having a contact gap of at least 3
mm..

EN
8
8
USE

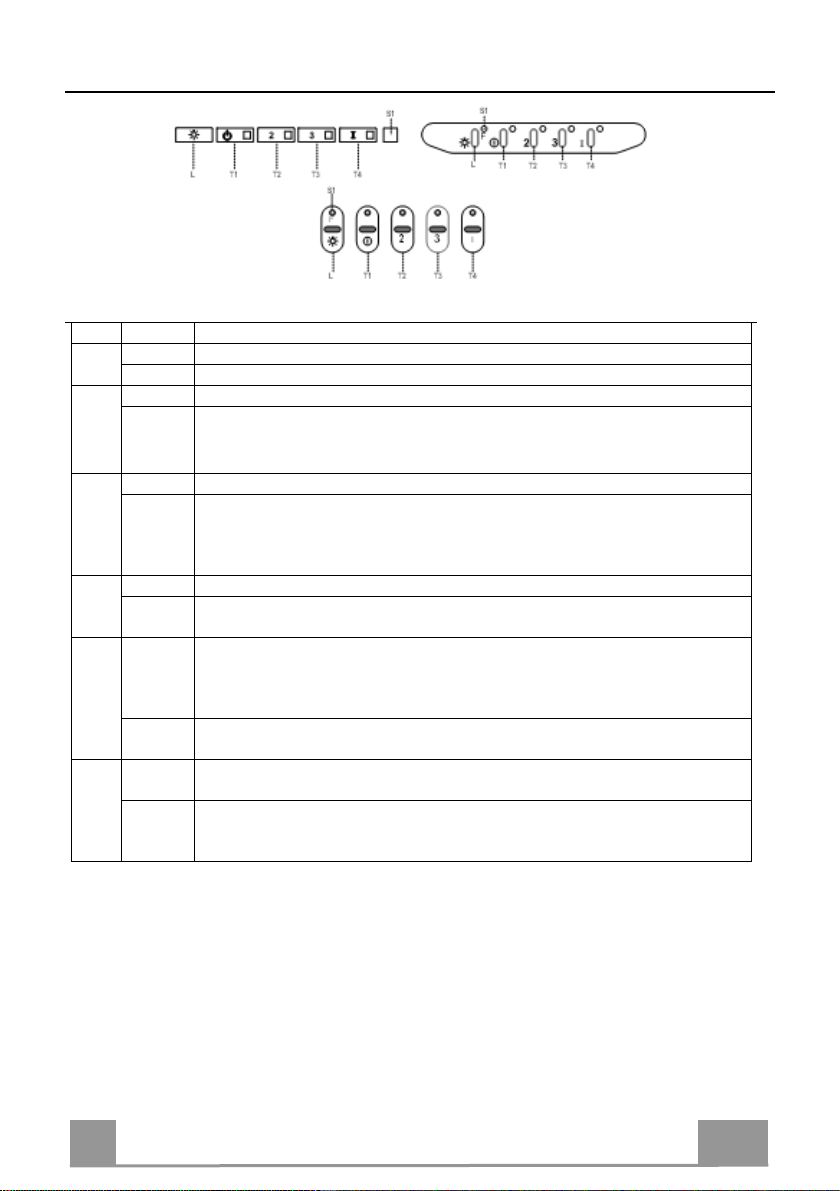

Control panel
Button
Led
Function
L
-
TurnsthelightsON/OFFatmaximumstrength.
-
Pressandholdforapprox.2secondstoturnthelightingsystemonandoffatreducedintensity.
T1
Fixed
Turnsthemotoron/offatspeedone.
-
Delay function:
Press and hold the button for approx. 3 seconds to Activate/Deactivate the Delay function
(automatic switching off of the Motor, the Fans and the Lighting with a 30' delay).
CannotbeenabledwhenIntensiveor24hareon.
T2
Fixed
TurnstheMotoronatspeedtwo.
-
Pressandholdthebuttonforapproximately5seconds,withalltheloadsturnedoff(MotorandLights),
toturntheActivatedCharcoalFilteralarmon.TherelevantLEDflashestwicetoconfirm.
Toturn the alarm off, press the buttonagainand hold for atleast5 seconds.The relevant LED flashes
once.
T3
Fixed
TurnstheMotoronatspeedthree.
-
Pressandholdthebuttonforapproximately3seconds,withalltheloadsturnedoff(MotorandLights),
toperformareset.TheLEDS1flashesthreetimes.
T4
Fixed
TurnstheMotoronatINTENSIVESpeed.
Thisspeedistimedtorunfor 6minutes. Attheendofthistime, thesystemreturnsautomaticallytothe
speed that wasset before. Ifitisactivated withthe motor turned off,itwill switch to OFF at theend of
thetime.
-
Pressandholdfor5secondstoenabletheremotecontrol,indicatedbytheLEDflashingtwice.
Pressandholdfor5secondstodisabletheremotecontrol,indicatedbytheLEDflashingjustonce.
S1
Fixed
Signals the Metal Grease Filter saturationalarm, indicating that it is necessary to wash the filters. The
alarmistriggeredaftertheHoodhasbeeninoperationfor100workinghours.
Flashing
When thisisactivated, it signals the Activated Charcoal Filtersaturationalarm,indicating that the filter
mustbechanged;theMetalGreaseFiltersmustalsobewashed.TheActivatedCharcoalFilter satura-
tionalarmcomesintooperationaftertheHoodhasbeenworkingfor200hours.

EN
9
9
REMOTE CONTROL
The appliance can be controlled using a remote control
powered by a 1.5 V carbon-zinc alkaline batteries of the
standard LR03-AAA type (not included).
•Do not place the remote control near to heat sources.
•Used batteries must be disposed of in the proper
manner.
Remote control panel
Motor
Motor On / Off.
Decreases the working speed each time it is pressed.
Increases the working speed each time it is pressed.
Intensive
Activates the Intensive function.
Delay
Activates / Deactivates the Delay function.
Light
Lights On / Off.
Press for 2 seconds to modify the intensity of the Light.

EN
1
0
10
MAINTENANCE

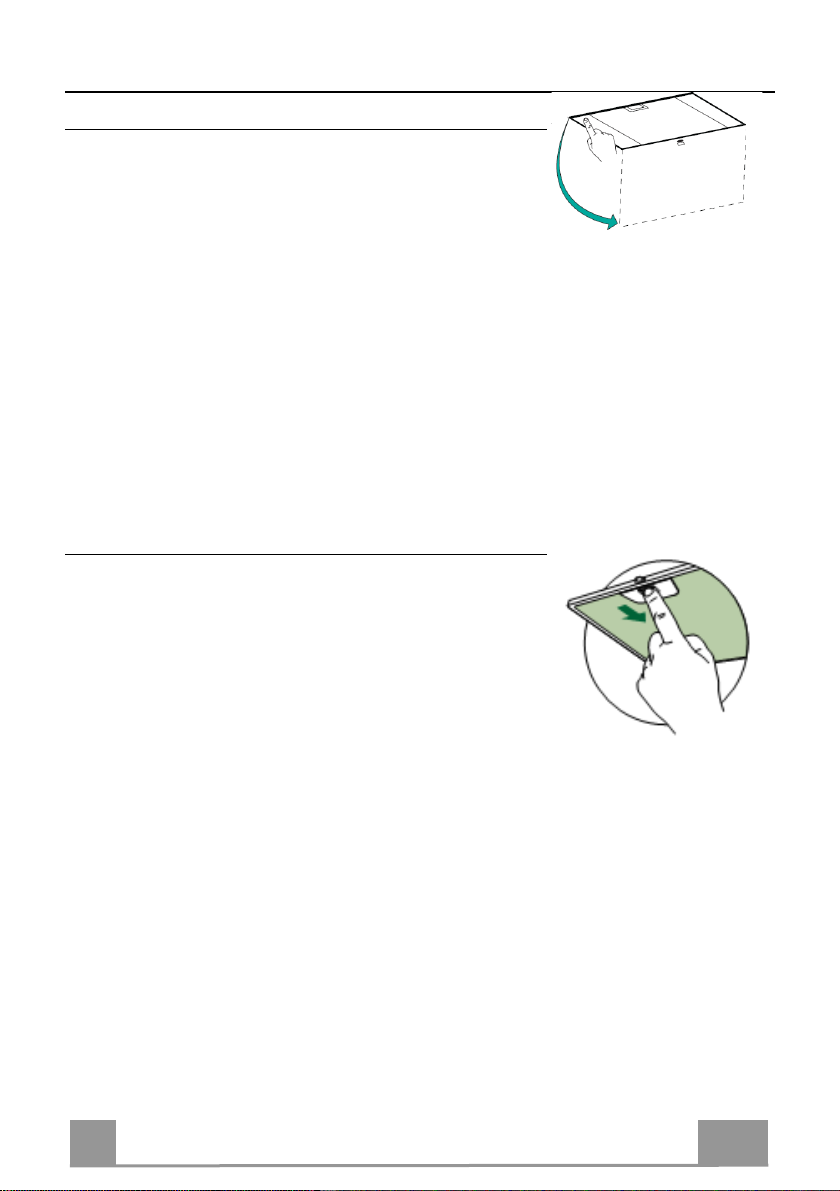

Opening Panel
•Open the Panel by pulling it.
•Clean the outside with a damp cloth and neutral detergent.
•Clean the inside using a damp cloth and neutral detergent; do
not use wet cloths or sponges, or jets of water; do not use
abrasive substances.
Metal grease filters
These can be washed in the dishwasher, and need to be cleaned
whenever the S1 Led comes on or at least once every 2 months
use, or more frequently if use is particularly intensive.
CLEANING THE FILTERS
Resetting the alarm signal
•Turn the Lights and the Suction Motor off.
•Press T3 and hold for at least 3 seconds, until LED flashes
three times in confirmation.
Cleaning the Filters
•Open the doors.
•Remove the Filter, pushing it towards the back of the unit and
at the same time pulling downward.
•Wash the filter without bending it, and leave it to dry thorough-
ly before replacing (if the surface of the filter changes colour
over time, this will have absolutely no effect on its efficiency).
•Replace, taking care to ensure that the handle faces forwards.
•Close the doors again.
