Franke FTC622XSAU User manual

You’re about to begin a very happy and delicious
relationship. Let’s get started.
This is no ordinary rangehood.
Welcome to your new
Franke rangehood
FTC622XSAU - 60CM SLIDE OUT RANGEHOOD

2
AN IMPORTANT NOTE
Please read this document and the safety information carefully before you first use
your rangehood.
SUPPORT
Speak to our customer service representatives.
Australia: 03 9700 9100 | [email protected]
New Zealand: 09 964 0400 | [e-mail]
WARRANTY
Your Franke product is protected by a 2-year warranty. Should you ever need to make a
warranty enquiry, simply contact our service department.
Australia: 03 9700 9100 | ser[email protected]
New Zealand: 09 964 0400 | ser[email protected]
GET SOCIAL
Keep up to date on all things Franke by following us on Facebook and Instagram.
@FrankeAUS
#makeitwonderful
“Let’s let everyone else be ordinary,
while we make it wonderful”

Contents 3
Chapter 1: Ready, set up, go
5 Rangehood functions
6 First time use
6 Warnings and safety
7 Recommendation and suggestions
8 Use
8 Maintenance
9 Characteristics
10 Installation
12 Surrounding area info
12 Intended function
12 Environmental information
12 Disposal
Chapter 2: Life with your Franke Rangehood
14 Operating your rangehood
14 Maintenance information
14 Cooking information
14 Changing the filters
Chapter 3: Last, but not least
16 Warnings, hazards, risks and legal
Looking for something?
17 Glossary
CONTENTS

Chapter 1 Ready, set up, go
4
READY, SET UP, GO
CHAPTER 1
Your Franke rangehood is designed to be set up
quickly and easily - so you can start creating delicious
masterpieces even sooner.

5Chapter 1 Ready, setup, go
Lamp Toggle On/Off
Used to switch the lights on the rangehood on or off.
Motor On/Off
Used to turn the motor on or off. The default “on” setting is motor
speed 1. Pressing this buttong again will turn the rangehood off.
Motor Speed 2
Used to select motor speed 2. Press and hold for 3 seconds to reset
the charcoal filter change alarm.
Motor Speed 3
Used to select motor speed 3. Press and hold for 3 seconds to reset
the grease filter clean alarm.
Intensive Motor Speed
Used to select the strongest, most intense motor speed for superior
extraction. This speed will only run for 6 minutes, and after 6 minutes it
will return to the last set motor speed. Press and hold for 3 seconds to
enable the remote control. The LED indicator will flash twice to confirm.
LED Indicator
This LED will confirm a selection of the remote, or: if it flashes the
charcoal filter needs replacing, or: if it is on continually, the grease
filter needs cleaning.
RANGEHOOD FUNCTIONS

Chapter 1 Ready, set up, go
6
FIRST TIME USE
When the rangehood is first switched on, it may give off an unpleasant smell. This is due to the
bonding agent used for the insulation panels within the rangehood.
Run the rangehood on the highest setting for 15 minutes before using the rangehood with the
cooktop on.
WARNINGS & SAFETY
• The appliance will become hot during use and directly after use.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If any parts become damaged, they must be replaced by the manufacturer only, including the
power supply cord.
• Do not use abrasive cleaners or sharp metal scrapers during cleaning.

Chapter 1 Ready, set up, go
7
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance. Accordingly, you may find
descriptions of individual features that do not apply to your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from incorrect or
improper installation.

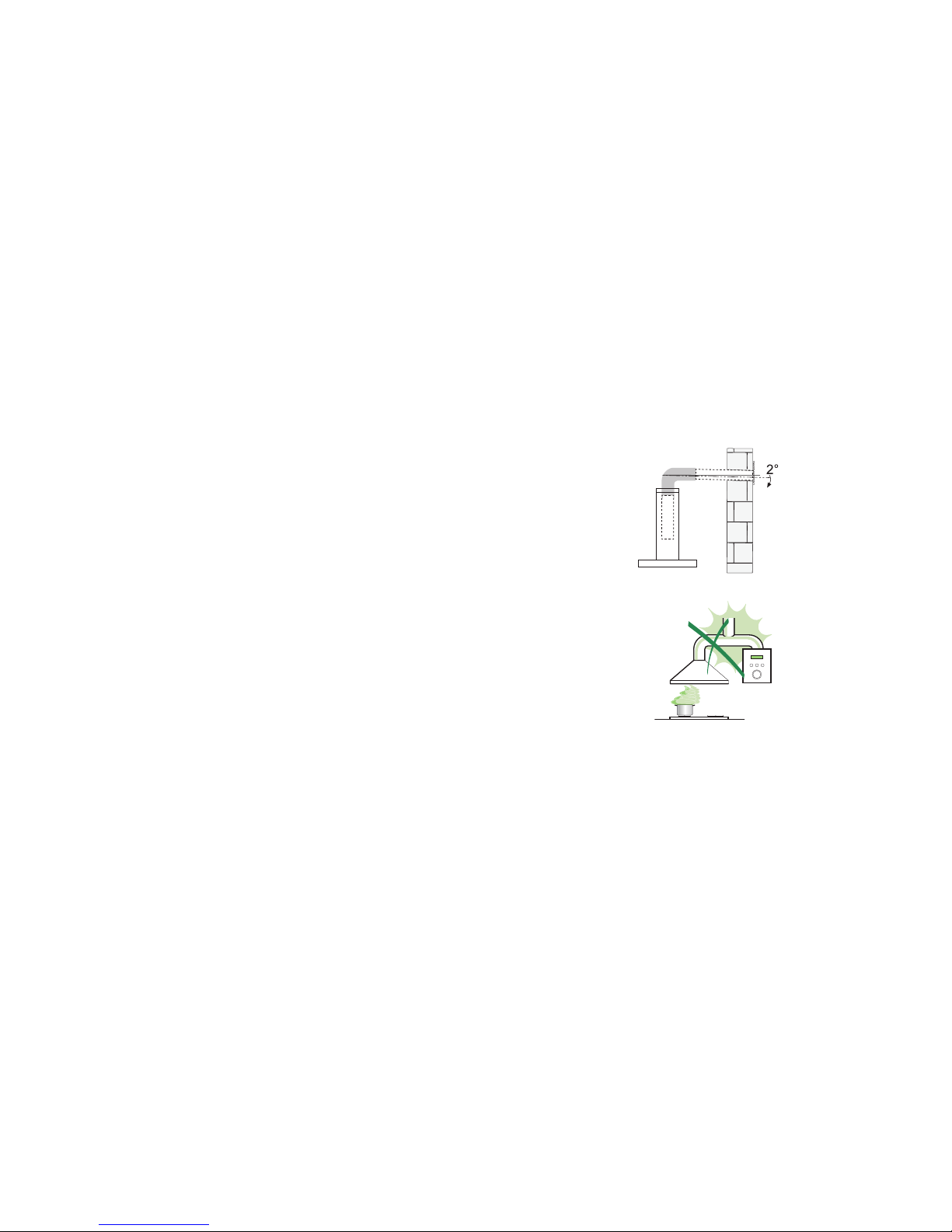

• The minimum safety distance between the cooker top and the extractor hood is 650 mm
(some models can be installed at a lower height, please refer to the paragraphs on working
dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the
inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route
of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes
(boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances
(e.g. gas burning appliances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent the backflow of exhaust gas.
The kitchen must have an opening communicating directly with the open
air in order to guarantee the entry of clean air. When the cooker hood
is used in conjunction with appliances supplied with energy other than
electric, the negative pressure in the room must not exceed 0,04 mbar
to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels (not applicable to
appliances that only discharge the air back into the room).
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
• If the instructions for installation for the gas hob specify a greater
distance specified above, this has to be taken into account. Regulations
concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood. Warning: Failure to install the screws or
fixing device in accordance with these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm.
• Allow disconnection of the appliance from the supply after installation. The disconnection may
be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in
accordance with the wiring rules.

Chapter 1 Ready, set up, go
8
USE
• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.

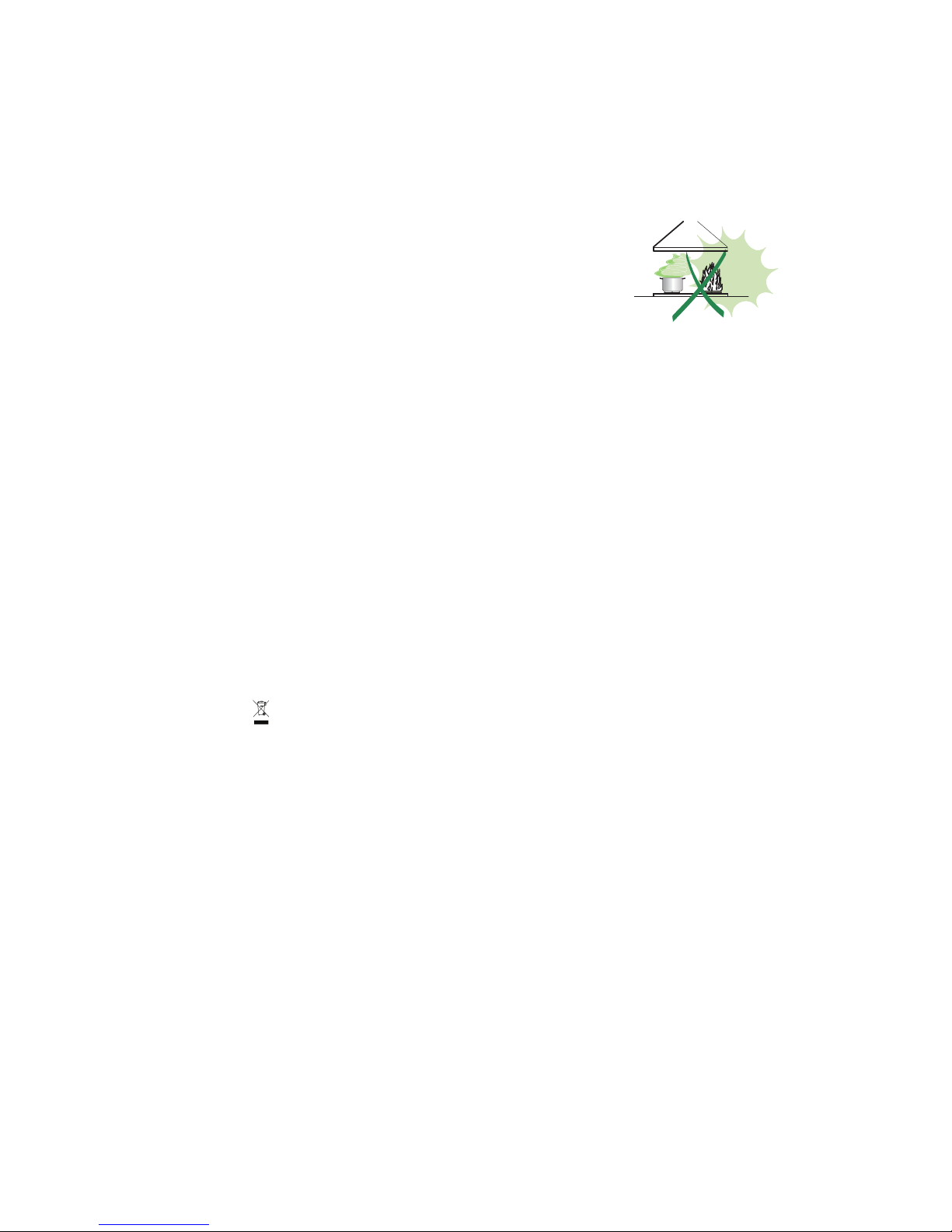

• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not
engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated
oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying out any
maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for
particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced
approximately every 4 months of operation, or more frequently for particularly heavy usage.
• “Failure to carry out cleaning as indicated will result in a fire hazard”.
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol “ ” on the product or on its packaging indicates that this product may not be treated
as household waste. Instead it shall be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.

Chapter 1 Ready, set up, go
9
CHARACTERISTICS
COMPONENTS
Ref. Qty. Product Components
1 1 Hood Body, complete with: Controls,
Light, Blower, Filters
8 1 Directional Air Outlet grille
9 1 Flange ø150mm
10a 1 Flange ø120mm
10b 1 Adapting ring ø120-125mm
20 1 Closing element
Ref. Qty. Installation Components
7.1 2 Hood Body Fixing Brackets
12a 8 Screws 3.5 x 16
12e 2 Screws 2.9 x 12.7
12f 5 Screws 2.9 x 9.5
Qty. Documentation
1 Instruction Manual
12e
8
9
1
12a
20
12f
10a
10b
12a
7.1
12a
7.1

Chapter 1 Ready, set up, go
10
INSTALLATION
DRILLING THE SUPPORT SURFACE
AND FITTING THE HOOD
• The Hood can be installed directly on the
underside of wall-mounted units (650 mm
min. from the Cooker Top) using the snapon
side supports.
• According to requirements, fit two of the
support brackets for the hood (see table fig.
1) at a distance of 125 mm from the front of
the wall-mounted unit.
• According to the chosen air outlet diameter,
insert the appropriate flange into the upper
exhaust outlet. (fig.2)
• Measure the depth of the wall-mounted unit.
(fig.3)
• Measure the depth of the hood plus the
fastening profile depth 20. (fig. 3)
• Adjust the depth of profile 20 accordingly,
cutting it to size.
• Screw the fastening profile 20 to the rear
part of the hood using screws 12f (2.9 x 9.5)
provided. (fig.4)
• Open the ducting carriage.
• Remove the metal grease filters one at a
time, releasing the fasteners provided.
• Close the ducting carriage.
• Insert the Hood until it connects with the
snap-on side Supports. (fig.5)
• Open the ducting carriage.
• Lock it in position by tightening screws Vf
from underneath the Hood. (fig.5)
• Should it be necessary to make adjustments
to the inside of the filter holder element,
proceed as follows:
- Loosen the four adjustment screws Vr
and close the carriage again. (fig.6)
- Move the whole filter holder element
until it is properly aligned with the
wallmounted unit. (fig.7)
- Holding the hood canopy still,
extract the carriage and tighten the
adjustment screws Vr. (fig.6)
- It is now possible to fasten the hood to
the wall-mounted unit using the screws
12a (3.5 x 16) provided. (fig.8)
• Replace the metal grease filters.
• Close the ducting carriage.
Vr
6
7
12a
8
4
3
5
1
X
2
9
10
10a
10b
Nische / Niche /
Nicchia/ Niche
Haltewinkel /
Cornières /
Staffe / Bra-
ckets X
SMS 550 mm 25 mm
518-512 mm 9 mm

Chapter 1 Ready, set up, go
11
CONNECTIONS
Ducting version air exhaust system
When installing the hood in ducting version, a rigid or a flexible pipe with the diameter corresponding
to the flange diameter is used in order to connect the hood to the air outlet piping.
• Fix the pipe with an adequate quantity of pipe clamps (not supplied).
• Remove possible charcoal filters.
Recirculation version air outlet
• Cut a hole ø 125 mm in any shelf that may be positioned over the hood.
• Insert the flange 10a on the hood body outlet.
• Connect the flange to the outlet on the shelf over the hood using a flexible or rigid pipe ø120 mm.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12e
(2,9 x 12,7) provided.
• Ensure that the activated charcoal filters have been inserted.
Electrical connection
Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm.
12e
8

Chapter 1 Ready, set up, go
12
SURROUNDING AREA INFO
There must be sufficient air supply in the room in order to prevent backflow of exhaust gases. The
kitchen must have adequate clean air ventilation. The negative pressure in the room must not exceed
0.04mbar to preven fumes being drawn back into the room.
INTENDED FUNCTION
This appliance has been designed solely for use in domestic kitchens to eliminate foul smells, or a
build up of cooking exhaust (smoke from cooking for example). Never use the hood for purposes which
it was not designed for.
ENVIRONMENTAL INFORMATION
This Franke appliance is particularly energy efficient, however to make the most out of it, and to save
even more energy make sure you adhere to the following steps:.
1. It is more energy efficient to bake several items at the same time to avoid prolonged operation.
2. Only have the motor on setting 2 or 3, if setting 1 does not adequately vent the room.
3. Avoid leaving the light on for extended periods of time.
DISPOSAL
Dispose of all packaging in an environmentally friendly manner. Franke practises environmentally
conscious behaviour, and this appliance is labelled in accordance with the used electrical and
electronic appliances waste guidelines.
If you have any questions on disposals, please call the Franke customer service
team on 03 9700 9100.

13
life with your
franke rangehood
CHAPTER 2
We designed this rangehood with one thing in mind.
How do we create a wonderfully simple user experience
for you, our customer?
Chapter 2 Life with your Franke rangehood

14Chapter 2 Life with your Franke rangehood
MAINTENANCE INFORMATION
Before carrying out any maintenance of changing the filters, globes or cleaning the appliance, turn off
or unplug the appliance from the mains to avoid elextric shock.
COOKING INFORMATION
Never leave high naked flames under the hood when it is in operation.
Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not
engulf the sides.
If the rangehood is used over a deep fryer, it must be continually monitored during use.
Do not spray oil directly onto an open flame or hot surface for risk of fire.
CHANGING THE FILTERS
Change or replace the filters after the specific time period to avoid a clogging hazard.
The grease filters must be cleaned every 2 months of operation or more
frequently for heavy use. These can be placed in a dishwasher.
• Pull out the sliding suction panel.
• Remove the filters one by one, after having disconnected the relative
fastening elements.
• Wash the filters, taking care not to bend them. Let them get dry before
refitting them. (The colour of the filter surface may change throughout
the time but this has no influence to the filter efficiency).
• When refitting the filters, make sure that the handle is visible on the outside.
• Close the sliding suction panel.
OPERATING YOUR RANGEHOOD
By pulling out the sliding panel it is possible to automatically activate all the hood functions.
By simply closing the sliding panel all the functions are switched off.
SWITCH FUNCTIONS
LLight Switches the lighting system on and off
MMotor Switches the extractor motor on and off
1. Low speed, used for a continuous and silent air change in the presence of light
cooking vapour
2. Medium speed, suitable for most operating conditions, thanks to an optimum
relation between hood performance and noise.
3. Maximum speed, suitable when the highest cooking vapour emission has to be
eliminated for longer periods.
L
M

15Chapter 3 Last but not least
last but not least
CHAPTER 3
This section contains the warnings, precautions and
legal notices to make sure everything runs smoothly.

16Chapter 3 Last but not least
ELECTRIC SHOCK HAZARD
Never carry out an repairs yourself, always get an authorized technician to do any repairs or
maintenance on your rangehood. If any electrical components become damaged or there is exposed
wiring, there is a risk of electrical shock.
Ensure whenever the rangehood is in operation and you come into contact with it, that appropriate
footwear is worn.
HAZARDS
The following is a comprehensive list of all hazards and risks this product possesses.
Risk of fire:
• Any combustible items left in or near the rangehood during operation
Risk of electric shock:
• The insulation and coating of rangehood accessories may cause electric shock if they come into
contact with electrical components.
Risk of death or serious injury to human health:
• The cables and wiring harnesses at the rear of the rangehood must not be tampered with or come
into contact with the hot appliance.
• If the appliance is not operating correctly, do not continue to operate it.
Discuss your problem with our customer service team.

17
GLOSSARY
Abrasive - a course and harsh substance capable of polishing or cleaning a surface by rubbing or
grinding.
Buzzer - a device that makes a loud noise and is used to signal something.
Cabinetry - a collection of cupboards with drawers or shelves.
Circuit breaker - and automatic device for stopping the flow of current in an electrical circuit for
safety reasons.
Control display - an electrical component which depicts various function on a screen, usually LED.
Insulation - protecting or shielding an object from excessive heat or moisture.
Licensed professional - a person who has had the proper training and prerequisite to complete a
certain job.
Manufacturer - the person or organisation which is the original producer of a product.
Metal scraper - a single edged tool used to scrape a surface clean.
Packaging - the materials used to wrap or protect goods.
Trouble shooting - finding the causes of common problems.
User experience - the overall experience of a person using a product, in terms of how easy or
pleasing it is to use.
Warranty - a written guarantee promising to repair or replace a product under certain circumstances
within a certain time.
Glossary

18
PR Kitchen & Washroom Systems
83 Bangholme Road
Dandenong South
VIC 3175
Australia
Phone [phone]
Fax [phone]
[email protected]
www.franke.com.au
PR Kitchen & Washroom Systems NZ Ltd
P.O Box 53171, Auckland Airport
Auckland 2150
New Zealand
Phone [phone]
Fax [phone]
[email protected]
www.franke.co.nz
