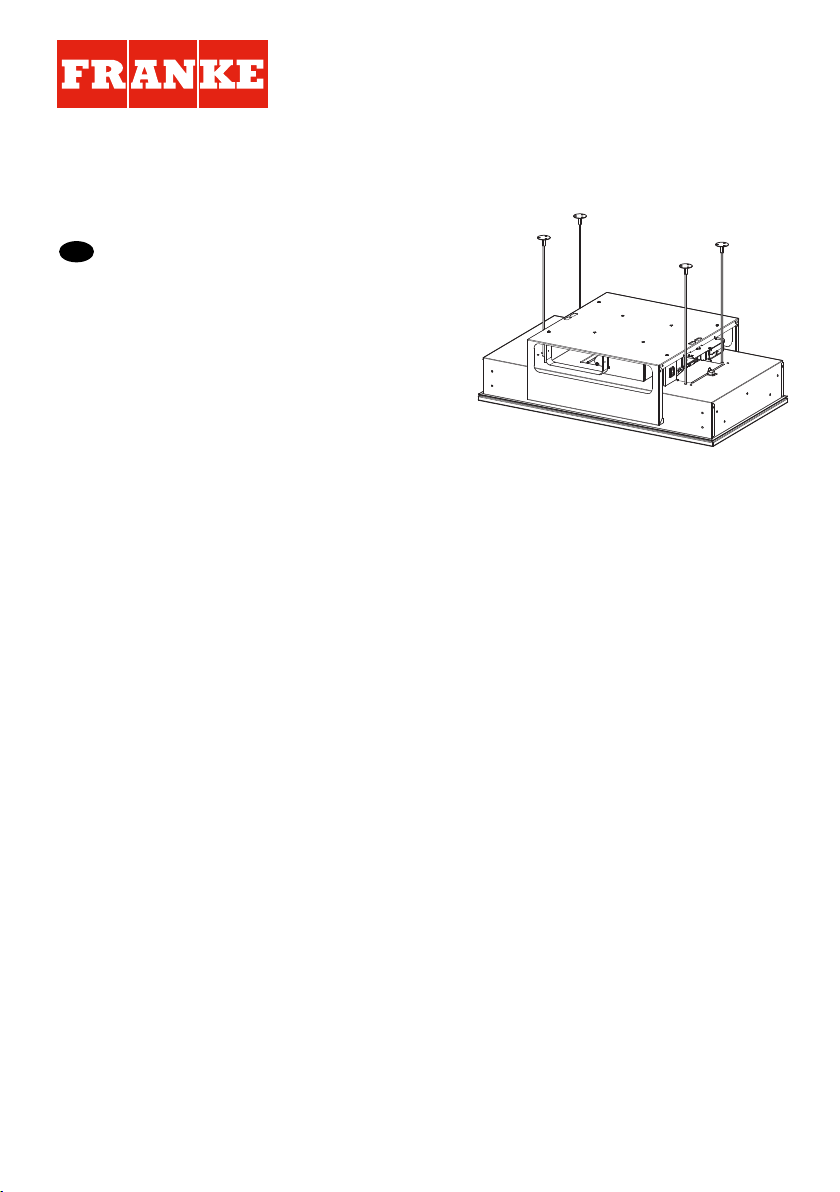

USER MANUAL
FCMA 90 C WHG A
FCMA 90 C XS A

EN
1. SAFETY INFORMATION
For your own safety and to
ensure proper operation of
the appliance, please read
this manual carefully be-
fore installation and oper-
ation. Keep these instruc-
tions together with the ap-
pliance, even if it is sold or
transferred to third parties.
It is important that users
know all the appliance's
operating and safety char-
acteristics.
The cables must be con-
nected by a trained techni-
cian.
• The manufacturer shall not be
considered responsible for
any injury or damage caused
by improper installation or
use.
• The minimum safety distance
between the hob and the suc-
tion hood is 650 mm (some
models may be fitted at a
lower height; please see the
paragraph relating to working
dimensions and installation).
• If the instructions for installa-
tion of the gas hob specify a
distance greater than the one
indicated, this must be taken
into account.
• Check that the mains power
supply corresponds to the
one indicated on the data
plate affixed inside the hood.
• The cut-out devices must be
installed in the fixed system
according to wiring system
regulations.
• For Class I appliances, check
that the domestic power sup-
ply is adequately earthed.
• Connect the hood to the flue
using a pipe with a minimum
diameter of 120 mm. The
fumes must travel the
shortest distance possible.
• All the air venting regulations
must be complied with.
• Do not connect the ducting
hood to flues that also carry
combustion fumes (e.g. boil-
ers, chimneys, etc.).
• If the hood is used in combina-
tion with non electric appli-
ances (e.g. gas appliances),
a sufficient level of ventilation
must be guaranteed in the
room to prevent any exhaust
backflow. If the kitchen hood
is used in combination with
appliances that are not elec-
trically powered, the negative
pressure in the room must not
exceed 0.04 mbar to avoid
any risk of the fumes being
sucked back into the room by
the hood.
• The air must not be extracted
through a flue that is also used
as an exhaust flue for fumes
from gas or other fuel
powered combustion
devices.
• If it is damaged, the power
cable must be replaced by the
manufacturer or by a service
technician.
• Connect the plug to a socket
that complies with current
regulations and is in an ac-
cessible position.
9

• As regards the technical and
safety measures to be taken
for exhausting of fumes, it is
important that the regulations
set by local authorities be
complied with scrupulously.
CAUTION: remove the
protective films before in-
stalling the hood.
• Only use screws and hard-
ware of a sort suitable for the
hood.
CAUTION: failure to install
the screws or fixing
devices as described in
these instructions may
mean there is a risk of elec-
tric shocks.
• Do not look directly at the light
through optical devices (bin-
oculars, magnifying
glasses…).
• Do not flambé food under the
hood: you might cause a fire.
• This appliance may be used
by children over the age of 8
years and by persons with
limited psycho-physical and
sensory abilities or with insuf-
ficient experience and know-
ledge, provided they are care-
fully supervised and instruc-
ted on how to use the appli-
ance safely and on the
dangers that it involves. Make
sure that children are not al-
lowed to play with the appli-
ance. Cleaning and mainten-
ance to be performed by the
user must not be carried out
by children, unless they are
under supervision.
• Supervise children, to make
sure they do not play with the
appliance.
• The appliance must not be
used by persons (including
children) with limited psycho-
physical or sensory capacit-
ies or with insufficient experi-
ence and knowledge, unless
they are carefully supervised
and instructed.
Accessible parts may be-
come extremely hot during
the use of cooking appli-
ances
• Clean and/or replace the fil-
ters after the period of time in-
dicated (danger of fire). See
the paragraph on Mainten-
ance and cleaning.
• The room must be adequately
ventilated when the hood is
used simultaneously with ap-
pliances that use gas or other
fuels (not applicable to appli-
ances that only discharge air
into the room).
• The symbol on the product
or on its packaging indicates
that the product must not be
disposed of with the normal
domestic waste. The product
must be disposed of at a spe-
cialist re-cycling centre for
electrical and electronic com-
ponents. By making sure that
this product is disposed of
properly, you will help prevent
possible negative con-
sequences for the environ-
ment and for health that might
result from its improper dis-
posal. For more detailed in-
10

formation on how to re-cycle
this product, please contact
your local municipal offices,
local waste disposal service
or the shop in which the
product was purchased.
Declaration of Conformity
The manufacturer declares that
this device with wireless radio
functionality complies with dir-
ective 2014/53/EU.
The complete text of the EU de-
claration of conformity is avail-
able at the following link by
searching for the product code:
“https://www.franke.com”
This code can be found on the
label located inside the product.
Fre-
quency
bands
Maximum transmit-
ted power
2.4 GHz 100 mW max.
2. USE
• The suction hood has been designed
exclusively for domestic use, to elim-
inate kitchen odours.
• Never use the hood for purposes
other than those for which it was de-
signed.
• Never leave high flames under the
hood when it is in operation.
• Adjust the intensity of the flame so
that it is directed onto the bottom of
the cooking pan, making sure it does
not wrap around the sides.
• Deep-fryers must be kept under con-
stant supervision when in use: the oil
may catch fire if it gets too hot.

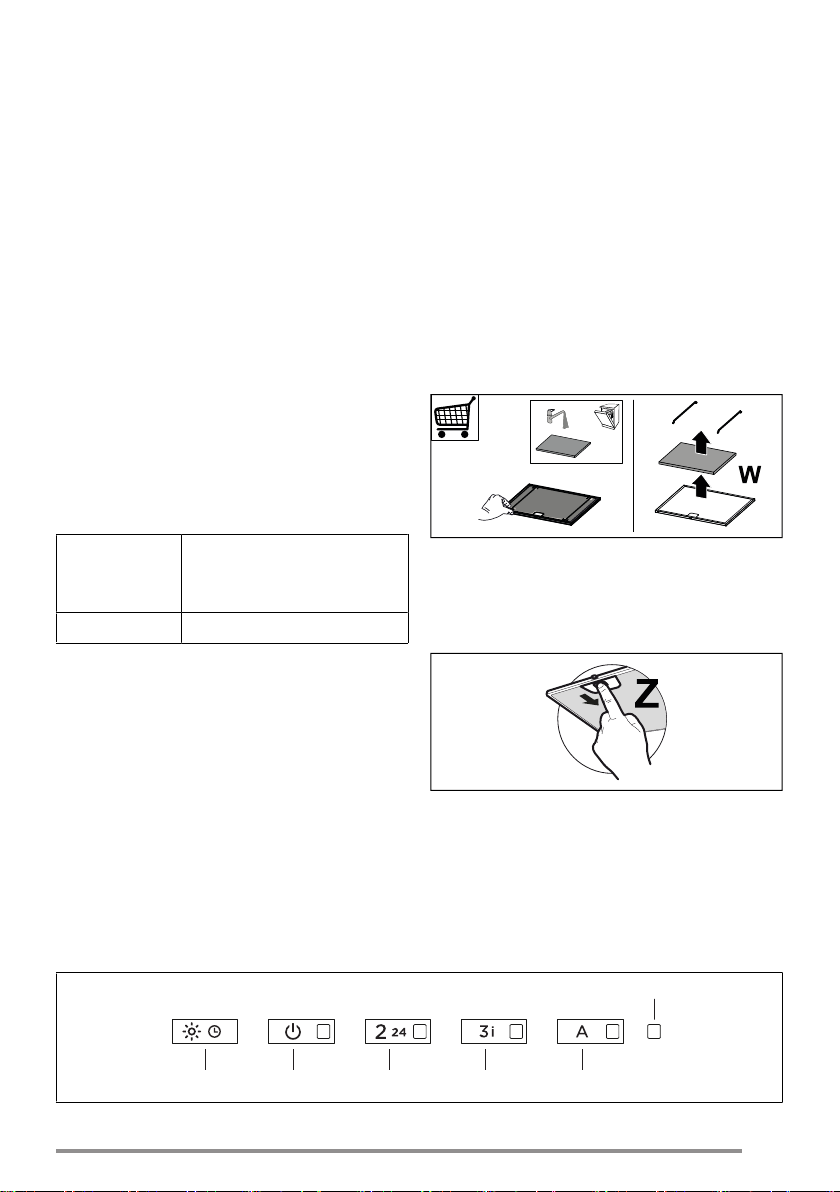

3. CLEANING AND
MAINTENANCE
• The sponge-like part of the filter can
be washed in the dishwasher at least
once every 4 months, or more fre-
quently if use is particularly intense.
Operation is guaranteed for up to a
maximum of 5 washes, after which it
must be replaced (W).
• The grease filters must be cleaned
every 2 months of operation, or more
frequently in the case of particularly
intensive use. They can be washed in
a dishwasher (Z).
• Clean the hood using a damp cloth
and neutral liquid detergent.
• Avoid using alcohol or silicone-based
products to clean the inside and out-
side of the cooker hood.
4. CONTROLS
L T1 T2 T3 T4
S1
11

Key Key press Function LED
LShort The lights alternate between high intensity, medium intensity (if
present), off. -
Long press with
light or motor on Delay Function
Activates/Deactivates the Delay function (automatic shutdown of the
Motor and of the lighting delayed by 30').
Cannot be activated with Intensive or 24h function.
Flashing
Long press with
all loads off (mo-
tor and lights)
Connected mode coupling
Before starting the procedure follow the specific instructions of the
manuals of the devices to be coupled.
The procedure for pairing of the hood with compatible devices (re-
mote control) starts. Only one remote control can be paired. See the
manual of the devices for details of the operations that need to be
performed on these.
The coupling procedure takes 2 minutes. If no devices are recognised
within this time check that you have previously activated the proced-
ure for the devices to be coupled. The maximum number of linkable
devices may have been reached.
LEDs T1 and T2 flash-
ing:
coupling in progress.
Upon successful com-
pletion of the procedure
LEDs T1 and T2 will
light up for 2 seconds.
T1 Short Turns the motor on/off at the first speed. Fixed
Long press with
light on Activates/Deactivates the Activated Carbon Filters alarm.All LEDs flash twice:
alarm activated.
All LEDs lit for 1
second:
alarm deactivated.
Long press with
all loads off (mo-
tor and lights)
Connected mode decoupling
The procedure for deleting all compatible devices previously associ-
ated with the coupling function begins.
Upon successful com-
pletion of the procedure
LEDs T1 and T2 flash 5
times.
T2 Short Turns the motor on/off at the second speed. Fixed
Long press with
light or motor on 24h Function
Activates/Deactivates the motor in the 24h Air Exchange mode, a
speed that allows suction of 10 minutes every hour, for a 24-hour
cycle.
Cannot be activated if the Intensive or Delay modes are active.
Flashing
Long press with
all loads off (mo-
tor and lights)
Wi-Fi connection
Activates/Deactivates the Wi-Fi Connection function.
Note: the Wi-Fi function is automatically activated when the user re-
quests the Wi-Fi configuration procedure.
LED S1 Flashing:
connection to domestic
network in progress.
LED S1 Fixed: Wi-Fi
connection activated.
T3 Short Turns the motor on at the third speed. Fixed
Long press with
light or motor on Turns the motor on at the Intensive 1 speed.
This speed is timed for 10 minutes. At the end of this time, the system
automatically returns to the previously selected speed. If activated
with the motor off, once the time has passed it switches to OFF mode.
Flashing
By pressing the key again with a long press (with light or motor on),
the motor starts at the Intensive 2 speed.
This speed is timed for 6 minutes. At the end of this time, the system
automatically returns to the previously selected speed. If activated
with the motor off, once the time has passed it switches to OFF mode.
Long press with
all loads off (mo-
tor and lights)
The Filter saturation alarm is reset. All LEDs flash 3 times.
Signals the saturated Metal Grease Filters alarm and the need to
wash them. The alarm is activated after 100 hours of effective hood
operation.
LEDs T2 and T3 lit with
the hood off.
Signals the Activated Charcoal Odour Filter saturation alarm. The
alarm is activated after 200 hours of effective hood operation. LEDs T2 and T3 flash-
ing with the hood off.
12

T4 Long press with
all loads off (mo-
tor and lights)
Wi-Fi configuration
Activates/Deactivates the Wi-Fi set-up procedure.
Before starting the procedure, use the Franke@Home App to re-
gister with the Franke IOT system. Then follow the instructions to add
a new device and register the domestic router.
If the procedure is not successfully completed within a few minutes,
deactivate it by long pressing the key again, then make another at-
tempt. The hood will nonetheless abandon the procedure if it is not
successfully completed within 15 minutes.
LEDs T3 and T4 flash-
ing: configuration pro-
cedure in progress.
Upon successful com-
pletion of the procedure
LEDs T3 and T4 will
light up for 2 seconds.
Recommended device coupling sequence:
1 - Connected Mode (See remote control manual)
2 - Connected Mode Coupling (See hood manual)
3 - Remote Control-Hood Coupling (See remote control manual)

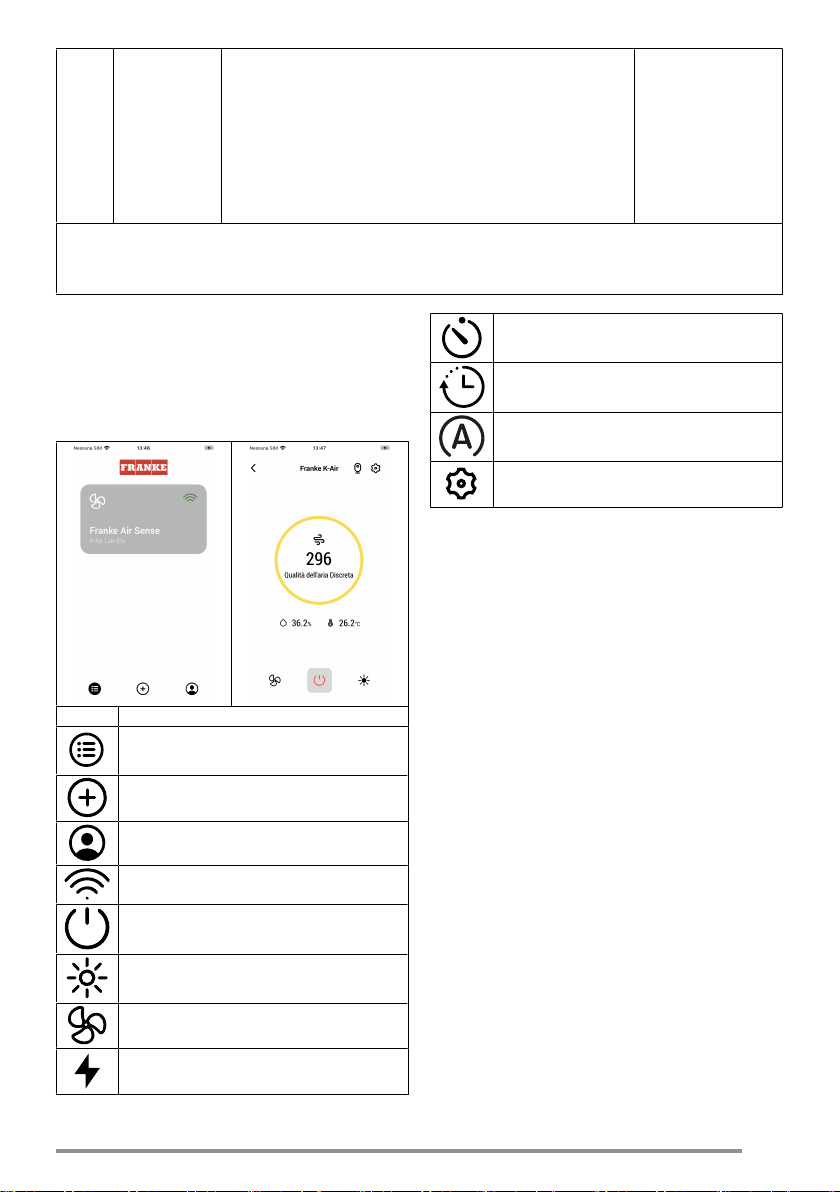

5. FRANKE@HOME APP
The Franke@Home App is available for
iOS and Android smartphones and al-
lows remote access to all hood func-
tions.
Icon Function
Home page
Add new device
User profile management
Connected to the Wi-Fi Franke network
Hood on/off
Lighting system management
Motor speed management
Intensive Function
24h Function
Delay Function
Automatic Function
App settings management
6. REMOTE CONTROL
• This appliance may be controlled us-
ing a remote control.
•WARNING: the first procedure to
carry out on the remote control is to
activate the Connected Mode (refer
to the device manual for more de-
tails).
ATTENTION: some functions can only
be activated via the remote control
(refer to the device manual for further
details).
7. LIGHTING
• Please contact the Service Depart-
ment to change it ("Please contact
the service department to purchase
it").
• Lamps in risk group 1 under IEC/
EN62471 at a distance of 20cm and
in exempt from risk group under IEC/
EN62471 at a distance of 30cm.
8. LIGHTING
• Please contact the Service Depart-
ment to change it ("Please contact
13

the service department to purchase
it").
14

Franke UK Ltd.
MIOC, Suite 1, Styal Road
Manchester
M22 5WB
www.franke.com/gb/en/hs.html
