USER MANUAL
FCMY 120 C WHG A AH

EN
1. SAFETY INFORMATION
For your own safety and
correct operation of the
appliance, please read
this manual carefully be-
fore installation and oper-
ation. Always keep these
instructions together with
the appliance, even if it is
sold or transferred to third
parties. It is important that
users are familiar with all
the appliance's operating
and safety characteristics.
Connection of the wiring
must be performed by a
specialist technician.
• The manufacturer cannot be
held responsible for any dam-
age resulting from incorrect or
inadequate installation.
• The minimum safety distance
between the hob and the ex-
tractor hood is 650 mm (some
models can be installed at a
lower height; see the para-
graph on working dimensions
and installation).
• If the gas hob installation in-
structions specify a distance
greater than that indicated
above, this must be taken into
account.
• Check that the mains voltage
corresponds to that indicated
on the rating plate fixed to the
inside of the hood.
• The cut-out devices must be
installed in the fixed system
according to the wiring sys-
tem regulations.
• For Class I appliances, check
that the domestic power sup-
ply has a suitable earthing
connection.
• Connect the hood to the flue
with a pipe with a minimum
diameter of 120 mm. The
fume path must be as short as
possible.
• All the regulations regarding
air discharge must be com-
plied with.
• Do not connect the extractor
hood to exhaust ducts carry-
ing combustion fumes (boil-
ers, fireplaces, etc.).
• If the extractor is used in con-
junction with non-electrical
appliances (e.g. gas burning
appliances), a sufficient de-
gree of ventilation must be
guaranteed in the room in or-
der to prevent the backflow of
exhaust gas. When the
cooker hood is used in con-
junction with appliances sup-
plied with energy other than
electricity, the negative pres-
sure in the room must not ex-
ceed 0.04 mbar to prevent
fumes being drawn back into
the room by the cooker hood.
• The air must not be dis-
charged into a flue that is used
for exhausting fumes from ap-
pliances burning gas or other
fuels.
• The power cord, if damaged,
must be replaced by the man-
ufacturer or by a service tech-
nician.
• Connect the plug to a socket
complying with current regu-
10

lations, located in an access-
ible place.
• Regarding the technical and
safety measures to be adop-
ted for fume discharging it is
important to strictly follow the
regulations provided by the
local authorities.
WARNING: Before in-
stalling the hood, remove
the protective films.
• Use only screws and small
parts of a type suitable for the
hood.
WARNING: failure to in-
stall the screws or fixing
devices in accordance
with these instructions
may result in electrical
hazards.
• Do not look directly at the light
through optical devices (bin-
oculars, magnifying
glasses…).
• Do not flambé under the
hood; risk of fire.
• This appliance can be used
by children aged from 8 years
and above and by persons
with reduced physical, sens-
ory or mental capabilities or
lacking in experience and
knowledge if they have been
given supervision or instruc-
tion concerning use of the ap-
pliance in a safe way and if
they understand the hazards
involved. Children must not
play with the appliance.
Cleaning and maintenance
by the user must not be per-
formed by children, unless
they are supervised.
• Children should be super-
vised to ensure that they do
not play with the appliance.
• The appliance is not to be
used by persons (including
children) with reduced phys-
ical, sensory or mental cap-
abilities, or lacking in experi-
ence and knowledge, unless
they have been given super-
vision or instruction.
The accessible parts may
become hot when used
with cooking appliances.
• Clean and/or replace the fil-
ters after the time specified
(fire hazard). See the Main-
tenance and cleaning para-
graph.
• There must be adequate
ventilation of the room when
the hood is used at the same
time as appliances burning
gas or other fuels (not applic-
able to appliances that only
discharge the air back into the
room).
• The symbol on the product
or on its packaging indicates
that the product cannot be
disposed of as normal house-
hold waste. The product must
be taken to an appropriate
collection point for the recyc-
ling of electrical and elec-
tronic components. By ensur-
ing that this product is dis-
posed of correctly, you will
help prevent possible negat-
ive consequences for the en-
vironment and health that
might result from its improper
disposal. For more detailed
11

information about recycling
this product, please contact
your local town hall, the waste
disposal service or the store
where the product was pur-
chased.
WARNING: Before per-
forming any cleaning and/
or maintenance operation,
disconnect the plug from
the power socket.
Information on the purifier
WARNING: Switch off the
device to avoid contact
with the UV-C lamps.
• If the device is damaged, it
must not be used.
• The device contains UV-C
emitting lamps.
• The UV-C lamps must be re-
placed after 6000 hours of op-
eration. To replace them,
contact Technical Assist-
ance. The lamps must not be
replaced by the user.
• Using the device in a manner
not described in this docu-
ment, or damage to the case,
may result in the escape of
UV-C radiation.
• UV-C radiations can cause
damage to eyes and skin,
even in small doses.
• Do not insert small objects
through the ventilation open-
ings. They may damage the
fans and compromise the op-
eration of the device.
• Read the maintenance in-
structions before opening the
device.
• The device must be discon-
nected from the power supply
before replacing the UV-C
emitter.
Declaration of Conformity
The manufacturer declares that
this device with wireless radio
functionality complies with dir-
ective 2014/53/EU.
The complete text of the EU de-
claration of conformity is avail-
able at the following link by
searching for the product code:
“https://www.franke.com”
This code can be found on the
label located inside the product.
Fre-
quency
bands
Maximum transmit-
ted power
2.4 GHz 100 mW max.
2. USE
• The suction hood has been designed
exclusively for domestic use, to elim-
inate kitchen odours.
• Never use the hood for purposes
other than those for which it was de-
signed.
• Never leave high flames under the
hood when it is in operation.
• Adjust the intensity of the flame so
that it is directed onto the bottom of
the cooking pan, making sure it does
not wrap around the sides.
• Deep-fryers must be kept under con-
stant supervision when in use: the oil
may catch fire if it gets too hot.
3. CLEANING AND
MAINTENANCE

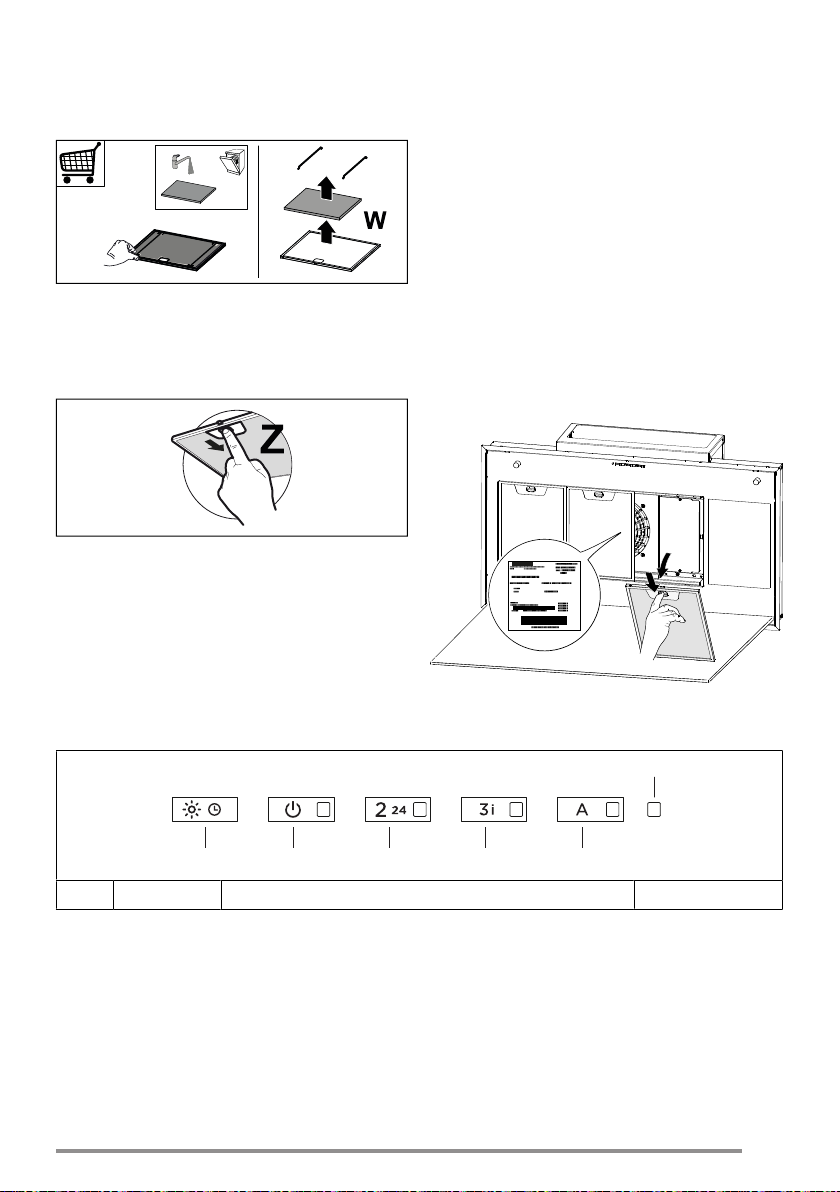

• The sponge-like part of the filter can
be washed in the dishwasher at least
once every 4 months, or more fre-
12

quently if use is particularly intense.
Operation is guaranteed for up to a
maximum of 5 washes, after which it
must be replaced (W).
• The grease filters must be cleaned
every 2 months of operation, or more
frequently in the case of particularly
intensive use. They can be washed in
a dishwasher (Z).
• Clean the hood using a damp cloth
and neutral liquid detergent.
• For external and internal cleaning of
the hood avoid alcoholic or silicone
products.
If the product or one of its parts is made
of stainless steel, use specific non-ab-
rasive products for cleaning and follow
the lines of the satin finish during clean-
ing.
4. PURIFIER CLEANING
AND MAINTENANCE
• Do not use abrasive products or ma-
terials.
• Avoid products containing alcohol or
silicone.
For more thorough cleaning, contact
the technical assistance.
The technical information is situated in
the rating plate on the internal side of
the appliance.
5. CONTROLS
L T1 T2 T3 T4
S1
Key Key press Function LED
13

LShort The lights alternate between high intensity, medium intensity (if
present), off. -
Long with motor
on Delay Function
Activates/Deactivates the Delay function (automatic shutdown of the
Motor and of the lighting delayed by 30').
Cannot be activated with Intensive or 24h function.
Flashing
Long press with
all loads off (mo-
tor and lights)
Connected mode coupling
Before starting the procedure follow the specific instructions of the
manuals of the devices to be coupled.
The procedure for pairing of the hood with compatible devices (re-
mote control) starts. Only one remote control can be paired. See the
manual of the devices for details of the operations that need to be
performed on these.
The coupling procedure takes 2 minutes. If no devices are recognised
within this time check that you have previously activated the proced-
ure for the devices to be coupled. The maximum number of linkable
devices may have been reached.
LEDs T1 and T2 flash-
ing:
coupling in progress.
Upon successful com-
pletion of the procedure
LEDs T1 and T2 will
light up for 2 seconds.
T1 Short Turns the motor on/off at the first speed. Fixed
Long press with
light on Activates/Deactivates the Activated Carbon Filters alarm.All LEDs flash twice:
alarm activated.
All LEDs lit for 1
second:
alarm deactivated.
Long press with
all loads off (mo-
tor and lights)
Connected mode decoupling
The procedure for deleting all compatible devices previously associ-
ated with the coupling function begins.
Upon successful com-
pletion of the procedure
LEDs T1 and T2 flash 5
times.
T2 Short Turns the motor on/off at the second speed. Fixed
Long press with
light or motor on 24h Function
Activates/Deactivates the motor in the 24h Air Exchange mode, a
speed that allows suction of 10 minutes every hour, for a 24-hour
cycle.
Cannot be activated if the Intensive or Delay modes are active.
Flashing
Long press with
all loads off (mo-
tor and lights)
Wi-Fi connection
Activates/Deactivates the Wi-Fi Connection function.
Note: the Wi-Fi function is automatically activated when the user re-
quests the Wi-Fi configuration procedure.
LED S1 Flashing:
connection to domestic
network in progress.
LED S1 Fixed: Wi-Fi
connection activated.
T3 Short Turns the motor on at the third speed. Fixed
Long press with
light or motor on Turns the motor on at the Intensive 1 speed.
This speed is timed for 10 minutes. At the end of this time, the system
automatically returns to the previously selected speed. If activated
with the motor off, once the time has passed it switches to OFF mode.
Flashing
By pressing the key again with a long press (with light or motor on),
the motor starts at the Intensive 2 speed.
This speed is timed for 6 minutes. At the end of this time, the system
automatically returns to the previously selected speed. If activated
with the motor off, once the time has passed it switches to OFF mode.
Long press with
all loads off (mo-
tor and lights)
The Filter saturation alarm and the expended lamp alarm are re-
set. All LEDs flash 3 times.
Signals the saturated Metal Grease Filters alarm and the need to
wash them. The alarm is activated after 100 hours of effective hood
operation.
LEDs T2 and T3 lit with
the hood off.
Signals the Activated Charcoal Odour Filter saturation alarm. The
alarm is activated after 200 hours of effective hood operation. LEDs T2 and T3 flash-
ing with the hood off.
14

T4 Short Manual mode
Turns on/off the UV-C lamp and ventilation at minimum speed. After
24 hours, the lamp and ventilation are turned off automatically.
LEDs T1 and T4 on.
Long press with
all loads off (mo-
tor and lights)
Wi-Fi configuration
Activates/Deactivates the Wi-Fi set-up procedure.
Before starting the procedure, use the Franke@Home App to re-
gister with the Franke IOT system. Then follow the instructions to add
a new device and register the domestic router.
If the procedure is not successfully completed within a few minutes,
deactivate it by long pressing the key again, then make another at-
tempt. The hood will nonetheless abandon the procedure if it is not
successfully completed within 15 minutes.
LEDs T3 and T4 flash-
ing: configuration pro-
cedure in progress.
Upon successful com-
pletion of the procedure
LEDs T3 and T4 will
light up for 2 seconds.
Remote-control activated
functions Day mode
Turns on/off the UV-C lamp and ventilation at maximum speed.
After 2 hours, the lamp and ventilation are turned off automatically.
LEDs T2 and T4 on.
Night mode
Turns on/off the UV-C lamp and ventilation at minimum speed.
The automatic operating mode starts with a 24-hour work cycle in
which the device remains on for 5 hours and off for the next 19 hours.
After 7 days the night mode will be turned off automatically.
LEDs T3 and T4 on.
Air Hub signals Lamp recommended replacement signal
After 6000h of operation, the signal is given to indicate replacement of
the lamp. To replace them, contact Technical Assistance.
LEDs T2 and T3 and
T4 flashing
Lamp broken signal
If the UV lamp burns out or does not turn on, the signal is given until
the lamp operation is restored. To replace them, contact Technical
Assistance.
LEDs T1 and T2 and
T3 and T4 flashing
Recommended device coupling sequence:
1 - Connected Mode (See remote control manual)
2 - Connected Mode Coupling (See hood manual)
3 - Remote Control-Hood Coupling (See remote control manual)
Warning:
If the following functions are present: Manual mode + Day mode are active and
the hood is turned on, the purifier turns off.
If the hood is on at any speed and the purifier is turned on, the hood turns off.
If the Night Mode function is active and the hood motor is turned on, the purifier turns
off. If the hood is turned off, the purifier turns on with the previously set function.
6. FRANKE@HOME APP
The Franke@Home App is available for
iOS and Android smartphones and al-
lows remote access to all hood func-
tions.

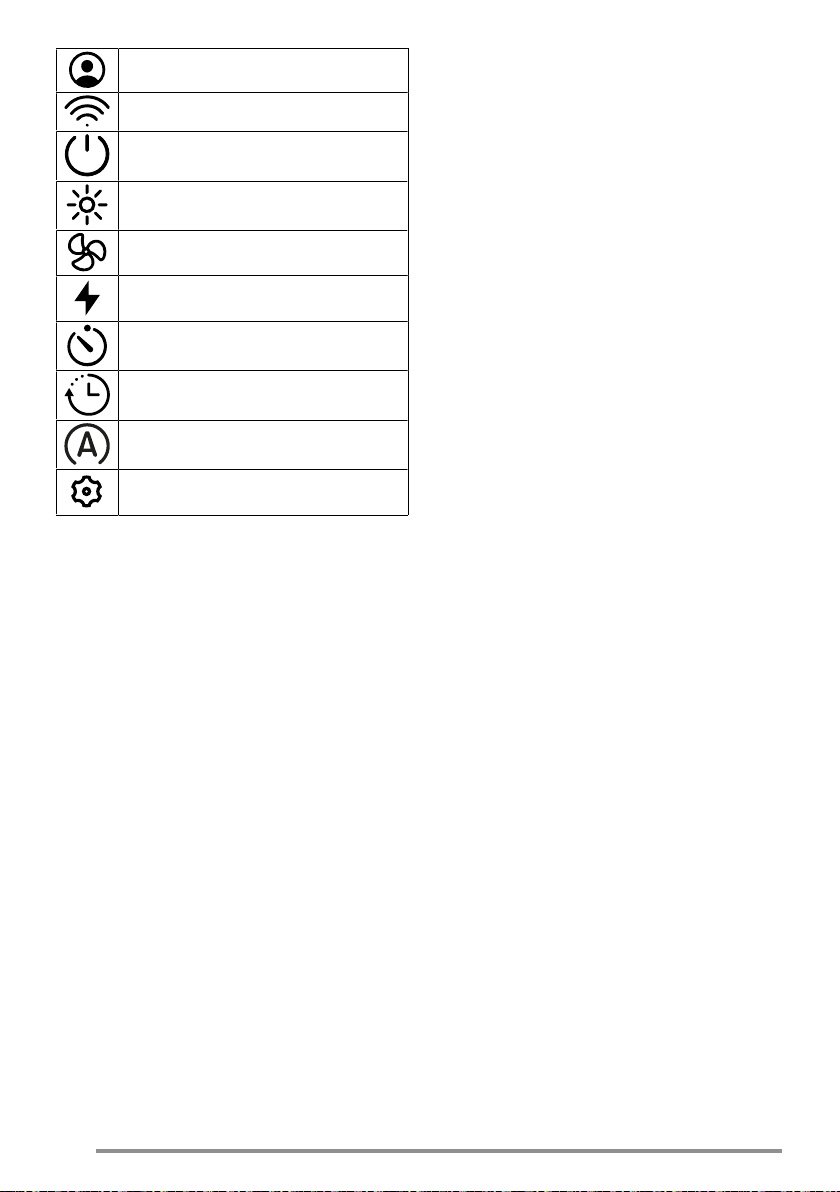

Icon Function
Home page
Add new device
15

User profile management
Connected to the Wi-Fi Franke network
Hood on/off
Lighting system management
Motor speed management
Intensive Function
24h Function
Delay Function
Automatic Function
App settings management
7. REMOTE CONTROL
• This appliance may be controlled us-
ing a remote control.
•WARNING: the first procedure to
carry out on the remote control is to
activate the Connected Mode (refer
to the device manual for more de-
tails).
ATTENTION: some functions can only
be activated via the remote control
(refer to the device manual for further
details).
8. LIGHTING
• Please contact the Service Depart-
ment to change it ("Please contact
the service department to purchase
it").
16

Franke UK Ltd.
MIOC, Suite 1, Styal Road
Manchester
M22 5WB
www.franke.com/gb/en/hs.html
