Franke FTU 3807 I XS 77H Operation manual

Instructions for use and installation
Cooker Hood
Istruzioni per l’uso e l’installazione
Cappa
Mode d’emploi et installation
Hotte de Cuisine
Bedienungsanleitung und Installation
Dunstabzugshaube
Kullanım ve montaj talimatları
Davlumbaz
Uživatelská Pøíruèka
Odsavačpar
FTU 3807 I XS 77H V2
GB
IT
FR
DE
TR
CZ

2
2
INDEX
RECOMMENDATIONS AND SUGGESTIONS ..................................................................................................................... 3
CHARACTERISTICS ............................................................................................................................................................. 6
INSTALLATION...................................................................................................................................................................... 8
USE ...................................................................................................................................................................................... 12
MAINTENANCE................................................................................................................................................................... 13
INDICE
CONSIGLI E SUGGERIMENTI............................................................................................................................................ 15
CARATTERISTICHE............................................................................................................................................................ 18
INSTALLAZIONE ................................................................................................................................................................. 20
USO...................................................................................................................................................................................... 24
MANUTENZIONE ................................................................................................................................................................ 25
SOMMAIRE
CONSEILS ET SUGGESTIONS.......................................................................................................................................... 27
CARACTERISTIQUES......................................................................................................................................................... 30
INSTALLATION.................................................................................................................................................................... 32
UTILISATION ....................................................................................................................................................................... 36
ENTRETIEN......................................................................................................................................................................... 37
INHALTSVERZEICHNIS
EMPFEHLUNGEN UND HINWEISE ................................................................................................................................... 39
CHARAKTERISTIKEN......................................................................................................................................................... 42
MONTAGE ........................................................................................................................................................................... 44
BEDIENUNG........................................................................................................................................................................ 48
WARTUNG........................................................................................................................................................................... 49
IÇERIKLER
TAVSIYELER VE ÖNERILER.............................................................................................................................................. 51
ÖZELLIKLER........................................................................................................................................................................ 54
MONTAJ............................................................................................................................................................................... 56
KULLANIM ........................................................................................................................................................................... 60
BAKIM .................................................................................................................................................................................. 61
OBSAH
RADY A DOPORUČENÍ ...................................................................................................................................................... 63
HLAVNÍ PARAMETRY......................................................................................................................................................... 66
INSTALACE ......................................................................................................................................................................... 68
POUŽITÍ ............................................................................................................................................................................... 72
ÚDRŽBA............................................................................................................................................................................... 73
EN
IT
FR
DE
TR
CZ

EN 3
3
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance. Accord-
ingly, you may find descriptions of individual features that do not apply to
your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from in-
correct or improper installation.
• The minimum safety distance between the cooker top
and the extractor hood is 650 mm (some models can
be installed at a lower height, please refer to the
paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that in-
dicated on the rating plate fixed to the inside of the
hood.
• For Class I appliances, check that the domestic
power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diame-
ter 120 mm. The route of the flue must be as short as possible.

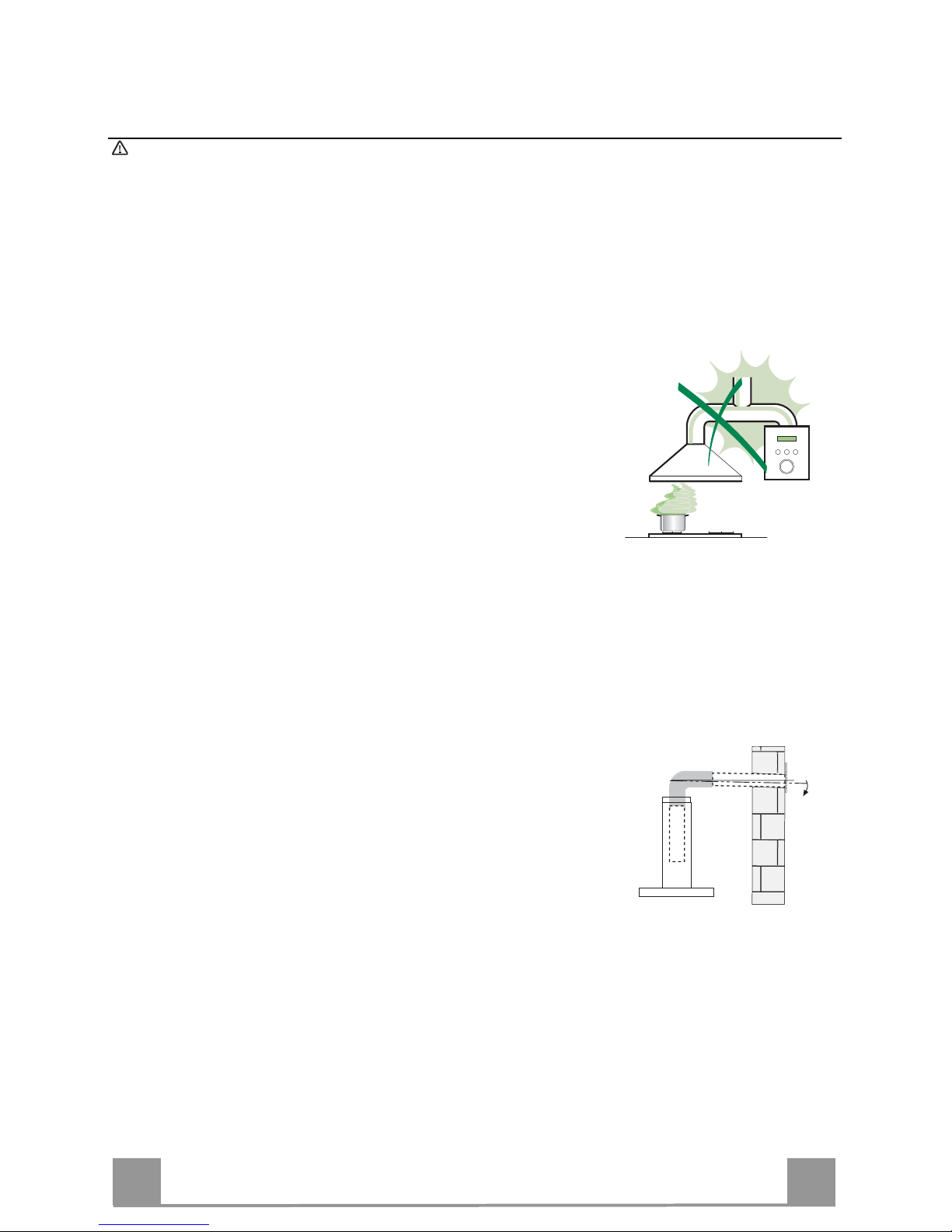

• Do not connect the extractor hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-
electrical appliances (e.g. gas burning appli-
ances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent the
backflow of exhaust gas. The kitchen must have
an opening communicating directly with the open
air in order to guarantee the entry of clean air.
When the cooker hood is used in conjunction with
appliances supplied with energy other than electric, the negative pressure in
the room must not exceed 0,04 mbar to prevent fumes being drawn back
into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manu-
facturer or by the technical service department, in order to prevent any risks.
2°

EN 4
4
• If the instructions for installation for the gas hob specify a greater distance
specified above, this has to be taken into account. Regulations concerning
the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact
gap of at least 3 mm.
USE
• The extractor hood has been designed exclusively for domestic use to elimi-
nate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored
during use: overheated oil can burst into flames.

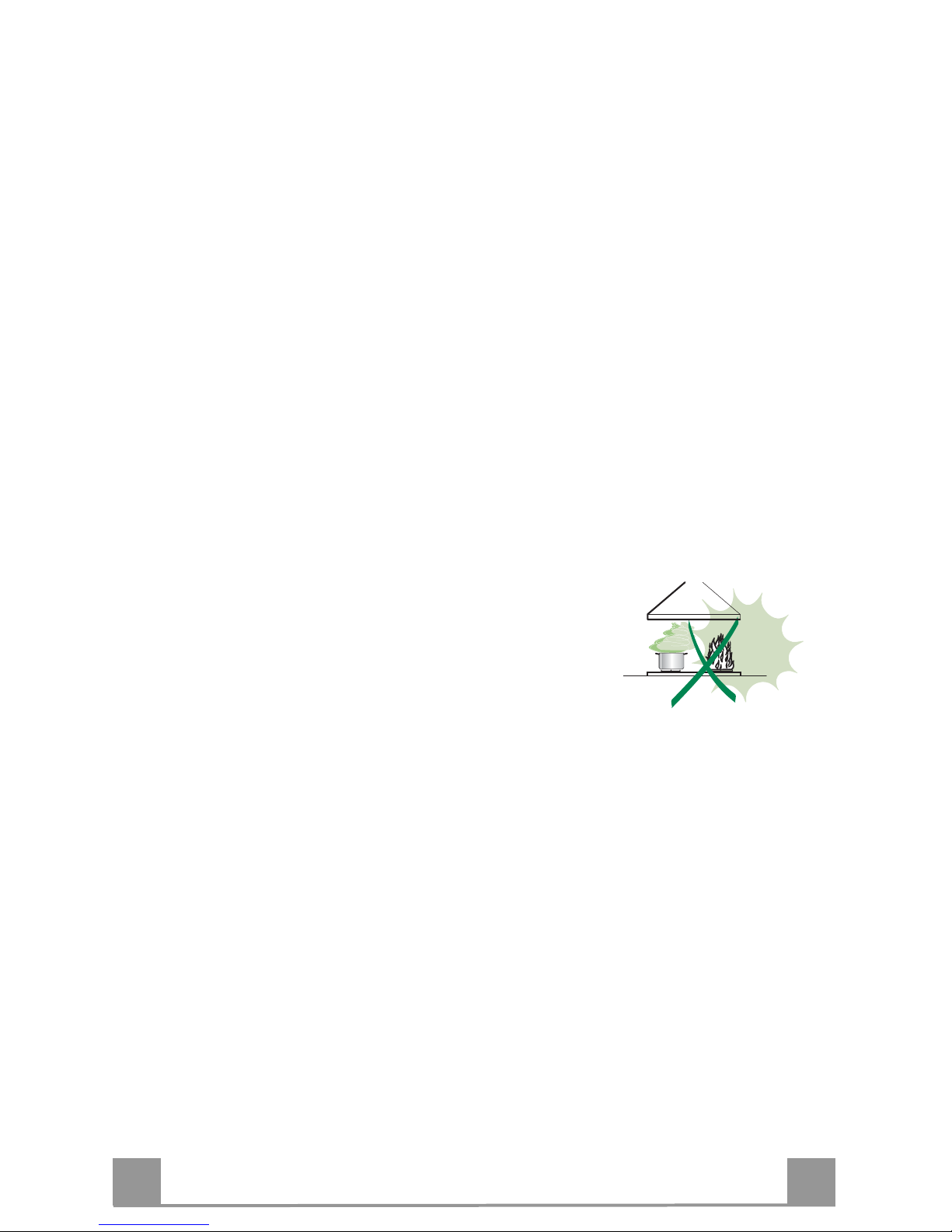

• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user main-
tenance shall not be made by children without supervision.

EN 5
5
• “ CAUTION: Accessible parts may become hot when used with cooking ap-
pliances.”.
MAINTENANCE
•Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more
frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated,
and must be replaced approximately every 4 months of operation, or more
frequently for particularly heavy usage.
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equip-
ment. By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service or the
shop where you purchased the product.

EN 6
6

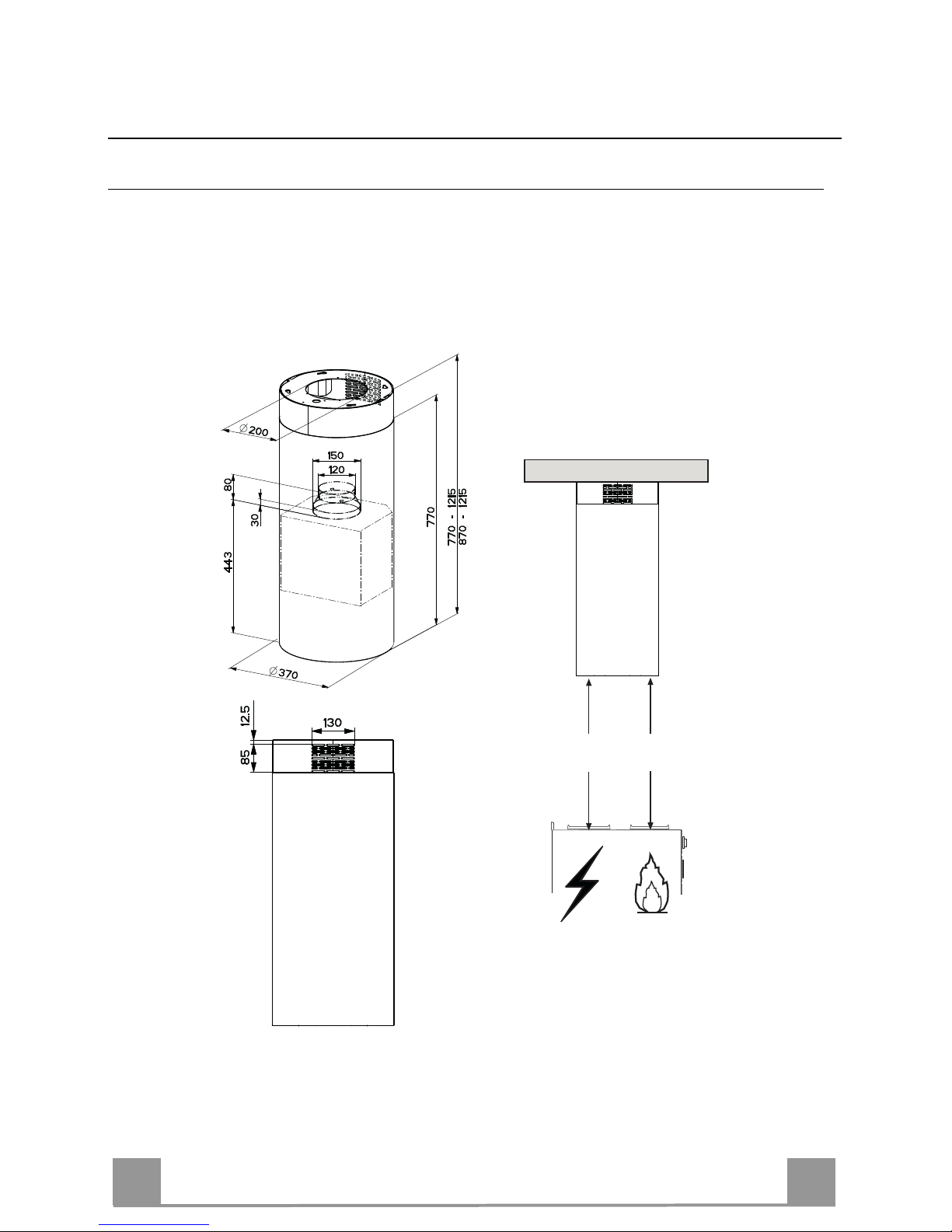

CHARACTERISTICS
Dimensions
* **
Min.
550mm
Min.
550mm
* Dimensions of the hood in ducting version.
** Dimensions of the hood in recycling version.

EN 7
7
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower,
Filters
21 Chimney Upper
7.1 1 Telescopic frame complete with extractor, consisting of:
7.1a 1 Upper frame
7.1b 1 Lower frame
91 Reducer Flange ø 150-120 mm
10 1 Flange ø 120 mm
15 1 Recirculation Air Outlet Connection
25 Pipe clamps (not included)
Ref. Q.ty Installation Components
11 4 Wall Plugs ø 10
12c 4 Screws 2,9 x 6,5
12f 4 Screws M6 x 10
12g 4 Screws M6 x 80
12h 4 Screws 5,2 x 70
21 1 Drilling template
22 4 6.4 mm int. dia washers
23 4 M6 nuts
Q.ty Documentation
1 Instruction Manual
2
11
12h
22
23
21
7.1
1
12g
9
25
7.1a
7.1b
15
12f
10
12c

EN 8
8
INSTALLATION
Drilling the Ceiling/shelf and fixing the frame
DRILLING THE CEILING/SHELF

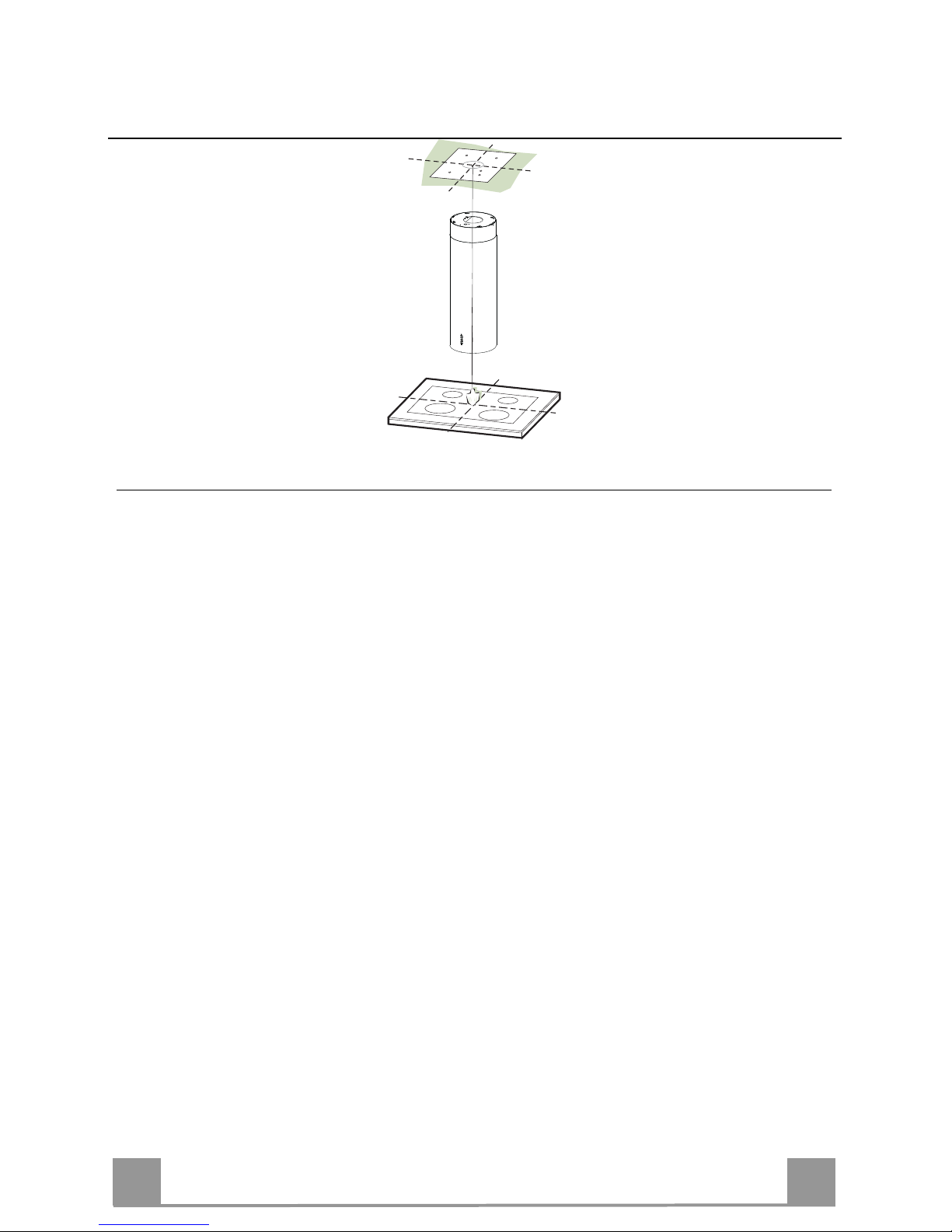

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the
template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.
• Drill the holes at the points marked:
• For concrete ceilings, drill for plugs appropriate to the screw size.
• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert
the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill ø 7 mm.
• For the power supply cable feed, drill ø 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-
haust duct connection.
• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:
• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,
supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

EN 9
9
PREPARATION OF THE FRAME FOR THE HOOD IN RE-
CYCLING VERSION
In case the hood is used in recycling version it is neces-
sary to prepare the frame with all the necessary connec-
tion pieces. In order to make the installation easier it is
necessary to lengthen the frame:

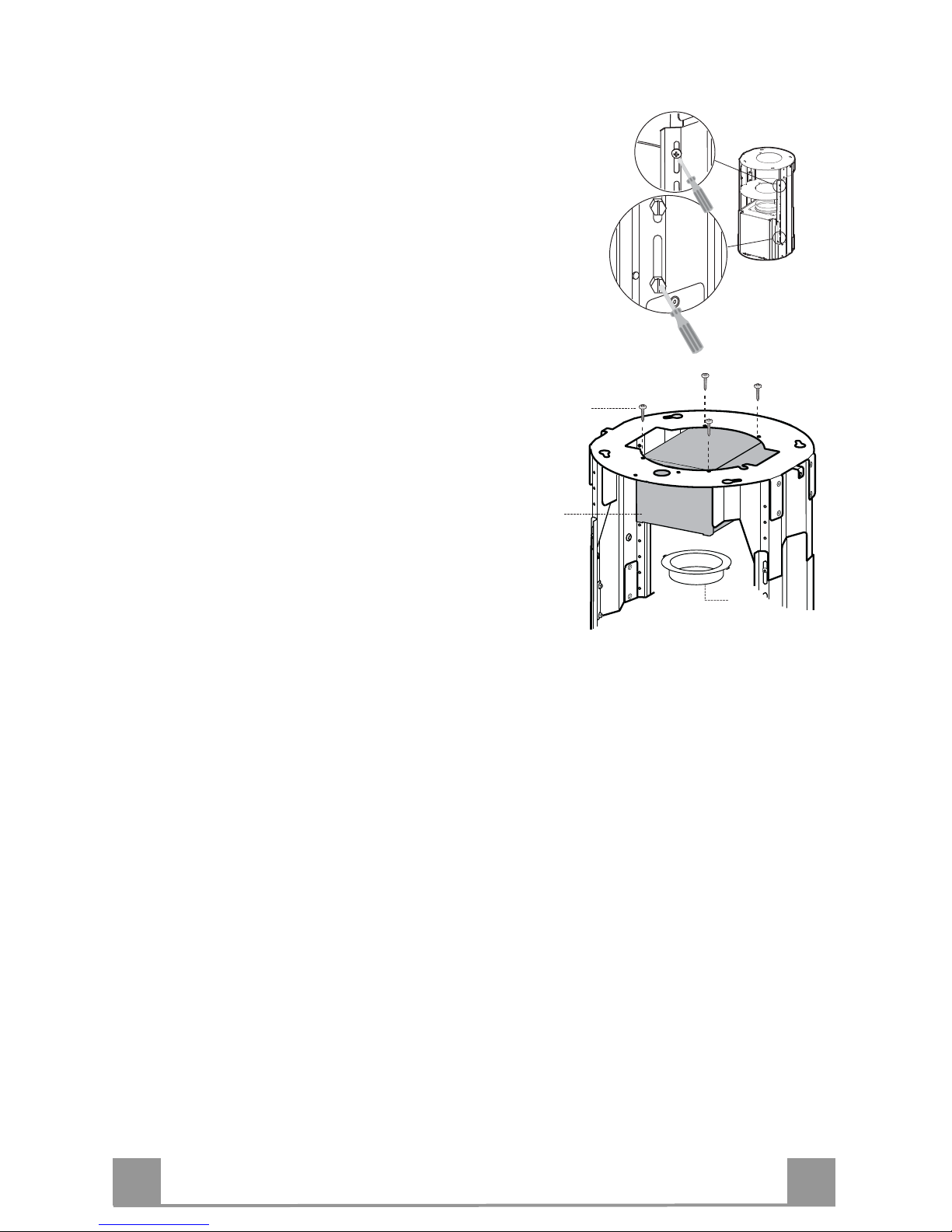

• Unscrew the two screws 2.1 fixing the upper chim-
ney to the frame and pull the chimney out.
• Unscrew the four safety screws placed at the top in
the frame separation area. (A).
• Unscrew the eight metric screws connecting the two
columns, placed on both sides of the frame (B).
Installation of components in recycling version:
• Fix the recycling air outlet piece 15 to the upper part
of the frame using four 12c screws supplied with the
hood.
• Fix the flange (ø120) 10 to the lower part of the recy-
cling air outlet 15.
• Put the reducer flange 9on the hood body outlet.
• At this point, join the flanges with a pipe. In order to
calculate the height of the pipe it is necessary to es-
timate the height of the hood (mm) and subtract 615
mm. (H pipe = H hood-615).
• Lengthen the frame so that the pipe can be inserted.
Place the pipe between the two flanges and block it.
Make sure that the height of the frame is correct con-
sidering the height of the cooker hood (H frame = H
hood – 184). Adjust the height of the frame and
tighten again the earlier removed screws. Tighten
again the safety screws in order to give more stability
to the structure.
• Fix the pipe with the pipe clamps 25 supplied with
the hood.
A
B
15
12c
10
WARNING: For the Recirculation version only: remove the sticker from
the slots on the upper chimney!

EN 1
10
FIXING THE FRAME
• Lift the frame up, making sure that the index over the frame
plate is turned forwards.
• Fit the frame slots onto the two screws inserted in the ceiling as
above, and turn until reaching the centre of the adjustment slot.
• Tighten the two screws and fasten the other two screws pro-
vided; before locking the screws completely, it is possible to
adjust the frame by turning it, making sure that the screws do
not come out of their housing in the adjustment slot.
• The Frame must be securely fastened so as to support both the
weight of the Hood and the stress caused by occasional axial
pressure against the fitted Appliance. After fixing, make sure
that the base is stable even when the Frame is subjected to lat-
eral stress.
• If the Ceiling is not strong enough in the area where the hood
is to be fixed, the Installer must strengthen the area using suit-
able plates and counterplates anchored to resistant structures.
2
112
Ducted version air exhaust system Connection
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120 mm,
the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9on the hood body outlet.
• Fix the pipe using the pipe clamps 25 (not provided).
• Remove any activated charcoal filters.
9
ø 120ø 150

EN 1
11
Installing of the chimney and fixing of the hood
When the hood is installed in recycling version the chimney has
to be positioned with the slots upwards. When the hood is in-
stalled in ducting version it has to be positioned in the opposite
way.
• Place the chimney on the frame and fix it to the upper part of it
with the earlier removed screws. When installing the hood in
recycling version make sure that the slots correspond to the air
outlet of the recycling air outlet piece 15.
• Open the lighting unit by slightly pulling the notch. Remove
the unit from the hood by sliding the fixing pivot.
• Remove the filter pushing it towards the back side of the hood
unit and simultaneously pulling downwards.
• Remove possible charcoal filters.
• In order to fix the hood body to the frame insert the 4 screws
12f in their seats. It is necessary to leave at least 4-5 mm gap
between the screw heads and the frame plate.
• Hook the hood canopy to the frame and turn it to the left until
it reaches the stop, then lock the screws immediately to prevent
the hood canopy from falling out accidentally.
2
1
Electrical connection
• Connect to hood to the mains supply through a double pole
switch with at least 3 mm clearance between the contacts.
• Make sure that the connecting piece of the cable is correctly
put in the socket.
• Connect the Cmd-connectors of the controls.
• Connect the Lux-connectors of the lighting system.
• In the recycling hood put the charcoal filter in its place.
• Put the metal grease filter and the confort panel into their pro-
per seats.
Cmd
Lux

EN 1
12
USE
Control panel
Button Function Display
ATurns the suction motor on and off at speed one. Displays the set speed
BDecreases the working speed. Displays the set speed
CIncreases the working speed. Displays the set speed
DActivate intensive speed from any other speed,
including motor off. This speed is set to operate
for 6 minutes, after which the system returns to the
speed that was set before. Suitable to deal with
maximum levels of cooking fumes.
Displays HI and the time remaining once very second.
Press and hold the button for approximately 5
seconds, with all the loads turned off (Motor and
Lights), to turn the Activated Charcoal Filter
alarm On and Off.
FC+Punto (2 flashes)–Alarm On.
FC+Punto (1 flash)–Alarm Off.
E24H function
Turns the suction motor on at speed one and
effects one 10 minute extraction every hour.
Displays 24 and the spot at the bottom right flashes once
every second, while the motor is running.
It is disabled by pressing the button.
When the filters alarm is triggered, the alarm can
be reset by pressing and holding this button for
approximately 3 seconds.
These indications are only visible when the motor
is turned off.
FF flashes three times.
When the procedure terminates, the indication shown
previously turns off:
FG indicates the need to wash the metal grease filters.
The alarm is triggered after the Hood has been in
operation for 100 working hours.
FC indicates the need to change the activated charcoal
filters, and also to wash the metal grease filters. The alarm
is triggered after the Hood has been in operation for 200
working hours.
FDelay function
Activate automatic switch-off with a 30’ delay.
Suitable to complete elimination of residual
odours. Can be activated from any position, and is
disabled by pressing the button or turning the
motor off.
Displays the operating speed and the spot at the bottom
right flashes once a second.
Press and hold the button for approximately 5
seconds, with all the loads turned off (Motor and
Lights), to turn the Remote Control On and Off.
IR+Punto (2 flashes)–Alarm On.
IR+Punto (1 flash)–Alarm Off.
GTurns the lighting system on and off at maximum
intensity.
HTurns the Courtesy Lighting on and off.
A
BC
D
EF
GH

EN 1
13
MAINTENANCE
REMOTE CONTROL (OPTIONAL)
The appliance can be controlled using a remote control powered
by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-
AAA type (not included).
• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.
Cleaning the Comfort Panels
• Pull the Comfort Panel to open it.
• Disconnect the panel from the hood canopy by sliding the fix-
ing pin lever.
• The comfort panel must never be washed in a dishwasher.
• Clean the outside by using a damp cloth and neutral liquid de-
tergent.
• Clean the inside as well by using a damp cloth and neutral de-
tergent; do not use wet cloths or sponges, or jets of water; do
not use abrasive substances.
• When the above operation has been completed, hook the panel
back to the hood canopy and close it by turning the knob in the
opposite direction.
Metal grease filters
They can be washed in the dishwasher, and need to be cleaned
whenever the FG sign appears on the display or at least once
every 2 months use, or more frequently if use is particularly
intensive.
Resetting the alarm signal
• Turn the Lights and the Suction motor off, then disable the 24h
function, if enabled.
• Press button E(see the paragraph on Use).
Cleaning the Filters
• Open the lighting unit by pulling on the nocth.
• Remove the Filters one at a time, pushing them towards the
back of the unit and at the same time pulling downward.
• Wash the Filters without bending them, and leave them to dry
completely before replacing. (If the surface of the filter
changes colour as time goes by, this will have absolutely no
effect on the efficiency of the filter itself.)
• Replace, taking care to ensure that the handle faces forwards.
• Replace the lighting unit.

EN 1
14
Activated Charcoal Filter (Recirculation Version)
It cannot be washed or regenerated, and must be changed when the FC symbol on the display
appears, or at least once every 4 months. The Alarm signal, if it has been activated, only
appears when the Suction motor is turned on.
Activating the alarm signal
• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on
installation or at a later date.
• Turn the Lights and the Suction Motor off.
• Press D and hold for approximately 5 Seconds:
• The message FC+Puntino flashes twice, A.C. Filter saturation alarm ACTIVATED
• The message FC+Puntino flashes once, A.C. Filter saturation alarm DEACTIVATED
CHANGING THE ACTIVATED CHARCOAL FILTER
Resetting the alarm signal
• Turn the Lights and the Suction motor off, then disable the 24h
function, if enabled.
• Press button E(see paragraph on Use).
Changing the Filter
• Open the lighting unit by pulling on the notch provided.
• Remove the Metal grease filters.
• Remove the saturated Activated charcoal filter, using the hooks
provided.
• Fit the new Filter, hooking it into place.
• Replace the Metal grease filters.
• Close the lighting unit again.
Lighting unit
Warning: This appliance is fitted with a white LED lamp classed
as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001
standards; maximum optical power emitted @439nm: 7µW. Do
not look directly at the light through optical devices (binoculars,
magnifying glasses…).
• For replacement contact technical support. ("To purchase con-
tact technical support")

IT 1
15
CONSIGLI E SUGGERIMENTI
Le Istruzioni per l’uso si riferiscono ai diversi modelli di questo apparecchio.
Pertanto, si potrebbero trovare descrizioni di singole caratteristiche che non
appartengono al proprio apparecchio specifico.
INSTALLAZIONE
• Il fabbricante non potrà ritenersi responsabile per eventuali danni risultanti
da un’installazione o utilizzazione impropria.
• La distanza minima di sicurezza tra il piano cottura
e la cappa aspirante è di 650 mm (alcuni modelli
possono essere installati a un’altezza inferiore;
vedere il paragrafo relativo alle dimensioni di lavoro
e all'installazione).
• Controllare che la tensione di rete corrisponda a
quella indicata sulla targa dati applicata all’interno
della cappa.
• Per gli apparecchi di Classe I, controllare che la rete di alimentazione
domestica disponga di un adeguato collegamento a massa.
Collegare l'aspiratore al condotto dei fumi mediante un tubo con diametro
minimo di 120 mm. Il percorso dei fumi deve essere il più corto possibile.
• Non collegare la cappa aspirante ai condotti fumari che trasportano fumi di
combustione (per es. caldaie, camini ecc.).
• Se l’aspiratore è utilizzato in combinazione con
apparecchi non elettrici (per es. apparecchi a gas),
deve essere garantito un sufficiente grado di
aerazione nel locale per impedire il ritorno di flusso
dei gas di scarico. La cucina deve avere un'apertura
comunicante direttamente con l'esterno per garantire
l'afflusso di aria pulita. Quando la cappa per cucina è utilizzata in
combinazione con apparecchi non alimentati dalla corrente elettrica, la
pressione negativa nel locale non deve superare 0,04 mbar per evitare che i
fumi vengano riaspirati nel locale dalla cappa.
• In caso di danneggiamento del cavo di alimentazione, occorre farlo sostituire
dal produttore o dal reparto di assistenza tecnica per evitare qualsiasi
rischio.
2°

IT 1
16
• Se le istruzioni di installazione del piano cottura a gas specificano una
distanza maggiore di quella sopra indicata, è necessario tenerne conto.
Devono essere rispettate tutte le normative riguardanti lo scarico dell'aria.
• Usare solo viti e minuteria di tipo idoneo per la cappa.
Avvertenza: la mancata installazione delle viti o dei dispositivi di fissaggio in
conformità alle presenti istruzioni può comportare rischi di scosse elettriche.
• Collegare la cappa all'alimentazione di rete mediante un interruttore bipolare
con distanza tra i contatti di almeno 3 mm.
USO
• La cappa aspirante è progettata esclusivamente per l’uso domestico allo
scopo di eliminare gli odori dalla cucina.
• Non usare mai la cappa per scopi diversi da quelli per cui è stata progettata.
• Non lasciare mai fiamme alte sotto la cappa quando è in funzione.
• Regolare l'intensità della fiamma in modo da dirigerla esclusivamente verso
il fondo del recipiente di cottura, assicurandosi che non ne avvolga i lati.
• Le friggitrici devono essere costantemente
controllate durante l’uso: l’olio surriscaldato
potrebbe incendiarsi.
• Non cuocere al flambé sotto la cappa: si potrebbe
sviluppare un incendio.
• Questo apparecchio può essere utilizzato da
bambini di età non inferiore a 8 anni e da persone con ridotte capacità psico-
fisico-sensoriali o con esperienza e conoscenze insufficienti, purché
attentamente sorvegliati e istruiti su come utilizzare in modo sicuro
l'apparecchio e sui pericoli che ciò comporta. Assicurarsi che i bambini non
giochino con l'apparecchio. Pulizia e manutenzione da parte dell'utente non
devono essere effettuate da bambini, a meno che non siano sorvegliati.

IT 1
17
• “ ATTENZIONE: le parti accessibili possono diventare molto calde durante
l’uso degli apparecchi di cottura ”.
MANUTENZIONE
•Spegnere o scollegare l’apparecchio dalla rete di alimentazione prima di
qualunque operazione di pulizia o manutenzione.
• Pulire e/o sostituire i filtri dopo il periodo di tempo specificato (pericolo di
incendio).
• I filtri antigrasso devono essere puliti ogni 2 mesi di funzionamento o più
frequentemente in caso di utilizzo molto intenso e possono essere lavati in
lavastoviglie.
• Il filtro al carbone attivo non è lavabile né è rigenerabile e deve essere
sostituito ogni 4 mesi di funzionamento circa o più frequentemente in caso di
utilizzo molto intenso.
• Pulire la cappa utilizzando un panno umido e un detergente liquido neutro.
Il simbolo sul prodotto o sulla sua confezione indica che il prodotto non
può essere smaltito come un normale rifiuto domestico. Il prodotto da smaltire
deve essere conferito presso un apposito centro di raccolta per il riciclaggio
dei componenti elettrici ed elettronici. Assicurandosi che questo prodotto sia
smaltito correttamente, si contribuirà a prevenire potenziali conseguenze
negative per l’ambiente e per la salute che potrebbero altrimenti derivare dal
suo smaltimento inadeguato. Per informazioni più dettagliate sul riciclaggio di
questo prodotto, contattare il Comune, il servizio locale di smaltimento rifiuti
oppure il negozio dove è stato acquistato il prodotto.

IT 1
18
CARATTERISTICHE
Ingombro
* **
Min.
550mm
Min.
550mm
*Dimensioni per cappa in versione aspirante.
** Dimensioni per cappa in versione filtrante.

IT 1
19
Componenti
Rif. Q.tà Componenti di Prodotto
11 Corpo Cappa completo di: Comandi, Luce, Filtri, Cami-
no Inferiore
21 Camino superiore
7.1 1 Traliccio telescopico completo di Aspiratore,formato da:
7.1a 1 Traliccio superiore
7.1b 1 Traliccio inferiore
91 Flangia di riduzione ø 150-120 mm
10 1 Flangia ø 120 mm
15 1 Raccordo Uscita Aria Filtrante
25 Fascette stringitubo (non incluse)
Rif. Q.tà Componenti di Installazione
11 4 Tasselli ø 10
12c 4 Viti 2,9 x 6,5
12f 4 Viti M6 x 15
12g 4 Viti M6 x 80
12h 4 Viti 5,2 x 70
21 1 Dima di foratura
22 4 Rondelle ø 6,4
23 4 Dadi M6
Q.tà Documentazione
1 Libretto Istruzioni
2
11
12h
22
23
21
7.1
1
12g
9
25
7.1a
7.1b
15
12f
10
12c

IT 2
20
INSTALLAZIONE
Foratura Soffitto/Mensola e Fissaggio Traliccio
FORATURA SOFFITTO/MENSOLA
• Con l’ausilio di un Filo a piombo riportare sul Soffitto/Mensola di supporto il centro del
Piano di Cottura.
• Appoggiare al Soffitto/Mensola la Dima di Foratura 21 in dotazione, facendo coincidere il
suo centro al centro proiettato e allineando gli assi della Dima agli assi del Piano di Cottura.
• Segnare i centri dei Fori della Dima.
• Forare i punti seguenti:
• Soffitto in Calcestruzzo massiccio: secondo Tasselli per Calcestruzzo impiegati.
• Soffitto in Laterizio a camera d’aria, con spessore resistente di 20 mm: ø 10 mm (inserire
subito i Tasselli 11 in dotazione).
• Soffitto in Travatura di Legno: secondo Viti per Legno impiegate.
• Mensola in Legno: ø 7 mm.
• Passaggio del Cavo elettrico di Alimentazione: ø 10 mm.
• Uscita Aria (Versione Aspirante): secondo diametro del collegamento alla Tubazione di
Evacuazione Esterna.
• Avvitare, incrociandole e lasciando 4-5 mm dal soffitto, due viti:
• per Calcestruzzo massiccio, Tasselli per Calcestruzzo, non in dotazione.
• per Laterizio a camera d’aria, con spessore resistente di 20 mm circa, Viti 12h, in dotazio-
ne.
• per Travatura di legno, Viti per legno, non in dotazione.
• per Mensola in Legno, viti 12g con Rondelle 22 e Dadi 23, in dotazione.
