Rangehood
Instruction Manual
FCUH52XSAU
FCUH90XSAU

2
Content
1…………………………………..………………………………Safety instructions
2…………………………………..………………………………Installation
3…………………………………..………………………………Start using your rangehood
4…………………………………..………………………………Troubleshooting
5…………………………………..………………………………Maintenance and cleaning
6…………………………………..………………………………Environment protection

3
SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your rangehood,
please read it carefully before using even if you are familiar with the
product. The manual should be kept in a safe place for future reference.

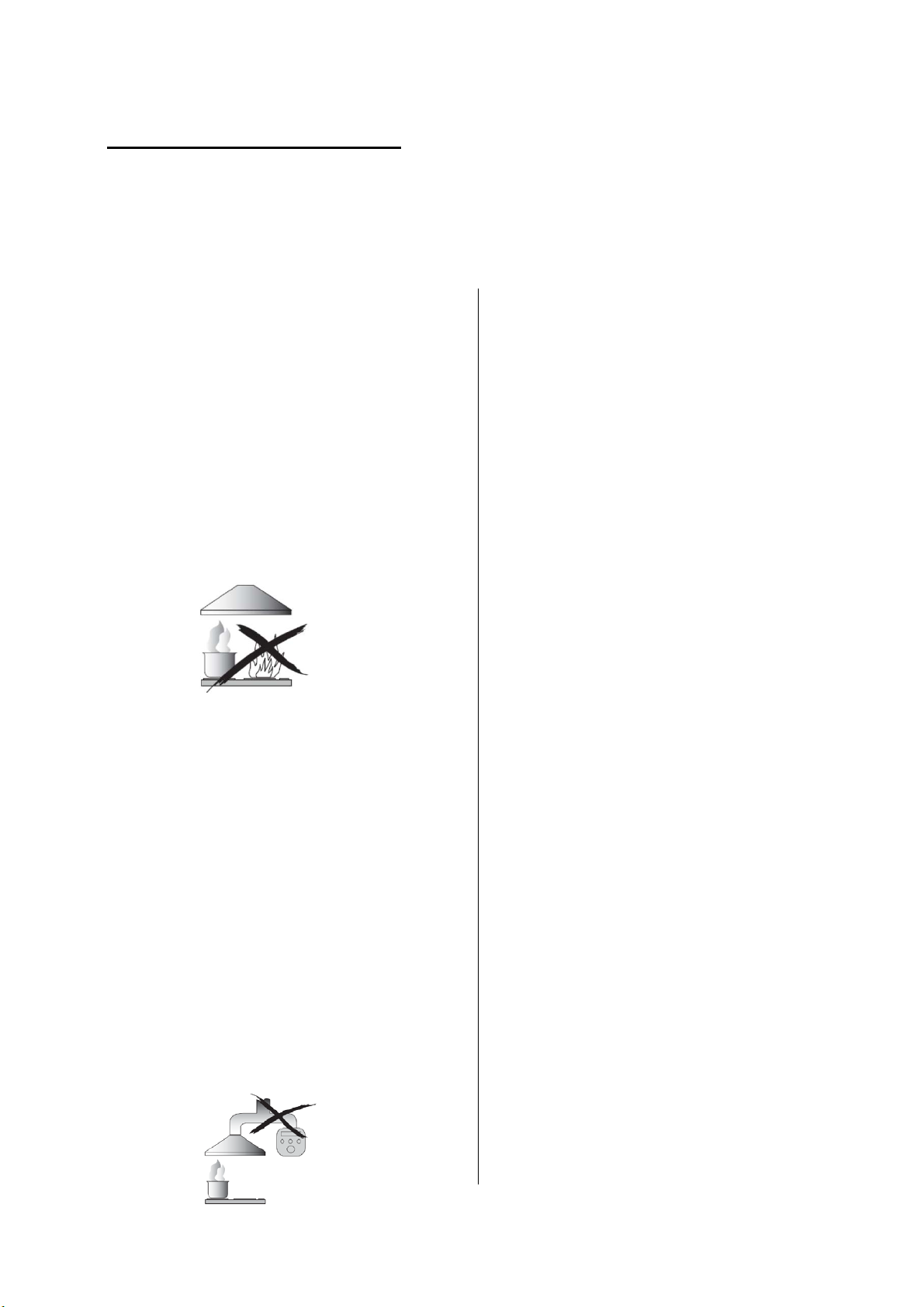

Never to do:
●Do not try to use the rangehood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
rangehood.
●If the rangehood is damaged, do not
attempt to use.
●Do not flambé under the rangehood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the cooktop and the lowest
part of the rangehood. (When the
rangehood is located above a gas
appliance, this distance shall be at least
65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels.
Always to do:
●Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The rangehood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried out
by a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
●Pay attention to the sharp edges
inside the rangehood especially during
installation and cleaning.
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the rangehood.
●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.

4
Always to do:
●Always put lids on pots and pans
when cooking on a gas cooktop.
●When in extraction mode, air in the
room is being removed by the
rangehood. Please make sure that
proper ventilation measures are being
observed. The rangehood removes
odours from room but not steam.
●Rangehood is for domestic use only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.
Always to do:
●Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
●There shall be adequate ventilation of
the room when the rangehood is used
at the same time as appliances burning
gas or other fuels.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the rangehood and appliances
supplied with energy other than
electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5
bar).
●WARNING: Danger of fire: do not store
items on the cooking surfaces.
●Asteam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a fire
blanket.

5
INSTALLATION (VENT OUTSIDE)
MOUNTING OF THE V-FLAP
If the rangehood does not have an assembled V-flap 1, you should mount the half-
parts to its body. The images only show an example of how to mount the V-flap,the
outlet may be various according to different models and configuration.
To mount the V-flap 1 you should:
•mount two half-parts 2 into the body 6
•a pin 3 should be top oriented;
•the axis 4 should be inserted in the holes 5 on body;
•repeat all the operations for the 2nd half-part
INSTALLATION
If you have an outlet to the outside, your rangehood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.

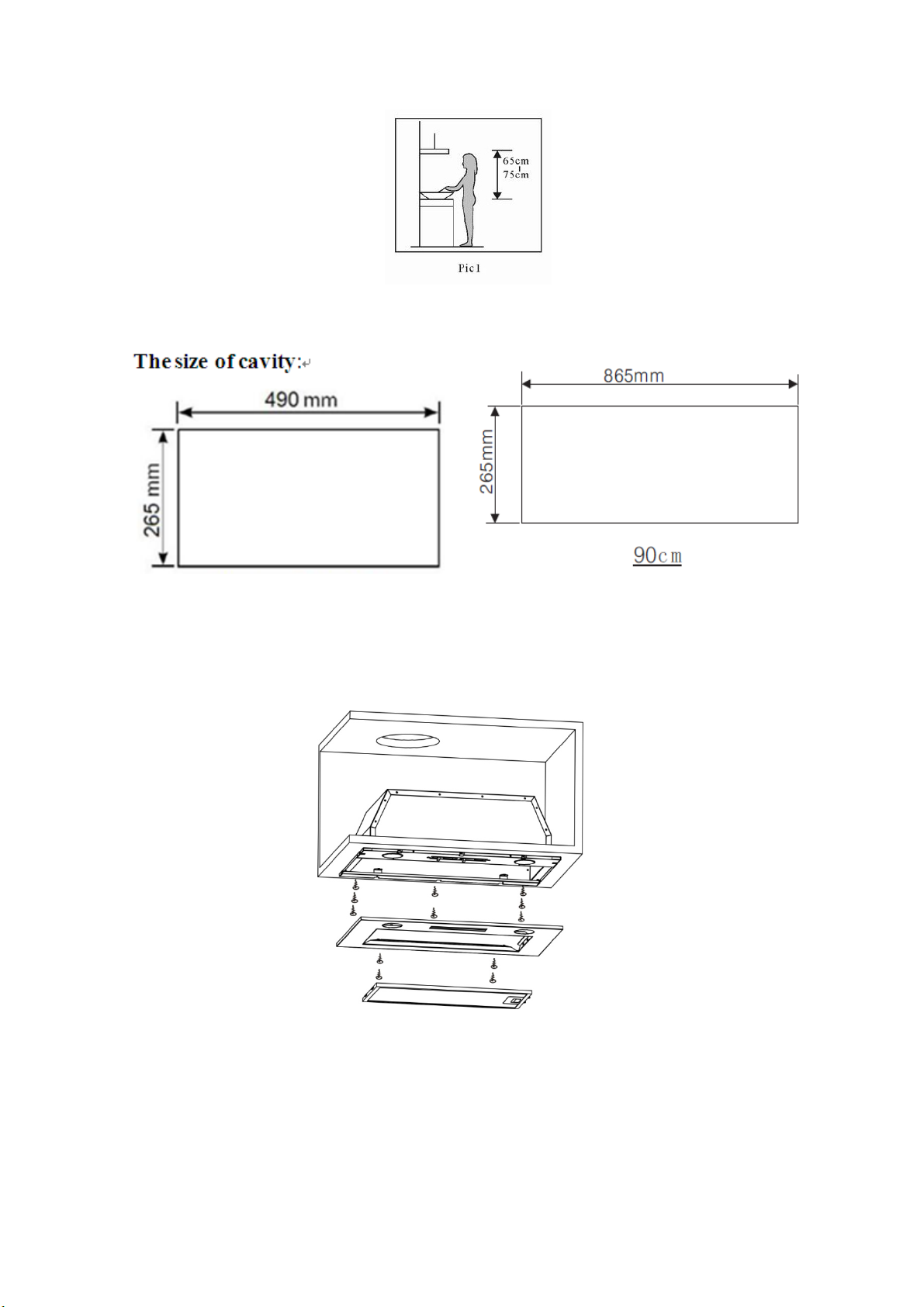

2. The rangehood should be placed at a distance of 65~75cm above the cooking
surface for best effect.

6
3. Cut a hole in the cupboard according to the size in pic below.Make sure the
distance between the edge of the hole and the edge of the cupboard edge is at
least 35mm.
For 52cm For 90cm
4. Remove the aluminum filter and remove the two front panel screws.
5. Use a screwdriver to secure the screws to the cabinet.
6. Replace the front panel with the two screws and replace the filter.
Note:The expansion pipe is not supplied

7
WARNING: For safety reason, please use only the same
size of fixing or mounting screw which are
recommended in this instruction manual.
Failure to install the screws or fixing device in
accordance with these instructions may result
in electrical hazards.
Start Using Your Rangehood
Toggle switch
There are 3 speeds for the motor and on off switch for the lamp.
1.Lamp – Turn on/off light
“O” – to switch off light
“I” – to switch on light
Power – Slide out drawer, power on; slide in drawer, power off.
2 .Speed –select speed to suit cooking conditions
“O” – to switch off motor
Low( I )– light frying/boiling
Medium( II ) – frying/wok cooking/heavy boiling
High ( III ) – grilling, intensive frying and wok cooking
Power – Slide out drawer, power on; slide in drawer, power off.
TROUBLESHOOTING
Fault Possible Cause Solution
Light on, but motor
does not work
Fan switch turned off Select a fan switch position.
Fan switch failed Contact service center.
Motor failed Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Power cord loose or
disconnected Refit cord to power outlet. Switch power outlet on.
Oil leakage One way valve and the outlet
are not tightly sealed Take down the one way valve and seal with sealant.

8
Leakage from the connection of
chimney and cover Take chimney down and seal.
Lights not working Broken/Faulty globes Replace globes as per this
instruction.
Insufficient suction The distance between the
rangehood and the gas top is
too far
Refit the rangehood to the
correct distance.
The rangehood
inclines The fixing screw not tight
enough Tighten the hanging screw and make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws.Please contact the service centre if in any doubt before
undertaking any of the above. Always disconnect the unit from the power source
when opening the unit.
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, the rangehood
should be disconnected from the main power supply. Ensure
that the rangehood is switched off at the wall socket and the
plug removed.
•External surfaces are susceptible to scratches and abrasions, so please follow the
cleaning instructions to ensure the best possible result is achieved without
damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold,especially
when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.)
on the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life
expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid
may be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly criss cross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives,as this will affect the appliance
appearance

9
and potentially remove any printing of artwork on the control panel and
will void manufacture's warranty.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them
for about 3 minute in water with a grease-loosening
detergent then brush it gently with a soft brush. Please
do not apply too much pressure to avoid damaging it.
(Leave to dry naturally out of direct sun light).
Filters should be washed separately to crockery and
kitchen utensils. It is advisable not to use rinse aid.
INSTALLING GREASE MESH FILTERS
• To install filters,follow these four steps.
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

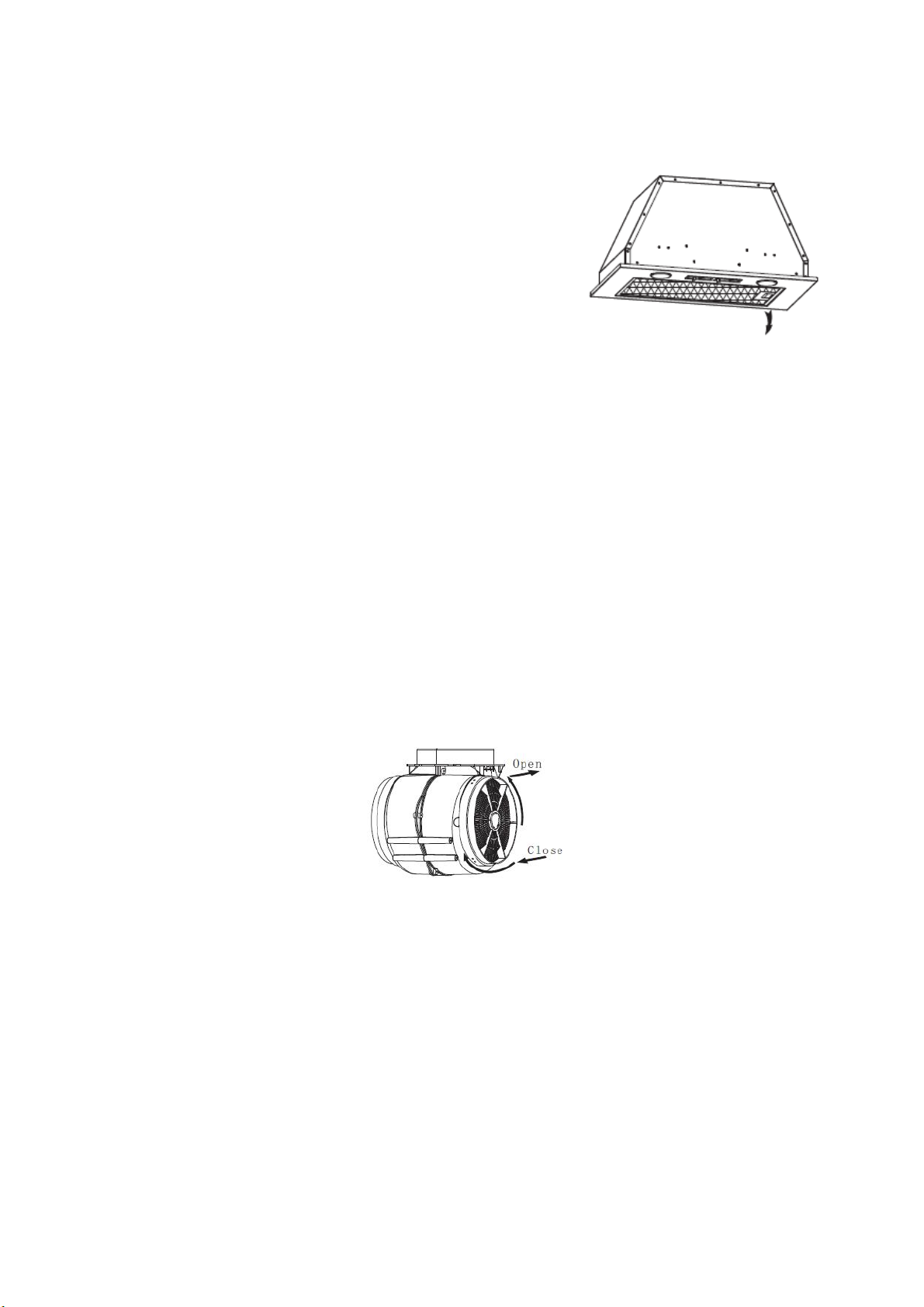

CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon
filter should be changed at three or six months according to your cooking habits.
The installation procedure of activated carbon filter is as below.
(1) The aluminum filter should be detached first. Press the lock and pull it
downward.
(2) Take out the carbon filter by rotating the carbon filter anti-clockwise.
(3) Replace the new carbon filter.
NOTE:
Make sure the filter is securely locked. Otherwise, it can loosen and become
dangerous.
When the activated carbon filter is attached, the suction power will be lowered.

10
Note:
Before changing the lights, make sure that the appliance is switched off at the
power point and the plug removed from the powerpoint.
Protect against danger when changing lights, such as wearing gloves.
Changing the lights:
Remove the grease filter.
Use a tool or the hand to press the spring splinter of both sides of LED light to the
inside, until the light is pressed out.Then slightly pull the light connecting wire out
and replace the lights.
Apply the reverse procedure to install the light back.
•ILCOS D code for this lamp is: DBR-2/65-H-64
– LED modules– round lamp
– Max wattage: 2×2 W
– Voltage range: AC 110-240V
– Dimensions:
ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2012/19/EU. It will then be recycled or dismantled to minimize
impacts on the environment, electrical and electronic products are
potentially dangerous for the environment and human health due to
the presence of hazardous substances.For more information, please
contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the rangehood in a proper place where there is efficient ventilation.
(2) Clean the rangehood regularly so as not to block the airway.
(3) Remember to switch off the rangehood light after cooking.
(4) Remember to switch off the rangehood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should
not be disposed of with household waste. Check with you local authority or retainer
for recycling advice.
