RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance. Accord-
ingly, you may find descriptions of individual features that do not apply to your
specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from incor-
rect or improper installation.

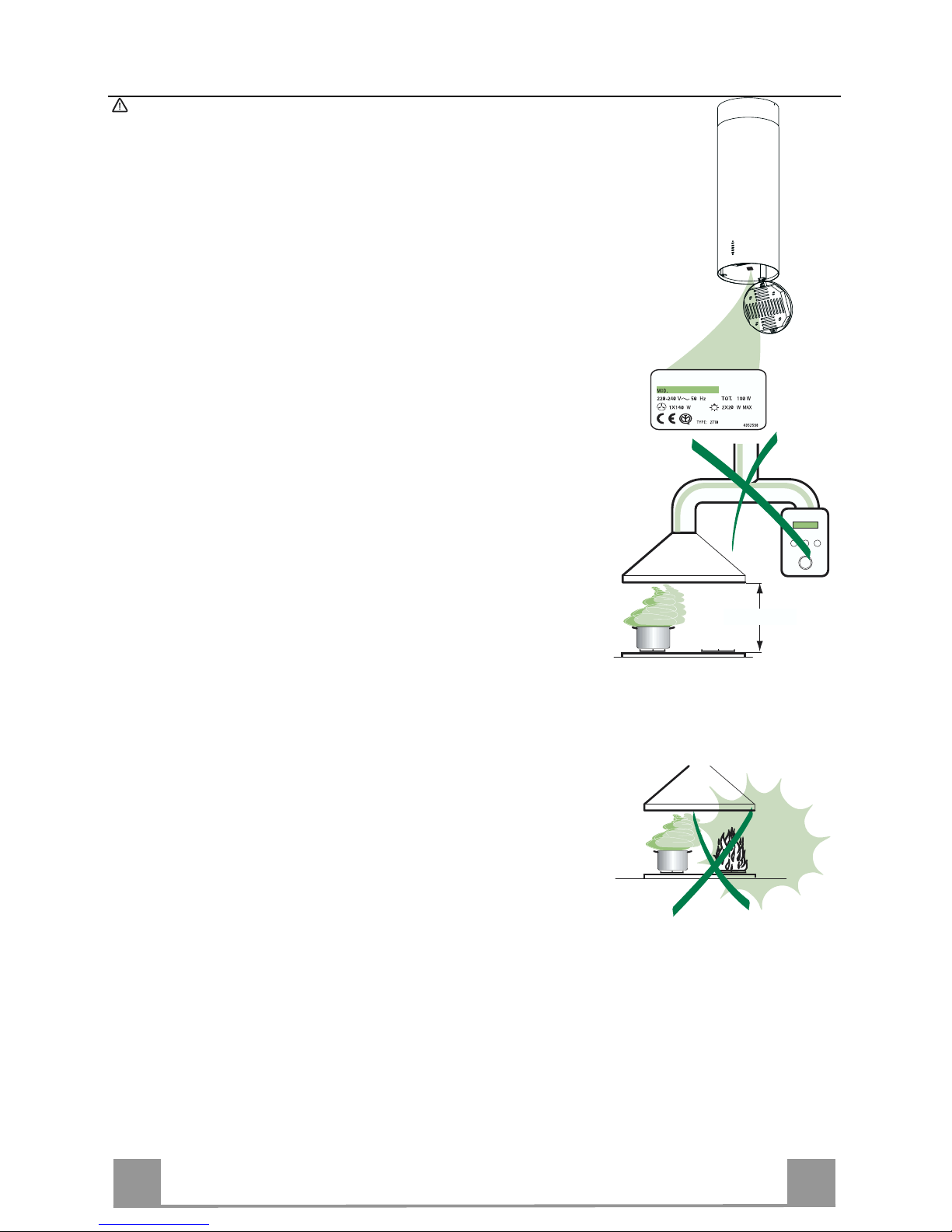

• The minimum safety distance between the cooker top and the extractor hood
is 650 mm.
• Check that the mains voltage corresponds to that indicated on the rating plate
fixed to the insideof thehood.
• For Class I appliances, check that the domestic power supply guarantees ade-
quate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter
120 mm.The route of the flue must be asshort aspossible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes
(boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas
burning appliances), a sufficient degree of aeration must be guaranteed in the
room in order to prevent the backflow of exhaust gas. The kitchen must have
an opening communicating directly with the open air in order to guarantee the
entryof clean air.
USE
• The extractor hood has been designed exclusively for domestic use to elimi-
nate kitchen smells.
• Never use the hood for purposesotherthan forwhich it hasben designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers mustbe continuously monitored during use: overheated oil can
burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use ofthe appliance by a person responsible fortheir safety.
• Children should be supervised to ensure that they do not play with the appli-
ance.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
• Clean and/orreplace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutralliquid detergent.
650 mm min.

EN
8
8
CHARACTERISTICS
Dimensions
* **
* Dimensions of the hood in ducting version.
** Dimensions of the hood in recycling version.

EN
9
9

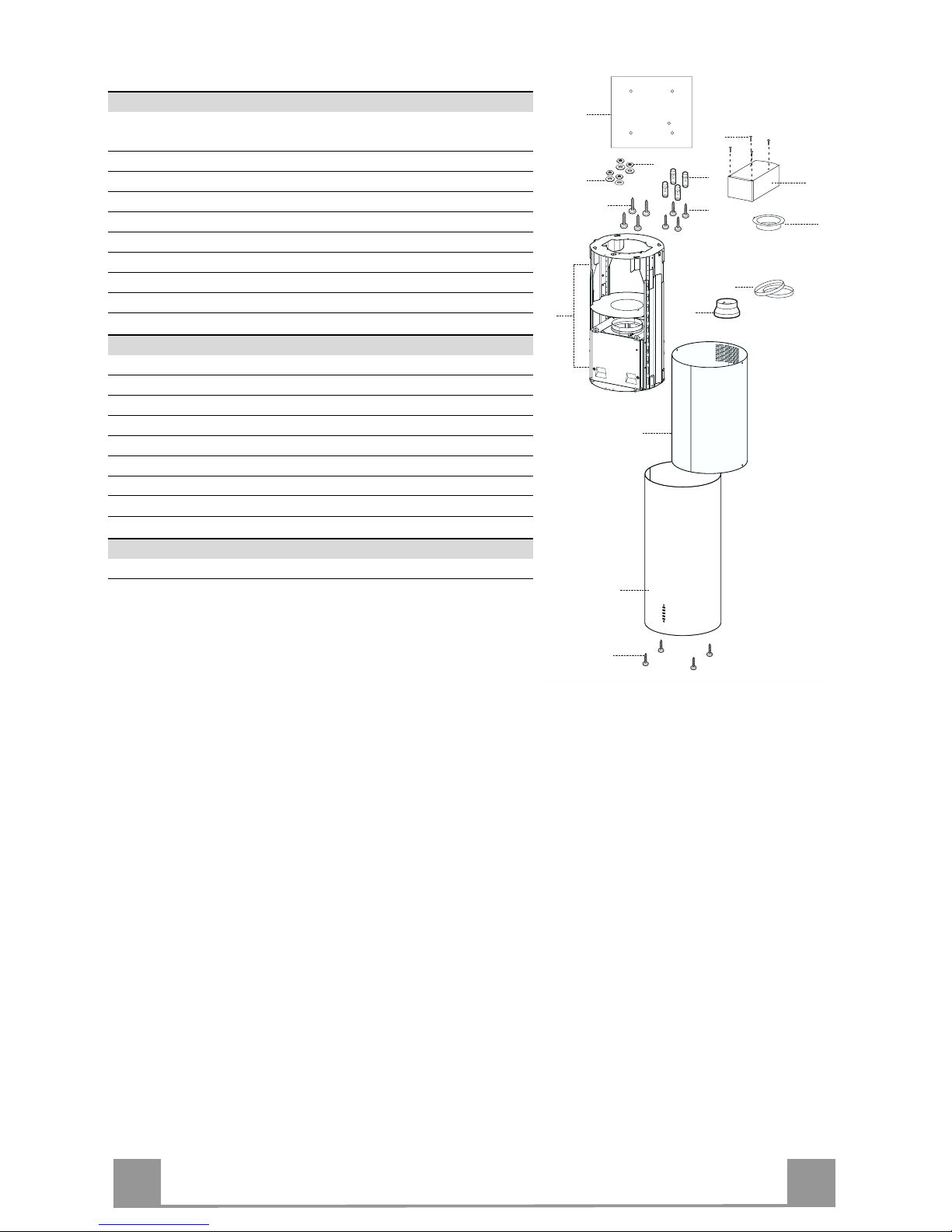

Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower,
Filters
21 Chimney Upper
7.1 1 Telescopic frame complete with extractor, consisting of:
7.1a 1 Upper frame
7.1b 1 Lower frame
91 Reducer Flange ø150-120 mm
10 1 Flange ø 120 mm
15 1 Recirculation Air OutletConnection
25 2 Pipe clamps
Ref. Q.ty Installation Components
11 4 Wall Plugs ø 10
12c 4 Screws 2,9 x 6,5
12f 4 Screws M6 x 10
12g 4 Screws M6 x 80
12h 4 Screws 5,2 x 70
21 1 Drilling template
22 4 6.4 mm int. dia washers
23 4 M6 nuts
Q.ty Documentation
1 Instruction Manual
2
11
12h
22
23
21
7.1
1
12g
9
25
7.1a
7.1b
15
12f
10
12c

EN
1
0
10
INSTALLATION
Drilling the Ceiling/shelf and fixing the frame
DRILLING THE CEILING/SHELF
• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the
template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.
• Drill the holes at the points marked:
• For concrete ceilings, drill for plugs appropriate to the screw size.
• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert
the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill ø 7 mm.
• For the power supply cable feed, drill ø 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-
haust duct connection.
• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:
• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,
supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

EN
1
1
11
PREPARATION OF THE FRAME FOR THE HOOD IN RE-
CYCLING VERSION
In case the hood is used in recycling version it is neces-
sary to prepare the frame with all the necessary connec-
tion pieces. In order to make the installation easier it is
necessary to lengthen the frame:
• Unscrew the two screws 2.1 fixing the upper chim-
ney to the frame and pull the chimney out.
• Unscrew the four safety screws placed at the top in
the frame separation area. (A).
• Unscrew the eight metric screws connecting the two
columns, placed on both sides of the frame (B).
Installation of components in recycling version:
• Fix the recycling air outlet piece 15 to the upper part
of the frame using four 12c screws supplied with the
hood.
• Fix the flange (ø120) 10 to the lower part of the recy-
cling air outlet 15.
• Put the reducer flange 9on the hood body outlet.
• At this point, join the flanges with a pipe. In order to
calculate the height of the pipe it is necessary to es-
timate the height of the hood (mm) and subtract 615
mm. (H pipe = H hood-615).
• Lengthen the frame so that the pipe can be inserted.
Place the pipe between the two flanges and block it.
Make sure that the height of the frame is correct con-
sidering the height of the cooker hood (H frame = H
hood – 184). Adjust the height of the frame and
tighten again the earlier removed screws. Tighten
again the safety screws in order to give more stability
to the structure.
• Fix the pipe with the pipe clamps 25 supplied with
the hood.
A
B
15
12c
10
WARNING: For the Recirculation version only: remove the sticker from
the slots on the upper chimney!

EN
1
2
12
FIXING THE FRAME
• Lift the frame up, making sure that the index over the frame
plate is turned forwards.
• Fit the frame slots onto the two screws inserted in the ceiling as
above, and turn until reaching the centre of the adjustment slot.
• Tighten the two screws and fasten the other two screws pro-
vided; before locking the screws completely, it is possible to
adjust the frame by turning it, making sure that the screws do
not come out of their housing in the adjustment slot.
• The Frame must be securely fastened so as to support both the
weight of the Hood and the stress caused by occasional axial
pressure against the fitted Appliance. After fixing, make sure
that the base is stable even when the Frame is subjected to lat-
eral stress.
• If the Ceiling is not strong enough in the area where the hood
is to be fixed, the Installer must strengthen the area using suit-
able plates and counterplates anchored to resistant structures.
2
112
Ducted version air exhaust system Connection
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120 mm,
the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9on the hood body outlet.
• Fix the pipe using the pipe clamps 25 provided.
• Remove any activated charcoal filters.
9
ø 120ø 150

EN
1
3
13
Installing of the chimney and fixing of the hood
When the hood is installed in recycling version the chimney has
to be positioned with the slots upwards. When the hood is in-
stalled in ducting version it has to be positioned in the opposite
way.
• Place the chimney on the frame and fix it to the upper part of it
with the earlier removed screws. When installing the hood in
recycling version make sure that the slots correspond to the air
outlet of the recycling air outlet piece 15.

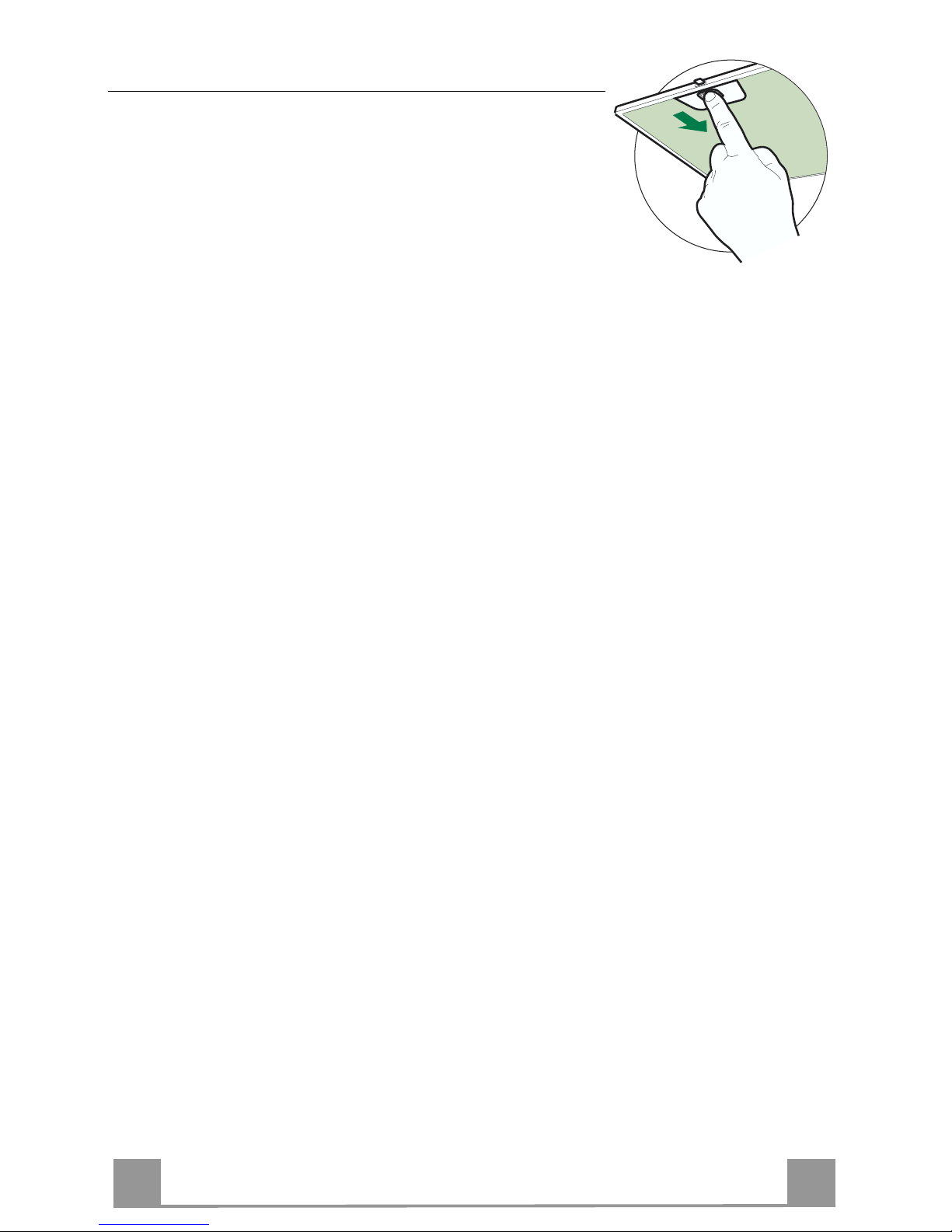

• Open the lighting unit by slightly pulling the notch. Remove
the unit from the hood by sliding the fixing pivot.
• Remove the filter pushing it towards the back side of the hood
unit and simultaneously pulling downwards.
• Remove possible charcoal filters.
• In order to fix the hood body to the frame insert the 4 screws
12f in their seats. It is necessary to leave at least 4-5 mm gap
between the screw heads and the frame plate.
• Hook the hood canopy to the frame and turn it to the left until
it reaches the stop, then lock the screws immediately to prevent
the hood canopy from falling out accidentally.
2
1
Electrical connection
• Connect to hood to the mains supply through a double pole
switch with at least 3 mm clearance between the contacts.
• Make sure that the connecting piece of the cable is correctly
put in the socket.
• Connect the Cmd-connectors of the controls.
• Connect the Lux-connectors of the lighting system.
• In the recycling hood put the charcoal filter in its place.
• Put the metal grease filter and the confort panel into their pro-
per seats.
Cmd
Lux

EN
1
4
14
USE
Control board
Key Function Display
A Switches the extractor motor on and off at the
latest selected speed Indicates the selected speed.
B Decreases the suction speed.
C Increases the suction speed.
D
By pressing this key it is possible to activate
the intensive speed from any previously se-
lected speed. The intensive speed can be acti-
vated even when the motor is OFF. This speed
has been timed at 10 minutes. After that time
the system activates automatically the latest
selected speed. This function is suitable for
cooking conditions when vapours and smells
are of the utmost emission.
HI appears. The spot down on the right side
flashes once a second.
E By pressing this key it is possible to set up the
motor to a suction speed at 100 m3/h lasting 10
minutes every hour. After this the motor
switches off automatically.
When the filter saturation is going on it is pos-
sible to reset the alarm by pressing this key for
about 3 seconds. The indication is visible only
when the motor is off.
Indicates the 24-function. The spot down on
the right side flashes and the motor is on.
Once the process is finished the previous indi-
cation disappears:
FF Indicates that the metal grease filters
saturation alarm has been triggered, and
the filters need to be washed. The alarm
is triggered after 100 working hours.
EF Indicates that the charcoal filter satura-
tion alarm has been triggered, and the fil-
ter has to be replaced; the metal grease
filters must also be washed. The charcoal
filter is triggered after 200 working hours.
F By pressing this key it is possible to set the
delayed shutdown of the appliance to 30 min-
utes. This function is suitable for a complete
elimination of the residual smells. It can be
activated at any position, and it is deactivated
by pressing the key again or by switching off
the motor.
Indicates alternately the selected speed of the
hood and the time left before the hood shut-
down. The spot down on the right side flashes.
G Turns light on and off .
H Turns light on and off at reduced intensity.
A
BC
D
EF
GH

EN
1
5
15
MAINTENANCE
REMOTE CONTROL (OPTIONAL)
The appliance can be controlled using a remote control powered
by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-
AAA type.
• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.
Cleaning the Comfort Panels
• Pull the Comfort Panel to open it.
• Disconnect the panel from the hood canopy by sliding the fix-
ing pin lever.
• The comfort panel must never be washed in a dishwasher.
• Clean the outside using a damp cloth and neutral liquid deter-
gent.
• Clean the inside as well using a damp cloth and neutral deter-
gent; do not use wet cloths or sponges, or jets of water; do not
use abrasive substances.
• When the above operation has been completed, hook the panel
back to the hood canopy and close it by turning the knob in the
opposite direction.

EN
1
6
16
Metal grease filters
Filters can be washed in the dish machine. They need to be
washed when FF-sign appears on the display or in any case every
2 months, or even more frequently in case of particularly inten-
sive use of the hood.
Alarm reset
• Switch off the hood and the lights. If the 24h-function has been
activated this has to be deactivated.
• Press the E-key till the display is unlit.
Cleaning the filters
• Pull the comfort panels to open them.
• Remove the filters one by one pushing them towards the back
side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when
washing them. Before fitting them again into the hood make
sure that they are completely dry. (The colour of the filter sur-
face may change throughout the time but this has no influence
to the filter efficiency).
• When fitting the filters into the hood pay attention that they are
mounted in correct position the handle facing outwards.
• Close the comfort panel.

EN
1
7
17
Charcoal filter (recycling version)
• This filter cannot be washed or regenerated. It must be replaced when the EF appears on the
display or at least once every 4 months.
Activation of the alarm signal
• In the recycling version hoods the filter saturation alarm must be activated during the instal-
lation or later.
• Switch off the hood and the lights.
• Disconnect the hood from the mains supply.
• When restoring the connection press and hold B-key.
• When releasing the key two rotating rectangles appear on the display.
• Within 3 seconds press the B-key until a flashing confirmation appears on the dispaly:
• 2 flashes with EF - charcoal filter saturation alarm ACTIVATED
• 1 flash with EF - charcoal filter saturation alarm DEACTIVATED.
REPLACING THE CHARCOAL FILTER
Reset of the alarm signal
• Switch off the hood and the lighting. If the 24h-function has
been activated this has to be deactivated.
• Press the E-key until the display is unlit.
Replacing of the filter
• Open the comfort panels pulling them downwards.
• Remove the metal grease filters.
• Remove the saturated charcoal filter by releasing the fixing
hooks
• Fit the new filter and fasten it in its correct position.
• Put the metal grease filters in their seats.
• Close the comfort panels.
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Remove the 2 screws fixing the Lighting support, and pull it
out of from the Hood.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure that the
two pins are properly inserted in the lamp holder socket holes.
• Replace the Support, fixing it in place with the two screws re-
moved as above.

IT
1
8
18
CONSIGLI E SUGGERIMENTI
Questo libretto di istruzioni per l'uso è previsto per più versioni dell' apparec-
chio. É possibile che siano descritti singoliparticolari della dotazione,che non
riguardano il Vostro apparecchio.
INSTALLAZIONE
• Il produttore declina qualsiasi responsabilità per danni dovuti ad installazione
non corretta o non conforme alle regole dell’arte.
• La distanza minima di sicurezza tra il Piano di cottura e la Cappa deve essere
di 650 mm.
• Verificare che la tensione di rete corrisponda a quella riportata nella targhetta
posta all’interno della Cappa.
• Per Apparecchi in Classe Ia accertarsi che l’impianto elettrico domestico ga-
rantisca un corretto scarico a terra.
• Collegare la Cappa all’uscita dell’aria aspirata con tubazione di diametro pari o
superiore a 120 mm. Il percorso della tubazione deve essere il più breve pos-
sibile.
• Non collegare la Cappa a condotti di scarico dei fumi prodotti da combustione
(caldaie, caminetti, ecc.).
• Nel caso in cui nella stanza vengano utilizzati sia la Cappa cheapparecchi non
azionati da energia elettrica (ad esempio apparecchi utilizzatori di gas), si deve
provvedere ad una aerazione sufficiente dell’ambiente. Se la cucina ne fosse
sprovvista, praticare un’apertura che comunichi con l’esterno, per garantire il
richiamod’aria pulita.
USO
• La Cappa è stata progettata esclusivamente per uso domestico, per abbattere
gli odori della cucina.
• Non faremai uso improprio della Cappa.
• Non lasciare fiamme libere a forte intensità sotto la Cappa in funzione.
• Regolare sempre le fiamme in modo da evitare una evidente fuoriuscita latera-
le delle stesse rispetto al fondodellepentole.
• Controllare le friggitrici durante l’uso: l’olio surriscaldato potrebbe infiammarsi.
• Non preparare alimenti flambè sotto la cappa da cucina; pericolo d'incendio.
• Questo apparecchio non deve essere utilizzato da persone (bambini inclusi)
con ridotte capacità psichiche, sensoriali o mentali, oppure da persone senza
esperienza e conoscenza, a meno che non siano controllati o istruiti all’uso
dell’apparecchio da persone responsabili della loro sicurezza.
• I bambini devono essere supervisionati per assicurarsi che non giochino con
l’apparecchio.
MANUTENZIONE
• Prima di procedere a qualsiasi operazione di manutenzione, disinserire la
Cappa togliendo la spina elettrica o spegnendo l’interruttore generale.
• Effettuare una scrupolosa e tempestiva manutenzione dei Filtri secondo gli
intervalli consigliati.
• Per la pulizia delle superfici della Cappa è sufficiente utilizzare un panno umi-
do e detersivo liquidoneutro.
650 mm min.

IT
1
9
19
CARATTERISTICHE
Ingombro
* **
*Dimensioni per cappa in versione aspirante.
** Dimensioni per cappa in versione filtrante.

IT
2
0
20
Componenti
Rif. Q.tà Componenti di Prodotto
11 Corpo Cappa completo di: Comandi, Luce, Filtri, Cami-
no Inferiore
21 Camino superiore
7.1 1 Traliccio telescopico completo di Aspiratore,formato da:
7.1a 1 Traliccio superiore
7.1b 1 Traliccio inferiore
91 Flangia di riduzione ø 150-120mm
10 1 Flangia ø 120 mm
15 1 Raccordo Uscita Aria Filtrante
25 2 Fascette stringitubo
Rif. Q.tà Componenti di Installazione
11 4 Tasselli ø 10
12c 4 Viti 2,9 x 6,5
12f 4 Viti M6 x 15
12g 4 Viti M6 x 80
12h 4 Viti 5,2 x70
21 1 Dima di foratura
22 4 Rondelle ø 6,4
23 4 Dadi M6
Q.tà Documentazione
1 Libretto Istruzioni
2
11
12h
22
23
21
7.1
1
12g
9
25
7.1a
7.1b
15
12f
10
12c
