Franke FDW 908 IB XS Operation manual

Instructions for use and installation
Cooker Hood
Istruzioni per l’uso e l’installazione
Cappa
Mode d’emploi et installation
Hotte de Cuisine
Bedienungsanleitung und Einrichtung
Dunstabzugshaube
Kullanım ve montaj talimatları
Davlumbaz
FDW 908 IB XS
GB
IT
FR
DE
TR

2
2
INDEX
RECOMMENDATIONS AND SUGGESTIONS ..................................................................................................................... 3
CHARACTERISTICS ............................................................................................................................................................. 4
INSTALLATION...................................................................................................................................................................... 6
USE ...................................................................................................................................................................................... 16
MAINTENANCE................................................................................................................................................................... 18
INDICE
CONSIGLI E SUGGERIMENTI............................................................................................................................................ 20
CARATTERISTICHE............................................................................................................................................................ 21
INSTALLAZIONE ................................................................................................................................................................. 23
USO...................................................................................................................................................................................... 33
MANUTENZIONE ................................................................................................................................................................ 35
SOMMAIRE
CONSEILS ET SUGGESTIONS.......................................................................................................................................... 37
CARACTERISTIQUES......................................................................................................................................................... 38
INSTALLATION.................................................................................................................................................................... 40
UTILISATION ....................................................................................................................................................................... 50
ENTRETIEN......................................................................................................................................................................... 52
INHALTSVERZEICHNIS
EMPFEHLUNGEN UND HINWEISE ................................................................................................................................... 54
CHARAKTERISTIKEN......................................................................................................................................................... 55
MONTAGE ........................................................................................................................................................................... 57
BEDIENUNG........................................................................................................................................................................ 67
WARTUNG........................................................................................................................................................................... 69
IÇERIKLER
TAVSIYELER VE ÖNERILER.............................................................................................................................................. 71
ÖZELLIKLER........................................................................................................................................................................ 72
MONTAJ............................................................................................................................................................................... 74
KULLANIM ........................................................................................................................................................................... 84
BAKIM .................................................................................................................................................................................. 86
EN
IT
FR
DE
TR

EN 3
3

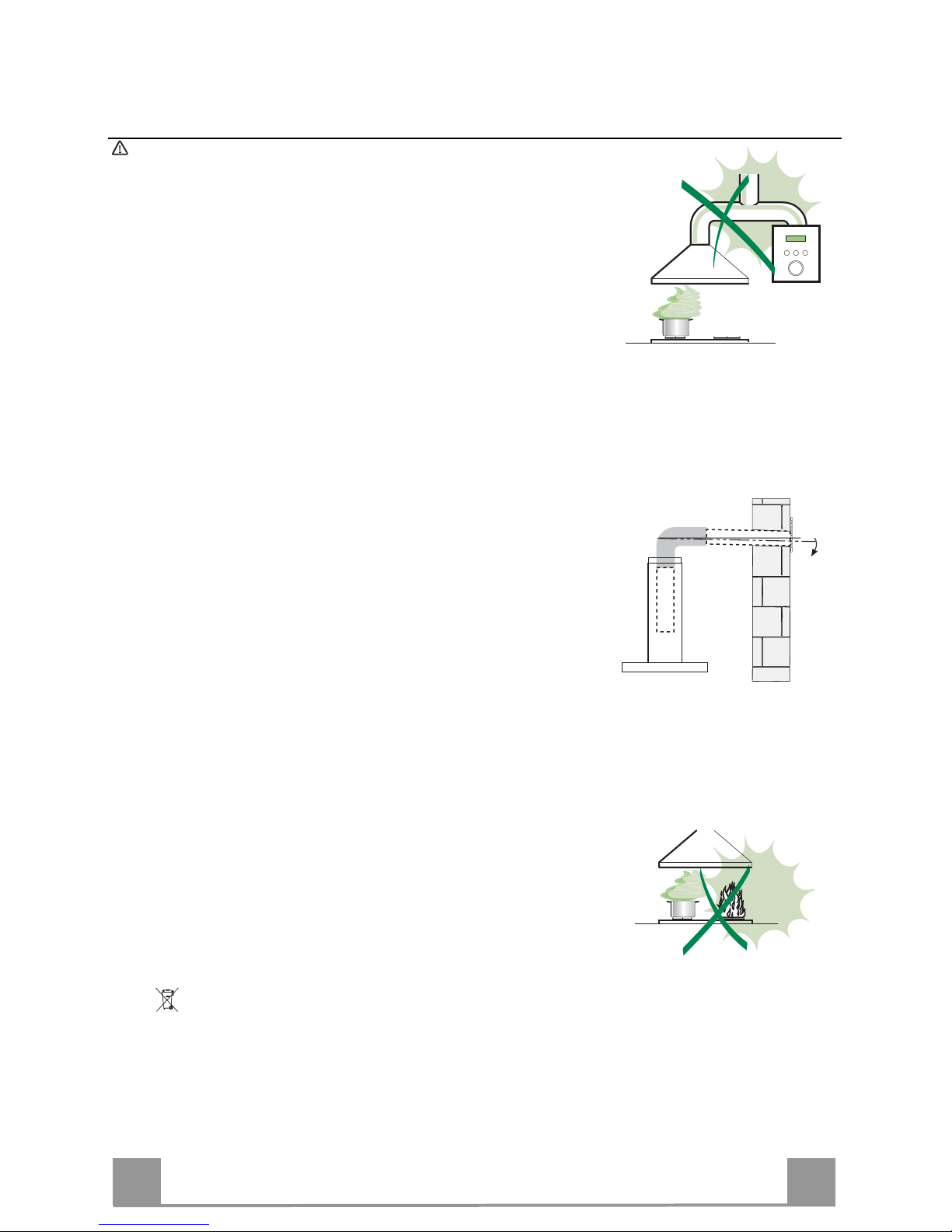

RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance. Accordingly, you may
find descriptions of individual features that do not apply to your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from incorrect or im-
proper installation.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the
inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate
earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm.
The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers,
fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appli-
ances), a sufficient degree of aeration must be guaranteed in the room in order to prevent
the backflow of exhaust gas. The kitchen must have an opening communicating directly
with the open air in order to guarantee the entry of clean air. When the cooker hood is
used in conjunction with appliances supplied with energy other than electric, the negative
pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into
the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by
the technical service department, in order to prevent any risks.
• All air ducting regulations must be complied with.
USE
• The extractor hood has been designed exclusively for domestic use to eliminate kitchen
smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it
does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into
flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physi-
cal, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person respon-
sible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• “ CAUTION: Accessible parts may become hot when used with cooking appliances.”.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying out any mainte-
nance work.

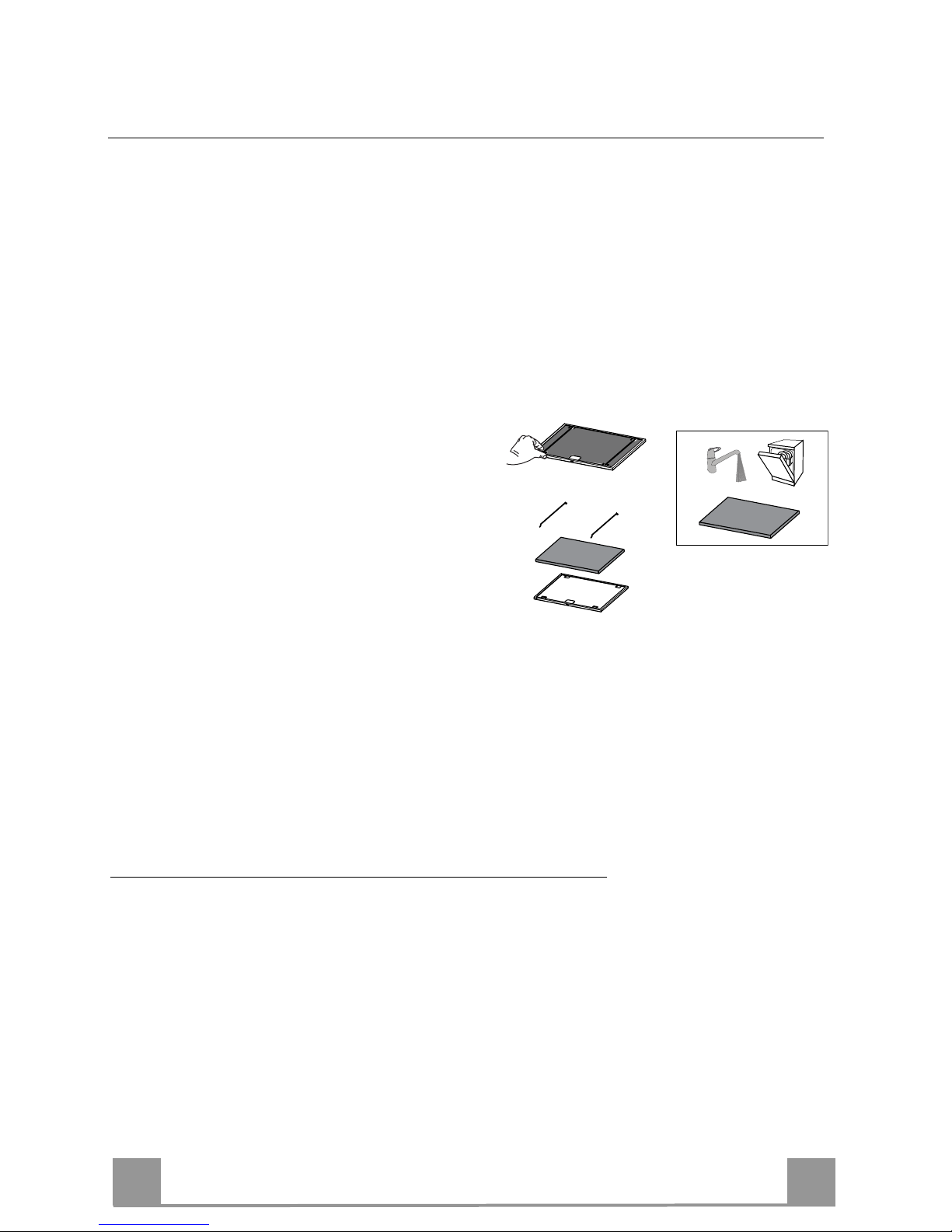

• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
2°

EN 4
4
CHARACTERISTICS
Components
Ref. Q.ty Product Components
1 1 Hood Canopy complete with: Controls, Light, Filters
2 1 Motor unit
3 1 Electric unit
4 1 Front Frame
Ref. Q.ty Installation Components
7.1 2 Splashback Fixing Bracket
7.2 2 Hob Fixing Bracket
7.3 2 Side Bracket
12a 16 Screws 3.5 x 9.5
12b 6 Screws M4 x 8
12c 6 Screws 4 x 15
Q.ty Documentation
1 Instruction Manual

EN 5
5
Dimensions
This Cooker hood can be used in
conjunction with a Gas Cook Top
having the following characteristics:
• Maximum power 12,4 kW
• 5 fire like the picture
2,6 kW
5 kW
1,9 kW
1,9 kW
1 kW

EN 6
6
INSTALLATION
This Hood is set up to be fitted inside the kitchen unit in:
• Ducting version: Evacuation to the outside.
• Recirculation version: Internal recirculation.
Sequence of operations - Installation
• Drilling the Support Surface and Fitting the Hood
• Connections
• Functional Check
• Disposal of Packaging
Drilling the Support Surface
X
812
Warning
Once the Support surface has been drilled the Hood Canopy can be installed in two ways:
• By inserting the Hood Canopy from below ( X= 106 mm ).
• By inserting the Hood Canopy from above ( X= 113 mm ).
Important
The minimum distance between the opening for the hob and the one for the hood must be of at
least 3-5 cm according to the strength of the material used for the working top.

EN 7
7
7.2
12a
7.2
12a
A

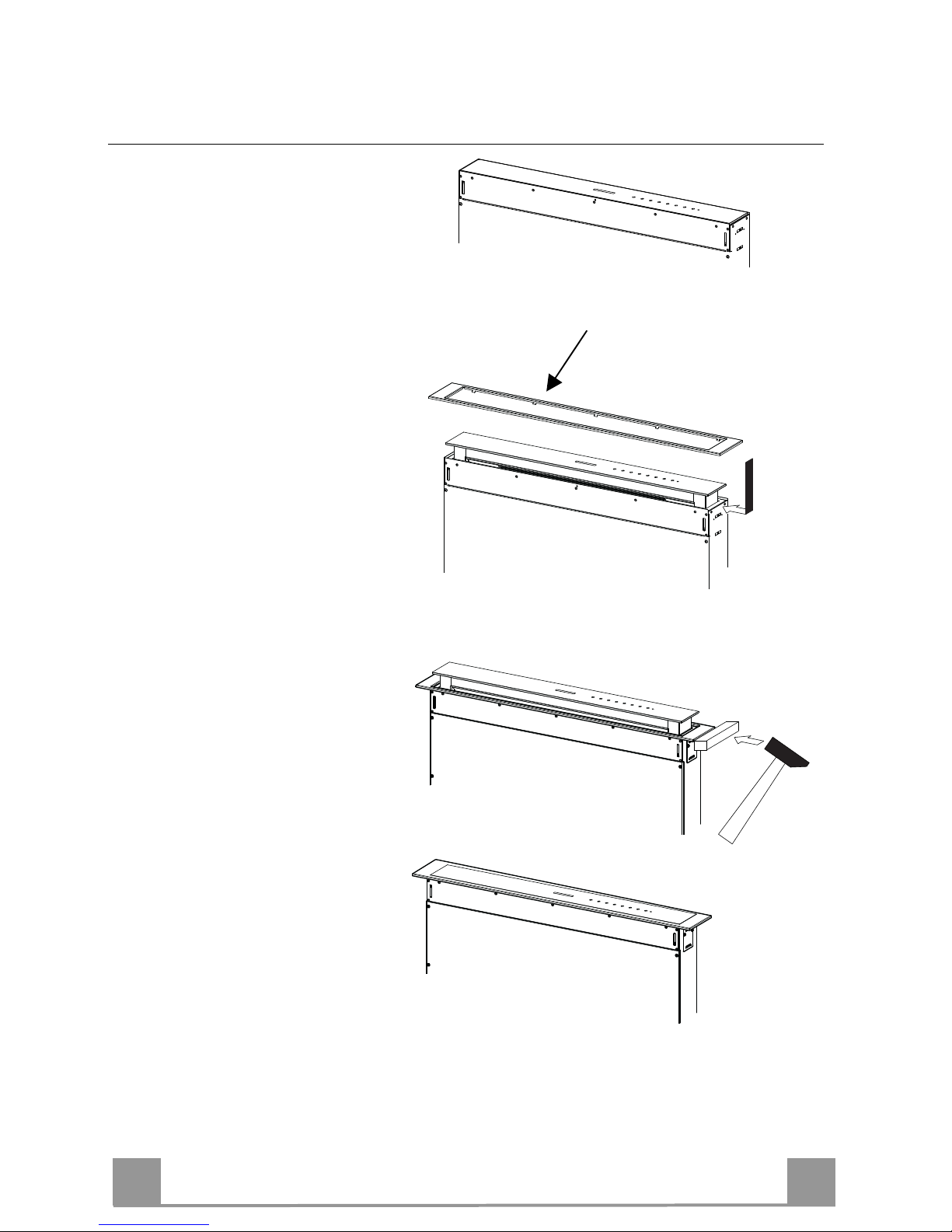

Inserting the Hood Canopy into the support surface from below
• The Hood is built ready for
front installation of the Mo-
tor Unit.
• If the kitchen unit is arranged differently and the Motor Unit has to be
fitted on the back, the Plug already fitted on the back of the Hood Can-
opy must be removed and replaced at the front, and the Cable with cable
raceway for connection of the Motor must also be repositioned using the
slot provided on each side (A).
Before proceeding, the Motor Unit must be fixed to the Hood Canopy
(see paragraph on Fixing the Motor Unit).
• Insert the Hood Canopy
from below into the
support worktop, drilled
as described above.
• With the aid of a sup-
port, lift the Hood Can-
opy until the front
comes out of the Work-
top.
• Insert the Brackets 7.2, as indicated in the
figure, into the slots provided and fix them
with the screws 12a provided.
• Centre the Hood Canopy with respect to the
Cooking Hob slot.
• Using the 2 screws 12c provided, fix the
Hood Canopy to the worktop and remove
the supports.
Warning:
If the cooker top is made from a material that does not allow the screws 12c to be inserted, use
a small amount of silicone to glue the Brackets 7.2 to the top and allow it to dry completely
before proceeding with installation.

EN 8
8
7.2
12a
7.2
12a
Inserting the Hood Canopy into the support surface from above
• Insert the Brackets 7.2, as indi-
cated in the figure, into the slots
provided and fix them with the
screws 12a provided.
• The Hood is built
ready for front in-
stallation of the
Motor Unit.
• If the kitchen unit is arranged differently and the Motor Unit
has to be fitted on the back, the Plug already fitted on the back
of the Hood Canopy must be removed and replaced at the front,
and the Cable with cable raceway for connection of the Motor
must also be repositioned using the slot provided on each side
(A).
• Insert the Hood Canopy into the cooker top,
drilled as described above.
• Centre the Hood Canopy with respect to the
Cooking Hob slot.
• Fix the Hood Canopy with the 2 screws 12c
provided.
Warning:
If the cooker top is made from a material that does not allow the screws 12c to be inserted, use a small amount of silicone
to glue the Brackets 7.2 to the top and allow it to dry completely before proceeding with installation.

EN 9
9
12c
12a 7.1
12a 7.1
Fixing the Lower Brackets
• Screw the brackets 7.1 to the front of the Hood Canopy using the screws 12a provided.
• Before tightening the Brackets completely, make all the adjustments to allow them to rest on
the lower base of the worktop to avoid deformation of the upper brackets 7.2 as shown in the
figure.
• With the aid of a spirit level, set the Hood Canopy level vertically and fix it to the Lower
Surface using 2 screws 12c provided.
• Tighten the screws 12a completely.

EN 1
10
Fixing the Squaring Brackets
• Screw the brackets 7.3 to the Hood Canopy using the screws 12b provided, without
tightening completely.
• Using the screws 12c provided, fasten the other part of the brackets 7.3 either to the side
walls of the unit or to the lower part of the cooker top.
12b
7.3
12b
7.3
12c
• Tighten the screws 12c and 12b completely.

EN 1
11
A
Fixing the Motor Unit
• Installation of the Motor Unit (1) at the front or rear must be de-
cided according to the position of the Kitchen unit, making sure
that the plug is properly positioned.
• Subsequently, according to where the air outlet opening has been
created on the unit, the Motor Unit can be turned by 90° at a time
so as to allow the air to come out on all 4 sides in correspondence
with the opening in Unit (2).
• Remove the Motor Unit from the support by
unfastening the 2 screws (A).
• Connect the connector from the Hood Canopy to
the Motor Unit connection.
• Replace the Motor Unit in the support using the
2 screws removed as described above.
• Screw the Motor Unit to the Hood Canopy using
the screws 12a and 12b provided as shown in the
figure.

EN 1
12
Fixing the Electric Unit
• Connect the Electric cables that come out of the lower right hand
part of the Hood Canopy to the Connectors on the Electric unit.
• Each cable connector has a corresponding connector on the
Electric Unit, so take care not to make mistakes when connecting
up.
• Fix the Electric Unit to the Hood Canopy using
the screws 12a provided.
• The position indicated in the figure is only an
option, as if necessary it may also be fitted on the
left of the Hood Canopy or even left free on the
base of the unit if there are no structural or safety
problems involved.
Warning..: Do not install the product in such a way that the wiring box is in contact with the floor.

EN 1
13

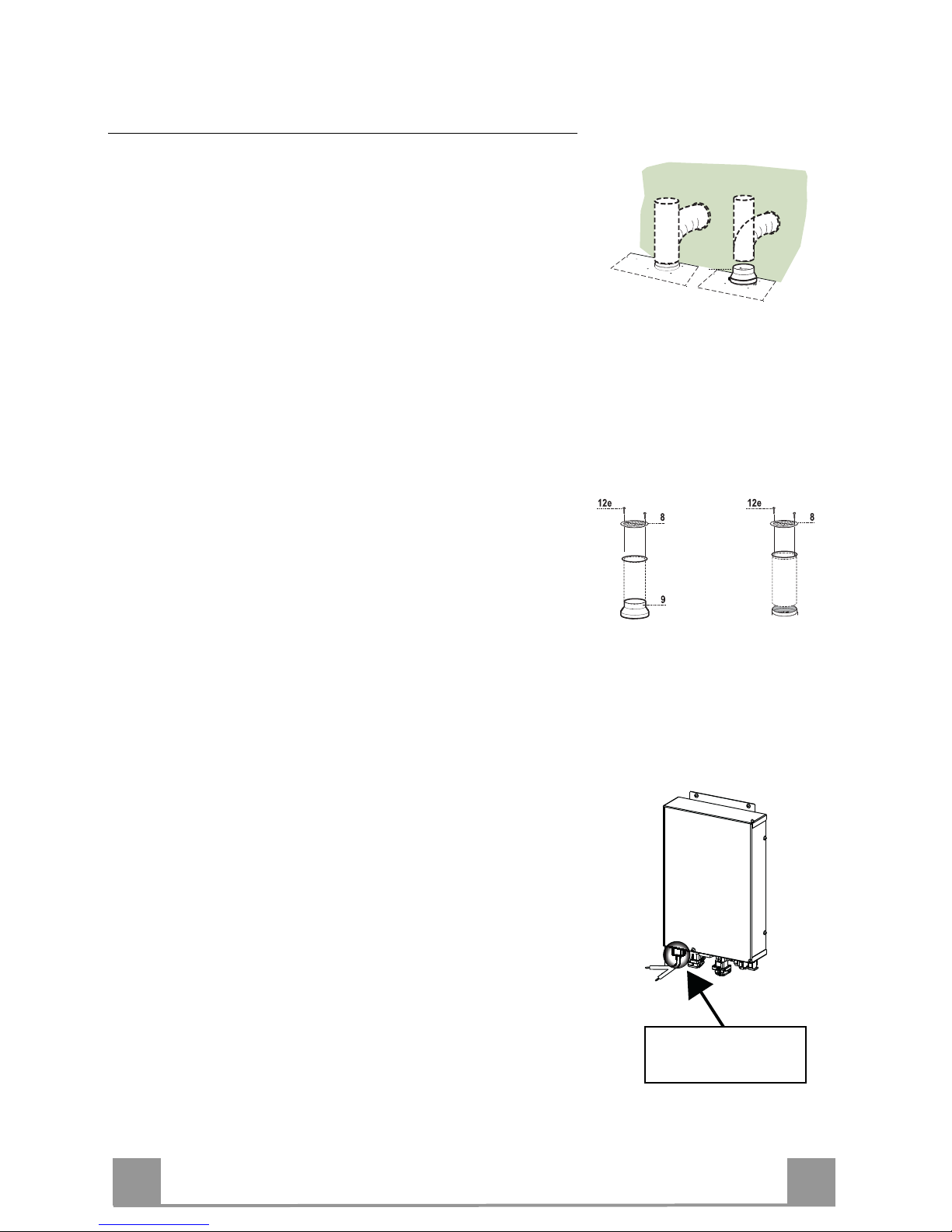

Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120
mm, the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert the
reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not
supplied).
• Remove any activated charcoal filters.
ø 150
9
ø 120
AIR OUTLET – RECIRCULATION VERSION
• Connect the Flange to the air outlet opening using a rigid or
flexible pipe of ø120 or 150 mm.
• To connect using a ø120 mm pipe, insert the reduction
Flange 9 onto the Hood canopy outlet.
• Fasten the pipe using suitable pipe clamps. The materials
required to do so are not provided.
• Fix the directional Grid 8 on the outlet, using 2 screws 12e
(2.9 x 9.5) provided.
• Make sure that the activated charcoal filters are present
(see paragraph on Activated Charcoal Filter Maintenance).
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch
having a contact gap of at least 3 mm..
A
PPLIANCE
IN LET

EN 1
14
Warning..:
Handle with
care
Fitting the Front element
• Lift the mobile hood canopy
(see paragraph on Use) by just a
few centimetres.
• To stop movement, simply
press down on the mobile can-
opy as it lifts up.
Warning: Never block the slid-
ing door when it is opening or
closing, except during the op-
erations required to fit the
frame.
• Remove the sponge guards
from the corners of the glass.
• Take the front Frame and insert
it from above, making sure that
its tabs insert into the slots pro-
vided on the Hood and sliding it
to the left.
Warning..: All the tabs must be
inserted.
• Use a tool (hammer) to tap all
along the front Frame from
right to left until it is com-
pletely flush.
A piece of wood or similar
element can be inserted be-
tween the hammer and the front
Frame to prevent any damage.
• Please refer to the paragraph on
Use for indications of how to
return the mobile canopy to the
Standard position.

EN 1
15
Surround Suction Panel
• Open the Hood Door (see
USE).
• Remove the 2 strips of adhesive
tape fastening the panel during
transport.

EN 1
16
USE

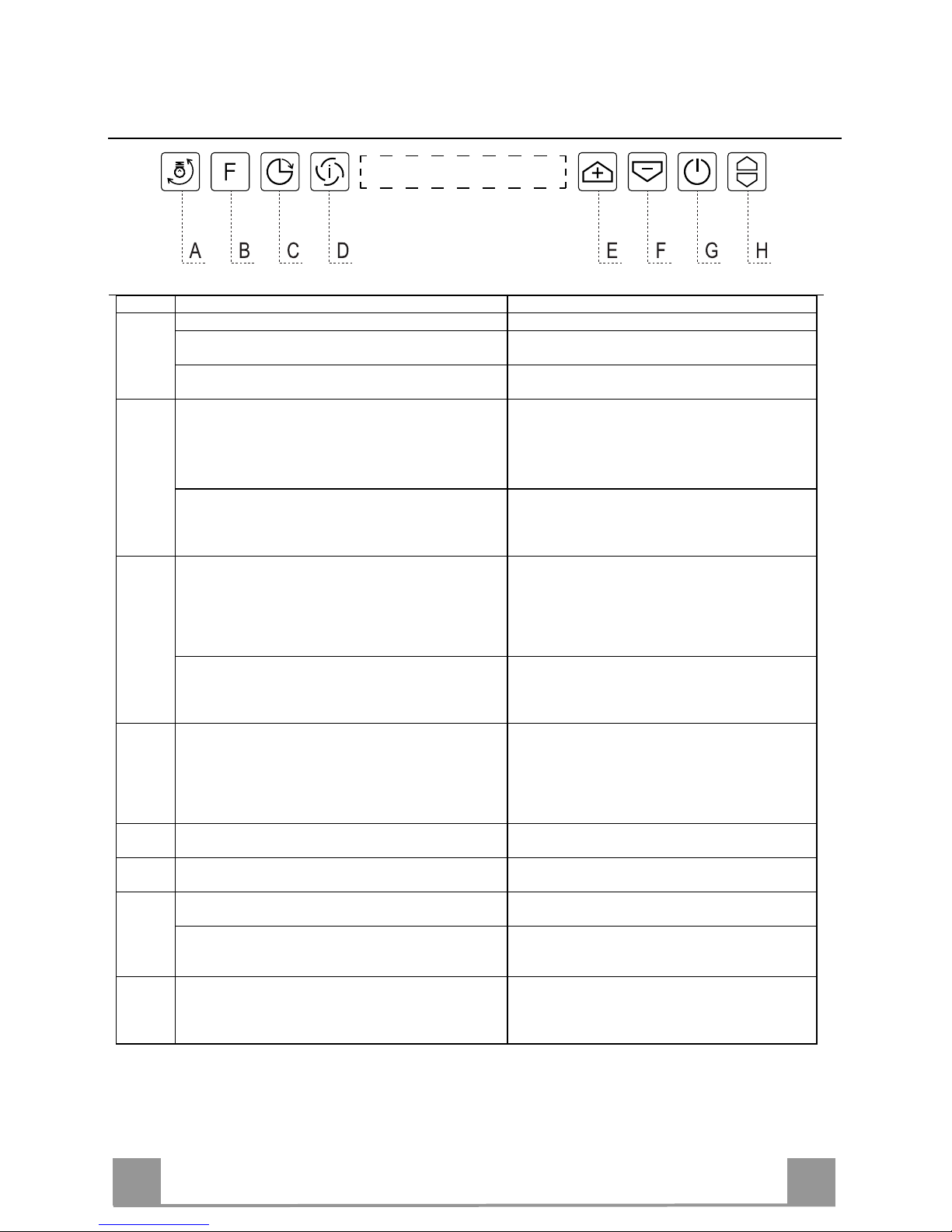

Control panel
Button Function LED button
AThe button only works when the door is open.
Press Briefly = Turns the Lights On/Off at maximum
intensity.
Press and hold for 2 Seconds = Turns the Courtesy Lights
On/Off.
BDoor Open or Closed
Press briefly = Performs a Reset of the Filter saturation
alarm.
After 100 hours in operation the Drop symbol is
displayed to indicate saturation of the Metal
Grease Filters.
After 200 hours in operation the letter Cis displayed to
indicate saturation of the Activated Charcoal filters.
Door Open or Closed
Press and hold for 2 Seconds = Enables/Disables the
Activated Charcoal Filter Alarm with the Motor turned
off and no Filter Alarm triggered.
Symbol Cflashes twice = A.C. Filter Alarm Activated
Symbol Cflashes once = A.C. Filter Alarm Deactivated
CDoor Open.
Press briefly = Activates/Deactivates Delay mode, causing
automatic shutdown of the Motor and the Lighting system
from any speed with a 30’ delay. It is disabled by pressing
the same button again, turning the motor off or closing the
door.
Displays the Clock symbol.
Works both with Door Closed and Open with Motor +
Lights = Off.
Press and hold for 4 Seconds = Enables/disables the
Keyboard lock.
All the LED buttons flash twice. During the Lock the
LEDs light up in sequence.
DOnly works with the Door Open.
Press briefly = Enables/Disables Intensive speed. This speed
is timed to run for 10 minutes. At the end of this time the
system will return to the speed set previously.
It is disabled by pressing the same button again, turning the
motor off or closing the door.
Displays the symbol I.
EOnly works with the Door Open = increases the operating
speed.
The number of lighted segments increases.
FOnly works with the Door Open = decreases the operating
speed.
The number of lighted segments decreases.
GOnly works with the Door Open.
Press briefly = Turns the Motor off
LEDs go out
Door Open or Closed
Press and hold for 2 Seconds with Motor and Lights Off =
Enables/Disables the Remote control.
LED buttons flash twice = Remote control Enabled
LED buttons flash once = Remote control Disabled
HDoor Open = Closes the Door + Lights and Motor Off
Door Closed = Opens the Door + Lights and Motor On.
Warning: If the Door remains partially open for any reason,
press the Button to complete the opening or closing cycle.

EN 1
17

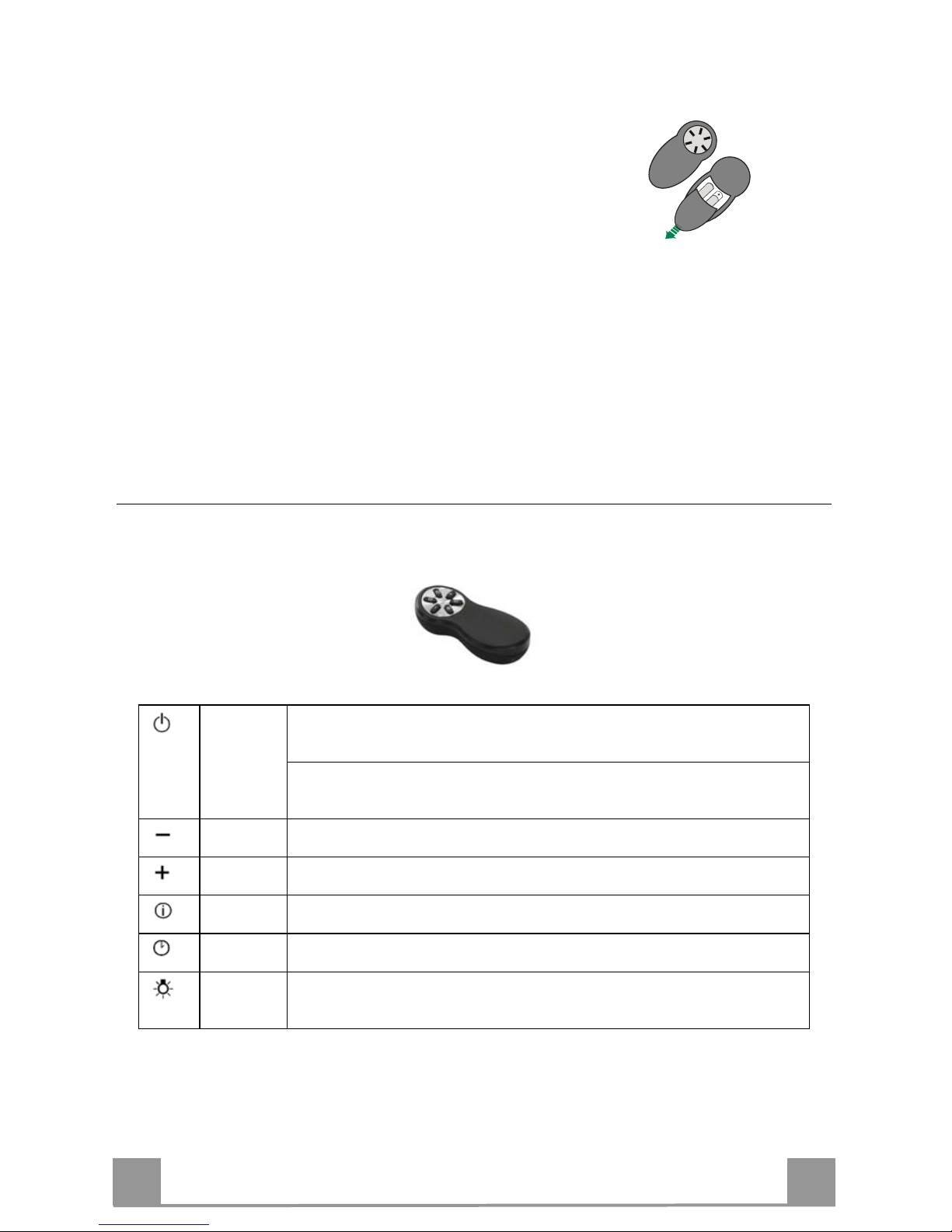

REMOTE CONTROL (OPTIONAL)
The appliance can be controlled using a remote control
powered by a 1.5 V carbon-zinc alkaline batteries of the
standard LR03-AAA type (not included).
• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper
manner.
Remote control panel
Warning..: The remote control receiver is deactivated when first supplied. To activate it, see the para-
graph Use Function of Button G.
Motor
Door Closed:
Opens the door, turns the motor on at speed one and turns the lights on at
maximum intensity.
Door Open:
Brief pressure: Motor On / Off
Pressed for 2 Seconds: Closes the Door and Motor + Lights = Off
Only with Door Open:
Decreases the working speed each time it is pressed.
Only with Door Open:
Increases the working speed each time it is pressed.
Intensive Only with Door Open:
Activates the Intensive function
Delay Only with Door Open:
Activates the Delay function
Light
Only with Door Open:
Brief pressure: Lights On / Off
Pressed for 2 Seconds: Courtesy lights On / Off

EN 1
18

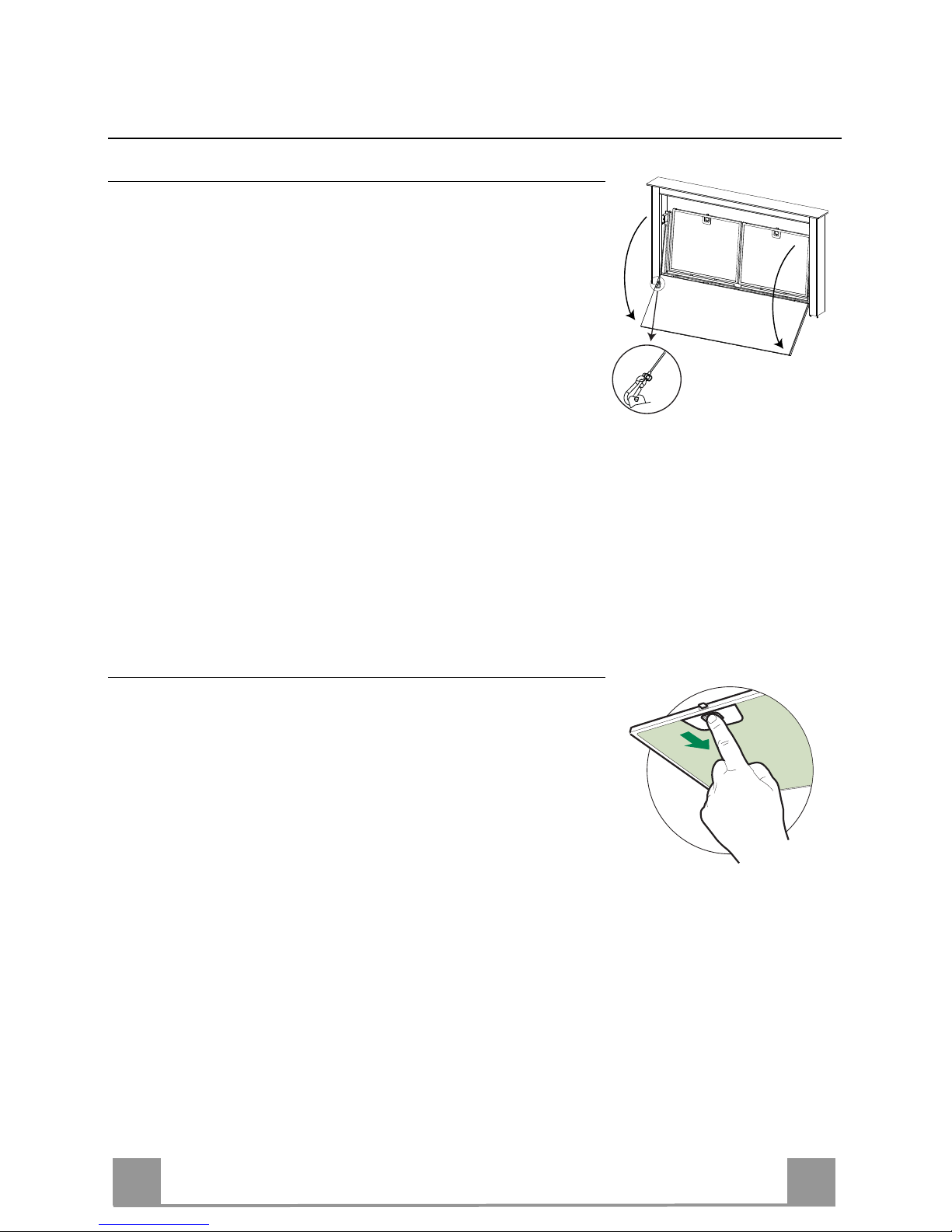

MAINTENANCE
Cleaning the Comfort Panels
• Open the Comfort Panel by pulling it at the top.
• Unhook the security chain by opening the spring catch.
• Disconnect the panel from the hood canopy.
• The comfort panel must never be washed in the dishwasher.
• Clean the outside with a damp cloth and neutral detergent.
• Clean the inside using a damp cloth and neutral detergent; do
not use wet cloths or sponges, or jets of water; do not use
abrasive substances.
• On completing the operation, hook the panel and the spring
catch up to the hood canopy again and close it.
Metal grease filters
These can also be washed in the dishwasher, and need to be
cleaned whenever the “drop” symbol lights up or at least once
every 2 months use, or more frequently if use is particularly
intensive.
Resetting the alarm signal
• Turn the Lights and the Suction Motor off.
• Press button B(see paragraph on Use).
Cleaning the Filters
• Open the Door (see USE).
• Open the Comfort panel by pulling it.
• Remove the Filters one at a time, pushing them towards the
back of the unit and at the same time pulling downward.
• Wash the Filters without bending them, and leave them to dry
completely before replacing. (If the surface of the filter
changes colour as time goes by, this will have absolutely no
effect on the efficiency of the filter itself.)
• Replace, taking care to ensure that the handle faces forwards.
• Close the Comfort panel.

EN 1
19
Activated Charcoal Filter (Recirculation Version)
Can be washed in the dishwasher. It must be washed when button “C” lights up or at least
once every 4 months, or more frequently if use is particularly intense. Guaranteed to operate
after washing for up to a maximum of 5 times before requiring replacement. The Alarm signal,
if it has been activated, only appears when the Suction motor is turned on.
Activating the alarm signal
• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on
installation or at a later date.
• Turn the Lights and the Suction Motor off.
• Press and hold button Bfor 2 seconds:
• Symbol “C” flashes twice – Activated Charcoal Filter saturation alarm ACTIVATED.
• Symbol “C” flashes once – Activated Charcoal Filter saturation alarm DEACTIVATED.
CHANGING THE ACTIVATED CHARCOAL FILTER
Resetting the alarm signal
• Turn the Lights and the Suction Motor off.
• Press button B(see paragraph on Use).
Changing the Filter
• Remove the comfort panel.
• Remove the Metal grease filters.
• Remove the metal filter stops from the grease
filter and clean the saturated activated
charcoal odour filter.
• Replace the clean activated charcoal filter,
hooking it back up to the grease filter using
the metal filter stops.
• Replace the Metal grease filters.
• Close the comfort panel.
Lighting unit
Warning: This appliance is fitted with a white LED lamp classed as 1M
according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maxi-
mum optical power emitted @439nm: 7µW. Do not look directly at the
light through optical devices (binoculars, magnifying glasses…).
• For replacement contact technical support. ("To purchase contact tech-
nical support")

991.0266.342_ver4
Franke S.p.a.
Via Pignolini,2
37019 Peschiera del Garda (VR)
www.franke.it
