Instructions Manual
INDEX
RECOMMENDATIONS AND SUGGESTIONS....................................................................................................................17
CHARACTERISTICS............................................................................................................................................................18
INSTALLATION....................................................................................................................................................................20
USE.......................................................................................................................................................................................23
MAINTENANCE....................................................................................................................................................................24

EN
1
7
17
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do
not apply to your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting
from incorrect or improper installation.
• Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guaran-
tees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combus-
tion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances
(e.g. gas burning appliances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent the backflow of exhaust
gas. The kitchen must have an opening communicating directly with
the open air in order to guarantee the entry of clean air.
USE
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has ben de-
signed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only,
making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: over-
heated oil can burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of ex-
perience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carry-
ing out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

EN
1
8
18
CHARACTERISTICS

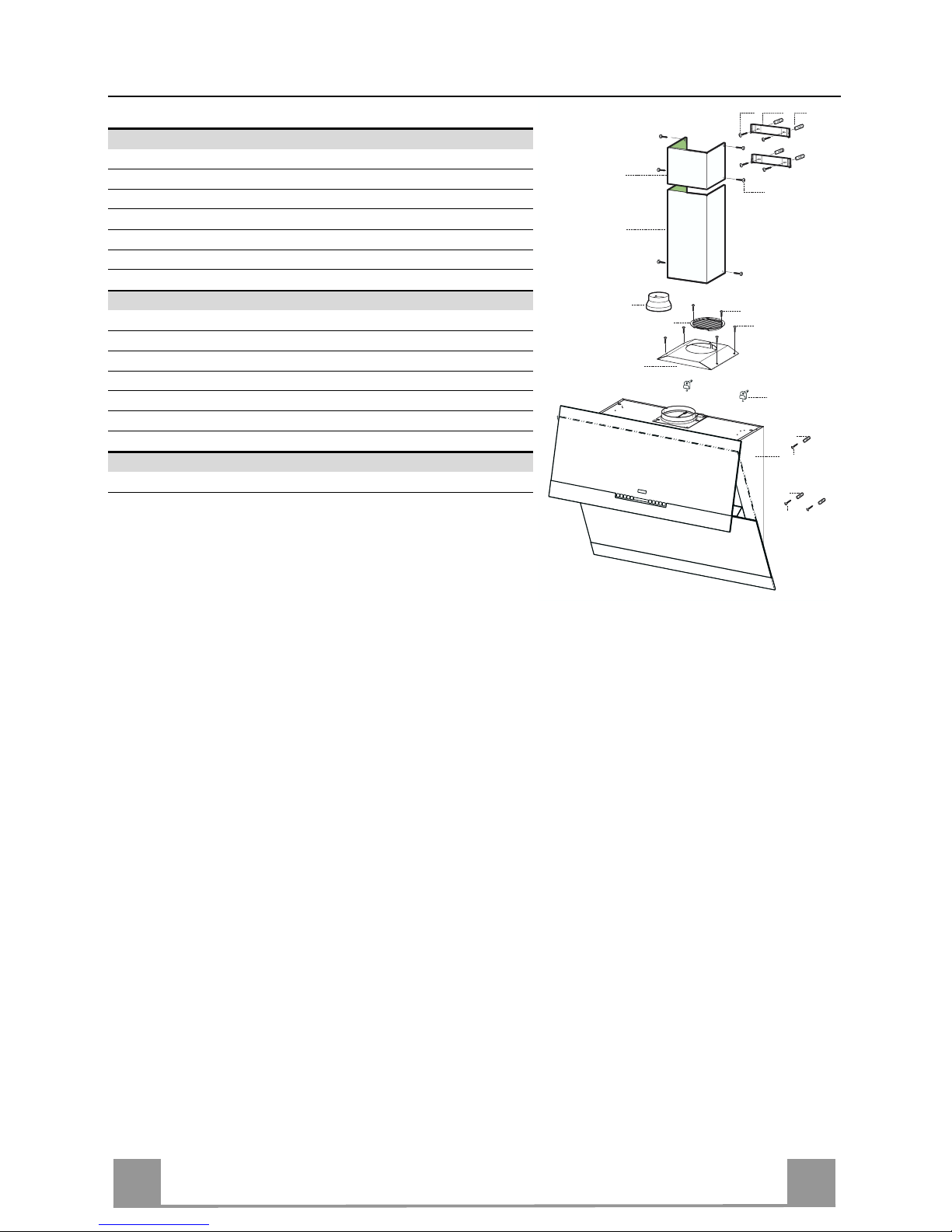

Components
Ref. Q.ty Product components
11 Cooker hood with controlunit, lights, blower unit, filters
2.1 1 Upper chimney
2.2 1 Lower chimney
81 Air outlet grid
91 Reducer flange Ø 150-120
16 1 Cover for recycling version
Ref. Q.ty Installation components
7.2.1 2 Fixing brackets for upper chimney
11 7 Plugs
11a 2 Plugs SB 12/10
12a 7 Screws 4,2 x44,4
12c 10 Screws 2,9 x 6,5
12e 2 Screws 2,9 x9,5
Q.ty Documentation
1 Instruction booklet
2.1
2.2
12c
12a 7.2.1 11
11
12a
11
12a
1
16
12c
12d
8
9
11a

EN
1
9
19
Dimensions

EN
2
0
20
INSTALLATION

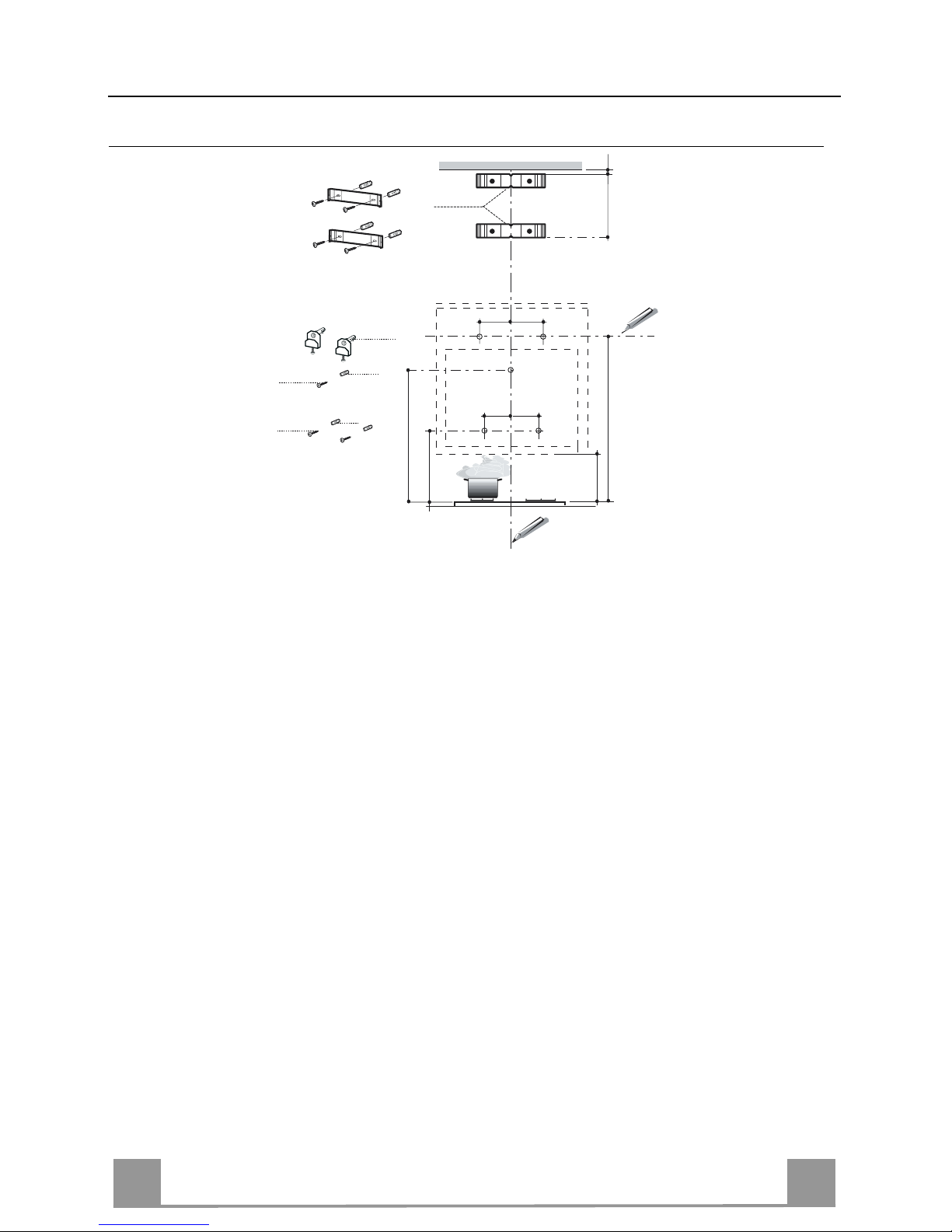

Wall drilling and bracket fixing
As a first step, proceed with the following drawings:
• a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the
hood is to be fitted;
• a horizontal line at a minimum 960 mm above the cooker top.
• Mark a point (1) on the horizontal line, 292 mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are levelled.
• Mark a reference point (2) as indicated at 200 mm from the vertical reference line and 458
mm above the cooker top.
• Repeat this operation on the other side, checking that the two marks are levelled.
• Mark a reference point (3) at 743 mm above the cooker top on the vertical reference line.
• Drill at the marked points (1), using a ø 12 mm drill bit.
• Drill at the marked points (2) and (3), using a ø 8 mm drill bit.
• Insert the bracket plugs 11a into the holes (1) and tighten the screws.
• Insert plug 11 into holes (2) and (3).
• Place bracket 7.2.1 on the wall, about 1-2 mm from the ceiling or from the upper limit,
aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the bracket holes.
• Place the bracket 7.2.1 on the wall at X mm below the first bracket (X = height of the upper
chimney section), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the bracket holes.
• Drill ø 8 mm holes at all the marked centre points.
• Insert the wall plugs 11 in the holes.
• Fix the brackets using the 12a screws (4,2 x 44,4) supplied with the hood.
11a 11
22
200
11
12a
11
12a
3
292 292
960
458
X
1÷2
7.2.1
368
200
743

EN
2
1
21
Hood body mounting
• Firstly, it is necessary to adjust the two Vr-screws of
the 11a-brackets, at minimun (B).
• Hang the hood body on the two brackets 11a.
• Connect the hood to the mains supply by means of a
bipolar switch with at least 3 mm contact gap.
• Press the “A”-key for one second (see Part USE) to
open the upper panel.
• Remove the metal filters.
• In order to align the hood it is necessary to adjust the
Vr-screws from inside the hood.
• Fasten the safety screw 11.
• Fit again the metal filters into their seats and close the
upper panel by pressing “L”-key for one second (see
Part USE).
• Disconnect the hood from the mains supply.
Attention: the upper panel stops if any barrier occurs in its
way during the panel opening or closing. To open the panel
it is enough to remove the barrier and press the key once
again.
(B)
L
A
11a
Vr
11
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to
the chimney using either a flexible or rigid pipe ø 150
or 120 mm, the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert
the reducer flange 9on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps
(not supplied).
• Remove possible charcoal filters.
ø 150
9
ø 120

EN
2
2
22
RECYCLING VERSION AIR OUTLET
To install the hood in recycling version, the optional charcoal
filter kit must be purchased.
• Remove the chimney angle bracket.
• Screw the filter cover onto the air outlet, using four screws 12c
(2.9 x 12.5).
• Fix the air outlet grid 8on the recirculation air outlet using the
2 screws 12d (2,9 x 9,5) provided.
16
12c
12d
8
ELECTRICAL CONNECTION
• Connect the hood to the mains supply.
• Open the upper panel by pressing the A-key (See Part “USE” )
for at least 2 seconds.
• Remove the metal filters (See Part “MAINTENANCE”) and
make sure that the connector piece of the supply cable is cor-
rectly inside the hood socket.
Chimney assembly
Upper exhaust Chimney
• Slightly widen the two sides of the upper chimney and hook
them behind the brackets 7.2.1, making sure that they are well
seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x
9,5) supplied.
Lower exhaust Chimney
• Slightly widen the two sides of the chimney and hook them
between the upper chimney and the wall, making sure that they
are well seated.
• Fix the lower part laterally to the hood body using the 2 screws
12c (2,9 x 9,5) supplied.
12c
2.1
2.2
2
7.2.1
12c

EN
2
3
23

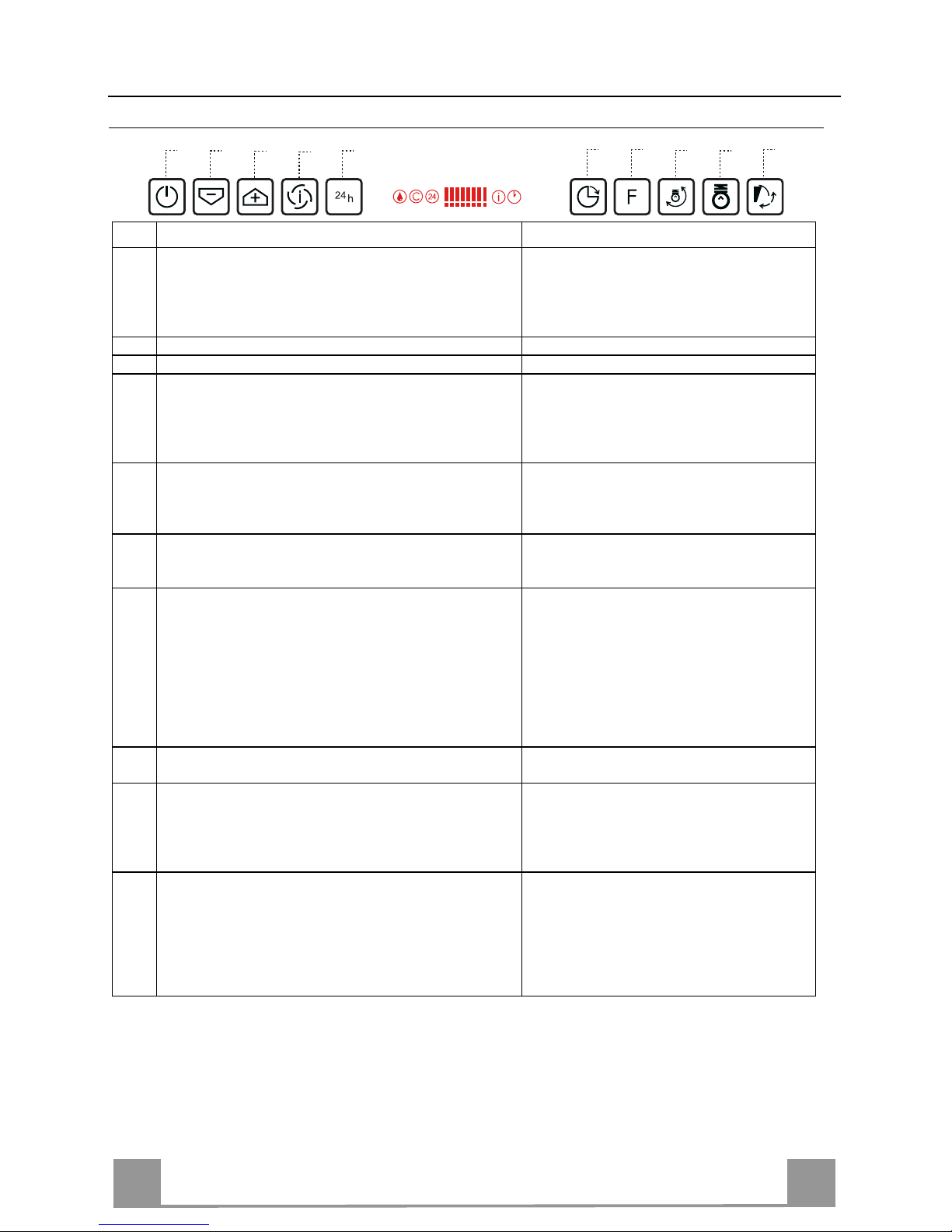

USE Control panel
Key
Function Display
A Upper panel closed: when pressed for about one sec-
ond it opens the upper panel. It switches the motor on
at the latest selected speed.
Upper panel open: when shortly pressed it switches
the motor on/off.
Indicates the selected speed.
B Decreases the suction speed. Number of lit LEDS decreases.
C Increases the suction speed. Number of lit LEDS increases.
D Functioning only when the upper panel is open. This
speed has been timed at 10 minutes. After that time
the system activates automatically the latest selected
speed. The function is suitable for cooking conditions
when vapours and smells are of the utmost emission.
I flashes and all the LEDS on the display
are lit.
By pressing the key the function is deacti-
vated.
E Functioning only when the upper panel is open. By
pressing this key it is possible to set up the motor to a
suction speed at 100 m3/h .
24–symbol appears and the LEDS on the
display go off cyclically, one by one.
By pressing the key the function is deacti-
vated.
F Functioning only when the motor is on. By pressing
this key it is possible to set the delayed shutdown of
the motor and the lighting to 30 minutes.
A flashing clock symbol appears.
By pressing the key the function is deacti-
vated.
G By pressing this key for about 2 seconds it is possible
to reset the filter saturation alarm. A drop symbol indicates that the metal grease filters saturation alarm has been
activated, and the filters need to be
washed. The alarm is triggered after 100
working hours.
Cindicates that the charcoal filter satura-
tion alarm has been activated, and the filter
has to be replaced. The alarm s triggered
after 200 working hours.
H By pressing this key the intensity of the lighting sys-
tem can be modified up to five levels.
I Upper panel closed: when pressed for about 1 second
it opens the upper panel and sets the lights at the
maximum intensity.
Upper panel open: when shortly pressed it switches
the lights on/off.
L Upper panel closed: when pressed for about one sec-
ond it opens the upper panel and switches the motor
on at the third speed and the lights at the maximum
intensity.
Upper panel open: when pressed for about 1 second it
switches off motor and lights resetting every activated
function, and closes the upper panel.
Keyboard lock: it is possible to jam the keyboard when, for example, cleaning the glass. The
motor and lights are switched off, and upper panel can be open or closed.
By pressing the F-key (Delay) for about 5 seconds the keyboard block can be activated or de-
activated. This function is confirmed by a Beep and by moving motor LEDS on display.
B
AD
CEG
FI
HL

EN
2
4
24
MAINTENANCE
Metal grease filters
Filters can be washed in the dish machine. They need to be
washed when Drop-sign appears on the display or in any case
every 2 months, or even more frequently in case of particularly
intensive use of the hood.
Alarm reset
• Press the G–key for at least 2 seconds.
Cleaning the filters
• Open the upper panel by pressing the A-key for 1 second (see
Part USE).
• Remove the filters one by one pushing them towards the back
side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when
washing them. Before fitting them again into the hood make
sure that they are completely dry. (The colour of the filter sur-
face may change throughout the time but this has no influence
to the filter efficiency).
• When fitting the filters into the hood pay attention that they are
mounted in correct position the handle facing outwards.

EN
2
5
25
Charcoal filter (recycling version)
This filter cannot be washed or regenerated. It must be replaced when the C appears on the
display or at least once every 4 months. The filter saturation alarm has to be activated already
before.
Activation of the alarm signal
• In the recycling version hoods the filter saturation alarm must be activated during the instal-
lation or later.
• Switch off the hood and the lights.
• Press the E-key for about 5 seconds until the last two segments of the motor LEDS are lit on
the display.
• By releasing the E-key the clock icon starts to flash.
• Within 3 seconds press the D-key to activate/deactivate charcoal filter saturation alarm.
• C-symbol lit - charcoal filter saturation alarm ACTIVATED.
• C-symbol unlit - charcoal filter saturation alarm DEACTIVATED.
REPLACING THE CHARCOAL FILTER
Alarm reset
• Press the G-key for at least 2 seconds.
Replacing the filter
• Open the upper panel by pressing the A-key for about a second
(see Part USE).
• Remove the metal filters.
• Remove the saturated charcoal filter as indicated (A).
• Fit the new filters as indicated (B).
• Put the metal grease filters in their seats.
A
B
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Extract the lamp from the lamp holder by pulling gently.
• Replace with another of the same type, making sure that the
two pins are properly inserted in the lamp holder socket holes.

EN
2
6
26
Replacing the fuser

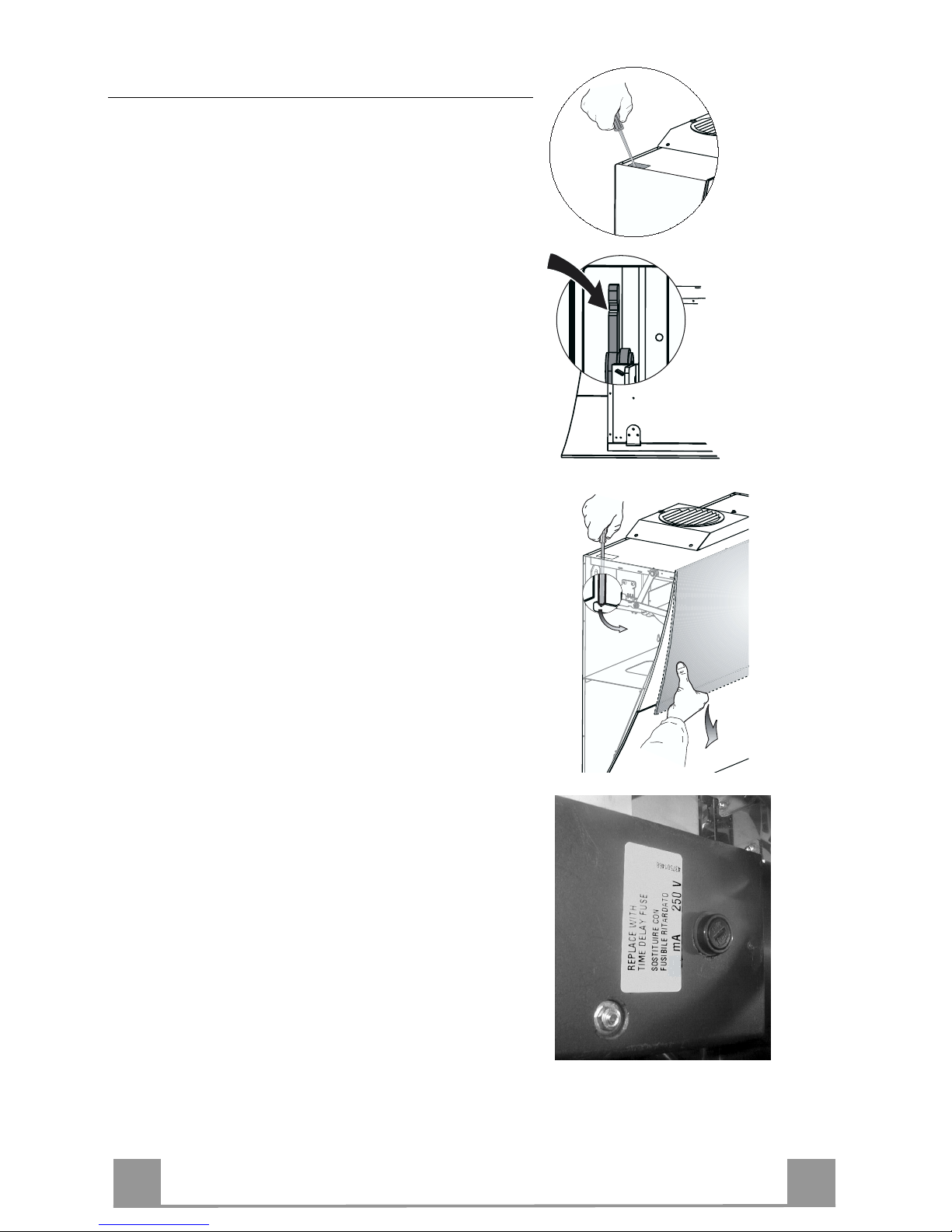

The hood panel opening and closing mechanism is con-
trolled by a starter motor which is activated by a fuser.
This fuser works only on the starter motor. In case the
fuser gets damaged when the panel is closed it is be
necessary to manually unblock the panel. In this case
proceed as follows:
• Remove the cover placed up on the left side.
• Press the releasing lever with the screwdriver as
much as necessary to enable the manual opening of
the panel.
• After having completely opened the panel remove the
metal grease filters, as explained in the part concern-
ing the filter cleaning.
• The fuser is placed up on the right side. Turn the
fuser holder as indicated. Replace the fuser with one
having the same features.
• Put the fuser holder and grease filters into their place
again. Make sure that the hood functions correctly. In
case the panel doesn’t work correctly it is necessary
to contact an authorized technician.
If the fuser gets damaged being the panel open, it is suf-
ficient to simply remove the grease filters and replace
the fuser.

436003583_ver5
Il simbolo sul prodotto o sulla confezione indica che il prodotto non deve essere considerato come un normale rifiuto domestico,
ma deve essere portato nel punto di raccolta appropriato per il riciclaggio di apparecchiature elettriche ed elettroniche. Provvedendo a
smaltire questo prodotto in modo appropriato, si contribuisce a evitare potenziali conseguenze negative per l’ambiente e per la salute,
che potrebbero derivare da uno smaltimento inadeguato del prodotto. Per informazioni più dettagliate sul riciclaggio di questo prodotto,
contattare l’ufficio comunale, il servizio locale di smaltimento rifiuti oil negozio incui è stato acquistato il prodotto.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could oth-
erwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service or the shop where you purchased the product.
Le symbole sur le produit ou son emballage indique que ce produit ne peut être traité comme déchet ménager. Il doit plutôt être
remis au point de ramassage concerné, se chargeant du recyclage du matériel électrique et électronique. En vous assurant que ce
produit est éliminé correctement, vous favorisez la prévention des conséquences négatives pour l’environnement et la santé humaine
qui, sinon, seraient le résultat d’un traitement inapproprié des déchets de ce produit. Pour obtenir plus de détails sur le recyclage de ce
produit, veuillez prendre contact avec le bureau municipal de votre région, votre service d’élimination des déchets ménagers ou le
magasin où vous avez acheté le produit.
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass dieses Produkt nicht als normaler Haushaltsabfall
zu behandeln ist, sondern an einem Sammelpunkt für das Recycling von elektrischen und elektronischen Geräten abgegeben werden
muss. Durch Ihren Beitrag zum korrekten Entsorgen dieses Produkts schützen Sie die Umwelt und die Gesundheit Ihrer Mitmenschen.
Umwelt und Gesundheit werden durch falsches Entsorgen gefährdet. Weitere Informationen über das Recycling dieses Produkts
erhalten Sie von Ihrem Rathaus, Ihrer Müllabfuhr oder dem Geschäft, in dem Sie das Produkt gekauft haben.
Ürün veya paketi üzerindeki sembolü, bu ürünün normal bir evsel atık olarak görülmemesi ve bu tip elektrikli veya elektronik
cihazların atıldığı dönüşümlü toplama noktalarına terkedilmesi gerektiğine işaret eder. Bu ürünü gerektiği gibi elimine etme kurallarına
uyarsanız çevre ve insan sağlığı üzerindeki olumsuz etkilerini bertaraf etmeye katkı sağlamışolursunuz. Bu ürünün geri dönüşüm
koşulları hakkında daha ayrıntılı bilgi için hudutları içinde bulunduğunuz belediyenin ilgili diaresine,atık yoketmeservisine veya ürünün
satıcısına danışınız.
Franke S.p.a.
Via Pignolini,2
37019 Peschiera del Garda (VR)
www.franke.it
73/23/CEE
Dir. 89/336/CEE
93/68/CEE
