Thank you for purchasing a Franke F1 Highow Water Filtration system. Your system
is a proven performer manufactured from only quality materials and components and
will give years of ‘spring fresh’ water, if maintained properly.
The F1 Highow Water Filter system cartridges need replacing regularly to maintain
optimum performance. This is a simple procedure when following instructions. For
cartridge replacements contact your nearest Franke stockist.
Customer Service Helpline 03 9700 9100 (Australia) 09 964 0400 (New Zealand).
Operation
The F1 Highow Water Filter system is designed to run economically for many
years, dependant on the initial installation and periodical maintenance.
Flush systems for 10 minutes after any period of non-use more than 2 days.
The F1 Highow Water Filter is designed to operate with mains, rain, harsh and
rural water.
WHAT'S INSIDE

3High Flow Inline Water Filter System User Guide
Installation
This system comes complete with an installation kit enabling it to be connected to
15mm (½”) male thread to an existing tap or mixer tap (Cold supply only - hot water
should be ltered prior to heating). Also includes extending kit, where extra length is
required.
Installation requirements
1. 15mm (½”) Cold water exi-connector to tap.
2. Water supply pressure: 200-860 kPa.
3. Water supply temperature: 2°-38°C.
Alternative ttings may be required if being connected to anything other than 15mm
(½”) copper pipe. No electrical or drainage requirements needed.
Installation Procedure
Note: The use of a second spanner is recommended to prevent the brass
ttings from further tightening when installing (or disconnecting) the exible
hose.
1. Select suitable location that is close to the existing tap. Remember to allow
access room for changing lter and a suitable place where water spillage will not
cause damage. Location should not be in direct sunlight.
2. Isolate water supply and release water pressure by operating faucet lever.
Disconnect existing braided hose connections.
3. Attach non-return valve to water supply with plumbers tape, then attach chrome
adaptor onto non-return valve with plumbers tape.
4. Install F1-R cartridge to the head assembly (see g. 1). Please note arrow on
cartridge.
5. Install system assembly by positioning it in the desired location, marking the
position of xing holes and xing with mounting screws. (F1 Highow Water Filter
can be mounted horizontally and vertically) Allow room for the connecting tubes
and for removing the cartridge (70mm).
6. Connect the braided hose onto chrome adaptor, then connect to the F1 Highow
Water Filter head assembly inlet. Ensure the hose is kink free.
INSTALLATION GUIDE

4 Installation & Operation Manual
INSTALLATION GUIDE
7. Connect original braided hose attached to tap onto the head assembly outlet.
Make sure all ttings are tight and braided hose is kink free.
8. Restore the water supply and check for leaks. If leaks occur, undo cartridge and
check the cartridge is seated properly.
9. Run the system for at least 10 minutes (turn on mixer tap to run cold water) to
remove carbon nes. Water may appear milky, but this is normal and is only tiny
air bubbles that will clear after a short period.

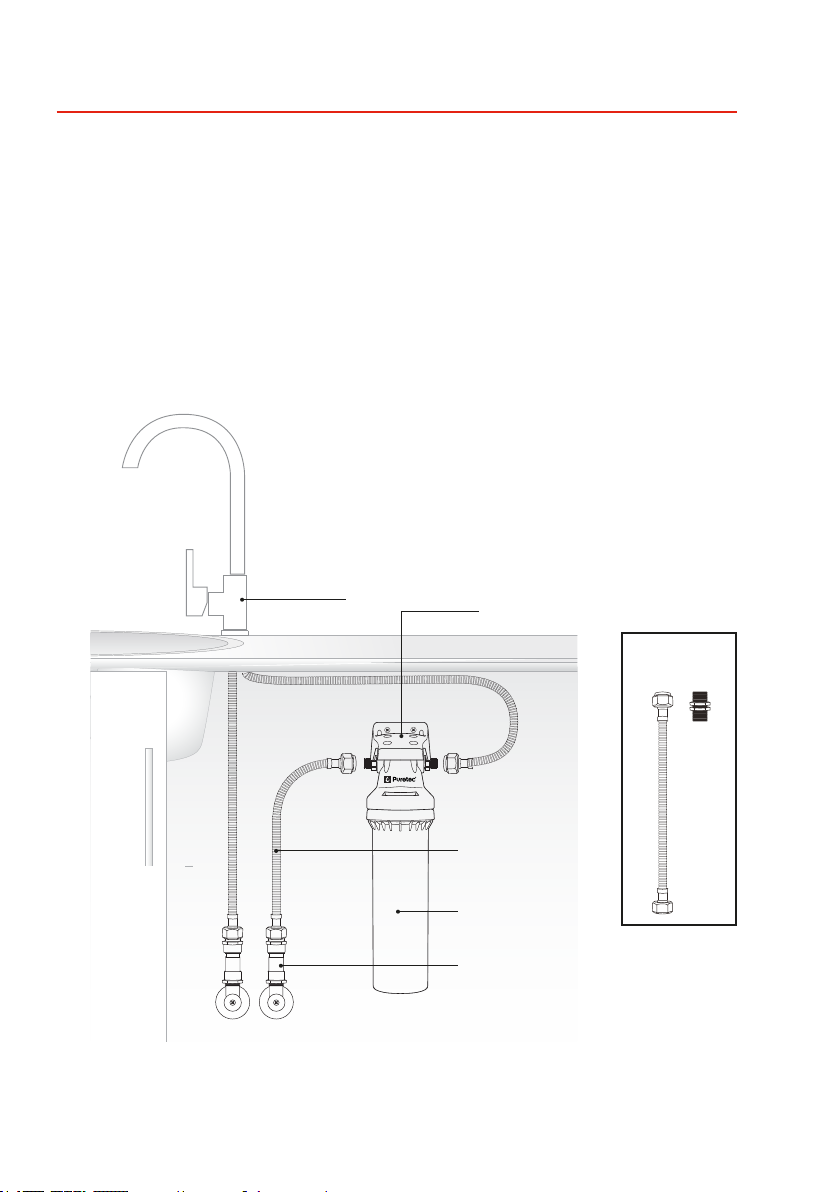

Figure 1
Head
Assembly
Also Includes
Extending Kit
Existing Mixer Tap
F1-R Cartridge
HOT COLD
Braided Hose
Non-Return Valve

5High Flow Inline Water Filter System User Guide
CARTRIDGE CHANGEOUT
Cartridge Replacement
To maintain the high quality of the puried water the cartridges need changing every 6
months (this is dependant on water quality and usage).
You can obtain replacement cartridges from your local Franke stockist or by contacting
PR Kitchen Systems directly. To maintain performance standards and warranty, use only
genuine Franke F1 cartridges.
Order the F1-R for a replacement cartridge to suit your F1 Highow Water Filter
system.
1. Place container under lter in case of drips.
2. Isolate water supply and release water pressure by operating faucet lever.
3. Unscrew F1-R cartridge in a clockwise direction. Discard old cartridge.
4. Take off red cap from the new cartridge. Twist new cartridge in an anticlockwise
direction into head until rmly seated. Ensure ow arrow on cartridge is in the
same direction of the water ow.
5. Restore water supply.
6. Check for any leaks, rectify them before leaving the unit.
After installing cartridge ush unit for 5 - 10 minutes.
User Guidelines
• Use for mains, rain, harsh and rural water supply.
• Minimum operating pressure 200 kPa.
• Maximum operating pressure 860 kPa.
• Do not allow exposure to temperatures below 2°C.
• Maximum operating temperature 38°C.
• Nominal ow rate 8 Lpm.
• This system must be installed according to local plumbing codes on the cold water
line only.
• Replacement Cartridges: See Cartridge Replacement section
• This system requires regular replacement of the lter cartridge to maintain proper
operation. Varying chlorine, sediment, or organic substance levels may affect
replacement frequency.

6 Installation & Operation Manual
PERFORMANCE DATA
• Be sure to change the lter cartridge at least every 56,000 litres or 12 months
which ever occurs rst; or whenever you detect a change in taste, odour, or
decrease in ow.
Caution: Do not use with water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
Performance Data
Substance Guidelines*
Average
Inuent
Concentration
Max Efuent
Concentration
Min Percent
Removal
Average
Efuent
Concentration
Average
Percent
Removal
NSF Standard 42 Drinking Water Treatment Units
Chlorine
(56,775 L)
5 - Health
0.6 - Aesthetic 2.1 0.3 50% 0.25 >95%
Test Parameters
Hardness, Total mg/L 140
TDS mg/L 330
Temp deg C 20
Turbidity NTU ND (0.1)
pH 7.61 *Australian Drinking Water Guidelines - 1996
ND = Not Detected
This appliance meets the domestic water treatment appliance Standards AS/NZS3497 for the fol-
lowing water treatment processes:
Class Treatment type Function Pass
I Microbiological Status Will stop bacteria increasing, but will
not remove them unless II(a) is passed
N/A
Bacteriostatic
II Microbiological Treatment
II (a) Bacteria Removal Will remove or inactivate bacteria N/A
II (b) Virus Removal Will remove or inactivate virus N/A
II (c) Protozoa Removal Will remove or inactivate
Cryptosporidium and Giardia, but will
not remove or inactivate bacteria and
virises unless II(a) and II(b) is passed
N/A
III Turbidity & Particulate Reduction Reduces cloudiness YES
IV Taste & Odour Reduction Reduces taste & odours YES
VChemical Treatment Decreases chlorine YES

7High Flow Inline Water Filter System User Guide
WARRANTY
Warranty
Any claim under this warranty must be made within 10 Years of the date of purchase of the
product. This product is warranted to be free of defect of material and workmanship for 10 Years
from date of purchase. Warranty is 10 years parts, 1 year parts and labour, excludes cartridge.
To make a claim under the warranty, take the product and proof of purchase to place where you
purchased the product, and they will lodge a Warranty Request with Franke.
Franke will pay your reasonable, direct expenses of claiming under this warranty. You may
submit details and proof of your expense claim to place of purchase for consideration.
The warranty only applies if the product was used and/or installed in accordance with the user
guide and/or installation instructions. This warranty is given in lieu of all other express or implied
warranties and manufacturer shall in no circumstance be held liable for damages consequential
or otherwise or delays caused or faulty manufacturing except as excluded by law.
Applicable to all above, is that the Warranties need to be approved by Franke to ensure product
was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at
Franke’s discretion, including chargeable inspection and labour costs incurred.
Upon registration of the system with PR Kitchen and Washroom systems an extra 5 year
warranty will be applicable incorporating the same terms as above.
Warranty/Australia
This warranty is given by PR Kitchen & Washroom Systems, ABN 80138663279,
83 Bangholme Road, Dandenong South VIC 3175, telephone no. 03 9700 9100 and
email at [email protected]
This warranty is provided in addition to other rights and remedies you have under law: Our
goods come with guarantees which cannot be excluded under the Australian Consumer Law.
You are entitled to replacement or refund for a major failure and to compensation for other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
Warranty/New Zealand
This warranty is given by PR Kitchen & Washroom Systems, ABN 80138663279,
83 Bangholme Road, Dandenong South VIC 3175, telephone no. 09 964 0401 and email at
[email protected]
This warranty is provided in addition to other rights and remedies you have under law: Our
goods come with guarantees which cannot be excluded under the Consumer Guarantees Act.
You are entitled to replacement or refund for a major failure and to compensation for other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
Notes
Important: Sales of products are subject to our Terms and Conditions which are available upon
request. All specications, information and photos are a guide only and are subject to change
without notice. Please ring to conrm details. Warning: For correct operation of this appliance it
is essential to observe manufacturer’s instructions.

PR Kitchen & Washroom Systems
83 Bangholme Road
Dandenong South
VIC 3175
Australia
