MONODRIVE UTILITY
Owner’s Manual

2
COPYRIGHT INFORMATION
Copyright © 2019, Franklin Electric, Co., Inc. All rights reserved.
The entire contents of this publication are copyrighted under United States law and protected by worldwide copyright laws
and treaty provisions. No part of this material may be copied, reproduced, distributed, republished, downloaded, displayed,
posted or transmitted in any form by any means, including electronic, mechanical, photocopying, recording, or otherwise,
without prior written permission of Franklin Electric. You may download one copy of the publication from 35TUwww.franklinwa-
ter.comU35T onto a single computer for your personal, non-commercial internal use only. This is a single copy, single use license,
not a transfer of title, and is subject to the following restrictions: you may not modify the materials, use them for any com-
mercial purpose, display them publicly, or remove any copyright or other proprietary notices from them.
The information in this publication is provided for reference only and is subject to change without notice. While every effort
has been made to ensure the accuracy of this manual at the time of release, ongoing product improvements and updates can
render copies obsolete. Refer to 35T35TUwww.franklinwater.comU35T for the current version.
This publication is provided “as is” without warranties of any kind, either express or implied. To the fullest extent possible
pursuant to applicable law, Franklin Electric disclaims all warranties, express or implied, including but not limited to, implied
warranties of merchantability, fitness for a particular purpose, and non-infringement of intellectual property rights or other
violation of rights. Franklin Electric does not warrant or make any representations regarding the use, validity, accuracy, or
reliability of the material in this publication.
Under no circumstances, including but not limited to, negligence, shall Franklin Electric be liable for any direct, indirect, spe-
cial, incidental, consequential, or other damages, including, but not limited to, loss of data, property damage, or expense
arising from, or in any way connected with, installation, operation, use, or maintenance of the product based on the material
in this manual.
Trademarks used in this publication:
The trademarks, service marks, and logos used in this publication are registered and unregistered trademarks of Franklin
Electric and others. You are not granted, expressly, by implication, estoppel or otherwise, any license or right to use any
trademark, service mark, or logo displayed on this site, without the express written permission of Franklin Electric.
FE Logo and Design® and MonoDrive Utility™ are registered trademarks of Franklin Electric.
NEMA is a trademark of The Association of Electrical Equipment and Medical Imaging Manufacturers.
Franklin Electric
Technical Publications
9255 Coverdale Road
Fort Wayne, IN 46809

3
TABLE OF CONTENTS
PRODUCT INFORMATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
Description ........................................................................................................................................................... 7
Features ................................................................................................................................................................ 7
Models ...................................................................................................................................................................8
Pump Sizing and Performance .........................................................................................................................9
Generator Sizing ..................................................................................................................................................9
Preliminary inspections .................................................................................................................................... 10
INSTALLATION AND SETUP - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -11
Installation Process .............................................................................................................................................11
Standard Submersible Constant Pressure System ...............................................................................12
Minimum Pressure Tank and Supply Pipe Sizing ..................................................................................13
Physical Installation ...........................................................................................................................................14
Drive Mounting ...........................................................................................................................................15
Electrical Installation ..........................................................................................................................................16
Wiring Guidelines .......................................................................................................................................16
High Voltage Wiring Connections ...........................................................................................................19
Control Circuit Connections ......................................................................................................................21
Drive Configuration ...........................................................................................................................................22
Motor Type Selection ................................................................................................................................22
Pressure Input Selection (DIP SW2 – Position 1) .................................................................................22
Adjusting Pressure Setting ................................................................................................22
Drawdown Feature (DIP SW2 – Position 5) ....................................................................23
Performance Settings ...............................................................................................................................24
System Response (DIP SW2 – Positions 2–4) ................................................................24
Underload Sensitivity .........................................................................................................24
Steady Flow Selection (DIP SW3 – Position 1) ...............................................................25
Tank Size and Bump Mode Adjustments .........................................................................26
OPERATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Control Functions ..............................................................................................................................................27
Drive Display ..............................................................................................................................................27
Monitoring Functions ........................................................................................................................................28
Protection Features ...........................................................................................................................................28
Over Temperature Foldback ...................................................................................................................28
Motor Soft Start .........................................................................................................................................28
Motor Overload Protection ......................................................................................................................28
Broken Pipe Protection ............................................................................................................................28

4
MAINTENANCE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29
Troubleshooting ................................................................................................................................................ 29
System Diagnostics Fault History ...........................................................................................................29
Diagnostic Fault Codes ............................................................................................................................ 30
Symptom Based Troubleshooting ..........................................................................................................32
Periodic Maintenance ........................................................................................................................................34
Fan Replacement .......................................................................................................................................34
Screen Replacement .................................................................................................................................34
Firmware Updates .............................................................................................................................................35
Firmware Version Readout ......................................................................................................................35
Firmware Update Procedure ...................................................................................................................36
SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 37
Common Specifications ....................................................................................................................................37
Accessories .........................................................................................................................................................38
Applicable Standards ........................................................................................................................................38
STANDARD LIMITED WARRANTY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 39

SAFETY INSTRUCTIONS
Hazard Messages
5
SAFETY INSTRUCTIONS
Hazard Messages
This manual includes safety precautions and other import-
ant information in the following formats:
IMPORTANT: Identifies information that controls correct
assembly and operation of the product.
NOTE: Identifies helpful or clarifying information.
This symbol alerts the user to the presence of dan-
gerous voltage inside the product that might cause
harm or electrical shock.
This symbol alerts the user to the presence of hot
surfaces that might cause fire or personal injury.
Before Getting Started
This equipment should be installed and serviced by techni-
cally qualified personnel who are familiar with the correct
selection and use of appropriate tools, equipment, and pro-
cedures.. Failure to comply with national and local electrical
codes and with Franklin Electric recommendations may
result in electrical shock or fire hazard, unsatisfactory per-
formance, or equipment failure.
Read and follow instructions carefully to avoid injury and
property damage. Do not disassemble or repair unit unless
described in this manual.
Failure to follow installation or operation procedures and all
applicable codes may result in the following hazards:
Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in minor or
moderate personal injury.
Indicates a potentially hazardous situation
which, if not avoided could result in damage to
equipment or other property.
High voltages capable of causing severe
injury or death by electrical shock are
present in this unit.
• To reduce risk of electrical shock, disconnect power
before working on or around the system. More than
one disconnect switch may be required to de-ener-
gize the equipment before servicing.
• Make sure the ground terminal is connected to the
motor, control enclosures, metal plumbing, and other
metal near the motor or cable using wire no smaller
than motor cable wires.
Risk of bodily injury, electric shock, or
equipment damage.
• This equipment must not be used by children or per-
sons with reduced physical, sensory or mental abili-
ties, or lacking in experience and expertise, unless
supervised or instructed. Children may not use the
equipment, nor may they play with the unit or in the
immediate vicinity.
• Equipment can start automatically. Lockout-Tagout
before servicing equipment.
• Operation of this equipment requires detailed instal-
lation and operation instructions provided in this
manual for use with this product.
• Read entire manual before starting installation and
operation.
• End User should receive and retain manual for future
use.

SAFETY INSTRUCTIONS
Product Specific Precautions
6
Product Specific Precautions
High voltages capable of causing severe
injury or death by electrical shock are
present in this unit.
• To minimize risk of electrical shock, disconnect power
before working on or around the system.
• Serious or fatal electrical shock may result from fail-
ure to connect the ground terminal to the motor,
drive, metal plumbing, or other metal near the motor
or cable, using wire no smaller than motor cable
wires.
• Do not use motor in swimming areas.
• Capacitors inside the drive can still hold lethal voltage
even after power has been disconnected—ALLOW 5
MINUTES FOR DANGEROUS INTERNAL VOLTAGE TO
DISCHARGE BEFORE REMOVING COVER.
Risk of damage to drive or other equipment.
• Install and wire product according to the instructions
in thismanual.
• Take protective measures against ESD (Electrostatic
Discharge) before touching control boards during
inspection, installation or repair.
• This product is recommended for use with Franklin
Electric 4-inch submersible motors as specified in
this manual. Refer to “Common Specifications” on
page 37. Use of this unit with any other Franklin
Electric motor or with motors from other
manufacturers may result in damage to both motor
and electronics.
• In applications where water delivery is critical, a
replacement pressure sensor and/or back-up system
should be readily available if the drive fails to
operate as intended.

PRODUCT INFORMATION
Description
7
PRODUCT INFORMATION
Description
The Franklin Electric MonoDrive Utility is a variable frequency drive (VFD) designed to control and
protect 3-wire, single-phase 230 V motors, enhancing pump performance for residential and light
commercial water system applications. When used with Franklin Electric motors ranging from ½ to
2 HP, the MonoDrive Utility drives a motor and pump at variable speeds to maintain constant water
pressure, even as user demands (water flow) change.
The MonoDrive Utility is designed to convert a conventional pump system to a
variable speed constant pressure system by simply replacing the pressure
switch and control box.
Features
Configuration
• Compatible with submersible pumps
• No programming required with easy DIP switch setup
• Pressure sensor included for ease of installation
• Additional input for optional transducer for more precise control
• Works with small pressure tanks or existing larger tanks
Operation
• Three LED indicators for system status and troubleshooting
• 30 – 63 Hz frequency range with submersible motors
• Accessory filtering available to remove radio frequency interference
Protection
• Protection against short circuit, under-load, overload, overheat, under-voltage, over-voltage,
surges, open circuit
•Broken-pipe detection
• User-defined under-load sensitivity
• Soft-start feature prevents water hammer and increases motor life
Communication
• USB port allows for easy firmware updates
• USB port allows for easy Event Log downloads

PRODUCT INFORMATION
Models
8
Models
Submersible Applications
Motor and pump HP are programmed through DIP switch settings. Refer to “Motor Horsepower
Setting (DIP SW1 – Positions 1–5)” on page 22.
Model Part Number 230 V 3-Wire
½ HP ¾HP 1 HP 1 ½ HP 2 HP
MonoDrive Utility UT3W
- w/Pressure Sensor 5870202203 

PRODUCT INFORMATION
Pump Sizing and Performance
9
Pump Sizing and Performance
Maximum pump output using the MonoDrive Utility is similar to the performance achieved using a
pressure switch. Therefore, the pump selection criteria are the same as if a pressure switch were
used.
NOTE: MonoDrive Utility may result in 85-90% of pump performance when compared to other
MonoDrive/MonoDriveXT models, especially in applications with reduced input voltage.
Refer to the Franklin Electric AIM Manual for specific sizing information.
If a pump and motor as described above are already installed in the system, and the well system
components are in good working order, no further system upgrades are required. However, if the
existing pump and motor have not been properly chosen, or if the components of the well system
are not in good working order, the MonoDrive Utility cannot be used to correct the problem or
extend the life of aging components.
Generator Sizing
Basic generator sizing for the Franklin Electric MonoDrive Utility is 1.5 times the maximum input
watts consumed by the drive, rounded up to the next normal-sized generator.
Recommended minimum generator sizes for the MonoDrive Utility:
• 3500 watts nominal for up to 1 HP
• 5000 watts nominal for up to 2 HP
IMPORTANT: Do not use with a Ground Fault Circuit Interrupter (GFCI). If using an externally regu-
lated generator, verify that the voltage and hertz are appropriate to supply the drive. Not recom-
mended for use with invert-controlled generators or AC-DC inverters.

PRELIMINARY INSPECTIONS

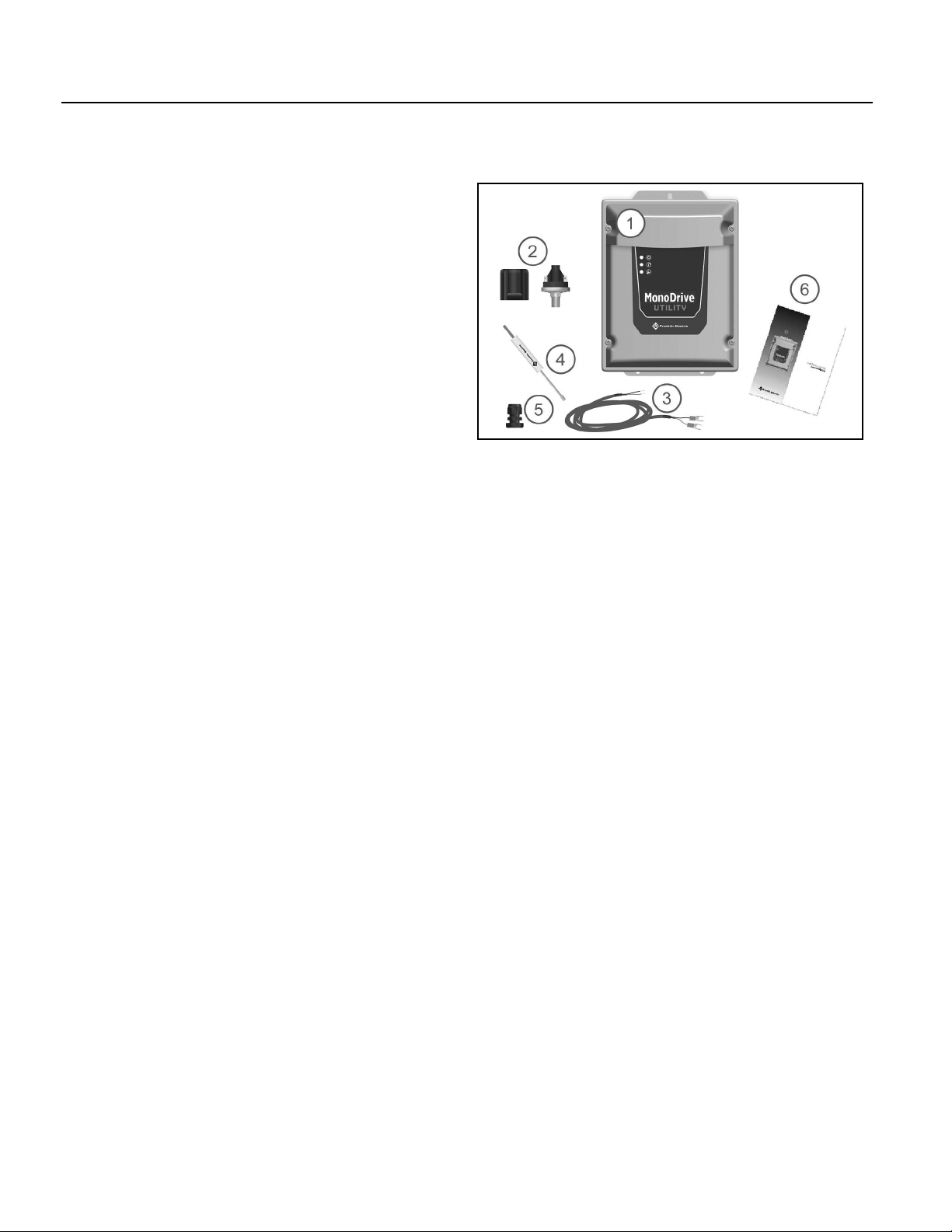

What’s in the Box
10
PRELIMINARY INSPECTIONS
What’s in the Box
1. Variable Frequency Drive (VFD)
2. Pressure Sensor and Boot
3. Sensor Cable
4. Screwdriver/Adjustment Tool
5. Strain Relief Fitting
6. Owner’s Manual
Unpacking and Inspection
1. Inspect exterior of package for shipping damage. If there is damage, notify the shipping agent
and your sales representative.
2. Verify the part number and product ratings on the identification label are correct.
3. Remove VFD from the box and check for damage.
4. Remove the VFD cover and check part number, current rating, and nominal voltage on the
sticker attached to the side of the VFD. Make sure the electrical and environmental ratings are
correct and adequate for the application.

INSTALLATION AND SETUP
Installation Process
11
INSTALLATION AND SETUP
Installation Process
Refer to the following table when planning installation of the MonoDrive Utility.
1. The planned usage of the overall system will determine which options and control methods
are appropriate, as well as how the VFD should be installed and programmed. Refer to the fol-
lowing pages for examples of how the system might be used.
2. System options define and automate features that support the intended operation. These fea-
tures may require specialized control methods and programming. For more details, refer to
“Drive Configuration” on page 22, and “Performance Settings” on page 24.
3. The MonoDrive Utility supports several methods for automating pump motor speed control.
Refer to “Drive Configuration” on page 22 for possible control setups.
4. The overall function of the system directly affects where and how the VFD should be mounted.
Refer to “Physical Installation” on page 14 for guidelines.
5. The selected motor application, along with the control method(s), determines how the VFD
should be connected. Refer to “Electrical Installation” on page 16 for more information.
6. The VFD can be quickly and easily programmed for most standard operations. Refer to “Drive
Configuration” on page 22. Advanced features or options may require additional adjustments
to achieve the desired performance. Refer to “Performance Settings” on page 24.
1 2 3 4 5 6
Plan System
Goals
Identify
Options
Select Control
Methods
Install VFD
Hardware
Install Wiring Program
Parameters
Intended Function
• Constant
pressure water
systems
Hardware
Application
• Submersible
Automation
• Bump mode
• Steady Flow
•Drawdown
Protection
• Overload
• Underload
• Motor Ground
Fault
• Drive
Temperature
Pressure Feed-
back Type
• Pressure Sensor
Potentiometer
• Setpoint value
• Underload
Sensitivity
Location
• Inside
• Outside
Climate control
• Temperature
• Moisture
Distance
• Wire sizes
• Filtering
requirements
Measurements
• Clearance
• Drilling
Conduit
• Routing
• Separation
High Voltage
• Grounding
• Inputs
• Outputs
Control circuits
• Feedback
inputs
Basic
• Application
• Motor ratings
• Setpoints
I/O setup
• Input functions
Option settings
• Enable features

INSTALLATION AND SETUP
Installation Process
12
Standard Submersible Constant Pressure System
The above drawing illustrates how a typical submersible pump system should be arranged for a
constant pressure application.
1. Pump and Franklin Electric Motor. Refer to the Franklin Electric AIM Manual for pump, pipe,
and cable sizing information.
2. Check Valve
3. Pressure Relief Valve: Pressure relief valve must be able to pass full pump flow at 100 PSI.
4. Pressure Tank: Refer to “Minimum Pressure Tank and Supply Pipe Sizing” on page 13.
5. Pressure Gauge
6. Pressure Sensor or transducer: Install in a vertical position.
7. MonoDrive Utility VFD
8. Power Supply from Circuit Breaker. Single phase, 230 VAC ±10%.
9. Power to Motor: Single phase.
A tank tee is recommended for mounting the tank, pressure sensor, pressure gauge, and pressure
relief valve. If a tank tee is not used, the pressure sensor or pressure transducer should be within 6
feet (1.8 meters) of the pressure tank to minimize pressure fluctuations. There should be no elbows
between the tank and pressure sensor.
Risk of bodily injury or property damage.
• Pumps can develop very high pressure in some situations. Always install a pressure relief
valve able to pass full pump flow at 100 psi.
• Install the pressure relief valve near the pressure tank and route to a drain capable of full sys-
tem flow.

INSTALLATION AND SETUP
Installation Process
13
Minimum Pressure Tank and Supply Pipe Sizing
A VFD system needs only a small pressure tank to maintain constant pressure, although a larger
tank may be used. If adding a MonoDrive Utility to a conventional system with an existing large
tank, refer to “Tank Size and Bump Mode Adjustments” on page 26.
The pressure tank pre-charge setting should be 70% of the targeted system pressure. To check the
tank’s pre-charge, de-pressurize the water system by opening a tap with the drive off. Measure
with a pressure gauge at the inflation valve and make any necessary adjustments.
Refer to the following recommendations for best performance.
Submersible Pump Applications
Minimum Supply Pipe Sizes
The minimum supply pipe inside diameter past the pressure sensor (transducer) should be
selected to not exceed a maximum velocity of 8 feet per second (2.4 m/s) based on the flow rate of
the system.
Pump Flow Rating Minimum Tank Size up to 1 HP Minimum Tank Size over 1 HP
Less than 12 gpm (45.4 lpm) 2 gallons (7.6 liters) 4 gallons (15.1 liters)
12 gpm (45.4 lpm) and higher 4 gallons (15.1 liters) 8 gallons (30.3 liters)
Maximum GPM (lpm) Minimum Pipe Diameter
11.0 (41.6) 3/4”
19.6 (74.2) 1”
30.6 (115.8) 1-1/4”
44.1 (166.9) 1-1/2”
78.3 (296.4) 2”
176.3 (667.4) 2-1/2”

INSTALLATION AND SETUP
Physical Installation
14
Physical Installation
Environmental Requirements
The MonoDrive Utility is intended for operation in ambient temperatures from -13 °F to 122 °F
(-25 °C to 50 °C). Use the following recommendations when selecting a location to mount the
drive:
• The unit should be mounted on a structure such as a wall
or post capable of supporting the weight of the unit.
• The MonoDrive Utility electronics are air-cooled. Allow at
least 6 inches (15.24 cm) of clearance on each side and 18
inches (45.7 cm) below the unit for air flow.
• The mounting location should have access to 230 VAC
electrical supply and to the motor wiring. To avoid possi-
ble interference with other appliances, refer to “Cable
Routing” on page 16.
Special Considerations for Outdoor Use
The MonoDrive Utility is suitable for outdoor use with a NEMA
3R rating; however, the following considerations should be
made when installing the controller outdoors:
• The unit must be mounted vertically with the wiring end
oriented downward, and the cover must be properly
secured (also applies to indoor installations).
• Mount the drive on a surface or back plate no smaller than the outer dimensions of the enclo-
sure.
• NEMA 3R enclosures are capable of withstanding downward-directed rain only. Protect from
hose-directed or sprayed water as well as blowing rain. Failure to do so may result in controller
failure.
• Install away from direct sunlight or locations subject to extreme temperatures or humidity.
• Use appropriate screening for the air inlet and outlet when installed in areas where insect or
small animal intrusion is an issue. Refer to “Accessories” on page 38 for ordering information.
• Screens should be cleaned on a regular basis to ensure proper airflow.
Risk of damage to drive, or malfunction can occur due to improper handling,
installation, or environment.
• Handle with care to prevent damage to the plastic components.
• Do not mount VFD on equipment with excessive vibration.
• Install in a location where temperature is within the range of product rating.
• Mount VFD vertically (top up) for proper heat dissipation.
• Do not mount VFD in direct sunlight or near other heat sources.
• Do not install in corrosive environments.
• Installation of non-approved screening may damage the drive and/or reduce output.

INSTALLATION AND SETUP
Physical Installation
15

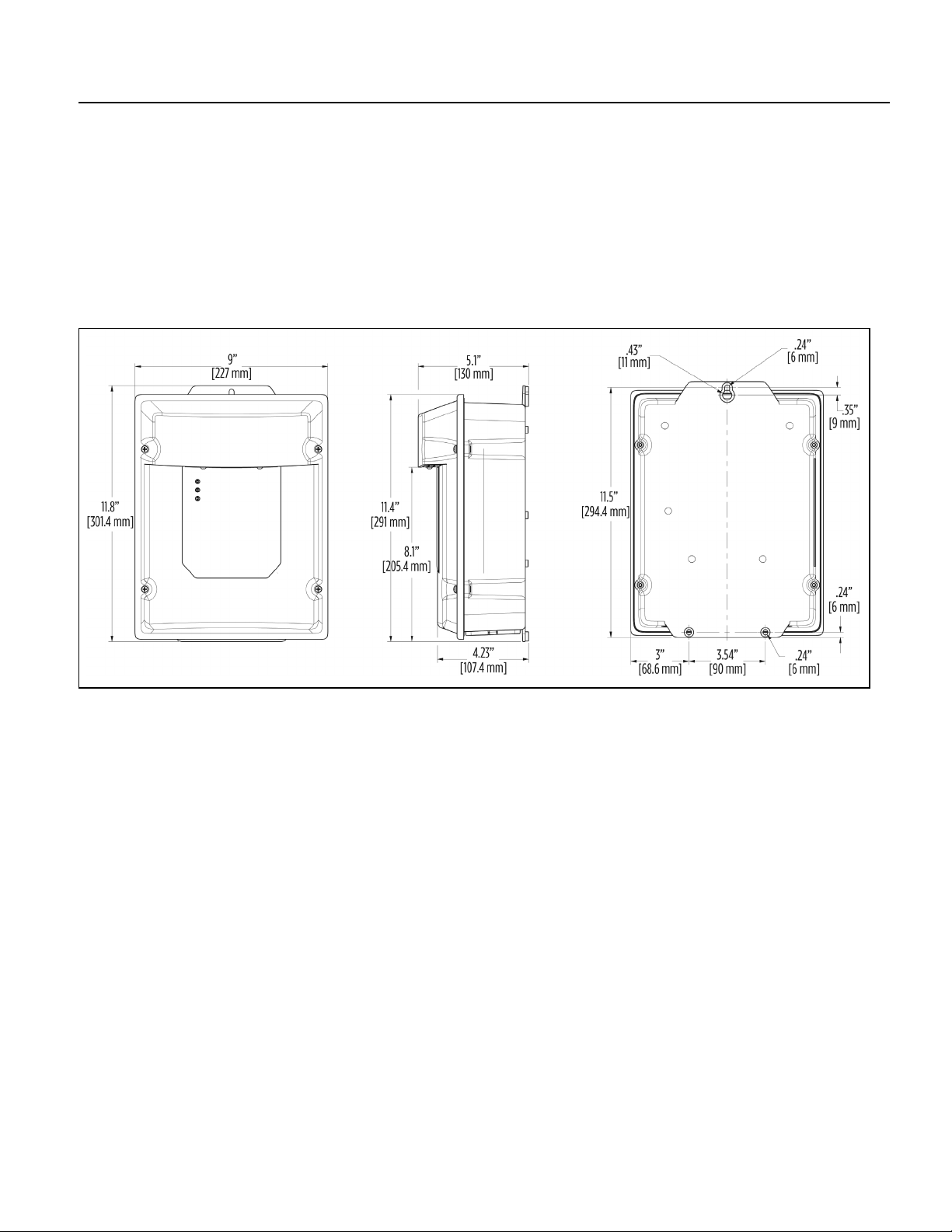

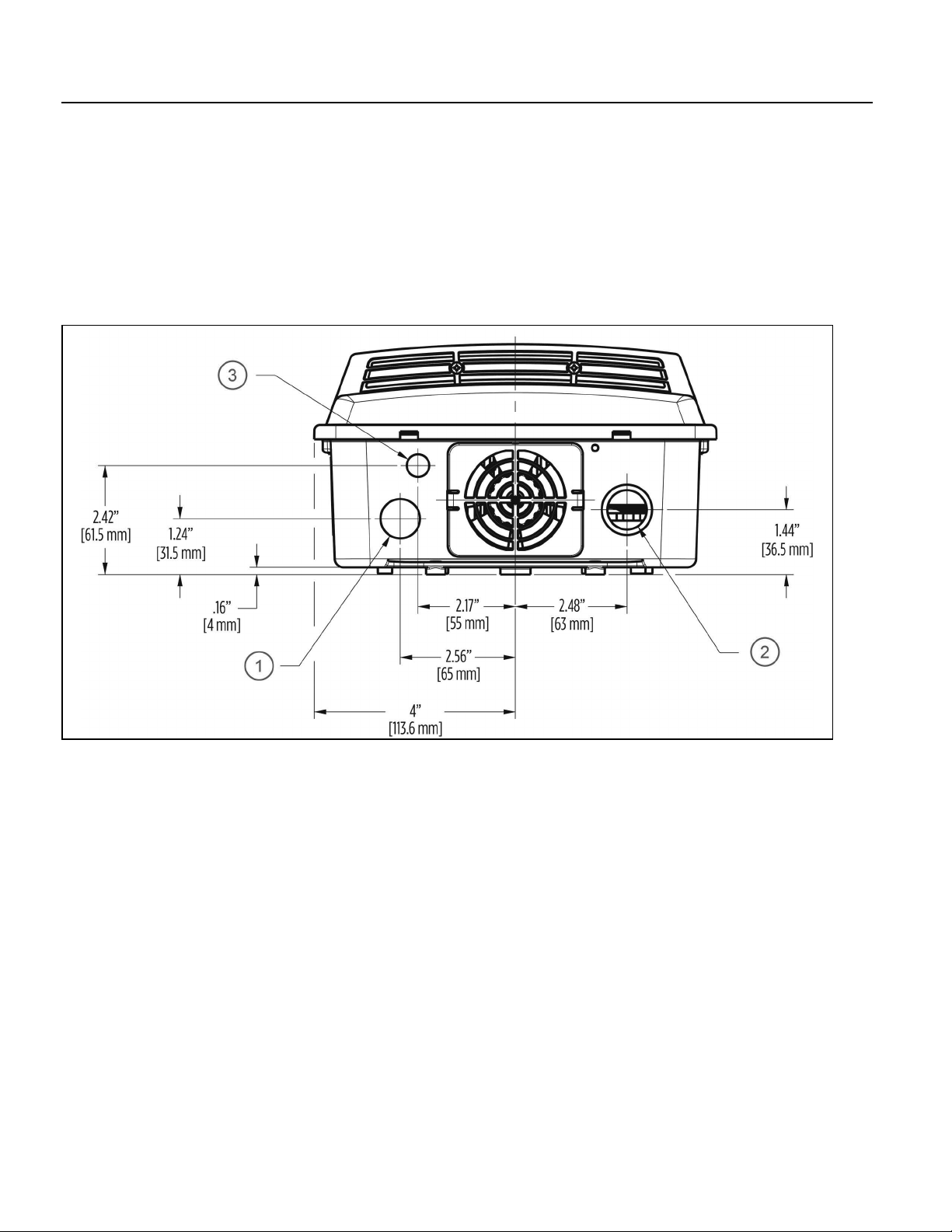

Drive Mounting
The MonoDrive Utility should be mounted on a surface or backplate no smaller than the outer
controller dimensions in order to maintain the NEMA 3R rating. The controller must be mounted at
least 18" (45.7 cm) off the ground.
The drive is mounted using the hanging tab on the top side of the enclosure, as well as two (2)
additional mounting holes on the back side. All three (3) screw hole locations should be used to
ensure the drive is securely mounted.
IMPORTANT: Do not drill holes in the drive.

INSTALLATION AND SETUP
Electrical Installation
16
Electrical Installation
Wiring Guidelines
Follow the recommendations in this section to ensure best performance of the MonoDrive Utility
and to avoid interference with other devices.
Cable Routing
Use the above diagram as a guide when routing wiring to the VFD.
1. Mount the drive as close as possible to the service entrance panel. Wire directly to the service
entrance. Do not connect to a sub-panel.
2. Use a dedicated branch circuit for the drive. Refer to “Fuse/Circuit Breaker and Wire Sizing” on
page 17.
3. Route motor wiring out of building as soon as possible. Separate input power and motor wir-
ing by at least 8 in. (20.3 cm). Refer to “Maximum Motor Cable Length” on page 17.
4. Cross over other branch circuits and facility wiring at a 90angle. If it is necessary to run wir-
ing in parallel, separate by at least 8 in. (20.3 cm).
All control wiring—sensors, switches, transducers, etc.—should be in a separate conduit routed
individually, not parallel, from high voltage wiring. In addition, any shielded cables should be prop-
erly grounded.

INSTALLATION AND SETUP
Electrical Installation
17
Branch Circuit Protection
Integral solid state short circuit protection does not provide branch circuit protection. Branch circuit
protection must be provided in accordance with the National Electrical Code and any additional
local codes, or the equivalent. Drive shall be protected by fuse or inverse-time circuit breaker only,
rated 300 V, and a maximum 300% of full load motor output current rating as noted below.
Fuse/Circuit Breaker and Wire Sizing
1 Based on a 3% voltage drop.
*90 C Insulation only.
Note: MonoDrive Utility minimum breaker amps may be lower than AIM Manual specifications
because of the soft-starting characteristic of the drive.
Maximum Motor Cable Length
1 Based on a 5% voltage drop with 1000 ft limit.
Risk of damage to VFD, or malfunction can occur.
Follow all wire routing and grounding instructions carefully. Inductive currents caused by paral-
lel wiring, or close proximity between high voltage and control wiring can cause unexpected
behaviors.
• Do not run input power and motor wires in the same conduit.
• Do not run motor wires from multiple VFDs in common conduit.
• Do not run control wiring parallel with high voltage wiring.
• Do not install a magnetic contactor or disconnect in the motor circuit.
• Do not run VFD wiring parallel with house or out-building wiring.
• Do not use aluminum wires for VFD connections.
• Do not use with a Ground Fault Circuit Interrupter (GFCI) between breaker panel and motor.
• All wiring must comply with the National Electrical Code and local codes.
• Improper splicing or damage to motor cable insulation may expose the conductor(s) to
moisture and can produce motor cable failure.
Model Input
Voltage
Motor HP Fuse/
Breaker
Amps
AWG Copper Wire Sizes, 75° C Insulation, and
Panel to Drive Cable Lengths (in feet)1
14 12 10 8 6 4 3 2 1 1/0
MonoDrive
Utility
230 1/2 (0.37 kW) 15 130 205 340 525 835 1315 1635 2150 2720 –
230 3/4 (0.55 kW) 15 130 150 250 390 620 975 1210 1595 2020 –
230 1.0 (0.75 kW) 20 70*110*185 285 450 715 885 1165 1475 –
230 1.5 (1.1 kW) 25 – – 140 215 340 540 670 880 1115 –
230 2.0 (1.5 kW) 25 – – 105 167 264 421 530 669 843 1062
Model Motor Family Motor
Voltage
Horsepower AWG 600V Copper Wire Sizes, 75° C Insulation, and
Motor Cable Lengths (in feet)1
14 12 10 8 6 4
MonoDrive
Utility
214 505 xxxx 230 1/2 (0.37 kW) 400 650 1000 – – –
214 507 xxxx 230 3/4 (0.55 kW) 300 480 760 1000 – –
214 508 xxxx 230 1.0 (0.75 kW) 250 400 630 990 – –
224 300 xxxx 230 1.5 (1.1 kW) 190 310 480 770 1000 –
224 301 xxxx 230 2.0 (1.5 kW) 150 250 390 620 970 –

INSTALLATION AND SETUP
Electrical Installation
18
Notes:
• The use of 600 V minimum rated motor cable is required.
• Maximum allowable wire lengths are measured between the controller and motor, based on
AIM Manual requirements with 1000 ft limit. Larger wire and filtering are required if exceeding
the 1000 ft limit.
• Flat-jacketed submersible motor cable is recommended. All splices in the motor cable must be
properly sealed with watertight shrink tubing. Use extreme caution to avoid damaging or
compromising the motor cable insulation during installation or service.
Conduit Locations and Sizing
Use appropriate strain relief or conduit connectors.
1. Incoming power supply—Hole = 0.88 in. (22.2 mm), Knockout = 1.11 in. (28.2 mm)
2. Power output to motor—Hole = 0.88 in (22.2 mm), Knockout = 1.11 in. (28.2 mm)
3. Control wiring (sensor) input—Hole = 0.5 in. (12.7 mm)

INSTALLATION AND SETUP
Electrical Installation
19
High Voltage Wiring Connections
Ground Connections
Follow these grounding requirements to ensure safety and performance.
1. Make sure a service entrance ground rod is properly installed and connected.
2. Service Entrance Panel.
3. An input power ground wire from the supply panel must be connected to the drive.
4. A dedicated output ground wire from the drive must be connected to the motor. Motor and
ground wires must be bundled together.
Contact with hazardous voltage could result in death or serious injury.
• Disconnect and lock out all power before installing or servicing equipment.
• Connect the motor, the VFD, metal plumbing, and all other metal near the motor or cable to
the power supply ground terminal using wire no smaller than motor cable wires.
• Install and wire in accordance with all applicable local and national electrical construction
codes.
Risk of damage to drive, or malfunction can occur.
• Ensure that the system is properly grounded all the way to the service entrance panel.
Improper grounding may result in loss of voltage surge protection.
• Nonmetallic enclosure does not provide grounding between conduit connections. When
using metal conduit, install Listed grounding bushings and Listed No. 10 AWG minimum
wires per national and local codes.
• When installing rigid metal conduit, connect conduit to hub BEFORE hub is connected to
drive enclosure.

INSTALLATION AND SETUP
Electrical Installation
20
Power Circuit and Motor Connections
Drive is suitable for use on a circuit capable of delivering not more than 5000 RMS symmetrical
amperes, 250 volts maximum.
Verify that the dedicated branch circuit for the MonoDrive Utility is equipped with a properly-sized
circuit breaker. Refer to “Fuse/Circuit Breaker and Wire Sizing” on page 17 for minimum breaker
size.
Verify that the power has been shut off at the main breaker. Follow Lockout-Tagout procedures.

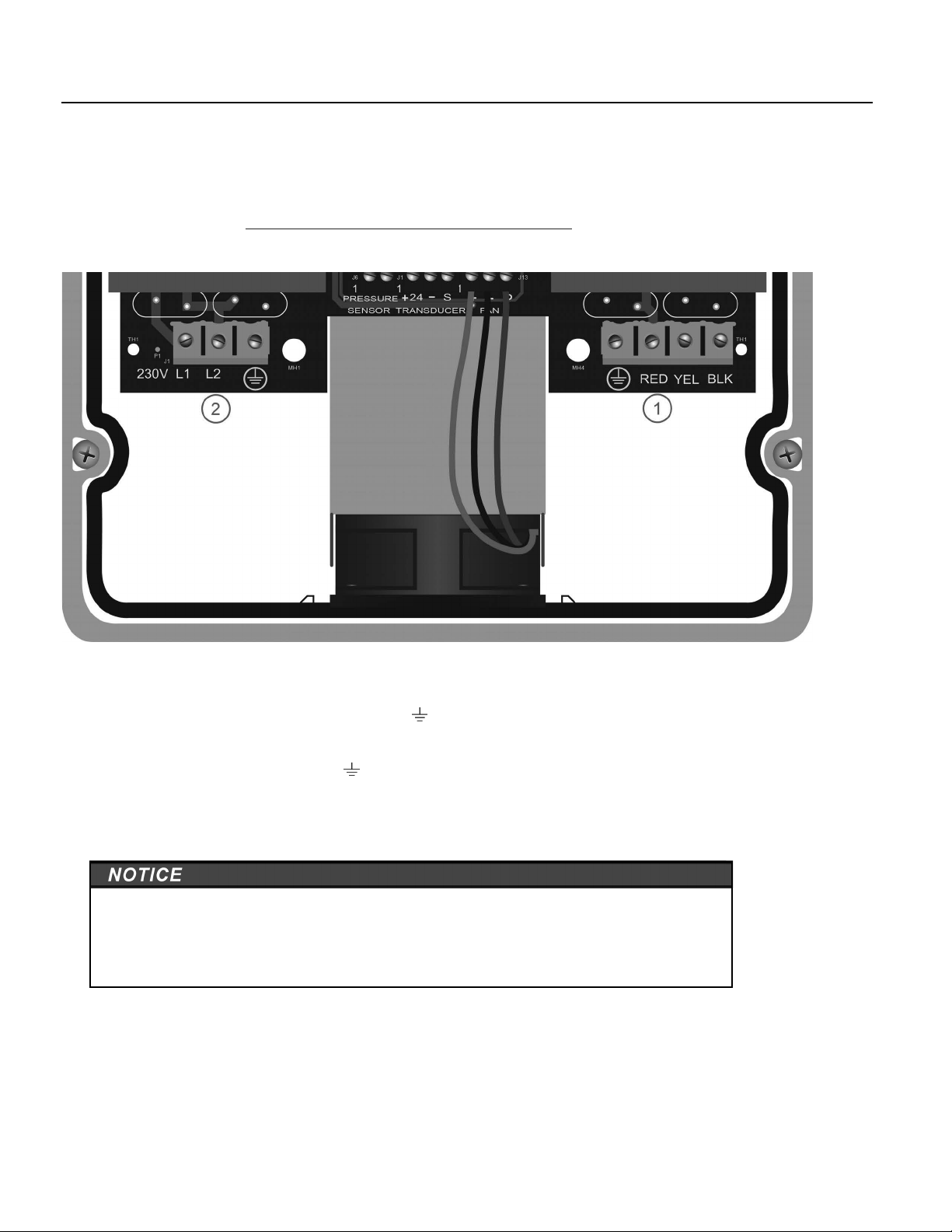

1. Feed the motor leads through the opening on the bottom right side of the drive and connect
them to the terminal block positions marked (Green Ground Wire), RED, YEL, and BLK.
2. Feed the input power leads through the larger opening on the bottom left side of the drive.
Connect 230 V wires to L1, L2, and .
These connectors accept wire sizes from 6 to 20 AWG and should be tightened to 15 in-lbs
(1.7 Nm).
Risk of damage to drive, or malfunction can occur.
• For retrofit application, make sure to check the integrity of power and motor leads. This
requires measuring the insulation resistance with a suitable megohm-meter.
• Refer to AIM Manual for specifications.
