Free2Move eSolutions eProWallbox User manual

EN
Rev.01 – 2023
Installation Manual
For safe and proper use,
follow these instructions.
Keep them for future reference

2
Installation Manual
TABLE OF CONTENT
1 INTRODUCTION 4
1.1 Purpose of the Manual 4
1.2 IdenticationoftheManufacturer 4
1.3 Structure of the installation Manual 4
1.4 Safety 4
1.5 Personal Protective Equipment (PPE) 6
1.6 Warranty and delivery conditions 7
1.7 List of documents in the appendix 7
1.8 Warnings 8
2 GENERAL INFORMATION 9
2.1 Fields of use 10
2.2 Symbolsanddenitions 11
2.3 Identicationlabel 12

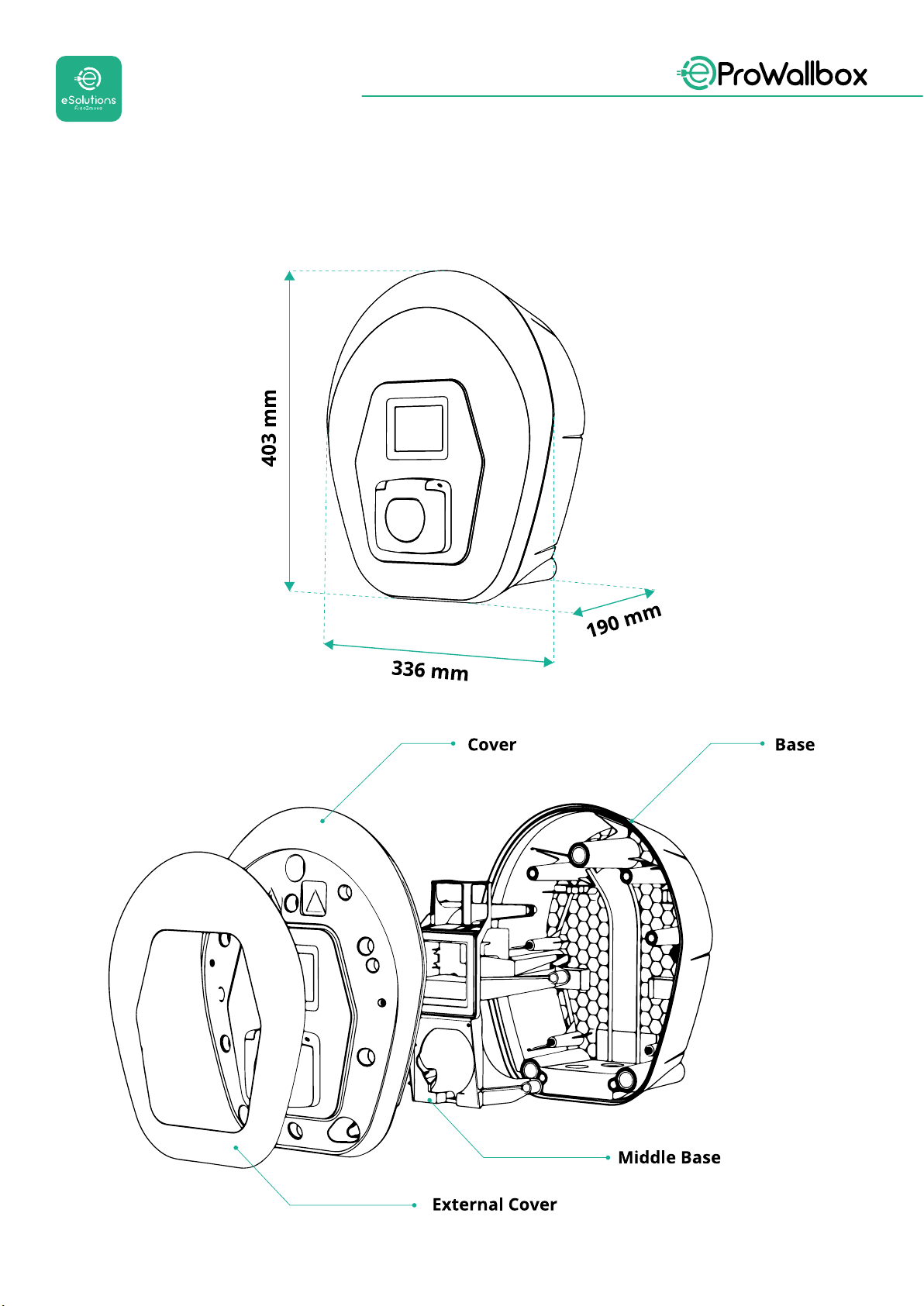

2.4 Product dimensions and characteristics 13
2.5 Technicalspecications 14

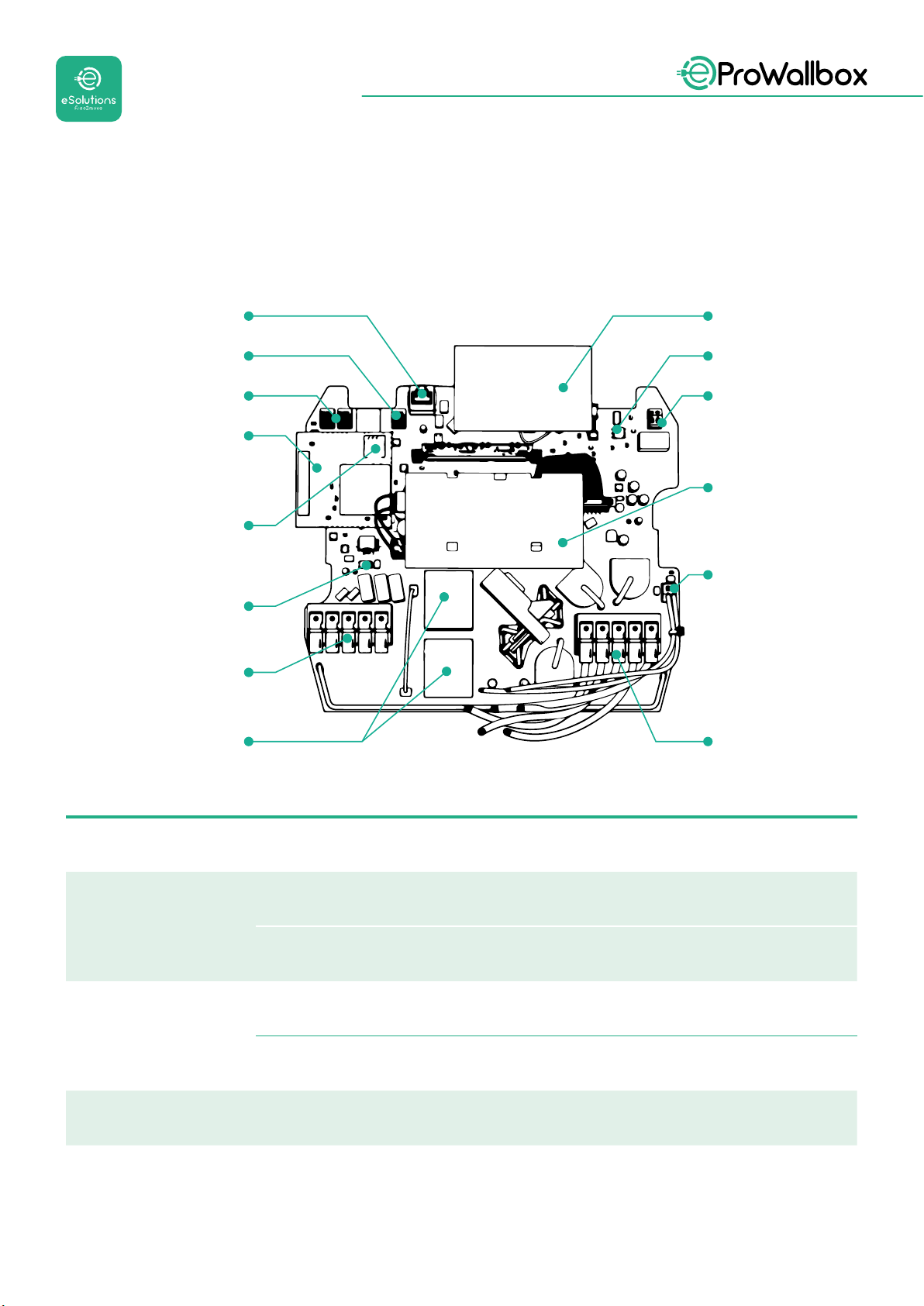

2.6 Description of ports 15
3 INSTALLATION 16
3.1 Preparing for Installation 16
3.2 Package Contents 18

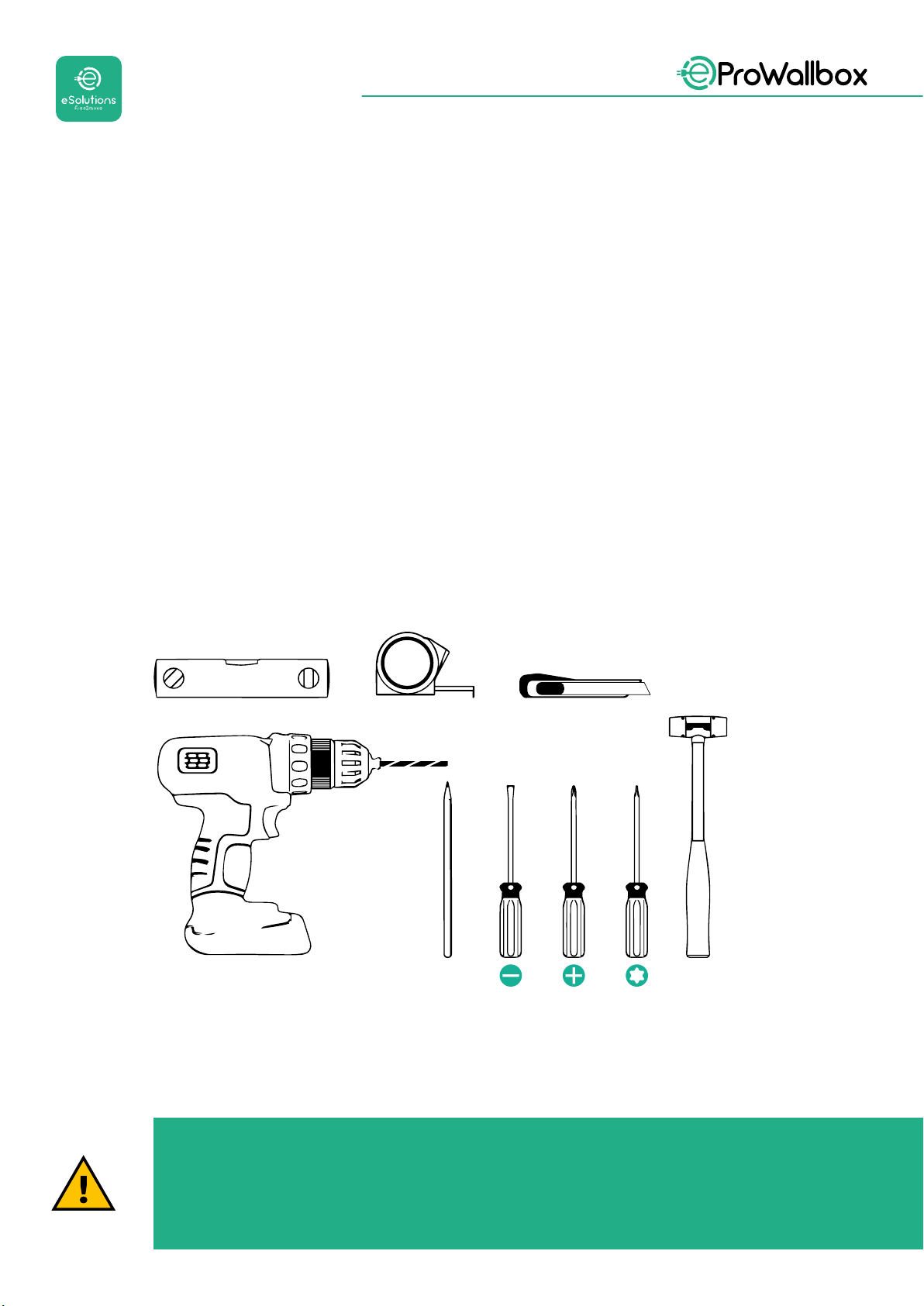

3.3 Required tools 19
3.4 Space and positioning 20
3.5 Wall mounting 22
3.6 Installation of external protection devices 24
3.7 Power supply connection 25
3.7.1 Single-phase installation 28
3.7.2 Three-phase installation 29
3.8 Connection of the communication cable 30
3.9 Installation in IT systems 32
3.10 Setting the power supply type and maximum power 33
3.11 Closing operations and power on 34

3
Installation Manual
3.12 eProWallbox Display Screens 35
3.13 Parametercongurationafterinstallation 38
3.14 Setting maximum power 39
3.15 Operatingmodeconguration 39
3.16 Wi-Fi setting 41
4 COUNTRY SETTINGS 42
4.1 Unbalanced load 42
4.2 Randomized delay 43
5 ADVANCED FUNCTIONS 44
5.1 Master / Slave 44
5.2 Backend connection setting 48
5.3 Diagnostics 50
6 TROUBLESHOOTING 51
7 CLEANING 54
8 PACKAGING DISPOSAL 55
9 ASSISTANCE 55
10 DISCLAIMER 55

4
Installation Manual
1 INTRODUCTION
1.1 Purpose of the Manual
This installation manual is a guide to help operators to work safely and carry out the
installation operations needed to keep the appliance in good working order.
Thepurposeofthisdocumentistosupportqualiedtechnicianswhohavereceived
appropriate training, and demonstrated suitable skills and knowledge in the
construction, installation, operation and maintenance of electrical equipment.
If the appliance is used in a manner not specied in this manual, the protection
provided by the appliance may be impaired. This document contains the information
required for the installation of the appliance.
This document has been carefully checked by the Manufacturer Free2move
eSolutions S.p.A. but oversights cannot be completely ruled out. If any errors are
noted, please inform Free2move eSolutions S.p.A. Except for explicit contractual
obligations, under no circumstances may Free2move eSolutions S.p.A. be held liable
for any loss or damage resulting from the use of this manual, or from installation of
the equipment. This document was originally written in English. In the event of any
inconsistencies or doubts, please ask Free2move eSolutions S.p.A. for the original
document.
1.2 Identication of the Manufacturer
The manufacturer of the appliance is:
Free2move eSolutions S.p.A.
Piazzale Lodi, 3
20137 Milan – Italy
www.esolutions.free2move.com
1.3 Structure of the installation Manual
Thismanualisdividedintochaptersbasedondierenttopicsandcontainingall
the information that is needed to install the appliance safely.
Each chapter is sub-divided into paragraphs which examine the fundamental points,
and each paragraph may have its own title, along with sub-titles and a description.
1.4 Safety
This manual contains important safety instructions that must be followed during
installation of the appliance.

5
Installation Manual
Inordertofullthisobjective,thismanualcontainsanumberofprecautionary
texts,containingspecialinstructions.Theseinstructionsarehighlightedbyaspecic
text box and are accompanied by a generic hazard symbol (except for NOTICE
andNOTEwhicharenotassociatedwithspecichazardoussituations),andare
provided in order to ensure the safety of the personnel required to perform the
operations described, and to avoid any damage to the appliance and/or property:
DANGER: Failure to comply with the instruction will result in an imminent hazardous
situation which, if not avoided, will result in instant death, or serious or permanent
injury.
WARNING: Failure to comply with the instruction will result in a potentially
hazardoussituationwhich,ifnotavoided,couldresultindeathorseriousinjury.
CAUTION: Failure to comply with the warning will result in a potentially hazardous
situation which, if not avoided, could cause minor damage to the appliance.
NOTICE: Provides instructions concerning the use of conduct necessary to handle
theoperationsnotassociatedwithpossiblephysicalinjuries.
NOTE: Provides additional information to supplement instructions provided.
Installationmustbecarriedoutbyqualiedpersonnel.Adedicated,state-of-the-
art electricity supply system must be designed and installed, and the system must
becertiedincompliancewithlocalregulationsandtheenergysupplycontract.
Operators are required to read and fully understand this manual, and to comply
strictly with the instructions it contains. The Unknown Services contains all the
parameters that can be written and read through Bluetooth.
Free2move eSolutions S.p.A. cannot be held liable for damage caused to persons
and/ or property, or to the equipment, if the conditions described in this document
have not been complied with.
WARNING
Installation must be carried out in accordance with the regulations
in force in the country of installation, and in compliance with all
safety regulations for carrying out electrical work.

6
Installation Manual
1.5 Personal Protective Equipment (PPE)
Personal Protective Equipment (PPE) means any equipment intended to be worn
by the workers in order to protect them against one or more hazards likely to
threaten their health or safety at the workplace, as well as any device or accessory
intended for this purpose.
Since all the PPE indicated in this manual is intended to protect the personnel
against health and safety hazards, the Manufacturer of the appliance which is
the subject of this manual recommends strict compliance with the indications
contained in the various sections of this manual.
The list of PPE to be used in order to protect the operators against the residual
risks present during the installation and maintenance interventions described in
this document is provided below.
Symbol Meaning
Wear protective gloves
Wear anti-static footwear
WARNING
It is responsibility of the operator to read and understand local
regulations and evaluate the environmental conditions of the
installation site in order to comply the need to wear additional PPE.

7
Installation Manual
1.6 Warranty and delivery conditions
The warranty details are described in the Terms and Conditions of Sale included
with the purchase order for this product and/or in the packaging of the product.
Free2move eSolutions S.p.A. assumes no responsibility for failure to comply with
the instructions for proper installation, and cannot be held responsible for systems
upstream or downstream of the equipment supplied.
Free2move eSolutions S.p.A. cannot be held responsible for defects or malfunctions
deriving from: improper use of the appliance; deterioration due to transport or
particularenvironmentalconditionsorinstallationbyunqualiedpersons.
NOTICE
Any modication, manipulation or alteration of the hardware
or software not expressly agreed with the manufacturer will
immediately void the warranty.
1.7 List of documents in the appendix
In addition to this manual, product documentation can be viewed and downloaded
by visiting
www.esolutions.free2move.com/document-library

8
Installation Manual
1.8 Warnings
DANGER
Electric shock and re. Installation must be carried out in
accordance with the regulations in force in the country of
installation, and in compliance with all safety regulations for
carrying out electrical work.
• Before installing or using the device, make sure that none of the
components have been damaged. Damaged components can lead to
electrocution, short circuits, and re due to overheating. A device with
damage or defects must not be used.
• Install eProWallbox away from petrol cans or combustible substances
in general.
• Before installing eProWallbox, ensure the main power source has been
disconnected.
• The appliance must be connected to a mains network in compliance with
local and international standards, and all the technical requirements
indicated in this manual.
• Children or other persons not able to gauge risks related to the installation
oftheappliancecouldsuerseriousinjuryorputtheirlivesatrisk.
• Pets or other animals must be kept away from the device and packaging
material.
• Children must not play with the device, accessories or packaging provided
with the product.
• The only part that can be removed from eProWallbox, is the removable
cover.
• eProWallbox can only be used with an energy source.
• Necessary precautions to ensure safe operation with Active Implantable
Medical Devices must be taken. To determine whether the charging process
couldadverselyaectthemedicaldevice,pleasecontactitsmanufacturer.

9
Installation Manual
2 GENERAL INFORMATION
eProWallbox isanAlternateCurrentchargingsolutionforpoweringelectric vehicles
and hybrid plug-ins, and is ideal for semi-public and residential use. The appliance
isavailableinthree-phaseorsingle-phasecongurations,andisequippedwitha
Type 2 socket.
The appliance charges electric vehicles up to 22 kW in three-phase, or up to 7.4
kW in single-phase. The appliance includes connectivity options such as remote
monitoring via the eSolutions control platform (CPMS). Its nal conguration
must be completed using the PowerUp application.
This appliance is equipped with a SIM card for connection to the 4G mobile network.
TheSIMcardisautomaticallyactivatedthersttimetheapplianceisturnedon.
This document describes how to install the appliance. A description of its
characteristics is provided to identify key components and set out the technical
terms used in this manual. This chapter contains information on models, details
of equipment, characteristics and technical data, overall dimensions, and
identicationoftheappliance.
NOTICE
Please refer to the Accessories Manual for specic information if
the PowerMeter (DPM) or MIDcounter are to be installed and to the
User’s Manual for instructions on how to use it.
Tocompletetheinstallation,itisnecessarytoconguretheeProWallbox through
the dedicated apps:
Installer’s app: PowerUp
User’s app: eSolutions Charging
Product versions:
F2ME.EPROSCYYXXX

10
Installation Manual
2.1 Fields of use
Free2move eSolutions S.p.A. declines all liability for any damage whatsoever due
to incorrect or careless actions.
Theapplianceisachargingdeviceforelectricvehicles;thefollowingclassication
(accordingtoIEC61851-1)identiesitscharacteristics:
• Power supply: permanently connected to the AC power supply grid
• Output: Alternate Current
• Environmental conditions: indoor / outdoor use
• Fixed installation
• Protection against electric shock: Class I
• EMCEnvironmentclassication:ClassB
• Charging type: Mode 3 according to the IEC 61851-1 standard
• Optional function for ventilation not supported

11
Installation Manual
2.2 Symbols and denitions
General warning
It is mandatory to consult the original manual and additional
documentation
Prohibition or restrictions
Although they are not made of materials that are harmful to health, the
products should not be disposed of along with household waste but
must be collected separately, since they are made of materials that can
be recycled
Pictogram for electrical voltage hazard
Pictogram for hot surfaces hazard.

12
Installation Manual
2.3 Identication label
Theinformationonthelabelisshowninthegurebelow.
Thedetailsmaydierfromthoseshowninthegure,dependingontheversion
of the appliance.
NOTE
The Part Number (PN) and Serial Number (SN) can also be found on the packaging
as well as in the eSolutions Charging app after pairing eProWallbox to the user’s
proleandinPowerUp after pairing with QR code. The QR code is the same on
both labels and is used to complete the installation with PowerUp and eSolutions
Charging applications.
C
09-2022
The label inside the package with the printed letter C indicates the type of socket
installed on the product. This label should be applied near the socket when
installation is completed.
AC EN 62196-2 TYPE 2 Plug and socket ≤ 480 V
RMS C

13
Installation Manual
2.4 Product dimensions and characteristics

14
Installation Manual
2.5 Technical specications
eProWallbox
Description
Recharging Mode Mode 3 - case B
Connector Standard IEC 62196-2 Type2
Connection features Socket with lid and internal shutter
Marking CE, UKCA, TUV, 3A
General Specications
Dimensions [mm] 403x336x190
Weight [kg] ~ 3.8 (without cable)
Protection degree IP55 (IEC 60529)
Impact protection rating IK08 (IEC 62262)
Housing UV resistant plastic
Standard body colour Black - RAL 9011
White - RAL 9003
Custom body colour Optional
Custom branding Optional
Electrical Specications
Power [kW] Up to 7.4 single-phase
Up to 22 three-phase
Voltage [V/Hz] 230 / 50-60 single-phase
400 / 50-60 three-phase
Current [A] Up to 32
Electrical installation 3P + N + PE, 32A, 400 V / 50-60 Hz P + N + PE, 32 A, 230 V / 50-60 Hz
AC power system TT, TN, IT
Safety and Operation
Operating Temperature range [°C] -25/+50 (without direct exposure to sunlight)
Overheating protection
Humidity Resistance < 95% (non condensing)
Housing re ratings UL94 V-0 | GWFI 960
Overvoltage category OVC III
Residual current monitoring 6 mA DC sensitive RCM device included for DC-leakage
Maximum installation height [m] 2000 a.s.l.
Mounting Wall or optionally on a dedicated pole
Connectivity and Features
RS-485 Modbus RTU n.2 communication ports
Ethernet
Bluetooth LE 5.0
Wi-Fi
4G / LTE
OCPP 1.6J
User mobile App eSolutions Charging
Installer mobile App PowerUp
RFID reader
HMI 3.5” TFT touchscreen display
Over-the-air SW upgrade
Energy Meter (built-in) not MID
Load management (Static and Dynamic)
Static
Dynamic w/ PowerMeter 1 ph (Opt. If requested)
Dynamic w/ PowerMeter 3 ph(Opt. If requested)
ISO 15118
Current phase unbalancing detection
CPMS

15
Installation Manual
2.6 Description of ports
The following table summarises the ports available on eProWallbox:
RFID reader
(SW1) Rotary
Switch
(CN3) Shunt Trip
ISO15118
PP/CP
Power output cableRelays
(CN1) Power input Cable
(SW2) DIP Switch
SIM Card
4GLTE, WI-FI,
BLE Board
(CN9-CN10)
RS485 x1 DC
ETH 1x
(CN12) RS485 x1 DPM
Type Port Port code Scope N
Input Power Cables CN1 Terminals for power cables 1x
Communication
RS485 DC CN9
CN10
RS485 Modbus for Daisy Chain
communication 2x
RS485 DPM CN12 RS485 Modbus for external meter
communication 1x
Conguration
Rotary Switch SW1 Power safety limit setting 1x
DIP Switch SW2 Setting for IT grid connection 1x
Safety Shunt trip contact CN3 Free contact NO for MCB release 1x

16
Installation Manual
3 INSTALLATION
DANGER
Before carrying out any work, switch o the power supply.
DANGER
Failure to observe the instructions in this manual may cause serious
damage to both the product and the installer (in the most serious
cases, injuries may be fatal). Please read this manual carefully before
installing, switching on and using the product. Free2move eSolutions
S.p.A. recommends only using experienced professionals who comply
with current regulations to install the product correctly.
NOTICE
Once the device has been powered up, the display will not turn on
immediately. This can take up to one minute.
3.1 Preparing for Installation
Before choosing and installing the appliance, the installer must consider local
restrictions as set out in the IEC 61851-1 standard. However, it remains the
responsibility of the installer to check that these regulations are still in force, and
above all to verify whether additional local regulations apply and could restrict use
of these devices in the country of use and installation.
DANGER
Installation and start-up of the device should only be carried out by
qualied personnel who are able to identify imminent and potential
hazardous situations and, consequently, act safely.
Installation must meet IEC 60364-7-722 standard requirements.

17
Installation Manual
Before proceeding with the installation, make sure that:
• Theinputpoweriscompletelyswitchedoandremainsinthiscondition
until installation is complete.
• As the work area is considered a dangerous zone it has been adequately
cordonedoinordertopreventtheaccessbypersonsnotinvolvedinthe
installation operations. The appliance is not installed in conditions of rain,
fog or high humidity.
• The appliance’s packaging is perfectly intact and free from obvious
damage. If the appliance and/or its packaging are damaged, please
request support from the following link: www.esolutions.free2move.
com/contact-us/
• The appliance and all its components are completely intact and free of
any obvious defects or faults. If any damage is noted, the installation
procedure must be abandoned immediately, and technical support must
be contacted.
WARNING
The design of the entire electrical system to which the appliance
is to be connected must rst be determined by a qualied
professional. The electrical data of the appliance, which should be
referred to in order to correctly gauge the size of the power supply
system, is displayed on the appliance’s identication label.
WARNING
Installation should not be carried out with wet hands and no jets of
water should be aimed at the appliance.

18
Installation Manual
3.2 Package Contents
• eProWallbox
• 3 ø10x50mm wall plugs with screws
• 1 RFID Card
• 1 drilling template for installation
• Product documentation
• 1 Sim Card installed
• “C” label
12
3
Product
documentation
C

19
Installation Manual
3.3 Required tools
• Torx screwdriver T20 1/4”
• Drill with ø10 mm 3/8” bit
• Phillips screwdriver (minimum length = 160mm)
• Slotted screwdriver (head < 2mm)
• Cutter
• Hammer
• Pencil
• Spirit level
• Measuring tape
• Adhesive tape
T20 1/4”
NOTE
Itispossibletoreplacethe2box-cablesheathjunctionswithø25mmcablegland
(not provided by the Manufacturer).
WARNING
Do not use an electrical screwdriver to assemble the wallbox or to
x it to the wall. Free2move eSolutions S.p.A. declines any liability
for damage to persons or things arising from use of such tools.

20
Installation Manual
3.4 Space and positioning
CAUTION
Make sure that there are no heat sources, ammable substances or
electromagnetic sources in the installation area when installing the
appliance.
In addition, the installation site must be suciently ventilated to
ensure proper heat dispersion.
NOTICE
If eProWallbox connectivity is needed make sure that the chosen
area is covered by mobile phone reception or by Wi-Fi coverage.
Before installing, ensure that environmental conditions (such as temperature,
altitudeandhumidity)complywiththeappliancespecications.
To ensure the appliance operates correctly, and to enable it to be used properly
by the user, the space around the device must be left clear to allow air to circulate
and the cable to be moved properly. It must also allow charging by the user and
routine or non-routine maintenance operations to be conducted safely.
NOTE
It is necessary to take into account the space needed to park the electric vehicle to
be charged.
