Freecom Mobile Drive Secure User manual

MOBILE DRIVE SECURE
EXTERNAL MOBILE DRIVE /2.5" /USB 2.0 /RFID
Rev. 912
USER MANUAL

2
EN
Freecom Mobile Drive Secure
Dear user!
Thank you for selecting the Freecom Mobile Drive Secure as your external hard drive.
The Freecom Mobile Drive Secure provides a new definition of data security. Your data is
protected by using a keycard (in credit card format) to unlock the drive. For optimal use and
performance we advise you to read this manual carefully before using this product.
Freecom Technologies • Germany
www.freecom.com
Contents of the box
Please check the contents of the box; the following items should be included:
• Freecom Mobile Drive Secure (external hard drive)*
• Connection cable (USB 2.0)
• 2 keycards (credit card size) using RFID technology
•Manual, safety manual and application software pre-installed on the hard drive
•Quick Install Guide
* When the power provided by the USB port is not sufficient, visit www.freecom.com/support for an optional
AC adapter.
Need assistance? Have questions?
In case you have a question about the use of this product, need information about other
Freecomproductsorneedtechnical assistance,please contacttheFreecomServiceCenter
for your country. See www.freecom.com for details.
Freecom offers free unlimited helpdesk support.
Warning !
All rights reserved. The products named in this manual are only used for identification
purposes and may be trademarks or registered trademarks of the respective companies.
This device was designed for home or office use.
Warning! This device is equipment complying with EN55022 class A. This equipment
can cause radio disturbances in a residential area. If this is the case, the user has to take
appropriate measures and assume all responsibility and costs for. It may not be used near
or with any life-sustaining systems.
Freecom cannot be made liable for any damages, loss of data or damage following
thereof -whatsoever (including, without limitation, damages for loss of business profits,
business interruption, loss of business information, or other pecuniary loss) arising out
of the use of or inability to use this Freecom product, even if Freecom has been advised
of the possibility of such damages.
We reserve the right to upgrade our products in keeping with technological advances.

3
EN
User manual
General Information ...........................................................................................................page 4
Precautionary measures....................................................................................................page 5
Freecom Mobile Drive Secure ........................................................................................page 6
Chapter 1:
Hardware Installation.........................................................................................................page 7
Chapter 2:
Driver Installation ................................................................................................................page 10
Chapter 3:
Installation of the application software ......................................................................page 11
Chapter 4:
Enabling data protection by keycard –
using the Freecom Hard Drive Keycard Protection software tool.....................page 13
Chapter 5:
Using Freecom Turbo USB 2.0 (only PC) .....................................................................page 25
Chapter 6:
Partitioning your Freecom Mobile Drive Secure .....................................................page 26
Table of Contents
© 2009 Freecom Technologies

4
EN
Freecom Mobile Drive Secure
* To achieve optimal performance from the Freecom Mobile Drive Secure your computer should be equipped
with an USB 2.0 port.
General Information
The following hardware and software requirements must be fulfilled to ensure trouble-
free operation.
System requirements
In order to use the Freecom Mobile Drive Secure, following components are needed:
PC:
• Intel Pentium III / AMD Duron 900 MHz or higher
• 256 MB RAM (Vista: 512 MB RAM) or higher
• Available USB 2.0 or USB 1.1 port*
• Internet connection for online warranty registration, software updates and downloads
• Operating system: Windows XP, Windows Vista
Mac:
• PowerPC G3/G4/G5, Mac Book Pro or Intel Mac
• 256 MB RAM or higher
• Available USB 2.0 or USB 1.1 port*
• Internet connection for online warranty registration, software updates and downloads
• Operating system: Mac OS X v10.4 or higher

5
EN
General Information
Precautionary measures
To ensure that your Freecom Mobile Drive Secure functions properly, please take note
of the following precautions. If these are not followed, you may void your warranty and
damage the Freecom Mobile Drive Secure.
• SafelyremovetheFreecomMobileDriveSecureviayouroperatingsystem(the"unplug
or eject hardware" option in the Windows taskbar) before disconnecting the USB cable
or power cable and before switching off the device. Failing to do so may result in data
loss.
• Do not drop the Freecom Mobile Drive Secure or expose it to other kinds of sudden
mechanical shocks as this may result in data loss and damage to the Freecom Mobile
Drive Secure.
• Do not use the Freecom Mobile Drive Secure when the ambient temperature is below
10°C or above 35°C.
• If the Freecom Mobile Drive Secure is moved from a cool environment to a warmer
environment, please allow the drive to acclimatize to the ambient temperature
before operating the device. Failing to do so may lead to condensation within the
drive enclosure, which in turn may cause the drive to malfunction.
• Do not place liquids or drinks on the Freecom Mobile Drive Secure. When liquids are
spilled andgetin contact with theelectronicswithinthedrive enclosure, it willdamage
the drive and will cause the drive to malfunction.
• Do not use the Freecom Mobile Drive Secure in a dusty environment. Dust inside the
enclosure may damage the internal electronics and result in drive malfunction.
• Opening the Freecom Mobile Drive Secure will void the warranty.
• Since USB 2.0 is backwards compatible with USB 1.1, the Freecom Mobile Drive Secure
can be connected to all USB ports. When connected to a USB 1.1 port, however, the
performance (data transfer rate) of the Freecom Mobile Drive Secure will be much
lower than when the drive is connected to a USB 2.0 port.
On some computers it might occur that the USB port does not deliver enough
power to the Mobile Drive Secure. In that case, you need to use an external
power supply.
For safety reasons you must only use Freecom’s Power Supply Part.No. 30003.
Don’t use any other other power supply!

6
EN
Freecom Mobile Drive Secure
Freecom Mobile Drive Secure
The hi-speed data transfer through the USB 2.0 interface makes it ideally suitable for
data-storage, file sharing, backup, archiving, audio playback and all applications that
need fast file access.
Foryourconvenience,theFreecomMobileDriveSecurehasbeenpartitioned(1partition)and
pre-formatted (FAT32 file system). The FAT32 format ensures maximum interchangeability
of the Freecom Mobile Drive Secure between different computers. Should you choose
to format the Freecom Mobile Drive Secure in another file system (e.g. NTFS), please be
aware of possible problems when connecting the Freecom Mobile Drive Secure to another
computer than the one you used for formatting.

7
EN
1
Hardware Installation
Chapter 1: Hardware Installation
Before connecting the cables make sure the Freecom Mobile Drive Secure is switched
off.
1. Connect the interface cable (USB) to the Freecom Mobile
Drive Secure.
2. Connect the interface cable (USB) to the interface port (USB)
of your computer.
Since USB 2.0 is backwards compatible with USB 1.1, the Freecom Mobile
Drive Secure can be connected to all USB ports. When connected to a USB 1.1
port, however, the performance (data transfer rate) of the Freecom Mobile
Drive Secure will be much lower than when the drive is connected to a USB
2.0 port.
For optimum performance the Freecom Mobile Drive Secure should always
be connected to a USB 2.0 interface.

8
EN
1
Freecom Mobile Drive Secure
1.1 Data protection by keycard (using RFID technology)
The data on the Mobile Drive Secure can be protected from unwanted access by using
a keycard to unlock the drive. This keycard is placed over a sensor inside the Mobile
Drive Secure, when the Mobile Drive Secure recognizes the keycard it will unlock the
drive for use.
The technology inside the keycard and the Mobile Drive Secure is called RFID. RFID stands
for Radio Frequency Identification. The same technology can be found for example in
office buildings, where people need to present a keycard if they want access to the
building or to a certain floor / department / room.
Your Mobile Drive Secure comes with 2 Keycards, in credit card size. This card fits easily
in your wallet so you always will carry it with you. The default setting of the drive is "no
protection". When starting to use the Mobile Drive Secure for the first time, you need to
configure the 2 supplied keycards with the drive. The Mobile Drive Secure can identify
maximum 2 keycards. We suggest that – after configuring – you use one keycard (labeled
"Security Key") and store the other keycard (labeled "Master Key") in a safe place, in case
your Security Key gets lost.
Of course you can also use the drive without the keycards. In that case you do not need
to run the configuration wizard – you can immediately start using your hard drive after
unpacking it from the box. Please note that your data is not protected against unwanted
access then.

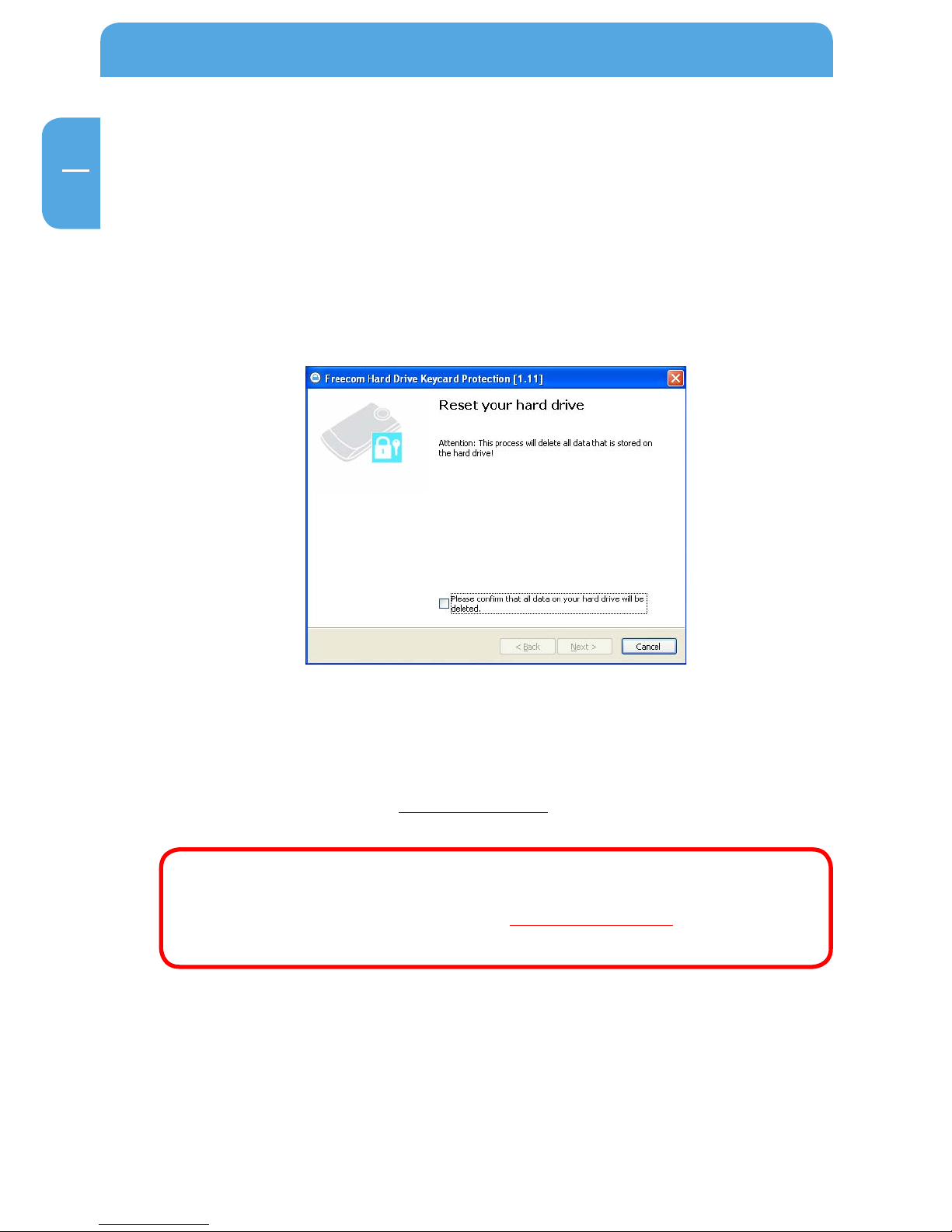

You can also decide to use the keycard protection at a later stage, however please note
that the drive needs to be reformatted then and all data on the drive will be lost. See
chapter 4.
How the keycard protection works:
Mobile Drive
Secure locked
unlock Mobile Drive
Secure with keycard
over the sensor
Mobile Drive
Secure
unlocked
Move keycard over
the sensor
Mobile Drive Secure
locked

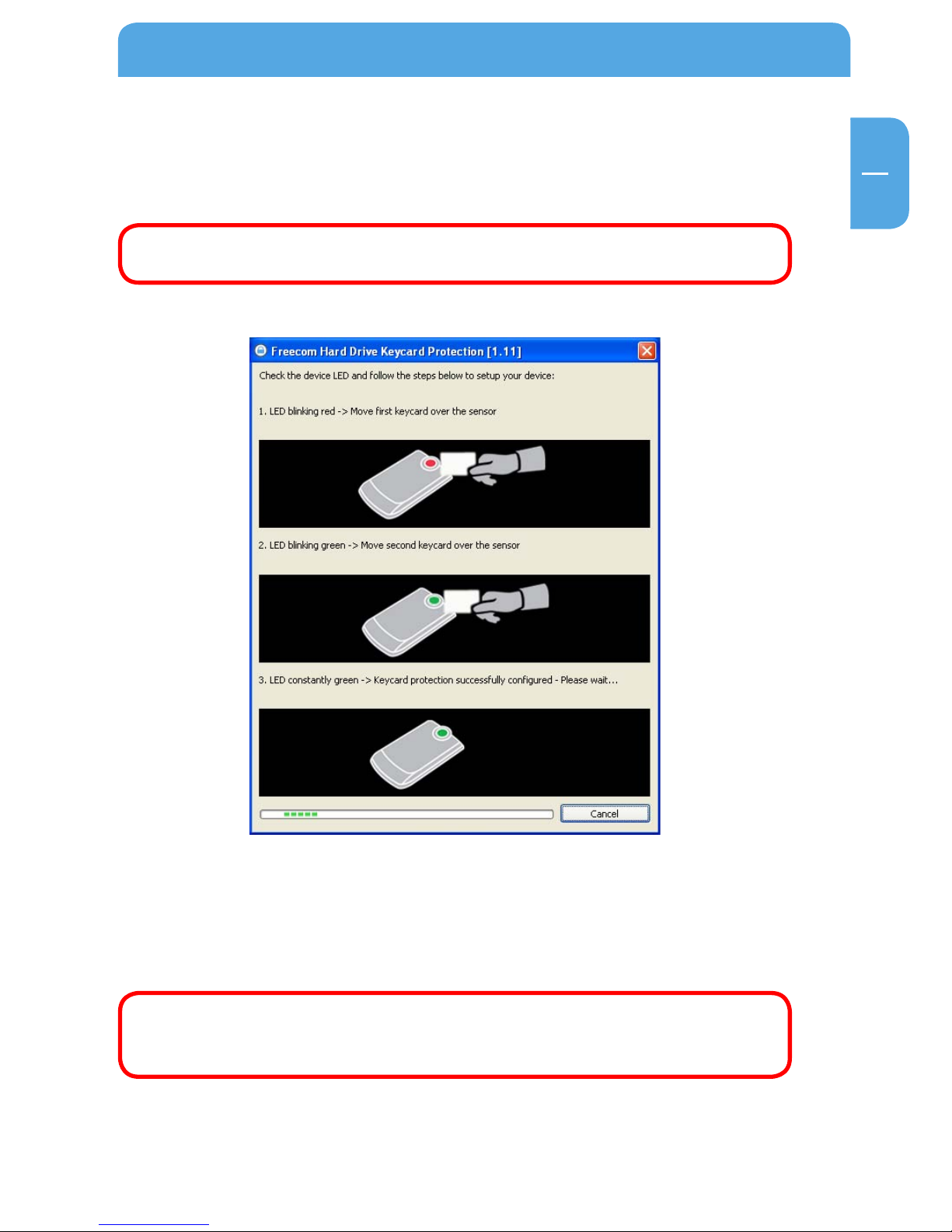

To configure the 2 keycards using the "Freecom Hard Drive Keycard Protection" software
assistant, see chapter 4.

9
EN
1
Hardware Installation

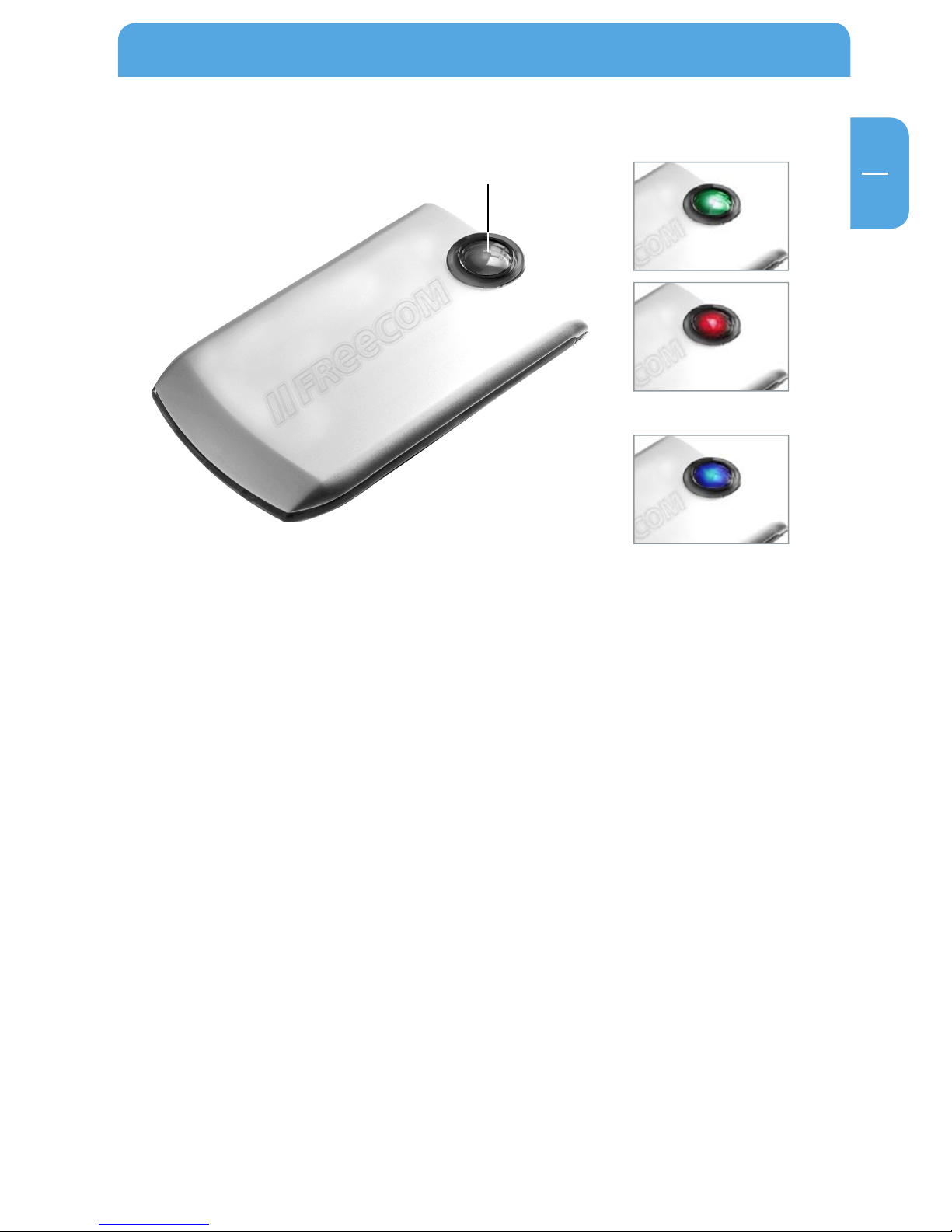

1.2 RFID sensor and LEDs
1. RFID sensor
This is the position where the keycard needs to be held to unlock the drive.
2. LED (green/red)
LED off: keycard protection not configured
LED red, flashing quickly: waiting for initial recognition of the first
Keycard
LED green, flashing quickly: waiting for initial recognition of the second
Keycard
LED red, flashing slowly (1 second gap): delay of error detection
LED red, bright: hard drive locked, can not be accessed
LED green, bright: hard drive unlocked, ready for use (read data
from / write data to the hard drive)
LED red, flashing quickly: erasing data on the hard drive
3. LED (blue)
LED blue: device on
LED blue blinking: data transfer
2. LED (green/red)
3. LED (blue)
1. RFID sensor

10
EN
1
Freecom Mobile Drive Secure
4. Acoustic signals
Red LED: Mobile Drive Secure is locked, one short beep
when drive is connected to PC/Mac
Green LED: MobileDriveSecureisunlocked,twoshortbeeps
when keycard is moved over sensor to unlock
or to lock the drive
While configuring the keycards:
No card: LED is blinking red, four beeps when ready for
the first keycard
After first card: LED is blinking green, two short beeps when
first keycard was accepted
After second card: LED is constantly green, two short beeps when
second keycard was accepted
Chapter 2: Driver Installation
Under Windows XP / Vista and Mac OS X a separate Freecom driver is not required. The
drivers will be installed automatically by the operating system after plugging in the
Freecom Mobile Drive Secure into the USB port of the computer.

11
EN
3
Installation of the application software
Chapter 3: Installation of the application software
3.1 Installation software PC

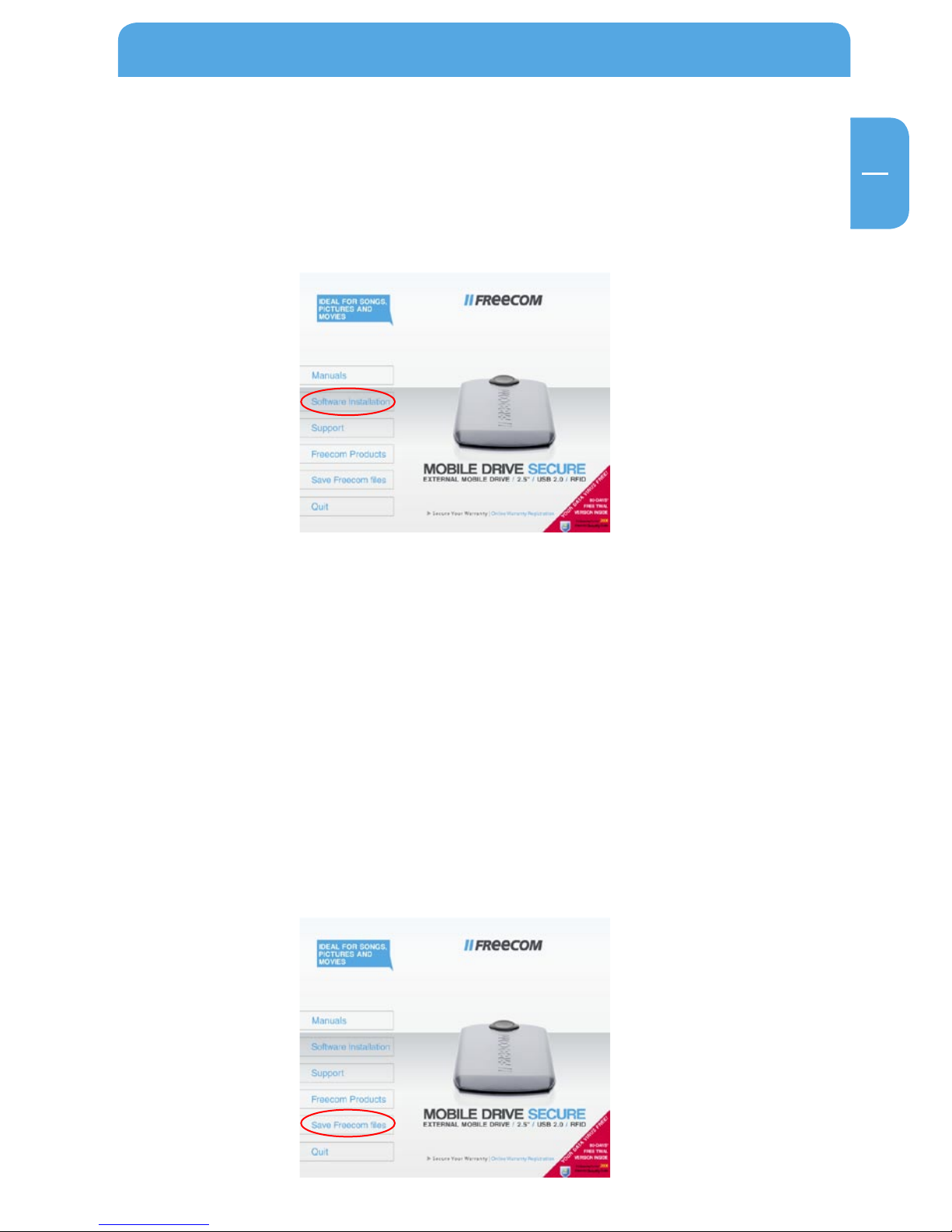

1. Click on "StartPC.exe" in the main directory of the hard drive. The Freecom start menu
opens.
2. Click on "Software Installation" -> "NTI Shadow", "NTI Ripper", "RFID HD Protection"
or other software. The installation starts now. Follow the instructions on the screen,
confirm with "Next" in order to continue with the installation.
3.1.1 Saving Freecom data
The user manuals and complementary software (when applicable) are pre-loaded
onto the hard drive. We recommend that you save these files to your computer ("My
Documents"/"Freecom"), to always have a backup of these files in case you (accidentally)
reformat the drive or delete these files from the drive.
Saving these files from the external hard drive to your computer is easy:
1. Click on the button "Save Freecom files".
2. All provided data on the Freecom hard drive will be saved to the folder "Freecom" in
"My Documents".

12
EN
3
Freecom Mobile Drive Secure
3.2 Installation software Mac
1. Click on "Start MAC" in the main directory of the hard drive. The Freecom start menu
opens.
2. Click on "Software Installation" -> "Install NTI Shadow" or "RFID HD Protection". The
installation starts now. Follow the instructions on the screen, confirm with "Next" in
order to continue with the installation.
3.2.1 Saving Freecom data
The user manuals and complementary software (when applicable) are pre-loaded onto
the hard drive. We recommend that you save these files to your computer ("Documents"/
"Freecom"), to always have a backup of these files in case you (accidentally) reformat
the drive or delete these files from the drive.
Saving these files from the external hard drive to your computer is easy:
1. Click on the button "Save Freecom files".
2. All provided data on the Freecom hard drive will be saved to the folder "Freecom" in
"Documents".

13
EN
4
Enabling data protection by keycard
Chapter 4: Enabling data protection by keycard – using the
Freecom Hard Drive Keycard Protection software
tool
4.1 Freecom Hard Drive Keycard Protection (Windows)
You can protect your Mobile Drive Secure from unwanted access by enabling the RFID
protection. RFID stands for Radio Frequency Identification, and this technology is used
in the 2 keycards shipped with the drive and in the drive itself.
When starting to use the Mobile Drive Secure for the first time, you need to configure
the 2 supplied keycards with the drive. The Mobile Drive Secure can identify maximum
2 keycards. We suggest that – after configuring – you use one keycard (labeled "Security
Key") and store the other keycard (labeled "Master Key") in a safe place, in case your
Security Key gets lost.
The use of the RFID protection with the keycards is purely optional. If you don’t want to
use this security option, you can immediately use your Mobile Drive Secure out of the
box, without any configuration steps necessary, just as any standard USB hard drive. You
can also decide to use the keycard protection at a later stage, however please note that
the drive needs to be reformatted then and all data on the drive will be lost.
The default setting of the Mobile Drive Secure is "No Keycard protection".
Attention: When setting up the security option, all data will be deleted
on your hard drive. You have the possibility to backup all Freecom data
(manuals, software etc.) to your local hard drive during the setup. This
optionwillbackupONLYFreecomdata!Ifyoualreadyhavesomepersonal
data on the hard drive, this will not be saved.

14
EN
4
Freecom Mobile Drive Secure
4.1.1 Initial setup of RFID protection
In MyComputer, select the Freecom Mobile Drive Secure. Click "StartPC.exe".
A menu screen will appear. Select "Software Installation" and then select "RFID HD
Protection".
Please make sure to have the two supplied Keycards (labeled "Security Key" and "Master
Key" at hand, these are required for setup.
Run the Freecom Hard Drive Keycard Protection software.
Confirm that all data on your hard drive will be deleted and click on "Next".
Confirm once again that you really want to format the hard drive.
After that, a window with a progress bar will be shown and the device LED will blink red.

15
EN
4
Enabling data protection by keycard
Move the first keycard over the sensor on the drive, which is located at the front of the
drive (see page 9). If it was successfully recognized, the LED will start blinking green.
Move the second keycard over the sensor. If it was successfully recognized, the LED will
be constantly green. RFID protection is now enabled. The next time you connect your
Freecom Mobile Drive Secure, you have to identify with one of the keycard to access
your data.

16
EN
4
Freecom Mobile Drive Secure
4.1.2 Using your Freecom Mobile Drive Secure with RFID protection
After configuring the two keycards, every time you connect your Freecom Mobile Drive
Secure to your computer or switch it on, the left LED will be red indicating the drive is
lockedandcan notbeused.Thedrivewill notappearasadriveletterinWindowsExplorer.
In order to use the drive, you need to identify yourself by holding one of the keycards in
front of the sensor on the drive. The left LED will change from red to green, indicating
that your Mobile Drive Secure is now unlocked and can be used. You will now also see
the Mobile Drive Secure appear as a drive letter in Windows Explorer.
IMPORTANT: If the Keycard security is enabled, the only way to access the
Mobile Drive Secure is by presenting the keycard to the drive. Without the
keycard there is no possibility to access the data on the drive.
After having configured the two keycards, when running the Freecom RFID protection
tool it will give you three options to choose from:
1. Safely remove hard drive
Thisoptionallowsyoutosafelyremovetheharddrivefromyoursystem.Afterusingthedrive
werecommendyouusethisoption toremovethedrive,inordertopreventdata loss.
After use, we recommend you switch off the power of the Mobile Drive Secure. Next
time you switch the drive back on, you will need to present one of the keycards to the
drive in order to use the drive.

17
EN
4
Enabling data protection by keycard
2. Add new keycard
Incaseyouhavelostone orboth ofthekeycards,youcan alwaysconfigure2new keycards
for use with your Mobile Drive Secure.
ATTENTION: You have to configure again with 2 keycards. Make sure to
have 2 keycards at hand.
This setup procedure is exactly the same as described in paragraph 4.1.1.
3. Remove keycard protection
You may always decide to not use the keycard security option anymore. To remove the
keycard protection, select this option. After this procedure, you can use the Mobile Drive
Secure as any other (unprotected) external USB hard drive.
ATTENTION: when removing the RFID protection, the hard drive will be
formattedandallyourdatawillbelost.Makesureyouhavemadeabackup
of your important files before using this removal option.

18
EN
4
Freecom Mobile Drive Secure
4.1.3 I have lost my keycards – what can I do now?
If you have lost both your keycards, you will not be able to get access to your data on the
Freecom Mobile Drive Secure anymore.
To use your Freecom Mobile Drive Secure again, the RFID protection has to be removed.
When removing the RFID protection, the hard drive will be formatted and all your data
will be lost. Make sure you always regularly make a backup of your important files.
Run the Freecom Hard Drive Keycard Protection software and confirm that all data on
the hard drive will be deleted. Click on "Next" and confirm again that all data will be
deleted.
The RFID protection will now be removed and the hard drive will be formatted. This
might take up to two hours.
After the hard drive has successfully been formatted, you can either use the drive without
keycard protection or set up two new keycards as described in paragraph 4.1.1.
New keycards are available via www.freecom.com or your local Freecom reseller.
If at any point during installing and/or configuring your Mobile Drive
Secureyouneedassistanceorhavequestions,pleasecontacttheFreecom
Support Center for your country. See www.freecom.com for details.
Freecom offers free unlimited helpdesk support.

19
EN
4
Enabling data protection by keycard
4.2 Freecom Hard Drive Keycard Protection (Mac)
You can protect your Mobile Drive Secure from unwanted access by enabling the RFID
protection. RFID stands for Radio Frequency Identification, and this technology is used
in the 2 keycards shipped with the drive and in the drive itself.
When starting to use the Mobile Drive Secure for the first time, you need to configure
the 2 supplied keycards with the drive. The Mobile Drive Secure can identify maximum
2 keycards. We suggest that – after configuring – you use one keycard (labeled "Security
Key") and store the other keycard (labeled "Master Key") in a safe place, in case your
Security Key gets lost.
The use of the RFID protection with the keycards is purely optional. If you don’t want to
use this security option, you can immediately use your Mobile Drive Secure out of the
box, without any configuration steps necessary, just as any standard USB hard drive.
The default setting of the Mobile Drive Secure is "No Keycard protection".
Attention: When setting up the security option, all data will be deleted
on your hard drive. You have the possibility to backup all Freecom data
(manuals, software etc.) to your local hard drive during the setup. This
optionwillbackupONLYFreecomdata!Ifyoualreadyhavesomepersonal
data on the hard drive, this will not be saved.

20
EN
4
Freecom Mobile Drive Secure
4.2.1 Initial setup of RFID protection
Click on "Start MAC" in the main directory of the hard drive. A menu screen will appear.
Select "Software Installation" and then select "RFID HD Protection".
Please make sure to have the two supplied Keycards (labeled "Security Key" and "Master
Key" at hand, these are required for setup.
Run the "Freecom RFID" software. This can be found in "Applications" —> "Utilities".
Confirm that all data on your hard drive will be deleted and click on "OK".
