Freedom Designs CGX User manual

FREEDOM DESIGNS, INC.
2241 Madera Rd., Simi Valley, CA 93065 [phone] [phone] FAX [phone]
www.freedomdesigns.com
OPERATING MANUAL
06/01/08
□With transport package
□Without transport package
Supplier:
This manual must be given to
the user/caregiver of this
wheelchair
Rider:
Before using this wheelchair
read this entire manual and
save for future reference
Center of Gravity
Tilt in Space Wheelchair

1
05/15/08
Introduction
Congratulations on your purchase of the Freedom Designs, Inc. Freedom CGX™
wheelchair. These chairs combine state-of-the-art technology with durability and
functionality to meet all of your changing needs. This Operating Manual provides you with
a detailed guide for proper assembly as well as instructions on the care of your new
wheelchair. Please follow the instructions carefully, paying special attention to the Safety
Precaution section. It is important to read the entire Operating Manual before operating
the wheelchair. After consulting your Operating Manual, if you feel you have further
questions, please contact one of our Authorized Dealers or our Customer Service
Department at:
[phone]
Again, thank you for your purchasing a Freedom Designs, Inc. Freedom CGX ™
This manual revised on May 15, 2008
Serial #___________________________________
Reference Phone Numbers:
Home Medical Equipment Supplier Name
Phone #
Home Health Care Agency Name
Phone #
Doctor Name
Phone #

FREEDOM DESIGNS, INC. 2241 Madera Rd. Simi Valley, CA. 93065 800-331-8551 Fax [phone]
www.freedomdesigns.com
2
Table of Contents
Page #
Introduction 1
Table of Contents 2-3
General Warnings 4-6
Weight Limit 4
Every Wheelchair is Different 4
Reduction of Risk of an Accident 4
Safety Checklist 4
Adjustments 5
Environmental Conditions 5
Terrain 5
Street Use 5
Motor Vehicle Safety 6
Transport Option 6
Assistance 6
Warnings: Falls & Tip-Overs 6-9
Center of Balance 6
Dressing or Changing Clothes 7
Wheelies 7
Obstacles 7
Reaching or Leaning 7
Moving Backward 8
Ramps, Slopes & Side Hills 8
Transfer 9
Curbs and Steps 9
Stairs and Escalators 10
Warnings: For Safe Use 10-12
Transport Use 10
Descending a Curb or Single Step 11
Climbing a curb or Single Step 11
Climbing Stairs 11
Descending Stairs 11
Tilting Seat 12
Maintenance 12
Warnings: Components and Options 12-15
Transport Option 12
Anti-Tip Devices 12
Armrests 13
Cushions & Sling Seats 13
Fasteners 13
Footrests 13
Pneumatic Tires 13
Positioning Belts 13
Power Drive 14
Push Handles 14

3
05/15/08
Page #
Quick Release Axles 14
Large Drive Wheels 14
Wheel Locks 15
Modified Seating Systems 15
Upholstery Fabric 15
Initial Inspection Checklist 16
Specifications 17

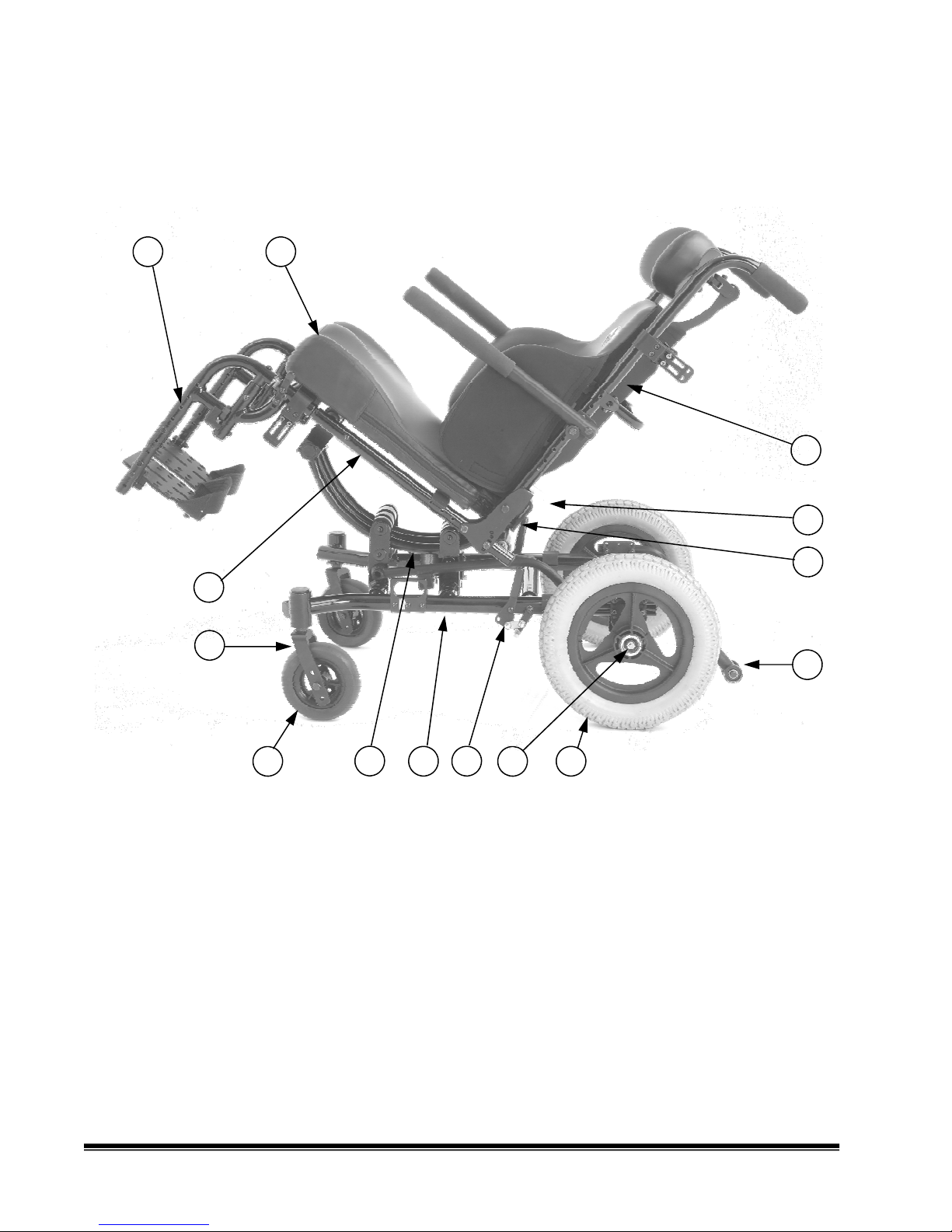

Features 18
Unfolding the Freedom CGX 19
Folding the Freedom CGX 20
Main Frame 21-25
1. Anti-Tips 21
2. Wheels & Tires 21
3. Footrest 22
4. Quick Release Axles 23
5. Flip Back Armrests 24
6. Casters 24
7. Wheel Locks 25
8. Wheel Lock Options 25
Freedom CGX Adjustments 26-27
1. Backposts 26
2. Backpost / Seat Depth Adjustment 26
3. Armrest Adjustments 26
4. Caster Fork Adjustment 27
5. Wheel Lock Adjustments 27
6. Anti-tip Adjustment 27
7. Seat Tilt Adjustment 28
8. Frame & Seat Width Adjustment 28
Cleaning 29
Maintenance 29
Storage 29
Troubleshooting 30
Summary 31
Warranty 32
Index 33

FREEDOM DESIGNS, INC. 2241 Madera Rd. Simi Valley, CA. 93065 800-331-8551 Fax [phone]
www.freedomdesigns.com
4
General Warnings
Warnings & Caution statements included in this manual describe conditions and unsafe
practices which might result in bodily injury or property damage. Read this entire manual before
assembly or operation of this wheelchair. If you do not understand any of the instructions in this
manual, call your authorized Freedom Designs, Inc. dealer. Note: Where they apply, you will also
find “Warnings” in other sections of this manual. Heed all warnings in this section.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or loss of control
may occur and cause severe injury to the rider or others
The weight limit for the Freedom CGX™ is a 200 lb. person. If the person ex-
ceeds the weight limit, damage to your chair, a fall, tip-over or loss of control may
cause severe injury to the rider or others.
Every wheelchair is different. Become familiar with your chair before you
begin riding. Start slowly, with easy, smooth strokes. Be careful not to use too
much force, which might result in tipping over, damage to your chair, a fall, or loss
of control, which may occur and cause severe injury to the rider or others.
Reduction of Risk of an Accident:
1. BEFORE riding, you should be trained in the safe use of this chair by your
health care advisor.
2. Practice bending, reaching and transfers until you know the limit of your ability.
In order to avoid tipping over, have someone help you, until you know what
can cause a fall.
3. Be aware that you must develop your own methods for safe use best suited to
your level of function and ability.
4. NEVER try a new maneuver on your own until you are sure you can do it
safely.
5. Get to know the areas where you plan to use your chair. Look for hazards and
learn how to avoid them.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Safety Checklist
Before each use of your chair:
1. Make sure the chair rolls easily and that all parts work smoothly. Check for
noise, vibration, or a change in ease of use. (They may indicate low tire pres-
sure, loose fasteners, or damage to your chair).
2. Repair any problems. Consult your Freedom Designs, Inc. authorized dealer
for help in finding or correcting the problem.
3. Check to see that both quick-release axles are locked. When locked, the axle
button will “pop out” fully. If not locked, the wheel may come off and cause you
to fall.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Adjustments
1. If you modify or adjust this chair, it may increase the risk of a tip-over UNLESS
you make other changes as well.
2. Before any adjustments or modifications are made to your chair, consult your
authorized Freedom Designs, Inc. dealer.
3. Unauthorized modifications or use of parts not supplied or approved by Free-
dom Designs, Inc. may damage the chair structure. This will void the warranty
and may cause a safety hazard.
W
A
R
N
I
N
G
!

5
05/15/08
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Environmental Conditions
1. Use extra care if you must ride your chair on a wet or slick surface. Ask for
help, if you are in doubt.
2. Contact with water or excess moisture may cause your chair to rust or corrode.
This could cause your chair to fail.
a. Do not use your chair in a shower, pool or other body of water.
The chair tubing and parts are not watertight and may rust or corrode from
the inside.
b. Avoid excess moisture, (for example, do not leave your chair in a
damp bathroom while taking a shower).
c. Dry your chair as soon as you can if it gets wet or if you use
water to clean it.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Terrain
1. Your chair is designed for use on firm, even surfaces such as concrete, asphalt,
and indoor floors and carpeting.
2. Do not operate your chair in sand, loose soil, or over rough terrain. This may
damage wheels or axles or loosen fasteners of your chair.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Street Use
In most states, wheelchairs are not legal for use on public roads. Be alert to the
danger of motor vehicles on roads or in parking lots.
1. At night, or when lighting is poor, use reflective tape on your chair and clothing.
2. Due to your low position, it may be hard for drivers to see you. Make eye con-
tact with drivers before you go forward. When in doubt, yield until you are sure
it is safe.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Motor Vehicle Safety
As identified on the front cover of this user manual, identify whether your chair has
been manufactured with the Transport Option installed.
If your chair is not equipped with the Transport Option:
The Freedom CGX™ wheelchairs do not meet federal standards for motor
vehicle seating.
1. NEVER let anyone sit in this chair while in a moving vehicle.
a. ALWAYS move the rider to an approved vehicle seat.
b. ALWAYS secure the rider with proper motor vehicle restraints.
2. In an accident or sudden stop, the rider may be thrown from the chair. Wheel-
chair hip belts will not prevent this and further injury may result from the belts or
straps.
3. NEVER transport this chair in the front seat of a vehicle. It may shift and inter-
fere with the driver.
4. ALWAYS secure this chair so that it can not roll or shift.
5. Do not use any chair that has been involved in a motor vehicle accident.
W
A
R
N
I
N
G
!

FREEDOM DESIGNS, INC. 2241 Madera Rd. Simi Valley, CA. 93065 800-331-8551 Fax [phone]
www.freedomdesigns.com
6
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
If your chair is equipped with the Transport Option, see the Transport Option
Warnings.
Assistance For the Rider:
Everyone who helps you needs to read and follow all warnings and instructions
that apply.
For Attendants
1. Work with the rider’s doctor, nurse or therapist to learn safe methods best
suited to your abilities and those of the rider.
2. Tell the rider what you plan to do and explain what you expect the rider to do.
This will put the rider at ease and reduce the risk of an accident
3. Make sure the chair has push handles. They provide secure points for you to
hold the rear of the chair to prevent a fall or tip-over. Check to make sure push
handle grips will not rotate or slip off.
4. To prevent injury to your back, use good posture and proper body mechanics.
When you lift or support the rider, bend your knees slightly and keep your back
as straight as you can.
5. Remind the rider to lean back when you tilt the chair backward.
6. When you descend a curb or single step, slowly lower the chair in one easy
movement. Do not let the chair drop the last few inches to the ground. This
may damage the chair or injure the rider.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
WARNING: FALLS & TIP-OVERS
Center of Balance
The point where this chair will tip forward, back, or to the side depends on its
center of balance and stability. How your chair is setup, the options you select, and
the changes you make affect the risk of fall or tip-over.
1. The most important adjustments are:
a. The position of the rear wheels. The more you move the rear wheels forward,
the more likely your chair will tip over backward.
2. The center of balance is also affected by:
a. A change in setup of your chair, including:
1. The distance between the rear wheels.
2. The seat height, seat angle and position on frame.
3. The backrest angle.
b. A change in your body position, posture or weight distribution.
c. The use of a back pack or other options, and the amount of added weight.
3. To reduce the risk of an accident:
a. Consult your doctor, nurse, or therapist to find out what axle and caster
position is best for you.
b. Consult your authorized Freedom Designs, Inc. dealer BEFORE you
modify or adjust this chair. Be aware that you may need to make other
changes to correct the center of balance.
c. Have someone help you until you know the balance points of your chair
and how to avoid a tip-over.
d. Use anti-tip tubes.
W
A
R
N
I
N
G
!

7
05/15/08
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Dressing or Changing Clothes
Your weight may shift if you dress or change clothes while seated in this chair. To
reduce the risk of a fall or tip-over:
1. Rotate the front casters until they are as far forward as possible. This makes the
chair more stable.
2. Lock wheel locks into place.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Wheelies
“Wheelies”, (tilting the wheelchair backward to its balance point), are extremely
dangerous as the chair may tip over. Freedom Designs, Inc. recommends that
“wheelies” not be attempted.
Obstacles
Obstacles and road hazards (such as potholes and broken pavement), can damage
your chair and may cause a fall, tip-over, or loss of control.
To avoid these risks:
1. Keep a lookout for danger—scan the area well ahead of your chair as you ride.
2. Make sure the floor area where you live and work are level and free of
obstacles.
3. Remove or cover threshold strips between rooms.
4. Install a ramp at entry or exit doors. Make sure there is not a drop off at the
bottom of the ramp.
5. To help correct your center of balance:
a. Lean your upper body FORWARD slightly as you go UP over an
obstacle.
b. Press your upper body BACKWARD as you go DOWN from a
higher to a lower level.
6. Keep both of your hands on the handrims as you go over an obstacle.
7. Never push or pull on an object, (such as furniture or a doorjamb), to propel
your chair.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Reaching or Leaning
If you reach or lean, it will affect the center of balance of your chair. This may
cause you to fall or tip over. When in doubt, ask for help or use a device to extend
your reach.
1. NEVER reach or lean if you must shift your weight sideways or rise up off the
seat.
2. NEVER reach or lean if you must move forward in your seat to do so. Always
keep your buttocks in contact with the backrest.
3. NEVER reach with both hands, you may not be able to catch yourself to prevent
a fall if the chair tips.
4. DO NOT reach or lean over the top of the seat back. This may damage one or
both backrest tubes and cause you to fall.
W
A
R
N
I
N
G
!

FREEDOM DESIGNS, INC. 2241 Madera Rd. Simi Valley, CA. 93065 800-331-8551 Fax [phone]
www.freedomdesigns.com
8
5. If you must reach or lean:
a. Do not lock the Drive wheels. This creates a tip point and makes a
fall or tip-over more likely.
b. Do not put pressure on the footrests.
Note: Leaning forward puts pressure on the footrests and may cause the
chair to tip if you lean too far.
c. Move your chair as close as you can to the object you wish to
reach.
d. Do not try to pick up an object from the floor by reaching down
between your knees. You are less likely to tip if you reach to the
side of your chair.
e. Rotate the front casters until they are as far forward as possible.
This makes the chair more stable.
Note: To do this: Move your chair past the object you want to reach,
then back up alongside it. Backing up will rotate the casters forward.
f. Firmly grasp an armrest with one hand. This will help to prevent a fall if the
chair tips.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Moving Backward
Use extra care when you move backward. Your chair is not stable when you propel
yourself rearward. You may lose control or tip over if one of the large Drive wheels
hits an object and stops rolling.
1. Propel your chair slowly and smoothly.
2. Stop often and check to be sure your path is clear.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Ramps, Slopes & Side Hills
Riding on a slope, which includes a ramp or side hill, will change the center of
balance of your chair. Your chair is less stable when it is at an angle. The rear
stabilizing wheel may not keep the chair from going over backward.
1. Do not use your chair on a slope steeper than 10%. (A 10% slope means: one
foot in elevation for every ten feet of slope length).
2. Always go as straight up and as straight down as you can. (do not “cut the
corner” on a slope or ramp).
3. Do not turn or change direction on a slope.
4. Always stay in the CENTER of the ramp. Make sure ramp is wide enough
that you are not at risk that a wheel may fall over the edge.
5,. Do not stop on a steep slope. If you stop, you may lose control of your chair.
6. NEVER use wheel locks to try to slow or stop your chair. This is likely to cause
your chair to veer out of control.
7. Beware of:
a. Wet or slippery surfaces.
b. A change in grade on a slope (or a lip, bump or depression). These may
cause a fall or tip-over.
c. A drop-off at the bottom of a slope. A drop-off of as small as 3/4”
can stop a front caster and cause the chair to tip forward.
8. To reduce the risk of a fall or tip-over:
a. Lean or press your body UPHILL. This will help adjust for a change
in the center of balance caused by the slope or side hill.
b. Keep pressure on the handgrips to control your speed on a down
W
A
R
N
I
N
G
!

9
05/15/08
WARNING:
WARNING:
slope. If you go too fast, you may lose control.
c. Ask for help any time you are in doubt.
9. For your safety, ramps at home and work must meet all legal requirements for
your area.
We recommend:
a. Width: At least four feet wide.
b. Guardrails. To reduce the risk of a fall, sides of ramp must have
guardrails (or raised borders at least three inches high).
c. Slope. Not more than a 10% grade.
d. Surface. Flat and even, with a thin carpet or other nonskid material.
(Make sure there is no lip, bump or depression).
e. Bracing. Ramp must be STURDY. You may need a section at the top or
bottom to smooth out the transition.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Transfer
It is dangerous to transfer on your own. It requires good balance and agility. Be
aware that there is a point during transfer when the wheelchair seat is not below
you. To avoid a fall:
1. Work with your health care advisor to learn safe methods.
a. Learn how to position your body and how to support yourself during a
transfer.
b. Have someone help you until you know how to do a safe transfer on
your own.
2. Lock large Drive wheels before you transfer. This keeps the large wheels from
rolling.
Note: This will NOT keep your chair from sliding away from you or tipping.
3. Make sure to keep pneumatic tires properly inflated. Low tire pressure may
allow the wheel locks to slip.
4. Move your chair as close as you can to the seat you are transferring to. If
possible, use a transfer board.
5. Rotate the front casters until they are as far forward as possible.
6. Remove footboard, if possible.
a. Make sure your feet do not catch in the space between the footrests.
b. Avoid putting excessive weight on the footboard, as this may cause the
chair to tip.
7. Make sure armrests are out of the way and do not interfere.
8. Transfer as far back onto the seat surfaces as you can. This will reduce the risk
that the chair will tip or move away from you.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Curbs & Steps
1. Each person who helps you should read and follow the warnings—”For Safe
Use” (Pages 10 – 12).
2. Do not try to climb or descend a curb or step alone UNLESS you are a skilled
rider of this chair and you are sure you have the strength and balance to do so.
3. Do not try to climb a high curb or step, more than 4” high, UNLESS you have
help. Doing so may cause your chair to exceed its balance point and tip over.
4. Go straight up and down a curb or step. If you climb or descend at an angle,
W
A
R
N
I
N
G
!

FREEDOM DESIGNS, INC. 2241 Madera Rd. Simi Valley, CA. 93065 800-331-8551 Fax [phone]
www.freedomdesigns.com
10
a fall or tip-over is likely.
5. Be aware that the impact of dropping down from a curb or step can damage
your chair or loosen fasteners.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Stairs and Escalators
1. NEVER use this chair on stairs UNLESS you have someone to help you.
Doing so is likely to cause a fall or tip-over.
2. Persons who help you should read and follow the warnings “For Attendants”,
(page 6) and the “For Safe Use”, (pages 10—12).
3. NEVER use this chair on an escalator, even with an attendant. If you do, a fall
or tip-over is likely.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
WARNING: FOR SAFE USE
Before you assist a rider, be sure to read the warnings “For Attendants” (page 6)
and follow all instructions that apply. Be aware that you will need to learn safe
methods best suited to your abilities.
Transport Use
1. If possible and feasible, the rider should transfer to the OEM vehicle seat and
use the vehicle restraint.
2. If the wheelchair is used for transport, it must be used in a forward-facing
seating position.
3. The ANSI/RESNA WC/19 standards apply to persons with a weight of 51 to
169 lbs. This constitutes the range of sizes for which the wheelchairs are
suitable for occupancy in a motor vehicle.

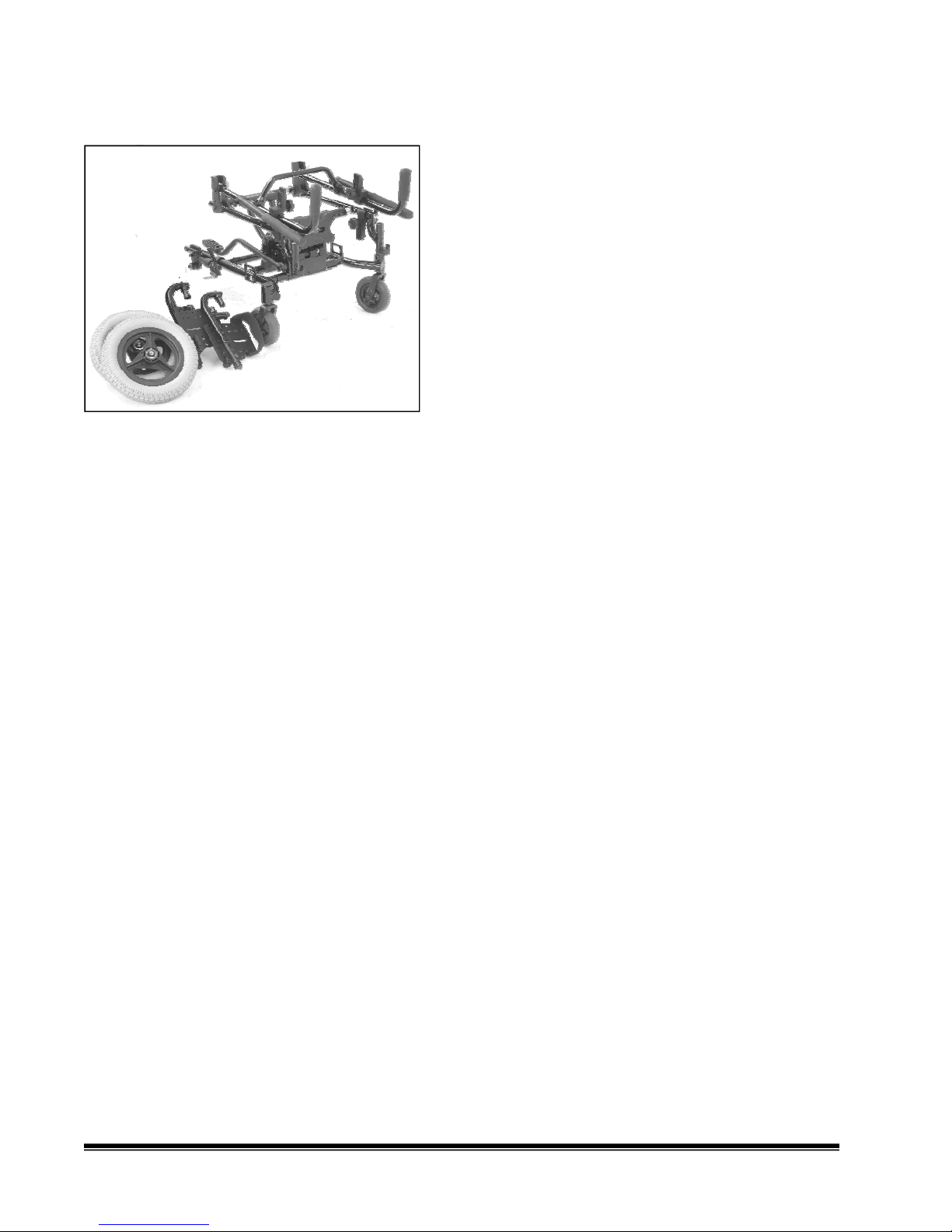

4. The Freedom CGX™ picture (right) shows the location of the wheelchair
securement points.
5. Use only with Wheelchair Tiedown and Occupant Restraint Systems (WTORS)
that have been installed in accordance with the manufacturer’s instructions and
SAE J2249.
6. Attach WTORS to securement points in
accordance with the manufacturer’s
instructions and SAE J2249
7. Attach occupant restraints in accordance
with the manufacturer’s instructions and SAE
J2249.
Note: To obtain a copy of SAE J2249
Wheelchair Tiedown and Occupant Restraints
Systems for Use in Motor Vehicles, please
contact:
SAE International—400 Commonwealth Drive—Warrendale, PA 15096
[phone]
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
W
A
R
N
I
N
G
!

11
05/15/08
Descending a Curb or Single Step
Follow these steps to help a rider descend a curb or single step going down
BACKWARD:
1. Stay at the rear of the chair.
2. Several feet before you reach the edge of the curb or step, turn the chair
around and pull it backward.
3. While looking over your shoulder, carefully step back until you are off the curb
or stair and standing on the lower level.
4. Pull the chair toward you until the large Drive wheels reach the edge of the curb
or step. Then allow the large Drive wheels to slowly roll down onto the lower
level.
5. When the large Drive wheels are safely on the lower level, tilt the chair back to
its balance point. This will lift the front casters off of the curb or step.
6. Keep the chair in balance and take small steps backward. Turn the chair around
and gently lower front casters to the ground.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Climbing a Curb or Single Step
Follow these steps to help the rider climb a curb or single step going FORWARD
1. Stay behind the chair.
2. Face the curb and tilt the chair up on the large Drive wheels so that the front
casters clear the curb or step.
3. Move forward, placing the front caster on the upper level as soon as you are
sure they are past the edge.
4. Continue forward until large wheels contact the face of the curb or step. Lift and
roll the large wheels to the upper level.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Climbing Stairs
1. Use at least two attendants to move a chair and rider up stairs.
2. Move the chair and rider BACKWARD up the stairs.
3. The person at the rear is in control. He or she tilts the chair back to its balance
point.
4. A second attendant at the front firmly grasps a non-detachable part of the front
frame and lifts the chair up and over one stair at a time.
5. The attendants move to the next stair up. Repeat for each stair until you reach
the landing.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or other
Descending Stairs
1. Use at least two attendants to move a chair and rider down stairs.
2. Move the chair and rider FORWARD down the stairs.
3. The person at the rear is in control. He or she tilts the chair to the balance
point of the rear wheels and rolls it to the edge of the top step.
4. A second attendant stands on the third step from the top and grasps the chair
frame. He or she lowers the chair one step at a time by letting the rear
wheels roll over the stair edge.
5. The attendants move to the next stair down. Repeat for each stair, until you
reach the landing.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or other
W
A
R
N
I
N
G
!

FREEDOM DESIGNS, INC. 2241 Madera Rd. Simi Valley, CA. 93065 800-331-8551 Fax [phone]
www.freedomdesigns.com
12
Tilting Seat
1. Set wheel lock prior to seat tilt adjustment.
2. Make sure that the floor surface is level when adjusting tilt.
3. Keep both hands on handgrips while using your right foot to tilt seat forward or
back.
4. Always lock the tilt lever (foot pedal) after setting the seat to the desired angle.
Maintenance
1. Inspect and maintain this chair strictly per instructions on page 29.
2. If you detect a problem, make sure to service or repair the chair before use.
3. At least once a year, have a complete inspection, safety check and service of
your chair made by an authorized Freedom Designs, Inc. dealer.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
WARNING: COMPONENTS & OPTIONS
Transport Option
1. Use only Wheelchair Tiedown and Occupant Restraint Systems, (WTORS)
which meet the requirements of SAE J2249 Recommended Practice—
Wheelchair Tiedown and Occupant Restraint Systems Use In Motor Vehicles.
Do not use WTORS designed to rely on the wheelchair structure to transfer
occupant restraint loads to the vehicle. Note: Use only a four-point
wheelchair tiedown with an integrated three-point occupant restraint
system.
2. The wheelchair has been dynamically tested in a forward-facing mode for a 48-
km/h frontal impact. The wheelchair must be forward-facing during transport.
3. In order to reduce the potential of injury to vehicle occupants, wheelchair-
mounted accessories, such as trays and respiratory equipment, should be
removed and secured separately.
4. Postural supports and positioning devices should not be relied on for
occupant restraints.
5. Do not alter or substitute wheelchair fame parts, components or seating.
6. Sudden stops or impacts can structurally damage your chair. Chairs involved
in such incidents should be replaced.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Anti-Tip Device
Anti-tip tubes help keep your chair from tipping over backward in most normal
conditions. Freedom Designs, Inc. recommends that the anti-tip tubes be used at
all times and may not be removed from the wheelchair.
1. If modifications or adjustments are done to the wheelchair, anti-tip tubes must
be used to prevent tipping backward.
When locked in place, (the “down” position), anti-tip tubes should be BETWEEN
1 1/2” to 2” off the ground.
a. If set too HIGH, they may not prevent a tip-over.
b. If set too LOW, they may ”hang up” on obstacles you can expect in normal
use. If this occurs, you may fall or your chair may tip over.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
W
A
R
N
I
N
G
!

13
05/15/08
Caution must always be used when tipping the wheelchair backward.
Armrests
Armrests may detach or flip up and will not bear weight of this chair.
1. NEVER lift this chair by the armrests. They may come loose or break.
2. Lift this chair only by non-detachable parts of the frame.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Cushions & Sling Seats
1. Freedom Designs, Inc. sling seats and standard foam cushions are not
designed for the relief of pressure.
2. If you suffer from pressure sores, or if you are at risk that they will occur, you
may need a special seating system or a device to control your posture. Consult
your doctor, nurse, or therapist to find out if you need such a device for your
well-being.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Fasteners
Many of the screws, bolts and nuts on this chair are special high-strength
fasteners. Use of improper fasteners may cause your chair to fail.
1. ONLY use fasteners provided by an authorized Freedom Designs, Inc. dealer.
2. Over or under tightened fasteners may fail or cause damage to chair parts.
3. If bolts or screws become loose, tighten them as soon as possible.
Footrests
1. At the lowest point, the footrest should be AT LEAST 2 1/2” off the ground. If
set too LOW, it may “hang up” on obstacles you can expect to find in normal
use. This may cause the chair to stop suddenly and tip forward.
2. To avoid a trip or fall when you transfer:
a. Avoid putting excessive weight on the footrest, as the chair may tip
forward.
3. NEVER lift this chair by the footrest. Footrests are not designed to bear the
weight of this chair.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Pneumatic Tires
Proper inflation extends the life of your tires and makes your chair easier to use.
1. Do not use this chair if any of the tires is under or over inflated. Check weekly
for proper inflation level, as listed on the tire sidewall.
2. Low pressure in a large tire may cause the wheel lock on that side to slip AND
allow the wheel to turn when you do not expect it.
3. Low pressure in any tires may cause the chair to veer to one side and result in
a loss of control.
4. Over inflated tires may burst.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Positioning Belts
Use positioning belts ONLY to help support the rider’s posture. Improper use of
these belts may cause severe injury to or death of the rider.
1. Make sure the rider does not slide down in the wheelchair seat. If this occurs,
W
A
R
N
I
N
G
!

FREEDOM DESIGNS, INC. 2241 Madera Rd. Simi Valley, CA. 93065 800-331-8551 Fax [phone]
www.freedomdesigns.com
14
the rider may suffer chest compression or suffocate due to pressure from the
belts.
2. The belts must be snug, but must not be so tight that they interfere with
breathing. You should be able to slide your 2 fingers between the belt and the
rider.
3. Use positioning belts only with a rider who can cooperate. Make sure the belt can
easily be removed in an emergency.
4. NEVER use positioning belts:
a. As a patient restraint. A restraint requires a doctor’s order.
b. On a rider who is comatose or agitated.
c. As a motor vehicle restraint. In an accident or sudden stop, the rider
may be thrown from the chair. Wheelchair positioning belts will not
prevent this and further injury may result from the belts or straps.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or loss
of control may occur and cause severe injury to the rider or others.
Power Drive
Freedom Designs, Inc. does not recommend the attachment of power drives to the
Freedom CGX™ wheelchair.
1. The attachment of power drives to the wheelchair is considered a modification or
alteration to the frame, thus voiding the warranty.
2. Balance and stability may be affected, thereby causing unsafe conditions.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or loss
of control may occur and cause severe injury to the rider or others.
Push Handles
When you have an attendant, make sure that this chair has push handles.
1. Push handles provide secure points for an attendant to hold the rear of this
chair, to prevent a fall or tip-over. Make sure to use push handles when you
have an attendant.
2. Check to make sure push handles grips will not rotate or slip off.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or loss
of control may occur and cause severe injury to the rider or others.
Quick Release Axles
1. Do not use this chair UNLESS you are sure that both quick release axles are
locked. An unlocked axle may come off during use and cause a fall.
2. An axle is not locked until the quick release button pops out fully. An unlocked
axle may come off during use, resulting in a fall, tip-over or loss of control and
cause injury to the rider or others.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or loss
of control may occur and cause severe injury to the rider or others.
Large Drive Wheels
A change in setup of the large Drive wheels will affect the center of balance of your
chair.
1. The farther you move the large Drive wheel axles FORWARD, the more likely it is
that your chair will tip over backward.
2. Consult your doctor, nurse, or therapist to find the best Drive wheel axle setup for
your chair.
3. Adjust the wheel locks after you make any change to the Drive wheel axles.
a. If you fail to do so, the locks may not work.
b. Make sure lock arms embed in tires at least 1/4” when locked.
W
A
R
N
I
N
G
!

15
05/15/08
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Wheel Locks
Wheel locks are NOT designed to slow or stop a moving wheelchair. Use the wheel
locks only to keep the Drive wheels from rolling when your chair is at a complete
stop.
1. NEVER use wheel locks to try to slow or stop your chair when it is moving.
Doing so may cause you to veer out of control.
2. To keep the drive wheels from rolling, always set both wheel locks when you
transfer to or from your chair.
3. Low pressure in a large Drive wheel tire may cause the wheel lock on that side
to slip and may allow the wheel to turn when you do not expect it.
4. Make sure lock arms embed in tires at least 1/4” when locked. If you fail to do
so, the locks may not work.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Modified Seating System
Use of a seating system not approved by Freedom Designs, Inc., may alter the
center of balance of this chair. This may cause the chair to tip over.
1. Do not change the seating system of your chair UNLESS you consult your
authorized Freedom Designs, Inc. supplier first.
2. Use of a seating system not approved by Freedom Designs, Inc. may affect the
folding mechanism of this chair.
3. Use of a seating system not approved by Freedom Designs, Inc. is prohibited
for transportation use with Freedom Designs, Inc. Transport Option.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
Upholstery Fabric
1. Sling fabric will weaken with age and use. Look for fraying or thin spots,
stretching of fabrics at rivet holes.
2. “Drooping Down” into your chair will weaken fabric and result in the need to
inspect and replace the seat more often.
3. Be aware that laundering or excess moisture will reduce flame retardation of
the fabric.
If you fail to heed these warnings, damage to your chair, a fall, tip-over, or
loss of control may occur and cause severe injury to the rider or others.
W
A
R
N
I
N
G
!

FREEDOM DESIGNS, INC. 2241 Madera Rd. Simi Valley, CA. 93065 800-331-8551 Fax [phone]
www.freedomdesigns.com
16
Initial Inspection Checklist
The Freedom CGX™ is shipped in the
following fashion:
1. The main frame with backposts, casters,
tires, with quick release axles, armrests* and
footrests. (Refer to the “Unfold Instructions”
in this manual).
2. Solid seat & back insert**.
3. Optional armrests will be attached to the
backposts or solid seat insert.
*Armrests may be optional, dependent upon
frame.
**Solid seat & back insert are optional.
When Unpacking:
1. Check for any obvious damage to the box or
its contents.
2. Remove all the loose packing from the box.
3. Carefully remove all of the components.
4. Examine the exterior of the Freedom CGX™
and the components for any nicks, dents,
scratches or other damage.
Freedom CGX ™

17
05/15/08
*Overall frame width and depth dependent on frame size ordered
**Up charge Item
Center of Gravity Tilt in Space—Rigid Frame
31” (does not include anti-tips)
Narrow: 10” - 14”, Medium: 12” - 16”, Wide: 14” - 18”
Short: 10”-14”, Medium: 12” - 16”, Long: 14” - 18”
Short 21”, Med 24”, Tall 27” (with handles)
Seat width plus 8-3/4”
80°, 90°, 100°, 110°, 120°
-10° anterior to +50° posterior
Frame: 1-1/4” Seat rail: 1”
200 lbs.
35 lbs. (base weight)
Latch Style Swing Away—75º & 90º
Pop Up Removable—75º & 90º
Elevating
Angle adjustable footboard
Individual flip up footplates
Flip back or locking flip back, removable adjustable height
7” - 13” (range adjusts in 1” increments)
Push button double lock quick release
Traditional bend (8º optional) or ergo bend
Conventional push to lock, pull to lock or hub lock
3”, 5”, 6”, 7”
12” (std.) and 18” mags
14-1/2” - 19” at 0° seat angle
Frame Configuration
Frame Length
Seat Width
Seat Depth
Back Height
Overall Chair Width
Adjustable Back Angle
Tilt Range
Tubing Outside Diameter
Maximum Rider Weight
Frame Weight
Front Rigging
Footrest
Armrests
Armrest Heights
Rear Wheel Axle
Backposts
Wheel Locks
Caster Sizes
Rear Wheels
Seat to Floor Height
Freedom CGX
Specifications
™

FREEDOM DESIGNS, INC. 2241 Madera Rd. Simi Valley, CA. 93065 800-331-8551 Fax [phone]
www.freedomdesigns.com
18
Features
1. Frame
2. Seat Frame
3. Backpost
4. Backpost Pivot Plate
5. Backpost Trigger Mechanism
6. Caster Wheel
7. Caster Fork
8. Seating
9. Footrest Assembly
10. Tilt Mechanism
11. Anti Tip Lever
12. Rear Wheel
13. Quick Release Axle
14. Wheel lock
Freedom CGX
13 12
1
2
3
5
4
6
7
89
10 14
11
TM
