Freescale Semiconductor USB-KW40Z User manual

Freescale Semiconductor, Inc.
User’s Guide
© 2015 Freescale Semiconductor, Inc. All rights reserved.
1 About this guide
This manual describes the Freescale USB-KW40Z
development platform. The USB-KW40Z board is a small,
cost-effective evaluation and development board for
application prototypes and demonstration of the
MKW40Z160 SoC family of devices. This evaluation board
offers an easy-to-use mass-storage device mode flash
programmer, a virtual serial port, classic programming, and
run-control capabilities.
The MKW40Z160 SoC is an ultra low-power, highly
integrated single-chip device that enables Bluetooth Low
Energy (BLE) and/or IEEE®Std. 802.15.4/RF connectivity
for portable, extremely low-power embedded systems. The
MKW40Z160 SoC family integrates a radio transceiver
operating in the 2.36 GHz to 2.48 GHz range supporting a
range of FSK/GFSK and O-QPSK modulations, and ARM®
Cortex®- M0+ MCU, 160 KB flash memory and 20 KB
SRAM, BLE Link Layer hardware, 802.15.4 packet
processor hardware, and peripherals optimized to meet the
requirements of the target applications.
1.1 Audience
This manual is intended for system designers.
Document Number: USBKW40ZUG
Rev. 0, 10/2015
Contents
1. About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1.Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1.FCC guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.2.Regulatory approval for Canada (IC RSS 210) . . . 3
2.3.Electrostatic discharge considerations . . . . . . . . . . 3
2.4.Disposal instructions . . . . . . . . . . . . . . . . . . . . . . . 3
3. USB-KW40Z overview and description . . . . . . . . . . 4
3.1.Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.2.Board features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.3.Serial and debug adapter . . . . . . . . . . . . . . . . . . . . 6
4. USB-KW40Z development board . . . . . . . . . . . . . . . 7
4.1.USB-KW40Z board overview . . . . . . . . . . . . . . . . 7
4.2.Functional description . . . . . . . . . . . . . . . . . . . . . . 9
4.3.Schematic, board layout, and bill of material . . . 16
5. PCB manufacturing specifications . . . . . . . . . . . . . . 21
5.1.Single PCB construction . . . . . . . . . . . . . . . . . . . 21
5.2.Panelization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.3.Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.4.Solder mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.5.Silk screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.6.Electrical PCB testing . . . . . . . . . . . . . . . . . . . . . 23
5.7.Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.8.Hole specification/tool table . . . . . . . . . . . . . . . . 23
5.9.File description . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6. Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Freescale USB Development Board
USB-KW40Z User's Guide

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
2Freescale Semiconductor, Inc.
Safety information
2 Safety information
2.1 FCC guidelines
This equipment is for use by developers for evaluation purposes only and must not be incorporated into
any other device or system. This device may not be sold to the general public. Integrators will be
responsible for reevaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
FCC approval of this device only covers the original configuration of this device as supplied. Any
modifications to this product, including changes shown in this manual, may violate the rules of the Federal
Communications Commission and Industry Canada and make operation of the product unlawful.
2.1.1 Labeling
FCC labels are physically located on the back of the board.
2.1.2 Operating conditions
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired
operation.
2.1.3 Exposure limits
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
The antenna(s) used for this equipment must be installed to provide a separation distance of at least 8
inches (20 cm) from all persons.
2.1.4 Antenna restrictions
An intentional radiator is designed to ensure that no antenna other than that furnished by the responsible
party is used with the device. The use of a permanently attached antenna or of an antenna that uses a unique
coupling to the intentional radiator is considered sufficient to comply with the provisions of this Section.
The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of
a standard antenna jack or electrical connector is prohibited. This requirement does not apply to carrier
current devices or to devices operated under the provisions of Sections 15.211, 15.213, 15.217, 15.219, or
15.221 of the IEEE Std. 802.15.4. This requirement does not apply to intentional radiators that must be
professionally installed, such as perimeter protection systems and some field disturbance sensors, or to
other intentional radiators which, in accordance with Section 15.31(d), must be measured at the installation
site. However, the installer is responsible for ensuring that the proper antenna is employed so that the limits
in this Part are not exceeded.

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc 3
Safety information
2.2 Regulatory approval for Canada (IC RSS 210)
This equipment complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
1. This board may not cause interference, and
2. This board must accept any interference, including interference that may cause undesired operation
of the device.
2.2.1 26 PART 5 – Appendix
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes:
1. l'appareil ne doit pas produire de brouillage, et
2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
2.3 Electrostatic discharge considerations
Although damage from electrostatic discharge (ESD) is much less common on these devices than on early
CMOS circuits, normal handling precautions should be used to avoid exposure to static discharge.
Qualification tests are performed to ensure that these devices can withstand exposure to reasonable levels
of static without suffering any permanent damage.
All ESD testing is in conformity with the JESD22 Stress Test Qualification for Commercial Grade
Integrated Circuits. During the device qualification ESD stresses were performed for the human body
model (HBM), the machine model (MM) and the charge device model (CDM).
All latch-up test testing is in conformity with the JESD78 IC Latch-Up Test.
When operating or handling the development boards or components, Freescale strongly recommends
using at least the grounding wrist straps plus any or all of the following ESD dissipation methods:
• Flexible fabric, solid fixed size, or disposable ESD wrist straps
• Static control workstations, static control monitors, and table or floor static control systems
• Static control packaging and transportation materials and environmental systems
2.4 Disposal instructions
This product may be subject to special disposal requirements. For product disposal instructions, refer to
freescale.com/productdisposal.

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
4Freescale Semiconductor, Inc.
USB-KW40Z overview and description
3 USB-KW40Z overview and description
3.1 Introduction
The USB-KW40Z development platform is an evaluation environment based on the Freescale
MKW40Z160 SoC device. The MKW40Z160 SoC integrates a radio transceiver operating in the 2.36 GHz
to 2.48 GHz range, supporting a range of FSK/GFSK and O-QPSK modulations, an ARM Cortex-M0+
MCU into a single package.
Freescale supplements the MKW40Z160 SOC with tools and software that include hardware evaluation
and development boards, software development IDE, applications, drivers, custom PHY usable with IEEE
Std. 802.15.4 compatible MAC, BLE Link Layer, and enables the Bluetooth Low Energy protocol to be
used in the MBAN frequency range for proprietary applications.
3.2 Board features
3.2.1 USB-KW40Z board
The USB-KW40Z development board contains the MKW40Z160 device it is one of the simplest reference
design utilizing the on chip USB block for power and communication. The USB-KW40Z is a small form
factor self-contained board for evaluation of wireless application and can be used as a packet sniffer. The
USB type-A connection is used with USB enabled hardware such as a computer.

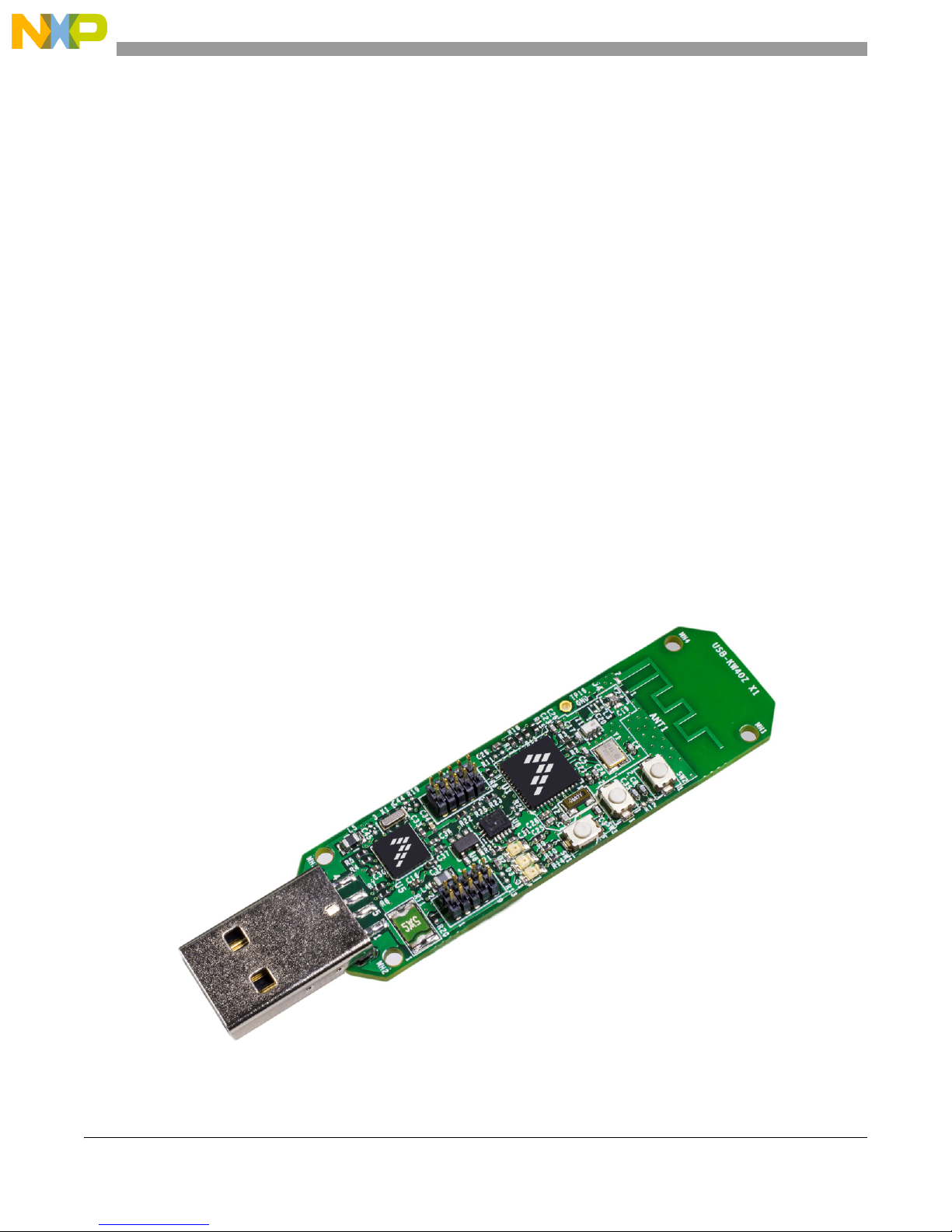

Figure 1 shows the USB-KW40Z development platform.
Figure 1. USB-KW40Z development board

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc 5
USB-KW40Z overview and description
The USB-KW40Z development board includes the following features:
• Based on the Freescale ultra low-power MKW40Z160 SoC BLE device
• Fully compliant IEEE Std. 802.15.4, 2006, transceiver supporting 250 kbit/s O-QPSK data in
5.0 MHz channels and full spread-spectrum encode and decode
• Fully compliant Bluetooth v4.1 Low Energy (BLE)
• Full IEEE 802.15.4 compliant wireless node with KSDK enable software
• Reference design area with small footprint, low-cost RF node
— Differential input/output port used with external balun for single port operation
— Low external component count
— Programmable output power from –20 dBm to +5 dBm at the MMCX connector, no harmonic
trap using bypass mode of operation
— Receiver sensitivity: –102 dBm, typical (@1% PER for 20 byte payload packet), for 802.15.4
at the MMCX connector
— Receiver sensitivity: -91 dBm for BLE applications at the MMCX connector
• Integrated PCB inverted meander type antenna and MMCX (Micro-Miniature Coaxial) RF port
• Bypass operation mode
• 32 MHz reference oscillator
• 32 kHz reference oscillator
• 2.4 GHz frequency operation (ISM and MBAN)
• Reset switch drive to MKW40Z160.
• Reset switch drive to debug interface (OpenSDA)
• Cortex 10-pin (0.05 inch) SWD debug port for target MCU
• Cortex 10-pin (0.05 inch) JTAG port for OpenSDA updates
• Integrated open-standard serial and debug interface (OpenSDA)
• 2 Blue LED indicators primary drive thought MKW40Z160 MCU, also connected to MK22FN512
• 1 Push button switch drive to MKW40Z160 MCU, also connected to MK22FN512

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
6Freescale Semiconductor, Inc.
USB-KW40Z overview and description

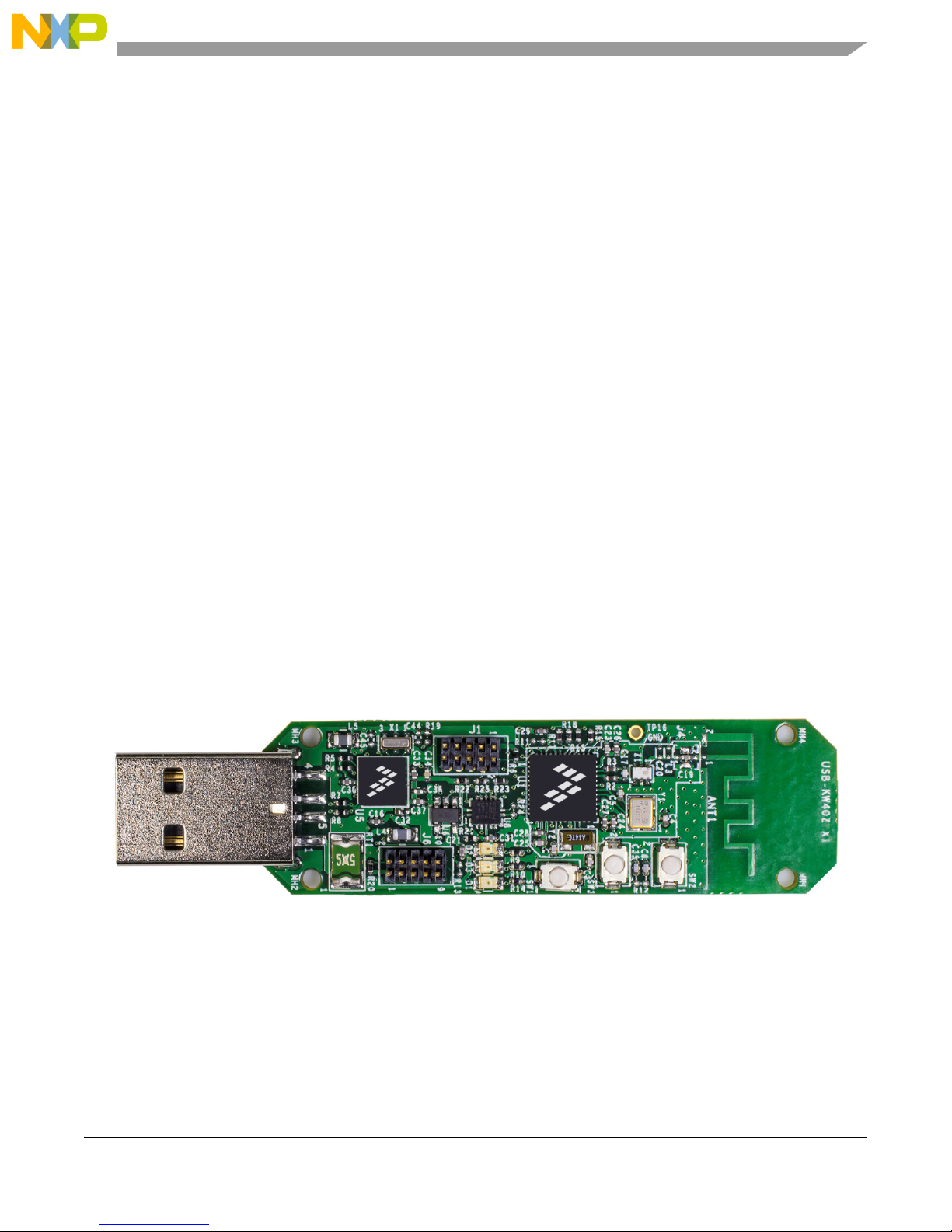

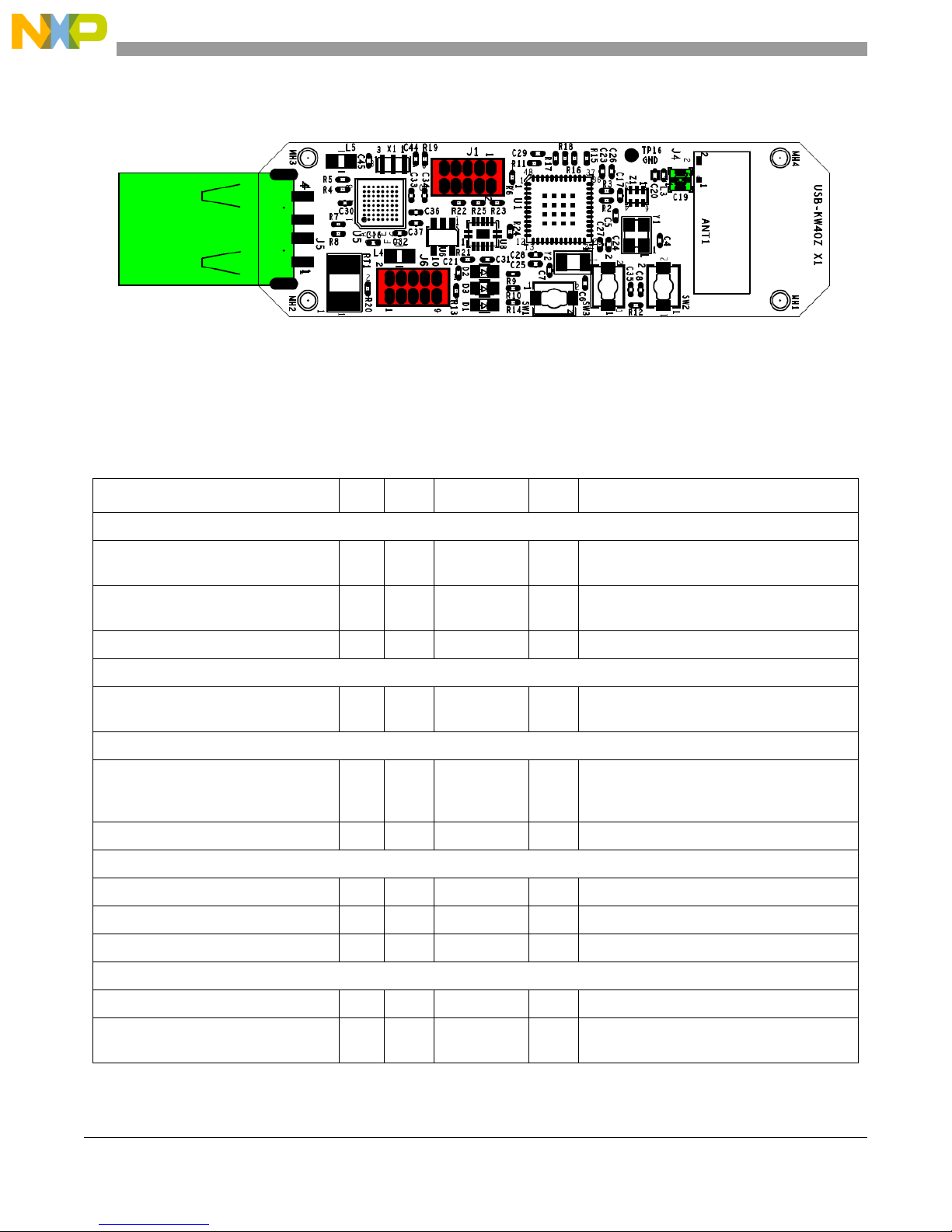

Figure 2 shows the main board features and I/O headers for the Freescale USB-KW40Z board.
Figure 2. USB-KW40Z component placement
3.3 Serial and debug adapter
The USB-KW40Z development board can be enabled with OpenSDA v2.1, a serial and debug adapter
circuit that includes an open-source hardware design, an open-source bootloader, and debug interface
software. It bridges serial and debug communications between a USB host and an embedded target
processor. The hardware circuit is based on a Freescale Kinetis K22F family microcontroller (MCU).
OpenSDAv2.1 enables the CMSIS-DAP bootloader, an open-source mass storage device (MSD)
bootloader, and the CMSIS-DAP Interface firmware (also known as the mbed interface), that provides a
MSD flash programming interface, a virtual serial port interface, and a CMSIS-DAP debug protocol
interface. For more information on the OpenSDAv2.1 software, see mbed.org and
https://github.com/mbedmicro/CMSIS-DAP.
NOTE
Driver considerations, you must install a windows driver that can be
downloaded from the following link:
https://developer.mbed.org/handbook/Windows-serial-configuration
USB-KW40Z comes pre-programed with a sniffer application. In order to enable this board with
OpenSDA feature and as a development board, refer to the following:
freescale.com/USB-KW40Z/startnow

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc 7
USB-KW40Z development board
4 USB-KW40Z development board
4.1 USB-KW40Z board overview
The USB-KW40Z board is an evaluation board based on the Freescale MKW40Z160 SoC. The
USB-KW40Z provides a platform to evaluate the MKW40Z160 SoC device and to develop software and
applications. The core device is accompanied by a the 32 MHz reference oscillator crystal, RF circuitry
including antenna, and supporting circuitry.
The USB-KW40Z board is intended as the core PCB for MKW40Z160 device evaluation and application
development, and can be used as a simple standalone valuation solution or as packet sniffer.
4.1.1 PCB features
The USB-KW40Z board provides the following features:
• USB small form factor
• 4-Layer metal, 0.062 inch thick FR4 board
• LGA footprint and power supply bypass mode
• Printed Meander Antenna and footprint for installing a (user supplied) MMCX connector
• 32 MHz reference oscillator crystal
• 32 kHz crystal provided for optional timing oscillator
• Secondary (MK22FN512) device to use as voltage regulator and MCU processor for BLE sniffer.
4.1.2 Form factor
Figure 3 shows the USB-KW40Z development board layout and footprint.
Figure 3. USB-KW40Z top side (component side) footprint

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
8Freescale Semiconductor, Inc.
USB-KW40Z development board
Figure 4 shows a footprint of the USB-KW40Z with the location of the headers.
Figure 4. USB-KW40Z I/O headers location
4.1.3 Board level specifications
Table 1. USB-KW40Z specifications
Parameter Min Typ Max Units Notes/Conditions
General
Size (PCB: X, Y) — — 18.5 x 61.4
0.73 x 2.42
mm
inches
Layer build (PCB) — 1.57
0.062
—mm
inches
4-Layer
Dielectric material (PCB) — — — — FR4
Power
Current consumption — — —mA Varies with operational mode, Refer to
datasheet.
Temperature
Operating temperature (see note) -40 +25 +70 °C Operating temperature is limited to +70 °C
due to switches. Basic circuit is good for a
maximum temperature of +85 °C.
Storage temperature -30 +25 +70 °C
RF
802.15.4 Frequency range 2405 — 2480 MHz All 16 channels in the 2450 MHz band
BLE Frequency range 2400 — 2483 MHz All 40 channels in the 2450 MHz band
ISM and MBAN Frequency range 2360 — 2483 MHz
RF Receiver
Saturation (maximum input level) — +0 — dBm Refer to datasheet
Sensitivity for 1% packet error rate
(PER) (+25 °C) 802.15.4
— -102 — dBm Refer to datasheet

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc 9
USB-KW40Z development board
1] Trap will add 1 to 2 dB of loss.
4.2 Functional description
The USB-KW40Z is built around the Freescale MKW40Z160 SoC in a 48-pin LGA package. The
USB-KW40Z features a IEEE Std. 802.15.4 and BLE 2.4 GHz radio frequency transceiver and a Kinetis
family ultra low-power, mixed-signal ARM Cortex-M0+ microcontroller in a single package. This board
is intended as a simple evaluation platform and as a building block for application development. The
four-layer board provides the MKW40Z160 with its required RF circuitry and a 32 MHz reference
oscillator crystal. The layout for this base level functionality can be used as a reference layout for your
target board. Figure 5 shows a simple block diagram.
Sensitivity for 1% packet error rate
(PER) (+25 °C) BLE
— -94 — dB Refer to datasheet
RF Transmitter
RF Power Output -20 — +5 dBm Programmable in steps.
At the MMCX connector with no trap. 1
2nd harmonic — ≤50 ≤40 dBm —
3rd harmonic — ≤50 ≤40 dBm —
Regulatory Approval
FCC — — — — Product is approved according to the FCC
part 15 standard
CE (ETSI) — — — — Product is approved according to the EN
300 328 V1.7.1 (2006-10) standard
CE (EMC) — — — — Product is approved according to the EN
301 489-1 V1.6.1 (2005-09) and EN 301
489-17 V1.2.1 (2002-08) standards
Safety
UL — — — — Product is approved according to the IEC
60950-1 and EN 60950-1, First Edition
standards
Environment
RoHS — — — — Product complies with the EU Directive
2002/95/EC of 27 January 2003
WEEE — — — — Product complies with the EU Directive
2002/95/EC of 27 January 2003
Table 1. USB-KW40Z specifications (continued)
Parameter Min Typ Max Units Notes/Conditions

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
10 Freescale Semiconductor, Inc.
USB-KW40Z development board

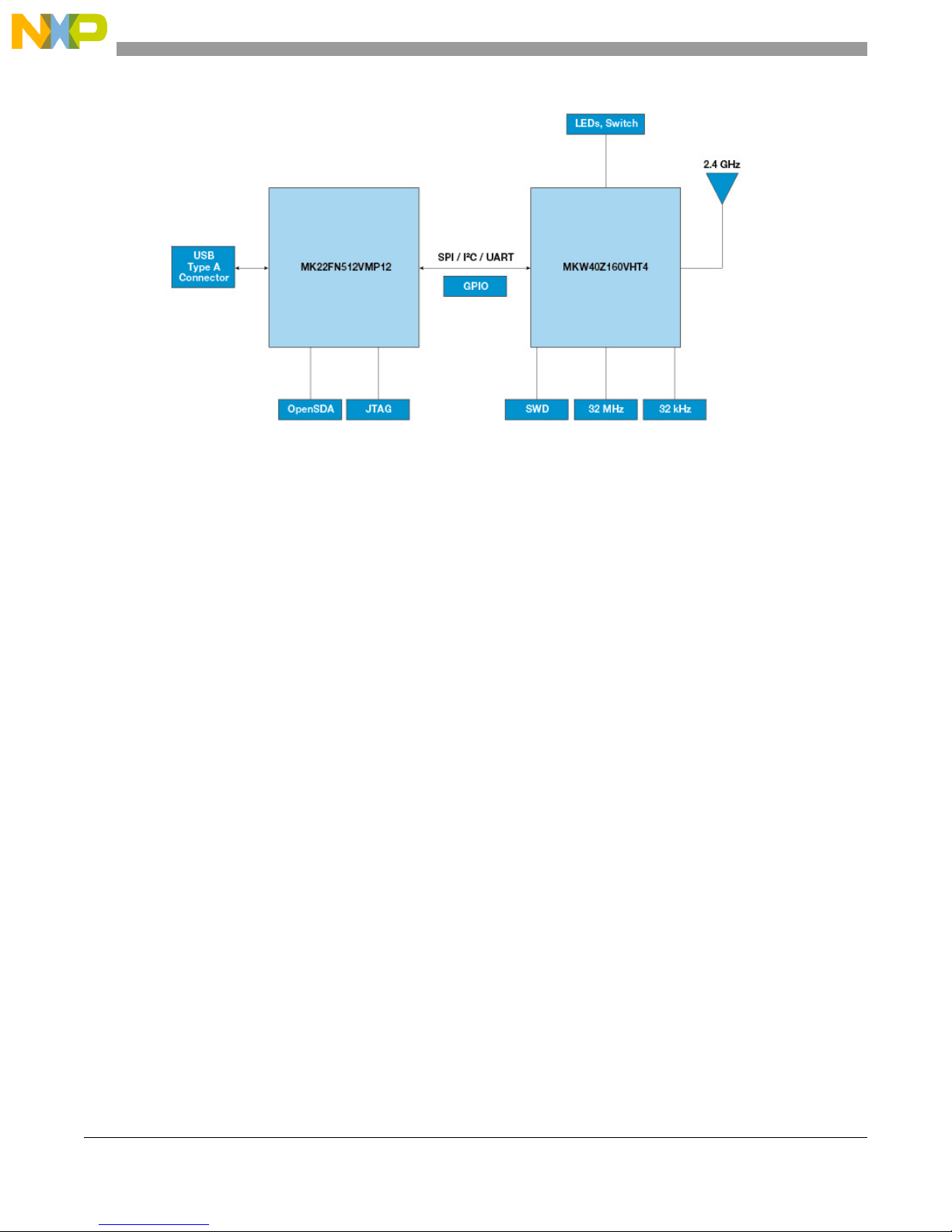

Figure 5. USB-KW40Z block diagram
4.2.1 RF performance and considerations
The USB-KW40Z board’s integrated transceiver includes a 1 mW nominal output power PA with internal
voltage controlled oscillator (VCO), integrated transmit/receive switch, on-board power supply regulation,
and full spread-spectrum encoding and decoding. Key specifications for the MKW40Z160 SoC are:
• Nominal output power is set to 0 dBm
• Programmable output power from -20 dBm to +5 dBm at the MMCX, no harmonic trap
• Typical sensitivity is -102 dBm (@1% PER for 25 °C) at the MMCX (802.15.4)
• Typical sensitivity is -91 dBm (@1% PER for 25 °C) at the MMCX (BLE)
• Frequency range is 2360 to 2480 MHz
• Differential bidirectional RF I/O port with integrated transmit/receive switch
• Meander printed metal antenna for a small footprint, low cost design
• Uses a minimum number of RF marching components and external 50:100 balun
An external 50 (bal): 100 (unbal) balun connects a single-ended 50 ohm port to the differential RF port of
the MKW40Z160 SoC’s transceiver. The layout has provision for out-of-band signal suppression
(components L3 and C20) if required. Figure 6 shows the typical topology for the RF circuitry. The RF
connector J4 has been included in the design for measurement purposes and is used as a DNP.

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc 11
USB-KW40Z development board

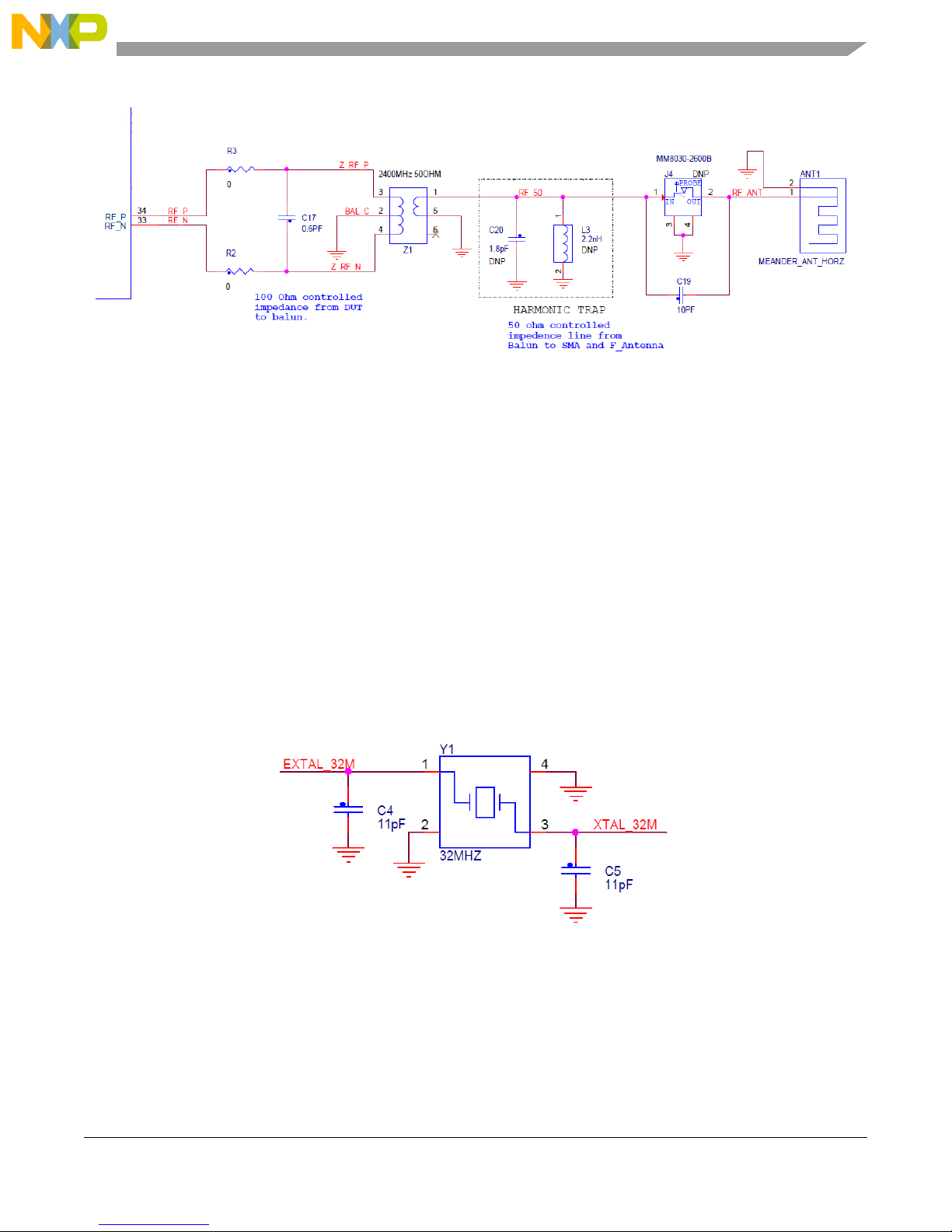

Figure 6. USB-KW40Z RF circuitry
4.2.2 Clocks
The USB-KW40Z provides two clock sources to the MKW40Z160:
• 32 MHz Reference Oscillator - Figure 7 shows the external 32 MHz external crystal Y1. This
mounted crystal must meet the specifications outlined in the AN3251 application note. The IEEE
Std. 802.15.4 requires that the frequency be accurate to less than ±40 ppm.
— Capacitors C4 and C5 provide the bulk of the crystal load capacitance. At 25 °C, it is desired
to have the frequency accurate to ±10 ppm or less to allow for temperature variation.
• Optional 32.768 kHz Crystal Oscillator: Provision is also made for a secondary 32.768 kHz crystal
Y2 (see Figure 8). This oscillator can be used for a low power accurate time base.
— The module comes provided with this Y2 crystal and its load capacitors C6 and C7.
— Load capacitors C6 and C7 provide the entire crystal load capacitance; there is no onboard trim
capacitance.
Figure 7. USB-KW40Z board’s 32 MHz reference oscillator circuit

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
12 Freescale Semiconductor, Inc.
USB-KW40Z development board
Figure 8. USB-KW40Z board’s optional 32.768 kHz oscillator circuit
4.2.3 Power management
There is one way to power on the USB-KW40Z board, a J5 type-A connector to supply 5 V(V_USB)
directly to the secondary MCU, that includes an internal regulator, 3.3 V output to enable theMKW40Z160
device. The USB-KW40Z power management circuit is shown in Figure 9.
Figure 9. USB-KW40Z power management circuit
Additionally, a green LED marked as D1 is available as a power indicator. For current measurements, users
can isolate the MKW40Z160 device, through SH13 cut-trace, this will disable the VCC path (including
LED).

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc 13
USB-KW40Z development board
4.2.4 USB-KW40Z peripheral functions
The board includes two different MCUs, one dedicated to RF (MKW40Z160) acquisition and the second
features an OpenSDA debugger and processor for BLE sniffer application (MK22FN512).
4.2.4.1 MKW40Z160 peripheral functions
The USB-KW40Z development board includes two push buttons: one for a general purpose peripheral
function to assist in implementing targeted applications and the other dedicated to MKW40Z160 hardware
reset.
The board also include three LEDs, two for general purposes and the other as a Power-On indicator.
Figure 10 shows the push buttons and LEDs for MKW40Z160.
The application LEDs (D2 and D3) are connected not only with MKW40Z, they also share this connection
with the MK22FN512 MCU. You can isolate LEDs to remove or cut the trace over SH5 and SH6.

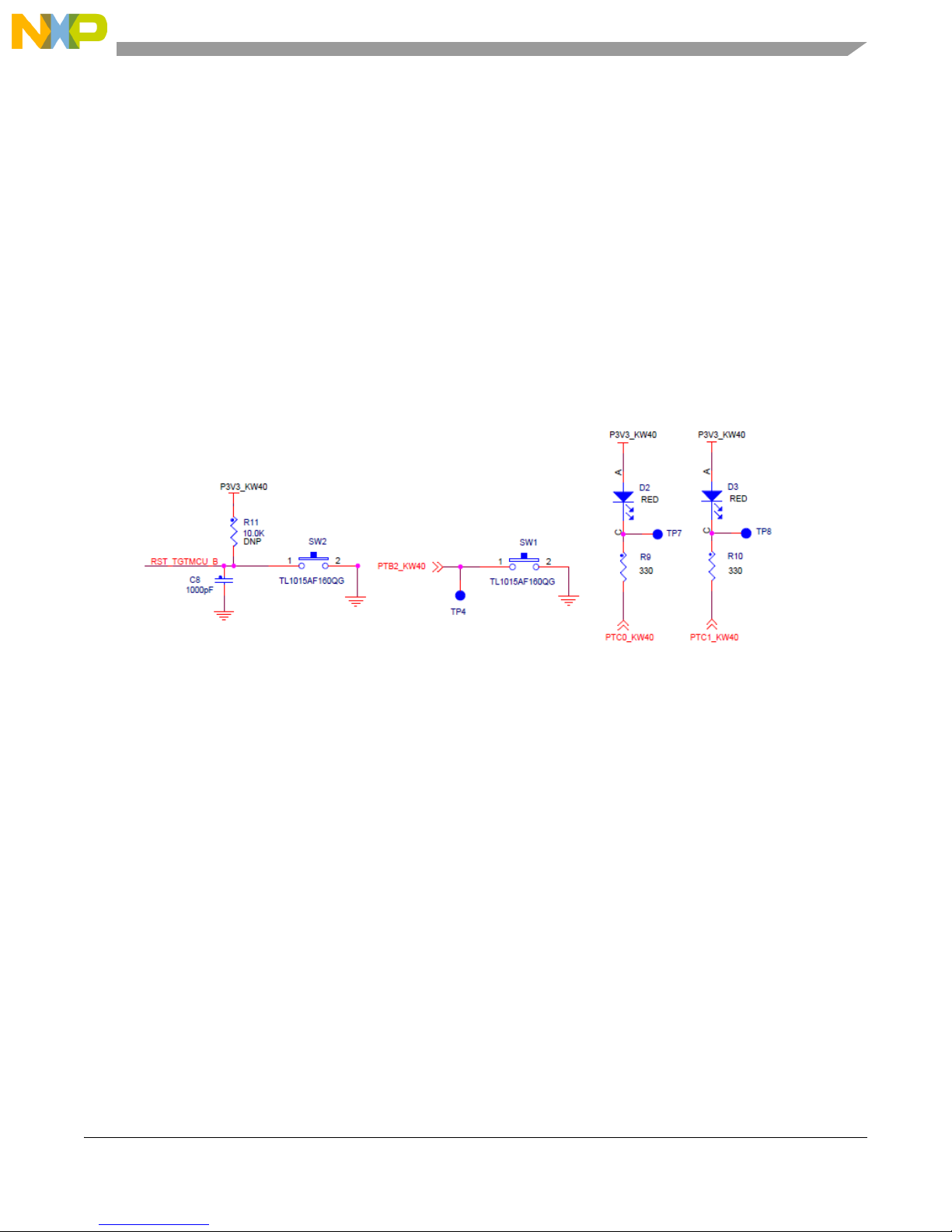

Figure 10. USB-KW40Z MKW40Z160 push button & LED
4.2.4.2 MK22FN512/Open SDA Interface
• The USB-KW40Z includes an OpenSDA circuitry based on the MK22FN512, that includes all the
necessary components to enable communication and debugging, it also provides power output to
all MKW40Z160 peripherals. Figure 11 shows the OpenSDA circuitry based on the MK22FN512
MCU, and all the necessary connections to interface with MKW40Z160.

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
14 Freescale Semiconductor, Inc.
USB-KW40Z development board
Figure 11. USB-KW40Z OpenSDA circuitry

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc 15
USB-KW40Z development board
4.2.4.2.1 OpenSDA interface clock
The USB-KW40Z provides one clock source for the OpenSDA MK22FN512 MCU.
• 8 MHz Reference Oscillator - Figure 12 shows the external 8 MHz external crystal X1. This
mounted crystal must meet MK22FN512 specifications. It also provides C44 and C45 to the bulk
of the crystal load capacitance.

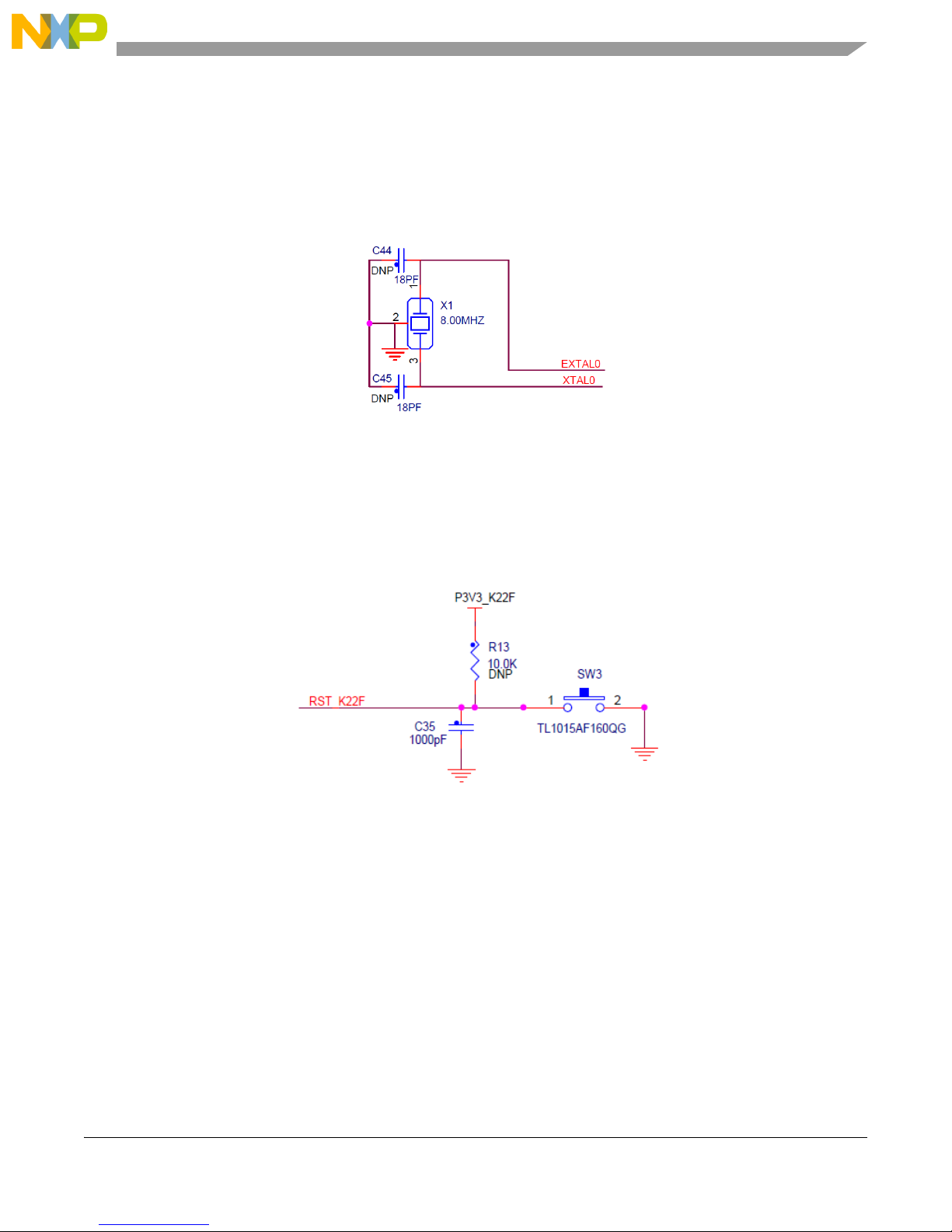

Figure 12. USB-KW40Z MK22FN512 8 MHz clock source
4.2.4.2.2 MK22FN512 peripheral functions
The USB-KW40Z OpenSDA interface circuit also includes one switch button, to assist in MK22FN512
MCU hardware reset. Figure 13 shows the push button for MK22FN512
Figure 13. USB-KW40Z MK22FN512 push button & LED

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
16 Freescale Semiconductor, Inc.
USB-KW40Z development board
4.3 Schematic, board layout, and bill of material

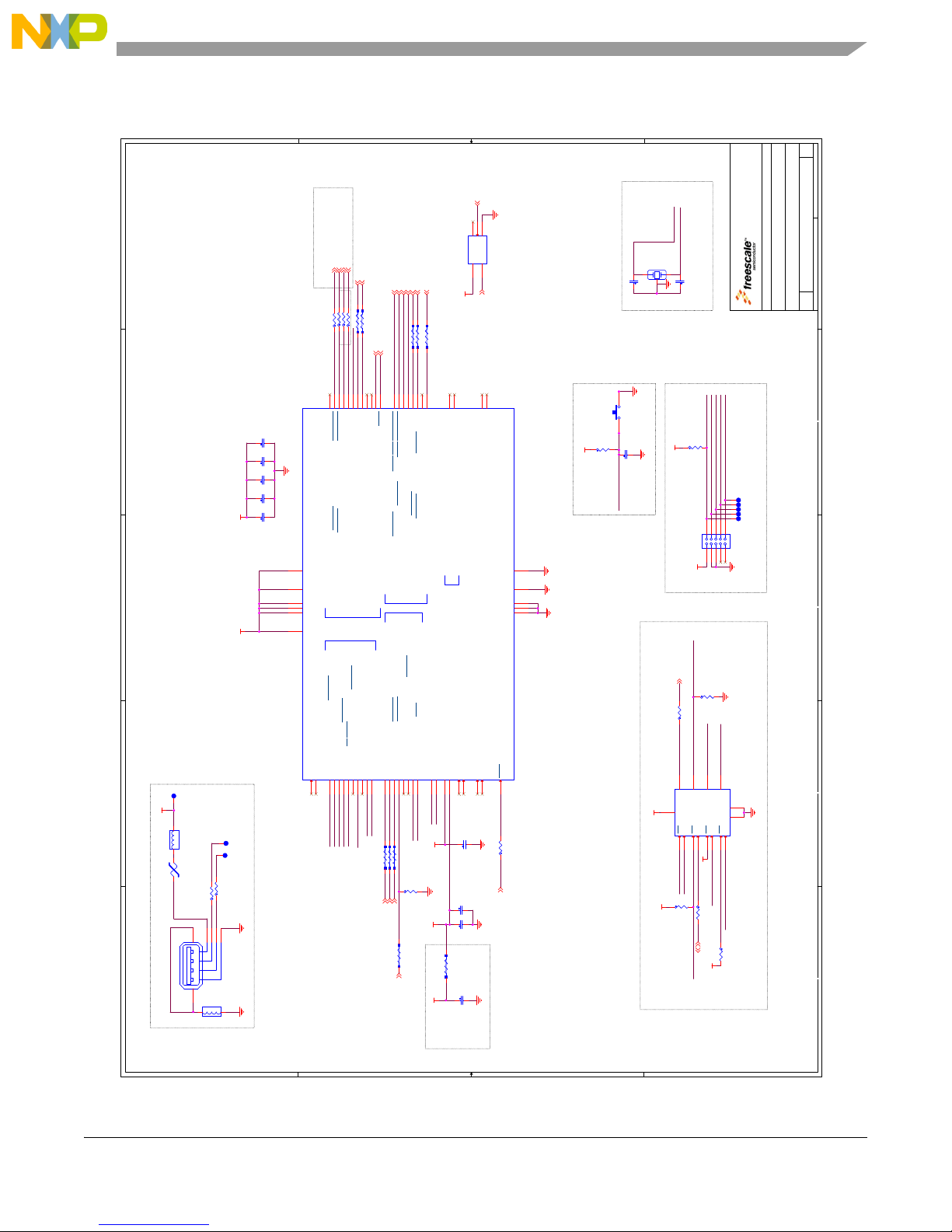

Figure 14. USB-KW40Z schematic rev. X1
5 5
4 4
3 3
2 2
1 1
D D C C B B A A
POWER ON
IN CIRCUIT TEST GND PROBING
SWITCH
MKW40 48-pin MCU
Place caps close to DUT
32MHz XTAL SWD CONNECTOR KW40
RESET
32kHz XTAL LEDS
100 Ohm controlled impedance from DUT to balun.
50 ohm controlled impedence line from Balun to SMA and F_Antenna
RF
CAD NOTE: Embed pads into 50 Ohm line.
HARMONIC TRAP
K22_SIN K22_SS K22_SCK
VDD_RF1, VDD_RF2 and VDD_XTAL
CAD NOTE: XTAL close to KW40
CAD NOTE: MISO/MOSI POKA-YOKE: Place both resistors with the same orientation and provide same airgap between MISO to MOSI resistors terminals in a square fashion.
XTAL_32M
EXTAL_32M
RST_TGTMCU_B
BAL_C
Z_RF_N
Z_RF_P
RF_50 RF_ANT
RF_N RF_P
UART0_RTS UART0_CTS UART0_TX UART0_RX
VDCDC_IN
P3V3_KW40
GND
P3V3_KW40
P3V3_KW40
P3V3_KW40
P3V3_KW40
P3V3_KW40 P3V3_KW40
P3V3_KW40
P3V3_KW40
P3V3_KW40
P3V3_K22F
P3V3_K22F
P3V3_KW40
KW40_SWD_DIO pg(3)
RST_TGTMCU_b pg(3,4)
KW40_SWD_CLK pg(3)
PTB2_KW40
XTAL_32K EXTAL_32K
PTC0_KW40 PTC1_KW40
EXTAL_32M
XTAL_32M
KW40_SWD_CLK{3} KW40_SWD_DIO{3}
RST_TGTMCU_b{3,4}
EXTAL_32K
XTAL_32K
PTB0_KW40 PTB1_KW40
PTC0_KW40 PTC1_KW40
I2C1_SDA I2C1_SCL
PTB2_KW40
SPI_SS
SPI_SIN
SPI_SOUT
SPI_CLK UART_CTS {3}
UART_RTS {3} UART_RXD {3} UART_TXD {3}
BSM_FRAME
BSM_DATA BSM_SCK
Drawing Title: Size Document Number Rev Date: Sheet of
Page Title:
ICAP Classification: FCP: FIUO: PUBI:
X1
X-USB-KW40Z
C
Wednesday, May 13, 2015
MAIN SCHEMATIC
34
___ ___
X
SCH-xxxxx PDF: SPF-xxxxx
Drawing Title: Size Document Number Rev Date: Sheet of
Page Title:
ICAP Classification: FCP: FIUO: PUBI:
X1
X-USB-KW40Z
C
Wednesday, May 13, 2015
MAIN SCHEMATIC
34
___ ___
X
SCH-xxxxx PDF: SPF-xxxxx
Drawing Title: Size Document Number Rev Date: Sheet of
Page Title:
ICAP Classification: FCP: FIUO: PUBI:
X1
X-USB-KW40Z
C
Wednesday, May 13, 2015
MAIN SCHEMATIC
34
___ ___
X
SCH-xxxxx PDF: SPF-xxxxx
Y2
32.768KHZ
21
MH2 MH_80mil
1
1
MH4 MH_80mil
1
1
R6
10.0K
SH12 0
C26
0.1UF
TP15
TP8
R5
10.0K
C17 0.6PF
R3 0
C20 1.8pF DNP
C28
0.1UF
C24 12PF
SW1
TL1015AF160QG
1 2
R14 330
D3
RED
AC
C29 0.1UF
R10
330
SW2
TL1015AF160QG
1 2
MKW40Z160VHT4
U1
PTB3/ADC0_SE2/CMP0_IN4/CLKOUT/TPM1_CH1/RTC_CLKOUT/ERCLK32K
19
PTB16/EXTAL32K/I2C1_SCL/TPM2_CH0
21
PTB17/XTAL32K/I2C1_SDA/TPM2_CH1
22
PTB18/DAC0_OUT/ADC0_SE4/CMP0_IN2/I2C1_SCL/TPM_CLKIN0/TPM0_CH0/NMI
23
PTB0/I2C0_SCL/CMP0_OUT/TPM0_CH1/CLKOUT
16
PTB1/ADC0_SE1/CMP0_IN5/I2C0_SDA/LPTMR0_ALT1/TPM0_CH2/CMT_IRO
17
PTB2/ADC0_SE3/CMP0_IN3/TPM1_CH0
18
VDCDC_IN 10
DCDC_GND
13
VDD_1P8 14
VDD_1P45 15
VDD_0 20
VSSA
26
VREFH 27
VDDA 28
VDD_XTAL 31
VDD_RF2 32
VDD_RF1 35
VDD_1/VDD 44
GND9
57 GND8
56 GND7
55 GND6
54 GND5
53 GND4
52 GND3
51 GND2
50 GND1
49
PTA0/SWD_DIO/TSI0_CH8/SPI0_PCS1/TPM1_CH0
1
PTA1/SW D_CLK/TSI0_CH9/TPM1_CH1
2
PTA2/RESET /TMP0_CH3
3
PTA16/TSI0_CH10/SPI1_SOUT/TPM0_CH0
4
PTA17/TSI0_CH11/SPI1_SIN/TPM_CLKIN1
5
PTA18/TSI0_CH12/SPI1_SCK/TPM2_CH0
6
PTA19/TSI0_CH13/SPI1_PCS0/TPM2_CH1
7
ADC0_DP0/CMP0_IN0 24
ADC0_DM0/CMP0_IN1 25
PSWIT CH
8
EXTAL_32M
29 XTAL_32M 30
DCDC_LP
11
DCDC_LN
12
PTC0/ANT_A/I2C0_SCL/UART0_CTS/TPM0_CH1 36
PTC1/ANT_B/I2C0_SDA/UART0_RTS/TPM0_CH2/BLE_ACTIVE 37
PTC2/TSI0_CH14/TX_SW ITCH/I2C1_SCL/UART0_RX/CMT_IRO/DTM_RX 38
PTC3/TSI0_CH15/RX_SWITCH/I2C1_SDA/UART0_TX/DTM_TX 39
PTC4/TSI0_CH0/EXTRG_IN/UART0_CTS/TPM1_CH0 40
PTC5/TSI0_CH1/LPTMR0_ALT2/UART 0_RTS/TPM1_CH1 41
PTC6/TSI0_CH2/I2C1_SCL/UART0_RX/TPM2_CH0 42
PTC7/TSI0_CH3/SPI0_PCS2/I2C1_SDA/UART0_TX/TPM2_CH1 43
PTC16/TSI0_CH4/SPI0_SCK/I2C0_SDA/UART0_RTS/TPM0_CH3 45
PTC17/TSI0_CH5/SPI0_SOUT/UART0_RX/DTM_RX 46
PTC18/TSI0_CH6/SPI0_SIN/UART0_TX/DTM_TX 47
PTC19/TSI0_CH7/SPI0_PCS0/I2C0_SCL/UART0_CTS/BLE_ACTIVE 48
DCDC_CFG
9
RF_P 34
RF_N 33
GND10
58
GND11
59
GND12
60
GND13
61
GND14
62
GND15
63
GND16
64
C25 12PF
TP16 DNP
TP7
TP2
C5 11pF
SH10 0
C27
0.1UF
Y1 32MHZ
1 4
32
TP3
MH1 MH_80mil
1
1
C4 11pF
MH3 MH_80mil
1
1
TP4
L3 2.2nH DNP
12
R4
10.0K
C7 12PF
SH14 0
J1 HDR 2X5
1 2 3 4
65
7 8 910
D1
GREEN
AC
OUTIN
PROBE
J4
MM8030-2600B
DNP
1
4
3
2
R2 0
SH11 0
ANT1
MEANDER_ANT_HORZ
2 1
C6 12PF
R9
330
C19 10PF
R11
10.0K
DNP
D2
RED
AC
C8
1000pF
Z1
2400MHz 50OHM
5 1 6
2 3 4
C23 12PF
TP14
TP1

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc 17
USB-KW40Z development board
5 5
4 4
3 3
2 2
1 1
D D C C B B A A
JTAG/SWD CONNECTOR K22FN512VMP12
8MHz XTAL
CAD NOTE: T hese capacitors must be placed
as close to MCU as possible
POWER ENABLE KW40
PIN FUNCTIONS USED NET NAMES
UART1_TGTMCU
I2C1_TGTMCU
SPI1_TGTMCU
RESET
BSM
LEDs
GPIOs
Switch
TGTMCU
OpenSDA
USB
CAD NOTE: TX/RX POKA-YOKE: Place both resistors with the same orientation and provide same airgap between TX to RX resistors terminals in a square fashion.
XTAL0
EXTAL0
USBDM USBDP
RST_K22F
UART1_CTS_K22F UART1_RTS_K22F
UART1_TX_K22F UART1_RX_K22F
JTAG_TCLK_K22F
JTAG_TDI/EZP_DI JTAG_TDO/TRACE_SWO/EZP_DO JTAG_TCLK/SWD_CLK/EZP_CLK JTAG_TMS/SWD_DIO
RST_K22F
JTAG_TDI_K22F JTAG_TDO_K22F
JTAG_TMS_K22F JTAG_TCLK_K22F JTAG_TDO_K22F JTAG_TDI_K22F
K22_SCK K22_SIN K22_SS
SDA_SWD_EN
PTC6_K22 PTC7_K22
RST_K22F
EXTAL0 XTAL0
RST_TGTMCU_b_K22F
SDA_I2S_SIN
SDA_I2S_SOUT
SDA_I2S_SCK
SDA_I2S_SIN
SDA_SWD_OE_B
USBDM USBDP
K40_USB_SHLD
USB_DP
V_USB_CONN
USB_DN
JTAG_TMS_K22F
PTB0_K22 PTB1_K22 PTA12_K22
r_SWD_DIO_TGTMCU
r_SWD_DIO_TGTMCU
SDA_SWD_EN
SDA_SWD_EN SWD_CLK_TGTMCU
TC_74125_SPARE_I_TP
TC_74125_SPARE_O_TP
SDA_SWD_OE_B
SDA_I2S_SOUT
SDA_I2S_SCK
V_USB
P3V3_K22F
P3V3_KW40 P3V3_K22F
P3V3_K22F
P3V3_K22F
P3V3_K22F
P3V3_KW40
V_USB
P3V3_K22F
GND
P3V3_K22F
P3V3_K22F
P3V3_K22F
P3V3_K22F
RST_TGTMCU_b{3}
UART_RXD {3} UART_TXD {3}
I2C1_SDA I2C1_SCL
SPI_SS SPI_SIN SPI_SOUT SPI_CLK
PTC0_KW40 PTC1_KW40
UART_CTS {3} UART_RTS {3}
BSM_DATA BSM_SCK
BSM_FRAME
BSM_FRAME_b
BSM_FRAME_b
PTB0_KW40 PTB1_KW40
PTB2_KW40
RST_TGTMCU_b{3}
KW40_SWD_DIOpg(3)
KW40_SWD_CLK pg(3)
Drawing Title: Size Document Number Rev Date: Sheet of
Page Title:
ICAP Classification: FCP: FIUO: PUBI:
X1
X-USB-KW40Z
C
Wednesday, May 13, 2015
USB INTERFACE
44
___ ___
X
SCH-xxxxx PDF: SPF-xxxxx
Drawing Title: Size Document Number Rev Date: Sheet of
Page Title:
ICAP Classification: FCP: FIUO: PUBI:
X1
X-USB-KW40Z
C
Wednesday, May 13, 2015
USB INTERFACE
44
___ ___
X
SCH-xxxxx PDF: SPF-xxxxx
Drawing Title: Size Document Number Rev Date: Sheet of
Page Title:
ICAP Classification: FCP: FIUO: PUBI:
X1
X-USB-KW40Z
C
Wednesday, May 13, 2015
USB INTERFACE
44
___ ___
X
SCH-xxxxx PDF: SPF-xxxxx
C30
0.1UF
R15 1.0K
C36
0.1UF
SH9 0
C21
0.1UF
SH5 0
R17 1.0K
TP9
R13
10.0K
DNP
C34
0.01UF
C33
0.1UF
SH1 0
J6 HDR 2X5
1 2 3 4
65
7 8 910
U6
NC7SZ14M5X
NC 1
A2
GND 3
Y
4
VCC
5
TP18
VD-D+G
J5
USB_TYPE_A
S1 A1 A2 A3 A4
S2
RT1
MINISMDC050F-2
1 2
U8
74LVC125
4OE
13
4A
12
3OE
10
3A
9
2OE
4
2A
5
1OE
1
1A
2
VCC 14
GND
7
4Y 11 3Y 8 2Y 6 1Y 3
EP
15
TP20
SH4 0
SH6 0
X1 8.00MHZ
13
2
C16 0.1UF
R12 0 DNP
R8 33
SH7 0
SW3
TL1015AF160QG
1 2
R16 1.0K
R24
27K
DNP
R20
10.0K
TP19
R22
27K
C45
18PF
DNP
R231.0K
R18 1.0K
SH2 0
C44
18PF
DNP
TP10
R25 1.0K
C32
0.1UF
R21
10.0K
PORT E
PORT A
PORT C
PORT B
PORT D
U5
MK22FN512VMP12
PTC0/ADC0_SE14/SPI0_PCS4/PDB0_EXTRG/USB_SOF_OUT/FB_AD14 D8
PTC1/LLW U_P6/ADC0_SE15/SPI0_PCS3/UART1_RTS/FTM0_CH0/FB_AD13/I2S0_TXD0/LPUART0_RTS C6
PTC10/ADC1_SE6b/I2C1_SCL/FTM3_CH6/I2S0_RX_FS/FB_AD5 B4
PTC11/LLW U_P11/ADC1_SE7b/I2C1_SDA/FTM3_CH7/FB_RW A5
PTC2/ADC0_SE4b/CMP1_IN0/SPI0_PCS2/UART1_CTS/FTM0_CH1/FB_AD12/I2S0_TX_FS/LPUART0_CTS B7
PTC3/LLW U_P7/CMP1_IN1/SPI0_PCS1/UART1_RX/FTM0_CH2/CLKOUT/I2S0_TX_BCLK/LPUART0_RX C8
PTC4/LLW U_P8/SPI0_PCS0/UART1_TX/FTM0_CH3/FB_AD11/CMP1_OUT/LPUART0_T X B8 PTC5/LLW U_P9/SPI0_SCK/LPTMR0_ALT2/I2S0_RXD0/FB_AD10/CMP0_OUT/FT M0_CH2 A8
PTC6/LLW U_P10/CMP0_IN0/SPI0_SOUT/PDB0_EXTRG/I2S0_RX_BCLK/FB_AD9/I2S0_MCLK A7
PTC7/CMP0_IN1/SPI0_SIN/USB_SOF_OUT/I2S0_RX_FS/FB_AD8 B6
PTC8/ADC1_SE4b/CMP0_IN2/FTM3_CH4/I2S0_MCLK/FB_AD7 A6
PTC9/ADC1_SE5b/CMP0_IN3/FTM3_CH5/I2S0_RX_BCLK/FB_AD6/FTM2_FLT0 B5
PTE0/CLKOUT32K/ADC1_SE4a/SPI1_PCS1/UART1_TX/I2C1_SDA/RTC_CLKOUT A1
PTE1/LLWU_P0/ADC1_SE5a/SPI1_SOUT/UART1_RX/I2C1_SCL/SPI1_SIN B1
RESET
F8
VBAT H5
VDD1 C5
VDD2 G7
VDD3 E4
VDDA F4
VREFH G4
ADC1_DM0/ADC0_DM3
F2 ADC1_DP0/ADC0_DP3
G2
ADC0_DM0/ADC1_DM3
F1 ADC0_DP0/ADC1_DP3
G1
PTD0/LLW U_P12/SPI0_PCS0/UART2_RTS/FTM3_CH0/FB_ALE/FB_CS1/FB_TS/LPUART0_RT S C3
PTD1/ADC0_SE5b/SPI0_SCK/UART2_CTS/FTM3_CH1/FB_CS0/LPUART0_CTS A4
PTD2/LLW U_P13/SPI0_SOUT/UART2_RX/FTM3_CH2/FB_AD4/LPUART0_RX/I2C0_SCL C2
PTD3/SPI0_SIN/UART2_TX/FTM3_CH3/FB_AD3/LPUART0_TX/I2C0_SDA B3
PTD4/LLW U_P14/SPI0_PCS1/UART0_RTS/FTM0_CH4/FB_AD2/EW M_IN/SPI1_PCS0 A3
PTD5/ADC0_SE6b/SPI0_PCS2/UART0_CTS/FTM0_CH5/FB_AD1/EWM_OUT/SPI1_SCK C1
PTD6/LLW U_P15/ADC0_SE7b/SPI0_PCS3/UART0_RX/FTM0_CH6/FB_AD0/FTM0_FLT0/SPI1_SOUT B2
PTD7/UART0_T X/FTM0_CH7/FTM0_FLT1/SPI1_SIN A2
VSSA
F3
VREFL
G3
PTA0/JTAG_TCLK/SWD_CLK/EZP_CLK/UART0_CTS/FT M0_CH5
D3
PTA1/JTAG_TDI/EZP_DI/UART0_RX/FTM0_CH6
D4
PTA2/JTAG_TDO/TRACE_SW O/EZP_DO/UART0_TX/FT M0_CH7
E5
PTA3/JTAG_TMS/SWD_DIO/UART0_RTS/FT M0_CH0
D5
PTA4/LLWU_P3/NMI/EZP_CS/FT M0_CH1
G5
PTA5/USB_CLKIN/FTM0_CH2/I2S0_TX_BCLK/JT AG_T RST
F5
PTA12/FTM1_CH0/I2S0_TXD0/FT M1_QD_PHA
H6
PTA13/LLW U_P4/FTM1_CH1/I2S0_TX_FS/FTM1_QD_PHB
G6
PTA18/EXTAL0/FTM0_FLT2/FTM_CLKIN0
H8
PTA19/XTAL0/FT M1_FLT0/FTM_CLKIN1/LPTMR0_ALT1
G8
PTB0/LLWU_P5/ADC0_SE8/ADC1_SE8/I2C0_SCL/FTM1_CH0/FTM1_QD_PHA
F7
PTB1/ADC0_SE9/ADC1_SE9/I2C0_SDA/FTM1_CH1/FTM1_QD_PHB
F6
PTB2/ADC0_SE12/I2C0_SCL/UART0_RTS/FTM0_FLT3
E7
PTB3/ADC0_SE13/I2C0_SDA/UART0_CTS/FTM0_FLT0
E8
PTB16/SPI1_SOUT/UART0_RX/FTM_CLKIN0/FB_AD17/EW M_IN
E6
PTB17/SPI1_SIN/UART0_TX/FT M_CLKIN1/FB_AD16/EW M_OUT
D7
PTB18/FTM2_CH0/I2S0_TX_BCLK/FB_AD15/FTM2_QD_PHA
D6
PTB19/FTM2_CH1/I2S0_TX_FS/FB_OE/FT M2_QD_PHB
C7
VSS1
C4
VSS2
H7
VSS3
E3
VREGIN
D2
VOUT33
E2
USB0_DP
E1
USB0_DM
D1
EXTAL32
H4
XTAL32
H3
VREF_OUT/CMP1_IN5/CMP0_IN5/ADC1_SE18 H1
DAC0_OUT/CMP1_IN3/ADC0_SE23 H2
C35
1000pF
SH8 0
TP17
TP6
L5
330 OHM
1 2
C31
0.1UF
L4 330 OHM
1 2
TP21
R19
0
DNP
SH3 0
R7 33
SH13 0
C37
2.2UF

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
18 Freescale Semiconductor, Inc.
USB-KW40Z development board
Figure 15. USB-KW40Z development board component location (top view)
Figure 16. USB-KW40Z development board test points
Figure 17. USB-KW40Z development board layout (top view)

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
Freescale Semiconductor, Inc 19
USB-KW40Z development board
Figure 18. USB-KW40Z development board layout (bottom view)
4.3.1 Bill of materials
Table 2 details the common parts for all frequency bands.
Table 2. Bill of materials (common parts for all frequency bands) (Sheet 1 of 2)
Item Qty Reference Value Description Mfg. Name Mfg. Part Number
1 1 ANT1 MEANDER_ANT_
HORZ
PCB MEANDER ANTENNA
HORIZONTAL, NO PART TO ORDER
NO PART TO ORDER NO PART TO ORDER
2 1 C17 0.6PF CAP CER 0.6PF 50V +/-0.05PF C0G
0402
MURATA GRM1555C1HR60WA01
D
31C20DNP 1.8PF CAP CER 1.8PF 50V 0.25PF C0G
0402
MURATA GRM1555C1H1R8CA01
D
4 1 C19 10PF CAP CER 10PF 50V 5% C0G 0402 AVX 04025A100JAT2A
5 2 C4,C5 11PF CAP CER 11PF 50V 1% C0G 0402 AVX 04025U110FAT2A
6 5 C6,C7,C23,C24,C25 12PF CAP CER 12PF 50V 5% C0G 0402 MURATA GRM1555C1H120JZ01D
7 2 C44,C45 DNP 18PF CAP CER 18PF 50V 5% C0G 0402 KEMET C0402C180J5GAC
8 2 C8,C35 1000PF CAP CER 1000PF 50V 5% C0G 0402 MURATA GRM1555C1H102JA01D
9 1 C34 0.01UF CAP CER 0.01UF 16V 20% X7R 0402 AVX 0402YC103MAT2A
10 11 C16,C21,C26,C27,C28,
C29,C30,C31,C32,C33,
C36
0.1UF CAP CER 0.1UF 10V 10% X5R 0402 KEMET C0402C104K8PAC
11 1 C37 2.2UF CAP CER 2.2UF 6.3V 20% X5R 0402 KEMET C0402C225M9PACTU
12 1 D1 GREEN LED GRN SGL 30MA SMT 0805 LITE ON LTST-C171KGKT
13 2 D2, D3 RED LED RED CLEAR SGL 30MA SMT
0805
LITE ON LTST-C171KRKT
14 2 J1,J6 HDR 2X5 HDR 2X5 TH 50MIL CTR 254H AU
91L
SAMTEC FTSH-105-04-F-D
15 1 J4 DNP MM8030-2600B CON COAX SMT 1.9MM SP 40H AU MURATA MM8030-2610B
16 1 J5 USB_TYPE_A CON 1X4 USB_TYPE_A_MALE RA
SMT -- 178H AU
SAMTEC USB-AM-S-S-B-SM1
17 1 L3 2.2NH IND -- 2.2NH@500MHZ 220MA 4%
0402
MURATA LQP15MN2N2B02
18 2 L4,L5 330 OHM IND FER BEAD 330OHM@100MHZ
2.5A -- SMT
TDK MPZ2012S331A

Freescale USB Development Board USB-KW40Z User’s Guide, Rev. 0, 10/2015
20 Freescale Semiconductor, Inc.
USB-KW40Z development board
19 4 MH1,MH2,MH3,MH4 MH_80MIL REWORK HOLE NON-PLATED
50MIL DRILL SIZE 65MIL
SOLDERMASK TH, NO PART TO
ORDER
NO PART TO ORDER NO PART TO ORDER
20 2 R2,R3 0 RES MF ZERO OHM 1/16W 5% 0402 ROHM MCR01MZPJ000
21 1 R12 DNP 0 RES MF ZERO OHM 1/16W 5% 0402 ROHM MCR01MZPJ000
22 1 R19 0 RES TF ZERO OHM 1/16W
AEC-Q200 RC0402
VISHAY
INTERTECHNOLOGY
CRCW04020000ZS
23 2 R7,R8 33 RES MF 33 OHM 1/16W 5% 0402 SMEC RC73L2Z330JTF
24 3 R9,R10,R14 330 RES MF 330 OHM 1/16W 5% 0402 VISHAY
INTERTECHNOLOGY
CRCW0402330RJNED
25 6 R15,R16,R17,R18,R23,
R25
1.0K RES MF 1.0K 1/16W 1% 0402 YAGEO AMERICA RC0402FR-071KL
26 5 R4,R5,R6,R20,R21 10.0K RES MF 10.0K 1/16W 1% AEC-Q200
0402
VISHAY
INTERTECHNOLOGY
CRCW040210K0FKED
27 2 R11,R13 DNP 10.0K RES MF 10.0K 1/16W 1% AEC-Q200
0402
VISHAY
INTERTECHNOLOGY
CRCW040210K0FKED
28 1 R22 27K RES MF 27K 1/16W 5% 0402 VISHAY
INTERTECHNOLOGY
CRCW040227K0JNED
29 1 R24 DNP 27K RES MF 27K 1/16W 5% 0402 VISHAY
INTERTECHNOLOGY
CRCW040227K0JNED
30 1 RT1 MINISMDC050F-2 FUSE PLYSW 0.5A 24V SMT TYCO ELECTRONICS MINISMDC050F-2
31 14 SH1,SH2,SH3,SH4,
SH5,SH6,SH7,SH8,
SH9,SH10,SH11,SH12,
SH13,SH14
0 ZERO OHM CUT TRACE 0402 PADS;
NO PART TO ORDER
LAYOUT ELEMENT
ONLY
LAYOUT ELEMENT
ONLY
32 3 SW1,SW2,SW3 TL1015AF160QG SW SPST PB 50MA 12V SMT E SWITCH TL1015AF160QG
33 14 TP1,TP2,TP3,TP6,TP7,
TP8,TP9,TP10,TP15,
TP17,TP18,TP19,TP20,
TP21
TPAD_040 TEST POINT PAD 40MIL DIA SMT,
NO PART TO ORDER
NOTACOMPONENT NOTACOMPONENT
34 2 TP4,TP14 TPAD_030 TEST POINT PAD 30MIL DIA SMT,
NO PART TO ORDER
NOTACOMPONENT NOTACOMPONENT
35 1 TP16 DNP TEST POINT
WHITE
TEST POINT WHITE 40 MIL DRILL
180 MIL TH 109L
COMPONENTS
CORPORATION
TP-105-01-09
36 1 U1 MKW40Z160VHT4 IC MCU XCVR 2.4GHZ BLUETOOTH
LOW ENERGY MAPLGA64
FREESCALE
SEMICONDUCTOR
MKW40Z160VHT4
37 1 U5 MK22FN512VMP1
2
IC MCU 32BIT 512KB FLASH 128KB
RAM 1.71-3.6V 120MHZ MAPBGA 64
FREESCALE
SEMICONDUCTOR
MK22FN512VMP12
38 1 U6 NC7SZ14M5X IC INV SGL 1.65-5.5V SOT23-5 FAIRCHILD NC7SZ14M5X
39 1 U8 74LVC125 IC QUAD BUF LINE DRV TS 1.2-3.6V
DHVQFN14
NXP
SEMICONDUCTORS
74LVC125ABQ,115
40 1 X1 8.00MHZ XTAL 8.00MHZ RSN CERAMIC --
SMT
MURATA CSTCE8M00G55-R0
41 1 Y1 32MHZ XTAL 32MHZ 9PF -- SMT 3.2X2.5MM NDK EXS00A-CS02368
42 1 Y2 32.768KHZ XTAL 32.768KHZ SMT ROHS
COMPLIANT
EPSON
ELECTRONICS
FC-135 32.7680KA-A3
43 1 Z1 2400MHZ 50OHM XFMR BALUN 2400 +/-100MHZ SMT MURATA LDB212G4005C-001
Table 2. Bill of materials (common parts for all frequency bands) (Sheet 2 of 2)
Item Qty Reference Value Description Mfg. Name Mfg. Part Number
