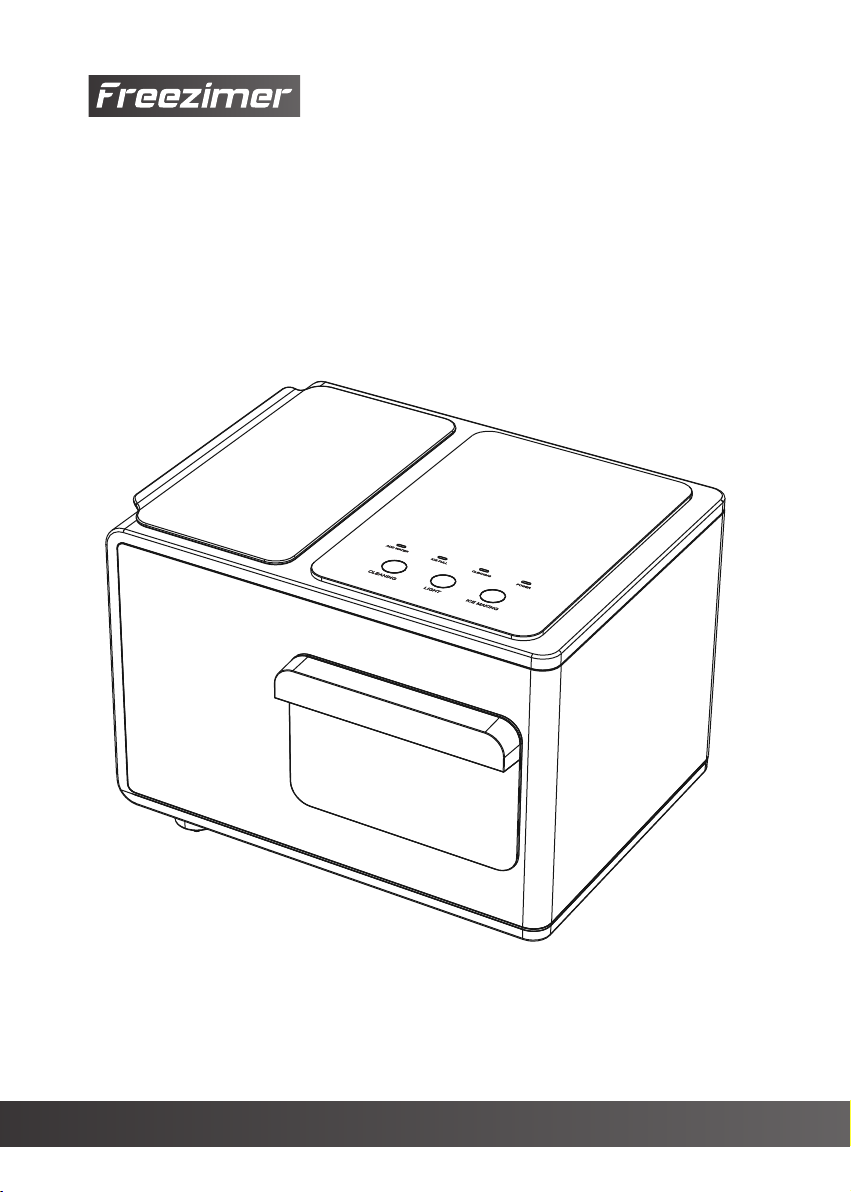

Freezimer ICN1586 User manual

INSTRUCTION MANUAL
NUGGET ICE MAKER
www.freezimer.com
THANK YOU FOR CHOOSING OUR ICE MAKER
PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING
Model: ICN1586

TO OBTAIN WARRANTY SERVICE YOU MUST PROVIDE A VALID PROOF OF
PURCHASE. PLEASE STAPLE YOUR RECEIPT TO THIS PAGE FOR FUTURE
REFERENCE.
POUR OBTENIR LE SERVICE SUR GARANTIE VOUS DEVEZ FOURNIR UNE PREUVE
D’ACHAT VALIDE. S’IL VOUS PLAIT AGRAFE VOTRE REÇU A CETTE PAGE POUR LA
REFERENCE FUTURE.
PARA OBTENER SERVICIO DE GARANTÍA, DEBE PROVEER UN RECIBO ORIGINAL.
POR FAVOR ENGRAPE SU RECIBO A ÉSTA PÁGINA EN CASO QUE NECESITE
HACER UN RECLAMO.
www.freezimer.com
This machine is intended to produce ice only. It is not intended
for the long-term storage of ice. Move any excess ice into a
freezer for long-term storage (>6 hours) if you desire to keep it.
Ice that is left to sit in the bucket will melt over time.
IMPORTANT
Cette machine a été conçue pour produire de la glace seulement.
Elle ne doit pas être utilisée pour stocker de la glace à long terme.
Déplacez la glace en surplus dans un congélateur pour un
stockage à long terme (>6 heures) si vous désirez la garder. La
glace qui reste dans le seau fondra.
IMPORTANT
Esta máquina está diseñada para producir solamente hielo. No
está diseñada para almacenar hielo a largo plazo. Traslade el
hielo sobrante a un congelador para almacenarlo a largo plazo
(más de 6 horas) si desea conservarlo. El hielo que quede en la
cubeta se derretirá con el tiempo.
IMPORTANTE

It is important that you read these instructions before using your portable ice
maker and we strongly recommend that you keep them is a safe place for future
reference.
Thank you for purchasing this Freezimer product. We are glad you chose us. We
believe that your purchase of this product opens a relationship between you and
Freezimer. We will provide the customer support needed to nurture that
relationship.
This manual contains important information regarding the proper installation,
use and maintenance of your product. Following this manual will ensure that your
product will work at its peak performance and efficiency. Please save the original
product packaging in case you need to safely transport or store your product.
www.freezimer.com 1
For Your Records:
Please write down the model number and serial number below for future
reference. Both numbers are located on the ratings label on the back of your unit
and are needed to obtain warranty service. You may also want to staple your
receipt to this manual as it is the proof of your purchase, and is also needed for
service under your warranty.
Model Number: __________________________________
Serial Number: ___________________________________
Date of Purchase: ________________________________
To better serve you, please do the following before contacting customer service:
· If you received a damaged product, immediately contact the dealer that sold
you the product.
· Read and follow this instruction manual carefully to help you install, use and
maintain your product.
· Read the troubleshooting section of this manual as it will help you diagnose
and solve common issues.
·Visit us on the web at http://www.freezimer.com for product guides, additional
troubleshooting resources and up-to-date information. If you need service, our
friendly customer service representatives are available via email at
[email protected]

TABLE OF CONTENTS
BEFORE PUTTING INTO USE .................................................................................... 3
SPECIFICATIONS ......................................................................................................... 3
IMPORTANT NOTICES ............................................................................................... 4-6
DESCRIPTION ............................................................................................................... 7
FEATURE ....................................................................................................................... 8
CONTROL PANEL OPERATION ................................................................................ 9-10
FAULT AND CODE INDICATION ............................................................................... 11
OPERATING INSTRUCTIONS .................................................................................... 12
CLEANING & USEGUIDANCE .................................................................................... 13
TROUBLESHOOTING .................................................................................................. 14-16
LIMITED WARRANTY ….…………………………………………………………………....................…. 17-19
www.freezimer.com 2

BEFORE PUTTING INTO USE

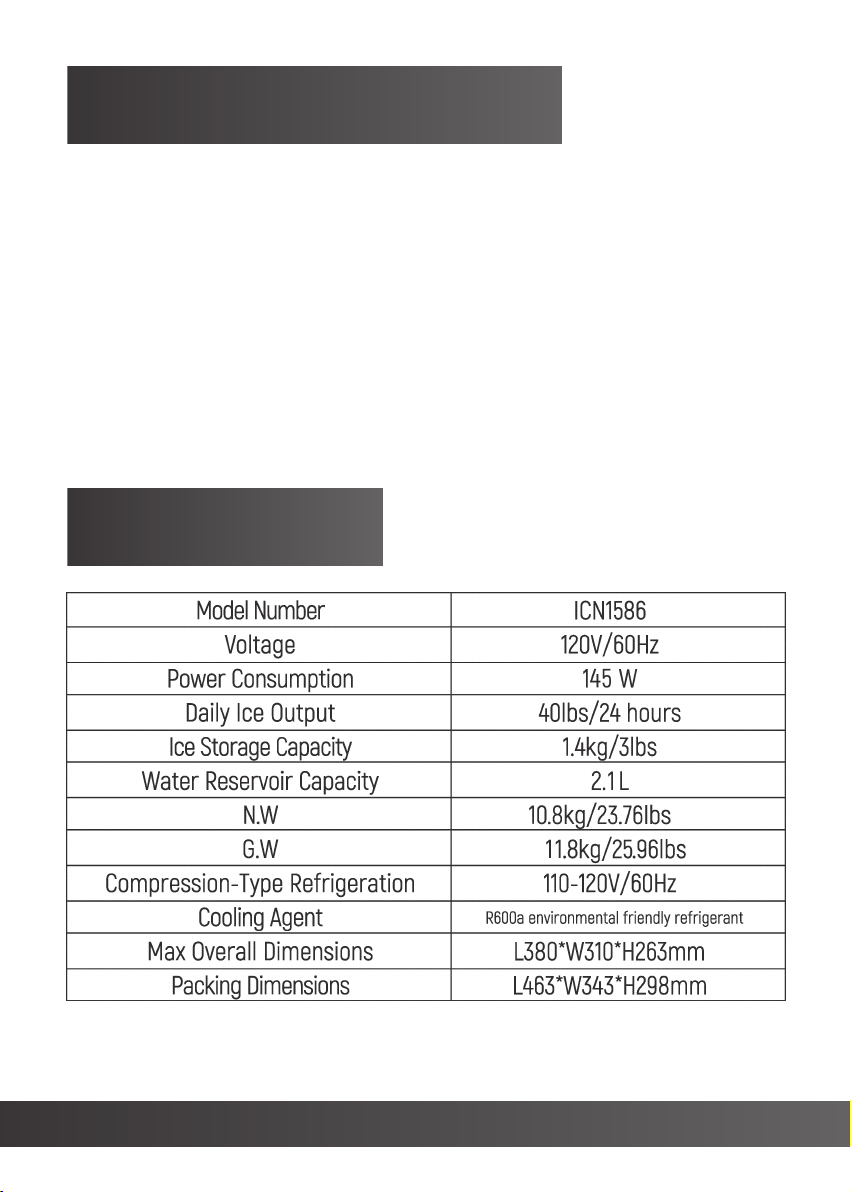

SPECIFICATIONS
●Before connecting the appliance to the power supply, please let the
ice maker machine stand upright for 24 hours, which reduce the
possibility of the cooling system malfunctioning due to improper
handling during transportation.
●Clean your unit thoroughly before putting into use.
●Use the parts diagram on page 7 to insure proper positioning of internal
components.
www.freezimer.com 3

IMPORTANT NOTICES
When using an electrical appliance, basic safety precautions should always
be followed to reduce the risk of fire, electric shock, and/or injury,
including the following:
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the
risk of electrical shock by providing an escape wire for the electrical current.
www.freezimer.com 4
Read all instructions before using.
Remove all packing material and carefully check your ice maker to ensure it is in good condition
and that there is no damage to the ice maker or power cord and plug.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance.This
appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
This appliance is intended to be used in household and similar applications such as
–staff kitchen areas in shops, offices and other working environments;
–farm houses and by clients in hotels, motels and other residential type environments;
–bed and breakfast type environments;
–Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
–Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
1.
2.
3.
4.
5.
6.

www.freezimer.com 5
–Warning: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
–Warning: Do not damage the refrigerant circuit.
–Warning: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
–WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
–WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear
of the applianc e.
–WARNING : When disposing of the appliance, do so only at an authorized waste disposal centre.
Do not expose to flame.
–WARNING: fill with potable water only.
–WARNING: Connect to potable water supply only.
The refrigerant (R600a) is flammable.
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a
natural gas with a high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, ensure that none of the components of
the refrigerant circuit becomes damaged.
If the refrigerant circuit should be damaged:
·Avoid opening flames and sources of ignition.
·Thoroughly ventilate the room in which the appliance is situated.
Before using the Ice maker for the first time, please wait 2 hours after positioning it, and keep
the transparent lid open for at least 2hours
Pure water is not allowed to be used on this unit, spring water is recommended.
Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the
earthing of the socket is in good condition.
Do not upend this product or incline it over a 45℃angle.
To protect against risk of electric shock, do not pour water on cord, plug and ventilation, immerse
the appliance in water or any other liquid.
Unplug the appliance after using or before cleaning.
Keep the appliance 8cm from other objects to ensure the good heat releasing.
Do not use the accessories which are not recommended by manufacturer.
Do not use the appliance close by flames, hot plates or stoves.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.

www.freezimer.com 6
PROP. 65 WARNING FOR CALIFORNIA RESIDENTS This symbol indicates the refrigerant R600a and the
non-metal-lic materials of the appliance are flammable. It’s
a warning symbol. Warning: Risk of fire / flammable materials.
WARNING:
Cancer And Reproductive Harm
www.p65warning.ca.gov
Do not switch on the power button frequently (ensure 5min. interval at least) to avoid the
damage of compressor.
Do not use outdoors.
Never clean with scouring powders or hard implements.
Please keep the instruction manual.
To avoid contamination of food, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
– Clean regularly surfaces that can come in contact with food and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the water system connected to a
water supply if water has not been drawn for 5 days.
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.)
Regarding the information pertaining to the use of the appliance, please refer to the paragraphs
below.
17.
18.
19.
20.
21.
22.

DESCRIPTION
www.freezimer.com
7
Control panel
Ice collecting tray
handle
Ice collecting tray
Vents
Tank lid
Metal cover
Baseboard
Power cord

FEATURE
www.freezimer.com
Quick ice making
Prompt when the ice is full and water is insufficient
Round ice and continuous ice making
Ice can be made in eight minutes
Complete machine cleaning function, with full ice,
water shortage and cleaning indicator
With ice collecting tray lamp
DANGER
8
*
***
*
*
1. During transportation, do not tilt the machine more than 45 degrees, do not reverse the
machine. This may damage the compressor and the sealing system.
2. Remove all packing materials, check the machine carefully and make sure that the machine,
power cord and plug are normal.
3. The machine should be on a level surface. To ensure sufficient ventilation, the distance of
the back of ice maker to the wall should be at least 150mm, it should be away from the oven,
radiator or other heat source.
4. Make sure that the home voltage is consistent with the voltage indicated by the machine.
5. Periodically check whether the filter screen of the water tank is blocked. After the machine
has been working for 100 hours, it is recommended to clean the filter screen of the water tank
with a fine brush to avoid blocking and causing abnormal operation of the whole machine.

CONTROL PANEL OPERATION
www.freezimer.com 9
Water shortage indicator light
Clean Button Light Button Ice making Button
Cleaning indicator light
Ice full indicator light Refrigeration indicator light
1. STANDBY STATE:
Plug in power, the machine will enter into standby mode after one beep and two second of full
lighting. Only the “ ” indicator light will flash white (0.5s on and 0.5s off).
Note: Before powering on, check the drain pipe behind the equipment to ensure that the drain
pipe does not fall off.
2. ICE MAKING:
Press the " ” button in the standby mode, the machine will enter the ice making state after
one beep, and the “ ” indicator light will always be on in white.

www.freezimer.com 10
CAUTION
The program starts to detect whether the upper water tank is short of water and whether it is
full of ice at the same time. If there is no abnormality, the compressor, cooling fan and gearbox
will start immediately, and the machine will start to make ice. If the upper water tank is short of
water, the “ ” indicator light will always be on (red), and if the ice is full, the “ ” indicator
light will be on. If the machine is short of water or full of ice, it will return to the standby state
(the " ” indicator light will flash for 0.5 seconds and turn on white for 0.5 seconds).
The upper water tank is short of water, or the ice is full, which will make the whole machine
return to the standby state (the " " indicator light flashes for 0.5 seconds and turns on white
for 0.5 seconds).
If the machine is in the cleaning state, you need to press the “ ” button to stop cleaning and
enter the standby state, and then press the “ ” button to enter the ice making state.
1.During the ice making process, the speed of the gear box is from low to high, and finally it
runs at high speed.
2.During the ice making process, when the upper water tank is short of water or full of ice, the
compressor and fan will stop at the same time, and the gearbox will stop after 30 seconds of
operation.
3.The upper water tank is short of water, or the ice is full, which will make the whole machine
return to the standby state (the " " indicator light flashes for 0.5 seconds and turns on white
for 0.5 seconds).

FAULT AND CODE INDICATION
www.freezimer.com 11
CLEANING FUNCTION:
In standby mode, press the “ ” key to enter the cleaning mode, and the
“ ” indicator light is on. If you press the “ ” button in the ice making mode,
you cannot directly switch from the ice making mode to the cleaning mode. You
need to stop ice making and enter the standby state, and then press the
“ ” button to enter the cleaning mode. The cleaning process is that the water
pump continuously pumps water from the lower water tank to the upper water
tank, and the water in the upper water tank flows back to the lower water tank
from the overflow port. Rinse with water continuously for 5 minutes, and return
to standby mode after cleaning. In the cleaning mode, if the program detects
that the lower water tank is short of water, the water shortage indicator light is
always on, and the whole machine returns to standby mode.
ADD WATER:
Under normal conditions, the " " indicator light is not on. When the " "
indicator light turns red and is always on, it means that the water in the water
tank is insufficient. The machine stops ice making and fills the water tank with
water (the float switch floating up). The machine automatically cancels the " "
indicator and returns to the normal working state.
ICE FULL:
When the ice reaches the maximum amount of the ice collecting tray,
the " " indicator is always white, the machine stops ice making. Takes out the
ice collecting tray to get ice, and then place it back into its position, the machine
automatically cancels the ice full indicator and returns to the normal working
state.
ICE JAM IN ICE MAKING SYSTEM:
The machine stops ice making, and then press the " " button to restart the
machine after 1 hour to enter normal operation.

OPERATING INSTRUCTIONS
www.freezimer.com 12
Step 1
Open the lid and add water to the reservoir.
Note: There is a maximum scale MAX in the reservoir. The water should not
exceed the MAX position. If the water exceeds the maximum scale MAX, the
excess water will flow into the lower water tank.
Step 2
Plug in power (120V 60Hz),
press the “ ” button once, and the machine starts to make ice. When the
ice is full, the “ ” indicator light will be on, the machine will stop ice
making, and after the ice in the ice collecting tray is taken out, the whole
machine will resume ice making mode.

CLEANING & USE GUIDANCE
www.freezimer.com 13
Clean the inner liner, ice collecting tray, water tank and ice shovel
frequently. When cleaning, unplug the unit and remove the ice cubes. Use a
diluted solution of water and vinegar to clean the inside and the outside
surface of the Ice maker. Rinse thoroughly before use.
Keep ventilation openings in the appliance enclosure, or in the built-in
structure, clear of obstruction. Do not use mechanical devices or other
means to accelerate the defrosting process, other than those recommend-
ed by the manufacturer.
Reuse the machine after being idled for a period of time, it may not be able
to pump enough water up for air blockage. In this case, the “ ” indictor
light on, just repress “ ” button to restart the ice maker.
To ensure the cleanness of ice, please change water for water reservoir at
least once one day. If do not use for a long time, please drain the water out
and clean it up.
If the compressor does not work due to lack of water, ice full, power
failure, etc, it will delay for 3 minutes to start up after restarted.
Always use fresh water before starting ice production either at initial
installation or after a long shut-off period.
1.
2.
3.
4.
5.
6.

www.freezimer.com 14
TROUBLESHOOTING
Problem Possible Causes Solution
Please note that during ice making, if power failure occurs due to disconnect-
ing the power cord or turning off the power button, the formed small ice may
remain in the evaporator. If that happens, restart the machine.
www.freezimer.com
The compressor
works abnormally
with a buzzing
noise
The voltage is lower than
recommended
Stop the ice maker and do
not restart until the voltage
is normal.
“ADD WATER”
indicator light is
on
1.There is no water
1. Add some water until it
reaches MAX position
2. Press START/PAUSE button
to restart the machine
Indicator lights on
control panel are
not on
The control panel flat cable
is not plugged well, or the
control panel is damaged.
Call the service hotline

www.freezimer.com 15
Problem Possible Causes Solution
The ice making
process was
correct, but no ice
came out?
1.The compressor has no
refrigerant
2.Compressor damaged
Fan motor damaged
Call the service hotline
All indicator lights
flash at the same
time.
1. The motor flat wire
terminal is loose.
2. The motor is stuck, or the
motor falls off, or the motor
is damaged
3. Micro switch damaged
Call the service hotline
When the ice is
full, the machine
does not display
the ice full icon
1.Ice full sensor damaged
2.Solar light interference
1.Replace the ice full sensor
2.Making ice indoor
3.Call the service hotline

www.freezimer.com 16
Correct Disposal of this product
WARNING
If the power cord is damaged, it must be replaced by the manufacturer, its
service agent or a similarly qualified person in order to avoid a hazard.
Fill with potable water only.
It is normal for the compressor and condenser surface to reach tempera-
tures between 158℉and 194℉during operation and surrounding areas may
be very hot.
Due to fast freezing, ice cubes may opaque. This is air trapped in the water
and will not affect quality or taste of ice.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge unless they have been given supervision or instruction concern-
ing use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Do not immerse in water.
1.
2.
3.
4.
5.
6.
7.
This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To
return your used device, please use the return and collection
systems or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.

17
