Friedrich VRP Series Guide

1 PB
Service/ Parts Manual
VRP
95511401_00
Model Revision Voltage BTU
VRP12K E 230 12,000
VRP12R E 265 12,000

2 PB
TABLE OF CONTENTS
INTRODUCTION‑ 5
Part Load Performance‑ 6
VRP® Variable Speed System vs. Fixed‑speed System‑ 7
FreshAire™ Conditioned Fresh Air‑ 8
Reheat Coil - Augments VRP’s Dehumidication Capability- 9
Important Safety Information‑ 10
Personal Injury Or Death Hazards‑ 12
Model and Serial Number Identication Guides- 13
SPECIFICATIONS‑ 14
Cooling Performance‑ 14
12k/24k Extended Cooling Performance Data‑ 15
12 and 24k Extended Heating Performance Data‑ 16
Air Flow Data ‑12k and 24k‑ 17
Electrical Data‑ 18
12k and 24k Unit Dimensional Data- 19
12k and 24k Unit Installation Dimensional Data‑ 20
12k and 24k Accessories Dimensional Data‑Louvers & Return Access Door ‑ 21
12k and 24k Accessories Dimensional Data ‑ Wall Plenums ‑ 22
OPERATION‑ 23
Sequence Of Operations‑ 23
FreshAire Control‑ 24
Component Identication- 25
Indoor Coil 12 & 24k‑ 26
Indoor Blower‑ 27
Outdoor Coil‑ 28
Outdoor Fan- 29
Compressor‑ 30
Electric Heater‑ 31
Electronic Expansion Valve‑ 32
4‑Way Reversing Valve‑ 33
Remaining Components (Side View)‑ 34
VRP Control Boards‑ 35
Main Controller‑ 36
Compressor Control‑ 37
EEV Control‑ 38
Reheat Control- 39
INSTALLATION‑ 40
VRP Required Minimum Clearances‑ 41
Installation Orientations 12&24k‑ 42
Exterior Wall Opening Dimensions 12 &24k‑ 43
Interior(Closet) Wall Opening Dimensions 12 & 24k‑ 44
Preliminary Plumbing‑ 45
Wall Plenum Installation 12 & 24k‑ 46
Louver Installation‑ 50
Final Wall Plenum And Architectual Louver Installation‑ 51
Unit Installation‑ 52
Final Unit Installation Overview‑ 53
Side Conguration Installation- 54
Unit Drain Installation‑ 55
Ductwork Installation‑ 56

3 PB
TABLE OF CONTENTS
Wall Controller Installation 12 & 24k‑ 57
Return Air Door Installation12 & 24k‑ 60
FreshAire System Set‑up and Operation‑ 61
Final Installation Checklist‑ 62
TROUBLESHOOTING- 63
VRP Troubleshooting Map‑ 63
Required Tools‑ 64
Required Skills‑ 65
Troubleshooting by Rule Out Methodology‑ 65
Diagnostic Codes‑ 66
Check For Power‑ 70
Diagnostic Code (Temperature Based)‑ 71
R‑410A SEALED SYSTEM REPAIR‑ 72
Refrigerant Charging‑ 73
Undercharged Refrigerant Systems‑ 74
Overcharged Refrigerant Systems‑ 75
Restricted Refrigerant System‑ 76
Sealed System Method of Charging/ Repairs‑ 77
Compressor replacement‑ 78
Compressor Replacement -Special Procedure in Case of Compressor Burnout- 79
Replace The Reversing Valve‑ 80
Replace The Condensor Coil 12k/24k‑ 81
Replace The Evaporator Coil 12k/24k‑ 82
Replace The Evaporator Coil Drain Pan‑ 83
COMPONENT TESTING- 84
Electronic Expansion Valve (EEV)‑ 84
Reversing Valve Description And Operation‑ 85
Testing The Reversing Valve Solenoid Coil‑ 86
Checking The Reversing Valve‑ 87
Testing The Reheat Valve Solenoid Coils‑ 88
Touch Test Chart : To Service Reversing Valves- 89
Compressor checks- 90
Check the Outdoor Fan 12k- 91
Replace the Outdoor Fan 12k- 92
Check the Indoor Fan- 93
Replace the Indoor Fan 12k/24k- 94
Check the Heating Elements- 95
Replace the Heating Elements- 96
Driver Board Pin out- 97
Driver Board Replacement- 98
Check RS-485 ConverterBoard- 99
Fmc Board Pin Out‑ 100
FMC Board Replacement‑ 101
Heater Board Pin Out‑ 102
Heater Board Replacement‑ 103
Thermistor Locations‑ 104
T8 (Return Air Sensor)‑ 104
T1 (Evaporator Coil In Sensor)‑ 105
T5 (Evaporator Coil Out Sensor)‑ 105
T9 (Discharge Air Sensor)- 106
T2 (Liquid Heat)‑ 107

4 PB
TABLE OF CONTENTS
T6 (Liquid Cool)‑ 107
T10 (Outdoor Ambient Air Sensor)‑ 108
T7 (Cond. Coil Sensor)- 109
T4 (Comp. Discharge).‑ 110
T3 (Comp. Suction).‑ 111
Thermistor Part numbers‑ 112
Replace Transformer‑ 113
Check High and Low Pressure Limit Switches‑ 114
Check Basepan Heater‑ 115
UPDATING VRP FIRMWARE- 116
FMC Manual Update Process ‑ Remove SD Card from FMC load on a PC or Laptop‑ 116
FMC Update Process – Delete Current Files or Format SD Card‑ 117
FMC Update Process – Unzip Files to Blank or Formatted SD Card‑ 118
FMC Update Process – Verify Files on SD Card Drive- 119
FMC Update Process – Loading new Firmware- 119
WIRING DIAGRAMS- 120
12K BTU (E MODELS) (208/230V 2.5, 3.4, & 5.0 KW)‑ 120
12K BTU (E MODELS) (265V 2.5, 3.4, & 5.0 kW)‑ 121
PARTS CATALOG- 122
12k E Models (Unit Assembly)‑ 122
12K E Models Basepan‑ 131
12K E Models (230v Electrical Controls)‑ 133
12K E Models (265v Electrical Controls)‑ 135
Accessories‑ 137
ACCESSORIES‑ 138
Wall Controller/ Thermostat‑ 138
Installation Accessories and Descriptions- 139
APPENDIX ‑ 141
Thermistor Values‑ 141
CUSTOMER SATISFACTION and QUALITY ASSURANCE‑ 143
FRIEDRICH AUTHORIZED PARTS DEPOTS‑ 143

5 PB
INTRODUCTION
The Friedrich VRP® is a variable capacity system that utilizes Precision Inverter® technology to provide optimal space
conditions.
While each VRP unit has a nominal capacity of 7,000, 12,000, 24,000, or 36,000 Btus, every unit has the ability to adjust Btu
output based on the actual room load. This equates to:
• Greater in-room dehumidication from longer compressor run time
• Lower energy costs by consuming less power
• Greater occupant comfort due to smaller swings in room temperature and humidity
The VRP accomplishes this by constantly monitoring various system and environmental inputs to vary the output of the unit.
The ability to vary compressor and blower speeds and the use of reheat coil enables the VRP to provide optimal comfort.
With up to 20.0 SEER and 10.0 HSPF, the VRP provides a highly efcient solution. Further, the Precision Inverter technology
allows the heat pump to operate at ambient conditions as low as 0˚F reducing the use of strip heat. This results in signicant
savings in operational costs.
An optional integrated FreshAireTM system delivers conditioned fresh air into the space. The fresh air is ltered through
a MERV 8 lter and is then conditioned through the unit’s primary DX coils backed by a reheat coil that augments the
unit’s dehumidication capability. This integrated fresh air solution provides the ability to potentially downsize or eliminate
additional make up air and humidity control equipment.
Friedrich’s wall controller is the main interface between conditioned space and the unit. The controller has seven back‑lit
segment displays that indicate the system mode (cool, heat, fan only), fan speed (low, high or auto), set point (°F or °C) or
alternatively room temperature (°F or °C).
The controller has an integrated temperature and humidity sensor that sends room status to the main control unit (MCU) to
determine operating modes and speeds of various components.
The wall controller also contains a motion sensor that wakes the wall controller from a sleep mode when not in use. This
energy saving feature eliminates annoying glow from the controller and the need to turn on lights at night to operate it.
The unitary packaged design means easier installation or replacement. Because the VRP is a packaged unit, it is installed
as a completely assembled refrigeration system. Unlike VRF or chilled water systems that require on‑site wiring, piping and
sealing of individual components, VRP units are assembled, charged and run tested under strict quality control guidelines
in Friedrich’s North American factory. Additionally, there is no need to locate the cooling tower or condensing units on the
ground or rooftops where green spaces can exist instead.
In sum, The Friedrich VRP offers a signicant value to all parties involved in the design and construction of a new building.
Because of the simpler and more straightforward nature of the packaged design, and the ability t o potentially downsize or
eliminate additional make up air and humidity control equipment, the VRP reduces much of the headache and complexity
facing the design engineer. Because the VRP is easy to install, with no complicated oor-to-oor piping and wiring involved,
the contractor can be condent of a high-quality installation and get on and off the job more quickly. And nally, the owner
gets the efciency and performance of larger, more complex and costly equipment, with a lower overall installed cost; and
he/she virtually eliminates the potential safety and service issues associated with systems that rely on thousands of feet of
refrigerant or water piping running throughout the building, including occupied spaces.

6 PB
INTRODUCTION

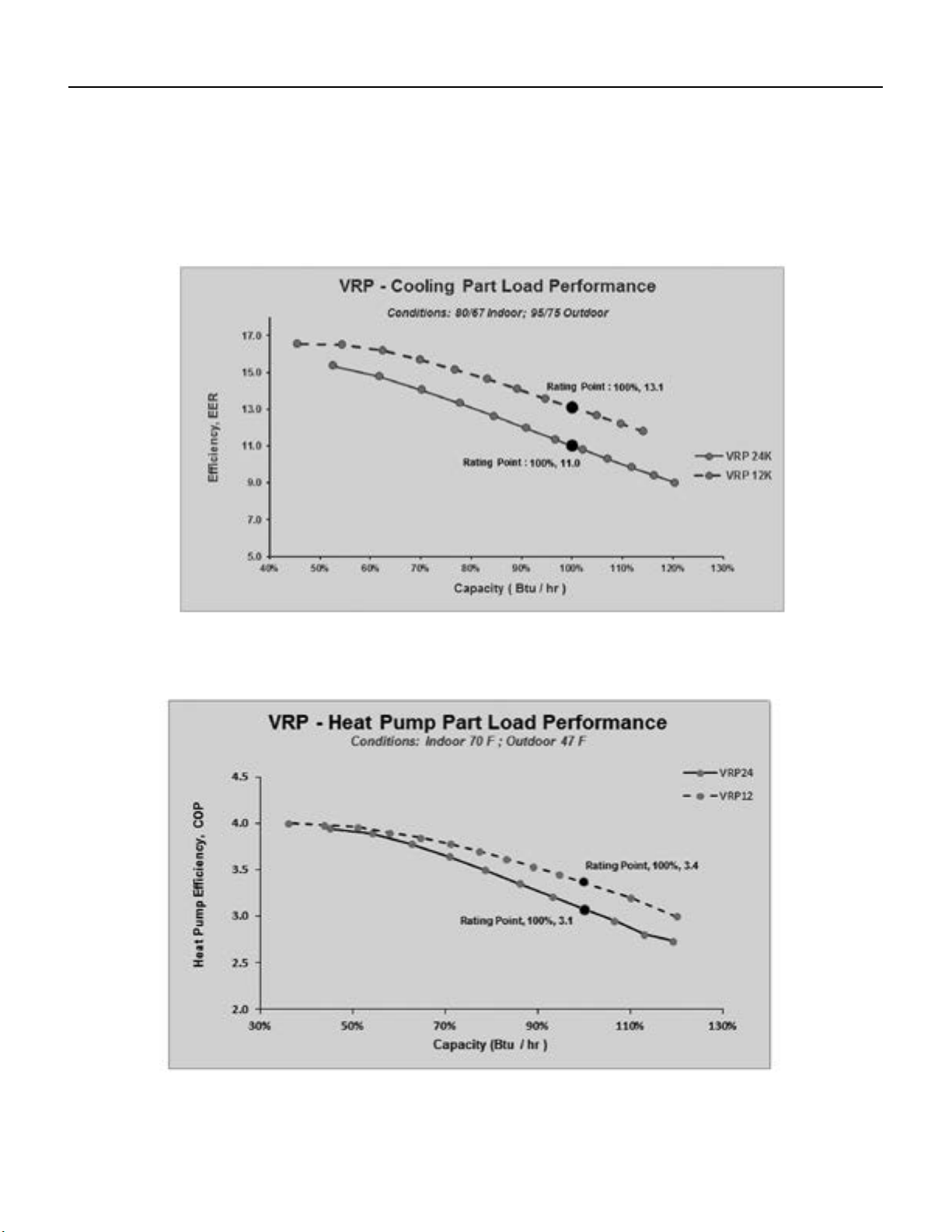

Part Load Performance
Exceptional Efciencies with VRP®: Partial load conditions prevail for the majority of the time. VRP’s Precision Inverter®
compressor can operate down to 40% of rated capacity or up to 120% matching the unit’s output to the actual demand of
the space and, therefore, only consumes the energy that is required. Because of this ability to modulate the capacity, VRP
delivers signicantly higher efciencies than a xed–speed unit resulting in huge savings in operational costs. Example of
variable speed efciency below.
Figure 101 (Cooling Part Load Performance)
Figure 102 (Heating-Part Load Performance)

7 PB
INTRODUCTION

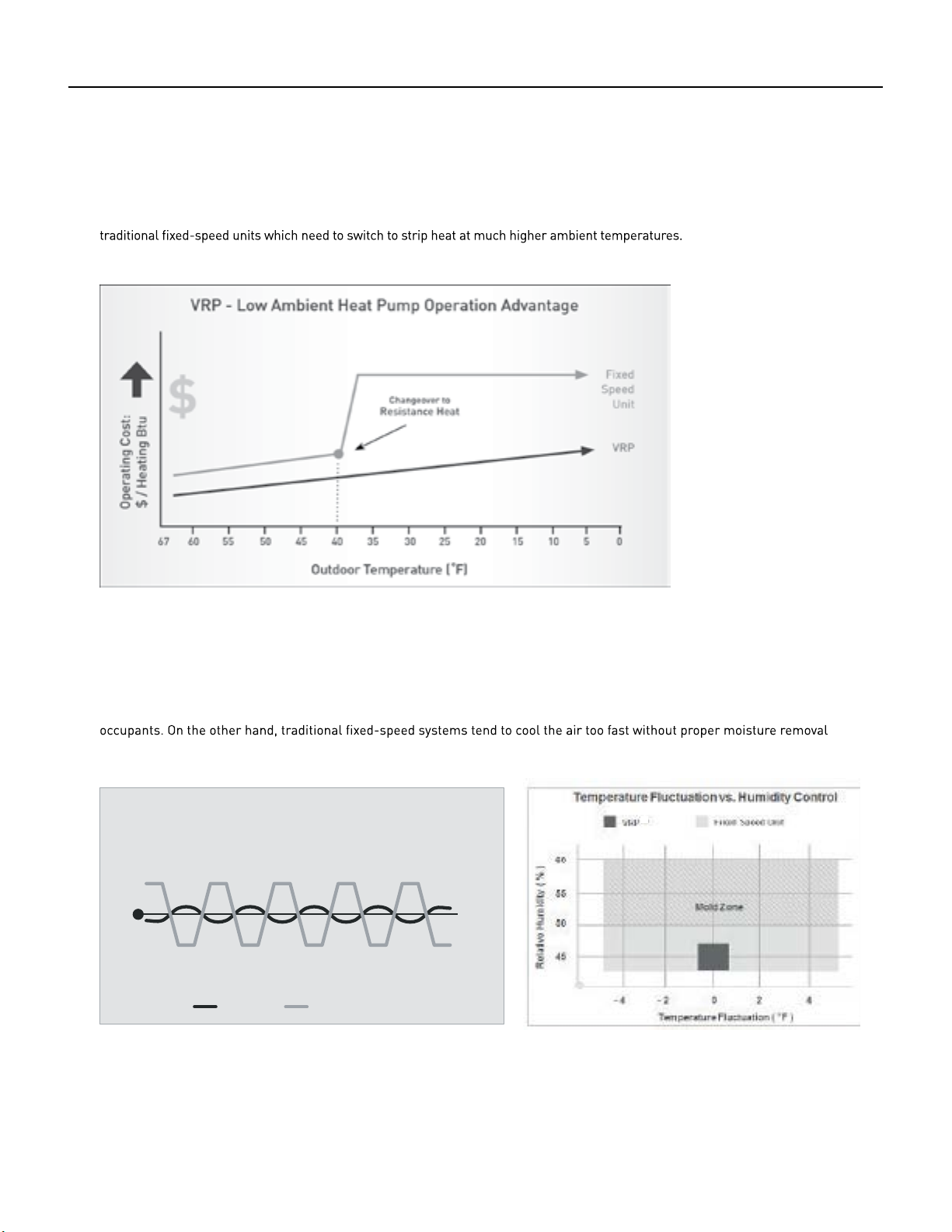

VRP® Variable Speed System vs. Fixed-speed System
Low Ambient Heat Pump Performance: Variable speed technology enables VRP units to supply continuous hot air in heat pump mode even
at low outdoor ambient temperatures. This reduces stripheat usage resulting in exceptional savings with VRP units when compared with
Set P oin t T em pera ture
VRP
VRP - Precise Te mp era ture C ont rol
Fi xe d Sp ee d
Precise Temperature & Humidity Control: VRP units not only help keep the air at the preferred temperature, but can more
effectively remove moisture from the air. VRP units run longer cycles at lower pressures, helping to cool the air more evenly.
The combination of variable speed compressor & blower motor and reheat coil in VRP units provide optimal comfort to the
increasing the risk of mold and other airborne problems.
Figure 103(Cost Savings)
Figure 104 (Precision Temp Control) Figure 105 (Temp vs Humidity Control)

8 PB
INTRODUCTION

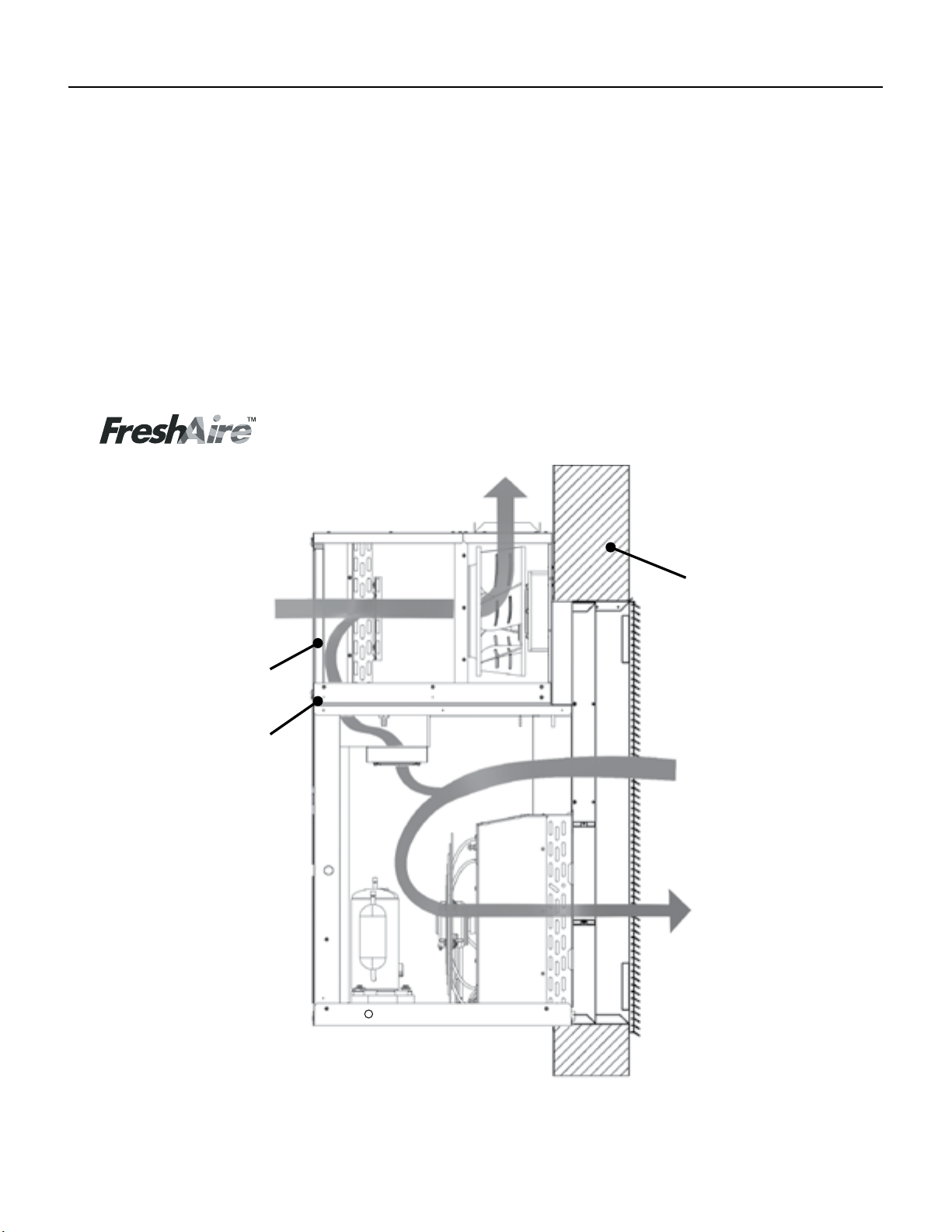

FreshAire™ Conditioned Fresh Air
Return Air
up to 70 CFM
Return Air
Filter
MERV 8 Outside
Air Filter
Supply Air
Outdoor Wall
Outdoor Air
Condenser
Exhaust Air
FreshAire is a dedicated fresh air system that brings in up to 70 CFM of outdoor air into the VRP® unit. The FreshAire system
uses one fan (up to 35 CFM) or two fans (up to 70 CFM) (depending on outdoor air CFM volume requirements) to bring in fresh
outside air into the the unit. The outdoor air passes through dedicated 6”x 6”x 1” MERV 8 lters that are easily replaceable
from the front of the unit.
This outdoor air is mixed with the return air inside the unit prior to the main evaporator coils, reheat coil and heater. Because
of the variable speed of both the compressor and evaporator fan, the VRP can increase or decrease the unit’s capacity to cool,
heat or dehumidify the total supply air. The system uses a proprietary algorithm to measure the dew point of the leaving air.
As the system nears the room setpoint, the system will throttle back both the compressor and the supply air volume in order
to maximize the dwell time on the indoor coil to maximize dehumidication.
(Single speed systems cycle on and off, providing less dehumidication capacity and run time as well as encounter
condensate re‑evaporation when cycled off.)
Figure 106 (FreshAire)

9PB
INTRODUCTION
Reheat Coil - Augments VRP’s Dehumidication Capability
Temperature differences are not the only source of discomfort in a living space. Humidity also plays a big role — especially
in climates that tend to be both hot and humid. The air conditioning industry’s focus on humidity issues has elevated the
importance of dehumidication. Air conditioning units operate in environments with varying indoor humidity levels. Therefore,
the system should be able to adequately respond to the humidity changes by removing sufcient amounts of moisture in
order to keep the conditioned space within the comfort zone.
Anytime the compressor is running in air conditioning mode, it will also be pulling humidity out of the space. Fixed‑speed
systems shut off after the desired set temperature is reached (i.e. when the sensible load is met). VRP® units run much
longer at lower capacity and energy consumption than traditional systems. Humidity levels are reduced to more comfortable
levels. The dehumidication capability of VRP units is enhanced through the use of a reheat coil that provides superior
exibility in satisfying a wide range of latent and sensible capacity demands. The reheat coil is placed behind the evaporator
coil.
At relatively high ambient temperatures, both sensible and latent components of the system capacity are required to
satisfy increased cooling and dehumidication demands. The VRP wall controller and other sensors in the unit combine to
continuously monitor the space RH levels and when there is demand for extra dehumidication, the refrigerant exiting the
condenser is rerouted to the reheat coil located behind the evaporator on the way to the indoor air stream supplied to the
conditioned space.
Thus, cooled and dehumidied air exiting the evaporator coil is reheated to desirable comfort levels for the space.

10 PB
INTRODUCTION
The information in this manual is intended for use by a qualied technician who is familiar with the safety procedures
required for installation and repair, and who is equipped with the proper tools and test instruments required to
service this product.
Installation or repairs made by unqualied persons can result in subjecting the unqualied person making such
repairs as well as the persons being served by the equipment to hazards resulting in injury or electrical shock
which can be serious or even fatal.
Safety warnings have been placed throughout this manual to alert you to potential hazards that may be encountered.
If you install or perform service on equipment, it is your responsibility to read and obey these warnings to guard
against any bodily injury or property damage which may result to you or others.
Important Safety Information
Your safety and the safety of others is very
important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
This is a safety Alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol with the word “WARNING”
or “CAUTION”. These words mean:
Indicates a hazard which, if not avoided, can result in severe personal
injury or death and damage to product or other property.
Indicates a hazard which, if not avoided, can result in personal injury
and damage to product or other property.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance
of injury, and tell you what will happen if the instructions are not followed.
Indicates property damage can occur if instructions are not followed.
WARNING
NOTICE
CAUTION
WARNING
Refrigeration system
under high pressure
Do not puncture, heat, expose to ame or
incinerate.
Only certied refrigeration technicians
should service this equipment.
R410A systems operate at higher pressures
than R22 equipment. Appropriate safe
service and handling practices must be used.
Only use gauge sets designed for use with
R410A.
Do not use standard R22 gauge sets.

11 PB
Important Safety Information INTRODUCTION
WARNING
Please read this manual thoroughly prior to equipment
installation or operation. It is the installer’s responsibility
to properly apply and install the equipment. Installation
must be in conformance with the NFPA 70‑2008 National
Electric Code or current edition, International Mechanic
code 2009 or current edition and any other applicable
local or national codes.
WARNING
Refrigeration system under high pressure. Do not
puncture, heat, expose to ame or incinerate. Only
certied refrigeration technicians should service this
equipment. R410A systems operate at higher pressures
than R22 equipment. Appropriate safe service and
handling practices must be used. Only use gauge sets
designed for use with R410A. Do not use R22 gauge sets.
Failure to do so can result in property damage, personal
injury, or death.
WARNING
Electrical shock hazard.
Turn OFF electric power before service or
installation.
Unit must be properly grounded.
Unit must have correct fuse or circuit breaker
protection. Unit’s supply circuit must have
the correct wire conductor size. All electrical
connections and wiring must be installed by a
qualied electrician and conform to the National
Electrical Code and all local codes which have
jurisdiction. Failure to do so can result in property
damage, personal injury and/or death.
Your safety and the safety of others are very
important.
We have provided many important safety messages in
this manual and on your appliance. Always read and
obey all safety messages.
This is the safety Alert symbol.
This symbol alerts you to potential
hazards that can kill or hurt you
and others.
All safety messages will follow the
safety alert symbol with the word
“WARNING” or “CAUTION”.
These words mean:
ndicates a hazard which, if not avoided, can result in
severe personal injury or death and damage to product or
other property.
Indicates a hazard which, if not avoided, can result in
personal injury and damage to product or other property. All
safety messages will tell you how to reduce the chance of
injury, and tell you what will happen if the instructions are not
followed.
Indicates property damage can occur if instructions
are not followed.
WARNING
CAUTION
NOTICE
DO NOT OPERATE EQUIPMENT DURING ACTIVE STAGES OF CONSTRUCTION
To ensure proper operation, Friedrich requires that all equipment is not operated during active construction phases. This includes
active stages of completing framing, drywalling, spackling, sanding, painting, ooring, and moulding in the equipment’s designated
conditioning space. The use of this equipment during construction could result in premature failure of the components and/or system
and is in violation of our standard warranty guidelines. The operation of newly installed equipment during construction will accelerate
the commencement and/or termination of the warranty period.
CAUTION

12 PB
INTRODUCTION
Personal Injury Or Death Hazards
SAFETY
FIRST
WARNING AVERTISSEMENT ADVERTENCIA
Do not remove, disable or
bypass this unit’s safety
devices. Doing so may cause
injuries, ordeath.
Ne pas supprime, désactiverou
contournercette l´unité des
dispositifs de sécurité, faire vous
risqueriez de provoquerle feu, les
blessures ou la mort. o muerte.
No eliminar, desactivaro pasar
poralto los dispositivos de
seguridad de la unidad. Si lo hace
podría producirse fuego, lesiones
ELECTRICAL HAZARDS:
• Shutdown and/or disconnect all electrical power to the unit before performing inspections, maintenance, or
service.
• Make sure to follow proper lockout/tag out procedures.
• Always work in the company of a qualied assistant if possible.
• Capacitors, even when disconnected from the electrical power source, retain an electrical charge potential
capable of causing electric shock or electrocution. Wait a few minutes after shutdown to allow the capacitors to
discharge the stored energy.
• Handle, discharge, and test capacitors according to safe, established, standards, and approved procedures.
• Extreme care, proper judgment, and safety procedures must be exercised if it becomes necessary to test or
troubleshoot equipment with the power turned on to the unit.
• Do not spray water on the air conditioning unit while the power is on.
• Electrical component malfunction caused by water could result in electric shock or other electrically unsafe
conditions when the power is restored and the unit is turned on, even after the exterior is dry.
• Use air conditioner on a single dedicated circuit within the specied amperage rating.
• Ensure the unit that the unit is properly grounded.
• Do not cut or modify the power supply cord or remove the ground prong of the plug.
• Never operate the unit on an extension cord.
• Follow all safety precautions and use approved protective safety equipment such as: gloves, goggles, and
clothing. Ensure that properly insulated tools, and testing equipment are are used as well to protect against
equipment damage and reduce the risk of injury.
• Failure to follow proper safety procedures and these warnings can result in serious injury or possibly death.

13 PB
INTRODUCTION
Model and Serial Number Identication Guides
Figure 107 (Model Identification Guide)
YEAR OF MANUFACTURE
17 = 2017 18 = 2018
19 = 2019 20 = 2020
21 = 2021 22 = 2022
MONTH OF MANUFACTURE
01 = JANUARY 07 = JULY
02 = FEBRUARY 08 = AUGUST
03 = MARCH 09 = SEPTEMBER
04 = APRIL 10 = OCTOBER
05 = MAY 11 = NOVEMBER
06 = JUNE 12 = DECEMBER
MANUFACTURING LOCATION
NUMERIC SEQUENCE
FIRST UNIT OF EACH MONTH = 00001
17 12 M 00001
Figure 108 (Serial Number Identification)

14 PB
SPECIFICATIONS
Cooling Performance
Figure 201 (Cooling Performance)
Model VRP12K / VRP12R
Cooling Performance Data (Cooling Standards: 95°F
DB/75°F WB outdoor, 80°F DB/67°F WB indoor)
Voltage 230/208 265
Cooling Btu (Rated) 11,500
Cooling Btu (Min. – Max) 5,400– 16,000
Outdoor Operating
Range (°F) 55 – 115
Power (W) 927
SEER 17.4
EER 12.4
Sensible Heat Ratio 0.71
Cooling Amps 5.3 4.6
Heat Pump Performance Data
Heating Btu (Rated @ 47° F) 11,200
Heating Btu (@ 17° F) 7,700
Heating Btu (Min. – Max.) 4,000 – 14,000
Heat Pump Outdoor
Operating Range (°F)* 0 – 70
COP (Rated @ 47° F) 3.4
COP (@ 17° F) 2.2
HSPF 10.0
Heating Power (W) 1058
Heating Amps 5.3 4.7

15 PB
SPECIFICATIONS
12k/24k Extended Cooling Performance Data
Figure 202 (12k/ 24k Extended Cooling Performance Data)
11
VRP Extended Cooling Performance Data
Model:
VRP12
Indoor Temperature
70˚FDB 75˚FDB 80˚FDB 85˚FDB 90˚FDB
60˚F WB 63˚F WB 67˚F WB 71˚F WB 73˚F WB
Outdoor Temperature Dry (°F)
(˚F)
DB
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
65˚11680 615 2.8 12755 615 2.8 13825 615 2.8 14900 615 2.8 15975 620 2.8
70˚11460 665 3.0 12510 665 3.0 13555 675 3.0 14600 675 3.0 15650 675 3.0
75˚11240 720 3.2 12260 720 3.2 13280 725 3.2 14300 725 3.2 15320 725 3.2
80˚10990 765 3.4 11980 775 3.5 12970 775 3.5 13965 775 3.5 14955 780 3.5
85˚10735 815 3.6 11700 820 3.7 12660 825 3.7 13625 825 3.7 14585 830 3.7
90˚10460 860 3.9 11400 870 3.9 12330 875 3.9 13270 880 3.9 14200 880 3.9
95˚10185 910 4.1 11090 920 4.1 12000 925 4.1 12910 930 4.2 13815 935 4.2
100˚9875 960 4.3 10760 970 4.3 11645 975 4.4 12530 985 4.4 13415 990 4.4
105˚9565 1010 4.5 10425 1020 4.6 11285 1030 4.6 12145 1040 4.7 13005 1045 4.7
110˚9265 1060 4.7 10100 1075 4.8 10940 1085 4.9 11775 1100 4.9 12610 1110 5.0
115˚8965 1120 5.0 9775 1130 5.1 10590 1145 5.1 11400 1155 5.2 12215 1170 5.2
Cooling Standards: 95°F DB/75°F WB outdoor, 80°F DB/67°F WB indoor. Values reect performance at A2 rated compressor frequency.
Model:
VRP07
Indoor Temperature
70˚FDB 75˚FDB 80˚FDB 85˚FDB 90˚FDB
60˚F WB 63˚F WB 67˚F WB 71˚F WB 73˚F WB
Outdoor Temperature Dry (°F)
(˚F)
DB
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
65˚7790 450 2.3 8505 450 2.3 9220 450 2.3 9935 450 2.3 10655 455 2.3
70˚7480 475 2.4 8170 475 2.4 8850 480 2.4 9530 480 2.4 10220 480 2.4
75˚7175 505 2.6 7830 505 2.6 8480 510 2.6 9130 510 2.6 9785 510 2.6
80˚6870 540 2.6 7490 545 2.7 8110 545 2.7 8730 545 2.7 9350 550 2.7
85˚6565 570 2.8 7155 570 2.9 7740 575 2.9 8330 575 2.9 8915 580 2.9
90˚6250 595 3 6815 600 3 7370 605 3 7930 610 3 8490 610 3
95˚5940 625 3.2 6470 630 3.2 7000 635 3.2 7530 640 3.3 8060 640 3.3
100˚5620 655 3.3 6125 660 3.3 6630 665 3.4 7135 670 3.4 7640 675 3.4
105˚5305 685 3.4 5785 695 3.5 6260 700 3.5 6735 705 3.6 7215 710 3.6
110˚4990 715 3.5 5440 725 3.6 5890 730 3.7 6340 740 3.7 6790 745 3.8
115˚4675 745 3.7 5095 750 3.8 5520 760 3.8 5940 765 3.9 6365 775 3.9
12
VRP Extended Cooling Performance Data
Model:
VRP24
Indoor Temperature
70˚FDB 75˚FDB 80˚FDB 85˚FDB 90˚FDB
60˚F WB 63˚F WB 67˚F WB 71˚F WB 73˚F WB
Outdoor Temperature Dry (°F)
(˚F)
DB
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
65˚22875 1420 6.4 24980 1420 6.4 27075 1420 6.4 29180 1420 6.4 31285 1430 6.4
70˚22440 1535 6.8 24500 1535 6.8 26545 1560 6.8 28590 1560 6.8 30650 1560 6.8
75˚22010 1665 7.3 24010 1665 7.3 26005 1675 7.3 28005 1675 7.3 30000 1675 7.3
80˚21520 1765 7.7 23460 1790 7.9 25400 1790 7.9 27350 1790 7.9 29285 1800 7.9
85˚21025 1880 8.2 22910 1895 8.4 24795 1905 8.4 26680 1905 8.4 28560 1915 8.4
90˚20485 1985 8.8 22325 2010 8.8 24145 2020 8.8 25985 2030 8.8 27810 2030 8.8
95˚19945 2100 9.3 21720 2125 9.3 23500 2135 9.3 25280 2150 9.5 27055 2160 9.5
100˚19340 2215 9.8 21070 2240 9.8 22805 2250 10 24540 2275 10 26270 2285 10
105˚18730 2330 10.2 20415 2355 10.4 22100 2380 10.4 23785 2400 10.7 25470 2415 10.7
110˚18145 2450 10.7 19780 2480 10.9 21425 2505 11.1 23060 2540 11.1 24695 2565 11.3
115˚17555 2585 11.3 19145 2610 11.6 20740 2645 11.6 22325 2665 11.8 23920 2700 11.8
Model:
VRP36
Indoor Temperature
70˚FDB 75˚FDB 80˚FDB 85˚FDB 90˚FDB
60˚F WB 63˚F WB 67˚F WB 71 F WB 73˚F WB
Outdoor Temperature Dry (°F)
(˚F)
DB
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
65˚31425 2265 2.3 34315 2265 9.8 37195 2265 2.3 40090 2265 2.3 42980 2285 2.3
70˚30910 2365 2.4 33745 2365 10.5 36565 2400 2.4 39380 2400 2.4 42215 2400 2.4
75˚30410 2515 2.6 33170 2515 11.2 35930 2530 2.6 38690 2530 2.6 41450 2530 2.6
80˚29910 2630 2.6 32605 2665 11.9 35300 2665 2.7 38005 2665 2.7 40700 2680 2.7
85˚29395 2760 2.8 32035 2780 12.6 34665 2795 2.9 37310 2795 2.9 39935 2810 2.9
90˚28870 2880 3 31465 2910 13.3 34035 2930 3 36625 2945 3 39195 2945 3
95˚28350 3010 3.2 30865 3045 14 33400 3060 3.2 35935 3075 3.3 38450 3095 3.3
100˚27785 3145 3.3 30275 3175 14.7 32765 3190 3.4 35260 3225 3.4 37750 3240 3.4
105˚27235 3260 3.4 29685 3290 15.4 32135 3325 3.5 34585 3355 3.6 37030 3375 3.6
110˚26680 3375 3.5 29085 3425 16.1 31500 3455 3.7 33905 3505 3.7 36310 3535 3.8
115˚26130 3510 3.7 28495 3540 16.8 30870 3590 3.8 33230 3620 3.9 35605 3670 3.9
Cooling Standards: 95°F DB/75°F WB outdoor, 80°F DB/67°F WB indoor. Values reect performance at A2 rated compressor frequency.

16 PB
SPECIFICATIONS
12 and 24k Extended Heating Performance Data
Figure 203 (12 and 24k Extended Heating Performance Data)
13
VRP Extended Heating Performance Data
Model:
VRP07
Indoor Temperature Dry Bulb (F)
60˚70˚80˚
Outdoor Temperature Dry Bulb (F)
(˚F)
DB
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
17˚3740 470 2.4 3500 500 2.6 3245 525 2.7
25˚5080 500 2.5 4435 530 2.7 4125 565 2.8
35˚5990 535 2.7 5600 570 2.9 5210 610 3
47˚7470 585 2.9 7000 620 3.1 6510 665 3.2
55˚8470 615 2.9 7935 655 3.2 7370 700 3.3
62˚9370 640 3.1 8750 685 3.4 8120 730 3.5
Model:
VRP12
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Outdoor Temperature Dry Bulb (F)
(˚F)
DB
17˚7551 866 3.0 7100 946 3.3 6609 1014 3.5
25˚8810 877 3.1 8273 958 3.4 7688 1031 3.7
35˚10384 890 3.3 9740 974 3.6 9036 1051 3.9
47˚12272 906 3.4 11400 992 3.8 10654 1077 4.1
55˚13531 916 3.6 12673 1004 4.0 11733 1093 4.3
62˚14633 925 3.7 13700 1015 4.1 12677 1108 4.4
Model:
VRP24
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Outdoor Temperature Dry Bulb (F)
(˚F)
DB
17˚15208 1399 6.4 14299 1528 7 13310 1638 7.5
25˚17407 1473 6.7 16347 1610 7.4 15190 1732 7.9
35˚20156 1565 7.2 18907 1712 7.8 17541 1850 8.5
47˚23455 1675 7.7 21979 1835 8.4 20362 1991 9.1
55˚25654 1749 8 24027 1917 8.8 22243 2086 9.5
62˚27579 1813 8.3 25819 1989 9.1 23888 2168 9.9
Model:
VRP36
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Outdoor Temperature Dry Bulb (F)
(˚F)
DB
17˚20495 2280 10.2 19175 2420 11.1 17790 2560 11.3
25˚5080 2320 10.4 21690 2475 11.3 20175 2645 11.5
35˚26570 2370 10.6 24830 2540 11.5 23090 2720 11.8
47˚30510 2465 10.9 28600 2620 11.8 26600 2805 12
55˚33210 2510 11 31115 2675 12 28900 2865 12.2
62˚35680 2555 11.2 33310 2720 12.1 30910 2905 12.4
Heating Standards: 47°F DB/43°F WB outdoor, 70°F DB/60°F WB indoor. Values reect performance at H1Full compressor frequency.
13
VRP Extended Heating Performance Data
Model:
VRP07
Indoor Temperature Dry Bulb (F)
60˚70˚80˚
Outdoor Temperature Dry Bulb (F)
(˚F)
DB
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
17˚3740 470 2.4 3500 500 2.6 3245 525 2.7
25˚5080 500 2.5 4435 530 2.7 4125 565 2.8
35˚5990 535 2.7 5600 570 2.9 5210 610 3
47˚7470 585 2.9 7000 620 3.1 6510 665 3.2
55˚8470 615 2.9 7935 655 3.2 7370 700 3.3
62˚9370 640 3.1 8750 685 3.4 8120 730 3.5
Model:
VRP12
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Outdoor Temperature Dry Bulb (F)
(˚F)
DB
17˚7551 866 3.0 7100 946 3.3 6609 1014 3.5
25˚8810 877 3.1 8273 958 3.4 7688 1031 3.7
35˚10384 890 3.3 9740 974 3.6 9036 1051 3.9
47˚12272 906 3.4 11400 992 3.8 10654 1077 4.1
55˚13531 916 3.6 12673 1004 4.0 11733 1093 4.3
62˚14633 925 3.7 13700 1015 4.1 12677 1108 4.4
Model:
VRP24
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Outdoor Temperature Dry Bulb (F)
(˚F)
DB
17˚15208 1399 6.4 14299 1528 7 13310 1638 7.5
25˚17407 1473 6.7 16347 1610 7.4 15190 1732 7.9
35˚20156 1565 7.2 18907 1712 7.8 17541 1850 8.5
47˚23455 1675 7.7 21979 1835 8.4 20362 1991 9.1
55˚25654 1749 8 24027 1917 8.8 22243 2086 9.5
62˚27579 1813 8.3 25819 1989 9.1 23888 2168 9.9
Model:
VRP36
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Capacity
(Btu/h)
Input
(W)
Amps
(A)
Outdoor Temperature Dry Bulb (F)
(˚F)
DB
17˚20495 2280 10.2 19175 2420 11.1 17790 2560 11.3
25˚5080 2320 10.4 21690 2475 11.3 20175 2645 11.5
35˚26570 2370 10.6 24830 2540 11.5 23090 2720 11.8
47˚30510 2465 10.9 28600 2620 11.8 26600 2805 12
55˚33210 2510 11 31115 2675 12 28900 2865 12.2
62˚35680 2555 11.2 33310 2720 12.1 30910 2905 12.4
Heating Standards: 47°F DB/43°F WB outdoor, 70°F DB/60°F WB indoor. Values reect performance at H1Full compressor frequency.

17 PB
SPECIFICATIONS
Air Flow Data -12k and 24k
Figure 204 (12K and 24K Air Flow Data)
9
Air Flow Data
Model VRP12K / R VRP24K / R
Air Flow Data
Indoor CFM Low High Low High
.10” ESP * 488 559 472 850
.20” ESP 393 466 432 778
.30” ESP 292 383 391 703
.40” ESP 200 304 348 626
.50” ESP 104 234 308 555
* Rated at 0.10"ESP, High and includes 0.08”ESP for factory installed 1" lter
Condenser CFM & External Static Pressure
VRP®is designed to mount through an exterior wall through a Friedrich wall plenum with an external louver.
Building design and applications may require different congurations of this external connection for aesthetic/architectural reasons.
These different congurations may include custom louvers, plenums or special ducted returns.
The following are guidelines for the design of these custom external congurations.
Condenser External Static Pressure
VRP Model Design Maximum
CFM ESP ("WC) ESP ("WC)
VRP 12000 Btu 700 0.03 0.1
VRP 24000 Btu 1150 0.017 0.11
Indoor CFM & External Static Pressure
CAUTION: If the Friedrich designed plenum and louver combinations are not used, the louver/duct design must be evaluated to
insure the total pressure drop does not exceed the maximum allowable limits.

18 PB
SPECIFICATIONS
Electrical Data
VRP
Model Voltage Heater Watts Heating Btu Heater Amps ID Blower Amps OD Blower
Amps
MCA MOP /
MOCP
VRP12K 230 2500 8530 11.2 0.34 0.42 14.0 15
208 2030 6980 10.2 0.38 0.42
230 3400 11601 15.1 0.34 0.42 18.9 20
208 2780 9480 13.8 0.38 0.42
230 5000 17060 22 0.34 0.42 27.5 30
208 4100 13980 20.1 0.38 0.42
VRP12R 265 2500 8530 9.8 0.2 0.4 12.3 15
3400 11601 13.2 0.2 0.4 16.5 20
5000 17060 19.3 0.2 0.4 24.1 25
MCA = Minimum Circuit Ampacity
MOP / MOCP = Maximum Overcurrent Protection / Breaker Size
Minimum Circuit Amps (MCA) and MOCP values in the above table are
calculated in accordance with The NEC. Article 440
Figure 205 (Electrical Data)

19 PB
SPECIFICATIONS
12k and 24k Unit Dimensional Data
Figure 206 (12k and 24k Unit Dimensional Data)
5
Dimensions
Model VRP12K VRP12R VRP24K VRP24R
Dimensions (W x D x H) 26 1/8" x 25 1/8" x 52" 26 1/8" x 25 1/8" x 62"
Shipping Dimensions (W x D x H) 28 1/8" x 27 3/8" x 54 1/2" 28 1/8" x 27 3/8" x 64 1/2"
Net Weight (lbs.) 215 215 255 255
Shipping Weight (lbs.) 276 276 316 316
R410A Charge (oz.) 49.8 49.8 68.3 68.3
DUCT
FLANGE
VRP Dimensional Data 24K
VRP Dimensional Data 12K

20 PB
SPECIFICATIONS

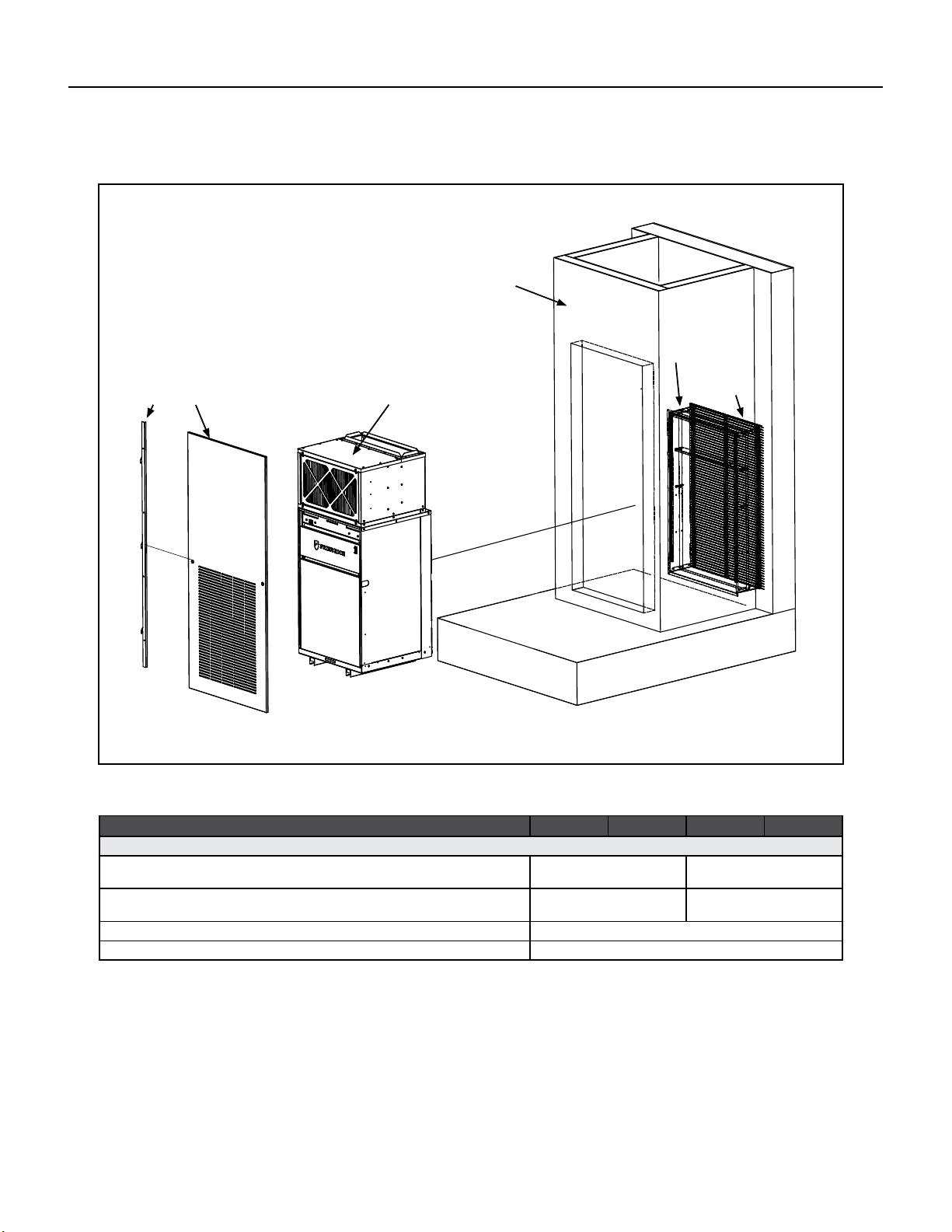

12k and 24k Unit Installation Dimensional Data
Model VRP12K VRP12R VRP24K VRP24R
Outside Wall- Cut Out Dimensions
Dimensions (W x H)
For VRPXWPA-8 or VRPXWPA-14 Plenum NA
28 1/8" x 32 1/4"
Dimensions (W x H)
For VRPXWPB-8 or VRPXWPB-14 Plenum 28 1/8" x 42 1/4"
Access Door- Cut Out Dimensions (W x H) 30" x 70"
Minimum Closet Dimensions (W x D)
28 1/8" x 42 1/4"
See Installation Types
and hinge
Access Panel VRP Chassis
(24k shown)
Closet
Wall
Plenum
Louver
Typical Closet
Figure 207 (12k and 24k Unit Dimensional Data)
