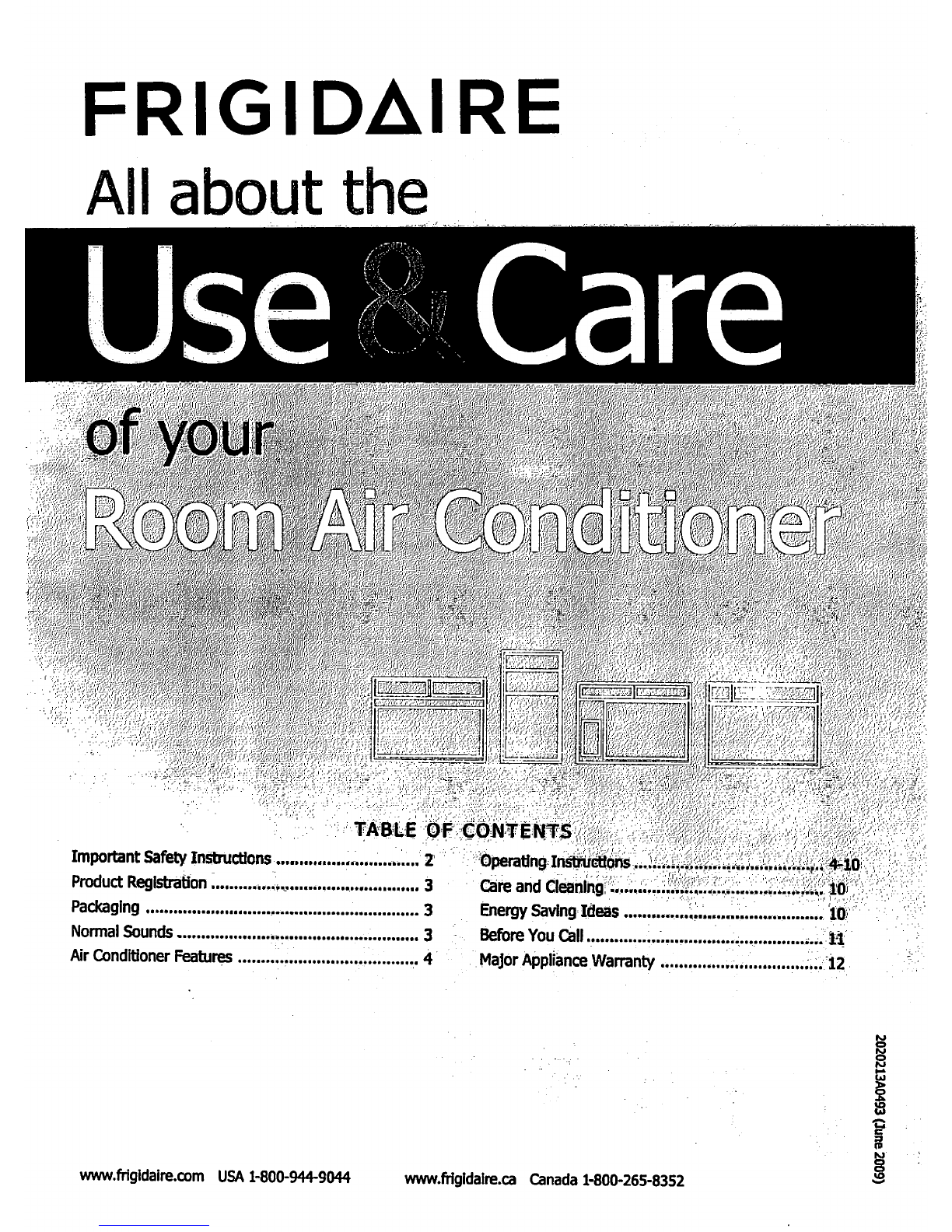

Frigidaire Room Air Conditioner User manual

FRIGIDAIRE
All about the
^ ?^#®W^
0^S^MiWi$Mi
j - ■ ■ ■ ■ ■. ■ "■" i ■" ■";.". i\:. i1'1'1 '.■ ■'.'
[n^c^lt? '" - ■ ■■ -■■ ■■■■■
;(.' '■..,',. " ':,''' ■,.:-,...-.• 'ij
,'!;;■:j'i'f:.'■'.'■':': "'..■' '■',('. ';:■'.',
1 lt.i'1.^;;!■-■ ■ '':.Jli■ :■■■ ■■'''.■■'',-%-i■'■■rV.K'V'■ '..'.■■ ■ ■ ■.•'-=?.*::; '■.'/ ',-■'.'. ■■'ii-^.^'.y'i..':}■■-: J:.1*!
' ■ '■'■'., " ■!' ■ '■ "''l\■■■:'■'.' ■/ ■■ ■ ' '■'"- ■ '■ , ' '"■'■]. i ■ ■L" ''f. '■'':, ■ '
, .!..: ■■ table
Important Safety Instructions ....2 "operating Jnstiii^Hons '...^:^^^.i;:^i
Product Registration <tM 3 Care and Cleaning; »...,.....Si.I:.....M.«Z.Ji:i:W
Packaging ,„..... 3 Energy Saving Ideas ........i,................,.......«, iQ
Normal Sounds ,-. 3 Before You Call ...^. if
Air Conditioner Features 4 Major Appliance Warranty „... 12
1
i
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

Important Safety Instructions
NOTE:
This USE & CARE MANUAL provides specific operating instructions for your model. Use the room air conditioner only as
instructed in this USE & CARE MANUAL. These instructions are not meant to cover every possible condition and situation that
may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.
If NOTE:
The power supply cord with
this air conditioner contains a current
detection device designed to reduce the risk
of fire.
Please refer to the section 'Operation of
Current Device' for details.
In the event that the power supply cord is
damaged, it cannot be repaired. It must be
replaced with a cord from the product
manufacturer.
WARNING
i Avoid fire hazard or electric shock. Do not
I use an extension cord or an adaptor plug. Do
I not remove any prong from the power cord.
Grounding Prong
Do not, under any
circumstances, cut,
remove or bypass the
grounding prong.
WARNING
For Your Safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. Read product labels for flammabltity and other warnings.
WARNING
Prevent Accidents
To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner,
follow basic precautions, including the following:
• Be sure the electrical service is adequate for the model you have chosen. This information
can be found on the serial plate, which is located on the side of the cabinet and behind the
grille.
• If the air conditioner is to be installed in a window, you will probably want to dean both
sides of the glass first. If the window is a triple-track type with a screen panel included,
remove the screen completely before installation.
• Be sure the air conditioner has been securely and correctly installed according to the
separate
installation instructions provided with this manual. Save this manual and the
installation instructions for possible future use in removing or reinstalling this unit
• When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front
and rear coils.
WARNING
Electrical Information
The complete electrical rating of your new room air conditioner is stated on the serial plate.
Refer to the rating when checking the electrical requirements.
• Be sure the air conditioner is property grounded. To minimize shock and fire hazards,
proper grounding is important. The power cord is equipped with a three-prong grounding
plug for protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall
receptacle you Intend to use is not adequately grounded or protected by a time delay fuse
or circuit breaker, have a qualified electrician install the proper receptacle.
• Do not run air conditioner without outside protective cover in place. This could result in
mechanical damage within the air conditioner.
• Do not use an extension cord or an adapter plug.
READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER.
Unit must be upright for one hour prior to operating.
Operation of Current
Device
Plug in &
press RESET
The power supply cord contains a current device that senses damage to the power cord. To test
your power supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will
notice a dick as the RESET button pops out
3. Press the RESET button. Again you will notice a dick as the button engages.
4' The power supply cord is now supplying electridty to the unit (On some products this is also Indi
cated by a light on the plug head).
NOTE: ■■■■■!
• Do not use this device to turn the unit on or off.
• Always make sure the RESET button is pushed in forcorrect operation.
• The power supply cord must be replaced if it fails to reset when either the TEST button is pushed,
or it cannot be reset A new one can be obtained from the product manufacturer.
• If power supply cord Is damaged, it CANNOT be repaired. It MUST be replaced by one obtained
from the product manufacturer.
©2009 Electrolux Home Products, Inc.
All rights reserved.

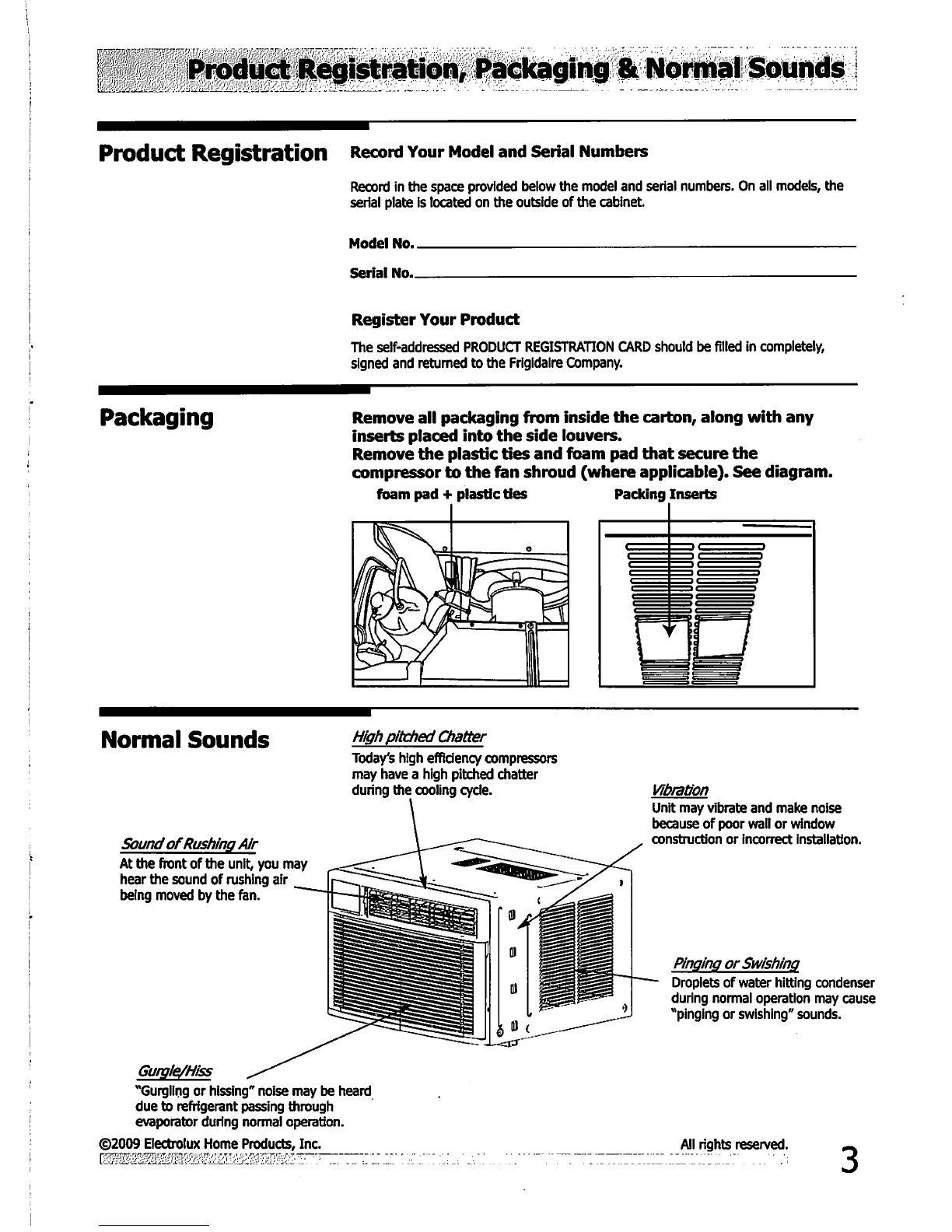

Product Registration, Packaging & Normal Sounds
Product Registration Record Your Model and Serial Numbers
Record in the space provided below the model and serial numbers. On all models, the
serial plate is located on the outside of the cabinet.
Model No..
Serial No..
Packaging
Register Your Product
The self-addressed PRODUCT REGISTRATION CARD should be filled in completely,
signed and returned to the Frigldalre Company.
Remove all packaging from inside the carton, along with any
inserts placed into the side louvers.
Remove the plastic ties and foam pad that secure the
compressor to the fan shroud (where applicable). See diagram,
foam pad + plastic ties Packing Inserts
Normal Sounds
Sound of Rushing Air
At the front of the unit, you may
hear the sound of rushing air
being moved by the fan.
High pitched Chatter
Today's high efficiency compressors
may have a high pitched chatter
during the cooling cycle.
Gurgle/Hiss
"Gurgling or hissing" noise may be heard
due to refrigerant passing through
evaporator during normal operation.
©2009 Electrolux Home Products, Inc.
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
Pinging or Swishing
Droplets of water hitting condenser
during normal operation may cause
"pinging or swishing" sounds.
All rights reserved.

f1*™1
Instructions

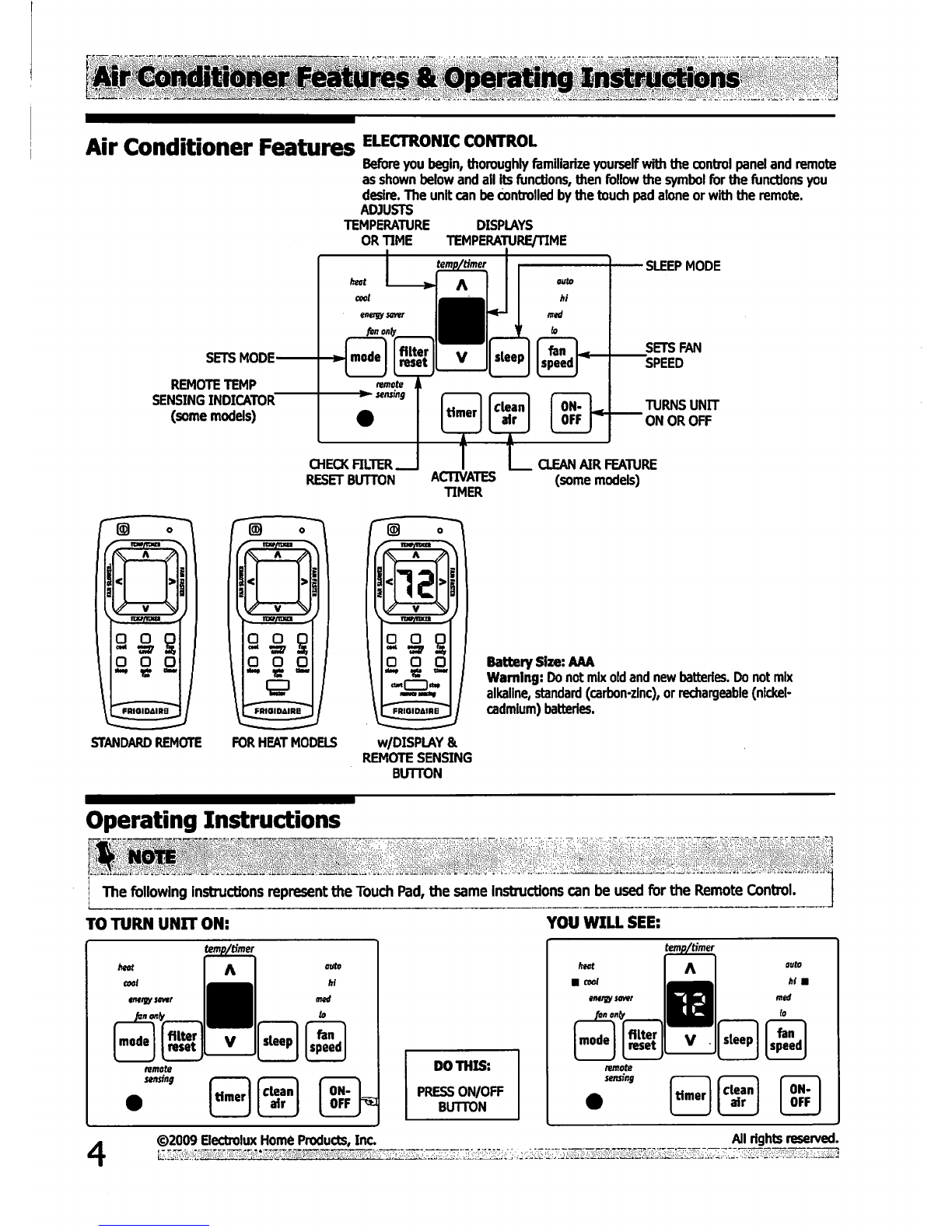

Air Conditioner Features electronic control
Before you begin, thoroughly familiarize yourself with the control panel and remote
as shown below and ail its functions, then follow the symbol for the functions you
desire. The unit can be controlled by the touch pad alone or with the remote.
ADJUSTS
TEMPERATURE DISPLAYS
OR TIME TEMPERATURE/TIME
SLEEP MODE
SETS MODE-
REMOTE TEMP
SENSING INDICATOR"
(some models)
CHECK FILTER.
RESET BUTTON
timer
clean
air
0N-
OFF
SETS FAN
"SPEED
TURNS UNIT
"ON OR OFF
ACTIVATES
TIMER
CLEAN AIR FEATURE
(some models)
11
(^
a<
3
V.
G
CM
G
■ IMT/TLJIU
A
V
O
A
B
B
ot S
o o
• tr "-
'RIOIDAIRE
- |
o o
•SB
o o o
nil law
Battery Size: AAA
Warning: Do not mix old and new batteries. Do not mix
alkaline, standard (carbon-zinc), or rechargeable (nickel-
cadmium) batteries.
STANDARD REMOTE FOR HEAT MODELS
w/DISPLAY &
REMOTE SENSING
BUTTON
Operating Instructions
The following instructions represent the Touch Pad, the same instructions can be used for the Remote Control.
TO TURN UNIT ON:
YOU WILL SEE:
DO THIS:
PRESS ON/OFF
BUTTON
©2009 Electrolux Home Products, Inc.
All rights reserved.

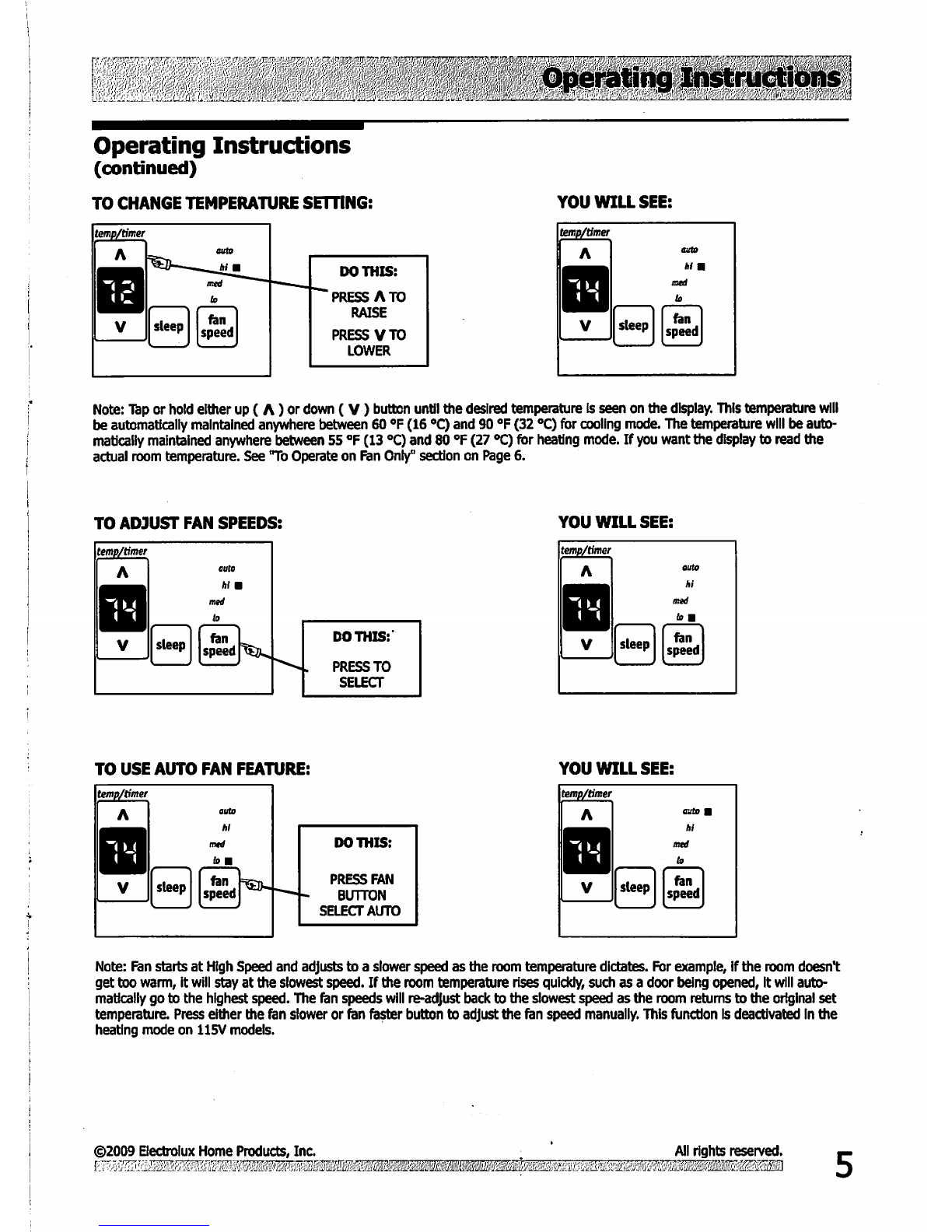

Operating Instructions
(continued)
TO CHANGE TEMPERATURE SETTING:
\temp/timer
V
auto
*^D »f_l
mtd
to
sleep
fan
speed
i
DO THIS:
PRESS ATO
RAISE
PRESS VTO
LOWER
YOU WILL SEE:
B3
V
alto
Ml
to
sleep fan
speed
i
Note: Tap or hold either up ( A) or down ( V) button until the desired temperature Is seen on the display. This temperature will
be automatically maintained anywhere between 60 °F (16 °C) and 90 °F (32 °C) for cooling mode. The temperature will be auto
matically maintained anywhere between 55 °F (13 °C) and 80 °F (27 °C) for heating mode. If you want the display to read the
actual room temperature. See 'To Operate on Fan Only" section on Page 6.
TO ADJUST FAN SPEEDS:
YOU WILL SEE:
DO THIS:'
PRESS TO
SELECT
temp/timer
I A
1 v
auto
hi
nttd
torn
sleep
fan
speed
TO USE AUTO FAN FEATURE:
YOU WILL SEE:
auto
hi
sleep
fan
DO THIS:
PRESS FAN
BUTTON
SELECT AUTO
g
v
auto
hi
mti
to
sleep
fan
speed
■
Note: Fan starts at High Speed and adjusts to a slower speed as the room temperature dictates. For example, if the room doesn't
get too warm, it will stay at the slowest speed. If the room temperature rises quickly, such as a door being opened, it will auto
matically go to the highest speed. The fan speeds will re-adjust back to the slowest speed as the room returns to the original set
temperature. Press either the fan slower or fan faster button to adjust the fan speed manually. This function Is deactivated In the
heating mode on 115V models.
©2009 Bectrolux Home Products, Inc. , All rights reserved.

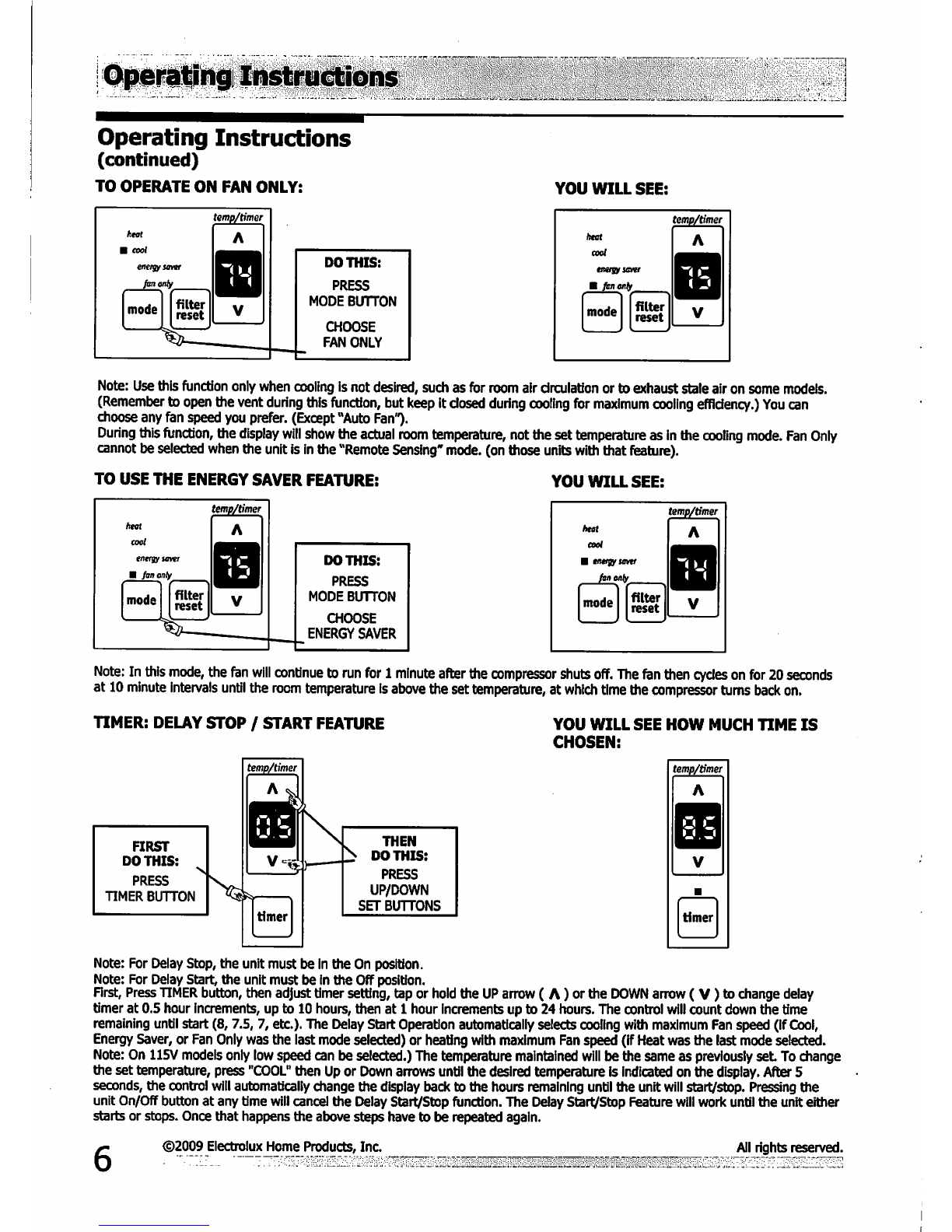

Operating Instructions
Operating Instructions
(continued)
TO OPERATE ON FAN ONLY:
YOU WILL SEE:
heat
■ cool
energy iam
fan only
mode
filter
reset
DO THIS:
PRESS
MODE BUTTON
CHOOSE
FAN ONLY
hut
ax!
tntrgysam
■ faiontf
mode
filter
reset
Note: Use this function only when cooling is not desired, such as for room air circulation or to exhaust stale air on some models.
(Remember to open the vent during this function, but keep it closed during cooling for maximum cooling efficiency.) You can
choose any fan speed you prefer. (Except "Auto Fan").
During this function, the display will show the actual room temperature, not the set temperature as in the cooling mode. Fan Only
cannot be selected when the unit is in the "Remote Sensing" mode, (on those units with that feature).
TO USE THE ENERGY SAVER FEATURE:
YOU WILL SEE:
htot
cool
erttrgy saver
M fan only
mode
filter
reset
DO THIS:
PRESS
MODE BUTTON
CHOOSE
ENERGY SAVER
htot
tool
■ tntiyyuntr
fan mt>
mode
filter
reset
1 1
v 1
Note: In this mode, the fan will continue to run for 1 minute after the compressor shuts off. The fan then cydes on for 20 seconds
at 10 minute intervals until the room temperature is above the set temperature, at which time the compressor turns back on.
TIMER: DELAY STOP / START FEATURE
YOU WILL SEE HOW MUCH TIME IS
CHOSEN:
FIRST
DO THIS:
PRESS
TIMER BUTTON
timer
timer
. THEN
> DO THIS:
PRESS
UP/DOWN
SET BUTTONS
Note: For Delay Stop, the unit must be in the On position.
Note: For Delay Start, the unit must be in the Off position.
First, Press TIMER button, then adjust timer setting, tap or hold the UP arrow ( A) or the DOWN arrow (V) to change delay
timer at 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time
remaining until start (8,7.5, 7, etc.). The Delay Start Operation automatically selects cooling with maximum Fan speed (if Cool,
Energy Saver, or Fan Only was the last mode selected) or heating with maximum Fan speed (if Heat was the last mode selected.
Note: On 115V models only low speed can be selected.) The temperature maintained will be the same as previously set To change
the set temperature, press "COOL" then Up or Down arrows until the desired temperature is indicated on the display. After 5
seconds, the control will automatically change the display back to the hours remaining until the unit will start/stop. Pressing the
unit On/Off button at any time will cancel the Delay Start/Stop function. The Delay Start/Stop Feature will work until the unit either
starts or stops. Once that happens the above steps have to be repeated again.
©2009 Electrolux Home Products, Inc.
All rights reserved.

Operating! Instructions
Operating Instructions
(continued)
CHECK FILTER FEATURE, YOU WILL SEE:
hat
tool
■ energy stmr
fan only ■
mode
filter 1
reset]
temp/timer
V |
DO THIS:
PRESS FILTER
RESET BUTTON
heat
coot
finally
mode
filter
reset
Note: This feature Is a reminder to dean the Air Hiter (See Care and Cleaning) for more efficient operation. The LED (light) will
illuminate after 250 hours of operation. To reset after deaning the filter, press the "Filter Reset" button and the light will go off.
CLEAN AIR FEATURE(on some models): YOU WILL SEE:
M I
la
sleep
fan
speed
tinier
clean
air
ON-
OFF
DO THIS:
PRESS
CLEAN AIR
BUTTON
Note: When this feature is "ON", the electronic air purifier is energized to remove pollen and impurities from the air. To cancel this
feature, press the Clean Air button (the LIGHT will turn off).
Note: This feature can be activated on the unit touch pad ONLY.
SLEEP FEATURE:
hi I
mtd
to
sleep
fen
speed
timer
clean
air
ON-
OFF
DO THIS:
' PRESS
SLEEP BUTTON
YOU WILL SEE:
Note: In this mode the selected temperature will increase by 2 °F 30 minutes after the mode is selected. The temperature will then
increase by another 2 °F after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to
the originally selected temperature. This ends the "Sleep" mode and the unit will continue to operate as originally programmed.
The "Sleep" mode program can be cancelled at any time during operation by again pressing the "Sleep" button.
©2009 Electrolux Home Products, Inc.
All rights reserved.

Operating Instructions
Operating Instructions
(continued)
REMOTE SENSING FEATURE
(on some models):
G9 o
' \. A ^ '
s<
,i_v_S,
O O Q
o o o
FRIOIOAIRI1
cr- ^j
r
DO THIS:
PRESS REMOTE
" SENSING
START BUTTON
LIGHT pulsing (On & Off intermittently).
NOTE: Unit display shows the set temperature
NOTE: Remote display
is actual temperature
at remote control only
Note: This feature can be activated from the remote control ONLY, the unit must be in a cooling mode.
To activate the remote sensing feature, point the remote control towards the unit and press the remote sensing Start button. Next, use
the " A V " buttons to set the desired temperature at the remote. (Note that the set temperature will only be displayed on the unit
itself). The LIGHT on the unit control will pulse to Indicate it received the signal. The LIGHT on the remote control will pulse each time it
sends a signal. It will periodically send this signal until the feature is deactivated by pressing the remote sensing Stop button. If the unit
does not receive the remote sensing signal during any 3 minute Interval, the unit will beep to indicate the remote sensing mode has
ended. The display on the remote control Indicates the temperature at the remote ONLY.
NOTE: The Remote Sensing function is terminated either by using the Remote Sensing Stop button or the main ON/OFF button on the
unit.
HEATING FEATURE(on some models):
YOU WILL SEE:
mode
DO THIS:
PRESS
MODE BUTTON
SELECT HEAT
■
htat
cool
tntrgysMtr
fmaiti
mode
filter
reset
A
V 1
Note: This feature can be used with any combination of FAN Speeds (Low speed only en 115V models), Timer, or Sleep Modes. When in
the "Heat" mode,the fan will run continuously while heat is needed. The temperature will automatically be maintained anywhere between
55 °F(13 °Q and 80 °F(27 °C) When the room set temperature is satisfied, the fan will cyde off and on to circulate and sample the room
air.
FAULT CODES:
If the display reads "HS", a sensor has
failed. Contact your Authorized Frigldaire
Service Center.
If the display reads "AS", a sensor has
failed. Contact your Authorized Frigidatre
Service Center.
If the display reads "ES", a sensor has
failed. Contact your Authorized Frigidaire
Service Center.
8
©2009 Electrolux Home Products, Inc. All rights reserved.

Operating
Operating Instructions
(continued)
TO CHANGE TEMPERATURE DISPLAY:
YOU WILL SEE:
DO THIS:
PRESS AND HOLD THE
UP/DOWN BUTTONS
TOGETHER FOR 3 SECONDS
Note: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius.
TO TURN UNIT OFF: YOU WILL SEE:
DO THIS:
PRESS
ON/OFF BUTTON
■
timer
hi
mat
to
sleep
clean
air
fan
speed
ON-
OFF
Note: When unit is shut off in the Heat Mode, the fan will continue to run for a few seconds to dissipate residual heat within the unit
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with.
• The "Cool" circuit has an automatic 3 minute time delayed start if the unit Is turned off and on quickly.
|\ This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue /f
to run during this time.
• There is a 2-Second delay for the compressor shutting down when selecting FAN ONLY/HEAT. This is to cover the possibility of
having to roll through to select another mode.
• The control will maintain the set temperature within 2 degrees Fahrenheit, between 60F and 90F degrees (in cool mode), 55F
and 80F degrees (in heat mode).
• After a power outage, the unit will memorize the last setting and return the unit to the same setting once power is restored.
Fresh Air Vent Control (on some models -15~28.5K BTU)
The Fresh Air Vent allows the air conditioner to:
1. Redrculate inside air - Vent Closed (see Fig. 1)
2. Draw fresh air into the room - Fresh Air (see Fig. 2)
3. Exchange air from the room - Vent Open (see Fig. 3)
Fig. 1 (VENT CLOSED)
©2009 Electrolux Home Products, Inc.
Fig. 2 (FRESH AIR)
Fig. 3 (VENT OPEN)
All rights reserved.

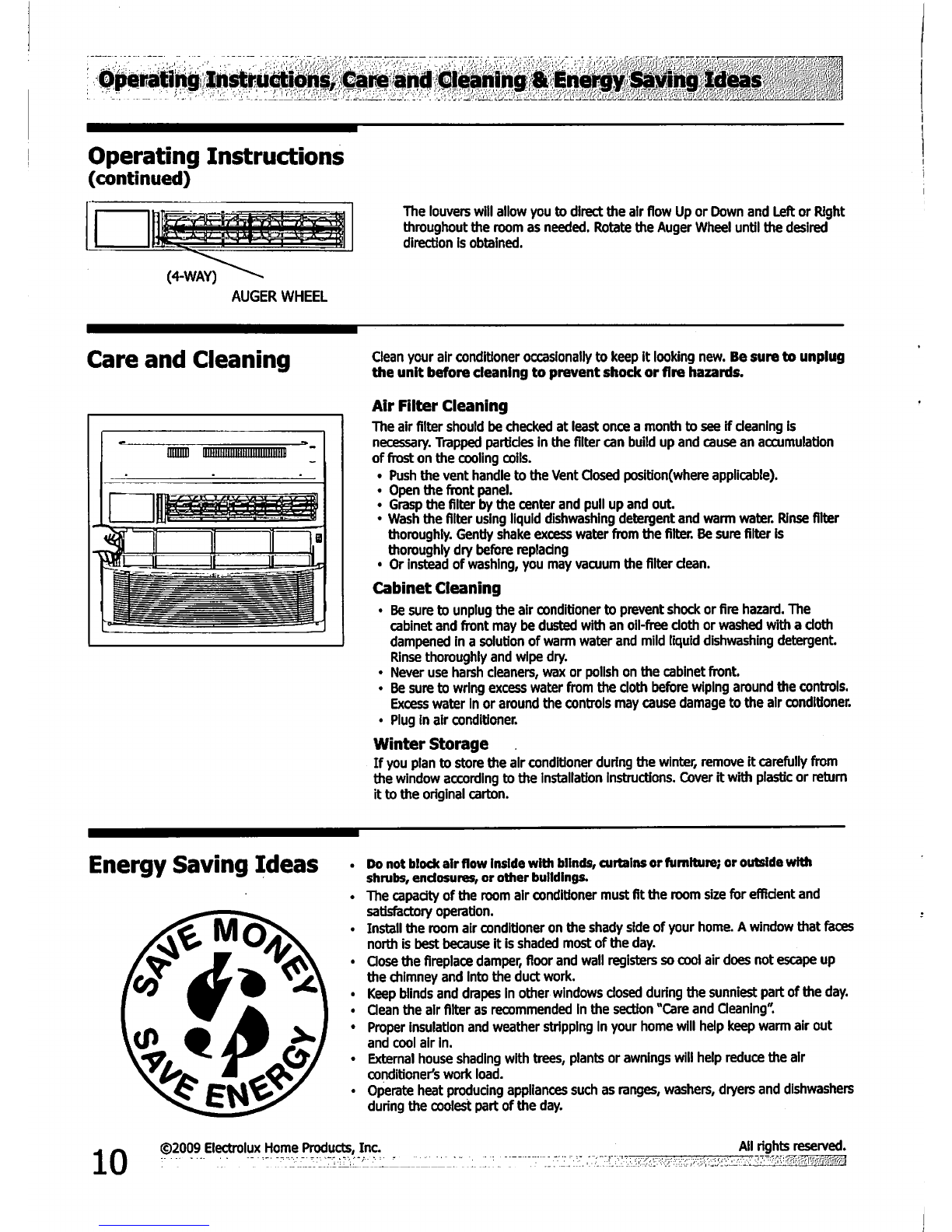

Operating Instructions, Care and Cleaning & Energy Saving Ideas >avingiaeas
Operating Instructions
(continued)
(4-WAY)
AUGER WHEEL
The louvers will allow you to direct the air flow Up or Down and Left or Right
throughout the room as needed. Rotate the Auger Wheel until the desired
direction is obtained.
Care and Cleaning
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug
the unit before cleaning to prevent shock or fire hazards.
Air Filter Cleaning
The air filter should be checked at least once a month to see if cleaning is
necessary. Trapped particles in the filter can build up and cause an accumulation
of frost on the cooling coils.
• Push the vent handle to the Vent Closed posibon(where applicable).
• Open the front panel.
• Grasp the filter by the center and pull up and out.
• Wash the filter using liquid dishwashing detergent and warm water. Rinse filter
thoroughly. Gently shake excess water from the filter. Be sure filter is
thoroughly dry before replacing
• Or instead of washing, you may vacuum the filter dean.
Cabinet Cleaning
• Be sure to unplug the air conditioner to prevent shock or fire hazard. The
cabinet and front may be dusted with an oil-free doth or washed with a doth
dampened in a solution of warm water and mild liquid dishwashing detergent.
Rinse thoroughly and wipe dry.
• Never use harsh cleaners, wax or polish on the cabinet front
• Be sure to wring excess water from the cloth before wiping around the controls.
Excess water in or around the controls may cause damage to the air conditioner.
• Plug in air conditioner.
Winter Storage
If you plan to store the air conditioner during the winter, remove it carefully from
the window according to the installation instructions. Cover it with plastic or return
it to the original carton.
Energy Saving Ideas
Do not block air flow Inside with blinds, curtains or furniture; or outside with
shrubs, enclosures, or other buildings.
The capacity of the room air conditioner must fit the room size for efficient and
satisfactory operation.
Install the room air conditioner on the shady side of your home. A window that faces
north is best because it is shaded most of the day.
Close the fireplace damper, floor and wall registers so cool air does not escape up
the chimney and into the duct work.
Keep blinds and drapes In other windows dosed during the sunniest part of the day.
Clean the air filter as recommended In the section "Care and Cleaning".
Proper insulation and weather stripping in your home will help keep warm air out
and cool air in.
External house shading with trees, plants or awnings will help reduce the air
conditioner's work load.
Operate heat producing appliances such as ranges, washers, dryers and dishwashers
during the coolest part of the day.
10
