Frigidaire FEC32C4H User manual

PRODUCT NO. FACTORY NO. COLOR MARKET
FEC32C4HSA 3805431169011 WHITE U.S.A.
FEC32C4HTA 3805431169031 ALMOND U.S.A.
FEC32C4HCA 38054311690C1 CHROME U.S.A.
ELECTRIC - COOKTOP
Model No.
FEC32C4H
©1999 White Consolidated Industries,
Inc.
FACTORY PARTS CATALOG
ELECTRIC COOKTOP
WIRING DIAGRAM # - 318046901
OWNER’S GUIDE # - 318200602
INSTALLATION INSTR. # - 318097900
FRIGIDAIRE HOME PRODUCTS
7075 ORDAN DRIVE
MISSISSAUGA, ONTARIO
CANADA, L5T 1K6
TEL: [phone] Publication No.
5995324737
990611
-EN/SERVICE
377
OFF OFF
OFFOFF

Publication No. FEC32C4H
5995324737
06/99 2
CONTROL PANEL
74
36
36
69
46
74
14
19
54
54
LA9923G28

FEC32C4H Publication No.
5995324737
# = Functional Part 306/99
* = Non-Illustrated Part
CONTROL PANEL
A=FEC32C4H (FEC32C4HSA)
B=FEC32C4H (FEC32C4HTA)
C=FEC32C4H (FEC32C4HCA)
POS. NO PART NO DESCRIPTION
14 5303323991 AB C Pilot light
19 318183500 AOverlay panel white
19 318183501 BOverlay panel almond
19 5303299755 C Overlay panel black
36 318164500 AKnob-surface unit white
36 318164503 BKnob-surface unit almond
36 318164505 C Knob-surface unit black
46 5303200418 AB C Lens pilot light
54 # 318120504 AB C Switch-surface unit
69 5303305528 AB C Screw, switch mtg, 8-32 X ¼
74 318146010 AB C Bushing
*08002868 AB C Screw,10-24 X ½
*5303308449 AB C Fastener
*5303323140 AB C Screw, ground

Publication No. FEC32C4H
5995324737
06/99 4
MAINTOP/SURFACE UNITS
63
63
136
136
138
138
138
137
136
137
137 137138
136
63
63
LA9923V31
46
162
16
19
15
15
15A
27
27
27
27
93
93
93
93
15A
28
28
28
28
19A
19A
19

FEC32C4H Publication No.
5995324737
# = Functional Part 506/99
* = Non-Illustrated Part
A=FEC32C4H (FEC32C4HSA)
B=FEC32C4H (FEC32C4HTA)
C=FEC32C4H (FEC32C4HCA)
POS. NO PART NO DESCRIPTION
15 # 5308011964 AB C Element-surface 2100W
15A# 5303299749 AB C Element-surface 1250W
16 5303299756 AMain top white
16 5303299757 BMain top almond
16 5303299758 C Main top chrome
19 318067020 AB C Pan-surface element
19A 318067021 AB C Pan-surface element
27 5303323704 AB C Terminal block
28 5303301461 AB C Medaillon surface element
46 5304410269 AB C Burner box
63 08007817 AB C Spacer
93 318122500 AB C Support terminal block
136 3008711 AB C Bracket-mtg
137 5303306669 AB C Screw, 10-16 X 1 ½
138 08016269 AB C Support fixation
162 3008713 AB C Shield wire
*5303300195 AB C Screw, 10-32 X 3/8
*5303323364 AB C Bx & wires assy
*5303323140 AB C Screw ground
*08002868 AB C Screw, 10-24 X ½
*5303324512 AB C Screw, 6-32 X 5/16
MAINTOP/SURFACE UNITS

Publication No. FEC32C4H
5995324737
06/99 6

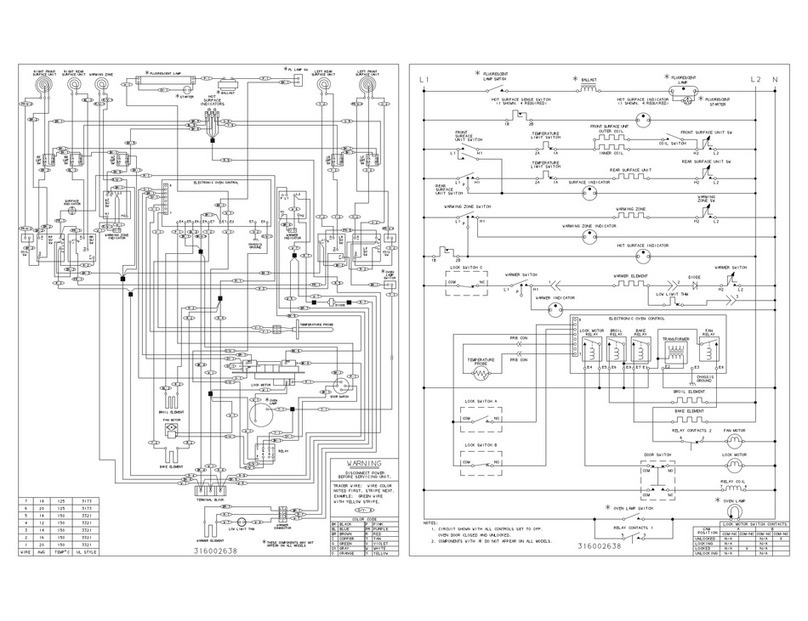

WIRING DIAGRAM
