Frigidaire FRT21IS6B User manual

N05L00003.eps N05DCDBCA1.eps N05BBAAAA12.eps N05SACAFI17.eps
N05CAAAAA25.eps 115-1.eps 240398801.eps 240398601.eps
Product No. FRT21IS6BBB FRT21IS6BQB FRT21IS6BWB
Series R134a R134a R134a
Color black bisque white
Volts 115 115 115

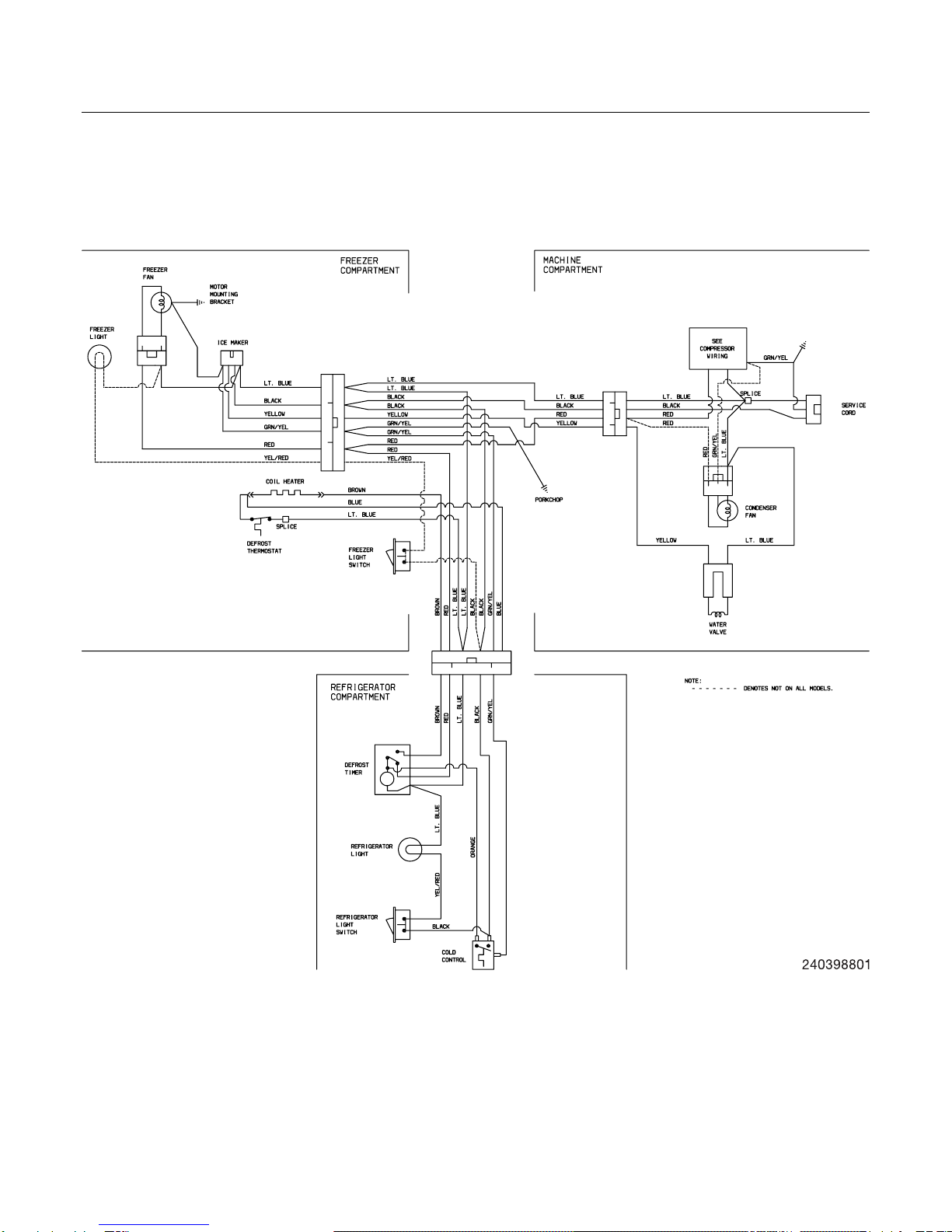

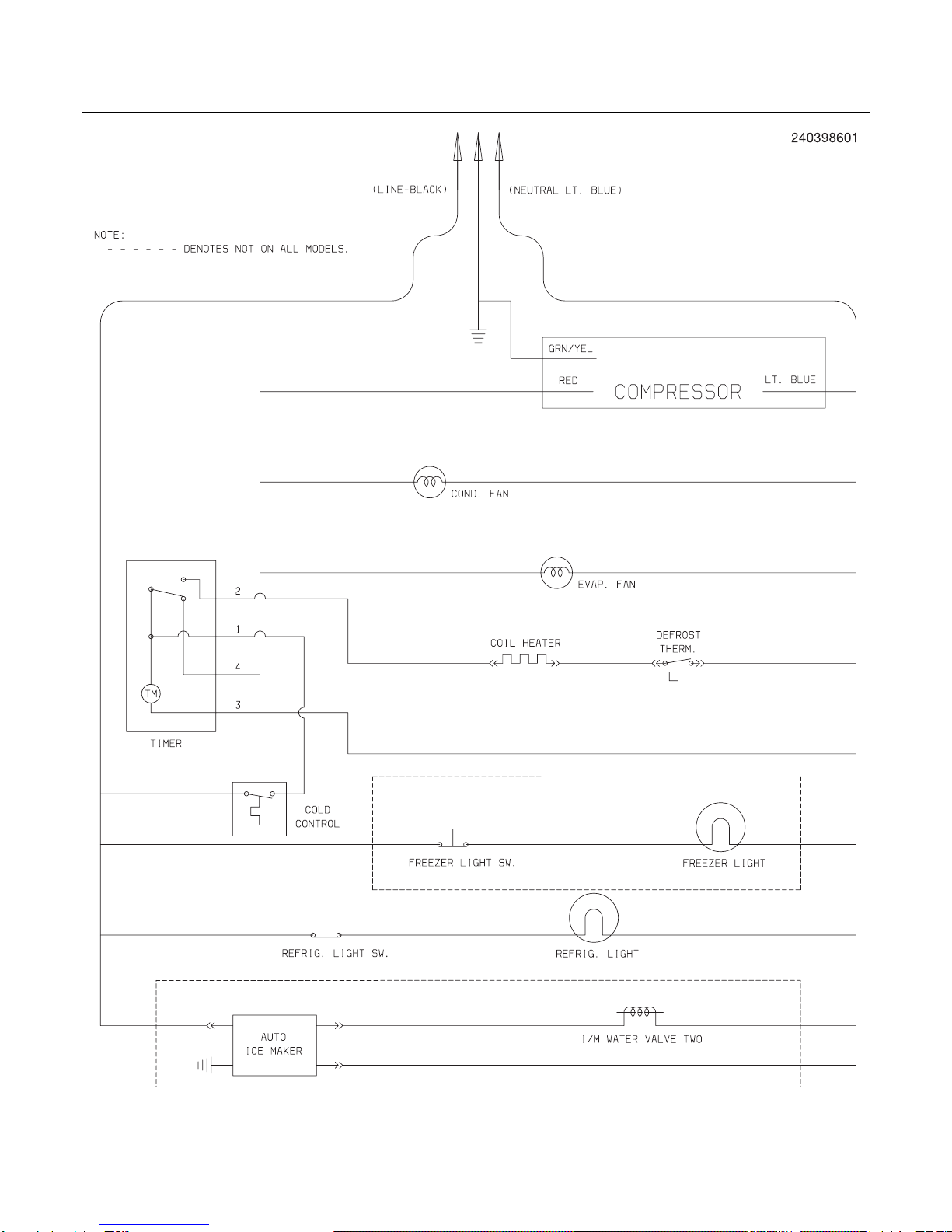

Wiring Diagram 240398801 240398801 240398801
Owner's Guide 241694400 241694400 241694400
Market North America North America North America
Service Data Sheet 240379018 240379018 240379018
Installation Instructions 240568301 240568301 240568301
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995478392
06/11/03
(EN/SERVICE/KHB)
137
TOP-MOUNT
REFRIGERATOR WITH
ICE-MAKER
Model No.
FRT21IS6B
Copyright ©All rights reserved.

Publication No: 5995478392 FRT21IS6B
11/06 2
DOOR
14
14
48
48A
48B
10
22
22
11
12
22
22
22
13A
13
21C
21C
10
22
14
22
1
7
2
22
N05DCDBCA1
15
21 14B
21
14B
18
21
18A
49
49

FRT21IS6B Publication No: 5995478392
# Functional Parts 3 11/06
* Non-Illustrated Parts
DOOR
Model Index: AFRT21IS6B (FRT21IS6BBB)
BFRT21IS6B (FRT21IS6BQB)
CFRT21IS6B (FRT21IS6BWB)
POS. NO PART NO. DESCRIPTION
1 # 240514611 A - - Gasket, seal, black, frzr door, magnetic
1 # 240514607 - B C Gasket, seal, white, frzr door, magnetic
2 # 240514612 A - - Gasket, seal, black, refr door, magnetic
2 # 240514608 - B C Gasket, seal, white, refr door, magnetic
7 240337703 A B C Door-dairy, w/o graphics, clear
10 240381303 A - - Plug-button, black, hinge brg hole
10 240381302 - B - Plug-button, bisque, hinge brg hole, (2)
10 240381301 - - C Plug-button, white, hinge brg hole, (2)
11 241798412 A - - Door-frzr, black, complete assy
11 241798406 - B - Door-frzr, bisque, complete assy
11 241798402 - - C Door-frzr, white, complete assy
12 240416304 A - - Nameplate, black
12 240416303 - B - Label-nameplate, bisque
12 240416301 - - C Label-nameplate, white
13 240312405 A - - Door Stop, black, refr
13 240312407 - B - Door Stop, bisque, ref
13 240312403 - - C Door Stop, white, ref
13A 240312406 A - - Door Stop, black, frzr
13A 240312408 - B - Door Stop, bisque, frzr
13A 240312404 - - C Door Stop, white, frzr
14 240494003 A - - Plug-button, black
14 240494002 - B - Plug-button, bisque
14 240494001 - - C Plug-button, white
14B 240383603 A - - Plug-button, black, door handle
14B 240383602 - B - Plug-button, bisque, door handle
14B 240383601 - - C Plug-button, white, door handle
15 241798512 A - - Door-refr, black, complete assy
15 241798506 - B - Door-refr, bisque, complete assy
15 241798502 - - C Door-refr, white, complete assy
18 240339203 A - - Handle-door, black, refr-LH/frzr-RH
18 240339204 - B - Handle-door, bisque, refr-LH/frzr-RH
18 240339201 - - C Handle-door, white, refr-LH/frzr-RH
18A 240339208 A - - Handle-door, black, refr-RH/frzr-LH
18A 240339209 - B - Handle-door, bisque, refr-RH/frzr-LH
18A 240339206 - - C Handle-door, white, refr-RH/frzr-LH
21 240383406 A B C Screw, truss hd quad, #10-16 x .500, zinc
21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240527102 A - - Bearing-hinge, black
22 240527101 - B C Bearing-hinge, natural color
48 240338101 A B C Bin-door, pseudo, bottom
48A 240337901 A B C Bin-door, refr
48B 240338001 A B C Bin-door, pseudo, gallon, refr
49 240495804 A B C Bin-door, pseudo, frzr

Publication No: 5995478392 FRT21IS6B
11/06 4

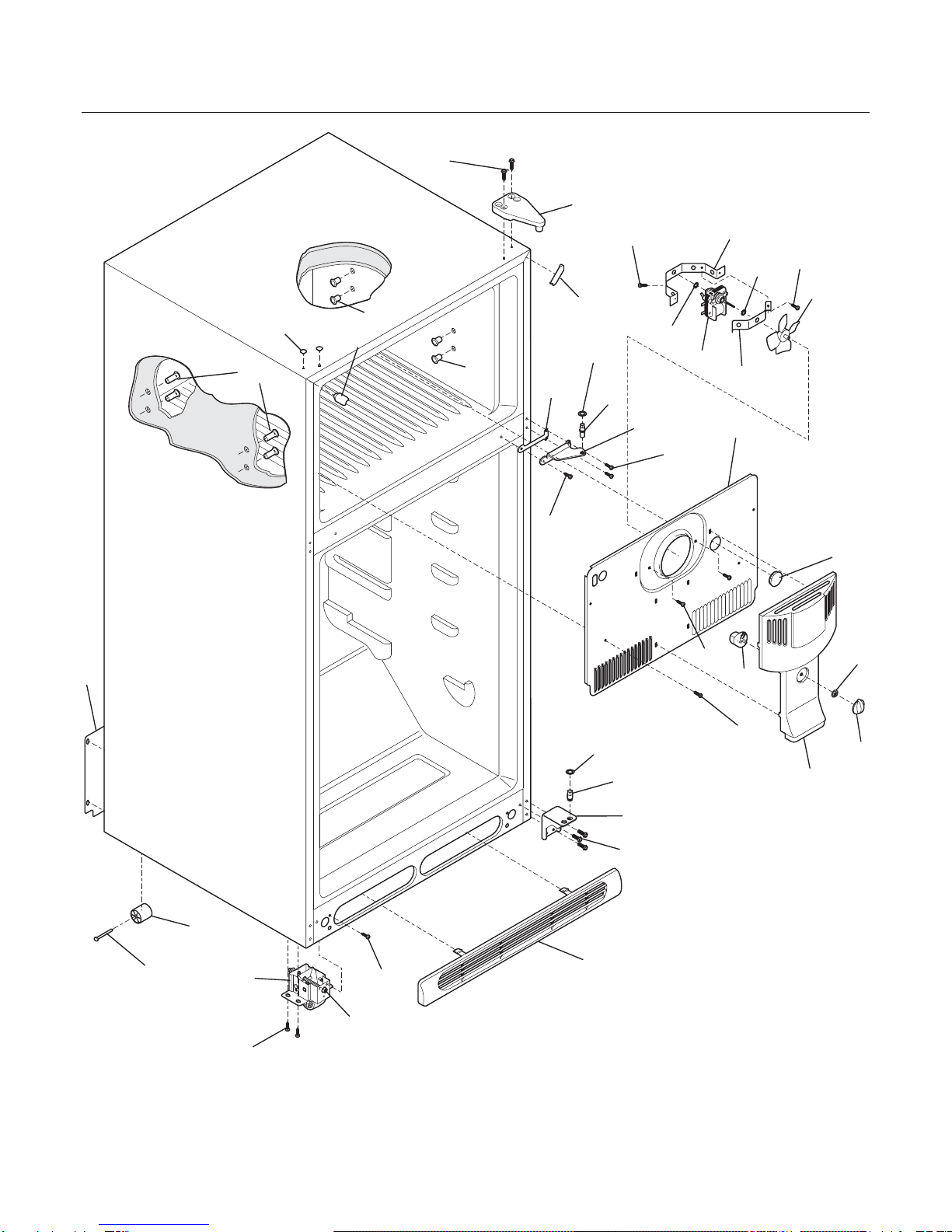

CABINET
83
82
89
11
10
1
81
4
58
2
3
92
38
37
13
5
58
35A 36
34
35
59
59
56
42
30
72
N05BBAAAA12
43
28
21C
21C
41
41
41
8
8
9
14
81
34
22
37

FRT21IS6B Publication No: 5995478392
# Functional Parts 5 11/06
* Non-Illustrated Parts
CABINET
Model Index: AFRT21IS6B (FRT21IS6BBB)
BFRT21IS6B (FRT21IS6BQB)
CFRT21IS6B (FRT21IS6BWB)
POS. NO PART NO. DESCRIPTION
1 240355402 A B C Cover-fan
2 240367001 A B C Knob-damper control
3 5303212803 A B C Nut
4 241523701 A B C Damper-fan cover
5 5308000010 A B C Fan Blade, red, evaporator fan
8 5300157666 A B C Bushing-motor mtg, (2)
9 5303292396 A B C Bracket-motor mtg, front
10 240313612 A B C Cover-evap coil, w/o light
10* 240568606 A B C Seal-coil cover
10*# 240524701 A B C Wiring Harness, freezer section
11 5303208309 A B C Plug-hole, factory test
13* 215474201 A B C Washer, "slinger", nylon, evap fan shaft
14 5303292397 A B C Bracket-motor mtg, rear
14* 240433204 A B C Screw, hex washer head, 8-18 x 5/16
21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 215774918 A - - Plug-button, black, upr hinge holes
22 215774919 - B - Plug-button, bisque, upr hinge holes
22 215774901 - - C Plug-button, white, upr hinge holes
28 240335502 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240314003 A - - Bracket-lower hinge, black
30 240314011 - B C Bracket-lower hinge, zinc
34 240311303 A B C Washer, hinge, nylon, (2)
35 240313803 A - - Bracket-ctr hinge, black
35 240313806 - B C Bracket-ctr hinge, zinc
35A 240336803 A - - Spacer-hinge, center, black
35A 240336802 A B C Spacer-hinge, center
36 240516402 A B C Pin-center hinge
37 240337603 A - - Trim-cabinet corner, black, (2)
37 240337604 - B - Trim-cabinet corner, bisque, (2)
37 240337601 - - C Trim-cabinet corner, white, (2)
38 240313701 A B C Bracket-upper hinge
40 240354404 A - - Cover-upper hinge, black
40 240354403 - B - Cover-upper hinge, bisque
40 240354401 - - C Cover-upper hinge, white
41 5308009759 A B C Grommet, shelf mtg, 1.25", LH, (4)
42 240578902 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 A B C Roller Assy, adjustable, front, (2)
56 240516502 A B C Pin-lower hinge
58 5304456287 A B C Screw, hex washer head, 8-15A x 0.500
59 240442707 A - - Screw-#10-32 X 3/4, black
59 240442706 - B C Screw-#10-32 X 3/4, zinc
72 240368207 A - - Grille/Kickplate, black
72 240368206 - B - Grille/Kickplate, bisque
72 240368205 - - C Grille/Kickplate, white
81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733907 A B C Cover-access, with label
89* 241500303 A B C Screw, hex washer head, 8-18AB x 0.500
92 241710601 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
* 5303321321 A - - Paint, touch-up, black
* 5304414035 - B - Paint, touch-up, bisque
* 5303321319 - - C Paint, touch-up, white

Publication No: 5995478392 FRT21IS6B
11/06 6
SHELVES
11
24A
24
25
47
26
26
23
21
22A
13
12
14
18
17
15
16
58
58
31
25B
25C
N05SACAFI17
34

FRT21IS6B Publication No: 5995478392
# Functional Parts 7 11/06
* Non-Illustrated Parts
SHELVES
Model Index: AFRT21IS6B (FRT21IS6BBB)
BFRT21IS6B (FRT21IS6BQB)
CFRT21IS6B (FRT21IS6BWB)
POS. NO PART NO. DESCRIPTION
11 240358006 A B C Shelf, freezer, full-width, wire
12 240545901 A B C Diffuser-air, top
13 240362601 A B C Diffuser, air, bottom
14 # 241554901 A B C Switch-light/lamp
15 241555401 A B C Light Bulb
16 241559801 A B C Socket-light
17 240368101 A B C Control Box
17*# 240388701 A B C Wiring Harness, control box
18 240360801 A B C Knob, temp control
21 # 5304445058 A B C Control-temperature
22A 240468201 A B C Tube, sensor sleeve, 31 inch, plastic, white
23 # 215846606 A B C Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438
24 240358909 A B C Shelf-"Spill-Safe", sliding
24A 240358910 A B C Shelf-"Spill-Safe", sliding, meat pan track
25 240364718 A B C Cover-crisper pan
25B 241613501 A B C Control-humidity, RH
25C 241613502 A B C Control-humidity, LH
26 240343803 A B C Pan, crisper, (2)
31 240530803 A B C Pan-meat, w/o graphics, clear
34 240385201 A B C Container, ice bin
47 240350654 A B C Insert-pan cover, glass
58 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995478392 FRT21IS6B
11/06 8
SYSTEM
17 21
15
20
14
20
16
60
59
61
58
1
34
34
83
44
41
82
83
82
N05CAAAAA25
22
23
23
85
4
6
29
26
45
57
25
25

FRT21IS6B Publication No: 5995478392
# Functional Parts 9 11/06
* Non-Illustrated Parts
SYSTEM
Model Index: AFRT21IS6B (FRT21IS6BBB)
BFRT21IS6B (FRT21IS6BQB)
CFRT21IS6B (FRT21IS6BWB)
POS. NO PART NO. DESCRIPTION
1 # 240444401 A B C Condenser, dynamic
4 # 218944001 A B C Drier-filter, R134a System
6 # 241607001 A B C Harness-wiring, machine compt
6* # 240388701 A B C Wiring Harness, control box
6* # 240524701 A B C Wiring Harness, freezer section
14 240356217 A B C Heater-defrost
15 # 5303918274 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
17 241551801 A B C Trough-drain
20 241551902 A B C Insulation Block
21 # 5303918202 A B C Thermostat-defrost, kit
22 241602010 A B C Base-compressor
22* 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 5308002681 A B C Grommet, compressor
25 240491503 A B C Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241637401 A B C Pan-defrost
29 # 5303918326 A B C Compressor, w/electricals
30 # 297054500 A B C Relay Combo
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240555002 A B C Screw-#8-32 X 3/8
44 215174700 A B C Clamp-service cord, strain relief, galv steel
45 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
57 240542601 A B C Clip-wiring harness
58 218897004 A B C Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B C Bracket-cond motor assy
59* 240346701 A B C Tape-foam seal, shroud
59* 240359403 A B C Screw-fan shroud, (2)
60 # 240525402 A B C Motor, condensor fan
61 # 240524101 A B C Fan Blade, galv steel, condenser fan
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
85 240493102 A B C Tube-connector, suction
* 240396801 A B C Clamp, tube/wiring, nylon, black/natural
* # 5303918330 A B C Heat Exchanger Kit, suction line, service
* # 5304421289 A B C Hot Tube Repair Kit, service

Publication No: 5995478392 FRT21IS6B
11/06 10
ICE MAKER

FRT21IS6B Publication No: 5995478392
# Functional Parts 11 11/06
* Non-Illustrated Parts
ICE MAKER
Model Index: AFRT21IS6B (FRT21IS6BBB)
BFRT21IS6B (FRT21IS6BQB)
CFRT21IS6B (FRT21IS6BWB)
POS. NO PART NO. DESCRIPTION
1 218976901 A B C Tube, water inlet, valve to IM
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
2 5304420650 A B C Spring, shut-off arm
3 3206299 A B C Label, ID plate
4 3206301 A B C Gear
5 3206303 A B C Plate-mounting
6 3206305 A B C Screw-ground wire, 8-32 x 0.250
7 # 3206306 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 3206313 A B C Cam
10 3206315 A B C Clamp
11 3206319 A B C Thermal Cutoff, ICE MAKER, complete assy
12 # 5304420651 A B C Wiring Harness, ICE MAKER, internal, with plug
13 3206322 A B C Thermostat Assy, ICE MAKER
14 5304420652 A B C Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B C Switch, (3)
16 5304420653 A B C Support, phenolic
17 # 5303320545 A B C Mold-ice maker, radius cube, with heater
18 3206328 A B C Ejector-ice
19 3206330 A B C Bearing & Inlet
20 5304408581 A B C Screw, 8-32 x 0.375
21 3206332 A B C Ice Stripper
22 3206333 A B C Shut-off Arm
23 5304408582 A B C Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B C Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C Screw-timing stop, 4-40 x 0.375
29 3206323 A B C Screw, 4-24 x 0.750, (6)
30 3206341 A B C Screw-timing adj, 8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304408583 A B C Spring-timing adj
34 5304420655 A B C Screw, plazscrew, 8-10, (3)
35 5304408585 A B C Screw
36 3206347 A B C Cover-ice maker
45 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
51 241523501 A B C Tube-water, ice mold fill, extension
55 # 240519601 A B C Valve-water, single solenoid, 60 Hz, 105/120 V
60 218362501 A B C Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
61 218721500 A B C Bracket-leveling, ICE MAKER
62 218737900 A B C Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5304455846 A B C Clamp, .31 ID, steel, water tube
* 218888001 A B C Adapter, water line, w/fittings
* 240352409 A B C Ice Maker, radius cube, 115 V, no instl parts

Publication No: 5995478392 FRT21IS6B
11/06 12
WIRING SCHEMATIC

FRT21IS6B Publication No: 5995478392
# Functional Parts 13 11/06
* Non-Illustrated Parts
WIRING DIAGRAM
