SAFETY ADVICE
The maximum load for each shelf is 100kg/m2.
The refrigerated display cabinet must not be installed in places where
explosive gases are present. Do not expose the equipment to
atmospheric agents.
Packaging materials (plastic bags, nails, screws, polystyrene, etc.)
should not be left within reach of children as they pose potential
sources of danger.
Poor levelling could result in problems with the drainage of water
resulting from defrosting, which could cause the unit to break down.
It’s mandatory to leave 8cm between the cabinet rear wall and the
supermarket wall to ensure the airflow.
Keep clear of obstructions all ventilation openings of the cabinet
enclosure.
Don’t use metallic or cutting objects to accelerate the defrost process.
It may scratch or damage inner surfaces.
Gloves should be worn to protect hands when cleaning inside the
evaporator. This will protect hands against possible cuts or scratches
from the unit’s internal elements.
Make sure that the drainage holes are not obstructed by any
remaining merchandise, as this could impede the drainage of excess
water resulting from defrosting.
Do not use any electrical appliances inside the storage compartments
for the food frozen by the equipment, unless recommended by the
manufacturer.
Do no damage the refrigerating circuit.

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT
Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -5-
Do not expose the equipment to atmospheric agents.
Do not store explosive substances such as aerosol cans with a
flammable propellant in the refrigerated cabinet.
Keeping pharmaceuticals, glass bottles or flasks in the cabinet is
strictly forbidden.
Only qualified personnel can remove panels or guards, and
specially the electric board cover, when this requires the use of
tools.
Before obtaining access to terminals, all supply circuits must be
disconnected.
Unplug the cabinet before performing any form on internal servicing of
the unit.
For the electrical connection it is mandatory to incorporate a switch
disconnector in accordance with installation regulation. This switch has
to be directly connected to supply terminals and has to be able to
provide full disconnection in all poles under overvoltage Category III
conditions.
The power cords must be properly spread out, safe from shocks and
far from liquids, water and heat sources, and in perfect condition. The
use of adaptor plugs is forbidden.
If the power cord is damaged, it must be replaced by the
manufacturer in order to avoid a hazard.
Earthing is mandatory according to current legislation, as is providing
protection against power surges, short circuits and indirect contacts.
Ensure that the power supply voltage meets the details on the rating
plate of the cabinet. The cabinet must be properly connected to the
earthing system.

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT
Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -6-
Do not use direct or indirect water jets on the cabinet. Do not touch
the equipment with damp or wet hands or feet; do not use it while
barefoot.
Parts that form the refrigeration circuit must not be cut or separated
until the refrigerant has been removed for recovery at a specialized
centre.
The components of the refrigerating circuit must not be cut or
separated.
WARNING: In appliances employing transcritical R744
refrigeration system is under high pressure. Do not tamper with the
system. It must be serviced by qualified persons only. Contact
qualified service personal before disposal.
It is completely forbidden to perforate the cabinet. If this occur, it
could create irreparable damages.
If you wish to stick adhesive signs onto the cabinet, only use thin foil.
Do not lay thick insulating layers on the external walls of the
equipment as this could compromise cabinet performance.
In order to reduce flammability-related risks, this cabinet may only be
installed by suitably qualified personnel.
Product that you load into the cabinet must always be cooled to at
least the cabinet's conservation temperature. The cabinet is not able
to reduce the temperature of products, only conserve them.
Gloves should be worn during product loading operations.
Any other use not explicitly mentioned in this handbook must be
considered as hazardous. The manufacturer disclaims all liability for
damage resulting from improper, incorrect or unreasonable use.

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -7-
1. GENERAL INFORMATION
Welcome to the new series of remote refrigerated display cabinet modules from
Frost-Trol for the sale of perishable food products. We are delighted by your
decision to choose us.
This assembly and maintenance manual has been especially designed with a view
to assist maintenance staff by facilitating the installation of these cabinets, thus
making their task more pleasant, as well as to gain optimal productivity from these
units and also so that the Marketing Director is able to gain the maximum
commercial return possible.
Read this manual carefully and store it with the refrigeration unit. Pay
particular attention to the sections that emphasize your safety. Follow these
instructions to ensure that the unit will run smoothly and its life span may be long
and productive.
We are open to any suggestions that you might have concerning the design of this
manual. Please write to the following address or call us on the telephone number
given below:
The A-weighted emission sound pressure level is below 70dB(A).
Frost-trol, S.A.
Technical Department
Avda. del Castell Vell, 176
12004 Castellón (Spain).
Tel.: 0034 964 34 27 40
Fax: 0034 964 21 51 48
www.frost-trol.com

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -8-
1.1. DESCRIPTION OF REFRIGERATED DISPLAY
CABINET
The refrigerated cabinets referred to in this manual belong to the Glaciers Solid-
Lines product series from Frost-trol. They are horizontal self-service freezer and
refrigerated gondolas that have been designed specifically for the sale of frozen
and refrigerated products respectively.
The Solid Lines islands are launched in the market with a revamped appearance
that is more modern and contemporary. Intended especially for the sale of frozen
foods, our islands will attract the attention of the end customer, thanks to the
perfect visibility of the products on display, with the predominance of large
panoramic panes of FullVision glass and the introduction of transparent elements
around the perimeter. In this family, a lot of effort has gone into improving the
ergonomic design, reducing the height of the cabinet slightly, while maintaining the
same capacity (400 mm). Likewise, the closed island versions have completely
integrated push-type doors which, among their many advantages, make it possible
to reduce the energy consumption of the cabinet, thus improving the image of the
business selecting them in terms of sustainability.
The cabinet has a wide range of optional accessories. If you need details about its
assemblage, please contact with Frost-trol, S.A.

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -9-

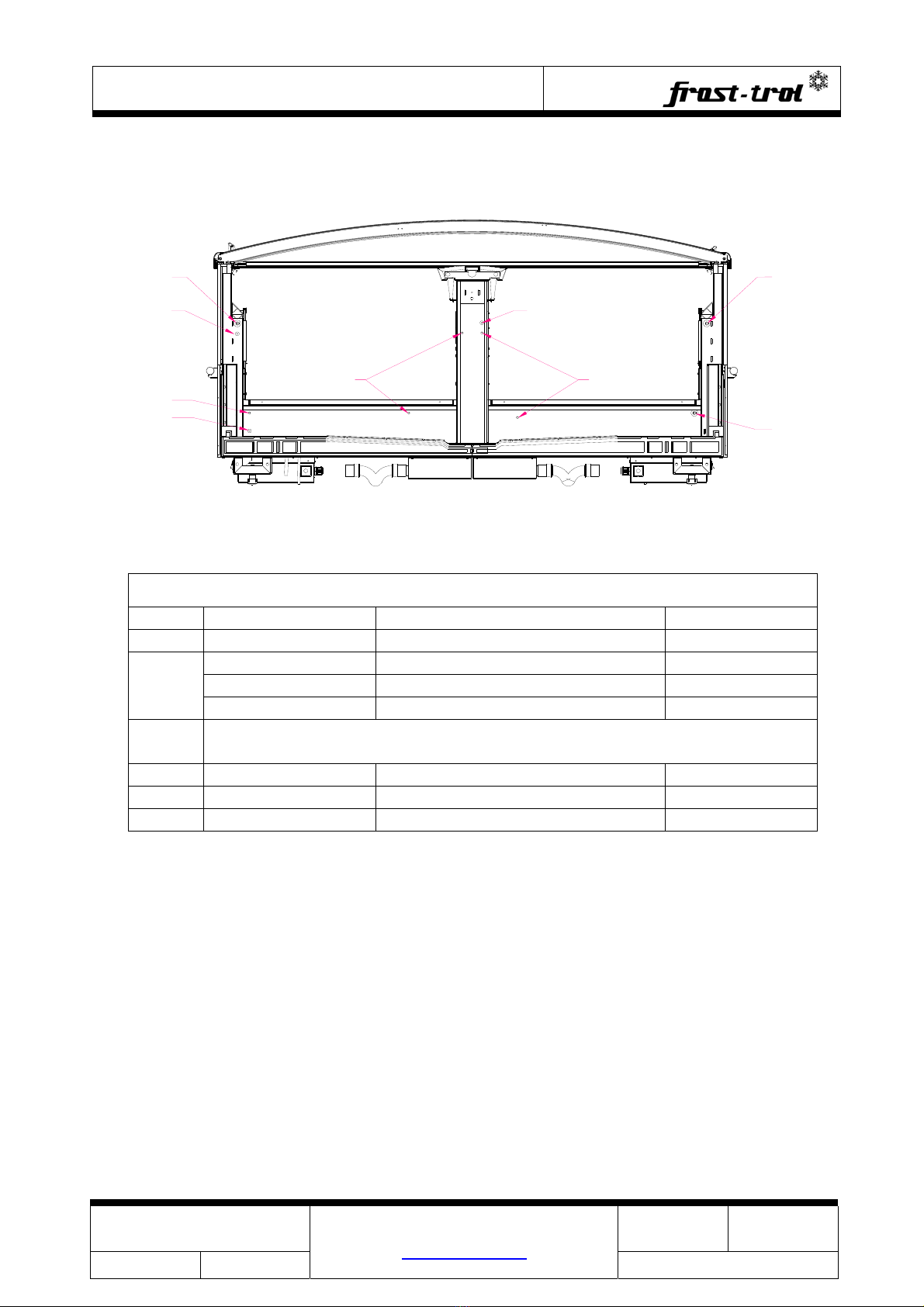

1.2. GENERAL CHARACTERISTICS
MÓDULOS
1875 2500 3750
HI0P7825DND
916 [36"]
481 [19"]
538 [21 1/8"] 338 [13 1/4"]
777 [30 5/8"]
1084 [42 5/8"]
1000 [39 3/8"]
1005 [39 1/2"]
761 [30"]
250 [9 7/8"]
MÓDULOS
1875 2500 3750
HI0P7825DSD
950 [37 3/8"]
481 [19"]
538 [21 1/8"] 338 [13 1/4"]
777 [30 5/8"]
1084 [42 5/8"]
1000 [39 3/8"]
975 [38 3/8"]
250 [9 7/8"]
870 [34 1/4"]
882 [34 3/4"]
448 [17 5/8"]
108 [4 1/4"]
1184 [46 5/8"]
1104 [43 1/2"]
1100 [43 1/4"]
505 [19 7/8"] 338 [13 1/4"]
859 [33 7/8"]
HI0P874088DND
MÓDULOS
1875 2500 3750
400 [15 3/4"]
MÓDULOS
1875 2500 3750
870 [34 1/4"]
918 [36 1/8"]
448 [17 5/8"]
108 [4 1/4"]
1184 [46 5/8"]
408 [16"]
1124 [44 1/4"]
1100 [43 1/4"]
859 [33 7/8"]
505 [19 7/8"] 338 [13 1/4"]
946 [37 1/4"]
HI0P874088DPD
400 [15 3/4"]
870 [34 1/4"]
882 [34 3/4"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
1102 [43 3/8"]
1142 [45"]
1100 [43 1/4"]108 [4 1/4"]
802 [31 5/8"]
HI0C874088DND
MÓDULOS
1875 2500 3750
400 [15 3/4"]
870 [34 1/4"]
918 [36 1/8"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
1124 [44 1/4"]
1142 [45"]
1100 [43 1/4"]108 [4 1/4"]
440 [17 1/4"]
802 [31 5/8"]
957 [37 3/4"]
HI0C874088DPD
MÓDULOS
1875 2500 3750
400 [15 3/4"]

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -10-
830 [32 5/8"]
882 [34 3/4"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
108 [4 1/4"]
762 [30"]
2025 [79 3/4"]
2104 [82 7/8"]
2020 [79 1/2"]
MÓDULOS
1875 2500 3750
HI2P834088DND
400 [15 3/4"]
830 [32 5/8"]
918 [36 1/8"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
108 [4 1/4"]
762 [30"]
555 [21 7/8"]
2044 [80 1/2"]
2104 [82 7/8"]
2020 [79 1/2"]
1050 [41 3/8"]
MÓDULOS
1875 2500 3750
HI2P834088DPD
400 [15 3/4"]
830 [32 5/8"]
882 [34 3/4"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
108 [4 1/4"]
762 [30"]
2025 [79 3/4"]
2104 [82 7/8"]
2020 [79 1/2"]
MÓDULOS
1875 2500 3750
HI1P834088DND
400 [15 3/4"]
830 [32 5/8"]
918 [36 1/8"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
108 [4 1/4"]
762 [30"]
555 [21 7/8"]
2044 [80 1/2"]
2104 [82 7/8"]
2020 [79 1/2"]
1050 [41 3/8"]
MÓDULOS
1875 2500 3750
HI1P834088DPD
400 [15 3/4"]
882 [34 3/4"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
630 [24 3/4"]
1625 [64"]
1704 [67 1/8"]
1620 [63 3/4"]
108 [4 1/4"]
562 [22 1/8"]
MÓDULOS
1875 2500 3750
HI1P634088DND
400 [15 3/4"]
918 [36 1/8"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
562 [22 1/8"]
630 [24 3/4"]
1644 [64 3/4"]
1704 [67 1/8"]
1620 [63 3/4"]108 [4 1/4"]
1003 [39 1/2"]
MÓDULOS
1875 2500 3750
HI1P634088DPD
425 [16 3/4"]
400 [15 3/4"]

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -11-
882 [34 3/4"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
1192 [46 7/8"]
1200 [47 1/4"]
1434 [56 1/2"]
1514 [59 5/8"]
1430 [56 1/4"]108 [4 1/4"]
HI0P124088DND
MÓDULOS
1875 2500 3750
400 [15 3/4"]
918 [36 1/8"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
1192 [46 7/8"]
1200 [47 1/4"]
1453 [57 1/4"]
1514 [59 5/8"]
1430 [56 1/4"]108 [4 1/4"]
HI0P124088DPD
MÓDULOS
1875 2500 3750
400 [15 3/4"]
972 [38 1/4"]
576 [22 5/8"] 576 [22 5/8"]
870 [34 1/4"]
882 [34 3/4"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
1102 [43 3/8"]
1142 [45"]
1100 [43 1/4"]108 [4 1/4"]
802 [31 5/8"]
HI0C874088DND CC
MÓDULOS
1320 1510 1910 2160
400 [15 3/4"]
870 [34 1/4"]
918 [36 1/8"]
505 [19 7/8"]
448 [17 5/8"]
338 [13 1/4"]
1112 [43 3/4"]
1142 [45"]
1100 [43 1/4"]108 [4 1/4"]
586 [23 1/8"]
802 [31 5/8"]
951 [37 1/2"]
HI0C874088DPD CC
MÓDULOS
1320 1510 1910 2160
400 [15 3/4"]
Incremento por lateral / Increase for each gable end /
Acroissement par joue / Verlängerung mit elnem Seltentell 55
Incremento por paragolpes / Increase for each inox bumper /
Acroissement par pare-chocs / Verlängerung für die stossleiste 42
Incremento por lateral intermedio / Increase for each
intermediate gable end / Acroissement par joue intermédiaire /
Verlängerung mit einem Innensteitenteil 55

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -12-
1.3. TECHNICAL INFORMATION AND ACCESS TO EPREL
Effective 1 March 2021, it will be possible to search for the energy labels and
information data sheets on the EPREL database.
EPREL is the European product database for energy labelling according to the
2019/2018 Regulation (EU) that establishes the minimum energy efficiency
standards of refrigerating cabinets.
The label provides information on the annual consumption of the appliance, the
TDA values and the maximum and minimum product temperature.
In order to access the EPREL database, you can either scan the QR code from the
energy label provided with the appliance or access the EPREL website and
introduce the model identifier (see Table 1).
(I) QR CODE
(II) BRAND NAME
(III) MODEL IDENTIFIER
(IV) EFFICIENCY CLASS SCALE
(V) EFFICIENCY CLASS
(VI) AE (kWh/year)
(VII) EXPOSITION SURFACE (m2)
(VIII) MAXIMUM AND MINIMUM PRODUCT
TEMPERATURE
(XI) NUMBER OF REGULATION
Tabla 1. Energetic label
1.4. SHOP CONDITIONS
Frost-trol refrigerated display cabinets are designed to operate in air-conditioned
areas that maintain an air temperature of 25º C and a maximum relative humidity
of 60 % (climate class 3, in accordance with ISO EN 23953-2). The performance of
the refrigerated display cabinet is adversely affected when operated under air

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -13-
temperatures and humidity conditions that are higher than those for which they
have been designed.
1.5. FIXATION OF THE RECOMMENDED TEMPERATURE
IN EACH COMPARTIMENT
Each cabinet, depending on the model and its options, is technically defined by a
different temperature depending on the application and it’s designed for preserving
a certain type of product.
TEMPERATURE
CLASS
TEMPERATURE OF
APPLICATION
MAXIMUM
TEMPERATURE
OF THE
HOTTEST
PRODUCT
MINIMUM
TEMPERATURE
OF THE
COLDEST
PRODUCT
[ºC] [ºC] [ºC]
M0 0/1 +4 -1
M1 0/+2 +5 -1
M2 +2/+4 +7 -1
H2 +4/+8 +10 -1
Table 2. Temperature depending on class for refrigeration cabinets.
TEMPERATURE
CLASS
TEMPERATURE OF
APPLICATION
MAXIMUM
TEMPERATURE
OF THE
HOTTEST
PRODUCT
MINIMUM
TEMPERATURE
OF THE
COLDEST
PRODUCT
[ºC] [ºC] [ºC]
L1 -15/-18 -15 -18
L2 -12/-18 -12 -18
L3 -12/-15 -12 -15
Table 3. Temperature depending on class for freezing cabinets.
1.6. OPERATING THE COOLING SYSTEM
The condensing unit requires an air temperature of at least 20ºC and a maximum
of 30ºC for efficient ventilation of the condenser. The minimum temperature of the
condenser should never fall below 20ºC.
1.7. RECEIPT OF REFRIGERATED CABINET
Check the unit carefully to make sure that it is not damaged and no part or
accessory is missing. For information about missing parts or accessories please
contact the Frost-Trol Commercial Department or our official representative for
your country.
This refrigerated display cabinet has been thoroughly inspected to ensure the
highest level of quality. Any order for components should be made to Frost-Trol or
our official representative for your country within 48 hours of receipt of the
cabinet.

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -14-
1.8. DAMAGE SUSTAINED IN TRANSIT
If the cabinet has sustained any damage in transit, then you must make a claim
with the Shipping Company immediately, by stating the damage on the delivery
note and having this signed by the carrier.
1.9. TECHNICAL ASSISTANCE
Should you have any technical queries concerning the installation of the
refrigerated display cabinet or cooling system, please contact our Technical
Department.
If you need to get in contact with Frost-Trol with regard to a specific element,
please make sure that you are able to quote the model and serial number. This
information can be found on the nameplate, which is located inside the refrigerated
display cabinet.
1.10. STORAGE
Do not storage the cabinet outdoors; do not expose to climatic conditions or to
direct sunlight.
The cabinet with plastic cover may reach temperatures above 80° C in the sun,
which might result in the deformation of plastic parts.
Check the good condition of the packaging before storing the cabinet.

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT
Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -15-
2. INTALLATION OF REFRIGERATED DISPLAY CABINET
The installation of the appliance and the refrigerant unit must only be
made by the manufacturer’s service personnel or similarly skilled person.
2.1. CABINET LOCATION
Handling operations and installation of the cabinet are reserved for skilled
person.
Consult the Construction Manager or the person responsible for the installation of
unit. Ask them to inform you of its installation location or if there are any changes
to where it is to be installed.
Check that the installation location chosen is suitable. To do this, make sure that
there is no air flow present, as this could affect the units by blowing hot air into
them. The unit must not be installed near air conditioning air discharge openings,
ventilators, doors or other machines that, due to their location, could expel warm
air from their condensing units into the cabinet or onto its condensing unit.
The refrigerated display cabinet must not be installed in places where
explosive gases are present. Do not expose the equipment to
atmospheric agents.
If the chosen location is not suitable for the installation of the cabinet, inform the
Construction Manager or the person responsible for the supermarket accordingly,
so that they can either specify another location or make the necessary
modifications that would make the original location suitable (closure of air vents,
removal of ventilators, closure of doors, etc.).
During the installation (or while carrying out maintenance) you must always wear
proper safety equipment to preserve your security.
It’s mandatory to leave 8cm between the cabinet rear wall and the
supermarket wall to ensure the airflow.
2.2. UPACKING
Unpacking is reserved for skilled personnel.
The refrigerated cabinet is protected by plastic wrapping. Remove this and take out
the accessories which can be found inside the cabinet:

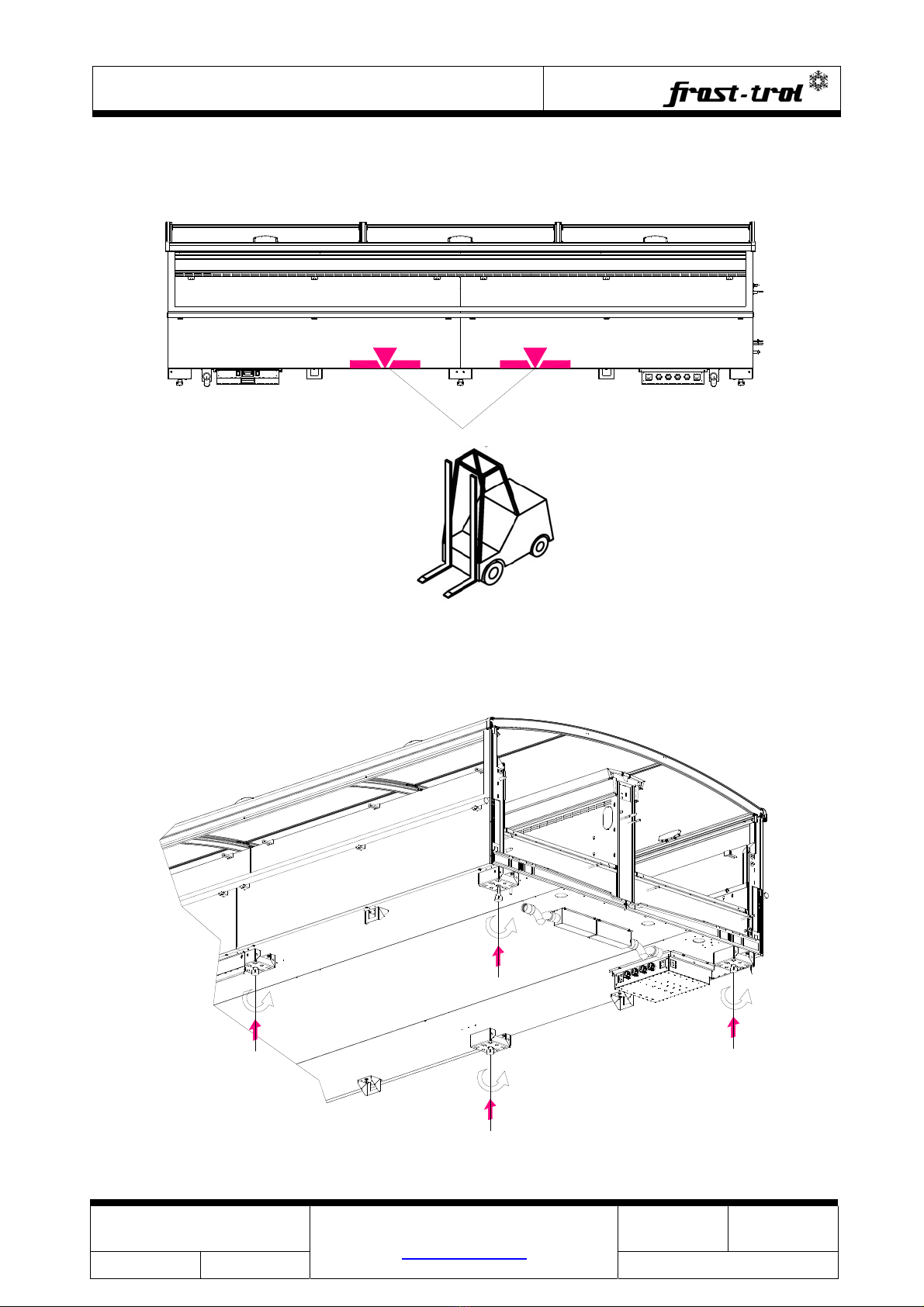

Using a fork-lift truck or pallet-lift, lift the cabinet, remove the wooden or plastic
supports and replace them with the plastics bases that can be found inside the
cabinet with the other accessories.

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT
Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -16-
Packaging materials (plastic bags, nails, screws, polystyrene, etc.)
should not be left within reach of children as they pose potential
sources of danger.
2.3. INSTALLATING THE DRAINAGE SISTEM
An incorrect installation of the wastepipes system can interfere negatively in the
regular activities of the storekeeper and produces unnecessary costs of
maintenance and product damages.
The siphons should be installed as near to the unit's opening as possible. The tubes
should be secured so that the siphons do not have to support their entire weight.
When doing so try to tilt them slightly and fit them with an appropriately sized
collecting tray as this will allow the water to be removed effectively.
REMEMBER!
‐ The siphons should be installed as near to the unit's opening as possible.
‐ Do not use drip piping with nominal diameter less than the pipe provided in
the cabinet.
‐ Place siphons to prevent bad smells.
‐ Place the drip piping in the flow direction.
‐ The tubes should be secured so that the siphons do not have to support
their entire weight.
‐ Connect the drip pipes to an adequate manifold to allow a correct dripping.
‐ Protect the drip piping system against freezing as needed.
‐ Do not install drip piping in contact with not insulated suction lines.
‐ Avoid installing excessive pipe length.
2.4. LEVELLING
Use the adjustable bases to level the unit. Poor levelling could result in problems
with the defrost-water drainage, which could then freeze and thus cause the unit to
break down.
Poor levelling could result in problems with the drainage of water
resulting from defrosting, which could cause the unit to break down.
IMPORTANT!
The surfaces that the lines are to be placed on may not be perfectly horizontal.
Therefore it would be best to first take the section of line that is to be placed onto
the highest part of the surface and screw its adjustable bases to their smallest
possible heights whilst allowing the section to remain horizontal. This will ensure
that the bases on the end sections do not need to be excessively extended.
2.5. ASSEMBLY

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT
Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -17-
When assembling lines that consist of more than one unit, the units should be
assembled in the correct order, i.e. their positions correspond with the numbers
indicated on the side of each unit (e.g. 4 in position 4, 3 in position 3.).
When the units' final positions have been determined, you may proceed to fit them
together, either manually or mechanically be careful to ensure that no pressure is
exerted on fragile components, such as glass, insulation glass or other weak
components.
When welding the refrigeration tubes, take particular care to protect the parts of
the unit that could be damaged by the heat produced from the welding.
All tube and cable fittings should be sealed from the outside to ensure that they
remain completely waterproof.
Tools and materials needed:

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -18-
On the following pages are instructions for joining two units together, with pictures
to help.
1
2
3
22 2
3
1
3
Nº CODE COMPONENT QTY.
1 UTAL000825 ALLENSCREWDIN9128x25GALV.1
2 UTAL008101 ALLENSCREWDIN8x100 GALV. 6
UARA000701 WASHERM‐8DIN.9021GALV. 8
UTUE000800 M‐8GALVANIZEDNUTDIN.934S 4
3 ENSAMBLADORMÓDULOS
4 UVAR000200 ALINGMENTROD4x70
5 UEXT000103 ASSEMBLYBUMPER
6 UTAU014998 TAE4,2x13SCREW 2X1250mm

INSTALLATIONANDMAINTENANCEMANUAL
TRANSLATION OF THE
ORIGINAL DOCUMENT Foradditionalcopiesvisit:
www.frost‐trol.com
GLACIERS
SOLID LINES
D004003 Versión: 4 -19-
1 Place the cabinets in its correct location in the supermarket. Pick up the
cabinet from back side as showed in Fig.1 Lift the unit and remove the
covers or wooden bases on the adjustable bases of the cabinet.
2 Before putting down the cabinets on the ground, screw on the adjustable
bases. Screw them on fully so as to allow better adjustment later (Fig.2).
This manual suits for next models
19
Table of contents
Other frost-trol Commercial Food Equipment manuals
Popular Commercial Food Equipment manuals by other brands

Omcan
Omcan SLB080MEB instruction manual

Costan
Costan ELEPHANT 2 User instructions

Duke
Duke Readyflex Installation and operation manual

Structural Concepts
Structural Concepts SB5735 Series Installation & operating manual

Structural Concepts
Structural Concepts grocerant FB9S-6HO.7355 Installation & operating manual

CDL
CDL Venturi owner's manual
