Service Manual
All technical data, pictures and drawings contained in this manual are not binding on the
manufacturer nor can the manufacturer be held liable for any modifications to the machine
in whole or in part. Revised 1/2016
Model 237A/W

2
TABLE OF CONTENTS
1.0 INTRODUCTION
1.1 Use of the Manual
1.2 Preliminary Inspection
1.3 Description
1.4 Dimensions
2.0 SAFETY AND INSTALLATION
2.1 Safety Precautions
2.2 Installation
3.0 OPERATION
3.1 Machine Controls
3.2 The Product You Serve
3.3 Product Consistency
3.4 Start Up
3.5 Freeze Time
4.0 MAINTENANCE
4.1 Cleaning
4.2 Re-Assembly
4.3 Preventative Maintenance
4.4 Extended Storage
4.5 Faceplate/Faucet Assembly
4.6 Float Switch
4.7 Thermostat Assembly
4.8 Using the Cleaning Brushes
4.9 Beater Bar Seal Installation
4.10 Scraper Blade and Spring Seal Installation
4.11 Ceramic Seal Removal and Re-installation
5.0 EQUIPMENT DRAWINGS AND PICTURES
5.1 Drive Belt
5.2 Franklin Motor
5.3 Shim Placement
5.4 Rear Cylinder Assembly
5.5 Water Bracket Assembly –Water Cooled Models Only
6.0 TROUBLESHOOTING
7.0 SPARE PARTS LIST
8.0 WIRE DRAWINGS
9.0 WARRANTY

3
Unpack the unit as soon as possible
upon its arrival. Check the entire
machine and its contents for possible
shipping damage. Note damage on
truck lines and notify your carrier
immediately. All machines are
shipped FOB Ruston, Louisiana, which
means that the machines left our docks
in perfect working order. Frosty
Factory of America is not responsible
for damaged merchandise once the
equipment leaves our dock. Inventory
the accessories to be sure they include
the items you specified on your order.
Normally the accessories include:
SECTION 1
INTRODUCTION
1.1 USE OF THIS MANUAL
Your service manual has been prepared as a guide to help you get the most from your
Frozen Drink Machine. It contains information about the installation and operation of
your machine. The manual also contains instructions for service and care. The manual
should be read carefully by the operator of the Machine to become familiar with the
machine and the correct operating procedures described within. The following notations
are used throughout the manual to bring important facts to your attention:
“Warning” - This notation is used whenever the personal safety of the operator(s) might
be jeopardized, if procedures are not followed correctly.
“Caution” - This notation is used whenever the machine or related equipment may
receive or cause damage if not observed.
“Note” - This notation is used to bring important information to your attention that
will enhance the performance of your machine.
1.2 PRELIMINARY INSPECTION
WARNING
DO NOT INSERT ANY OBJECTS
INTO CYLINDER OR HOPPER WHILE
MACHINE IS RUNNING!
CAUTION
RISK OF ELECTRICAL SHOCK.
DISCONNECT POWER
BEFORE SERVICING UNIT.
CAUTION
MOVING PARTS
DO NOT OPERATE UNIT
WITH PANELS REMOVED
1. Beater Bar, 1 Drip Tray, 1 Faceplate,
4 Faceplate Knobs, 1 Hopper Cover,
1 Petro-Gel, 1 Sanitizer, 2 Spare Faucet O-Rings,
1 Warranty Card, 1 Wire Brushes, 1 Manual.

4
28"
1.3 DESCRIPTION
Stainless
Steel Cabinet
16.5” (42cm)
(72cm)
28.5”
1.4 DIMENSIONS
Legs are 4” high.
24” (61cm)
27¼” (74.3cm)
Beater Bar
C6530
Scraper Blade
C6510
Clear Plastic
Faceplate C6521
Faucet
Assembly
C6513
Stainless
Steel
Cylinder
Drip Tray
F0114
Drip Tray
Insert
F0128
Control Switches
Top F0416
Bottom F0418
Fill Indicator
Light F0207
Faceplate
Knobs F0262

5
WARNING: Do not
attempt to alter the
electrical plug. Serious
injury or electrocution
may result.
6. Install the drip tray, cover, beater bar and
faceplate assemblies on the machine.
SECTION 2
LOCATION & INSTALLATION
2.1 SAFETY PRECAUTIONS
Do not attempt to operate your Machine until the safety precautions and operating
instructions in this manual are read completely and are thoroughly understood.
Take notice of all warning labels on your Machine. The labels have been put there to
inform and protect persons operating or servicing your equipment. Care must be taken not
to damage or destroy labels during installation and servicing. The labels have been
designed to withstand routine cleaning and handling. Damaged or missing labels should
be promptly replaced with approved labels from Frosty Factory of America Inc.
2.2 INSTALLATION
Placing your Machine in a highly visible area will enhance sales. A suitable station will
be able to support 250 pounds and will have a dedicated electrical outlet.
CAUTION: Do not attempt to share the dedicated electrical outlet with any other
appliance; this will cause the circuit breaker to trip.
1. Uncrate your Machine.
2. The Machine must be placed on a sturdy platform able to hold the weight of the
machine when full of product. Level the machine by turning the adjustable part of the
leg. The machine must be level front to back as well as left to right.
3. Machines equipped with air cooled condensers must have correct ventilation. Air
intake is on the right side when facing the machine and discharge is on the left side.
Air intake requires 8” clearance, exhaust needs 24”. 12” clearance at the top.
NOTE: Locating the unit in direct sunlight, near cooking facilities or any high
heat area will reduce the performance of your machine.
CAUTION: Extended operations under severe heat condition can damage the cooling
system.
NOTE: Establishments that serve beverages from frozen drink machines are
responsible for providing the necessary facilities for cleaning and
sanitizing their food service equipment.
4. Place the three-position switch in the OFF position (center).
5. Connect the power cord. The Machine must be connected to a properly grounded
receptacle. The electrical cord furnished as part of the Machine has a three or four
prong grounding type plug. The use of an extension cord is not recommended. If one
must be used, consult the national and local electrical codes. Do not use an adapter to
get around grounding requirements.
115V
20A
Notice:
Your receptacle should
look like this and
match your unit
voltage, amps on the
data plate.

6
SECTION 3
OPERATION
3.1 MACHINE CONTROLS
Operation of the machine is controlled by two selector switches. Selection of the right
(snowflake) position with the upper (three-position) switch as well as the lower (two-
position) switch will schedule the machine for normal operation. The compressor cycle is
protected by a time delay circuit, which will engage the compressor approximately 1
minute after normal operation is initiated.
The red fill light located above the switches will illuminate when the hopper is near
empty. Fill the hopper as soon as possible in order to keep the freezing system
operational.
Hopper refrigeration is provided by a thermostat controlled system. When both
switches are selected to the right (snowflake symbols), the refrigeration system will
maintain a hopper product temperature between 35 and 40ºF. When the lower switch is
placed in the left (thermometer symbol), hopper cooling continues as before, except that
the compressor and beater motor will cycle on and off only when necessary, to maintain
these temperatures.
Refer to the information below for functions available with various combinations of
switch positions.
Normal Operation –Both switches on
snowflake. Machine will freeze mix to
provide frozen beverage as desired.
Cleaning Operation - The drive
motor will run in the faucet position
to allow a stirring action of the rinse
water while cleaning.
Off - The hand symbol is the
recognized international symbol for
“stop”. In this position,
the machine will not run.
Cooling Operation –Machine will
automatically come on whenever
necessary to keep hopper product
cooled to 5ºC/40ºF used primarily for
overnight storage of product remaining
in the machine.

7
3.2 THE PRODUCT YOU SERVE
The Machine will produce a fine grain, semi-frozen slush when the proper mix is used.
When measured with a refractometer, the proper mix will measure 13 to 18 “brix”. Too
little sugar in the mix will cause larger ice crystals to form. Too much sugar will
lengthen the freeze time.
CAUTION: Any attempt to freeze water only will cause severe damage to your
machine.
NOTE: Do not add sugar directly into the machine, as some of it will settle and
result in an improper mix.
FRUIT JUICES with at least 32 grams of sugar per 8-oz. serving will freeze well in
the Machine. They will remain stable during the freezing process while retaining their
natural color and flavor.
NEUTRAL BASES are used to produce a neutral frozen cocktail base. A wide variety
of different drinks can be created from one neutral base by the addition of various flavors.
Most brands of neutral bases specify a mixture of four parts water to one part neutral
base. However, before use in the Machine, be sure the “brix” level is 13 to 18.
The amount of ALCOHOL in the recipe will affect the freezing process. As a rule of
thumb, for the mix to freeze properly, the recipe should contain no more than 25 percent
alcohol.
Suggestion for optimum production and sales:
1) Use the finest ingredients available.
2) Test the product before serving it.
3) Keep the machine clean - ALWAYS!
3.3 PRODUCT CONSISTENCY
An exclusive torque sensing mechanism
developed by Frosty Factory of America
will produce consistent texture and
thickness of your frozen beverages. The
adjustment screw (accessible through the
left side panel as you face the machine
front) is pre-set at the factory. Various mix
consistencies can be achieved by turning
the screw clockwise (thicker drink) or
counter clockwise (thinner drink). Turn
the screw one full turn then allow enough
time to lapse (about three minutes) for the
compressor to complete a cycle before
sampling. Continue this process until
desired result is obtained.
TCC screw is visible through opening at rear of
cabinet (as shown). Use a straight slot screwdriver
to adjust. Clockwise thickens beverage,
counterclockwise makes beverage thinner.

8
3.4 START U
NOTICE: Before start-up, be sure the machine has been sanitized in accordance with
procedures set forth in the cleaning section of this manual.
Pour the mix into the hopper and allow it to drain into the cylinder.
NOTICE: Always add mix as soon as the orange, level indicator light, above the
switches, comes on to prevent air from entering the cylinder.
CAUTION: Allowing air into the cylinder will cause a rocking motion of the machine.
If the mix is not yet frozen the air can escape by turning the machine off for
20-30 seconds.
WARNING:
3.5 FREEZE TIMES
The freeze time on the Model 237A is approximately 20 minutes when ideal
conditions are met. Such as, starting mix temperature of 40 degrees and room
temperature at 80 degrees. The time will increase with warm mix or if the machine is
not properly ventilated or is operated in a hot environment. Recipes with high alcohol
or high sugar content will naturally take a little longer.
Never under any circumstances,
place your finger or any other object
into the hopper or feed hole while the
machine is in operation. Serious
personal injury may occur.
When the cylinder is full and the hopper is filled to one inch from the top, the machine is
ready to run. Turn on by selecting the “right” (snowflake) position of both switches on
the front panel.
Fill the
Hopper
to about
1 inch
from the
top
Do not run the
machine when
the freezing
cylinder is not
completely full!
3.4 START UP

9
SECTION 4
MAINTENANCE
4.1 CLEANING
The following cleaning procedure should be used for initial start-up and on an as
needed basis to comply with the minimum cleaning and sanitizing frequencies
specified by the Federal, state or local regulatory agency having jurisdiction.
(1) Turn the machine to the off “hand” position then remove hopper cover.
(2) If applicable, drain mix into a sanitized container as per local health code procedures.
NOTE: Do not put hands or foreign matter into mix.
(3) Pour two gallons of cool water (75ºF.) into the hopper. Place upper switch in
“faucet” position to let the machine stir for 2 minutes. Turn machine “Off”, drain and
dispose of the rinse water. Repeat until water is clear.
(4) Remove the knobs from the faceplate by turning in a counter clockwise direction.
Carefully pull the faceplate straight away from the front of the machine. Remove the
Beater Bar Assembly from the cylinder. Then slide the spring seal off the rear of the
beater bar. Unscrew white faucet cap to remove faucet plunger from faucet body.
Remove all o-rings for cleaning.
NOTE: Do not unscrew faucet body from faceplate to
Clean. (Leak free service after disturbing the
Teflon seal cannot be assured).
(5) All parts removed during the above steps plus the
drip tray and insert can now be cleaned in your
warm (100ºF) cleaning solution. Rinse all parts
in clean rinse water and allow to air-dry before
re-assembly.
(6) Use cloth and cleaning solution to wipe any residue
from cylinder and hopper.
(7) Re-assemble as shown in section 4.2 (next page).
(8) Mix two gallons of warm water (approximately 100ºF) with two ounces of
sanitizing powder to achieve 100 parts/million (PPM) sanitizing solution.
(9) Pour the sanitizing solution into the hopper.
(10) Place upper switch in “faucet” position. Let solution stir for 5 minutes. Turn
upper switch “OFF” (hand) position. Drain all solution.
(11) Pour product into hopper. Replace hopper cover. Place both switches in right
(snowflake) position when ready to freeze product.

10
4.2 RE-ASSEMBLY
Using Petro-Gel, (F0298)
lightly lubricate the longer
end of the beater shaft.
.
Slide beater seal
(F0355) onto the shaft
with the spring end
toward the beater bar.
The black carbon ring
must be facing the end of
the beater bar so it will be in
direct contact with the white
ceramic seal inside the
cylinder when the beater bar
is re-installed.
Carefully insert the beater
bar C6530 (with beater seal)
into the hole at the rear of
the cylinder and rotate until
it fully engages into the
drive plate.
Re-install the small faceplate
C6521 on the machine. First
place the faceplate bushing
C6522 onto the beater shaft.
Then slide face plate onto the
four studs. Install the
faceplate knobs and tighten
evenly until the faceplate O-
ring is snug against the
cylinder.
F0298
C6530
C6522
C6521
-1
F0355

11
4.3 PREVENTATIVE MAINTENANCE
It is recommended that a maintenance schedule be followed to keep the machine clean
and operating properly.
WARNING: Never attempt to repair or perform maintenance on machine until the main
electrical power has been disconnected
A. DAILY
The exterior of the machine should be kept clean at all times to preserve the luster and
sanitation of the stainless steel. A mild alkaline cleaner is recommended. Use a soft
cloth or sponge to apply the cleaner.
B. WEEKLY
(1) Check O-rings and rear seal for excessive wear and replace if necessary.
(2) Clean faucet and faucet o-rings. Apply Petro-gel to O-rings and inside of faucet body.
(3) Clean the drip tray and front of the freezer with a mild soap solution.
C. MONTHLY
(1) CAUTION: Air-cooled condensers must have proper air circulation. Failure to clean
the condenser on a regular basis may result in loss of refrigeration efficiency or serious
damage and could void warranty.
(2) Visually inspect the condenser for dirt or dust accumulation by shining a light through
the coil from the inside of the condenser.
(3) If the condenser is dirty, place a wet towel over the outside of the condenser.
(4) Using compressed air or a CO2 tank, blow out the dirt from the inside of the
condenser. Most of the dirt will cling to the wet towel.
(5) An alternative method of cleaning the condenser is to use a condenser brush and
vacuum.
4.4 EXTENDED STORAGE
Refer to the following steps for storage of the machine over any long period of shutdown
time:
(1) Turn the three position switch to the OFF (center) position.
(2) Disconnect (unplug) from the electrical supply source.
(3) Clean thoroughly with a warm detergent all parts that come in contact with the mix.
Rinse in clean water and dry all parts. Do not sanitize. Machine parts can be left
disassembled until ready for use.
NOTE: Do not let the cleaning solution stand in the hopper or in the cylinder
during the shutdown period.

12
4.5 FACEPLATE/FAUCET ASSEMBLY
Face Plate/Faucet Assembly Part No.
A. Face plate assembly with bushing C6521
B. Faucet assembly with nut C6513
C. Faucet body (only) C6513B
D. Plunger assembly C6513P
Plunger assembly C6513P
Knob O-Rings Face Plate
F0264 F0491 C6521
O-Ring
F0357
F.P. Bushing
C6522
Faucet Body Faucet Nut
C6513B F0197
Add Teflon Tape
Faceplate Interlock Magnet

13
4.5 FACEPLATE / FAUCET ASSEMBLY (continued)
Applying Teflon Tape
to Faucet Body
before installation
Lubricating
O-rings with
Petro-Gel
Install O-rings
onto plunger
C6513
F0491
F0298
Align Faucet Assembly opening to
bottom of faceplate then tighten nut
Installing Plunger Assembly
into Faucet body
C6513P
Installing small Faceplate
onto front of Machine.
C6521

14
4.6 FLOAT SWITCH ASSEMBLY
1. The float switch assembly consists of: Post switch, Float , Float clip, O-Ring
and Nut.
2. There are two dots or a raised ring, on one end of the float. When assembled the
two dots or raised ring must be on the top end of the float.
3. Place O Ring so that it will be inside the hopper (sink bottom) when finished.
Clip
Post Switch
Float Switch Assembly Raised ring
F0811
Float
Bottom of hopper Hex shape for back-up wrench
O-Ring
Nut
Two wires from float switch to control circuit.
Top View of Float Switch
Two dots or raised ring (Up)
Float Clip
Post
4.7 THERMOSTAT SYSTEM-STAND-BY
L1 To upper Switch
2 pos. switch T-Stat
F0397
The two dots or raised
ring, must face upward or
the float switch will
operate backwards.
Thermostat only works
when the switches are in
the “Stand-by” position.

15
4.8 USING THE CLEANING BRUSHES
Drip Chamber
Ceramic Seal
F0665
Q Tip
Cylinder
Drip Trough
Drain Spacer Block
C2309
Clean ceramic ring with
warm, wet rag. Remove
any dried product from
center of ceramic ring.
Clean with
warm wet rag
Push brush all the way in
until it can be seen in the
middle of the ceramic ring
F0665

16
4.9 BEATER BAR SEAL INSTALLATION
1. Using Petro-Gel (or other sanitary food grade lubricant), lightly lubricate the longer
end of the beater shaft. Slide beater seal onto the shaft with the spring end toward
the beater bar. (Refer to diagram in this section of your manual or on top of the
hopper cover for correct installation of spring seal).
2. The black carbon ring must be facing the end of the beater bar so it will be in direct
contact with the white ceramic seal inside the cylinder when the beater bar is re-
installed. This is a dry seal and must be kept free of lubricants. Lube the beater
bar shaft ONLY!
3. The beater seal may become damaged if the beater shaft is not lubricated before
installation of the beater seal.
Rear wall of cylinder
Ceramic seal inside cylinder
(must be grease free)
Carbon seal face
(Must be grease free)
Rubber seal
Spring
Spring cup
Apply light film of grease
before assembly
Beater bar shaft
Beater seal assembled
and installed
Beater bar assembly
C6530
Damaged seal.
Do not re-use!
Seal with
normal wear.
Properly installed
seal assembly
F0355

17
4.10 SCRAPER BLADE AND SPRING SEAL INSTALLATION
.
Step 1: Attach scraper
blade spring F6517 as
shown.
Step 2: Insert rod
end into beater bar
frame.
Step 4: Apply a small
dab of Petro-Gel F0298
Step 3: Tap scraper
blade rod until it is
centered.
Step 5: Install spring
seal F0355
Step 6: Squeeze and
release spring. Be
sure the spring
returns to normal
before installing into
machine.
Step 7: Install
Beater Bar
Assembly C6530
into cylinder.
Step 8: Install
faceplate C6521
onto machine

18
To remove old seal;
1. Press the “Push button” on the puller tool to
release the ball bearings.

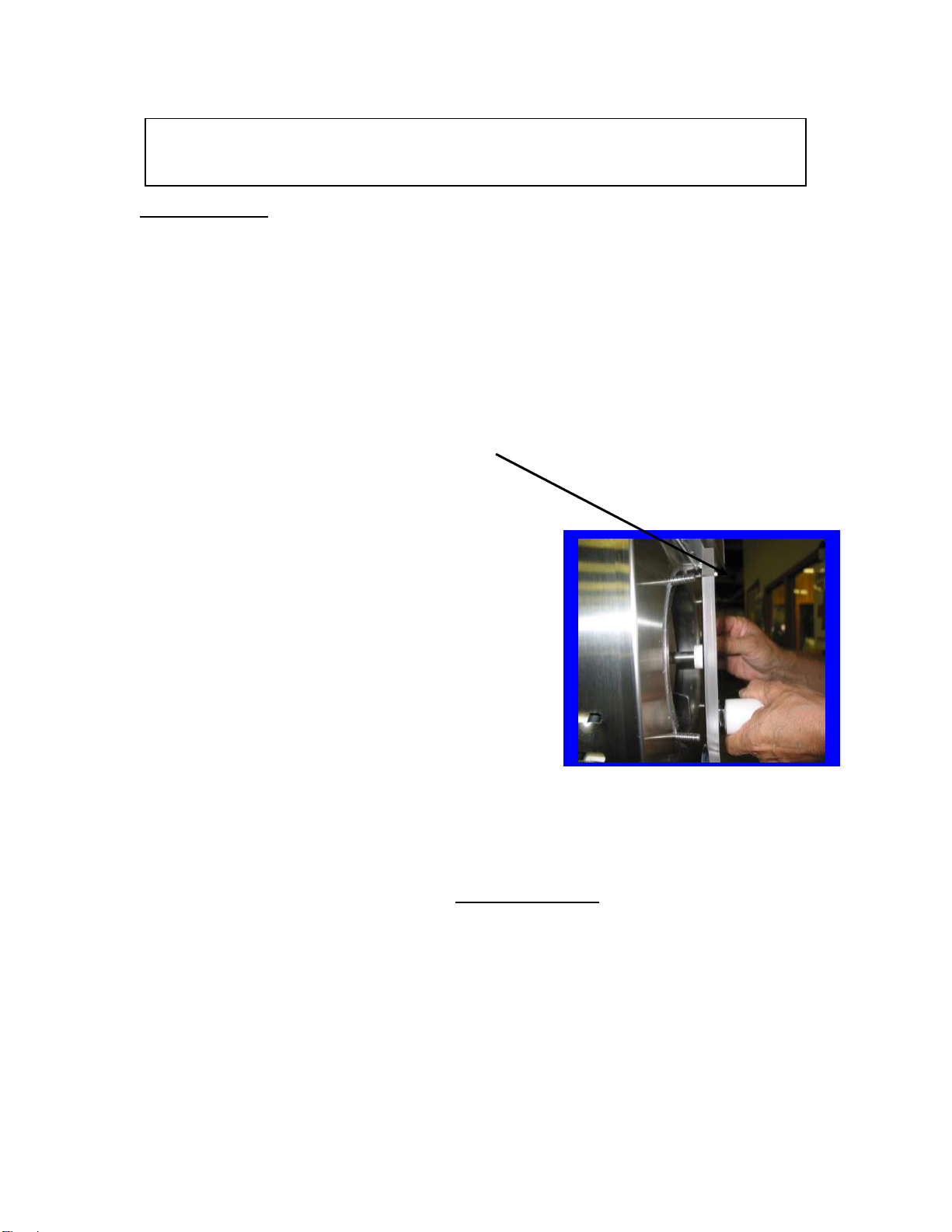

2. Insert “T” handle through ceramic seal at rear of
cylinder.
3. Release “Push button”.
4. Quickly pull “T” handle straight out and the
ceramic seal will remain on the “T: handle as
shown below.
4.11 CERAMIC SEAL REMOVAL AND RE-INSTALLATION
To install new seal:
1. Apply silicone sealant around rear, grooved surface, of
ceramic seal (Put lubricant on the smooth side of the seal
to prevent the silicone from sticking)
2. Press seal into hole at rear of cylinder. Silicone coated
surface goes in first.
3. Gently tap ceramic ring with wood or plastic rod
(DO NOT USE METAL!) until the seal has completely
bottomed out.
4. The smooth surface of the ceramic seal must be
completely clean in order to provide proper sealing when
the beater bar with spring seal is installed.
5. If possible allow at least four hours drying time for
silicone to cure before filling machine with product
6. Fill machine with product and check for leaks.
7. Machine is ready to run.
Note: Use this procedure only when necessary to replace a damaged ceramic seal
DO NOT
hold button
in while
pulling “T”
handle out.
Ceramic ring
Puller Tool F0012

19
5.0 EQUIPMENT DRAWINGS AND PICTURES

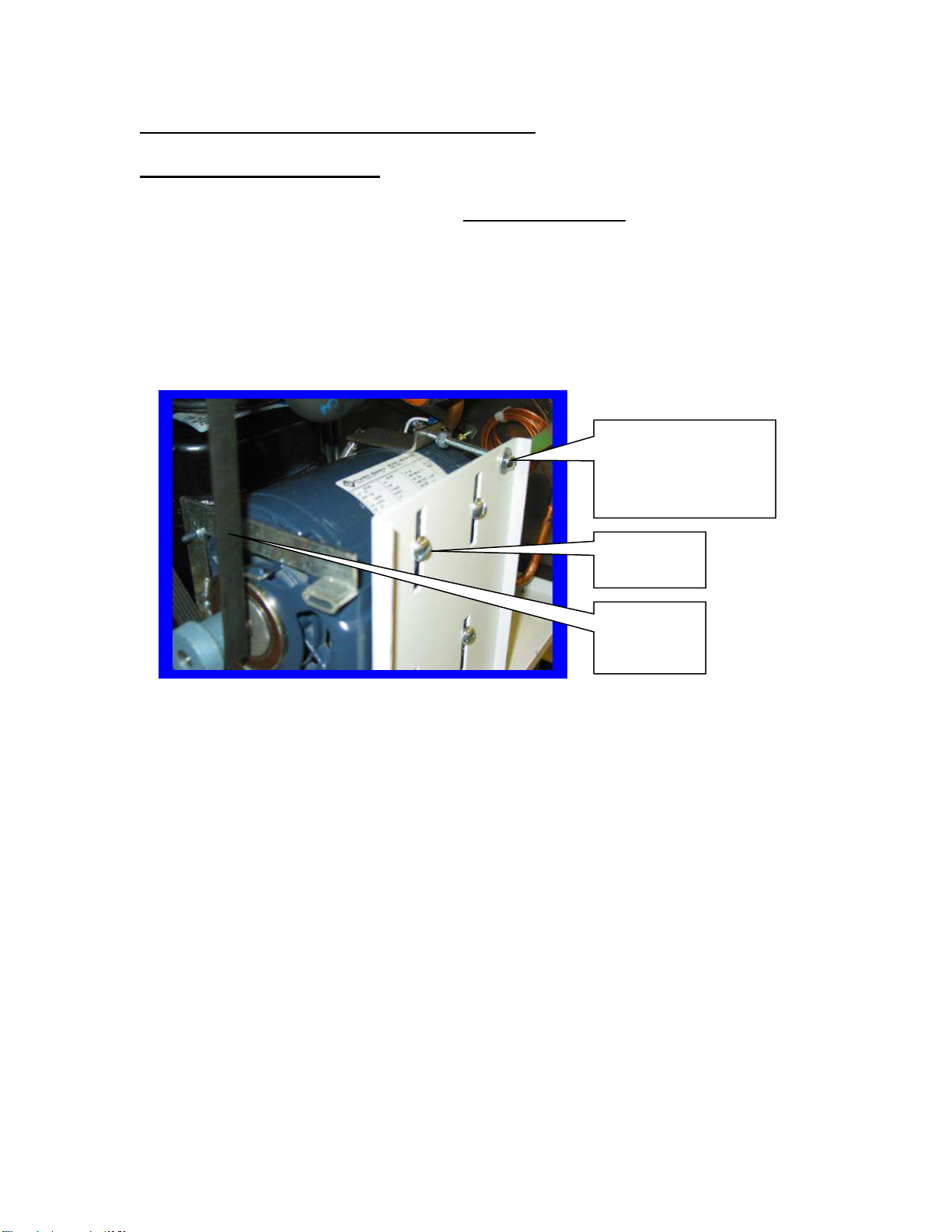

5.1 MOTOR & DRIVE BELT
1. To increase belt tension, loosen the 4 motor mount screws and pry the entire
motor assembly down until the belt is snug. Re-tighten the motor mount screws.
2. To test the belt tension, press on the belt at the mid-point. The belt should move
easily for the first ½ inch. It should be difficult to press the belt more than ½
inch.
3. To align the drive pulley with the flywheel, loosen the Allen screw on the drive
pulley and nudge the pulley forward or back as necessary.
Motor mount
screws
TCC adjustment screw.
Clockwise equals thicker
drink, Counterclockwise
equals thinner drink.
Drive belt
F0619
(450J6)

20
5.2 FRANKLIN DRIVE MOTOR
Note: This drawing is for parts identification only and does not show how the motor
is positioned in the machine.
1 2 3 4 5 6 7 8 9 10 11 12
1. U-Nuts (2) 5/16-18
2. Microswitch Friction Plate F tba
3. Microswitch F0346
4. Motor (Only) F732
Motor assembly C732
Includes items: 2,3,4,5,8,12.
5. Motor Stop Bracket F1203
6. Tension Spring Lg F0469
7. Spring Adjustment Bracket F4202A
8. Motor Bearing F0738
9. Lock nuts (2) ¼-20
10. TCC Adjustment Screw ¼-20x3”
11. Screw, Mtr mt.5/16”- 18 phs
12. Motor Pulley F0471
