LJS 24G Series Flatbottom
Gas Fryers
Installation & Operation Manual
Models 1824G, 2424G and 1824/2424G
Systems with Built-In Filtration

Please read all sections of this manual and retain for future reference.
This product has been certified as commercial cooking equipment and MUST be installed by
professional personnel as specified. Installation, maintenance and repairs should be performed
by your FRYMASTER FACTORY AUTHORIZED SERVICE CENTER.
DANGER
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other cooking appliance.
DANGER
Instructions explaining procedures to be followed MUST be posted in a prominent location in
the event the operator detects a gas leak. This information can be obtained from the local gas
company or gas supplier.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
DANGER
Safe and satisfactory operation of your equipment depends on proper installation. Installation
MUST conform with local codes, or in absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1; The Natural Gas Installation Code, CAN/CGA-B149.1; The Propane Installation
Code, CAN/CGA-B149.2; or The latest edition of the National Electric Code, N.F.P.A. 70.
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS ENODIS
EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED
DIRECTLY FROM FRYMASTER/DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS,
AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS
WARRANTY WILL BE VOID. FURTHER, FRYMASTER/DEAN AND ITS AFFILIATES WILL NOT BE
LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH
ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF
ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container
at the end of frying operations each day. Some food particles can spontaneously combust if left
soaking in certain shortening material. Additional information can be obtained in the filtration
manual included with the system.
NOTICE
The Commonwealth of Massachusetts requires any and all gas products to be installed by a
licensed plumber or pipe fitter.

DANGER
The front ledge of the fryer is not a step. Do not stand on the fryer. Serious injury can result
from slips or contact with the hot oil.
WARNING
Drawings and photos used in this manual are intended to illustrate operational, cleaning and
technical procedures and may not conform to on-site management operational procedures.
WARNING
No structural material on the fryer should be altered or removed to accommodate placement of
the fryer under a hood. Questions? Call the Frymaster/Dean Service Hotline at 1-800-551-8633.
This equipment is to be installed in compliance with the basic plumbing code of The Building
Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation
Manual of the Food and Drug Administration.
COMPUTERS
FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and 2) This device must accept any interference
received, including interference that may cause undesired operation. While this device is a verified Class
A device, it has been shown to meet the Class B limits.
CANADA
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set out by the
ICES-003 standard of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A et B
prescrites dans la norme NMB-003 edictee par le Ministre des Communcations du Canada.
DANGER
THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE
CANCER AND/OR BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
Operation, installation, and servicing of this product could expose you to airborne particles of
glasswool or ceramic fibers, crystalline silica, and/or carbon monoxide. Inhalation of airborne
particles of glasswool or ceramic fibers is known to the State of California to cause cancer.
Inhalation of carbon monoxide is known to the State of California to cause birth defects or other
reproductive harm.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal
the joint between the fry vessels. Banging fry baskets on the strip to dislodge shortening will
distort the strip, adversely affecting its fit. It is designed for a tight fit and should only be
removed for cleaning.

LJS 24G Series Flatbottom Gas Fryers
INSTALLATION & OPERATION MANUAL
TABLE OF CONTENTS
Page #
1. DESCRIPTION AND SPECIFICATIONS 1-1
2. PRE-INSTALLATION 2-1
3. INSTALLATION INSTRUCTIONS 3-1
4. INITIAL STARTUP 4-1
5. DAILY OPERATION 5-1
6. PREVENTATIVE MAINTENANCE 6-1
7. TROUBLESHOOTING 7-1

1-1
LJS 24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 1: DESCRIPTION AND SPECIFICATIONS
The LJS 24G Series gas fryers are energy-efficient, gas-fired units, design-certified by the
American Gas Association and the National Sanitation Foundation, and manufactured to their basic
performance and application specifications. All units are shipped completely assembled, with all
accessories packed inside the frypot. All units are adjusted, tested, and inspected at the factory
prior to crating for shipment.
NOTE
After uncrating, immediately inspect the equipment for visible
signs of shipping damage. If such damage has occurred, do not
refuse shipment, but contact the shipper and file the appropriate
freight claims.
1.1 OPERATING CONTROLS
Each unit is shipped with a solid-state electronic thermostat controller. The controller is mounted
inside the cabinet. The controller contains an automatic melt cycle which activates the main burner
"ON" for 4 seconds, then "OFF" for about 18 seconds, and is activated automatically every time the
frypot shortening temperature is less than 150°F (66°C). The melt cycle is used to heat solid
shortening properly.
Each unit is equipped with a control panel with two indicator lights and a power switch, reset switch
and boil-out switch located in a control box inside the cabinet.
Note: Systems built for KFC co-branded locations are not equipped with
boil-out switches. Boil-out is not allowed in KFC co-branded locations.
1.2 AUTOMATIC SAFETY FEATURES
LJS 24G Series gas fryers come equipped with the following features:
A. High oil-temperature detection to shut off gas to the main burners through the solenoid-
actuated gas valve.
B. Combination gas valve includes built-in pressure regulator.
C. Sail switch (air prover) built into outlet duct shuts off power to the burners in the event of
blower failure.
D. Drain valve safety switch prohibits burner ignition if the valve is not completely closed.
DANGER
ALL FRYERS MUST BE CONNECTED ONLY TO THE TYPE OF GAS IDENTIFIED ON
THE RATING PLATE!

1-2
1.3 RATING PLATE
The rating plate can be found inside the fryer door. Information on this plate includes the model
and serial numbers, as well as BTU/hr output of the burners, outlet gas pressure in inches W.C.,
and configuration: natural or propane gas. Rating plate data is essential for proper unit
identification, communicating with the factory or requesting special parts and/or information.
1.4 SERVICE PROBLEMS
Call 1-800-551-8633 for the location of your nearest Factory Authorized Service Center. Always
have the model and serial numbers of your filter and fryer ready for when you speak to a
representative. A parts list is included in Chapter 8 of this manual. Customers may order parts
directly from their local Factory Authorized Service Center. Call 1-800-551-8633 for the location of
your nearest Factory Authorized Service Center. Factory address and phone numbers are on the
rear cover of this manual.
1.5 AFTER PURCHASE
In order to improve service, have the following chart filled in by the Frymaster Authorized Service
Technician who installed this equipment.
Authorized Service
Technician/FASC
Address
Telephone/Fax
Model Number
Serial Number
Gas Type
1.6 ORDERING PARTS
Customers may order parts directly from their local factory authorized service center. For this
address and phone number, contact your factory authorized service center or call the
Frymaster/Dean Service Hotline phone number, 1-800-551-8633.
To speed up your order, provide the model number, serial number, gas type, part needed, item part
number (if known), and quantity needed.

1-3
1.7 COMPUTER INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. While this device is a verified Class A device, it has been
shown to meet the Class B limits. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of the equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at their own expense.
The user is cautioned that any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
If necessary, the user should consult the dealer or an experienced radio and television technician
for additional suggestions.
The user may find the following booklet prepared by the Federal Communications Commission
helpful: "How to Identify and Resolve Radio-TV Interference Problems". This booklet is available
from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.
1.8 SAFETY INFORMATION
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the
ones below.
CAUTION
CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
WARNING
WARNING boxes contain information about actions or conditions that may cause or result in
damage to your system, and which may cause your system to malfunction.
DANGER
DANGER boxes contain information about actions or conditions that may cause or result in injury
to personnel, and which may cause damage to your system and/or cause your system to
malfunction.

1-4
1.9 SERVICE PERSONNEL
1.9.1 Definitions
A. Qualified and/or Authorized Operating Personnel
1. Qualified/authorized operating personnel are those who have carefully read the information
in this manual and have familiarized themselves with the equipment functions, or have had
previous experience with the operation of equipment covered in this manual.
B. Qualified Installation Personnel
1. Qualified installation personnel are individuals, or firms, corporations, or companies, which,
either in person or through a representative are engaged in and are responsible for the
installation of gas-fired appliances. Qualified personnel must be experienced in such work,
be familiar with all gas precautions involved, and have complied with all requirements of
applicable national and local codes.
C. Qualified Service Personnel
1. Qualified service personnel are those who are familiar with Frymaster/Dean equipment and
have been authorized by Frymaster/Dean to perform service on Frymaster/Dean
equipment. All authorized service personnel are required to be equipped with a complete
set of service parts manuals and stock a minimum amount of parts for Frymaster/Dean
equipment. A list of Frymaster/Dean Factory Authorized Service Centers (FASCs) was
included with the fryer when shipped from the factory. Failure to use qualified service
personnel will void the Frymaster/Dean warranty on your equipment.

2-1
LJS 24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 2: PRE-INSTALLATION
2.1 GENERAL
A. Installation of any gas-fired equipment should be performed by qualified personnel.
B. A manual gas shut-off valve must be installed in the gas supply line between the
appliance(s) and the main gas supply for safety and ease of future service.
2.2 CLEARANCES
The appliance area must be kept clear of all combustibles. Each unit is design-certified for the
following installations:
1. Commercial use only (not for household use).
2. For installation on a combustible floor when equipped with the factory supplied 5" casters (6"
work height).
3. Areas with a minimum clearance of 6" side, 6" rear and 6" from the floor for combustible
construction. LJS 24G Series flatbottom gas fryers must be installed with the casters provided.
Locking casters should be installed on the front (cook side) of the fryer.
2.3 STANDARDS
Installation must be accomplished in accordance with all applicable state and local codes, with
special attention to the following standards:
A. The fryer and its individual shut-off valve must be disconnected from the gas supply piping
system during any pressure testing of that system at pressures in excess of 1/2 PSI.
B. The fryer must be isolated from the gas supply piping system by closing its individual
manual shut-off valve during any pressure testing of the gas supply piping system as
pressures equal to or less than 1/2 PSI.
C. National Fuel Gas Code
ANSI Z-223.1-1988 (or latest edition)
American Gas Association
1515 Wilson Boulevard
Arlington, VA 22209
D. National Electrical Code
ANSI/NFPA #70-1984 (or latest edition)
American National Standards Institute
1430 Broadway
New York, NY 10018

2-2
2.3 STANDARDS (cont.)
E. NFPA Standards #96 and #211 (latest edition)
National Fire Protection Association
470 Atlantic Avenue
Boston, MA 02110
WARNING
Local building codes will usually not permit a deep fat fryer with
an open tank of hot oil to be installed immediately next to an
open flame of any type, whether a broiler or the open burner of a
range. Check local codes before beginning installation.
2.4 AIR SUPPLY & VENTILATION
The area around the appliance must be kept clear to avoid airflow obstruction of
combustion and ventilation air as well as for ease of maintenance and service. Never use
the interior of the fryer cabinet for storage.
A. Means must be provided for any commercial, heavy-duty cooking appliance to exhaust
combustion wastes to the outside of the building. It is essential that a deep fat fryer be
located under an approved exhaust hood or that an exhaust fan be provided in the wall
above the unit, as exhaust gas temperatures are in the vicinity of 450°F-600°F (232-343°C).
Exhaust hoods and air conditioning systems can produce slight air drafts in the room, which
can interfere with pilot or burner performance. Air movement patterns should be defined
during installation. If pilot or burner problems arise or persist, alteration of air movement
patterns will be required.
B. Do not place the flue outlet of the fryer directly into the plenum of the hood; fryer gas
combustion will be affected.
C. Exhaust temperatures, in addition to the open tank of hot oil, make the storage of anything
on shelving over or behind the fryer unsafe.
D. Filters and drip troughs should be part of any industrial hood. Consult local codes before
installing an industrial hood.
2.5 ALTITUDE
The input rating (BTU/hr) of LJS 24G Series fryers is rated for elevations up to 2,000 feet (610
Meters). For elevations above 2,000 feet (610 Meters), the rating should be reduced four percent
for each additional 1,000 feet (305 Meters) above sea level.

3-1
LJS 24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 3: INSTALLATION INSTRUCTIONS
3.1 UNPACKING
Check that the container is upright. Use outward prying - no hammering - to remove the carton.
Inspect the fryer(s) for visible damage. If such damage has occurred, do not refuse shipment, but
contact the carrier and file the appropriate freight claims.
FRYMASTER/DEAN FRYERS EQUIPPED WITH LEGS ARE FOR PERMANENT
INSTALLATION. FOR MOVEABLE OR PORTABLE INSTALLATION,
FRYMASTER/DEAN OPTIONAL EQUIPMENT CASTERS MUST BE USED.
QUESTIONS? CALL 1-800-551-8633.
3.2 CASTERS
Casters should be installed near where the appliance is to be used. After unpacking, raise the unit
approximately 12 inches to attach casters to the couplings. Lower the fryer gently to prevent
damaging the casters and internal mounting hardware. Use a pallet lift jack if available, when
installing casters. Systems ordered with optional casters come with casters installed.
3.3 POSITIONING
Do not push against any of the edges of the unit to adjust its position. Lift fryer slightly and place it
where it is to be installed. Although all metal parts are deburred during manufacture, accidents
could occur if the fryer (or a lineup) should move suddenly when being pushed into position by
hand. Pushing a unit (rather than using a lift jack) also increases the probability of bending the leg
spindles or the internal coupling connectors.
3.4 LEVELING
A. A spirit level should be placed across the top of the fryer and the unit leveled both front-to-
back and side-to-side (side-to-side adjustment is not possible on units equipped with
casters). Erratic burner combustion, inefficient unit operation and oil-drainage problems are
some of the problems caused by unleveled fryers. In addition, units may not match up
properly in a multi-unit battery.
B. If the floor is smooth and level, minor height adjustments can be made with the screw
adjustment on each leg. Adjust to the high corner and measure with the spirit level. Fryers
equipped with casters have no level adjustment options. The floor area where caster-
equipped units are installed must be level.

3-2
3.5 GAS CONNECTION
The gas supply (service) line must be the same size or greater than the inlet line of the appliance.
LJS 24G Series gas fryers use a 3/4" NPT (Schedule 40) inlet; however, the gas supply lines must
be sized to accommodate all the gas-fired equipment that may be connected to that supply.
Consult your contractor, gas company or supplier, or other authorized agent for inspection and
installation. Sealant on all pipe joints must be resistant to LP gas.
3.5.1 Manual Shut-off Valve
The manual shut-off valve must be installed in the gas service line ahead of the appliance in the
gas stream and in a position where it can be reached quickly in the event of an emergency.
3.5.2 Gas Pressure Regulation
All commercial cooking equipment must have a pressure regulator on the incoming service line for
safe and efficient operation, since service pressure may fluctuate with local demand. External
regulators are not required on LJS 24G Series gas fryers as the pilot safety control valve regulates
gas pressure. If the incoming pressure is in excess of 1/2" PSI (3.45 kPa), a step-down regulator
will be required.
Check burner manifold pressure with a manometer. Natural gas units require 4"W.C. gas pressure
and propane (LP) units require 11"W.C. gas pressure. If a pressure regulator vent line is installed,
it should be vented to the outside of the building in accordance with local codes, or ANSI Z223.1 (or
current revision).
Disconnect the fryer/individual shut-off valve from the main gas supply when pressure testing
systems in excess of 1/2" PSI (3.45 kPa). When pressure-testing systems equal to or less than 1/2"
PSI (3.45 kPa), isolate the fryer by closing the manual control valve prior to testing.
3.5.3 Gas Valve/Orifice Configuration
LJS 24G Series gas fryers can be connected to either natural or propane gas, depending on the
configuration. The safety control valve and orifices are installed at the factory for the appropriate
gas. If the gas valve and/or orifices require adjustment or conversion in the field, only authorized
service personnel with proper test equipment should make the adjustments or conversion.
3.5.4 Rigid Connections
LJS 24G Series gas fryers come as single units or in multi-unit batteries. Inspect all installer-
supplied gas-intake pipe(s) for dirt, metal dust and other foreign material. Use compressed air to
clear foreign material from supply piping before installing into a service line. Failure to do this can
result in clogged orifices and gas valve damage when gas pressure is applied.
All connections must be sealed with a joint compound suitable for LP gas, and all connections must
be tested with a soapy solution before lighting any pilots. DO NOT USE AN OPEN FLAME TO
CHECK FOR LEAKS! Detecting gas leaks with an open flame is not only dangerous, but will often
miss small leaks that a soapy solution would detect.

3-3
3.5.5 Flexible Couplings, Connectors
If the unit is to be installed with flexible couplings and/or quick-disconnect fittings, the installer must
use a heavy-duty, AGA design-certified commercial flexible connector. The connector must be at
least 3/4" NPT (with suitable strain reliefs) in compliance with the Standard for Connectors for
Movable Gas Appliances, ANSI Z21.69-1987 (or latest edition). Quick-disconnect devices must
comply with the Standard for Quick-Disconnect Devices for Use with Gas Fuel, ANSI Z21.41-1989
(or latest edition). DOMESTIC CONNECTORS ARE NOT SUITABLE!
If multi-unit batteries are installed on casters, the same ANSI Standards apply. In addition, some
means must be provided to limit the movement of the appliances without depending on the
connectors or associated piping.
3.6 ELECTRICAL CONNECTIONS
The wiring diagram is attached to the inside of the fryer door. Wiring diagrams are also included in
this manual for reference. Always consult the wiring diagram mounted on the fryer when
troubleshooting or repairing the fryer. LJS 24G Series gas fryers require 120 volts, and are
equipped with a 16-3 SJT grounded flexible power cord for direct connection to a 120-volt power
supply. Amperage for each unit depends on the accessories supplied with the unit.
WARNING
(Electrical Grounding Instructions)
This appliance is equipped with a three-prong (grounding) plug for your protection
against shock hazard, and should be plugged directly into a properly grounded
three-prong receptacle. Do not cut, remove, or otherwise bypass the grounding
prong on this plug!

3-4
Figure 1. Retainer latches securing filter
pan.
3.7 SYSTEM INSTALLATION INSTRUCTIONS
1. This system consists of a 2424G fryer with
a built-in filter and an additional fryer that
will be attached to it. The additional fryer
may be a 24G, an 1824G or a 2424G. If
the additional fryer is an 1824G, the 18-
inch frypot must be in the outside position,
as shown in the illustration below.
The 24-inch frypots must mate with each other.
18-inch frypots, if present, must always be to
the outside of the battery.
24 24
24 182418 Filter Unit
These frypots must mate. These frypots must mate.
2. Prior to removing the fryers from their
pallets, open the doors of the 2424G with
the filter and unlatch the filter pan locks
(Fig. 1, circles). Disconnect the filter
supply hose and remove the filter pan from
the cabinet. Remove the fryers from the
pallets by lifting them up and over the pallet
supports. Avoid damage to the casters and
caster support bases when lifting and
placing fryers.
All connection hardware (bolts, nuts, etc.)
is included in the shipping bag.

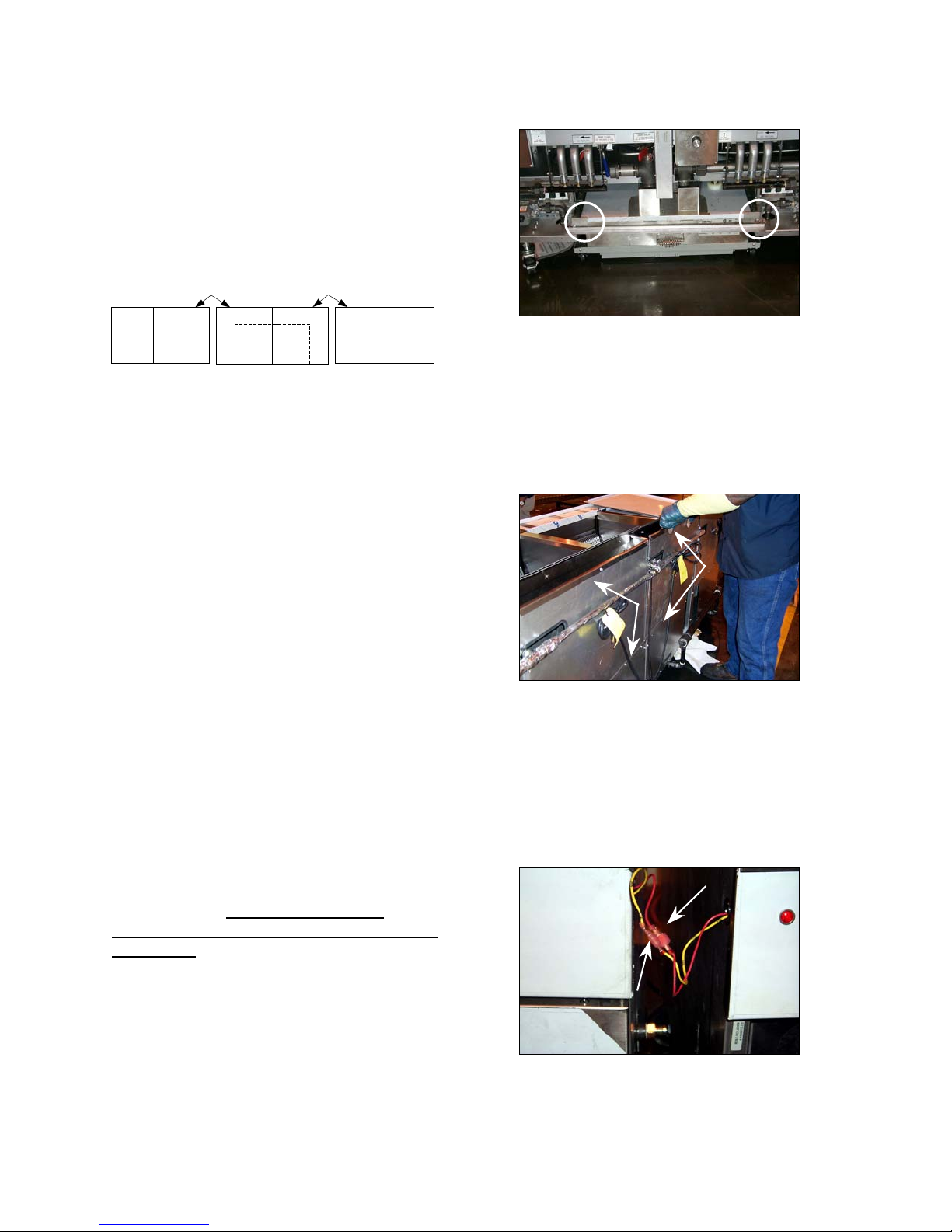

3. Remove the upper and lower back panels
(Fig. 2, arrows) of the cabinets to be joined.
Set the screws and back panels aside for
later reassembly.
4. Position the cabinets within 6 inches of
each other, close to the area where they
will be installed. Do not push the cabinets
together at this time. Connect the red and
yellow wires exiting the cabinets to be
joined (Fig. 3). The 1824G oil-return
switches will not work if these wires are not
connected.
5. The fryer with the filter has a slip-nut
attached to its drain-tee. Lubricate its
O-rings with vegetable oil. The fryer to be
attached has a drainpipe running from its
drain-tee through a hole in the cabinet side.
This drainpipe will be inserted into the slip-
nut in the next step.
Figure 2. Removing cabinet backs to
access connection points.
Figure 3. Yellow and red wires connecting
oil return switches.

3-5
3.7 SYSTEM INSTALLATION INSTRUCTIONS (CONT.)

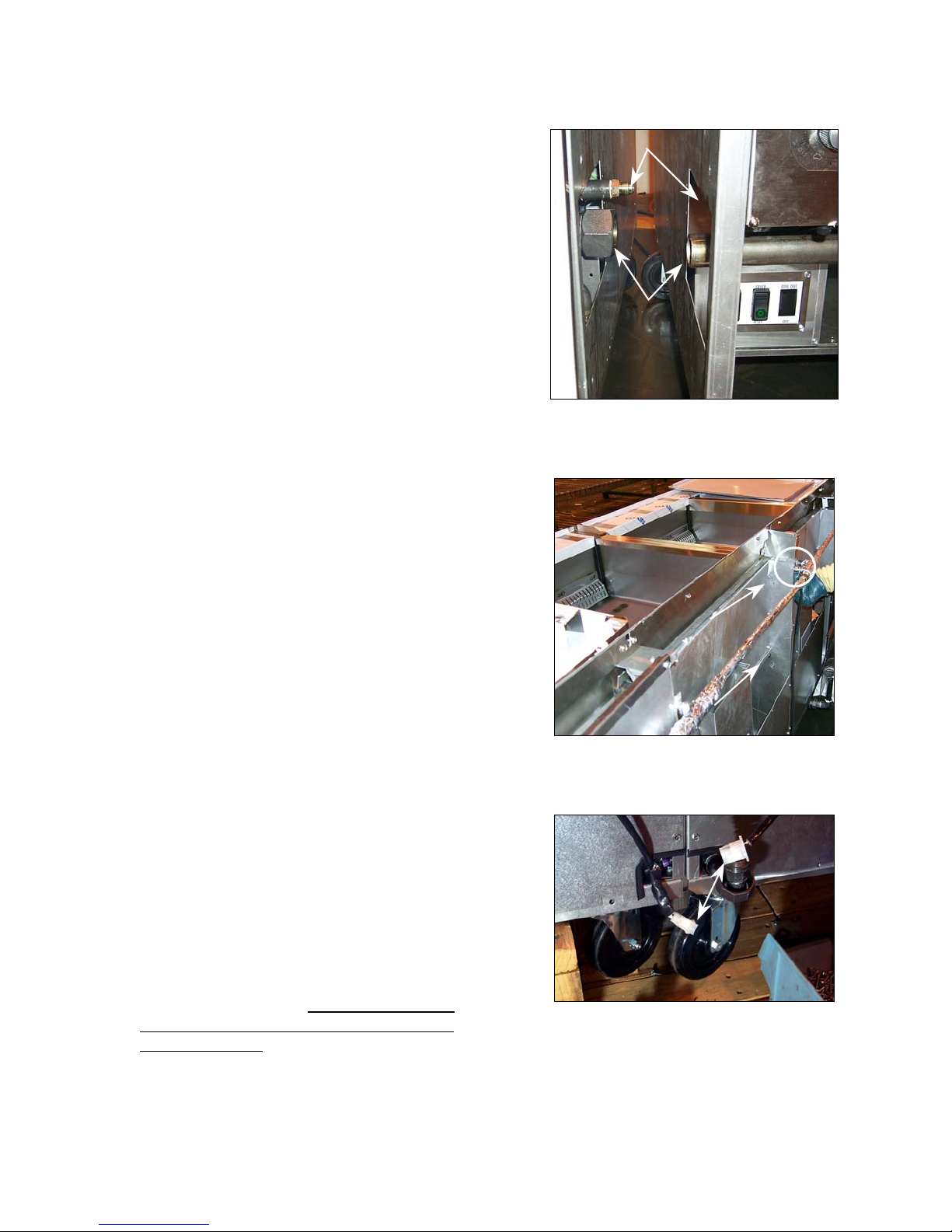

6. Slowly push the two systems together.
Adjust the front casters to align the cabinets
vertically. Ensure the drainpipe and the slip-
nut (lower set of arrows in Fig. 4) are aligned
and that the drain-flush lines (upper set of
arrows in Fig. 4) are aligned. Also ensure
the oil-return line flange and fittings on the
rear of the fryer are aligned. Connect the
fittings, but do not tighten the connections.
Feed the yellow and red wire connections
evenly through each cabinet wire hole as the
cabinets are pushed together. Ensure the
wire connections go inside the wireway, and
are not pinched between the cabinets.
7. With the cabinets together, carefully slide the
drainpipe into the slip-nut as far as it will go.
Shine a flashlight down the drain of the fryer
with the filter and slowly pull the drainpipe
back out of the slip-nut until its end can no
longer be seen. Tighten the slip-nut hand
tight. Connect the drain-flush and oil-return
lines (Fig. 5, circle), but do not tighten the
connections. Align the cabinet connection
holes, front and back (Fig. 5, arrows). Insert
bolts and install nuts loosely. Do not tighten
bolts at this time.
8. When the two cabinets are properly aligned,
tighten the cabinet connection nuts and bolts
and at the front and back. At the fryer
front: Tighten the drainpipe slip-nut and
tighten the drain-flush line flare-nut (do not
over-tighten). At the fryer back: Tighten the
oil-return line flare-nut (do not over-tighten).
9. Reinstall back panels removed at the
beginning of system assembly. Ensure
panels are properly aligned, then install and
tighten the screws. Install the joiner strip
where fryer cabinets are connected.
10. Connect the oil-return heater-tape harness
(6-pin connector) at the bottom back of the
fryer (Fig. 6, arrows). Failure to do so will
result in clogged return lines after the first
filtering session.
Figure 4. Drainpipe and drain-flush
fitting alignment and connection points.
Figure 5. Rear cabinet connection holes.
Note oil return line fittings.
Figure 5. Connect oil-return line heater-
tape connectors.

3-6
3.7 SYSTEM INSTALLATION INSTRUCTIONS (CONT.)

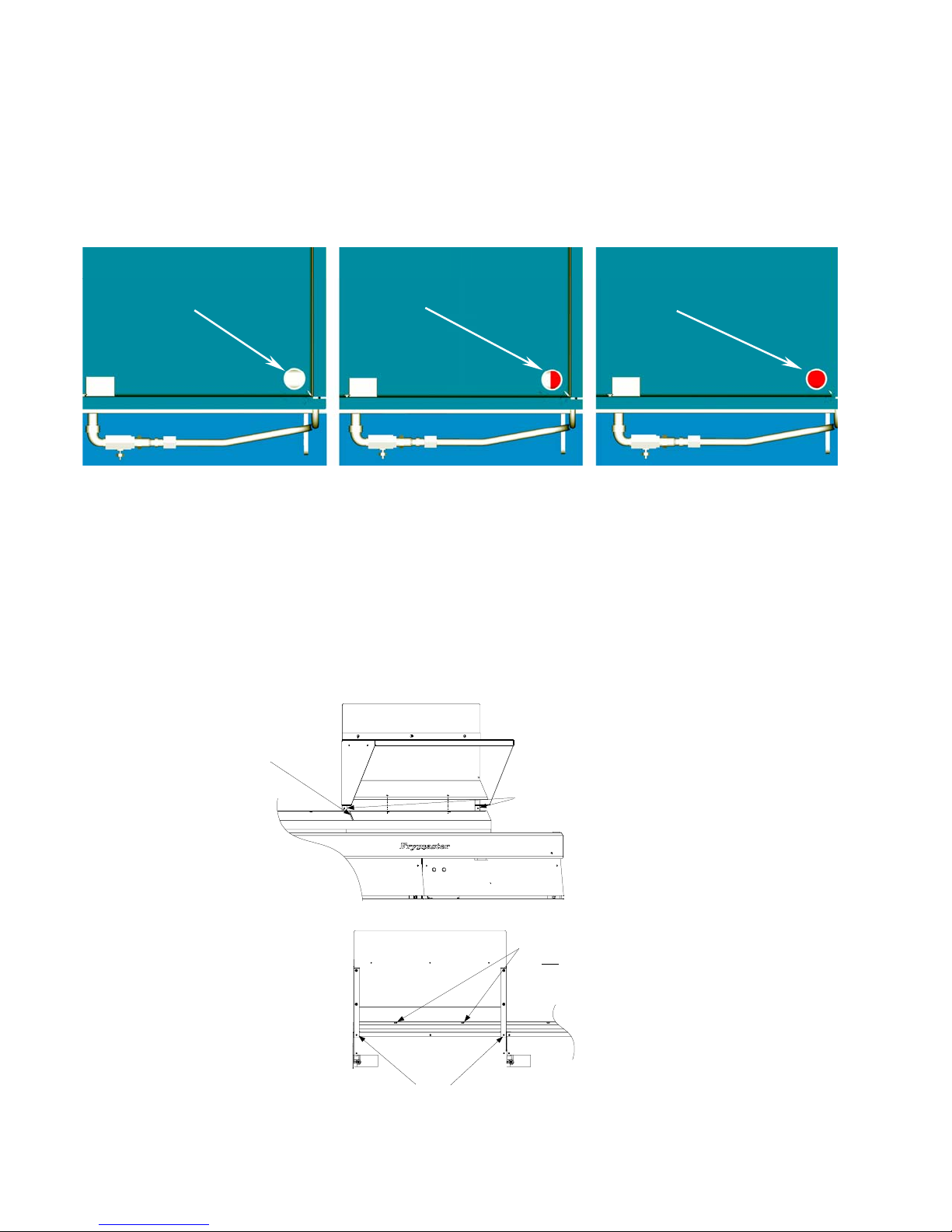

11. Prior to performing start-up, ensure the drainpipe connected during assembly is not blocking
either frypot drain. Shine a flashlight into the drains. The illustration below shows from left to
right, an unblocked drain, a partially blocked drain, and a completely blocked drain. If partially
or completely blocked, loosen the drain slip-nuts and reposition the drain tube. Both drains
should appear as the left-most picture below.
12. Reinstall filter system after fryer start-up has been performed (boil-out, burner adjustment, etc.)
NEVER ALLOW WATER OR BOILOUT SOLUTION INTO FILTER SYSTEM.
13. Follow the filtration instructions for the UFF filter and return the oil to each of the fryers in the
system. Check the oil return and drain lines for leaks. After the filtration system check is
complete, discard the oil and filter paper (if a filter screen is used, thoroughly wash the
assembly, dry completely and return to the pan). The frying system is ready for operation.
14. If the unit is supplied with an Over-The-Fryer Crumb Dump, install in accordance with the
illustration below.
On fryer back, remove the back
panel screws (2) corresponding
to the tab holes on the crumb
dump.
Set the crumb dump frame over the flue
deflector and align the screw holes.
Ensure the crumb dump deflector sits over
the top of the flue deflector. Secure the
crumb dump to the deflector with the
screws and nuts provided.
Align the crumb dump side
with the slot in the deflector
during installation.
Replace the screws removed from the back panel prior to
crumb dump installation. Ensure all screws are properly
tightened. Install the crumb dump insert and return the
fryer to operation.
FRONT
BACK
Drain
unblocked.
Drain partially
blocked.
Drain completely
blocked.

4-1
LJS 24G SERIES FLATBOTTOM GAS FRYERS
CHAPTER 4: STARTUP AND OPERATING PROCEDURES
4.1 CLEANING
Note: All procedures should be performed as instructed in the current LJS Operations
Manual. In the absence of the LJS Operations Manual, the following procedures are offered
as a temporary solution.
New units are wiped clean with solvents at the factory to remove dirt, oil, and grease remaining
after the manufacturing process, and then coated with light oil. Prior to first use, boil out the frypot
(remove temperature sensor guard prior to cleaning frypot) as outlined in Section 4.4.1, Boil-Out
Procedure. (In KFC co-branded locations, do not boil out the fryer. Use the KFC-approved
procedure for cleaning the frypot.) Wash any accessories shipped with the unit in hot, soapy water
to remove remaining residue. Rinse the frying utensils with a solution of vinegar and water (1 pint
vinegar to 1/2 gallon of hot water) to neutralize any soap residue, then rinse with clean water and
thoroughly dry all surfaces.
NOTE: In KFC co-branded locations, boil out is NOT ALLOWED. Use KFC approved
procedure.
Ensure the sensor probe guard is replaced after cleaning to protect the sensor probe and high-limit
probe (Figure 1).

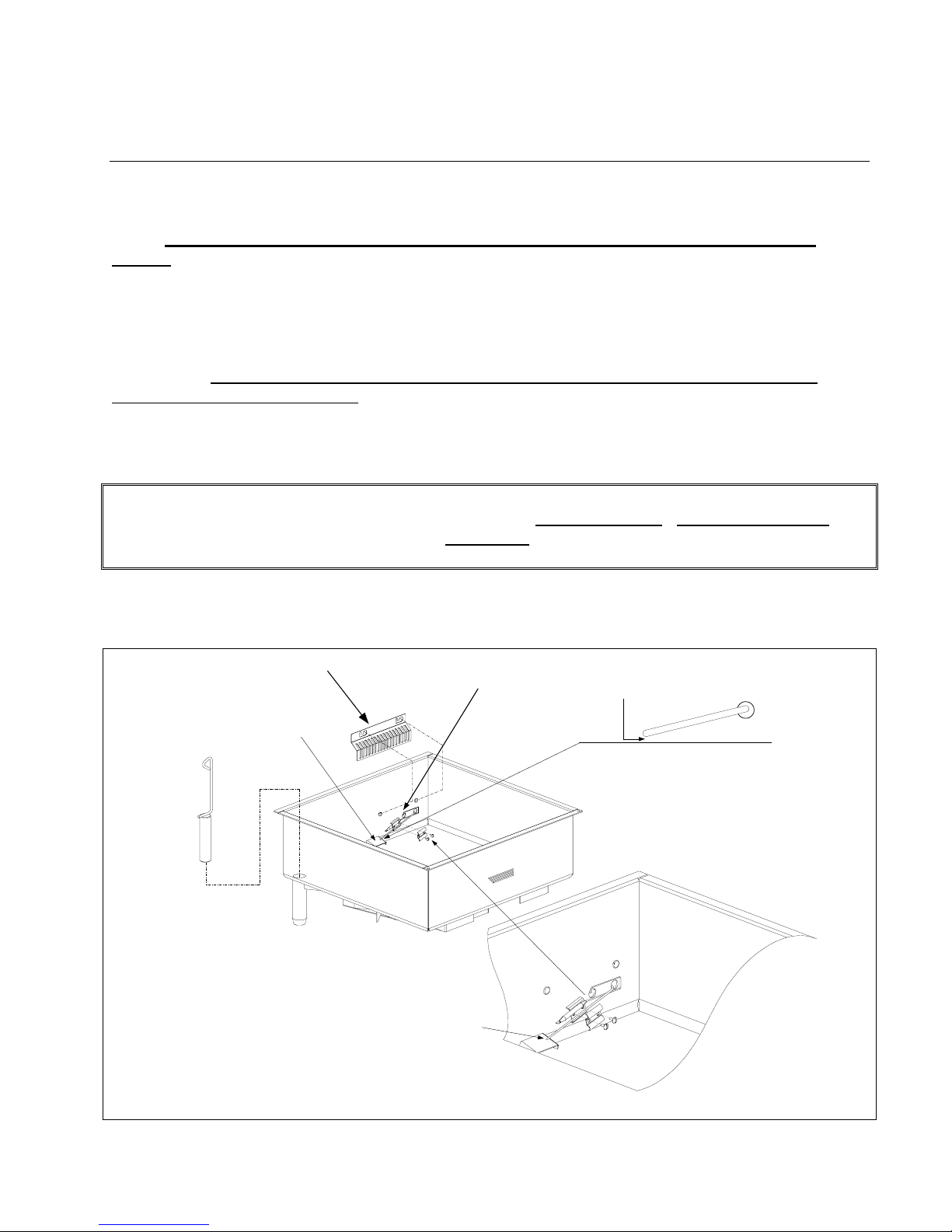

Sensor Probe Guard High-Limit/Temperature
Probe location
Frypot Drain Plug
Frypot Bottom
Frypots without probe-mounting
hardware: Ensure probe tip is 1/8" from
frypot bottom for proper temperature sensing.
Oil-Return Port (built-in filter
equipped systems only)
Frypots with probe-mounting hardware: No
special adjustment is required. Temperature probe
bulb will contact oil-return shield in built-in filtration-
equipped frypots.
Figure 1: Sensor probe guard, frypot drain plug and high-limit/sensor probe location.

4-2
4.2 INITIAL STARTUP
LJS 24G Series gas fryers are tested, adjusted, and calibrated before leaving the factory.
Adjustments to assure proper operation may be necessary upon installation to meet local
conditions, low gas pressure, differences in altitude, variations in gas characteristics and to correct
possible problems caused by rough handling or vibrations during shipment. Gas component
adjustments after receiving the fryer should be performed by authorized service personnel.
Gas component adjustments are the responsibility of the customer and/or dealer and are not
covered by the Frymaster/Dean warranty.
CAUTION
IF THE MAIN BURNERS ARE OPERATED WITH THE FRYPOT EMPTY, THE FRYPOT
WILL BE DAMAGED.
IF THE FRYPOT IS DAMAGED DUE TO INCORRECT OPERATION, SUCH AS
HEATING AN EMPTY FRYPOT OR WHOLE BLOCKS OF SHORTENING, ALL
APPLICABLE WARRANTIES WILL BE VOIDED.
NOTE: In KFC co-branded locations do not use water for initial startup. Use
shortening or oil only.
Pilot Light or re-light procedure:
1. Turn the manual shut-off valve "OFF" on the incoming service line.
2. Turn the Thermatron dial to the lowest setting.
3. Turn the gas valve dial to "OFF" and wait 5 minutes before lighting pilot.
4. Fill the frypot with oil or water (for testing). Fill to the appropriate oil level line scribed in the
back of the frypot (see store operational procedures for appropriate fill level).
NOTE: In KFC co-branded locations, oil must be used in place of water for burner testing.
5. Open the manual shut-off valve on the incoming service line.
6. Apply a lit match or taper to the pilot burner orifice.
7. Turn the gas valve dial to "PILOT". Depress and hold until the pilot stays lit (approximately 1
minute).
8. Turn the Thermatron controller to any "ON" setting and ensure the main burners ignite from the
pilot.

4-3
4.3 ELECTRONIC SPARK IGNITION
WARNING
NEVER USE A MATCH OR TAPER TO LIGHT THIS IGNITION SYSTEM!
1. Turn off the electric power.
2. Turn the gas valve dial to "OFF", wait 5 minutes, and then turn the dial to "ON".
3. Set the thermostat to the desired temperature. If the frypot is filled with water (Non-KFC
co-branded locations), set thermostat to 200°F (93°C); if filled with oil, set thermostat to 350°F
(177°C).
4. Turn the fryer power switch on.
5. The blower motor should start and the fryer should light a few seconds later. After burner
ignition, the Thermatron controller controls the burner.
6. If the burner fails to light for whatever reason, a safety circuit will “lock out” the system. To clear
the lockout, turn the fryer off and follow steps 2–4 above.
7. If the flue exhaust fan fails, the gas control valve will shut off the gas supply.
4.4 ADJUSTING BURNERS
1. Fill the frypot with hot or cold water (Non-KFC co-branded locations) to the top OIL LEVEL
line scribed in the back of the frypot. Main burner operation and initial controller calibration can
be checked during this step.
NOTE: In KFC co-branded locations, oil must be used in place of water for burner testing.
2. Set the Thermatron dial to 200°F (93°C), just below that of boiling water.
3. Turn the fryer power switch on. The blower will activate and the main burner will ignite.
4. Check the main burners and, if necessary, adjust the burner dampers at each burner (Figure 2,
Page 4-4) to obtain the best flame characteristics. An optimum flame should be blue at the
base, 2-½ - 3" in height, and have a reddish-white tip ¾ to 1" in height. To adjust, loosen the
screw of the air shutter, and open or close the shutter until the burner flame matches the
optimum flame description above. Tighten the shutter screw, and repeat for all burners. The
flame should be straight and not pulling to the rear of the fryer. If the flame is pulling to the rear,
inspect the main rear baffle for heat damage and replace if necessary.
5. The burners should shut off just at the water starts to boil.
6. When satisfied that the burners and controller are operating properly, drain the frypot of water
and dry thoroughly.
7. Immediately coat the frypot inside with oil to prevent rusting, or add new oil to the frypot if fryer
is ready for use.

4-4
4.4 ADJUSTING BURNERS (cont.)
NOTE: In KFC co-branded locations, boil out is NOT ALLOWED. Use KFC approved
procedure.
4.4.1 Boil Out Procedure (Non-KFC Co-Branded Locations Only)
1. Turn off the fryer and drain the shortening from the fryer in accordance with filtering instructions.
2. Remove the Sensor Probe Guard (Figure 1, Page 4-1) and place it in the bottom of the fryer
during boil-out.
3. Remove the frypot drain plug and install the drain extension prior to boil-out. Ensure the drain
valve is closed prior to adding water and boil-out cleaner to frypot. NEVER DRAIN WATER OR
BOIL-OUT SOLUTION INTO THE FILTER SYSTEM. IRREPAIRABLE DAMAGE WILL
RESULT.
4. Scrape carbon buildup from the fryer walls and around the thermostat probes. Use care when
cleaning the probes to avoid damaging them. Do not scrape the bottom of the fryer. (For initial
boil out, this step is not required.)
5. Pour recommended amount of degreaser or cleaner into the fryer and add hot water to the
upper OIL LEVEL line scribed in the back of the fryer.
6. Turn the fryer on. Switch the Thermatron controller to Boil-Out Mode (located in cabinet with
power and reset switch) and continue. The burners should cycle off just as the boil-out solution
comes to a boil.
7. Monitor the boil-out procedure constantly. If excessive foam starts to rise in the frypot, reduce
the heat. DO NOT LEAVE THE FRYER UNATTENDED DURING THE BOIL-OUT
PROCEDURE.
Figure 2: Burner damper adjustment on burner tubes.
Loosen screw to adjust
burner damper for
optimum flame.
