Frymaster BIGLA30-T Reference manual



Page 1 of 3
Document Number: FRY_SB_2018-15 ABD








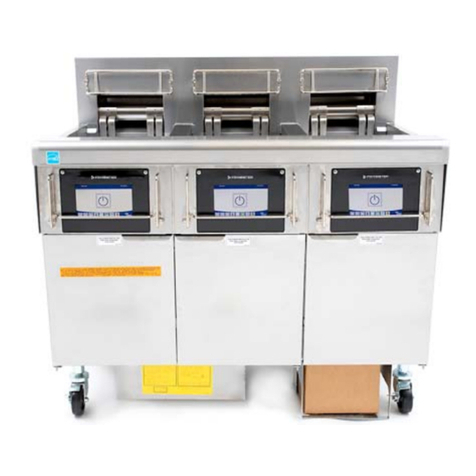

Frymaster is rolling out a new fryer, the Generation III Low Oil Volume, or LOV, gas fryer with the
easyTouch™ Touch Screen for McDonald’s to North and South America.
The new fryer, BIGLA30-T, is a revised version of the current
LOV unit with a new, easy to use touch screen. The M4000
touch screen controller is a more intuitive than its predecessor,
the M3000. The electronics have been updated. The current
interface board has been replaced by an SIB (Smart Interface
Board). The MIB and ATO board have been replaced by a single
FIB (Filtration Interface Board) that is present in the former ATO
box (now the FIB box). A power supply has replaced the former
transformer in the FIB (ATO) box. The AIF boards have been
replaced with a VIB (Valve Interface Board) which has new
connectors. The actuators have new improved connectors than
the actuators for the existing LOV fryer. The system has
additional communication networks in addition to CAN. There
is an easily accessible reset switch on the fryer, which eases
reboots of the control system. These fryers have the option for
the onboard oil quality sensor.
A successful introduction of this fryer to the McDonald’s network, will hinge on the training the
restaurant staff receives from our service network. It is important to McDonald’s, that the installer
should take the time, to ensure the staff is adequately trained on ALL points outlined on the NEW
commission and demonstration form. A well performed commission should take up to two (2)
hours. We will pay actual time up to two (2) hours for commission, per fryer system (fry or protein
station). A well performed demonstration should take up to two (2) hours. We will pay actual time
for up to an additional two (2) hours for one (1) demonstration (training) per store.
The training will include, among other items:
Demonstration of the M4000 Touch Screen controller and its cooking and filtering functions.
Demonstration of the JIB system.
Demonstration of the automatic top-off system.
Demonstration of the automatic filtration.
Frymaster regional managers are currently conducting field technical training sessions on the
revised fryers for our FAS network.
Subject: Release of McDonald’s LOV Gas Touch
Screen Fryers for North and South America
Models: BIGLA30-T Touch Fryers
10/29/2018
FRYMASTER
8700 LINE AVENUE, SHREVEPORT, LA 71106
800-551-8633
318-865-1711
WWW.FRYMASTER.COM
EMAIL: [email protected]OM

Service Bulletin



Page 2 of 3
Document Number: FRY_SB_2018-15 ABD
The store staff should be comfortable with the fryer when the technician leaves the restaurant.
Training videos, which covers features of the fryer, are posted on our web site at:
https://www.youtube.com/channel/UCvhnQhvao2UZcVguppeBCtg
A NEW startup (commission and demo) form will be used with this fryer. It is posted to our
website. See the last page for the link.
It’s imperative that our FAS network order parts to support the new fryer in the field. The list is
provided below.
Service companies in the network will be notified individually when the fryers are shipping to your
area.
PART # DESCRIPTION QTY
1086730 CONTROLLER ASSY, JLOV DOM 1
1087511SP PCB ASSY, SIB W/SOFTWARE 1
1086575 ASSY PCB, FIB W/SOFTWARE 1
1087537 ASSY, HOUSING VIB W/SOFTWARE 1
8263286 KIT, JLOV ATO PROBE 1
8075802 RELAY, TYCO T92S11A22-120 1
8263287 KIT, JLOV VIB (AIF) PROBE 1
8263285 KIT, JLOV GAS TEMP PROBE 2
8261177 THERMOSTAT ASSY, 425° HI-LIMIT 1
8075614 CABLE, COBRA DIRECT SPARK IGN 1
8261122 KIT, NAT GAS VALVE CNVRSN SVC 1
8261123 KIT, PRO GAS VALVE CNVRSN SVC 1
8263054 KIT, SOLARONICS NAT IGNITOR STD 1
8262994 KIT, IGNITOR & GASKET LOV PRO 1
1062997SP BLOWER ASSY,115V 50/60HZ RH 1
8075949 MODULE, FENWAL 24VAC DSI IGNTN 1
8075808 ACTUATOR, GEMINI 24V RH ROTARY 1
8075809 ACTUATOR, GEMINI 24V LH ROTARY 1
8070800 TRANSFORMER 120v 2
8075362 TRANSFORMER,24VAC 80VA 100-240 2
8075570 FUSE, 3.5A FAST ACTING 10
8161041 O-RING, SUCTION TUBE FILTER 20
8075855 POWER SUPPLY, 24VDC 130W ATO 1
8071683 RELAY, 12VDC 1
8074482 RELAY,2PL 30A DPDT 24VDC COIL 1
8074708 SENSOR, MAGNETIC POSITION 1
1084372 PUMP, LOV SHURFLO 24VAC 10 GPH 1
8074936 MICROSWITCH, GOLD SEALED LEVER 1
8101400 FLEXLINE, 5/8" X 21.00" LONG 1
8103007 MAGNET, 3.5LBS PULL RING 1
8075829 SPEAKER, 4 OHM 1



Page 3 of 3
Document Number: FRY_SB_2018-15 ABD
PART # DESCRIPTION QTY
8263191 FILTER PUMP 4 GPM 1
8261712 KIT, PUMP MOTOR 120V 50/60 HZ 1
Support materials posted to the web:
Manuals:
8197533 BIGLA30-T LOV Gen III Gas Installation and Operation
http://fm-xweb.frymaster.com/service/udocs/Manuals/8197533.pdf
8197546 BIGLA30-T LOV Gen III Gas Service Manual
http://fm-xweb.frymaster.com/service/udocs/Manuals/8197546.pdf
8197544 BIGLA30-T LOV Gen III Gas Parts Manual
http://fm-xweb.frymaster.com/service/udocs/Manuals/8197544.pdf
Quick References:
8197538 McDonald's LOV-T Fryer Quick Start
http://fm-xweb.frymaster.com/service/udocs/Manuals/8197538.pdf
8197138 McDonald's M4000 Quick Reference
http://fm-xweb.frymaster.com/service/udocs/Manuals/8197138.pdf
Commission and Demo (Startup) Form
8197142 McDonald's LOV-T Fryer Commission & Demo Form
http://fm-xweb.frymaster.com/service/udocs/Instruction%20PDFs/8197142.pdf
