Frymaster MJ35 User manual

Street Address
Suite 555
City, State 55555
8700 Line Avenue,
Shreveport, Louisiana 71106
300
N/O
COM N/C
200
250
OFF
1C
4C 3C HONEYWELL
1/2 P.S.I.
ON
HONEYWELL
PILOT
1/2P.S.I.
PILOT
ADJ.
350
400
2C
C
HONEYWELL 1/2P.S.I.
HIGH-LIMIT
OPERATING
THERMOSTAT
PILOT
GENERATOR
CONTROL CIRCUIT
Insert Headline Here
Model 35
Model 45
Model CF
Gas Type
Nat
LP
Nat
LP
Nat
LP
Min Pressure W.C/kpa/mbar
6/1.49/14.93
11/2.74/27.37
6/1.49/14.93
11/2.74/27.37
6/1.49/14.93
11/2.74/27.37
Max Pressure W.C/kpa/mbar
14/3.48/34.84
14/3.48/34.84
14/3.48/34.84
14/3.48/34.84
14/3.48/34.84
14/3.48/34.84
Orifice Size (mm)
1.7
1.05
1.45
.86
1.45
.86
Number of Orifices
9
9
18
18
18
18
Manifold Pressure (WC)
4
8.25
3.5
8.25
3.5
8.25
MJ 35/45/CF Series
819-7062 07/2022
Thermostat
Valve

Initial Startup
Turn On Gas Valve
1. Rotate the knob counter-clockwise to the
ON or PILOT positions.
2.
Depress and rotate the knob clockwise to
turn the valve OFF.
3.
Turn off the manual shut-
off valve on the
incoming gas supply line.
4.
Turn the operating thermostat to the OFF
position.
5.
Depress and turn the gas valve knob to the
OFF position.
6.
Wait at least 5 min
utes for any
accumulated gas to disperse.
7.
Fill the frypot with oil, shortening or water
to the bottom OIL LEVEL
line scribed on
the frypot back.
8.
NOTE:
If solid shortening is used, pack
the shortening into the frypot,
leaving no
voids.
Company Name Here,
Otherwise Delete Box
OFF
ON
PILOT
OFF
ON
PILOT

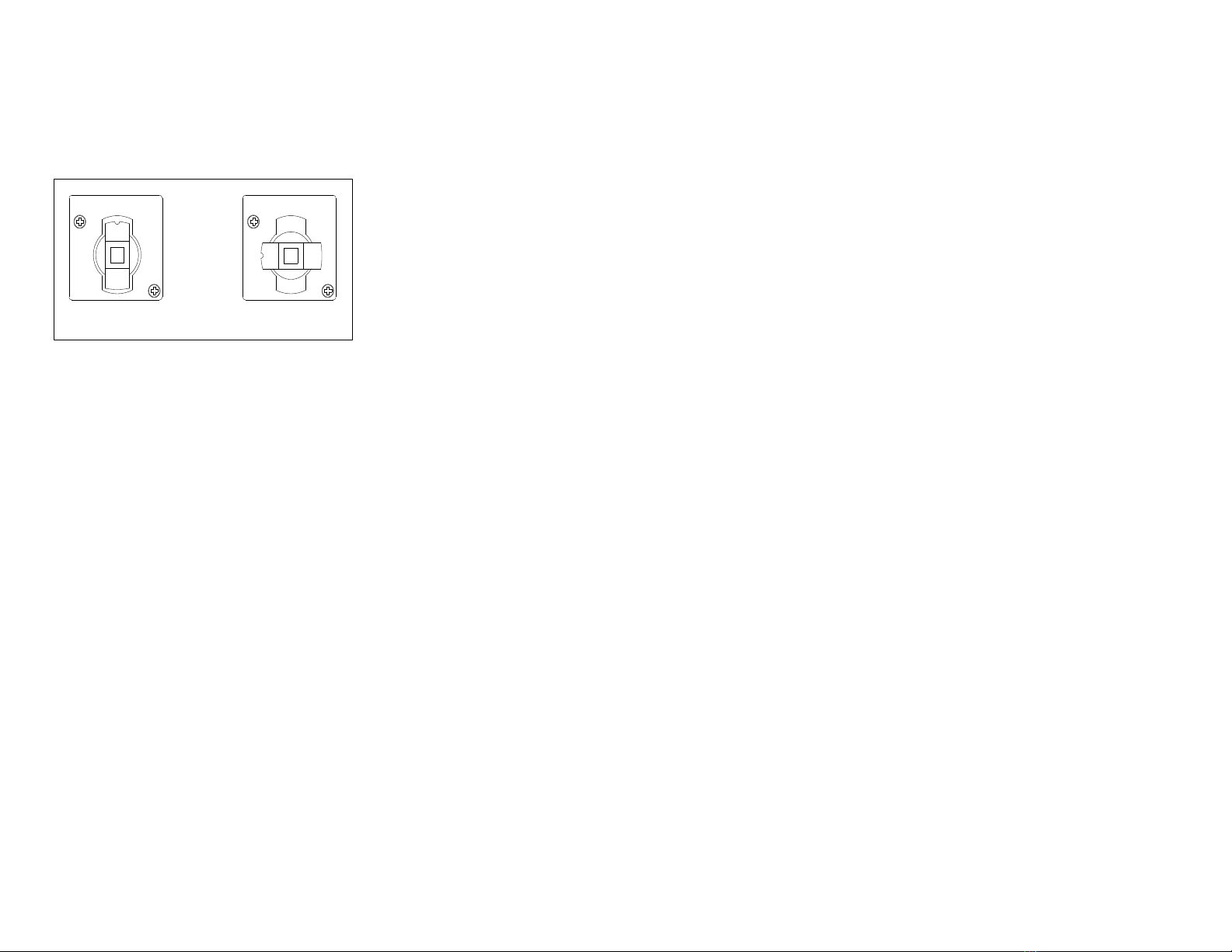

PILOT Position ON Position
9. Open the manual shut-off valve on the incoming
gas supply line and rotate the gas valve knob to
the PILOT position.
10. Push and hold the knob in and apply a lighted
match or taper to the pilot burner head. (If the
fryer is equipped with a piezo ignitor,
repeatedly press the piezo ignitor button while
depressing the gas valve knob until the pilot
lights.)
11. Continue to hold the knob in for about 60
seconds after the flame appears on the pilot.
Release the knob. The pilot should remain lit.
Daily Operation
1. Ensure the frypot is filled with oil or shortening to
the lower of the two oil level lines embossed on the
back wall of the frypot. NOTE: If solid shortening
is used, pack the shortening into the frypot to the
lower line.
2. With the pilot lit, push down and slowly turn the gas
valve knob to the ON position.
3. Rotate the operating thermostat knob to the desired
frying temperature. The burner should light and
burn with a strong blue flame.
Fryer Shutdown
•Turn the operating thermostat to the lowest
temperature and turn the gas valve knob to the
OFF position.
Preventive Maintenance
1. Do not allow grease to accumulate or harden on the
frame, body, or flue of the fryer. Clean the fryer
inside and out with a solution of detergent and hot
water daily.
2. Filter the cooking oil by draining the frypot through
a filter cone at least daily. After the oil has been
drained from the frypot, remove any residue from
the pot, using a scraper if necessary.
3. Clean the frypot at least once each week by filling it
to just below the upper oil level mark with water.
Add one cup of detergent and bring the solution to a
boil. Allow the solution to simmer for 10-15
minutes, then drain and rinse the frypot with clean
water twice. Add ¼ cup of white vinegar to the last
rinse to neutralize any alkalinity remaining from the
detergent. Wipe the frypot surfaces with a dry towel
before refilling with cooking oil. If the fryer is not
to be used immediately after cleaning, it is suggested
that the inside of the frypot be wiped down with a
light coat of cooking oil to prevent rust and the pilot
extinguished.
