ELECTRIC COOKER MODELS 17SMS, 17BC, 17C
TABLE OF CONTENTS
CHAPTER 1: General Information
1.1 Functional Description 1-1
1.2 Accessing Equipment 1-2
1.3 Replacing Components 1-2
1.4 Troubleshooting 1-11
1.4.6 Troubleshooting Guide 1-14
CHAPTER 2: Installation Instructions
2.1 Accessories 2-1
2.2 Wiring Diagrams 2-11

1-1
ELECTRIC COOKER MODELS 17SMS, 17BC, 17C
CHAPTER 1: 17EC/17ECS SERVICE PROCEDURES & PARTS
1.1 Functional Description
The 17kW Pasta Magic Electric Cooker contains a 16.5-gallon (62.5-liter) stainless steel cookpot.
The water in the cookpot is heated by a pair of 8.5-kilowatt heating elements. Electrical power to the
elements is controlled by a solid-state SMS III Spaghetti Magic computer specifically modified for
this application. NOTE: The SMS III computer used in the Pasta Magic is identical in appearance
to the SMS III computers used in other model lines, but differs internally. The 17SMS is equipped
with a basket lift, and also features automatic filling (AutoFill) and automatic skimming
(AutoSkim). This model also has a swing-away jointed faucet. The 17SMS and 17BC models have
an attached 16.5-gallon (84.1-liter) rinse tank.
Turn the Master Power Switch ON and press the computer Power switch. A logic circuit checks the
water level by looking for a ground at the upper water-level sensor. A normally closed solenoid
valve opens if no ground is seen, indicating water is below the sensor, and water enters the cookpot.
The unit enters the Simmer mode when the heating elements are covered (indicated by grounding of
the low-water sensor). The cookpot continues to fill until water reaches the upper water-level sensor
and the solenoid closes. The cooker stays in Simmer mode until the Boil mode switch is pressed or
the unit is turned off. The water solenoid valve opens anytime the water level is below the upper
water-level sensor.
Logic circuits in the computer monitor the temperature and cycle power on and off to maintain the
simmer setpoint. The cooker also has a high-limit safety. If the cookpot fails to refill and the water
level drops below the low-water sensor, the high-limit will open, cutting off power to the elements,
when the element temperature reaches 400 ±15ºF.
Pressing the Skim switch activates the AutoSkim feature. A logic circuit in the computer opens the
solenoid valve in the water supply line for three seconds every minute until the option is turned off
by again pressing the Skim switch.
The operator enters a cooking time by pressing the number pads on the computer. The computer
counts down the cook cycle time when the Start switch is pressed. When the computer times out, an
alarm sounds briefly, then the timer reverts to the last time entered.
Logic circuits in the computer also activate the basket lift motors when the Start switch is pressed,
lowering the basket into the cookpot. A pair of motors drive the basket lift arms down until a cam
attached to the left motor loses contact with a roller-activated microswitch and power to the motors
is cut. When the computer times out, the logic circuits reverse the switch positions so that the motor
circuit is again completed and the motors are restarted, raising the basket from the cookpot. The
cam again makes contact with the microswitch at the raised position, cutting power to the motors
and stopping the lift in the up position.

1-2
1.2 Accessing Equipment for Servicing
DANGER
Moving this equipment while it is filled with hot water may cause spilling or
splattering of the hot water. Always drain the cookpot before attempting to relocate
this equipment for servicing.
1. Disconnect the unit from the electrical power supply and from the water supply.
2. Remove any attached restraining devices.
3. Relocate the unit for service accessibility.
4. After servicing is complete, reconnect the unit to the water supply, reattach restraining devices,
and reconnect the unit to the electrical power supply.
1.3 Replacing Equipment Components
1.3.1 Replacing the Computer
1. Disconnect the cooker from the electrical supply.
2. Remove the two screws in the upper corners of the control panel and swing the panel open
from the top, allowing it to rest on its hinge tabs.
3. Disconnect the wiring harness from the back of the controller.
4. Disconnect the ground wire from the controller. Remove the controller by lifting it from the
hinge slots in the frame.
5. Reverse the procedure to install a new controller.
Wiring Harness
Connection
Ground Wire

1-3
1.3.2 Replacing Fuses
1. The 15-amp fuses are located in holders mounted on front of the box.
2. Remove the cover and replace the fuse.
1.3.3 Replacing Electronic Components Other than the Computer
1. Drain the cookpot and disconnect the cooker from the electrical power supply.
2. Remove the covers from the component box.
3. On the component to be replaced, make a note of the wiring connection points.
4. Disconnect the wires and remove the failed component. Install the replacement component and
reconnect the wiring in accordance with the notes made in Step 3 or with the wiring diagram on
the door of the unit.
5. Replace the component box covers, being sure to reconnect the ground wire. Reconnect the
cooker to the electrical power supply.
1.3.4 Replacing a Heating Element
1. Drain the cookpot and disconnect the cooker from the electrical power supply. Disconnect the
unit from the water supply at the rear of the cooker. Remove the basket lift arms from the unit.
2. Reposition the cooker to allow clear access to the rear of the unit. Remove the upper and lower
basket lift panels.

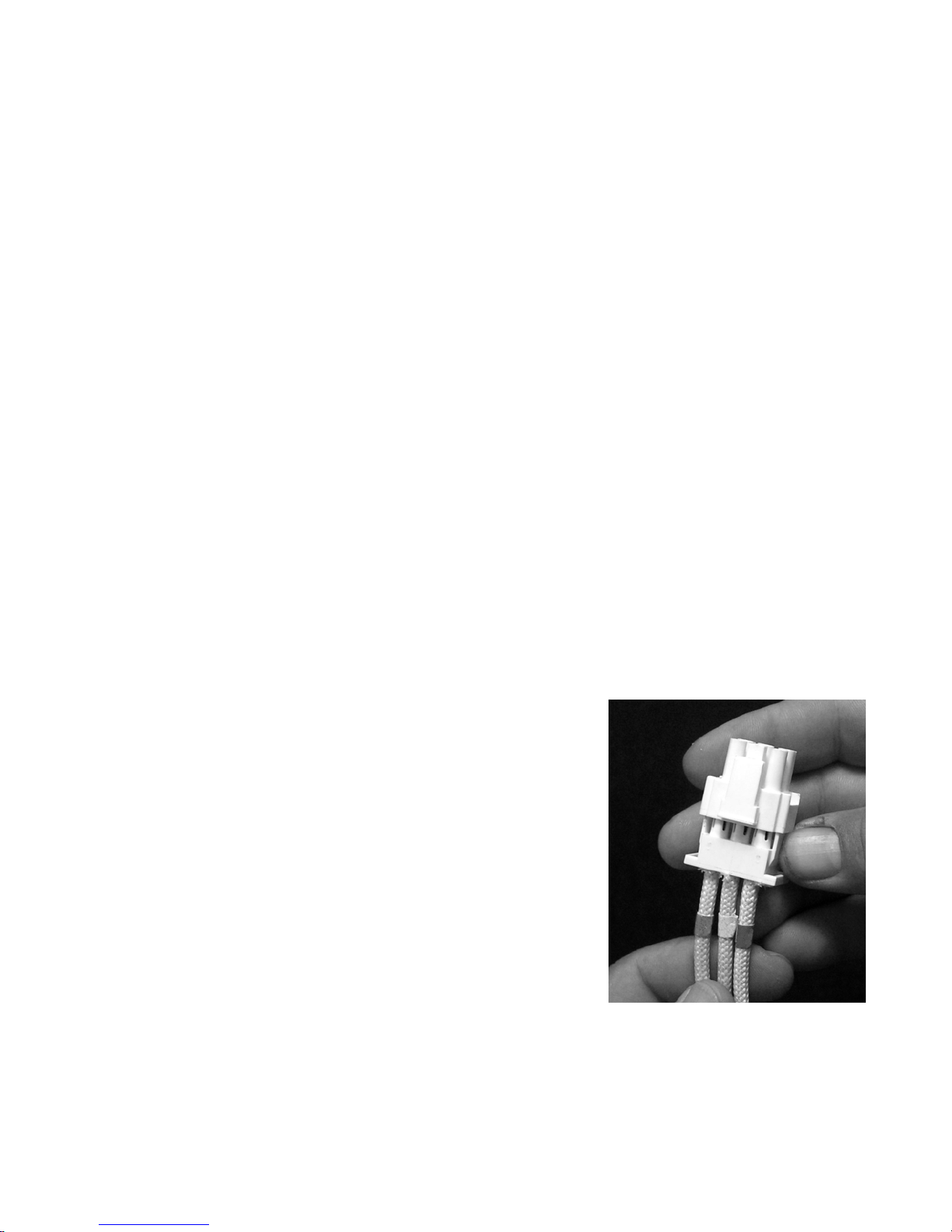

3. Unplug the element connector from the rear of the
component box. Depress the locking tabs on each side of
the connector and extend the connector to release the
element leads (see photo at right). Pull each of the leads out
of the connector, being careful not to damage the connector
in the process.
4. If the bundle of element leads is enclosed in a fiberglass
insulating sheath, cut the wire ties securing the sheath in
place, and remove and discard it; it is no longer required. If
replacing the left element (as viewed from the front of the
cooker), cut the metal wire ties that secure the high-limit
thermostat to the element, being careful not to bend the
thermostat in the process.
5. Remove the brass nuts that secure the element in the cookpot and lift the failed element from the
cookpot. Recover the Teflon washers from the failed element for use on the replacement.

1-4
Remove these nuts to remove
element from cookpot.
Standoffs
6. Position the replacement element in the cookpot with the standoffs on the bottom of the cookpot.
Thread the element leads through the Teflon washers recovered from the failed element. Secure
the element in place with the nuts removed in Step 5.
7. If the left element (as viewed from the front of the cooker) was replaced, secure the high-limit
thermostat against the inside of the leg of the element with two metal wire ties.
8. Insert the pins on the element leads into the element connector in accordance with the illustration
below. The insulation on the lead will be flush with the face of the plug when properly
positioned. When all leads are positioned correctly, close the connector and verify that the tabs
are locked in place. Each element lead is marked with a number that corresponds to the hole in
the connector into which it should be inserted. The right element (as viewed from the rear of the
unit) uses the 6-pin connector; the left element uses holes 1 through 6 of the 9-pin connector.
Lead 1
Lead 3
Note "D" pin and rib
indentifying Hole 1.
Note "D" pin and "pip"
indentifying Hole 1.
9. Bundle all six element leads together and secure with plastic wire ties close to the element and
connector, and in the middle.
10. Reverse Steps 1 through 3 to complete the procedure.
1.3.5 Replacing the High-Limit Thermostat
1. Drain the cookpot and disconnect the cooker from the electrical power supply. Disconnect the
unit from the water supply at the rear of the cooker. Remove the basket lift arms from the unit
and cut the metal wire ties securing the thermostat tube to the element.

1-5
2. Reposition the cooker to allow clear access to the rear of the unit. Remove the upper and lower
basket lift panels.
3. At the rear of the cookpot, loosen the small compression nut, and then unscrew the large fitting
from the cookpot. Pull the thermostat tube out through the rear of the cookpot.
Unscrew the large fitting
only after loosening the
small compression nut.
Loosen the small
compression nut first.
4. Detach the high-limit thermostat leads (5C and 8C) from the thermostat. Remove the two screws
securing the thermostat to the mounting bracket and remove the thermostat assembly from the
cabinet. (NOTE: It is not necessary to remove the bracket.)
5. Loosen the small compression nut in the large fitting on the replacement thermostat so that the
large fitting will move freely on the capillary tube (the thin, flexible tube). Carefully insert the
replacement thermostat into the cookpot, being careful not to bend the thermostat tube. Position
the tube along the inside of the left leg of the element (as viewed from the front of the cooker)
and secure it in place with two metal wire ties. Apply thread sealer to the large fitting and screw
the fitting securely into the cookpot. When the large fitting is tight, pull gently on the capillary
tube to remove any slack, then screw the small compression nut into the large fitting and tighten.
6. Coil the capillary tube as necessary to achieve a neat installation and attach the terminal block to
the mounting bracket using the screws removed in Step 4. Connect thermostat lead 5C (black) to
the normally closed (NC) terminal and 8C (white) to the common (C) terminal.
Common (C) Terminal
(Note open side.)
Normally Closed (NC) Terminal
(Note closed side.)
7. Reverse Steps 1 and 2 to complete the procedure.
1.3.6 Replacing a Water-Level Sensor
Drain the cookpot and disconnect the cooker from the electrical power supply. Disconnect the
sensor lead from the sensor, remove the nuts securing the sensor in place, and remove the sensor.
Install the replacement sensor as illustrated below and reconnect the lead.

1-6
Insulator must seat in
hole before nut is
tightened.
Inside of cookpot.
1.3.7 Replacing the Temperature Probe
1. Drain the cookpot and disconnect the cooker from the electrical
power supply.
2. Remove the three screws along the upper edge of the control
panel and open the panel by allowing it to swing downward.
3. Disconnect the 15-pin connector from the rear of the computer
and, using a pin pusher (such as Frymaster P/N 806-4855), push
out the temperature probe (red and white) leads from positions 13 and 14 on the connector.
4. Remove the temperature probe by unscrewing it from the front of the cookpot.
5. Apply thread sealer to the replacement probe and screw it securely into the cookpot.
6. Insert the red probe lead into position 13 of the 15-pin connector and the white lead into position
14. Pull gently on each lead to ensure it is firmly seated.
Insert red lead into position 13.
Insert white lead into position 14.
7. Reattach the 15-pin connector to the rear of the computer, close the control panel, and replace the
three screws removed in Step 2.
1.3.8 Replacing the Pressure Regulator or Solenoid Valve
1. Drain the cookpot and disconnect the cooker from the electrical power supply. Turn off or
disconnect the water supply to the cooker.
Testing Probe Resistance
A properly operating probe should
produce these resistances at these
temperatures:
•552 Ω@ 60°F (16°C)
•665 Ω@ 100°F (38°C)
•1000 Ω@ 212°F (100°C)

1-7
2. Loosen the compression fittings on the water lines running to and from the regulator and remove
the regulator from the unit. (NOTE: If the cooker is equipped with the optional Autofill feature,
the solenoid valve is installed between the regulator and the cookpot. If that is the case,
disconnect the solenoid leads and remove both the regulator and solenoid valve from the unit.)
Compression Fitting
Compression Fitting
Optional Solenoid Valve
Regulator must be rotated
to clear drain plumbing.
3. If replacing the regulator, adjust the replacement regulator output pressure to not more than 40
PSI (28.15 kg/cm2) before installation in the cooker.
4. Recover the fittings from the failed component (regulator or solenoid valve) and install them on
the replacement, using thread sealer on all connections.
5. Reverse Steps 1 and 2 to complete the procedure, being sure to apply thread sealer to all
connections. NOTE: The regulator must be rotated approximately 45 degrees to clear the drain
plumbing (see illustration at Step 2).
1.3.9 Replacing the Water Faucet
1. Drain the cookpot and disconnect the cooker from the electrical power supply.
2. Turn off the water supply to the cooker and disconnect the incoming water lines where they
attach to the stubs at the rear of the cooker.
3. Remove the two screws securing the access panel in place and remove the panel.
4. Disconnect the water supply line at the compression fitting where it attaches to the water inlet
manifold. Remove the screws from the faucet mounting plate and lift the faucet assembly from
the unit.

1-8
Disconnect this
compression fitting.
Remove screws to remove the
faucet mounting plate.
Loosen this nut to separate
the faucet from the water
inlet manifold.
Remove this nut to separate the
faucet from the mounting plate.
5. Separate the faucet from the water inlet manifold and mounting plate as shown in the illustration
at Step 4.
6. Reverse Steps 1-5 to complete the procedure.
1.3.10 Replacing a Basket Lift Motor or Microswitch
1. Disconnect the cooker from the electrical power supply.
2. If rigid water connections have been used, disconnect the cooker from the incoming water
supply.
3. Remove the basket lift arms from the lifter rods and then reposition the cooker to gain access to
the rear. Remove the upper and lower basket lift rear panels.
4. Unplug the basket lift wiring harness from the lower 6-pin connector on the component box. (To
do this, you must reach around behind the component box from the front of the cooker.)
Disconnect basket lift wiring
harness from this connector.
5. Disconnect the basket lift link from the lifter cam (bell crank) assemblies one at a time. When
the link is disconnected from a cam, slip the corresponding lifter rod down and out of the
assembly (see illustration).

1-9

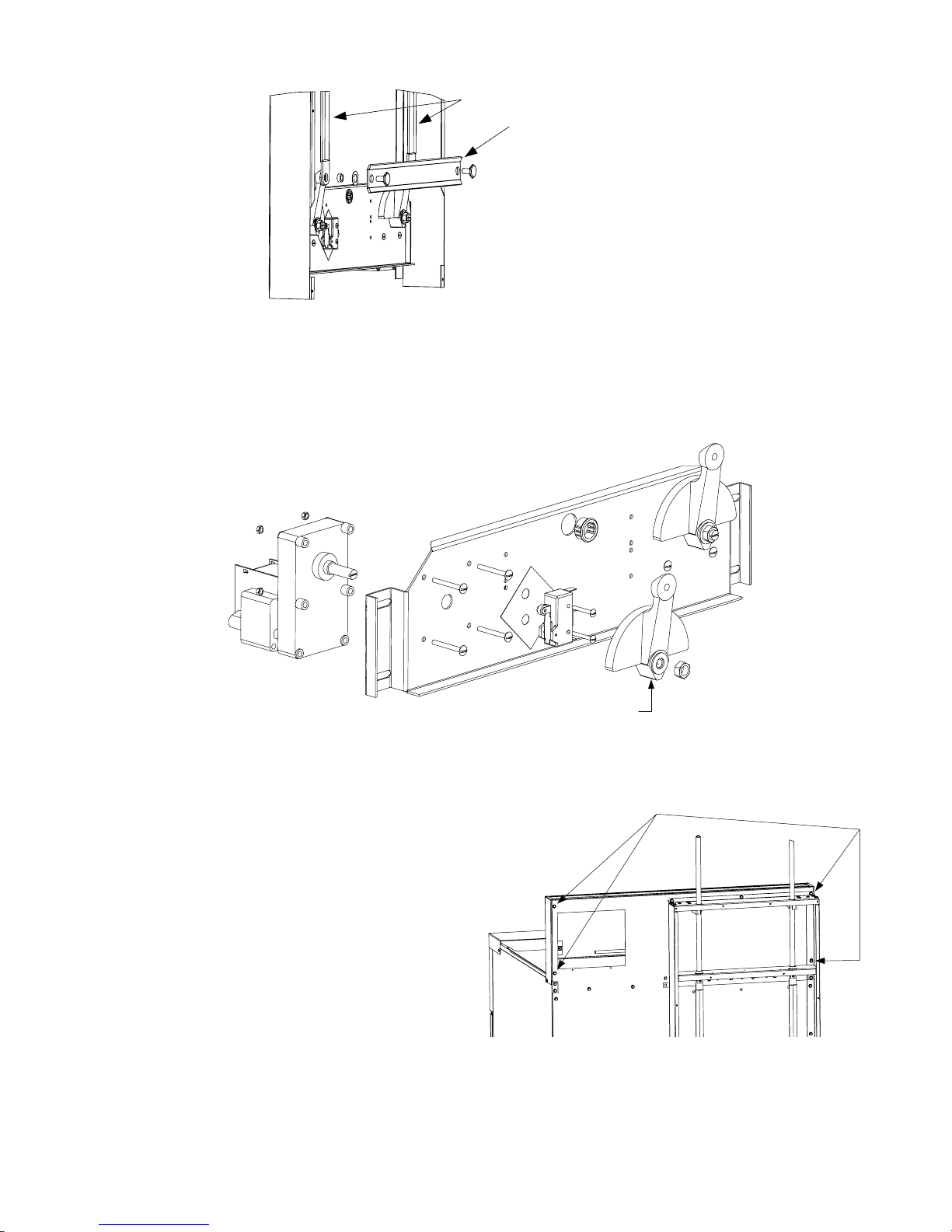

Disconnect the basket lift link from
the lifter cams and slip the lifter rods
down and out of the assembly.
Link
Lifter Rods
6. Remove the four bolts securing the motor mount to the frame, then remove the motor and mount
assembly from the unit. NOTE: It is possible to replace a motor or the microswitch without
removing the motor and mount assembly, but it is much more difficult.
7. Dismount the motor or microswitch as shown below and install the replacement.
Loosen setscrew in bottom
of cam (bell crank).
NOTE: The right motor dismounts
in the same way as the left.
8. Reverse Steps 1-7 to complete the procedure.
1.3.11 Replacing the Cookpot or Rinse Tank
1. Remove the faucet assembly from the
cooker in accordance with Steps 1-4 of
Section 1.3.8.
2. Remove the screws that secure each of the
rear corners of the backsplash assembly (see
illustration at right). NOTE: To access the
screw in the lower right corner (as viewed
from the rear) remove the upper basket lift
panel.
Remove these four screws.

1-10
3. Remove the screws along the top edge of
the control panel and open the panel by
swinging it downward. Disconnect the 15-
pin connector from the rear of the computer,
and then lift the control panel out of the
control panel frame.
4. Remove the screws that secure the
backsplash sides to the cabinet sides then
remove the four screws that secure the
topcap to the cabinet. Remove the nut and
washer securing the basket support rod to
the topcap by reaching up through the
control panel frame. Conversely, the
backsplash and topcap, with the basket
support rod still attached, can be lifted up
and off the cooker as one unit.
5. Remove the screws attaching the standoff
brackets to the cookpot or rinse tank.
6. If removing the cookpot, unplug the element
wiring harnesses from the rear of the
contactor box. Disconnect the high-limit
thermostat leads and the water-level sensor
leads. Using a pin-pusher (such as
Frymaster P/N 806-4855), disconnect the
temperature probe leads from the 15-pin
connector.
7. Disconnect the union joining the cookpot
and rinse tank drain piping together.
8. With an assistant, lift the cookpot or rinse
tank straight up and out of the cabinet.
9. Invert the cookpot or rinse tank on a suitable work surface and remove the salvageable
components (e.g., elements, thermostats, drain plumbing, etc.). Install the recovered components
on the replacement cookpot or rinse tank, using thread sealer on all connections.
10. Reverse Steps 1 through 8 to complete the procedure.
Remove these
screws (on both
sides) to remove
backsplash and
topcap.
Remove these screws to
dismount the control panel.
Remove these screws to release
the pots from the standoff brackets.

1-11
1.4 Troubleshooting
NOTE: The 24VAC power to the electronic components of this system is controlled by the master
ON/OFF switch located on the front of the contactor box. If this switch is in the OFF position, none
of the system components will function.
DANGER
The master ON/OFF switch does not disconnect this equipment from the electrical power
source! Line voltage is supplied to the transformer and to the basket lift motors as long as the unit
is plugged in.
Problems with this equipment may be grouped into five broad categories:
1. Failure or malfunction of a 24VAC Power-Supply System component.
2. Failure or malfunction of the Computer.
3. Failure or malfunction of an Autofill/AutoSkim System component.
4. Failure or malfunction of a Water Heating System component.
5. Failure or malfunction of a Basket Lift System component.
Sections 1.4.1 through 1.4.5 briefly explain the functioning of each of the systems mentioned above.
Section 1.4.6 contains troubleshooting guides that provide systematic procedures to isolate and
identify the specific source of a problem. A wiring diagram is located at the end of the chapter.
1.4.1 How the Power-Supply System Works
Line voltage is supplied to the system via a power cord that is plugged or hard-wired into the store’s
electrical service. The power cord is attached to a three-lug delta-power terminal block. One set of
wires delivers line voltage from the load side of the block to Terminal 1 of each of the solid-state
relays. A second set of wires delivers line voltage through a pair of fuses to the 24VAC transformer
and to the basket lift relay. Line voltage for one side of the basket lift motor circuit is tapped from a
“piggy-back” terminal on the line side of the transformer. Line voltage for the other side of the
circuit is supplied via the basket lift relay. 24VAC is supplied to the equipment by placing the master
ON/OFF switch in the ON position, which grounds the transformer.
1.4.2 How the Computer Works
The SMS III computer provides the interface between the operator and the system components. The
computer is powered by 24VAC supplied through Pins 1 (hot) and 2 (ground) of the 15-pin wiring
harness. Internal circuitry senses the water level, water temperature, and element temperature.
Depending upon the conditions sensed, the computer energizes or de-energizes the solenoid valve to
control water level and the heating elements to control water temperature. The computer also
controls the lowering and raising of the basket lift, and activates an audible alarm to signal the
operator that a cooking cycle has completed. A rectifier in the computer coverts 24VAC to the
24VDC required by the basket lift relay and the solid-state heating relays. The computer signals for
heat via Pin 4, grounds the solenoid valve via Pin 6, and senses water level via Pins 7 (low) and 9
(full). The temperature probe connects to Pins 13 and 14. The basket lift relay connects to Pins 10
and 12. The sound device connects to Pin 11.

1-12
1.4.3 How the Autofill/AutoSkim System Works
The heart of the automatic filling (Autofill) system is a normally closed solenoid valve that opens
when 24VAC is applied.
The ground for the solenoid is supplied (via Pin 6 of the computer wiring harness) so long as the
upper water-level sensor is not in contact with the water in the cookpot. When the water in the
cookpot reaches the upper water-level sensor, the sensor is grounded. This causes the computer to
break the solenoid ground, closing the valve. Starch or lime build-up on the upper water-level
sensor may keep a ground from forming, therefore always make sure the sensor is clean and its lead
(Pin 9 of the computer wiring harness) is firmly connected. Also, in order for the ground to form,
there must be some mineral content in the water (pure water is non-conductive). Consequently, the
units will not operate with distilled water. If distilled, highly filtered, or purified water is used, add
⅛-cup of baking soda to the water each time the cookpot is emptied and refilled.
When the AutoSkim feature is activated by pressing the skim switch on the computer, a logic circuit
in the computer automatically opens the solenoid valve for three seconds every minute until the
switch is again pressed. If the Autofill feature is working properly, failure of the AutoSkim feature
will be due to a malfunctioning computer and not the solenoid valve. (Proper operation of the
Autofill feature can be determined by draining water from the cookpot until the water level is below
the upper water-level sensor. If the solenoid valve opens and then closes when the water in the
cookpot again reaches the upper water-level sensor, the Autofill feature is working properly.)
1.4.4 How the Water Heating System Works
To prevent energizing the heating elements when there is no water in the cookpot, these units are
equipped with a low-water-level sensor. This sensor must be grounded by contact with water in the
cookpot before the control circuitry will apply power to the elements. Starch or lime build-up on the
low-water-level sensor may keep the ground from forming, therefore always make sure the sensor is
clean and its lead (Pin 7 of the computer wiring harness) is firmly connected. In order for the ground
to form, there must be some mineral content in the water (pure water is non-conductive).
Consequently, the units will not operate with distilled water. If distilled, highly filtered, or purified
water is used, add ⅛-cup of baking soda to the water each time the cookpot is emptied and refilled.
In addition to the low-water-level sensor discussed above, the water heating system has six more
parts: the high-limit thermostat, the temperature probe, the contactor, the element, a group of three
solid-state relays, and the computer.
The high-limit thermostat functions as a normally closed switch. If the water in the cookpot falls
below the low-water-level sensor but the sensor remains grounded (for whatever reason), the high-
limit switch will open when the element temperature reaches 400ºF ±15 (204ºC ± 9). This cuts
power to the contactor coil and thus to the element.
The temperature probe is used only when the unit is in the simmer mode. When the operator
selects the simmer mode, logic circuits in the computer monitor the temperature of the water and
cycle power to the element on and off as required to maintain the temperature at the setpoint
programmed into the computer.

1-13
The contactor is the terminal block to which the element leads are connected and where actual
contact is made between the leads and the line voltage. Built into the contactor is a 24VAC coil that
energizes when the master ON/OFF switch is placed in the ON position. When it energizes, contact
is made between the incoming line voltage and the element leads, and line voltage is supplied to one
side of the element circuit. The solid-state relays control the supply of line voltage to the other side
of the element circuit. The relays are closed when the computer is calling for heat and open when it
is not.
The element is a resistive heating device. That is, when voltage is applied to the element, the
element gets very hot due to its resistance to current flow through it. The heat generated is
transferred directly to the water.
The computer is the interface between the operator and the other components of the equipment. In
the water heating system, its function is to control the application of line voltage to the heating
element via the solid-state relays.
When in the Simmer Mode, the signal from the computer is continuous, the solid-state relays are
continuously closed, and line voltage is applied to the elements until the simmer setpoint
(195ºF/90.6ºC) is reached.
When in the Boil Mode, the signal from the computer is continuous for approximately the first 40
seconds, then changes to a series of on-off pulses of equal duration. The solid-state relays close
and open in response to the signal from the computer, and line voltage is applied to the elements
accordingly. (The pulsing of the line voltage to the elements prevents the water in the cookpot
from reaching a vigorous, roiling boil. This, in turn, minimizes the formation of starch foam. An
added benefit of the pulsing is reduced electrical power consumption.)
1.4.5 How the Basket Lift System Works
When the Start switch is pressed to start the cooking cycle, logic circuits in the computer activate the
basket lift motors, lowering the basket into the cookpot. As the motors drive the basket lift arms
down, a cam attached to the left motor eventually loses contact with a roller-activated microswitch
and power to the motors is cut. When the computer times out, logic circuits reverse the switch
positions so that the motor circuit is again completed and the motors are restarted, raising the basket
from the cookpot. At the fully raised position, the cam again makes contact with the microswitch,
cutting power to the motors and stopping the lift in the up position.

1-14
1.4.6 Technician Troubleshooting Guides
Symptom Potential Cause Diagnosis
Computer doesn’t activate
•Master switch not on
•Unit not plugged in.
•Failed 24-volt transformer.
•Failed or loose wiring.
•
Turn switch on.
•Plug unit in.
•Test input and output
voltage from transformer.
•Check fuses in
transformer circuit; check
continuity of power switch
in on position; check for
24VAC on pins 1 and 2 of
the computer wiring
harness.
Cook pot fails to fill
•Unit not connected to
water supply.
•Dirty or failed water
sensor.
•Failed water solenoid.
•Failed controller.
•
Connect to water supply.
•Clean water sensors; add
baking soda to cookpot
water.
•Check for 24VAC in water
solenoid circuit.
Unit fails to heat
•
Unit is not
plugged in or
breaker is open.
•Hi-limit is open.
•Probe resistance
is out of tolerance.
•Solid state relay
failure.
•Element failure.
•
Plug unit in; check
breaker.
•Check continuity of hi-
limit. Replace if open.
•Check probe resistance at
pins 13 and 14 of the 15-
pin computer plug. See
Testing Probe on page 1-
6.
•Check probe resistance
between each pin and
ground. Should be 2 mega
Ohms or greater.
•With the computer calling
for heat, check for input
voltage (5-10VDC) on the
solid state relays and line
voltage on the output
terminals. Zero input
voltage suggests a failed
relay.
•With the computer not
calling for heat, check for
input voltage (5-10VDC)
and line voltage on the
output terminal. No line
voltage suggests a failed
relay.
•Ohm out element on pins
1- 6; 2-5; and 3-4.
Resistance should be 15
Ohms ±3.

1-15
Symptom Potential Cause Diagnosis
Basket lift fails to work
•
Failed fuse
•Failed computer.
•Failed or loose wiring.
•Failed basket lift relay.
•Failed motor.
•
Replace 15-amp fuse
•With basket lift up, check
for 27-33VDC at pin 10 of
15-pin plug. Zero volts if
basket lift is down. No
voltage: computer has
failed.
•With basket lift up, check
for 27-33VDC (Zero
voltage if basket lift is
down) at basket lift relay
terminal. None or
improper voltage: check
for loose or corroded
wiring.
•With basket lift up, is line
voltage present at the NC
(lower) terminal of basket
lift microswitch (middle
terminal with basket lift
down)? This suggests a
bad relay.
•With basket lift up, is line
voltage present at the
common position of the
microswitch. This
suggests a failed motor.

2-1
2.1 Parts List
1
2
3
4
5
6
7
8
ITEM PART # COMPONENT
1 823-1910 Cooking Basket
* 823-7384 Basket, bulk
* 823-6290 Basket, wash
2 823-2936 Starch Diverter
* 803-0200 Rack, 12 portion
* 803-0238 Basket, round 5.5 x 8.5
* 803-0018 Cup, pasta portion (beige)
3 803-0332 Basket Support Rack
* 210-5068 Pan Insert
4 910-7540 Cookpot/Rinse Tank Top Connecting Strip
5 823-2938 Rinse Basket
6 826-0900 Chain Restraint Kit
7 826-1117 Caster without Brake, 5-Inch (includes mounting hardware)
8 826-1118 Caster with Brake, 5-Inch (includes mounting hardware)
ACCESSORIES

2-2
1
4
3
5
2
6 7
9
10 11 12
8
13 14
15 16
17
18
19 20
21
22
23 24 25
39
27
28
29
30
31
32
33
35
36
37
34
38
26
ITEM PART # COMPONENT
BASKET LIFT COMPONENTS
