Fuel Fitness FT98 User manual

TABLE OF CONTENTS
1
2
3
4
6
11
14
15
18
23
ATTENTION
THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THIS APPLI-
CATION. ANY OTHER APPLICATION VOIDSTHIS WARRANTY IN ITS ENTIRETY.
Product Registration
Important Safety Instructions
Important Electrical Instructions
Important Operation Instructions
FT98 Assembly Instructions
Operation of Your Treadmill
Programmable Features
Heart Rate
General Maintenance
Manufacturer’s Limited Warranty
Vacuum Under
Motor Cover &
Check Wiring
(Every Other
Month)
Clean & Inspect Deck
for Lubrication
(Every Other Month)
Lubricate Deck
(Every 90 hours
or sooner if dry)
Inspect Belt Tracking
(Monthly) Adjust if
necessary
Date
PREVENTATIVE MAINTENANCE CHART

FT98 TREADMILL
1
RECORD YOUR SERIAL NUMBER
in the space provided below.
Serial Number
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to FUEL
FITNESS. You can also go to to register online.
Thank you for your purchase of this quality treadmill from FUEL FITNESS. Your new
backed by one of the most comprehensive warranties available. FUEL FITNESS will do all we can
to make your ownership experience as pleasant as possible for many years to come. If you have
questions, or if parts are missing or damaged, or you require customer service, call 1-866-697-6531.
Please have your model number and serial number handy when you call.
Please take a moment to record where you purchased your machine, as well as the date of purchase
FUEL FITNESS and we will always remem-
ber that you are the reason that we are in business. Please complete and mail your registration card
today and enjoy your new treadmill.
Yours in Health,
FUEL FITNESS
Congratulations On Your New Treadmill and Welcome to the FUEL Fitness Family!
PRODUCT REGISTRATION
FT98-2015_ver.B
Purchase Location
Purchase Date

2
FT98 TREADMILL
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons, install the treadmill on a at level sur-
face with access to a 120-volt, 15-amp grounded outlet.
DO NOT USE AN EXTENSION CORD UNLESS IT IS 14AWG OR BETTER, WITH ONLY ONE OUTLET ON THE END. The
treadmill should be the only appliance in the circuit in which it is connected. DO NOT ATTEMPT TO DISABLE THE
GROUNDED PLUG BY USING IMPROPER ADAPTERS, OR IN ANY WAY MODIFY THE CORD SET. A serious shock or re
hazard may result along with computer malfunctions.
• To disconnect, turn all controls to the o position, remove tether cord, then remove the plug from the outlet.
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and equipment may
result. You can purchase a oor mat directly from www.fueltnessusa.com
• Before beginning this or any exercise program, consult a physician. This is especially important for persons over the
age of 35 or persons with pre-existing health conditions.
• Do not block the rear of the equipment. Provide a minimum of 3 1/2 feet clearance between the rear of the equip-
ment and any xed object.
• Keep hands away from all moving parts.
• Use handrails provided; they are for your safety.
• The pulse sensors are not medical devices. Various factors, including the user’s movement, may aect the accuracy
of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in gen-
eral.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
equipment. Quality athletic shoes are recommended to avoid leg fatigue.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before
putting on or taking o parts.
2. Do not operate under blanket or pillow. Excessive heating can occur and cause re, electric shock, or injury to per-
sons.
3. Close supervision is necessary when this appliance is used by, on, or near children or disabled persons.
4. Use this appliance only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water. Return the appliance to a service center for examination and repair.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
12. Connect this appliance to a properly grounded outlet only.
13. The appliance is intended for household use.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Fitness Equipment Safety Instructions
Failure to follow all guidelines may compromise the eectiveness of the exercise experience, expose
yourself (and possibly others) to injury, and reduce the longevity of the equipment.

FT98 TREADMILL
3
IMPORTANT ELECTRICAL INSTRUCTIONS
WARNING!
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a large mo-
tor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the elevation
mechanism and transport wheels.
NEVER -
Such conditions are not covered under your warranty. If you suspect the
voltage is low, contact your local power company or a licensed electrician for proper testing. See Diagnosis Guide,
page 21.
NEVER expose this treadmill to rain or moisture. This product is NOT designed for use outdoors, near a pool or spa, or in
humidity is 95%, non-condensing (no water drops forming on surfaces).
Circuit breakers: Some circuit breakers used in homes are not rated for high inrush currents that can occur when a
it is the proper current rating) but the circuit breaker on the treadmill itself does not trip, you will need to replace the
home breaker with a high inrush type. This is not a warranty defect. This is a condition we as a manufacture have no abil-
ity to control. This part is available through most electrical supply stores. Examples: Grainger part # 1D237, or available
online at www.squared.com part # QO120HM.
GROUNDING INSTRUCTIONS
This product must be grounded. If the treadmill’s electrical system should malfunction or breakdown
grounding provides a path of least resistance for electric current, reducing the risk of electric shock. This
product is equipped with a cord having an equipment-grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated below.

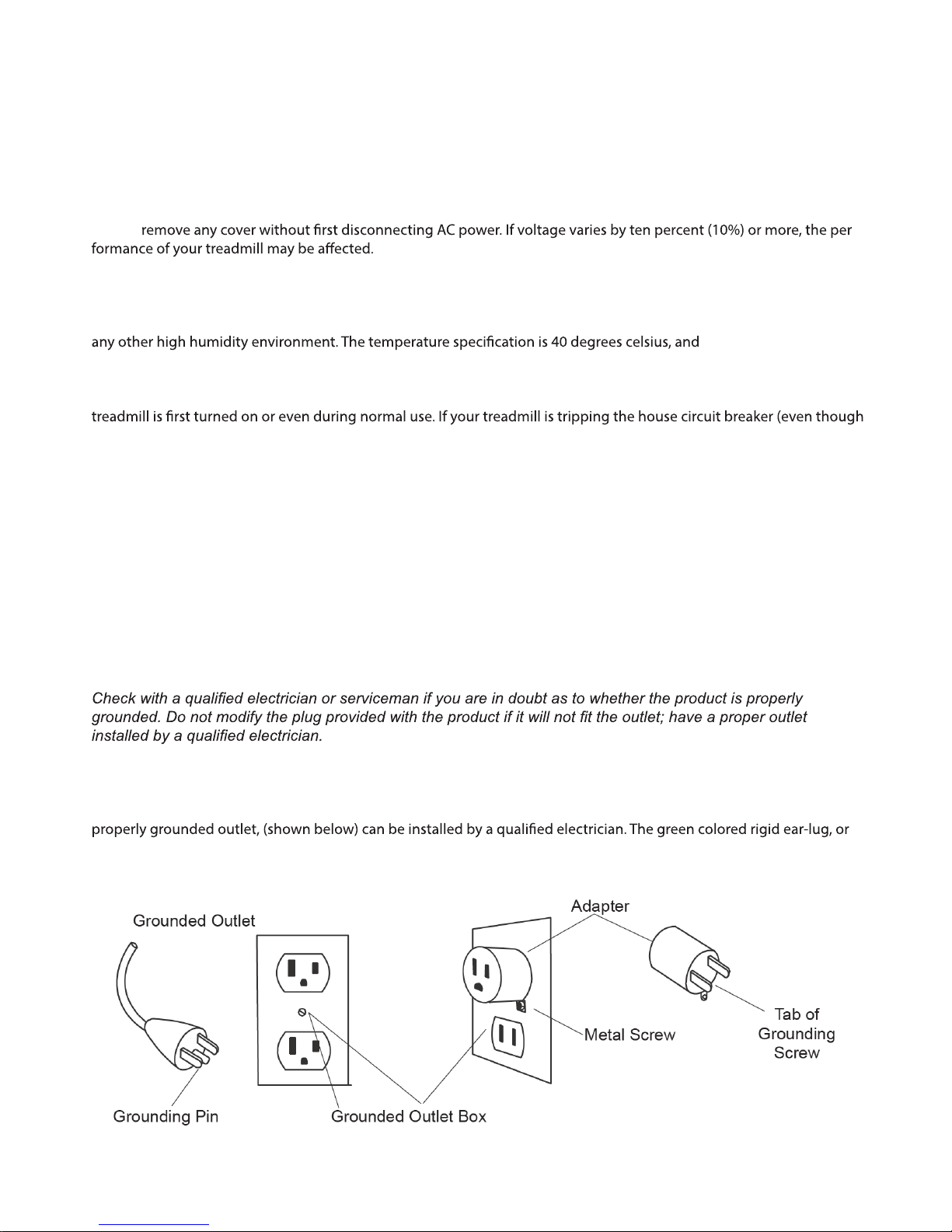

A temporary adapter that looks like the adapter illustrated below may be used to connect this plug to a 2-pole recep-
tacle as shown below if a properly grounded outlet is not available. The temporary adapter should be used only until a
the like, extending from the adapter, must be connected to a permanent ground such as a properly grounded outlet
box cover. Whenever the adapter is used, it must be held in place by a metal screw.

4
FT98 TREADMILL
IMPORTANT OPERATION INSTRUCTIONS
• NEVER operate this treadmill without reading and completely understanding the results of any
operational change you request from the computer.
• Understand that changes in speed and incline do not occur immediately. Set your desired speed on the com-
puter console and release the adjustment key. The computer will obey the command gradually.
• NEVER use your treadmill during an electrical storm. Surges may occur in your household power
supply that could damage treadmill components.
• Use caution while participating in other activities while walking on your treadmill; such as watching television,
reading, etc. These distractions may cause you to lose balance or stray from walking in the center of the belt,
which may result in serious injury.
• NEVER mount or dismount the treadmill while the belt is moving. FUEL Fitness treadmills start with at a very
low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow
acceleration is proper after you have learned to operate the unit.
• ALWAYS hold on to a handrail or hand bar while making control changes (incline, speed, etc.).
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It is for your
safety should you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop tread-belt move-
ment.
To Use:
1. Place the magnet into position on the round portion of the console control head. Your treadmill will not start and
operate without this. Removing the magnet also secures the treadmill from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power. Note: The magnet has strong
enough power to minimize accidental, unexpected stopping. The clip should be attached
securely to make certain it does not come o. Be familiar with its function and limitations. The
treadmill will stop, depending on speed, with a one to two step coast anytime the magnet is pulled
o the console.
SAFETY TETHER CORD
REMOVE TETHER CORD AFTER USE TO PREVENT UNAUTHORIZED TREADMILL OPERATION.

FT98 TREADMILL
5
#100. 5/16” Flat
Washer
(8 pcs)
#99. 5/16” x 1/2” Hex
Head Bolt
(8 pcs)
HARDWARE STEP 2
HARDWARESTEP 3
HARDWARE STEP 4
ASSEMBLY TOOLS
HARDWARESTEP 5
#126. M5 x 15mm
Phillips Head Screws
(6 pcs)
#125. 5/16” x 3/4” Button
Head Socket Bolt (4 pcs)
#125. 5/16” x 3/4” Button
Head Socket Bolt (4 pcs)
#103. M6 L Allen Wrench
#102. Combination M5 Al-
len Wrench & Phillips Head
Screw Driver
FT98 ASSEMBLY PACK CHECKLIST
#90. 13mm Wrench
#80.5/16”
Split Washer
(4 pcs)

6
FT98 TREADMILL
1. Take out the treadmill from the carton and lay it aside on the smooth ground.
FT98 ASSEMBLY INSTRUCTIONS
MAIN BASE FRAME
1
UPRIGHTS & CABLES
2
1. Connect the Lower Computer Cable (55) and Middle Computer Cable
(54).
2. Insert Right and Left Uprights (4) and (5) into the Frame Base (2) and use
13mm Wrench (90) to tighten the eight Hex Head Bolts (99) and eight Flat
Washers (100).
54
55
4
99
99
100
100
99
99
100
100
90
2
99
100
99
100
99
100
99
100
5
Hardware Step 2
#99. 5/16”x 1/2”
Hex Head Bolt (8 pcs)
#100.5/16”
Flat Washer (8 pcs)
NOTE: This step may work better with a second person assisting.
Be very careful when assembling the uprights so as not to pinch the computer cables. This could
lead to a short circuit and may damage the electronics and is not covered under warranty.

FT98 TREADMILL
7
102
54
53
4
5
21
125
80
125
80
162
163
29
28
CONSOLE
3
1. Connect the Middle Computer Cable (54) and Upper Computer Cable
(53).
2. Connect the Upper Speed Cable (162) and Speed/Hand Pulse cable
(28).
3. Connect the Upper Incline Cable (163) and Incline/Hand Pulse cable
(29).
4. Install the Console Assembly (21) into right and left Uprights (4) and (5) and
secure with four Button Head Socket Bolts (125) with four Split Washers (80)
by using Combination M5 Allen Wrench & Phillips Head Screw Driver (102).
Hardware Step 3
#80. 5/16”
Split Washer
(4 pcs)
#125. 5/16” x 3/4” Button
Head Socket Bolt (4 pcs)
NOTE: This step may work better with a second person assisting.
Be very careful when assembling the console so as not to pinch the computer cables. This could
lead to a short circuit and may damage the electronics and is not covered under warranty

8
FT98 TREADMILL
CONSOLE MAST SUPPORT
4
1. Install Handrail Support (9) between Left and Right Uprights (5) and (4). Use
the combination M5 Allen Wrench and Phillips Head Screw Driver (102) to
tighten four Button Head Socket Bolts (125).
102
125
9
125
Hardware Step 4
#125. 5/16” x 3/4” Button
Head Socket Bolt (4 pcs)

FT98 TREADMILL
9

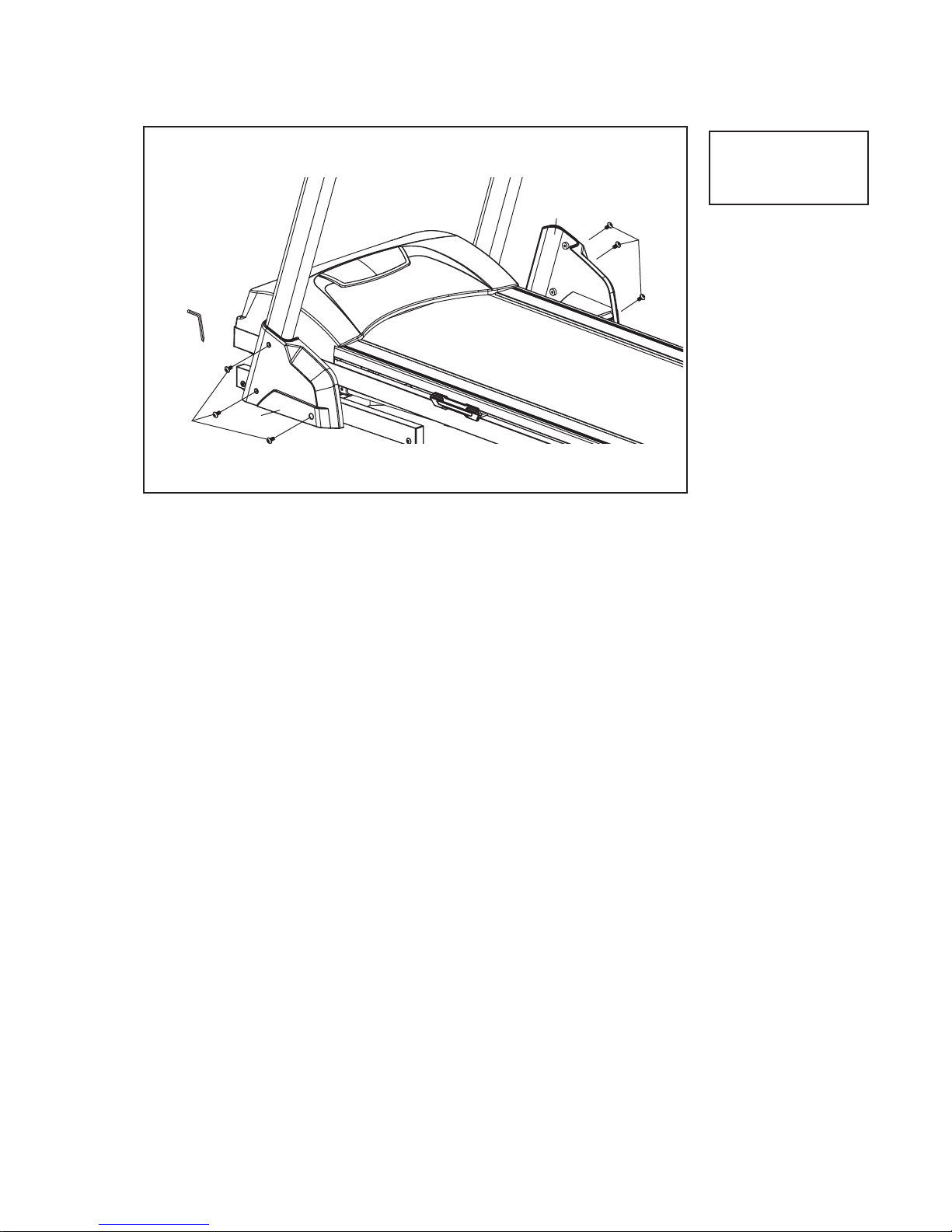

FINAL PROCESS
5
1. Install the left and right Frame Base Covers (41) and (42) on the Frame Base
and secure with four Phillips Head Screws (128) by using Combination M5
Allen Wrench & Phillips Head Screw Drive (102).
126
102
126 41
42
Hardware Step 5
#126. M5 x 15mm
Phillips Head Screw
(6 pcs)

10
FT98 TREADMILL
The treadmill is equipped with four transport wheels that are engaged when the treadmill is folded.
After folding simply roll the treadmill away.
CAUTION: Do not attempt to move the unit unless it is in the folded and locked position.
Remove the power cord from the front of the unit to avoid possible damage. Use both
handrails to maneuver the unit to the desired position.
TRANSPORTATION INSTRUCTIONS
TO FOLD THE TREADMILL
Make certain the treadmill is at minimum incline. Lift the treadmill running deck until it is se-
cured by the locking telescoping tube assembly on the right side of the base. You will hear it
pop into place when secure.
TO UNFOLD THE TREADMILL
Apply slight forward pressure* on the treadmill running deck with your left hand. Pull out on the
round knob and slowly lower the running deck to the oor. The deck will lower
unassisted when it reaches about waist high.
*At the rear roller area to relieve pressure on the locking system.
FOLDING INSTRUCTIONS

When the power is turned on, the console will show the current
software version, the total running mileage, hours. The treadmill
will then enter idle mode, which is the starting point for operation.

12
FT98 TREADMILL
1. When the treadmill is running the pause feature may be utilized by pressing the STOP key once.
This will slowly decelerate the tread-belt to a stop. The incline will go to zero percent. The Time,
the display will reset and return to the start up screen.
2. To resume your exercise, when in Pause mode, press the START key. The speed and incline will
return to their previous settings.
PAUSE/STOP/RESET FEATURE
1. Attach the Safety key to enable the display (if not already on).
2. Press the START key to begin belt movement. Adjust to the desired speed using the SPEED
/keys (console or handgrip). You may also use the QUICK SPEED keys 1,2,4,6,8,10 to ad-
just the speed.
3. To slow tread-belt press and hold the SPEED key (console or handgrip) to the desired speed.
You may also press the QUICK SPEED keys 1,2,4,6,8,10 to adjust the speed.
4. To stop the tread-belt press the STOP key or pull away Safety key.
•Incline may be adjusted anytime after belt movement.
•Press the INCLINE /
10 and 12 are also available to adjust the incline percent. The incline range is from 0 to 12 levels.
•The display will indicate incline position as adjustments are made.
INCLINE FEATURE
Pause is executed when the STOP key is pressed once. If the STOP key is pressed a second
time the program will end. If the STOP key is pressed a third time, the console will reset.
•

FT98 TREADMILL
13
The Pulse (Heart Rate) readout will display your current heart rate in beats per minute
during the workout. You must use both stainless steel sensors on the side hand rails to
display your pulse. Pulse value displays anytime the upper display is receiving a Pulse signal.
PULSE GRIP FEATURE
Displays the cumulative calories burned at any given time during your workout.
Note
used for medical purposes.
CALORIE DISPLAY
1.
follow the instructions in Engineering Mode on page 22
Remove tether cord.
2.
TO TURN TREADMILL OFF
TO TURN OFF AUDIBLE BEEP

14
FT98 TREADMILL
PROGRAMMABLE FEATURES
The FT98 Treadmill has a total of 24 pre-set programs. Fourteen of them (P1-P14) have only speed
changes with no incline changes, while the last 10 (P15-24) have speed and incline changes
programmed.
1. Choose HRC program and then press CLEAR/SET
2. Use FAST/SLOW keys to set Target Heart Rate value then press CLEAR/SET
3. Use FAST/SLOW keys to set workout Time and then press START to begin workout.
1. Press the Program key to choose desired program (P1,P2, …..P24). Press the Clear/Set key to
set the workout time. Press Start to begin your workout.
2. To set custom targets for your workout (Time, Calories or Distance) press the Clear/Set key
while in the Idle mode. Each time you press Clear/Set, a dierent target will start blinking.
If the Calories target is blinking you can use the Speed Up and Down keys to set a Calorie
target. Pressing Start will begin your workout and now the Calories will count down to zero
from your selected target of how many calories you wanted to burn during the workout.
This feature only works in the quick start mode and not in preset programs.
TO SELECT AND START A PRESET PROGRAM
HRC PROGRAM

FT98 TREADMILL
15
The old motto,“no pain, no gain”, is a myth that has been overpowered by the benets of
exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors.
With the proper use of a heart rate monitor, many people nd that their usual choice of exercise intensity
was either too high or too low and exercise is much more enjoyable by
maintaining their heart rate in the desired benet range.
To determine the benet range in which you wish to train, you must rst determine your predicted
Maximum Heart Rate. This can be accomplished by using the following formula: 220 minus your age. This
will give you the predicted Maximum Heart Rate (MHR) for someone of your age. To determine the ef-
fective heart rate range for specic goals you simply calculate a percentage of your MHR. Your heart rate
training zone is 50% to 90% of your maximum heart rate. Training at 60% of your maximum heart rate is
recommended for burning fat, while training at 80% of your maximum heart rate is recommended for
strengthening your cardiovascular system.
For someone who is 40 years old their
predicted target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute
(60% of maximum)
180 X .8 = 144 beats per minute
(80% of maximum)
So for a 40 year old the training zone would be 108 to
144 beats per minute.
After calculating your MHR you can decide which
goal you would like to pursue.
The two most popular reasons for exercise are car-
diovascular tness (training for the heart and lungs) and weight control. The black columns on the chart
above represent the MHR for a person whose age is listed at the bottom of each column. The training
heart rate, for either cardiovascular tness or weight loss, is represented by two lines that cut diagonally
through the chart. A denition of the lines’ goal is in the bottom left-hand corner of the chart. Whether
your goal is weight loss or cardiovascular tness, it can be achieved by training between 60% and 80% of
your MHR. Consult your physician before participating in any exercise program.
HEART RATE

16
FT98 TREADMILL
Heart rate is important but listening to your body also has a lot of advantages. There are more
variables involved in how hard you should workout than just heart rate. Your stress level, physical
health, emotional health, temperature, humidity, the time of day, the last time you ate and what you
ate, all contribute to the intensity at which you should workout. If you listen to your body, it will tell
you all of these things.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by
Swedish physiologist G.A.V. Borg. This scale rates exercise intensity from 6 to 20
depending upon how you feel or the perception of your eort.
The scale is as follows:
Rating Perception of Eort
6 Minimal
7 Very,very light
8 Very,very light +
9 Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very,very hard
20 Maximal
You can get an approximate heart rate level for each rating by simply adding a zero to each rating.
For example a rating of 12 will result in an approximate heart rate of 120 beats per minute. Your RPE
will vary depending up the factors discussed earlier. That is the major
benet of this type of training. If your body is strong and rested, you will feel strong and your pace
will feel easier. When your body is in this condition, you are able to train harder and the RPE will sup-
port this. If you are feeling tired and sluggish, it is because your body needs a break. In this condi-
tion, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper
level for that day.
RATE OF PERCEIVED EXERTION

17 FT98 TREADMILL
How to wear your wireless chest strap transmitter:
1. Attach the transmitter to the elastic strap using the locking parts.
2. Adjust the strap as tightly as possible as long as the strap is not too
tight to remain comfortable.
3. Position the transmitter with the logo centered in the middle of your
body facing away from your chest (some people must
position the transmitter slightly left of center). Attach the nal end
of the elastic strap by inserting the round end and, using the
locking parts, secure the transmitter and strap around your chest.
4. Position the transmitter immediately below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval areas on
the reverse side of the belt and both sides of the transmitter). It’s also recommended that
you wear the transmitter strap a few minutes before your work out. Some users, because 、
of body chemistry, have a more dicult time in achieving a strong, steady signal at the
beginning. After “warming up”, this problem lessens. As noted, wearing clothing over the
transmitter/strap doesn’t aect performance.
6. Your workout must be within range - distance between transmitter/receiver – to achieve
a strong steady signal. The length of range may vary somewhat but generally stay close
enough to the console to maintain good, strong, reliable readings. Wearing the
transmitter immediately against bare skin assures you of proper operation. If you wish,
you may wear the transmitter over a shirt. To do so, moisten the areas of the shirt that
the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user’s heart. Additionally, it
automatically deactivates when it does not receive any activity. Although the transmitter is water resistant,
moisture can have the eect of creating false signals, so you should take precautions to completely dry
the transmitter after use to prolong battery life (estimated transmitter battery life is 2500
hours). The replacement battery is Panasonic CR2032.
ERRATIC OPERATION
Caution! Do not use this treadmill for Heart Rate Control unless a steady, solid Actual Heart Rate
value is being displayed. High, wild, random numbers being displayed indicate a problem.
Areas to look for interference which may cause erratic heart rate:
1. Microwave ovens, TV’s, small appliances, etc.
2. Fluorescent lights.
3. Some household security systems.
4. Perimeter fence for a pet.
5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems
try wearing the transmitter upside down. Normally the transmitter will be oriented so the logo is right side up.
6. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the
whole machine 90 degrees may de-tune the interference.
7. Another Individual wearing a transmitter within 3’ of your machine’s console.
If you continue to experience problems contact your dealer.
USING HEART RATE TRANSMITTER

FT98 TREADMILL 18
Tread-belt Tension Adjustment - Belt tension is not critical for most users. It is very important
though for joggers and runners in order to provide a smooth, steady running surface. Adjustment
must be made from the rear roller with the 6mm Allen wrench provided in the parts package. The
adjustment bolts are located at the end of the step rails as shown in the diagram below.
Tighten the rear roller only enough to prevent
slippage at the front roller. Turn the tread-belt
tension adjusting bolts 1/4 turn each and inspect
for proper tension by walking on the belt and
making sure it is not slipping or hesitating with
each step. When an adjustment is made to the
belt tension, you must be sure to turn the bolts on both
sides evenly or the belt could start tracking to one side
instead of running in the middle of the deck.
DO NOT OVERTIGHTEN – Over tightening will cause belt damage and premature bearing failure. If
you tighten the belt a lot and it still slips, the problem could actually be the drive belt - located un-
der the motor cover - that connects the motor to the front roller. If that belt is loose it feels similar to
the walking belt being loose. Tightening the motor belt should be done by a trained service person.
BELT AND DECK -
mized when the deck is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the
edge of the belt and the area between the belt edge and frame. Also reach as far as practical directly
under the belt edge. This should be done once every other month to extend belt and deck life. Use
water only - no cleaners or abrasives. A mild soap and water solution along with a nylon scrub brush
will clean the top of the textured belt. ALLOW THE BELT TO DRY BEFORE USING.
BELT DUST
damp cloth will minimize buildup.
GENERAL CLEANING- Dirt, dust, and pet hair can block air inlets and accumulate on the running
belt. On a monthly basis: vacuum underneath your treadmill to prevent buildup. Every other month,
you should remove the black motor hood and carefully vacuum out dirt that may
accumulate. UNPLUG POWER CORD BEFORE THIS TASK.
There is a maintenance schedule/chart included under the Table of Contents for convenient record
keeping.
BELT ADJUSTMENTS
GENERAL MAINTENANCE
