Fugoo FSNA1 User manual

User Manual Fugoo Bluetooth Speaker model FSNA1 page 1 9/18/2015
Fugoo Bluetooth Speaker
User Manual
version 3.9.9, 18 Sept 2015 Model FSNA1
Contents
In the Box ............................................................................................................................2
Speaker controls..................................................................................................................2
Charging...............................................................................................................................5
Checking your battery level..........................................................................................5
Charging your speaker ................................................................................................5
Powering on the speaker.....................................................................................................5
Connecting ..........................................................................................................................6
Connecting through an audio cable...................................................................................6
Pairing and connecting with another Bluetooth device.....................................................6
Disconnecting from another Bluetooth device...................................................................7
Reconnecting......................................................................................................................7
Clearing all pairings ............................................................................................................7
Audio playback.....................................................................................................................7
Adjusting the volume...................................................................................................7
Playback ......................................................................................................................7
Taking a call - speakerphone mode.....................................................................................8
Taking a call..............................................................................................................................8
Voice Response mode.............................................................................................................8
LED indications....................................................................................................................8
Customization / other functions............................................................................................9
Normal and Loud modes .........................................................................................................9
Voice prompts: normal, low, off...............................................................................................9
Power Save on / off..................................................................................................................9
Resetting the speaker..............................................................................................................9
Updating the firmware..............................................................................................................10
Care and maintenance.........................................................................................................10
Cleaning the core.....................................................................................................................10
Cleaning the Style and Sport jackets......................................................................................10
Cleaning the Tough jacket.......................................................................................................10

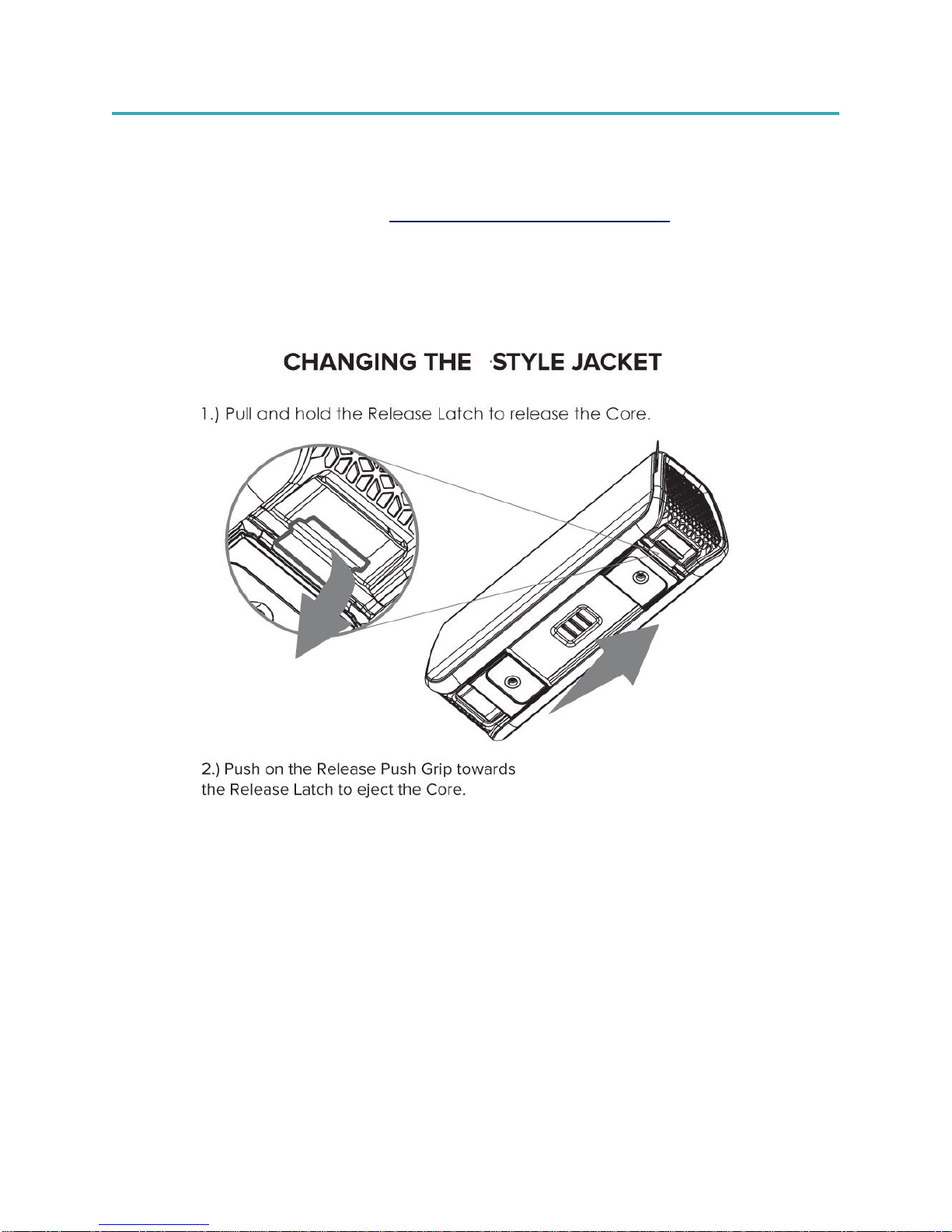

Changing jackets..................................................................................................................11
Specifications.......................................................................................................................13
Optional accessories............................................................................................................15
Remote control.........................................................................................................................15
Bike mount ...............................................................................................................................15
Clip ............................................................................................................................................15
Strap..........................................................................................................................................15
Customer support.................................................................................................................15
FCC and legal notices..........................................................................................................16

User Manual Fugoo Bluetooth Speaker model FSNA1 page 2 9/18/2015
In the box
• Fugoo Bluetooth Speaker, with one jacket –Style, Sport, or Tough
• AC wall charger
• Micro USB charging cable
• 3.5 mm audio cable
• Accessory pouch
• Startup Guide
• Thumbscrews –for Sport and Tough models
• Hex wrench –for Tough model only

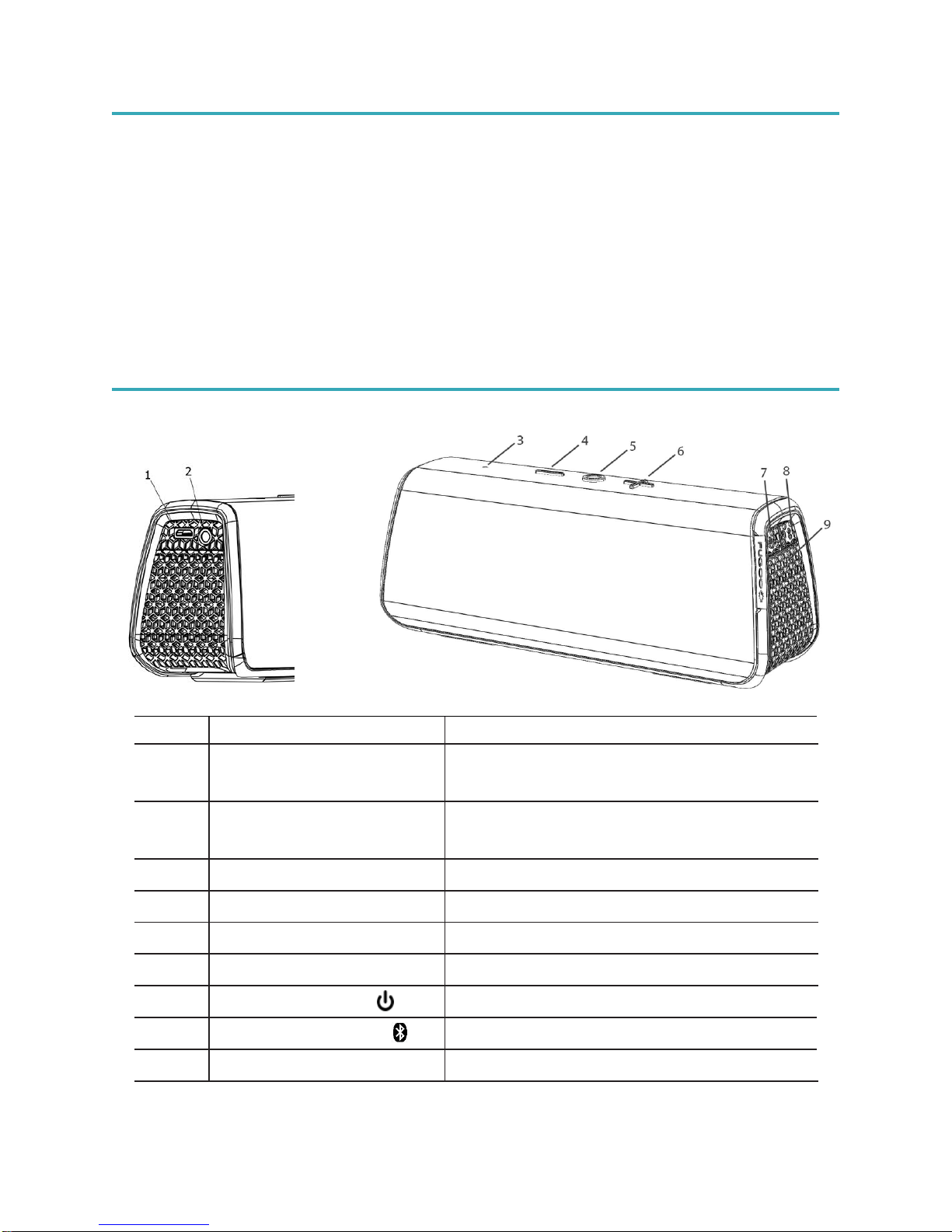

Fugoo Bluetooth Speaker controls
pa r t
description
1
Micro-USB charging
connector / update port
For charging the speaker,
and for updating its firmware
2
3.5 mm audio input jack
For playing music from the headphone
output of another device
3
Microphone
For speakerphone function
4
Volume down ( –)
Decreases loudness
5
Action button (  )
Pause / Play and speakerphone control.
6
Volume up button ( + )
Increases loudness
7
Power button ( )
Turns the speaker on / off
8
Bluetooth button ( )
For pairing with other Bluetooth devices
9
LED indicator
Indicates status of the speaker

User Manual Fugoo Bluetooth Speaker model FSNA1 page 3 9/18/2015

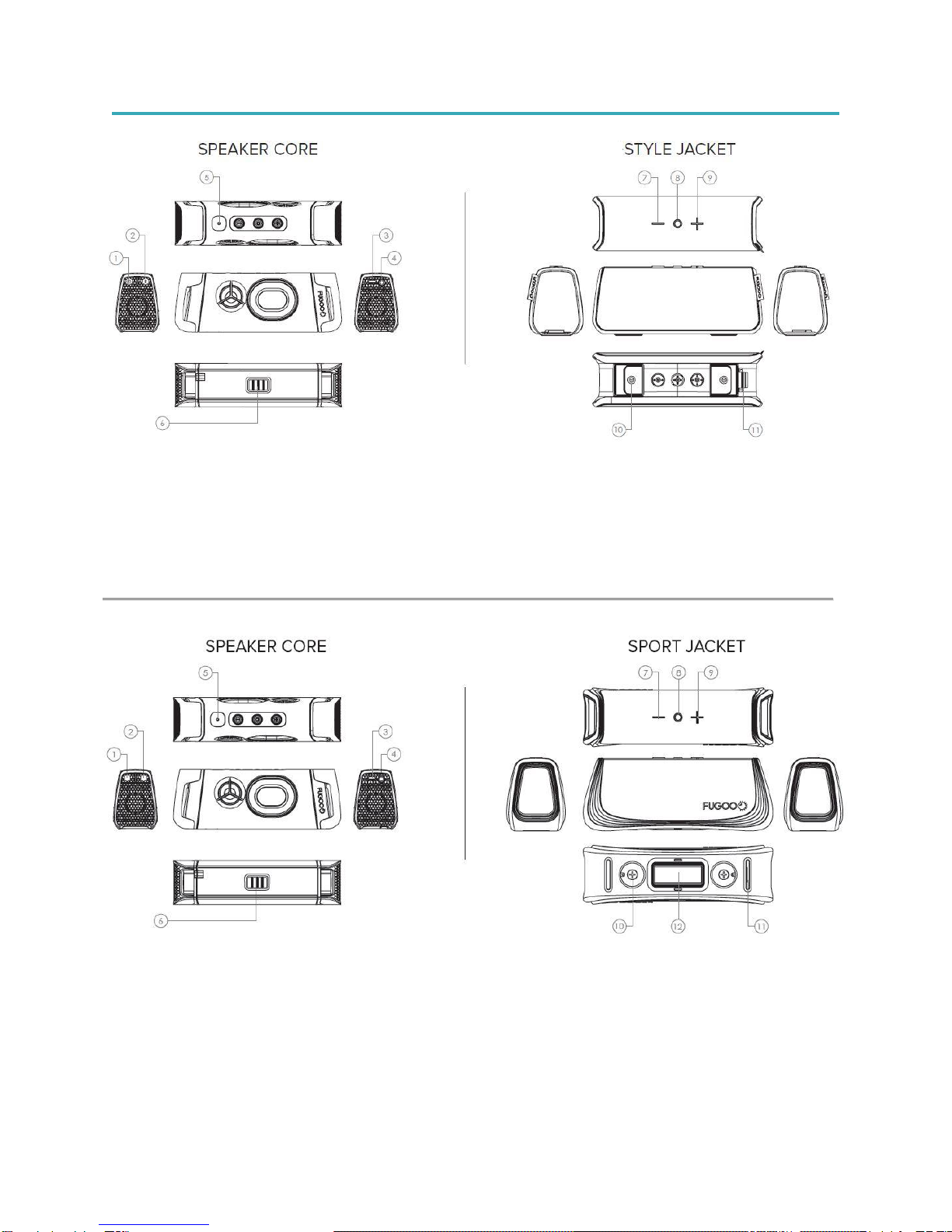

1. Power button
2. Bluetooth button
3. Micro USB connector
4. Audio input jack
5. Microphone
6. Release push grip
7. Volume down
8. Action button
9. Volume Up
10. Mounting plate holes
11. Release latch
1. Power button
2. Bluetooth button
3. Micro USB connector
4. Audio input jack
5. Microphone
6. Release push grip
7. Volume down
8. Action button
9. Volume Up
10. Thumb screws
11. Self-draining holes.
12. Mounting plate
,

User Manual Fugoo Bluetooth Speaker model FSNA1 page 4 9/18/2015

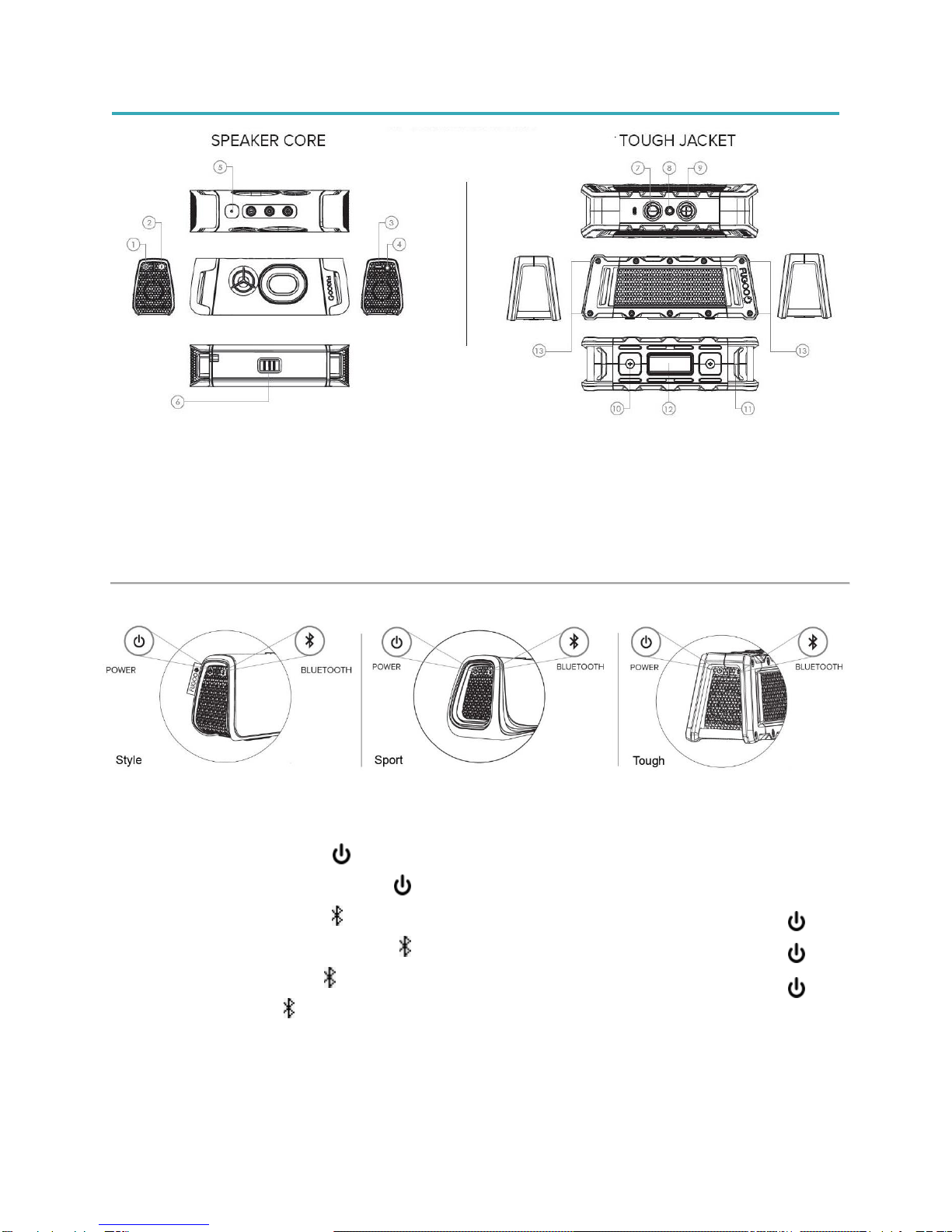

1. Power button
2. Bluetooth button
3. Micro USB connector
4. Audio input jack
5. Microphone
6. Release push grip
7. Volume down
8. Action button
9. Volume Up
10. Thumb screws
11. Self-draining holes.
12. Mounting plate
13. Side retaining screw
POWERING UP AND CONNECTIONS
Power On / Off .................... Hold 1 second
Battery status..................................... Click
Pair with a device................Hold 3 seconds
Disconnect device................................Click
Clear all paired devices.....Hold 10 seconds
Reset...................... Hold and O10 seconds
PLAY CONTROL
Play / Pause.......................................Click O
Volume up / down .........................Click +/ –
Previous track .........................Click Oand –
Next track......................................Click Oand +
Voice Control............................Hold O1 second
(The speaker must be off for these functions.)
Normal / Loud mode.................... Hold Oand
Power Save On / Off.....................Hold -and
Voice prompts level:........... Hold +and -and
SPEAKERPHONE
Answer / end call.....................................Click O
Reject a call ................................ Double-click O
Mute microphone in a call.............Click +and –

User Manual Fugoo Bluetooth Speaker model FSNA1 page 5 9/18/2015
Charging and battery charge status
Checking the battery level
•With the speaker powered on, click the (Power) button momentarily . The LED
indicator blinks green one to six times to indicate the charge of the battery, unless
battery is being charged.
•If voice prompts are enabled, the speaker responds with "Battery is almost full." or
another indication of the state of the battery’s charge, or “Battery is charging.”
•If the battery charge gets very low, the LED indicator will blink red, and after several
minutes, the speaker will say “Please recharge the battery. Powering off.”, and the
speaker will power off.
LED indicator
Voice prompt
six green blinks
Battery is full.
five green blinks
Battery is almost full.
four green blinks
Battery is three quarters.
three green blinks
Battery is half.
two green blinks
Battery is one quarter.
one green blink
Battery is low.
Charging your speaker
•Connect the Micro-USB charging cable to the speaker and to the supplied AC adapter.
•Plug the AC adapter into a power outlet.
•While the battery is being charged, the LED will slowly pulse on/off green.
•When the battery has reached full charge, the LED will glow solid green.
• CAUTION: Never use your Fugoo Bluetooth Speaker without one of its jackets
(Style, Sport, or Tough). The jacket is an essential part of your speaker because it
protects the speaker drivers from damage.

User Manual Fugoo Bluetooth Speaker model FSNA1 page 6 9/18/2015
Powering on your Fugoo Bluetooth Speaker
• Click the (Power) button momentarily to power the speaker on.
• When the speaker runs from battery power, it will power itself off after a period of inactivity,
unless the Power Save feature is Off. (See the Power Save Mode section for further detail.)
• Hold the (Power) button for one second to power the speaker off.
Connecting your speaker to smartphones and other devices
You can connect to your Fugoo speaker to a source device either through its audio input
jack or through a Bluetooth wireless link. Only one of these inputs can be active at a time.
Connecting through an audio cable to the audio input
•Connect one end of the supplied 3.5 mm audio cable to your speaker's audio input
jack, then connect the other end to the headphones jack of your audio source device.
•The LED glows blue and a voice prompt says, “Disconnected. Bluetooth off.
Connected”.
•Plugging the supplied audio cable into the speaker's audio input jack turns off the
Bluetooth wireless link, to save power and maximize battery life.
Pairing and connecting with a Bluetooth source device
1. Make sure that a 3.5 mm audio cable is not connected to the speaker's audio input.
2. Place your Fugoo Bluetooth Speaker and your Bluetooth source device within
33 feet (10 meters) of each other.
3. Turn the speaker and the source device on.
4. Hold the (Bluetooth) button for three seconds. The LED blinks blue and red
repeatedly. If voice prompts are enabled, the speaker says, “Pairing mode.
Use the Bluetooth settings of your device to connect.” The speaker will
remain in pairing mode for three minutes, or until it pairs with your device.
5. On your Bluetooth source device, turn Bluetooth on, which will allow it to discover
the speaker. (See the Bluetooth settings information for your device.)
6. Select 'Fugoo Speaker' on your Bluetooth source device.
7. Wait briefly for the speaker to discover your Bluetooth source device. If voice
prompts are enabled, the speaker will say, "Pairing successful” and “Connected”.
If you hear "Pairing is unsuccessful. Please try again.", try pairing again.
If you are using an iPhone or an iPad that has been previously paired to the
speaker, it may be necessary to 'Forget this Device', as follows:
1. Tap Settings.
2. Tap Bluetooth.
3. Tap the icon to the right of 'Fugoo Speaker'.
4. Tap 'Forget this Device'.
5. Tap 'Forget Device'.
As long as the speaker is in pairing mode, the iPhone should find the speaker
again, and pair with it.

User Manual Fugoo Bluetooth Speaker model FSNA1 page 7 9/18/2015
Disconnecting from a Bluetooth source device
To disconnect your Fugoo Bluetooth Speaker from a Bluetooth source device, you can:
•Click the (Bluetooth) button on your speaker.
•Move your speaker and the Bluetooth source device apart until they disconnect.
•Power off your speaker.
•Power off the source device.
•Power off Bluetooth on your source device.
•Plug an audio cable into the speakers audio input jack.
•Disconnecting temporarily interrupts the Bluetooth wireless link between the speaker
and the currently paired source device, which permits the speaker to re-connect with
another source device to which it has been previously paired.
•Click the Bluetooth button again to cause the speaker to search for another
previously-paired and currently connectable source device. The speaker will attempt
to connect with the next source device in its pairing list. If that device is not available
and connectable, the speaker will automatically attempt to re-connect to successive
source devices in its pairing list, in order, until if finds one that is available and
connectable.
•The disconnected device will still be paired with the speaker, allowing the speaker to
reconnect with it later.
Reconnecting
•To reconnect to a Bluetooth source device to which you have previously paired, just
power on the speaker and the source device, and place them within 33 feet (10
meters) of each other.
It’s also necessary that no cable be plugged into the audio input jack.
Typically, the speaker and the source device will reconnect automatically.
•If voice prompts are enabled, the speaker says "Connected".
Clearing all pairings
•To clear the Bluetooth pairings with all previously-paired source devices, turn the
speaker on, and then hold the (Bluetooth) button for ten seconds, until the
speaker says "All Bluetooth pairings cleared. Pairing mode. Please use the
Bluetooth settings of your device to connect.”
Audio playback
Adjusting the volume
•Click the +(Volume up) or –(Volume down) buttons to raise or lower the volume.
Playback
•Play / pause –Click  (Action) to toggle between playing and pausing your audio.
•Next track: click  and +to skip to the next track in the play list.
•Previous track: click  and –to skip to the previous track in the play list.

User Manual Fugoo Bluetooth Speaker model FSNA1 page 8 9/18/2015
Taking a call –Speakerphone mode
Your Fugoo Bluetooth Speaker can act as a very high quality speakerphone for your cell
phone or smartphone. You can receive and end calls and manage a call on hold.
Taking a call
If you take a call on your phone when it is connected to the speaker, you'll hear it ringing
through the speaker.
•Click the  (Action) button to receive (pick up) the call.
•Talk and listen through the speaker during the call.
•Click +or –to raise or lower the volume.
•Click +and –simultaneously to mute / un-mute the microphone.
•Click  to end (hang up) the call.
•If you have a call on hold, press  to switch to it, and to switch back to the other call.
•Double-click  to end the active call and switch to the call on hold.
•Use your phone’s controls to transfer the call from the speaker back to your phone.
Voice Response mode
•While your phone or other device is paired to the speaker (and a call is not in
progress) hold the  (Action) button for one second. A tone sounds through the
speaker to activate a voice response service, such as Siri, Google Now, or Cortana.
•Speak voice response commands through the speaker’s microphone.
•Click + or –to raise or lower the volume.
•Click (Action) to cancel voice response mode.
LED indications
The LED between the Power and Bluetooth buttons shows either the connection status or
the charging status of the speaker. Charging status takes priority, so disconnect the
speaker from the AC adapter to see its connection status.
•Blinking blue/red: pairing mode –The speaker is available for pairing with a source
device, such as a smartphone, tablet. Mac, or PC.
•Blinking blue:ready –The speaker is not currently connected to a source device, but is
ready to connect to a source device with which it has been paired.
•Solid (continuous) blue: connected –The speaker is currently paired with and
connected to a source device.
•Pulsing green: charging –The speaker is charging the battery. This indication
overrides the connection status indications above.
•Solid (continuous) green: charged –The speaker has completely charged the battery.
This indication overrides the connection status indications above.

User Manual Fugoo Bluetooth Speaker model FSNA1 page 9 9/18/2015
Customization / other functions
Normal and Loud modes
•There are two loudness modes for your Fugoo Bluetooth Speaker. Normal mode is
the default, and is designed for best overall sound with most types of music. Loud
mode is quite a bit louder, and is ideal for playing music outdoors, and in large
rooms. Both modes employ dynamic realtime equalization to boost the loudness of
songs that have been recorded at lower volume levels.
•To switch from one mode to the other, start with the speaker off, then press and hold
the Action (O) button and press the power button. The speaker will turn on, and
announce which mode it's in.
Voice prompts and tones level
•There are three voice prompt and alert tone levels: Normal, Low and Off. Normal is
the factory default volume level –the level you will hear when you first turn on your
Fugoo Bluetooth Speaker. The Low level is about 20% lower than the Normal level.
•To change the voice prompt and tone levels from Normal to Low, start with the
speaker off, then press and hold the –(volume down) and +(volume up) buttons,
then also press the (Power) button for one second. The speaker will turn on, and
announce that voice prompts have been set to Low.
•Follow the same steps as above to change the level from Low to Off.
•Follow the same steps again to change the level from Off to Normal.
Power Save mode On / Off
The speaker can shut itself off to conserve power, after a period of inactivity –meaning
no button presses, and no audio playback. Power Save mode can be toggled on and off
by holding the – (volume down) button while turning the speaker on with the (Power)
button. The default state is on.
If Power Save mode is on, then the speaker will shut itself off as follows…
If the speaker is not connected to a source device and is not plugged into a power
source, the speaker turns off after 15 minutes of inactivity.
If the speaker is not connected to a source device and is plugged into a power source,
the speaker turns off after 30 minutes of inactivity.
If the speaker is connected to a source device and is not plugged into a power source,
the speaker turns off after 1 hour of inactivity.
If the speaker is connected to a source device and is plugged into a power source,
the speaker will not shut off automatically.
If Power Save mode is off, then the speaker will remain on until you turn it off by pressing
the (Power) button for one second
Resetting the speaker
•It the speaker becomes unresponsive, or behaves differently than you believe it
should, try resetting it. Hold the (Bluetooth) and  (Action) buttons for ten
seconds. This will reset the speaker, without clearing its pairing list.
•The speaker can be reset whether it's on or off.

User Manual Fugoo Bluetooth Speaker model FSNA1 page 10 9/18/2015
Updating your Fugoo Bluetooth Speaker's firmware
Fugoo posts new versions of the speaker firmware from time to time to add features,
improve the sound quality and loudness, and enhance the user interface.
The firmware updates are installed by an Update Utility that is compatible with Windows
8, Windows 7, Windows Vista, Windows XP, and Mac OSX 10.6 and higher.
Please visit the Start page on our website to download the Update Utility and the latest
speaker firmware. For best results, fire up either the Mac video or the Windows video,
and follow along by pausing the video at each step.
Care and maintenance
• CAUTION: Never use your Fugoo Bluetooth Speaker without one of its jackets
(Style, Sport, or Tough). The jacket is an essential part of your speaker because it
protects the speaker drivers from damage.
• CAUTION: Always clean your speaker core as soon as possible after exposure to
salt water or mud. See the cleaning instructions below. This will insure that it holds up
well over time, and always sounds its best.
• CAUTION: The Micro USB and .35mm audio connectors are waterproof, but be sure
to rinse them under warm tap water after exposure to salt water, and then let them dry
thoroughly before connecting cables to them.
Cleaning the speaker core
•After a day at the sandy beach or the muddy trail, remove your speaker core from its
jacket and rinse it off with warm water from a sink faucet. Don't use soap,
detergents, or any chemical cleaning products. Don't use a garden hose,
compressed air, or any other high-pressure stream to clean it, as this may damage
the speaker drivers. Don't use a brush of any kind, for the same reason.
Cleaning the Style and Sport jackets
•Remove your sandy or muddy Style or Sport jacket from the speaker core, and rinse it
off with warm water from a sink faucet. Don't use a garden hose or any other high-
pressure stream to clean it, as this may damage the jacket's fabric covering. Don't use a
brush of any kind, for the same reason. Feel free to use soap or detergent.
Cleaning the Tough jacket
•Remove your sandy or muddy Tough jacket from the speaker core, and rinse it off
with soap or detergent, and a nylon or natural bristle brush to help remove debris.
Never use a metal brush, which may scratch the surface of the jacket.
