Fugoo FSNA1 User manual

User Manual Fugoo Bluetooth Speaker model FSNA1 page 1 9/25/2014
Fugoo Bluetooth Speaker
User Manual
version 2.6, 25 Sept 2014 Model FSNA1
Mo del FSNA1
Contents
In the Box ............................................................................................................................2
Speaker controls..................................................................................................................2
Charging...............................................................................................................................5
Checking your battery level..........................................................................................5
Charging your speaker ................................................................................................5
Turning on the speaker........................................................................................................5
Connecting ..........................................................................................................................6
Connecting through an audio cable...................................................................................6
Pairing and connecting with another Bluetooth device.....................................................6
Disconnecting from another Bluetooth device...................................................................6
Reconnecting......................................................................................................................7
Clearing all pairings ............................................................................................................7
Audio playback.....................................................................................................................7
Adjusting the volume...................................................................................................7
Playback ......................................................................................................................7
Taking a call - speakerphone mode.....................................................................................7
Taking a call..............................................................................................................................7
Voice Response mode.............................................................................................................8
Customization / other functions............................................................................................8
Normal and Loud modes .........................................................................................................8
Voice prompts: normal, low, off...............................................................................................8
Power Save on / off..................................................................................................................8
Resetting the speaker..............................................................................................................9
Updating the firmware..............................................................................................................9
Care and maintenance.........................................................................................................9
Cleaning the core.....................................................................................................................9
Cleaning the Style and Sport jackets......................................................................................9
Cleaning the Tough jacket.......................................................................................................9
Changing jackets..................................................................................................................10
Specifications.......................................................................................................................12
Optional accessories............................................................................................................14
Remote control.........................................................................................................................14
Bike mount ...............................................................................................................................14
Clip ............................................................................................................................................14
Strap..........................................................................................................................................14
Customer support.................................................................................................................14
FCC and legal notices..........................................................................................................15

User Manual Fugoo Bluetooth Speaker model FSNA1 page 2 9/25/2014
In the box
• Fugoo Bluetooth Speaker, with one jacket –Style, Sport, or Tough
• AC wall charger
• Micro USB charging cable
• 3.5 mm audio cable
• Accessory pouch
• Startup Guide
• Thumbscrews –for Sport and Tough models
• Hex wrench –for Tough model only
Fugoo Bluetooth Speaker controls

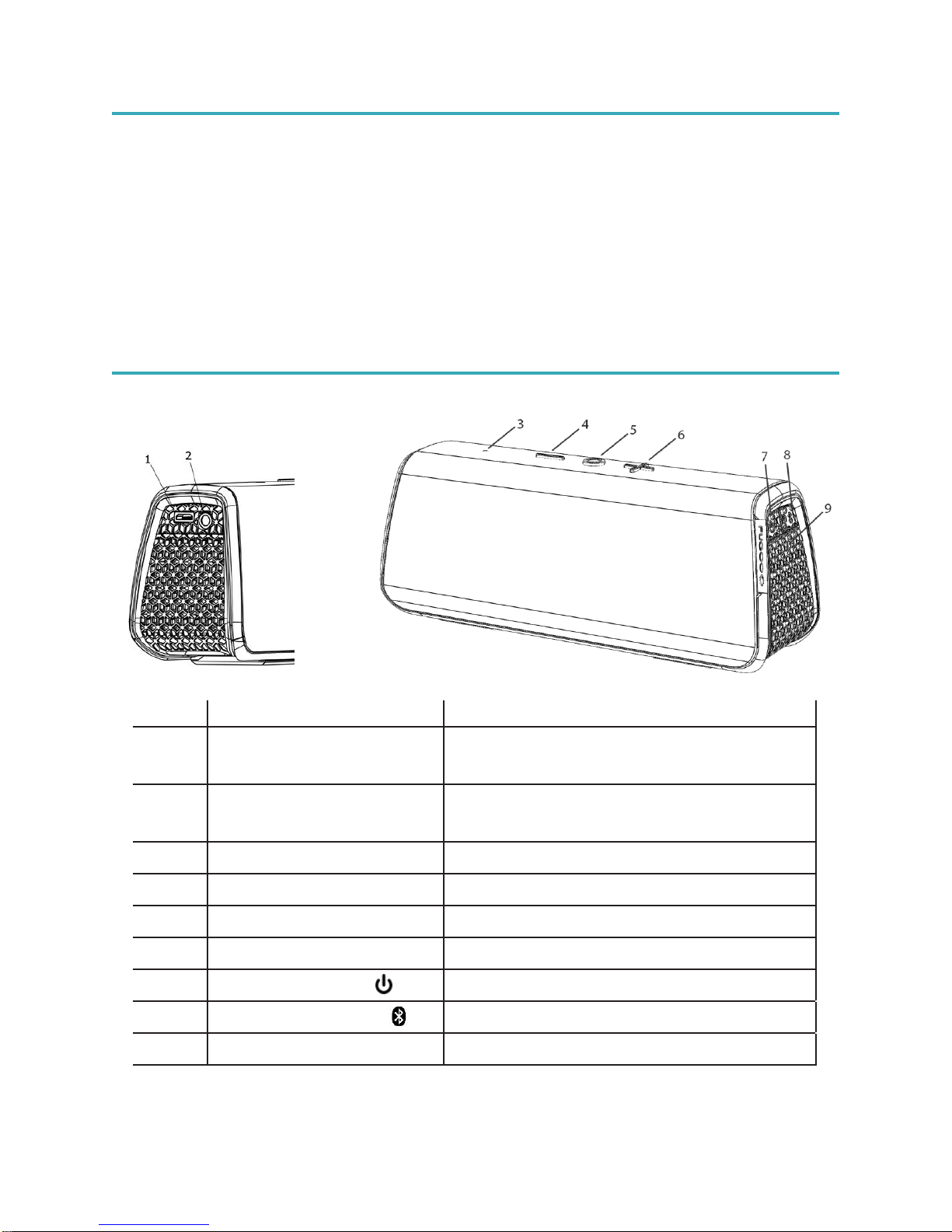

Pa r t
Description
1
Micro-USB charging
connector / update port
For charging the speaker,
and for updating its firmware
2
3.5 mm AUX input jack
For playing music from the headphone
output of another device
3
Microphone
For speakerphone function
4
Volume down ( –)
Lowers the volume
5
Action button (  )
Pause / Play and speakerphone control.
6
Volume up button ( + )
Raises the volume
7
Power button ( )
Turns the speaker on / off
8
Bluetooth button ( )
For pairing with other Bluetooth devices
9
LED indicator
Indicates status of the speaker

User Manual Fugoo Bluetooth Speaker model FSNA1 page 3 9/25/2014

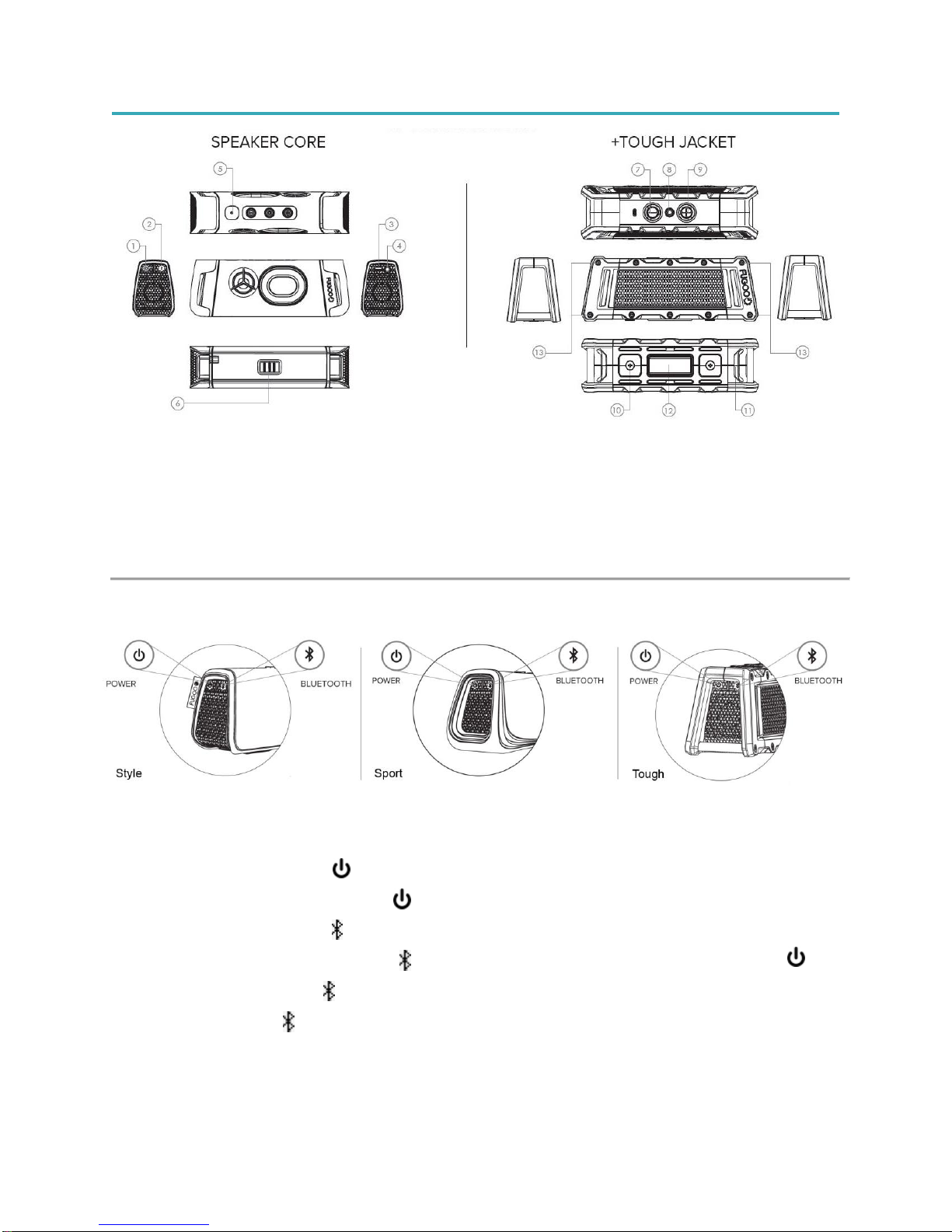

1. Power button
2. Bluetooth button
3. Micro-USB connector
4. AUX-in audio jack
5. Microphone
6.Release push grip
7. Volume down
8. Action button
9. Volume Up
10. Mounting plate holes
11. Release latch
1. Power button
2. Bluetooth button
3. Micro-USB connector
4. AUX-in audio jack
5. Microphone
6.Release push grip
7. Volume down
8. Action button
9. Volume Up
10. Thumb screws
11. Self-draining holes.
12. Mounting plate
,

User Manual Fugoo Bluetooth Speaker model FSNA1 page 4 9/25/2014
1. Power button
2. Bluetooth button
3. Micro-USB connector
4. AUX-in audio jack
5. Microphone
6.Release push grip
7. Volume down
8. Action button
9. Volume Up
10. Thumb screws
11. Self-draining holes.
12. Mounting plate
13. Side retaining screw
POWERING UP AND CONNECTIONS
Power On / Off ....................Hold 1 second
Battery status..................................... Click
Pair with a device................Hold 3 seconds
Disconnect device............................... Click
Clear all paired devices.....Hold 10 seconds
Reset...................... Hold and O10 seconds
PLAY CONTROL
Play / Pause.......................................Click O
Volume up / down ..........................Click +/ -
Previous track ................................Click Oand -
Next track......................................Click Oand +
Voice Control............................Hold O1 second
Voice prompts on / off.........................................
..................................Hold + and -, then Hold
SPEAKERPHONE
Answer / end call.....................................Click O
Reject a call ................................ Double-click O
Mute microphone in a call..............Click +and -

User Manual Fugoo Bluetooth Speaker model FSNA1 page 5 9/25/2014
Charging your Fugoo Bluetooth Speaker
Checking the battery level
•Click the (Power) button momentarily . The LED blinks one to six times to indicate
the charge of the battery.
•If voice prompts are enabled, the speaker responds with "Battery is almost full." or
another indication of how fully charged the battery is.
LED indicator
Voice prompt
six green blinks
Battery is full.
five green blinks
Battery is almost full.
four green blinks
Battery is three quarters.
three green blinks
Battery is half.
two green blinks
Battery is one quarter.
one green blink
Battery is low.
blinking red
Please recharge the battery. Powering off.
When the speaker is charging, the LED will slowly pulse on/off green to indicate it is in
charging mode.
When the speaker is charging and has reached full charge, the LED will glow solid green.
Charging your speaker
•Connect the Micro-USB charging cable to the speaker and to the supplied AC adapter.
•Plug the AC adapter into a power outlet.
•The LED blinks green during charging.
•The LED glows steady green once the battery is fully charged, if the speaker is on.
• CAUTION: Never use your Fugoo Bluetooth Speaker without one of its jackets
(Style, Sport, or Tough). The jacket is an essential part of your speaker because it
protects the speaker drivers from damage. The tweeters, especially, could be
damaged by a thumbnail, or by contact with any other relatively hard-edged object.
Turning on your speaker
• Click the (Power) button momentarily to turn the speaker on.
• When the speaker runs from battery power, it will turn itself off after 15 minutes of inactivity.
• Hold the (Power) button for one second to turn the speaker off.

User Manual Fugoo Bluetooth Speaker model FSNA1 page 6 9/25/2014
Connecting your speaker to smartphones and other devices
You can connect to your Fugoo Bluetooth Speaker either through its AUX input jack
or through a Bluetooth wireless link. Only one of these inputs can be active at a time.
Connecting through an audio cable to the AUX input
•Connect one end of a 3.5 mm audio cable to your Fugoo Bluetooth Speaker's AUX
input jack, then connect the other end to the headphones jack of your audio device.
•The LED glows blue and a voice may say, “Disconnected. Bluetooth off. Connected”
•Plugging an audio cable into the speaker's AUX input jack turns off the Bluetooth
wireless link, to save power and maximize battery life.
Pairing and connecting with another Bluetooth device
1. Make sure that a 3.5 mm audio cable is not connected to the speaker's AUX input.
2. Place your Fugoo Bluetooth Speaker and your other Bluetooth device within
30 feet (10 meters) of each other.
3. Turn the speaker and the other device on.
4. Hold the (Bluetooth) button for three seconds. The LED blinks blue and red
repeatedly. If voice prompts are enabled, the speaker says, “Pairing mode.
Use the Bluetooth settings of your device to connect.” The speaker will
remain in pairing mode for three minutes.
5. On your other Bluetooth device, turn on Bluetooth, which will allow it to discover
the speaker. (See the Bluetooth settings information for your device.)
6. Select 'Fugoo Speaker' on your Bluetooth device.
7. Wait briefly for the speaker to discover your Bluetooth device. If voice prompts
are enabled, the speaker will say, "Pairing successful” and “Connected”.
If you hear "Pairing is unsuccessful. Please try again. Powering off.", try
clearing “Fugoo Speaker” from the device’s list (Select ‘Forget this device’ on
an iPhone), and then try pairing again.
Disconnecting from another Bluetooth device
To disconnect your Fugoo Bluetooth Speaker from another Bluetooth device, you can:
•Click the (Bluetooth) button on your speaker.
•Move your speaker and the other Bluetooth device more than 30 feet (10 meters) apart.
•Turn off your speaker.
•Turn off the other device.
•Turn off Bluetooth on your other device.
•Disconnecting temporarily interrupts the Bluetooth wireless link between the speaker
and the other devices, which permits the speaker to re-connect with another device
it has been paired with. The disconnected device will still be paired with the speaker,
allowing them to automatically reconnect when they are both on and within 30 feet
of each other.

User Manual Fugoo Bluetooth Speaker model FSNA1 page 7 9/25/2014
Re-connecting
•To reconnect to a Bluetooth device that you have paired with, just turn on the
speaker and the other device, and place them within 30 feet (10 meters) of each
other. Typically, they will reconnect automatically.
•If voice prompts are enabled, the speaker says "Connected".
Clearing all pairings
•To clear all of the Bluetooth pairings with other devices, turn the speaker on, and
then hold the (Bluetooth) button for eight seconds, until the speaker says "All
Bluetooth pairings cleared. Pairing mode. Please use the Bluetooth settings of your
device to connect.”
Audio playback
Adjusting the volume
•Click the +(Volume up) or –(Volume down) buttons to raise or lower the volume.
Playback
•Click the  (Action) button to play or pause your audio. OR
•Use the playback controls on your audio device to control playback.
Navigation
•Click the  (Action) button together with the + and –buttons to skip to the next and
previous track of the recording you're listening to.
•Next track: click  and +.
•Previous track: click  and –.
Taking a call –Speakerphone mode
Your Fugoo Bluetooth Speaker can act as a very high quality speakerphone for your cell
phone or smartphone. You can receive and end calls and manage a call on hold.
Taking a call
If you take a call on your phone when it is connected to the speaker, you'll hear it ringing
through the speaker.
•Click the  (Action) button to receive (pick up) the call.
•Talk and listen through the speaker during the call
•Click +or –to raise or lower the volume.
•Click +and –to mute the microphone.
•Click  to end (hang up) the call.
•If you have a call on hold, press  to switch to it, and to switch back to the other call.
•Click  to end the active call and switch to the call on hold.
•Use your phone’s controls if you would like to transfer the call back to your phone.

User Manual Fugoo Bluetooth Speaker model FSNA1 page 8 9/25/2014
Voice Response mode
•While your phone or other device is paired to the speaker (and a call is not in
progress) hold  (Action) for one second. A tone sounds through the speaker to
activate a voice response service, such as Siri or Google Now.
•Speak voice response commands through the speaker’s microphone.
•Click + or –to raise or lower the volume.
•Click the  (Action) button) to cancel voice response mode.
Customization / other functions
Normal and Loud modes
•There are two EQ modes for your Fugoo Bluetooth Speaker. Normal mode is the
default, and is designed for best overall sound with most types of music. Loud mode
is significantly louder, and is optimized for playing music outdoors, and in large
rooms. Both modes employ dynamic realtime equalization to boost the loudness of
songs that have been recorded at lower volume levels.
•To switch from one mode to the other, start with the speaker off, then press and hold
the Action (O) button and press the power button. The speaker will turn on, and
announce which mode it's in.
Voice prompts level
•There are three voice prompt levels: Normal, Low and Off. Normal is the factory
default volume level –the level for voice prompts you will hear when you first turn on
your Fugoo Bluetooth Speaker. The Low level is about 20% lower than the Normal
level.
•To change the voice prompt level from Normal to Low, start with the speaker off,
then press and hold the –(volume down) and +(volume up) buttons, then also
press the (Power) button for one second. The speaker will turn on, and announce
that voice prompts have been set to Low.
•Follow the same steps as above to change the voice prompt level from Low to Off.
•Follow the same steps again to change the voice prompt level from Off to Normal.
Power Save On / Off
The speaker can shut itself off to conserve power, after a period of inactivity. Beginning
with firmware version 1.0.43, the Power Save feature can be toggled on and off by
holding the – (volume down) button while turning the speaker on with the (Power)
button.
If Power Save is on, then the speaker will shut itself off as follows…
If the speaker is not connected to a source device
and is not charging, the speaker turns off after 15 minutes of inactivity.
If the speaker is not connected to a source device
and is charging, the speaker turns off after 30 minutes of inactivity.

User Manual Fugoo Bluetooth Speaker model FSNA1 page 9 9/25/2014
If the speaker is connected to a source device
and is not charging, the speaker turns off after 1 hour of inactivity.
If the speaker is connected to a source device
and is charging, the speaker will not shut off automatically.
Resetting the speaker
•It the speaker becomes unresponsive, or behaves differently than you believe it
should, try resetting it. Hold the (Bluetooth) and  (Action) buttons for ten
seconds. This will reset the speaker's processor, without clearing its pairing list.
•The speaker can be reset whether it's on or off.
Updating your Fugoo Bluetooth Speaker's firmware
Fugoo posts new versions of the speaker firmware from time to time to add features,
improve the sound quality and loudness, and enhance the user interface.
The firmware updates are installed by an Update Utility that is compatible with Windows
8, Windows 7, Windows Vista, Windows XP, and Mac OSX 10.5 and higher.
Please visit the Downloads page on our website to download the Update Utility and the latest
speaker firmware.
Care and maintenance
Cleaning the core
•After a day at the sandy beach or the muddy trail, remove your speaker core from its
jacket and rinse it off with warm water from a sink faucet. Don't use soap,
detergents, or any chemical cleaning products. Don't use a garden hose,
compressed air, or any other high-pressure stream to clean it, as this may damage
the speaker drivers. Don't use a brush of any kind, for the same reason.
Cleaning the Style and Sport jackets
•Remove your sandy or muddy Style or Sport jacket from the speaker core, and rinse
it off with warm water from a sink faucet. Don't use a garden hose or any other high-
pressure stream to clean it, as this may damage the jacket's fabric covering. Feel
free to use soap or detergent, but don't use a brush of any kind, for the same
reason.
Cleaning the Tough jacket
•Remove your sandy or muddy Tough jacket from the speaker core, and rinse it off
with soap or detergent, and a nylon or natural bristle brush to help remove debris.
Never use a metal brush, which may scratch the surface of the jacket.

User Manual Fugoo Bluetooth Speaker model FSNA1 page 10 9/25/2014

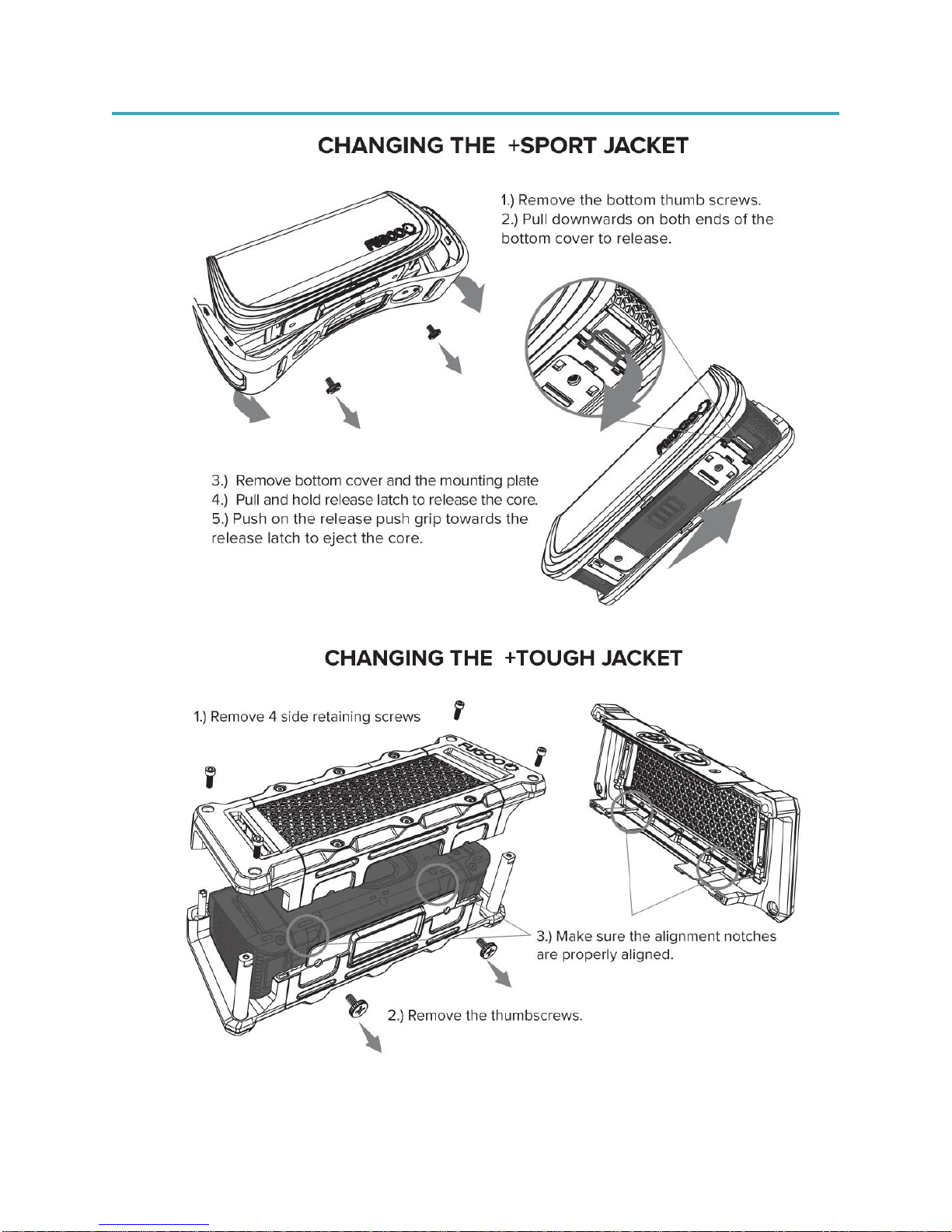

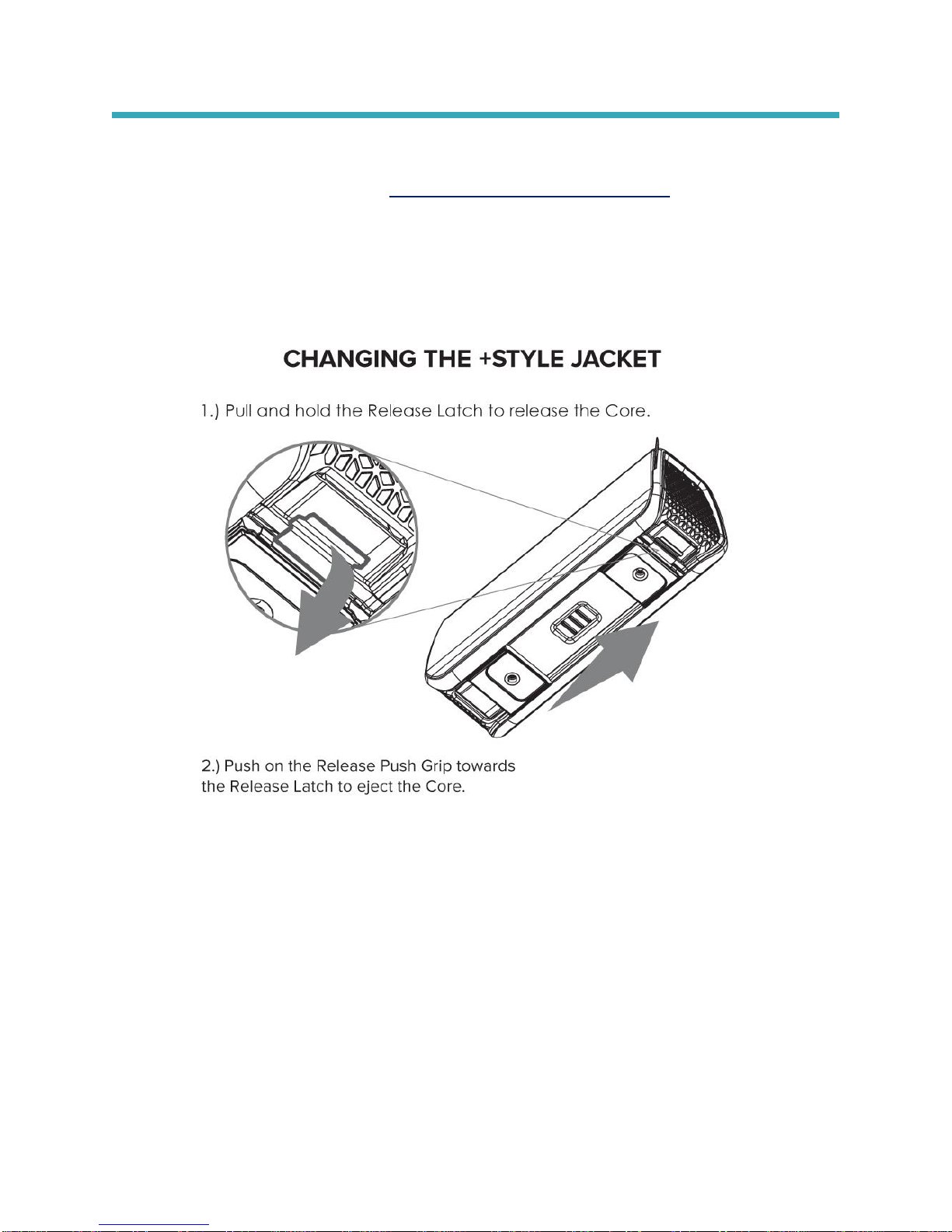

Changing a jacket
You can easily remove the jacket on your speaker, or swap it with another one.
Watch this helpful video How To: Changing Jackets on Fugoo Speakers:
• CAUTION: Never use your Fugoo Bluetooth Speaker without one of its jackets
(Style, Sport, or Tough). The jacket is an essential part of your speaker because it
protects the speaker drivers from damage. The tweeters, especially, could be
damaged by a thumbnail, or by contact with any other relatively hard-edged object.
