Your ESPRIMO Mobile
Your ESPRIMO Mobile
…offers you innovative technology and ergonomic design. This makes your
notebook a reliable, convenient mobile PC.
Your notebook is available in several different versions. Most of the sections in this manual
apply to all models ‑any differences are pointed out separately. Some of the illustrations and
features in this manual may differ from your model and are for guidance only.
Your Windows operating system is already pre-installed and optimally configured. That means
you’re ready to start when you switch on your notebook for the first time.
Your notebook features the very latest technology so that you get the best performance from
your computing experience. Depending on which model you own, you have access to:
• upto4GBofmainmemory(RAM)
• a CD/DVD burner-DVD for watching DVD movies and writing your own CDs and DVDs
• several USB ports which provide easy expansion with webcams, game pads, printers and more
• an internal modem for connecting to the Internet (optional)
• an ExpressCard slot for operating an ExpressCard/34 or ExpressCard/54
• a SIM card slot that can be used to operate a SIM card (depending on model)
• an onboard sound card and two stereo speakers for your listening pleasure. You can even
connect a microphone and external speakers for even better performance.
With the user-friendly BIOS-Setup you can control the hardware of your notebook and protect your
system better against unauthorised access by using the powerful password features.
This operating manual describes how to get your notebook up and running and how to use it.
Further information on this notebook is provided:
• In the "Professional Notebook" Operating Manual
• In the "Safety" and "Warranty" manuals
• in the documentation of the operating system
• in the information files (e.g. *.TXT, *.DOC, *.WRI, *.HLP, *.PDF)
You can find information on accessories for your Notebook at
"www.fujitsu-siemens.com/accessories".
A26391-K243-Z120-1-7619, edition 2 1

Your ESPRIMO Mobile
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
this warning will endanger your life, will damage the device or lead to loss
of data. The warranty will be invalidated if you cause defects in the device
through failure to take notice of this warning
indicates important information that is required to use the device properly.
►indicates an activity that must be performed in the order shown
indicates a result
This style flags data entered using the keyboard in a program dialog or command
line, e.g. your password (Name123) or a command to launch a program
(start.exe)
This style refers to information displayed by a program on the screen, e.g.:
Installation is completed
This style is for
• terms and texts in a software user interface, e.g.: Click Save.
• names of programs or files, e.g. Windows or setup.exe.
"This style" is for
• cross-references to another section, e.g. "Safety information"
• Cross-references to an external source, e.g. a web address: For more
information, go to "www.fujitsu-siemens.com"
• indicates names of CDs and DVDs as well as names and titles of other
materials, e.g.: "CD/DVD Drivers & Utilities" or "Safety" manual
Abc refers to a key on the keyboard, e.g.: F10
This style flags concepts and text that are emphasised or highlighted, e.g.: Do not
switch off device
2 A26391-K243-Z120-1-7619, edition 2

Important notes
Important notes
Take note of the safety hints provided in the "Safety" manual, in the "Professional
Notebook" operating manual and in this manual.
A26391-K243-Z120-1-7619, edition 2 3

Ports and operating elements
Ports and operating elements
This chapter presents the individual hardware components. This will provide you with an
overview of the ports and operating elements on the notebook.
Please familiarise yourself with these components before you start to work with your notebook.
StatusindicatorsMicrophoneExpressCard slotLoudspeakerON/OFFswitchTou c hp a dTouchpad buttonsHeadphonesport/LineOutUSBportDC inputjack(DCIN)KensingtonLo ckOpticaldriveMonitorportLANpo rtModemp ortHard diskBatteryBatteryrelea selatch
14
13
15
16
19
3
4
6
1
5
7
8
20
11
9
12
17
18
17
2
10 3
1 = ON/OFF switch
2 = Built-in microphone
3 = Loudspeaker
4 = Touchpad
5 = Touchpad buttons
6 = Status indicators
7 = Microphone port
8 = Headphones port/Line Out
9 = PC Card/ExpressCard slot
10 = LAN port
11 = Monitor port
12 = DC input jack (DC IN)
13 = USB ports
14 = Optical drive
15 = Kensington Lock
16 = Hard disk
17 = Battery release latch
18 = Battery
19 = Modem port
20 = Memory modules cover
4 A26391-K243-Z120-1-7619, edition 2

Ports and operating elements
Switching on the notebook
2
1
►Slide the release button in direction of the
arrow (1) and open the LCD screen (2).
1
►Press the ON/OFF switch (1) to switch
the notebook on.
The power-on indicator is lit.
Windows XP
You can configure the power button with Start - (Settings) - Control Panel -
Performance and Maintenance - Power Options - Advanced.
Windows Vista
You can configure the power button with Start - (Settings) - Control
Panel - Mobile PC - Power Options.
If you have assigned a password, you must enter this when requested to do so, in order
to start the operating system. Further information can be found in the "Professional
Notebook" operating manual, section entitled "Security functions".
A26391-K243-Z120-1-7619, edition 2 5

Ports and operating elements
Switching off the Notebook
►Close all applications and shut down your operating system (please
see operating system manual).
If the notebook cannot be shut down properly, press and hold the ON/OFF button for
approximately four seconds. The notebook will switch off. Any unsaved data may be lost.
►Close the LCD screen so that it
locks into place.
6 A26391-K243-Z120-1-7619, edition 2

Ports and operating elements

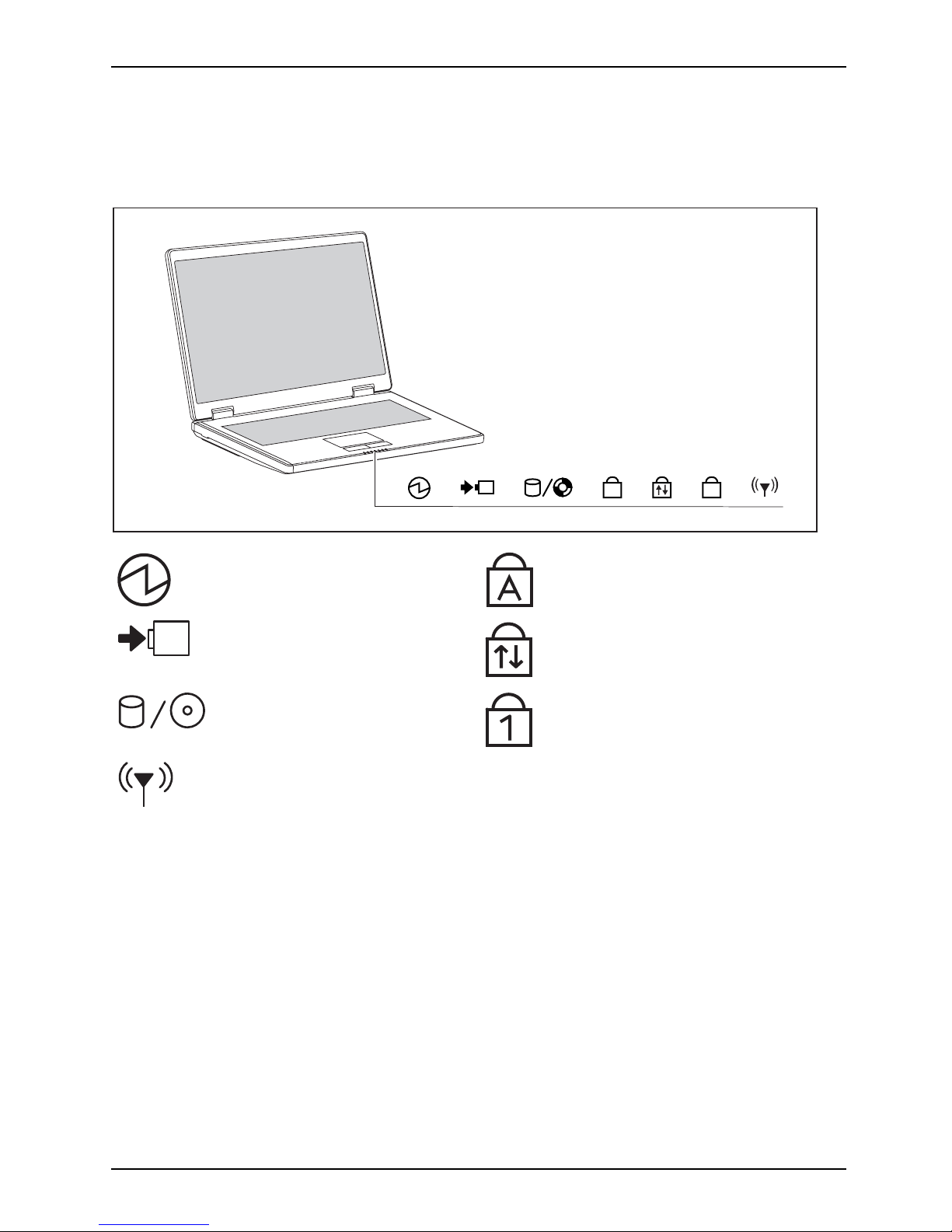

Status indicators
Statusindicator s
The status indicators provide information about the status of the power supply,
the drives and the keyboard functions.
A 1
Power indicator Caps Lock indicator
Battery charging indicator Scroll Lock indicator
Drive indicator Num Lock indicator
Radio components indicator
A26391-K243-Z120-1-7619, edition 2 7

Ports and operating elements
The meanings of the symbols are as follows:
Power-on indicator – mains operation
• Indicator lights up green: the notebook is being powered from the mains.
• Indicator flashes green: the notebook is in standby mode.
Power-on indicator – battery operation
• Indicator lights up green: the notebook is being powered from the battery.
• Indicator flashes green: the notebook is in standby mode.
• The indicator lights up orange: the battery is nearly empty.
• Indicator flashes orange: the notebook is in standby mode and the battery
is empty.
• The indicator flashes yellow: the notebook is in standby mode and the battery
is almost empty.
• The indicator lights up red: the battery is flat.
Standbyindi catorPowe rindicator
Battery charging indicator
Indicator lights up: the battery is charging.
BatteryindicatorBatterysymbolBattery chargingindi cator
Drive indicator
Indicator lights up: one of the drives (e.g. hard disk, CD/DVD) is being accessed.
Driveindicat orIndicator
Caps Lock indicator
Indicator lights up: the Caps Lock key has been pressed.
All the characters you type appear in upper case. In the case of overlay keys, the
character printed on the upper left of the key appears when that key is pressed.
CapsLocki ndicatorCapsLock
Scroll Lock indicator
Indicator lights up: the key combination Fn +Scroll Lock has been pressed.
The effect this key has varies from programme to programme.
ScrollLock:ScrollL ockindicatorScroll
Num Lock indicator
Indicator lights up: the key combination Fn +Num has been pressed.
The numeric keypad is activated. In the case of overlay keys, the character printed
on the upper right of the key appears when that key is pressed.
NumLockNumLockindicator
Radio components indicator
Indicator is illuminated: The key combination Fn +F1 has been pressed. One or
more radio components are switched on.
Radiocomponents indicator
8 A26391-K243-Z120-1-7619, edition 2

Ports and operating elements
Key combinations
The key combinations described below apply when using Microsoft Windows
operating systems. Some of the following key combinations may not function in
other operating systems and with some device drivers.
Key combinations are entered as follows:
►Press and hold the first key in the combination.
►While holding the first key down, press the other key or keys in the combination.
The key combination Ctrl +Alt Gr or Ctrl +Alt canbeusedon
external keyboards that do not not feature a Fn key.
Switching the radio components on/off
BluetoothBluetoothWLANWLANFn+F1
Use this key combination to start WirelessSelector. The radio components that
have been activated in BIOS Setup can be switched on and off individually.
The key combination Fn +F1 canonlybeusediftheWirelessSelector
software is installed on your device.
Switch loudspeakers ON/OFF
Fn+F3Louds peaker
This key combination switches your notebook’s loudspeakers off and on.
Decrease volume
Fn+F4Volume
This key combination reduces the volume of the integrated loudspeakers.
Increases volume
Fn+F5Volume
This key combination increases the volume of the integrated loudspeakers.
Switch touchpad ON/OFF
This key combination switches your notebook’s touchpad off and on.
Fn+F6Touchpad Touchpad
Decrease screen brightness
Fn+F8Screen brightness
This key combination decreases the brightness of the screen.
Increase screen brightness
Fn+F9Screen brightness
This key combination increases the brightness of the screen.
A26391-K243-Z120-1-7619, edition 2 9

Ports and operating elements
Toggle output screen
Fn+F10Toggle outputscre en
Use this key combination to select which screen(s) is/are used for display
if an external monitor is connected.
You can opt to use:
• just the notebook’s LCD screen
• just the external monitor
• both the LCD screen and the external monitor
Sleep mode
Activatee nergysaving modeFn+F12Sleepmode
Use this key combination to activate the currently configured energy saving
mode.
Switching between open applications
Use this key combination to switch between several open applications.
Alt+Tab
AltCtrl Del
SysRq
++
Performwarmreboot
This key combination restarts the notebook. First, press and hold
both the Ctrl and Alt keys, then press the Del key. First, the
Task Manager will be displayed. You must then press all three keys
again to reboot.
Ctrl+Alt+DelWa rm reb oot
Back tab
This key combination moves the cursor back to the previous tabular
stop.
Shift+TabBack tab
Key combinations using the Windows keys are detailed in the manual
for your operating system.
10 A26391-K243-Z120-1-7619, edition 2

Ports and operating elements
Removing and installing the battery
NotesBattery
Only use batteries approved by Fujitsu Siemens Computers for your notebook.
Never use force when inserting or removing a battery.
Make sure that no foreign bodies get into the battery connections.
Removing the battery
►Switch the notebook off and pull the power plug out of the mains socket.
Battery
►Disconnect all cables connected to the notebook.
►Turn your notebook over and place it on a stable, sturdy, flat surface. If necessary, lay an
anti-slip cloth on this surface to prevent the notebook from being scratched.
1
1
2

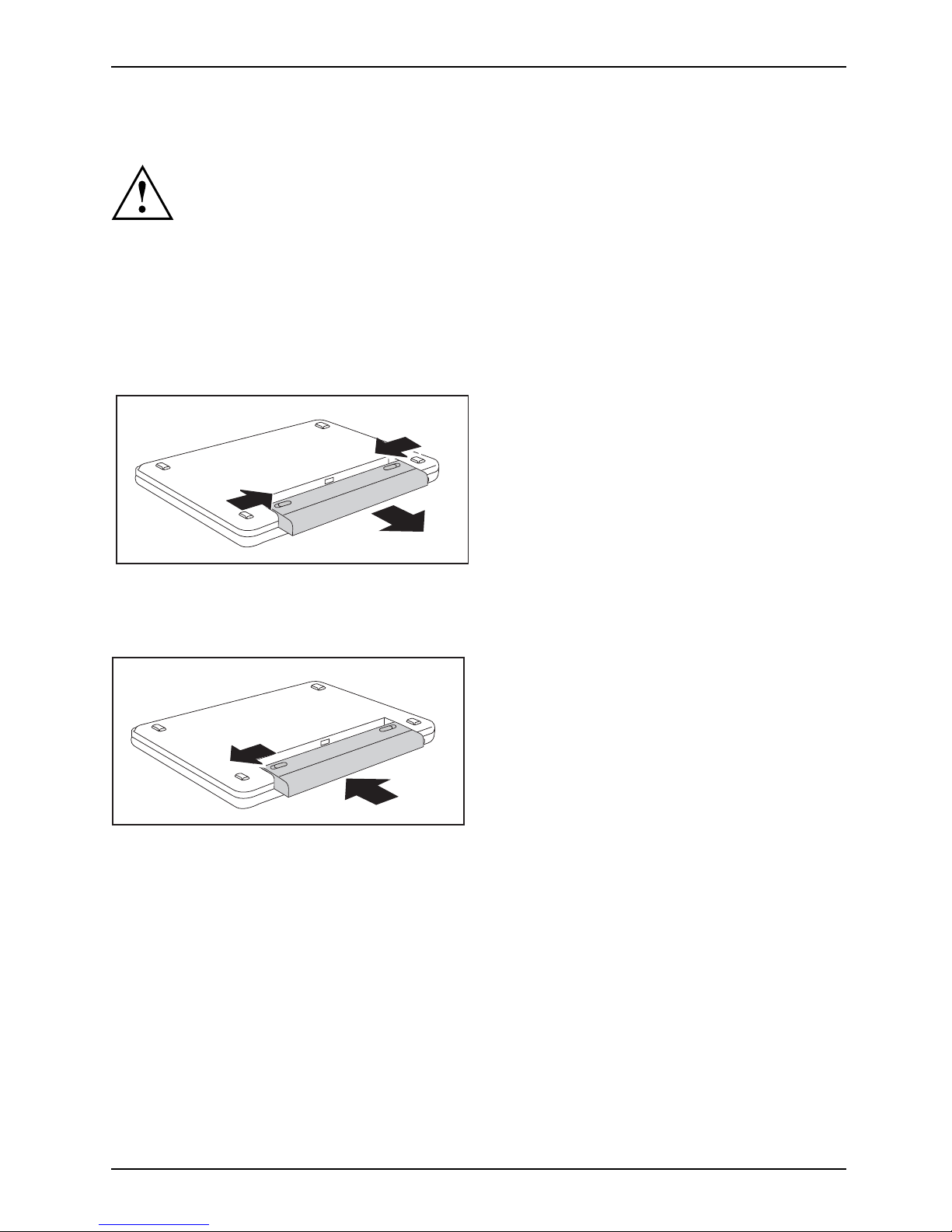

►Slide the battery locks in the direction of the
arrow (1) as far as possible and hold in place.
►Pull the battery out of the casing in the
direction of the arrow (2).
Installing the battery
1
2
►Push the battery into the battery
compartment until it engages (1).
Battery
A26391-K243-Z120-1-7619, edition 2 11

Ports and operating elements
SIM card (depending on your computer)
Follow the instructions supplied by the provider of the SIM card.
Inserting the SIM card
►Switch the notebook off and pull the power plug out of the mains socket.
►Disconnect all cables connected to the notebook.
►Turn your notebook over and place it on a stable, flat and clean surface. If necessary, lay
an anti-slip cloth on this surface to prevent the notebook from being scratched.
►Remove the battery (see Section "Removing the battery", Page 11).
1
►Insert the SIM card into the slot as shown
on the underside of the notebook (1). Make
sure you hear the SIM card click into place.
►Reinstall the battery (see "Installing the battery", Page 11).
►Turn the notebook the right way up and place it on a flat surface.
►Reconnect the cables that you disconnected previously.
12 A26391-K243-Z120-1-7619, edition 2
