Mainboard D2568

Are there ...
... any technical problems or other questions you need clarified?
Please contact:
●your sales partner
●your sales outlet
The latest information and updates (e. g. BIOS update) on our mainboards can be found on the
Internet under: http://www.fujitsu-siemens.com

This manual was produced by
Xerox Global Services
Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboek werd op recycling-papier gedrukt.
Herausgegeben von/Published by
Fujitsu Siemens Computers GmbH
Bestell-Nr./Order No.: A26361-D2568-Z120-1-7619
Ausgabe/Edition 1
Printed in the Federal Republic of Germany
October 2007

Mainboard D2568
Technical Manual
English
October 2007 edition 1

Intel, Xeon, and combinations thereof are trademarks of Intel Corporation, USA.
Phoenix, PhoenixBIOS are trademarks of Phoenix Technologies.
Microsoft and Windows are trademarks of Microsoft Corporation.
Linux is a trademark of Linus Torvalds.
IBM, PC, AT and PS/2 are trademarks of IBM Corporation.
ATI, ATI RAGE is a trademark of ATI Technologies Incorporated.
SMSC is a trademark of SMSC - Standard Microsystems Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corporation.
All other trademarks referenced are trademarks or registered trademarks of their respective
owners, whose protected rights are acknowledged.
Copyright © Fujitsu Siemens Computers GmbH 2007
All rights, including rights of translation, reproduction by printing, copying or similar methods,
even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved. Delivery subject to availability.
Right of technical modification reserved.

Contents
Overview Mainboard D2568 ............................................................................................................... 1
Mainboard D2568................................................................................................................................ 3
Notational conventions ......................................................................................................................... 3
Important notes..................................................................................................................................... 4
Information about boards ............................................................................................................. 4
Hardware Specifications....................................................................................................................... 5

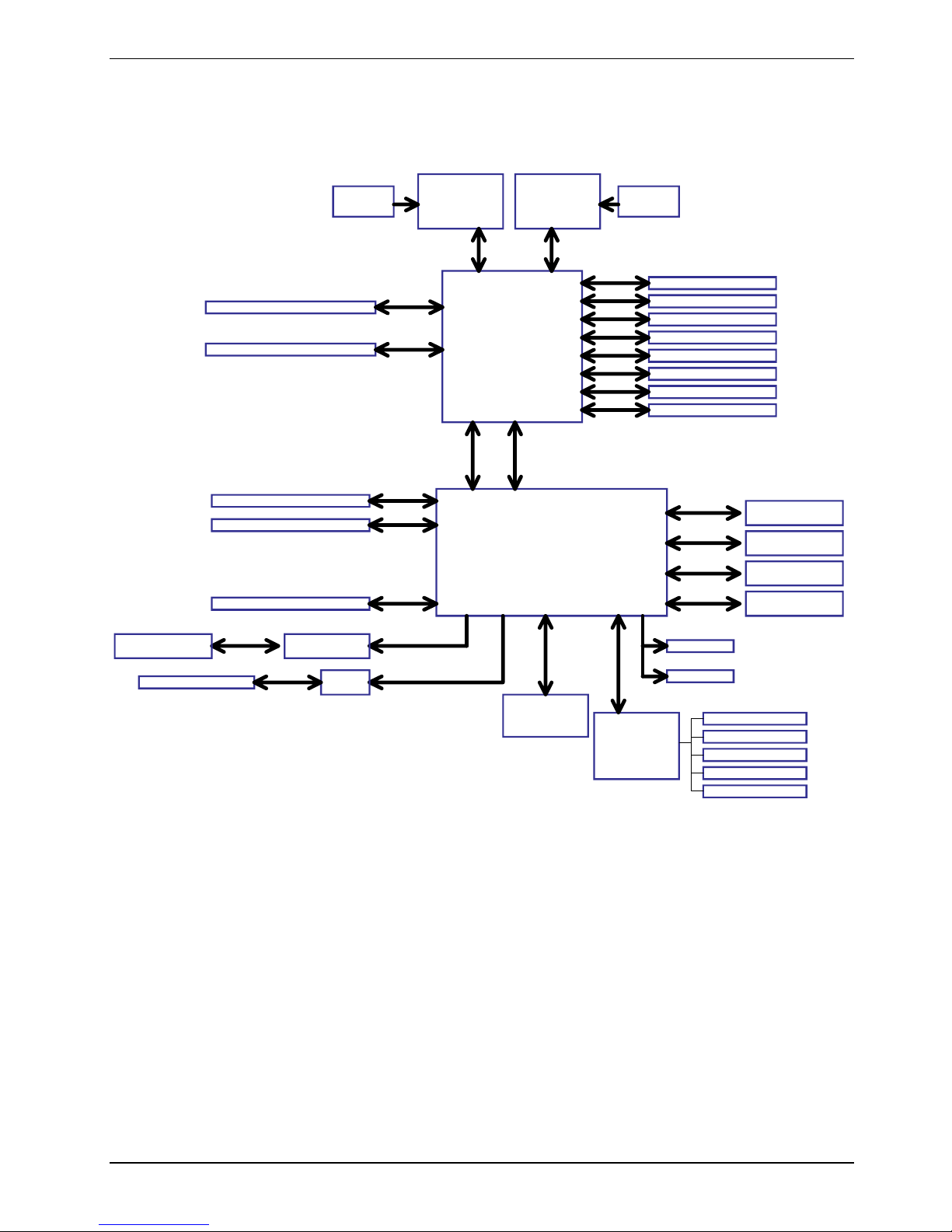

Block Diagram ...................................................................................................................................... 7
Choose Proper Parts for Your System .............................................................................................9
Central Processor Unit (CPU) Considerations .....................................................................................9
Memory Considerations........................................................................................................................ 9
Power Supply Considerations ............................................................................................................ 10
Board Installation ............................................................................................................................. 11

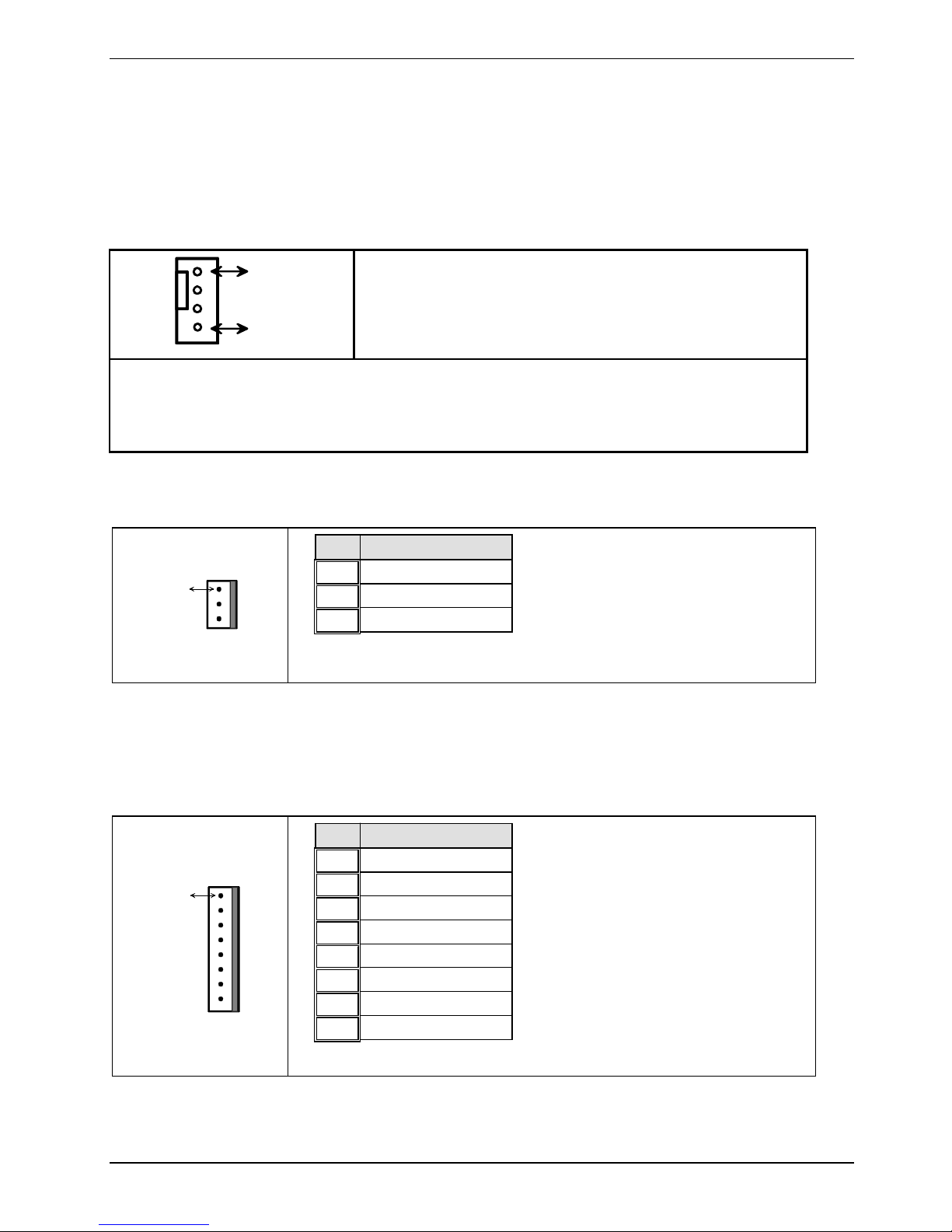

Fan Connector (FANx) ....................................................................................................................... 11

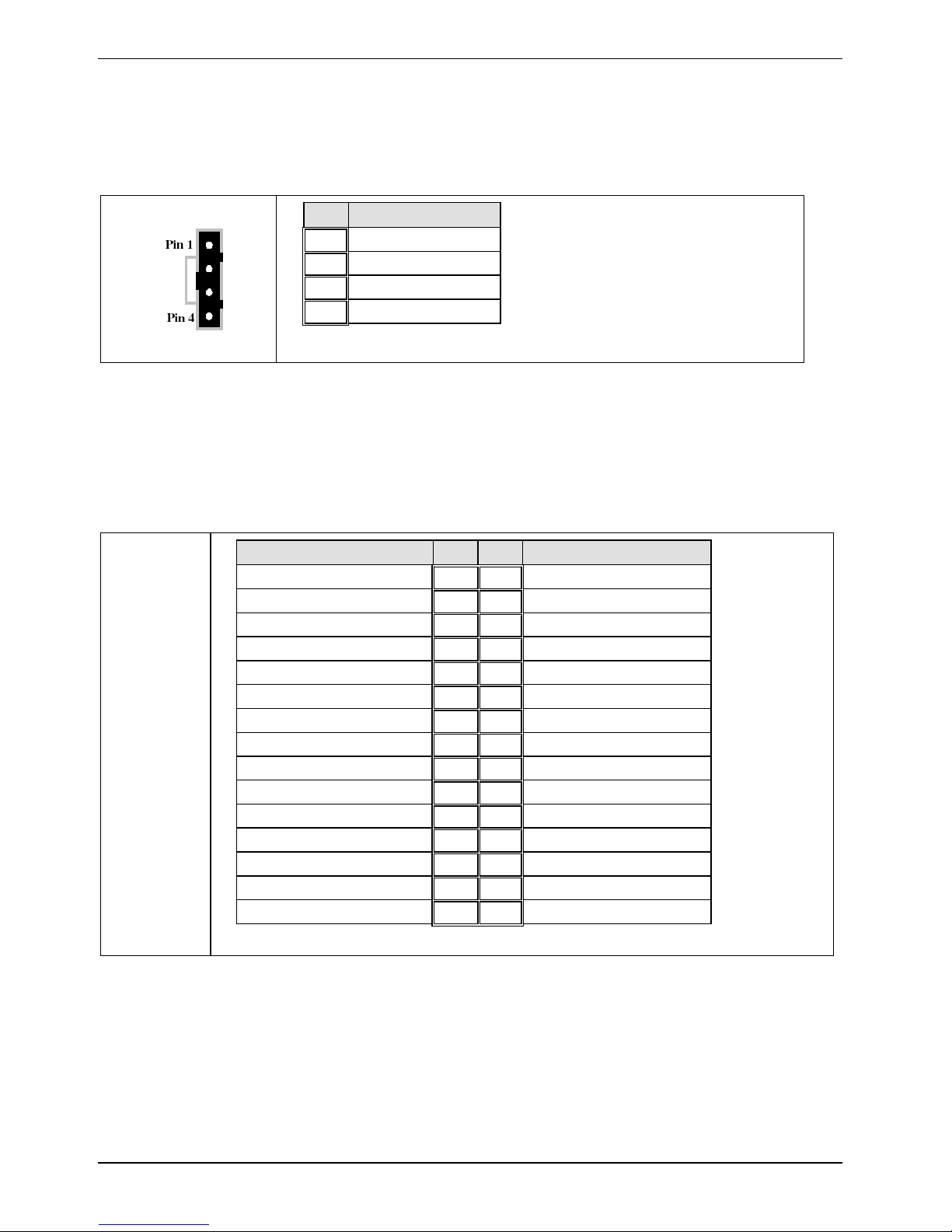

Chassis Intrusion (INTR) .................................................................................................................... 11
PC2004 PSU Connector (PC2004) .................................................................................................... 11
CD-In and AUC-IN (CD / AUX)........................................................................................................... 12
Front Panel Header (FP) .................................................................................................................... 12
LCD Header (LCD) ............................................................................................................................. 13
Installing the Memory ......................................................................................................................... 15
Memory Installation Procedure........................................................................................................... 16
Installing the Processor and Heatsink ................................................................................................ 18
Installing the processor .............................................................................................................. 18
Mounting heat sink ..................................................................................................................... 20
Installing Add-In Cards ....................................................................................................................... 21
Connecting External Devices ............................................................................................................. 22
External ports ............................................................................................................................. 22
Installing the Power Supply ................................................................................................................ 23
Replacing lithium battery ............................................................................................................ 24
BIOS update ....................................................................................................................................... 25
When should a BIOS update be carried out?............................................................................. 25
How does a BIOS update work? ........................................................................................................ 25
BIOS Recovery................................................................................................................................... 26
Glossary ............................................................................................................................................ 27
A26361-D2568-Z120-1-7619, edition 1

Contents
A26361-D2568-Z120-1-7619, Edition 1

Overview Mainboard D2568
External connectors rear
SPDIF 1394
Front panel
1) Both connector positions possible
2) 2pin or 3pin connector possible
1
2
Power On/Off 1)
Power On LEDHD - LED 2)
Message LED
Reset
Speaker
A26361-D2568-Z140-1-7619
USB dual channel
Pin 2
Pin 1
1 = Key
3 = VCC AUX
1 = PS/2 Wakeup Enable/Disable
(PS2 PWR)
2 = Front Panel Header (FP)
3 = LCD Header (LCD)
4 = Front USB Header (FRNT USB)
5 = IEEE 1394 Header
(FRNT1394 grey)
6 = Floppy Connector (FDD)
7 = IDE Connector (PRIMARY IDE)
8 = Internal Buzzer Enable (BUZ)
9 = BIOS Recovery (RCV)
10 = Clear CMOS Switch (CMOS)
11 = SAS Disable (SAS DIS)
12 = PCI-X Clock (PCIXCLK)
13 = Chassis Intrusion Header (INTR)
14 = Front Panel Audio Header
(AUDIO yellow)
15 = CD-IN (CD)
16 = AUX-IN (AUX)
17 = LAN Enable/Disable (NIC0/1)
18 = BIOS Write Protect (PROT)
19 = PC2004 PSU Connector (PC2004)
5 = Data negative Port X
4 = VCC AUX
2 = Not connected
6 = Data negative Port Y
7 = Data positive Port X
9 = GND
11 = Key
10 = GND
12 = Not connected
8 = Data positive Port Y
FAN4
SATA 5
SATA 4
SATA 3
SATA 2
FAN2
FAN0
FAN1
SATA
1SATA0
8P POWER
24P POWER
10P Power
3
2
FAN3
SAS3
SAS
4
FLOPPY
IDE
1
19 18 17 16
15
14
12
11
13
876
54
10
9
SAS2
SAS1
SAS0
SAS
5
SAS
6
SAS
7
DIMM1 DIMM2 DIMM3 DIMM4 DIMM5 DIMM6 DIMM7 DIMM8
Slot6 PCI-E x16
Slot5 PCI-E x8
Slot4 PCI-E x16
Slot1 PCI
Slot3 PCI-X 133
Slot2 PCI-X 133
A26361-D2568-Z120-1-7619, edition 1 1

Overview Mainboard D2568
2 A26361-D2568-Z120-1-7619, edition 1

Mainboard D2568
Mainboard D2568
Based on the Intel® 5400 chipset, the D2568 features some state-of-the-art technologies such as
dual/single 1333 MHz FSB Dual-Core Xeon® Processor 5200 Series as well as Quad-Core Xeon®
Processor 5400 Series support, multiple PCI-Express buses, quad channel DDR2 FB-DIMM memory
design, onboard Dual-Port PCI-Express Gigabit Ethernet, SATA ports, SAS ports and multiple
USB2.0 (Universal Serial Bus) ports.
i
The programme Acrobat Reader must be installed to be able to open the manuals. You will
find the programme on the CD-ROM directory: utls/acrobat.
For more details please read the according readme.txt files.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!indicates information which is important for your health or for preventing physical damage.
i
indicates additional information which is required to use the system properly.
►Text which follows this symbol describes activities that must be performed in the order shown.
This symbol indicates that you must press the Enter key.
Text in this typeface indicates screen outputs.
Text in this bold typeface indicates the entries you make via the keyboard.
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or terms.
A26361-D2568-Z120-1-7619, edition 1 3

Mainboard D2568
Important notes
With the mainboard installed you must open the system to access the mainboard. How to dismantle
and reassemble the system is described in the operating manual accompanying the system.
Connecting cables for peripherals must be adequately shielded to avoid interference.
!
Observe the safety notes in the operating manual of your system.
Incorrect replacement of the lithium battery may lead to a risk of explosion.
Components can become very hot during operation. Ensure you do not touch components
when making extensions to the mainboard. There is a danger of burns!
The shipped version of this board complies with the requirements of the EEC directive
2004/108/EC "Electromagnetic compatibility" and 2006/95/EC “Low voltage directive”.
Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the manual for
the receiving device.
i
The warranty is invalidated if the system is damaged during the installation or replacement
of expansions. Information on which expansions you can use is available from your sales
outlet or the customer service centre.
Information about boards
To prevent damage to the mainboard, the components and conductors on it, please take great care
when you insert or remove boards. Take great care to ensure that extension boards are slotted in
straight, without damaging components or conductors on the mainboard, or any other components,
for example EMI spring contacts.
Remove the plug from the mains outlet so that system and mainboard are totally disconnected from
the mains voltage.
Be careful with the locking mechanisms (catches, centring pins etc.) when you replace the
mainboard or components on it, for example memory modules or processors.
Never use sharp objects (screwdrivers) for leverage.
Boards with electrostatic sensitive devices (ESD) are identifiable by the label shown.
When you handle boards fitted with ESDs, you must, under all circumstances,
observe the following:
●You must always discharge static build up (e.g. by touching a grounded object)
before working.
●The equipment and tools you use must be free of static charges.
●Remove the power plug from the mains supply before inserting or removing
boards containing ESDs.
●Always hold boards with ESDs by their edges.
●Never touch pins or conductors on boards fitted with ESDs.
4 A26361-D2568-Z120-1-7619, edition 1

Mainboard D2568
Hardware Specifications
Processors
●Dual LGA771 sockets
●Supports one or two Dual-Core Intel®
Xeon® Processors 5200 Series or Quad-
Core Intel® Xeon® Processors 5400
Series
●1333 MHz Front-Side Bus
●VRD11.0 compliant voltage regulation
design
Integrated Mass Storage Port
●Six ESB2 integrated SATA2 ports up to 3
Gbit/s with SATA RAID 0,1, 10 and 5
●One bus-master UDMA ATA100/66/33
Parallel IDE channel support up to 2
ATA/ATAPI compliant devices
Chipset
●Intel® 5400 Seaburg MCH chipset
(North Bridge)
●Intel® 6321ESB I/O Controller
(South Bridge)
●Winbond W83627EHG Super I/O chip
Integrated SAS (Serial Attached SCSI)
●LSI 1068E SAS Controller with 8 ports
at PCI-E x4 interface of ESB2
●Supports RAID0 (Integrated Striping, IS),
RAID1 (Integrated Mirroring, IM) and
RAID1E (Integrated Mirroring Enhanced,
IE)
●Supports Hot Swapping, SMART and Hot
Spare Disks
Expansion Slots
●Two X16 PCI-Express high-performance
Graphics slots with x16 signal
●One X8 PCI-Express slot with x8 signal
●Two PCI-X 64-bit 133/100/66MHz (3.3-
Volt) slots
●One PCI 32-bit 33MHz (5-Volt) slot
●Total of six usable slots
Integrated LAN
●Intel® 82563EB Gilgal Dual-Port PCI-
Express Gigabit Ethernet with ASF2.0
System Hardware Monitoring
●Total five 4-pin fan headers with
tachometer monitoring and PWM control
●Chassis intrusion header
●Temperature and voltage monitoring
Memory
●Eight 240-pin 1.8-Volt DDR2-667
FB-DIMM sockets
●Quad channel memory bus
●Supports ECC memory
Up to 64GB of DDR2 FB-DIMM modules
BIOS
●Phoenix TrustedCore BIOS 8Mbit Flash
●Supports ACPI 2.0, PnP, DMI 2.0
●Auto configuration of mass storage
devices
●Multiple boot options
●Power Management: ACPI S1, S3, S4 and
S5 modes
IEEE
●Texas Instruments TSB43AB22A Ctrl.
●Two ports 400Mbit
Trusted Platform Management (TPM)
●Infineon SLB9635TT 1.2
Other Integrated I/O Interfaces
●One floppy connector for up to two drives
●One UART serial port connector
●One ECP/EPP/SPP parallel connector
●Eight USB2.0 ports (4 USB ports via
header)
●PS/2 mouse & keyboard ports
A26361-D2568-Z120-1-7619, edition 1 5

Mainboard D2568
Integrated Audio
●Intel ESB2 HDA compliant audio link
●Realtek ALC888 CODEC
●Line-in, Line-out, Mic-in rear vertical jacks
and a front panel audio header
●One 4-pin CD-ROM audio input header
●One 4-pin Auxiliary header
Form Factor
●SSI EEB 3.5 footprint AT03 (12”x13”)
●EEB V3.51 power connectors
●Rear I/O
– Stacked PS/2 mouse and keyboard
connectors
– One parallel connector
– One serial connector
– Four USB2.0 connectors
– Two GbE RJ45 connector
– Stacked audio connector for MIC,
Line_out and Line_in.
– SPDIF
– IEEE1394
Regulatory
●FCC Class B (Declaration of Conformity)
●European Community CE (Declaration of
Conformity)
Software Specifications
OS (Operating System) Support
●Microsoft Windows XP Professional
●Microsoft Windows XP Professional X64 Edition
●Windows Vista™
●Red Hat Enterprise Linux 4.0 Update 4
●SuSE Linux Enterprise Desktop/Server 10.0
●Other distributions of Linux pending validation
i
Fujitsu Siemens Computers reserves the right to add support or discontinue support for
any OS with or without notice.
6 A26361-D2568-Z120-1-7619, edition 1

Mainboard D2568
Block Diagram
CPU0
Xeon
Dual Core
Quad Core
CPU1
SEABURG-DW
MCH
FSB1FSB0
ESI x4
FBD CH0 DIMM0
FBD CH0 DIMM1
FBD CH1 DIMM0
FBD CH1 DIMM1
ESB2
PCI-e x16 (X16)
ESI x4
PCI
PCI-X
VRD 11.0
For CPU0
VRD 11.0
For CPU1
PCI-32/33 *1
PCI-X 133 *2
IDE ATA-100 *1
USB*8
SIO
PS/2 KB/MS
FWH
Parallel Port
Serial port *1
W83627EHG
LPC
4-Pin FANS *5
Floppy *1
x8
Realtek ALC 888
Audio
DDR2 533/677 FBD
USB 2.0
E-ATX Form Factor
Azalia/HDA
BR0
BR0
BR0
BR0
FBD CH2 DIMM0
FBD CH2 DIMM1
FBD CH3 DIMM0
FBD CH3 DIMM1
BR1
BR1
BR1
BR1
1394
PCI
x4
LSI 1068E
GILGAL
Gb LAN *2
KUMERAN
x16
PCI-e x8 (X8)
SATA*6
SATA
SAS/SATA *8
TPM
PCI-e x16 (X16) x16
Xeon
Dual Core
Quad Core
The above picture is purely representative. Due to engineering updates and new board revisions,
certain components may change and or be repositioned. The picture above may or may not look
exactly like the board you received.
The following page includes details on the vital components of this motherboard.
A26361-D2568-Z120-1-7619, edition 1 7

Mainboard D2568
8 A26361-D2568-Z120-1-7619, edition 1

Choose Proper Parts for Your System
Choose Proper Parts for Your System
Before you installing a system with this motherboard, make sure your major system parts meet the
following basic guidelines and requirements:
Central Processor Unit (CPU) Considerations
●Process Type and Package
D2568 supports Dual-Core Intel® Xeon® Processors 5200 Series as well as Quad-Core Intel®
Xeon® Processors 5400 Series in FC-LGA6 package for LGA771 socket.
●Front Side Bus (FSB)
The processor host bus, or called Front Side Bus (FSB), auto-operates at 1333 MHz. Choose
Dual-Core Intel® Xeon® Processors 5200 Series or Quad-Core Intel® Xeon® Processors
5400 Series with 1333 MHz FSB for D2568.
●Single/Dual Processor System
D2568 board supports one or two Dual-Core or Quad-Core Intel® Xeon® Processors.
Single Processor System:
When only install a single processor on D2568, the processor must be installed in the CPU0
socket.
Dual Processor System:
D2568 supports dual processor configurations only in which both processors operate with the
same FSB frequency, core frequency, and have the same internal cache sizes. Mixing
processors operating at different FSB frequency, core frequency, or cache sizes may cause
system non-operation or damages on processors and/or the motherboard.
Memory Considerations
●Memory Type
D2568 supports up to eight 240-pin 1.8-Volt DDR2-667 ECC FB-DIMM modules.
●Memory Installation
D2568 is based on Intel®’s 5400 Seaburg chipset, which supports 144-bit wide quad memory
channels in memory interleaved scheme. System requires minimum one memory to boot up
the system.
For further information see "Installing the Memory" chapter.
A26361-D2568-Z120-1-7619, edition 1 9

Choose Proper Parts for Your System
Power Supply Considerations
●Power connectors
D2568 is powered by a split plane PSU with six +12V-rails and 1000W continuous power. One rail is
for each processor, one for systemboard and three for peripherals (e.g. HHDs, add. 6-pin graphics
connector). There are three power connectors on this motherboard as listed below.
EPS/12V Power Connectors
++12V_CPU0
+12V_CPU0
+12V_CPU1
+12V_CPU1 GND
GND
GND
GND
24-pin baseboard power connector 8-pin CPU power connector
(split CPU power planes)
+12 GND
10-pin additional baseboard power connector
By following SSI EEB v3.51 specifications, D2568 is designed with two separate voltage
regulator circuits to provide the power for both onboard processors in separate power rail.
Using a power supply with a combined CPU power plane from the CPU power connector is not
allowed and may cause the system to fail to power up or damage to the power supply.
10 A26361-D2568-Z120-1-7619, edition 1

Board Installation
Board Installation
Fan Connector (FANx)
Pin 1
Pin 4
Pin1: GND
Pin2: +12V Power
Pin3: Tachometer
Pin4: Fan PWM (speed) Control
This 4-pin fan connector supports tachometer monitoring.
There are five 4-pin fan connectors on D2568. Use these connectors to connect chassis and
processor cooling fans to your motherboard. Cooling fans can keep the system stable and
reliable for its product’s life.
Chassis Intrusion (INTR)
Pin Signal
1 Presence Detection
2 Case Open
3 GND
Pin 1
PC2004 PSU Connector (PC2004)
There are two connectors available for CD audio and AUX audio. Both connectors are 4-pin.
See the illustration below for pinouts.
Pin Signal
1 n.c.
2 PSU Fan Control
3 n.c.
4 PSU Fan Pulse
5 n.c.
6 n.c.
7 n.c.
8 n.c.
Pin 1
A26361-D2568-Z120-1-7619, edition 1 11

Board Installation
CD-In and AUC-IN (CD / AUX)
There are two connectors available for CD audio and AUX audio. Both connectors are 4-pin.
See the illustration below for pinouts.
Pin Signal
1 Audio_L
2 Audio_GND
3 Audio_GND
4 Audio_R
Front Panel Header (FP)
Normally, a chassis has some control or signal wires can be connected onto a motherboard for hard
drive LED, Power LED, power button, and reset button;
The front panel header has been implemented on D2568 for such purposes.















Signal Pin Pin Signal
GND 1 2 SPEAKER_OUT_L
SLP_LED_Anode 3 4 Key
Key 5 6 GND
PWR_LED_Anode 7 8 SPEAKER_OUT_H
PWR_LED_Anode 9 10 n.c.
GND 11 12 n.c.
+3.3V 13 14 Key
MSG_LED_Cathode 15 16 n.c.
Key 17 18 SCSI_LED_Cathode
+3.3V 19 20 SCSI_LED_Cathode
HD_LED_Cathode 21 22 n.c.
GND 23 24 Key
PWR_Button_L 25 26 GND
SLP_Button_L 27 28 GND
RESET_L 29 30 GND
12 A26361-D2568-Z120-1-7619, edition 1
