Fujitsu ASYG09KXCA series Service manual

AIR CONDITIONER
Wall mounted type
DESIGN & TECHNICAL MANUAL
INDOOR
ASYG09KXCA
ASYG12KXCA
OUTDOOR
AOYG09KXCA
AOYG12KXCA
DR_AS027EF_02
2018.09.21

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Copyright © 2016, 2018 Fujitsu General Limited. All rights reserved.

CONTENTS
Part 1. INDOOR UNIT...........................................................................1
1. Specifications................................................................................................2
2. Wireless LAN control....................................................................................5
2-1. System requirement.........................................................................................................5
2-2. Wireless LAN function list ................................................................................................6
3. Dimensions....................................................................................................7
3-1. Models: ASYG09KXCA and ASYG12KXCA ....................................................................7
4. Wiring diagrams ............................................................................................9
4-1. Models: ASYG09KXCA and ASYG12KXCA ....................................................................9
5. Capacity table..............................................................................................10
5-1. Cooling capacity.............................................................................................................10
5-2. Heating capacity ............................................................................................................11
6. Fan performance .........................................................................................12
6-1. Air velocity distributions..................................................................................................12
6-2. Airflow ............................................................................................................................13
7. Operation noise (sound pressure).............................................................14
7-1. Noise level curve............................................................................................................14
7-2. Noise level curve (when DUAL FAN COMFORT is on) ................................................15
7-3. Sound level check point .................................................................................................16
8. Safety devices .............................................................................................17
9. Remote controller .......................................................................................18
9-1. Wireless remote controller ............................................................................................18
10. Function settings ........................................................................................20
10-1.Function settings by using remote controller.................................................................20
10-2.Custom code setting for wireless remote controller.......................................................24
10-3.Switching the temperature unit of remote controller......................................................25
11. Accessories.................................................................................................26

Part 2. OUTDOOR UNIT.....................................................................27
1. Specifications..............................................................................................28
2. Dimensions..................................................................................................29
2-1. Models: AOYG09KXCA and AOYG12KXCA .................................................................29
3. Installation space ........................................................................................30
3-1. Models: AOYG09KXCA and AOYG12KXCA .................................................................30
4. Refrigerant circuit .......................................................................................33
4-1. Models: AOYG09KXCA and AOYG12KXCA .................................................................33
5. Wiring diagrams ..........................................................................................34
5-1. Models: AOYG09KXCA and AOYG12KXCA .................................................................34
6. Capacity compensation rate for pipe length and height difference........35
6-1. Models: AOYG09KXCA and AOYG12KXCA .................................................................35
7. Additional charge calculation ....................................................................36
7-1. Models: AOYG09KXCA and AOYG12KXCA .................................................................36
8. Airflow..........................................................................................................37
8-1. Model: AOYG09KXCA ...................................................................................................37
8-2. Model: AOYG12KXCA ...................................................................................................37
9. Operation noise (sound pressure).............................................................38
9-1. Noise level curve............................................................................................................38
9-2. Sound level check point .................................................................................................39
10. Electrical characteristics............................................................................40
11. Safety devices .............................................................................................41
12. Accessories.................................................................................................42
CONTENTS (continued)

Part 1. INDOOR UNIT
WALL MOUNTED TYPE:
ASYG09KXCA
ASYG12KXCA

1. Specifications
Type
Wall mounted
Inverter heat pump
Model name ASYG09KXCA ASYG12KXCA
Power supply 230 V ~ 50 Hz
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 2.50 3.40
Btu/h 8,500 11,600
Min.—Max. kW 0.6—3.5 0.6—5.3
Btu/h 2,000—11,900 2,000—18,000
Heating
Rated kW 3.60 5.00
Btu/h 12,200 17,000
Min.—Max. kW 0.6—7.1 0.6—9.0
Btu/h 2,000—24,200 2,000—30,700
Input power
Cooling Rated
kW
0.46 0.67
Min.—Max. 0.10—1.90 0.10—2.00
Heating Rated 0.63 1.02
Min.—Max. 0.10—2.83 0.10—3.26
Fan
HIGH
W
26
MED 17
LOW 12
QUIET 5
Current Cooling Rated A 2.1 3.0
Heating 2.8 4.5
EER Cooling kW/kW 5.45 5.09
COP Heating 5.72 4.90
Sensible capacity Cooling kW 1.92 2.60
Power factor Cooling %95.2 97.1
Heating 94.5 98.6
Moisture removal L/h (pints/h) 1.1 (1.9) 1.2 (2.1)
Maximum operating current *1 Cooling A8.5 9.0
Heating 14.0 16.0
Fan
Airflow rate
Cooling
HIGH
m3/h
670
MED 590
LOW 520
QUIET 350
Heating
HIGH 810
MED 690
LOW 570
QUIET 380
Type × Q'ty Cross flow fan × 1
Motor output W 64
Sound pressure level *2
Cooling
HIGH
dB (A)
46
MED 42
LOW 38
QUIET 28
Heating
HIGH 48
MED 43
LOW 39
QUIET 30
Sound pressure level when DUAL
FAN COMFORT is on *2
Cooling
HIGH
dB (A)
46
MED 42
LOW 39
QUIET 29
Heating
HIGH 48
MED 43
LOW 40
QUIET 31
Heat exchanger type
Dimensions (H × W × D)
mm
Main 1: 224 × 558 × 40, Main 2: 160 × 558 × 30
Sub: 296 × 558 × 13.3
Fin pitch Main 1: 1.1, Main 2: 1.2
Sub: 1.4
Rows × Stages Main 1: 4 × 14, Main 2: 3 × 10, Sub: 1 × 14
Pipe type Copper tube
Fin type Aluminum
Enclosure
Material Polystyrene
Color White
Approximate color of Munsell N 9.25/
Dimensions
(H × W × D)
Net mm 293 × 786 × 378
Gross 454 × 877 × 376
Weight Net kg 20
Gross 24
Connection pipe Size Liquid mm (in) Ø 6.35 (Ø 1/4)
Gas Ø 9.52 (Ø 3/8)
Method Flare
Drain hose Material PVC
Size mm Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller Wireless or Mobile app (FGLair *3)
- 2 - 1. Specifications
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

Type
Wall mounted
Inverter heat pump
Model name ASYG09KXCA ASYG12KXCA
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play store or on App Store. WLAN adapter (accessory) is also required. For details, refer to the setting manual.
- 3 - 1. Specifications
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

Model name ASYG09KXCA ASYG12KXCA
Energy efficiency class Cooling A+++ A+++
Heating (Average) A+++ A+++
Pdesign Cooling kW 2.5 (35 °C) 3.4 (35 °C)
Heating (Average) 3.4 (-10 °C) 3.5 (-10 °C)
SEER Cooling kWh/kWh 8.5 8.5
SCOP Heating (Average) 5.1 5.1
Annual energy consumption QCE kWh/a 103 140
QHE (Average) 934 961
Sound power level Cooling HIGH dB (A) 58
Heating 62
- 4 - 1. Specifications
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

2. Wireless LAN control
By installing mobile app on a smart device, several functions can be controlled from outside the
house.
2-1. System requirement
Before using this function, prepare the following items:
•Wireless router:
Wireless LAN standard IEEE802.11b/g/n
Frequency bands* • U.S.A., Canada: 2.4 GHz (1ch—11ch)
• Other countries: 2.4 GHz (1ch—13ch)
Network security standard
• Open
• WEP
• WPA (PSK)
• WPA2 Personal (PSK)
• WPS for same-LAN registration
*: Usable only in the country or region where you purchased the product.
To check whether your wireless router complies with the network security standards listed above,
refer to the operation manual.
•Smartphone or Tablet PC:
App-compliant operating
system
iOS®Check the latest version of supported OS at Google
Play™ store or App Store®.
Android™
• (mobile application):
Mobile app is available on Google Play store or on App Store.
After installation of mobile app, user registration is required. For user registration and setup infor-
mation, refer to Setting Manual attached with the product.
For the latest version of the Wireless LAN (WLAN) control manuals, refer to the following web site.
https://www.fujitsu-general.com/global/support/
- 5 -
2-1. System requirement 2. Wireless LAN control
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

2-2. Wireless LAN function list
Item Mobile app
Attached
wireless
remote
controller
Air conditioning
control function
Operation on/off ○ ○
Operation mode setting ○ ○
Set temperature setting ○ ○
Fan speed setting ○ ○
Airflow direction
setting
Louver position adjustment (vertical/
horizontal) ○ ○
Swing (vertical/horizontal) ○ ○*1
Timer operation
Off timer — ○*1
On timer — ○*1
Sleep timer — ○*1
On/off program timer — ○*1
Weekly timer*2○○*1
POWERFUL operation setting ○*1○*1
ECONOMY operation setting ○ ○
10 °C HEAT operation setting ○*1○*1
Additional function Human sensor for energy saving setting ○*1○*1
Outdoor unit low noise operation setting ○*1○*1
Room temperature indicator ○ —
Demand control indicator ○ —
App function Air conditioner error e-mail notification ○ —
*1: Not operable when wired remote controller is connected.
*2: Configurable functions of the weekly timer differs on wireless remote controller and on mobile ap-
plication. If timer settings are done from mobile application and from wireless remote controller, both
timer settings will be active.
- 6 -
2-2. Wireless LAN function list 2. Wireless LAN control
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

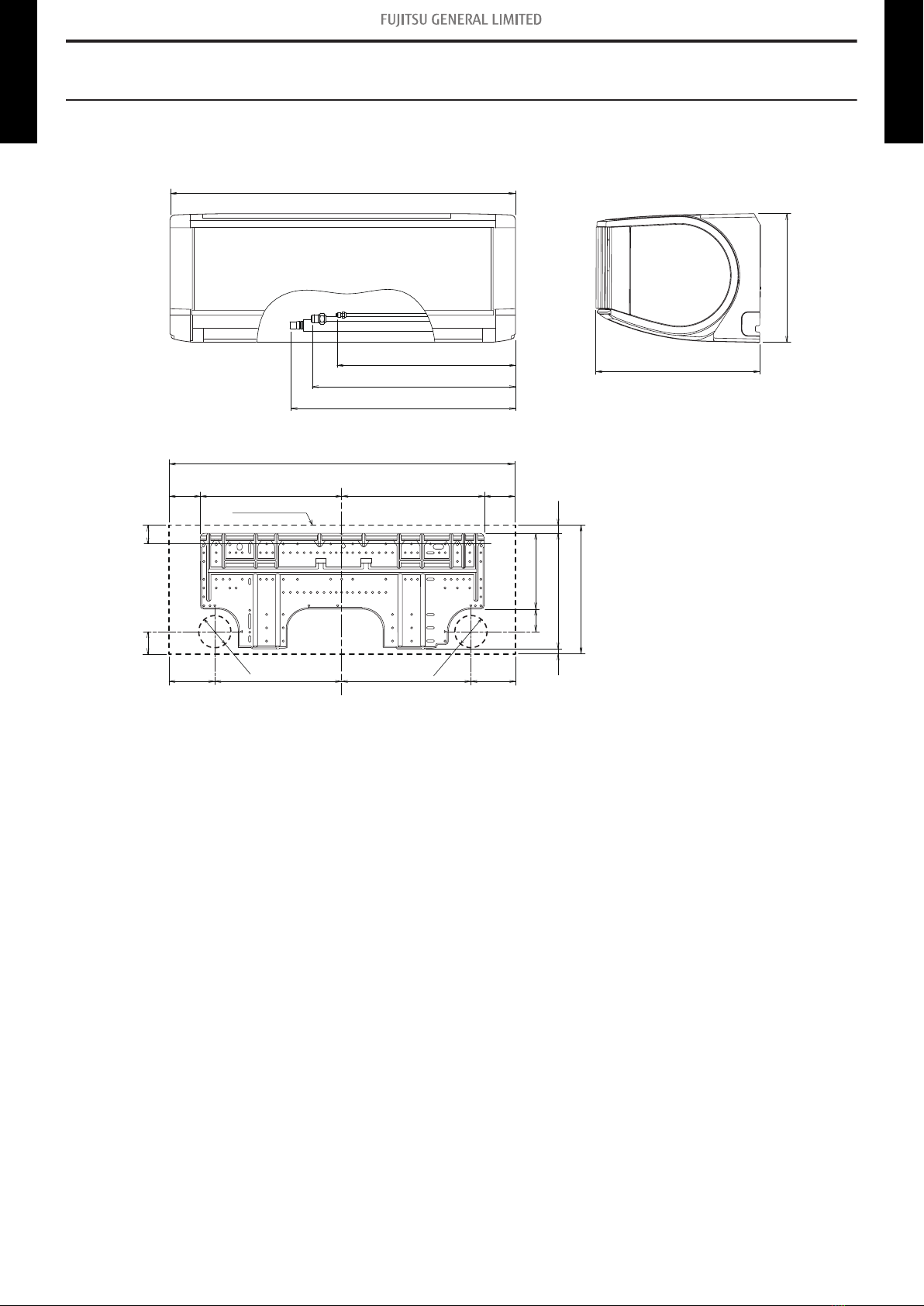

3. Dimensions
3-1. Models: ASYG09KXCA and ASYG12KXCA
Unit: mm
293
378
786
786
520
585
688
ø65
293
7073 320 323
Outline of unit
287106 100.5292.5
ø65
172.1
262.5 237
50.5
47
47
- 7 -
3-1. Models: ASYG09KXCA and ASYG12KXCA 3. Dimensions
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

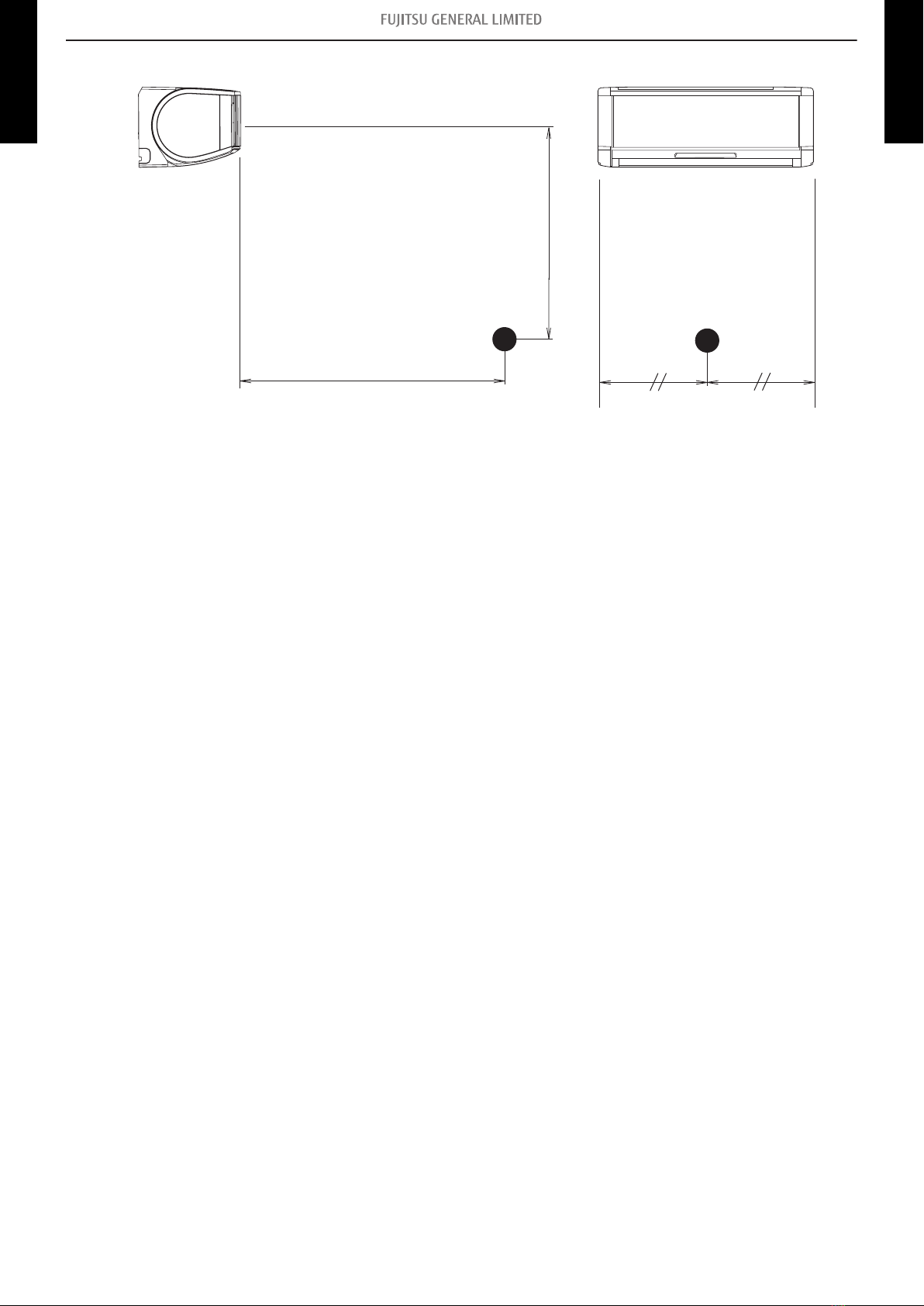

¢Installation space requirement
Provide sufficient installation space for product safety.
74 or more
103 or more
Outline of unit
100 or more
1,500 or more
23 or more
30 or more 30 or more
1,800 or more
Unit: mm
65 or more
100 or more*2
95 or more*1
Obstructions
such as a curtain
: Lowest position of the dual fan
NOTE: Dual side fans rotate downward when the unit is operating as shown in the figure above. If
the depth of the obstruction is larger than 95 mm, secure specified distance*2 in between
the indoor unit and the obstruction.
- 8 -
3-1. Models: ASYG09KXCA and ASYG12KXCA 3. Dimensions
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

4. Wiring diagrams
4-1. Models: ASYG09KXCA and ASYG12KXCA
¢Main PC board
¢Sub PC board
- 9 -
4-1. Models: ASYG09KXCA and ASYG12KXCA 4. Wiring diagrams
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

5. Capacity table
Capacity tables show each of following values calculated based on the outdoor temperature and the
indoor temperature, under given Airflow Rate (AFR):
For cooling capacity: Total Capacity (TC), Sensible Heat Capacity (SHC), and Input Power (IP)
For heating capacity: Total Capacity (TC) and Input Power (IP)
5-1. Cooling capacity
¢Model: ASYG09KXCA
AFR m3/h 670
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-10 2.40 1.95 0.23 2.63 2.04 0.23 2.79 2.10 0.23 2.94 2.15 0.23 3.10 2.24 0.23 3.26 2.26 0.24 3.49 2.32 0.23
0 2.29 1.89 0.38 2.51 1.98 0.38 2.66 2.03 0.38 2.81 2.08 0.38 2.96 2.17 0.38 3.11 2.19 0.38 3.34 2.24 0.38
5 2.30 1.92 0.34 2.53 2.01 0.34 2.68 2.06 0.34 2.83 2.11 0.34 2.98 2.20 0.34 3.13 2.22 0.34 3.36 2.28 0.34
10 2.36 1.93 0.23 2.66 2.02 0.23 2.75 2.07 0.23 2.90 2.13 0.23 3.06 2.21 0.23 3.21 2.23 0.23 3.45 2.29 0.23
15 2.35 1.92 0.29 2.65 2.01 0.29 2.73 2.06 0.29 2.89 2.12 0.29 3.04 2.20 0.29 3.20 2.22 0.29 3.43 2.28 0.29
20 2.34 1.90 0.35 2.61 1.99 0.35 2.70 2.05 0.35 2.87 2.10 0.35 3.00 2.18 0.35 3.15 2.20 0.35 3.38 2.26 0.35
25 2.29 1.89 0.43 2.51 1.98 0.43 2.66 2.03 0.43 2.81 2.08 0.43 2.96 2.17 0.43 3.11 2.19 0.43 3.33 2.24 0.43
30 2.19 1.84 0.48 2.41 1.93 0.48 2.55 1.98 0.48 2.70 2.03 0.48 2.84 2.11 0.48 2.98 2.13 0.48 3.20 2.19 0.48
35 2.12 1.81 0.56 2.32 1.90 0.56 2.46 1.95 0.56 2.60 2.00 0.56 2.74 2.08 0.56 2.88 2.10 0.56 3.09 2.15 0.56
40 1.99 1.75 0.60 2.19 1.83 0.60 2.32 1.88 0.60 2.45 1.93 0.60 2.58 2.01 0.60 2.71 2.02 0.60 2.91 2.08 0.60
46 1.88 1.70 0.71 2.06 1.78 0.72 2.19 1.83 0.72 2.31 1.88 0.72 2.43 1.95 0.72 2.56 1.97 0.72 2.74 2.02 0.72
¢Model: ASYG12KXCA
AFR m3/h 670
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-10 3.35 2.73 0.33 3.68 2.86 0.33 3.90 2.93 0.33 4.12 3.01 0.33 4.34 3.13 0.33 4.56 3.16 0.33 4.89 3.24 0.33
0 3.20 2.64 0.53 3.52 2.77 0.53 3.72 2.84 0.53 3.93 2.91 0.53 4.14 3.03 0.53 4.35 3.06 0.53 4.67 3.14 0.53
5 3.22 2.68 0.48 3.54 2.81 0.48 3.75 2.88 0.48 3.96 2.96 0.48 4.17 3.08 0.48 4.38 3.11 0.48 4.70 3.19 0.48
10 3.31 2.70 0.32 3.72 2.83 0.32 3.85 2.90 0.32 4.06 2.98 0.32 4.28 3.10 0.32 4.50 3.13 0.32 4.83 3.21 0.32
15 3.29 2.68 0.41 3.70 2.81 0.41 3.83 2.89 0.41 4.04 2.96 0.41 4.26 3.08 0.41 4.47 3.11 0.41 4.80 3.19 0.41
20 3.28 2.66 0.49 3.65 2.78 0.49 3.78 2.86 0.50 4.02 2.93 0.50 4.20 3.05 0.50 4.41 3.08 0.50 4.73 3.16 0.50
25 3.20 2.64 0.60 3.51 2.77 0.60 3.72 2.84 0.60 3.93 2.92 0.60 4.14 3.04 0.60 4.35 3.06 0.60 4.67 3.14 0.60
30 3.07 2.56 0.67 3.37 2.69 0.67 3.58 2.76 0.67 3.78 2.83 0.67 3.98 2.94 0.67 4.18 2.97 0.67 4.48 3.05 0.67
35 2.96 2.53 0.78 3.25 2.65 0.79 3.45 2.72 0.79 3.64 2.79 0.79 3.83 2.91 0.79 4.03 2.93 0.79 4.32 3.01 0.79
40 2.79 2.42 0.84 3.07 2.54 0.84 3.25 2.60 0.84 3.43 2.67 0.84 3.62 2.78 0.84 3.80 2.80 0.84 4.08 2.88 0.84
46 2.63 2.38 1.00 2.89 2.50 1.00 3.06 2.56 1.00 3.23 2.63 1.00 3.40 2.74 1.01 3.58 2.76 1.01 3.84 2.83 1.01
- 10 -
5-1. Cooling capacity 5. Capacity table
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

5-2. Heating capacity
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
¢Model: ASYG09KXCA
AFR m3/h 810
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 5.15 2.83 5.07 2.83 4.82 2.67 4.44 2.41 3.89 2.21
-10 -11 5.91 2.83 5.81 2.83 5.53 2.75 5.09 2.48 4.46 2.28
-5 -7 6.55 2.83 6.44 2.83 6.13 2.83 5.64 2.56 4.94 2.35
0 -2 7.07 2.83 6.95 2.26 6.61 2.05 6.09 1.85 5.33 1.70
5 3 7.46 2.28 7.34 2.05 6.98 1.86 6.43 1.68 5.63 1.54
7 6 7.59 2.19 7.46 1.97 7.10 1.78 6.54 1.61 5.72 1.48
10 8 7.32 2.06 7.20 1.85 6.85 1.68 6.30 1.52 5.52 1.39
15 10 7.03 1.85 6.92 1.66 6.58 1.50 6.06 1.36 5.30 1.25
20 15 6.94 1.65 6.82 1.49 6.49 1.35 5.97 1.22 5.23 1.12
24 18 7.01 1.50 6.90 1.35 6.56 1.22 6.04 1.10 5.29 1.01
¢Model: ASYG12KXCA
AFR m3/h 810
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 6.40 3.26 6.40 3.39 6.11 3.08 5.61 2.76 4.86 2.55
-10 -11 6.62 3.26 7.33 3.26 7.01 3.17 6.44 2.85 5.58 2.63
-5 -7 6.68 3.26 7.40 3.26 7.77 3.26 7.13 2.93 6.19 2.71
0 -2 8.85 3.26 8.78 3.09 8.38 2.81 7.70 2.52 6.67 2.33
5 3 9.34 2.98 9.27 2.68 8.85 2.43 8.13 2.18 7.05 2.02
7 6 9.49 2.77 9.42 2.49 9.00 2.26 8.26 2.03 7.16 1.87
10 8 9.16 2.59 9.09 2.32 8.68 2.11 7.97 1.90 6.91 1.75
15 10 8.80 2.34 8.73 2.10 8.34 1.91 7.66 1.71 6.64 1.58
20 15 8.68 2.03 8.62 1.82 8.23 1.65 7.56 1.49 6.55 1.37
24 18 8.77 1.90 8.71 1.70 8.32 1.55 7.63 1.39 6.62 1.28
- 11 -
5-2. Heating capacity 5. Capacity table
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

6. Fan performance
6-1. Air velocity distributions
¢Models: ASYG09KXCA and ASYG12KXCA
Measuring conditions Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
(m)
(m)
Unit: m/s
-2
-1
0
1
2
0123456789
2.0 1.0 0.5
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
(m)
(m)
Unit: m/s
-3
-2
-1
0
1
2
3
0123456789
2.0
2.0
1.0
1.0
0.5
0.5
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
(m)
(m)
Unit: m/s
0
1
2
3
0123456789
2.0
1.0 0.5
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
(m)
(m)
Unit: m/s
0
1
2
3
01 2 3 4 5 6 789
2.0
1.0
0.5
- 12 -
6-1. Air velocity distributions 6. Fan performance
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

6-2. Airflow
¢Models: ASYG09KXCA and ASYG12KXCA
Cooling
Fan speed Airflow
HIGH
m3/h 670
l/s 186
CFM 394
MED
m3/h 590
l/s 164
CFM 347
LOW
m3/h 520
l/s 144
CFM 306
QUIET
m3/h 350
l/s 97
CFM 206
Heating
Fan speed Airflow
HIGH
m3/h 810
l/s 225
CFM 477
MED
m3/h 690
l/s 192
CFM 406
LOW
m3/h 570
l/s 158
CFM 336
QUIET
m3/h 380
l/s 106
CFM 224
- 13 -
6-2. Airflow 6. Fan performance
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

7. Operation noise (sound pressure)
7-1. Noise level curve
¢Model: ASYG09KXCA
Cooling
㻴㼕㼓㼔
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
HIGH
QUIET
Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
HIGH
QUIET
¢Model: ASYG12KXCA
Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
HIGH
QUIET
Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
HIGH
QUIET
- 14 -
7-1. Noise level curve 7. Operation noise (sound pressure)
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

7-2. Noise level curve (when DUAL FAN COMFORT is on)
¢Model: ASYG09KXCA
Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
HIGH
QUIET
Heating
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
¢Model: ASYG12KXCA
Cooling
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
Heating
HIGH
QUIET
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
- 15 -
7-2. Noise level curve (when DUAL FAN COMFORT is on) 7. Operation noise (sound pressure)
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA

7-3. Sound level check point
Microphone Microphone
0.8 m
1 m
- 16 -
7-3. Sound level check point 7. Operation noise (sound pressure)
WALL MOUNTED ASYG09, 12KXCA WALL MOUNTED ASYG09, 12KXCA
