Fujitsu Comfort Series User manual

AIR TO WATER
Comfort series
SERVICE MANUAL
OUTDOOR
WOYA100KLT
SA_CF003EF_01
2021.03.01

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Copyright © 2021 Fujitsu General Limited. All rights reserved.

CONTENTS
1. GENERAL INFORMATION UNIT
2. TECHNICAL DATA AND PARTS LIST
3. TROUBLESHOOTING
4. FIELD WORKING

1. GENERAL INFORMATION UNIT
INNOVATIVE SOLUTION OF DOMESTIC HEATING
2021.03.01
SA_CH01_CF003EF_01

CONTENTS
1. GENERAL INFORMATION UNIT
1. Specifications..............................................................................................01-1
1-1. Outdoor unit....................................................................................................................01-1
2. Dimensions..................................................................................................01-6
2-1. Outdoor unit....................................................................................................................01-6

1. Specifications
1-1. Outdoor unit
¢Nominal capacity and nominal input
Model name
Hydraulic indoor unit WSYA100ML3
Outdoor unit WOYA100KLT
Power supply 1 Ø 230 V ~ 50 Hz
-15°C/+45°C
Heating capacity Nominal kW 7.50
Input power Nominal kW 3.75
COP Nominal 2.00
-10°C/+55°C
Heating capacity Nominal kW 7.10
Input power Nominal kW 4.06
COP Nominal 1.75
-10°C/+35°C
Heating capacity Nominal kW 8.20
Input power Nominal kW 3.35
COP Nominal 2.45
-7°C/+35°C
Heating capacity Nominal kW 8.90
Input power Nominal kW 3.36
COP Nominal 2.65
-7°C/+55°C
Heating capacity Nominal kW 8.00
Input power Nominal kW 4.10
COP Nominal 1.95
+2°C/+35°C
COP priority
Heating capacity Nominal kW 4.50
Input power Nominal kW 1.14
COP Nominal 3.95
Capacity priority
Heating capacity Nominal kW 9.30
Input power Nominal kW 3.08
COP Nominal 3.02
+7°C/+35°C
Heating capacity
Minimum
kW
3.56
Nominal 9.50
Maximum 15.29
Input power Nominal kW 2.11
COP Nominal 4.50
+7°C/+45°C
Heating capacity Nominal kW 9.00
Input power Nominal kW 2.475
COP Nominal 3.45
+7°C/+55°C
Heating capacity Nominal kW 9.00
Input power Nominal kW 3.33
COP Nominal 2.70
NOTE: Test conditions are complied with EN14511-2
1-1. Outdoor unit - (01-1) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

¢Technical specifications
Outdoor unit model name WOYA100KLT
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0NN
Dimensions
(H × W × D)
Net mm 998 × 940 × 320
Gross 1,176 × 1,027 × 445
Weight Net kg 65
Gross 71
Heat exchanger
Dimensions
(H × W × D) mm 966 × 905 × 36.38
Fin pitch 1.45
Rows × Stages 2 × 46
Pipe type Copper
Fin type Type (Material) Corrugate (Aluminum)
Surface treatment Corrosion resistance
Fan
Airflow rate Heating m3/h 4,130
Type × Q'ty Propeller fan × 1
Discharge direction Horizontal
Motor quantity 1
Motor output W 120
Compressor Type DC 2 rotary × 1
Motor output W 2,180
Operation range
Heating Minimum °CDB -20
Maximum °CWB 35
Sanitary water Minimum °CDB -20
Maximum °CWB 35
Refrigerant
Type (Global Warming Potential) R32 (675)
Charge g 1,630
Control Expansion valve (electric type)
Number of circuits 1
Refrigerant oil Type RmM68AF
Charged volume l 0.80
Connection pipe
Connection method Liquid mm Flare connection
Gas Flare connection
Size (standard) Liquid mm Ø9.52
Gas Ø15.88
Pre-charge length
m
20
Max. length 30
Min. length 3.0
Additional refrigerant charge g/m 20
Max. height difference m 20
Defrost method Reverse cycle
Defrost control Outdoor unit heat exchanger temperature sensor
Capacity control method Inverter control
1-1. Outdoor unit - (01-2) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

¢Product fiche
Model name
Hydraulic indoor unit WSYA100ML3
Outdoor unit WOYA100KLT
Temperature application °C 55 35
Declared load profile — —
Seasonal space heating energy efficiency class A++ A+++
Water heating energy efficiency class — —
Rated heat output kW 8 9
Supplementary heater kW 3 3
Annual energy consumption kWh 5,083 3,875
Annual electricity consumption kWh — —
Annual fuel consumption GJ Not applicable
Seasonal space heating energy efficiency % 130 178
Water heating energy efficiency % — —
Sound power level Hydraulic unit dB 40 —
Work only during off-peak hours Not applicable
Specific precautions in assembled, installed, or maintained Refer to the installation and operating manuals.
Rated heat output Colder climate kW — —
Warmer climate kW 8 8
Annual energy consumption Colder climate kWh — —
Warmer climate kWh 2,632 1,795
Annual electricity consumption Colder climate kWh — —
Warmer climate kWh — —
Seasonal space heating energy efficiency Colder climate % — —
Warmer climate % 162 235
Water heating energy efficiency Colder climate % — —
Warmer climate % — —
Sound power level Outdoor unit dB 62 —
NOTES:
• Product fiche according to Commission Delegated Regulation (EU) 811/2013
• Acoustic noise information:
– The maximum sound pressure level is less than 70 dB (A) for both hydraulic unit and outdoor unit.
– According to IEC 704-1 and ISO 3744.
• If the air to water heat pump is operated under higher temperature conditions than those listed, the built-in protection circuit may operate to prevent internal circuit damage. Also, during
cooling modes, if the unit is used under conditions of lower temperatures than those listed above, the heat exchanger may freeze, leading to water leakage and other damage.
• Do not use this unit for any purposes other than the Heating and Cooling.
1-1. Outdoor unit - (01-3) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

¢Product information
Model name
Hydraulic indoor unit WSYA100ML3
Outdoor unit WOYA100KLT
Air-to-water heat pump Yes
Water-to-water heat pump No
Brine-to-water heat pump No
Low-temperature heat pump No
Equipped with a supplementary heater Yes
Heat pump combination heater No*1
Temperature application °C 55 35
Rated heat output*2Prated kW 8 9
Seasonal space heating energy efficiency ƞs % 130 178
Declared capacity for heating for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = –7°C Pdh kW 7.3 7.5
Tj = +2°C Pdh kW 4.4 4.6
Tj = +7°C Pdh kW 3.6 3.9
Tj = +12°C Pdh kW 7.3 7.5
Tj = bivalent temperature Pdh kW 7.1 7.3
Tj = operation limit temperature Pdh kW 55 35
Tj = –15°C (if TOL < –20°C) Pdh kW — —
Bivalent temperature Tbiv °C -7 -7
Cycling interval capacity for heating Pcych kW Not applicable
Degradation co-efficient*3Cdh 0.9 0.9
Declared coefficient of performance or primary energy ratio for part load at indoor temperature 20 °C and outdoor temperature Tj
Tj = –7°C COPd2.05 2.98
Tj = +2°C COPd3.24 4.46
Tj = +7°C COPd4.47 5.89
Tj = +12°C COPd5.97 7.14
Tj = bivalent temperature COPd2.05 2.98
Tj = operation limit temperature COPd1.72 2.71
Tj = –15°C (if TOL < –20°C) COPd— —
Operation limit temperature TOL °C -10 -10
Cycling interval efficiency COPcyc Not applicable
Heating water operating limit temperature WTOL °C 55 55
Power consumption in modes other than active mode
Off mode POFF kW 0.004 0.004
Thermostat-off mode PTO kW 0.021 0.020
Standby mode PSB kW 0.008 0.008
Crankcase heater mode PCK kW 0.000 0.000
Supplementary heater
Rated heat output*2PSUP kW 1.1 1.2
Type of energy input Electric
Other items
Capacity control Variable
Sound power level Indoor unit LWA dB 40 —
Outdoor unit LWA dB 62 —
Annual energy consumption QHE kWh 5,083 3,875
Emissions of nitrogen oxides NOxmg/kWh
Rated airflow rate Outdoor unit m3/h 4,130 4,130
Declared load profile — —
Daily electricity consumption Qelec kWh — —
Annual energy consumption AEC kWh — —
Water heating energy efficiency ηwh % — —
Daily fuel consumption Qfuel kWh Not applicable
Contact details FUJITSU GENERAL (EURO) GmbH
Fritz-Vomfelde-Straße 26-32, 40547 Düsseldorf, Germany
NOTES:
• Product information according to Commission Delegated Regulation (EU) 811/2013
• Product information is based on the average climate condition.
• *1: When using an optional component, this function is available.
• *2: For heat pump space heaters and heat pump combination heaters, the rated heat output Prated is equal to the design load for heating Pdesignh, and the rated heat output of a supple-
mentary heater Psup is equal to the supplementary capacity for heating sup (Tj).
• *3: If Cdh is not determined by measurement then the default degradation coefficient is Cdh = 0.9.
1-1. Outdoor unit - (01-4) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Energy efficiency value
Application: 35°C
Model name
Hydraulic indoor unit WSYA100ML3
Outdoor unit WOYA100KLT
Seasonal energy efficiency of heat pump for space heating % 178
Type of temperature control
Outdoor sensor (included in the package) II —
Modulating room thermostat (outdoor sensor included in the package) — IV
Bonus % 2 4
Seasonal space heating energy efficiency of package in average climate conditions % 180 182
Energy class of the packages A+++ A+++
Seasonal space heating energy efficiency of package in warmer climate conditions % 237 239
Seasonal space heating energy efficiency of package in colder climate conditions % — —
Application: 55°C
Model name
Hydraulic indoor unit WSYA100ML3
Outdoor unit WOYA100KLT
Seasonal energy efficiency of heat pump for space heating % 130
Type of temperature control
Outdoor sensor (included in the package) II —
Modulating room thermostat (outdoor sensor included in the package) — IV
Bonus % 2 4
Seasonal space heating energy efficiency of package in average climate conditions % 132 134
Energy class of the packages A++ A++
Seasonal space heating energy efficiency of package in warmer climate conditions % 164 166
Seasonal space heating energy efficiency of package in colder climate conditions % — —
Class of temperature controller
Controller class II VI
Contribution to energy efficiency % 2 4
NOTE: Controller class VI: UTW-C55XA, UTW-C58XD, UTW-C74TXF, UTW-C74HXF, UTW-C78XD
¢Electrical specifications
Outdoor unit model name WOYA100KLT
Available voltage range 198—264 V
Power supply Voltage V 1 Ø 230
Frequency Hz 50
Maximum operating current*1Heating A 19.0
Wiring spec.*2
Main fuse (circuit breaker) current A 30
Power cable mm24.0 or more
Transmission cable Size mm21.5 or more
Max. length m 31
Wiring connections quantity*3For power supply 3
For connection with indoor 4
NOTES:
• *1: Maximum operating current is the total current of the indoor unit and the outdoor unit.
• *2: Selected based on Japan Electrotechnical Standard and Codes Committee E0005.
• *3: Included earth wiring.
1-1. Outdoor unit - (01-5) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

2. Dimensions
2-1. Outdoor unit
¢Model: WOYA100KLT
Unit: mm
Top view
Bottom view
Side viewFront view
940
998
266.7
Pipe & Cable port
Rear view
Ф28: Cable port
Pipe port
650
35.748
143147
39.8
53.9 Liquid
40 320
355
62.9 Gas
12.9
297.2
(Gas valve)
(Liquid valve)
Ф28
Cable port
1-1/8
(29)
Pipe port
23.4
129.1
85.3
50
29
Pipe port
A
95
89
A
3 Way valve
(Liquid)
3 Way valve
(Gas)
320
139.8
96
40 5
Ф28
Cable port
120
Pipe port
55
25
50
B
B
50
25
141.9 70
67 Pipe port
264.6
351.9
47.6
15.262.6
15.6
2-1. Outdoor unit - (01-6) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2. TECHNICAL DATA AND PARTS LIST
INNOVATIVE SOLUTION OF DOMESTIC HEATING
2021.03.01
SA_CH02_CF003EF_01

CONTENTS
2. TECHNICAL DATA AND PARTS LIST
1. Outdoor unit parts list.................................................................................02-1
1-1. Model: WOYA100KLT ....................................................................................................02-1

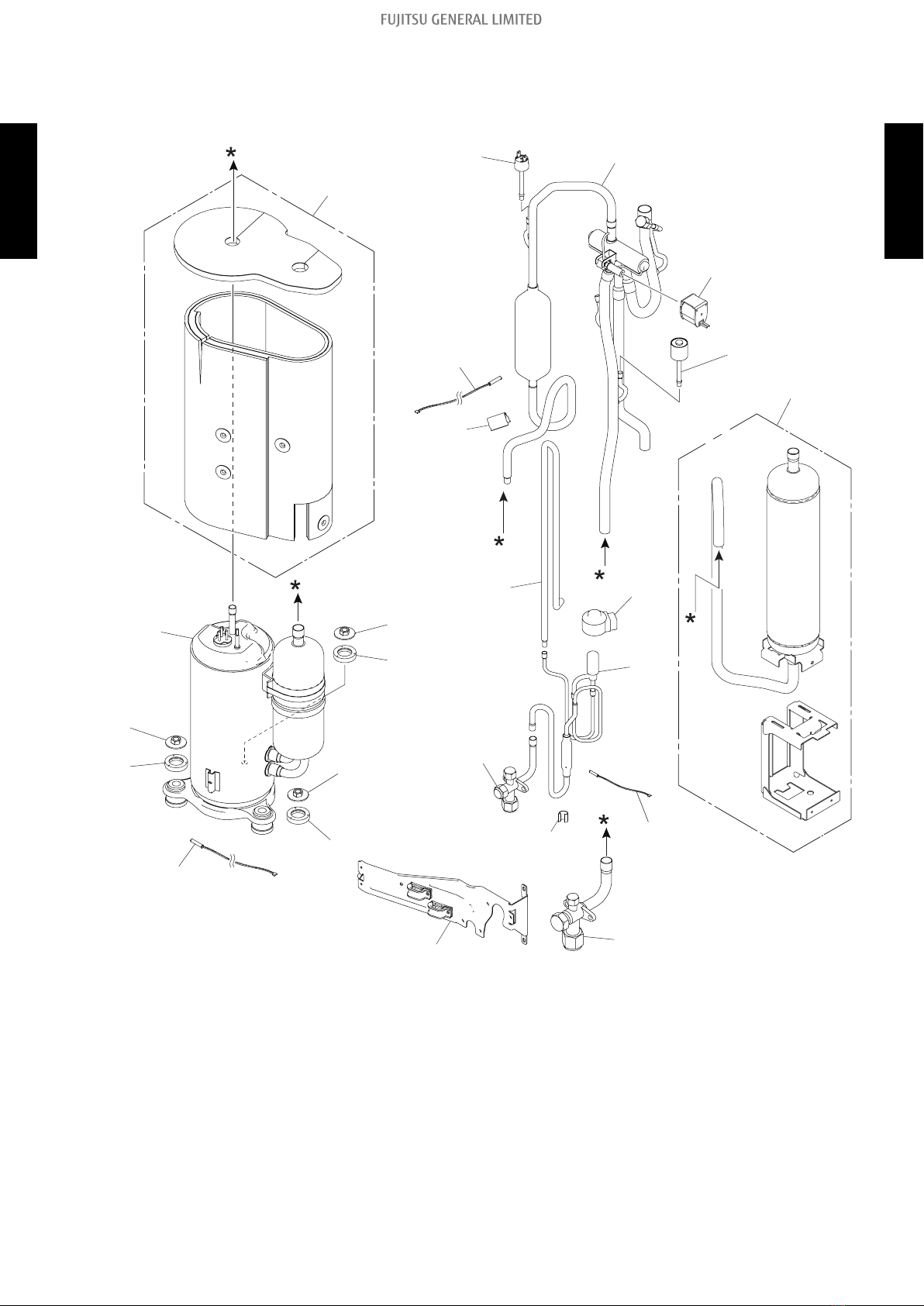

1. Outdoor unit parts list
1-1. Model: WOYA100KLT
¢Exterior parts and chassis
14
6
9
11
7
2
1
8
15
21
16
17
13
12
24
25
18
22
23
a
b
10
4
5
3
3
19 20
1-1. Model: WOYA100KLT - (02-1) - 1. Outdoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
1 9383880001 Top panel assy ♦
2 9381013005 Protective net ♦
3 9375361013 Net rubber ♦
4 9900984038 Thermistor (Heat exchanger) ♦
5 9900727154 Thermistor assy ♦
6 9383607004 Thermo holder ♦
7 9383874017 Right panel sub assy ♦
8 9383879005 Rear pipe cover ♦
9 9709684115 Inverter PCB ♦
10 9900203061 Terminal ♦
11 9711431370 Main PCB ♦
12 313166024302 Drain cap ♦
13 9303029015 Drain assy ♦
14 9350255009 Base assy ♦
15 9383876011 Service panel sub assy ♦
16 9383878008 Front pipe cover ♦
17 9351355005 Emblem rear ♦
18 9383863011 Front panel assy ♦
19 9383604003 Blow grille ♦
20 9383689000 Blow grille insulation ♦
21 9383882012 Left panel sub assy ♦
22 9383336003 Propeller fan ♦
23 9603733018 Brushless motor ♦
24 9383862021 Motor bracket assy ♦
25 9374420636 Condenser sub assy ♦
— 9711332004 Wire with terminal (Power wire L) ♦
— 9711332011 Wire with terminal (Power wire N) ♦
— 9711205001 Wire with connector
(P350 on Main PCB—P351 on Inverter PCB) ♦
— 9711203007 Wire with connector
(P660 on Main PCB—P662 on Inverter PCB) ♦
— 9711204004 Wire with connector
(P661 on Main PCB—P663 on Inverter PCB) ♦
— 9711214003 Wire with connector
(Pressure switch) ♦
— 9711213006 Wire with connector
(P770 on Inverter PCB [for Pressure switch]) ♦
— 9711212009 Wire with connector
(P650 on Inverter PCB—Fan motor) ♦
— 9711198006
Wire with terminal
(P400 [U], P401 [V], P402 [W] on Inverter PCB—
Compressor)
♦
a— Separate wall assy —
b— Control box unit —
1-1. Model: WOYA100KLT - (02-2) - 1. Outdoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

¢Compressor
58
57
53
61
63
60
b
50
52
A
d
A
62
51
a
54
56
B
B
65
64
65
64 65
64
55
C
C
c 59
1-1. Model: WOYA100KLT - (02-3) - 1. Outdoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
50 9383858017 Sound insulation unit ♦
51 9900565091 Thermistor (Outdoor temp.) ♦
52 9900186029 Pressure switch ♦
53 9374425709 4-way valve assy ♦
54 9970110153 Solenoid ♦
55 9970178122 Pressure sensor ♦
56 9384848024 Accumulator assy ♦
57 9970095030 Expansion valve coil ♦
58 9370947366 Expansion valve assy ♦
59 9901065026 Thermistor (EEV) ♦
60 9379079013 3-way valve assy ♦
61 9377958037 3-way valve assy ♦
62 9900985028 Thermistor (Compressor) ♦
63 9810791009 Compressor ♦
64 9379179089 Rubber washer F ♦
65 9377973016 Special nut ♦
a— Thermistor spring —
b— Joint pipe D —
c— Thermistor spring —
d— Wiring fixation unit —
1-1. Model: WOYA100KLT - (02-4) - 1. Outdoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

3. TROUBLESHOOTING
INNOVATIVE SOLUTION OF DOMESTIC HEATING
2021.03.01
SA_CH03_CF003EF_01

03-01
1 ERROR DISPLAY
1-1 HYDRAULIC UNIT DISPLAY
DIP SW
Interface card
LED2
(green)
LED1
(red)
OFF
ON
LED display Error contents
LED 2 (green) LED 1 (red)
1 1 Serial communication error
2 3 Combination error
4 2 Hydraulic unit heat exchanger thermistor error
6 2 Outdoor unit main PCB error
6 3 Inverter PCB error
6 5 IPM error
7 1 Discharge thermistor error
7 2 Compressor thermistor error
7 3 Outdoor unit heat exchanger thermistor error
7 4
7 7 Heatsink thermistor error
7 8 Electric expansion valve thermistor error
8 4 Current sensor error
8 6 Pressure sensor error
9 4 Trip detection
9 5 Compressor motor control error
9 7 Outdoor unit fan motor error
10 1 Discharge temperature error
10 3 Compressor temperature error
10 5 Pressure error
10 12 Heatsink temperature error
Outdoor thermistor error
Troubleshooting
1, 2
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
figure 1 - Location of DIP switches and diodes
on the hydraulic unit interface card
1 ~ 12 : 1~ 12 Times Blinking
3 2 UART communication error 4
