Fujitsu MS-6178MICROATX WH5 User manual

i
User manual
Mainboard MS-6178MICROATX WH5
Version 1.0C

ii
Manual Rev: 1.0B
Release Date: June 1999
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order
to comply with the emission limits.
VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER
AU RESEAU.
Micro-Star International MS-6178
For Home or Office Use
Tested to comply
with FCC Standard

iii
Edition
June 1999
Copyright Notice
The material in this document is the intellectual property of PREMIO®.
We take every care in the preparation of this document, but no guarantee
is given as to the correctness of its contents. Our products are under
continual improvement and we reserve the right to make changes without
notice.
Trademarks
All trademarks used in this manual are the property of their respective
owners.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 95 and Windows NT are registered trademarks of Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.

iv
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly
110/220V before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always Unplug the Power Cord before Inserting any add-on card or
module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause
electrical shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
•The power cord or plug is damaged
•Liquid has penetrated into the equipment
•The equipment has been exposed to moisture
•The equipment has not work well or you can not get it work
according to User’s Manual.
•The equipment has dropped and damaged
•If the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN EVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C
(1400F), IT MAY DAMAGE THE EQUIPMENT.

v
Table of Contents
Chapter 1: Introduction 1-1
Mainboard Features --------------------------------------------------- 1-2
Mainboard Layout----------------------------------------------------- 1-5
Chapter 2: Hardware Installation 2-1
Central Processing Unit: CPU--------------------------------------- 2-1

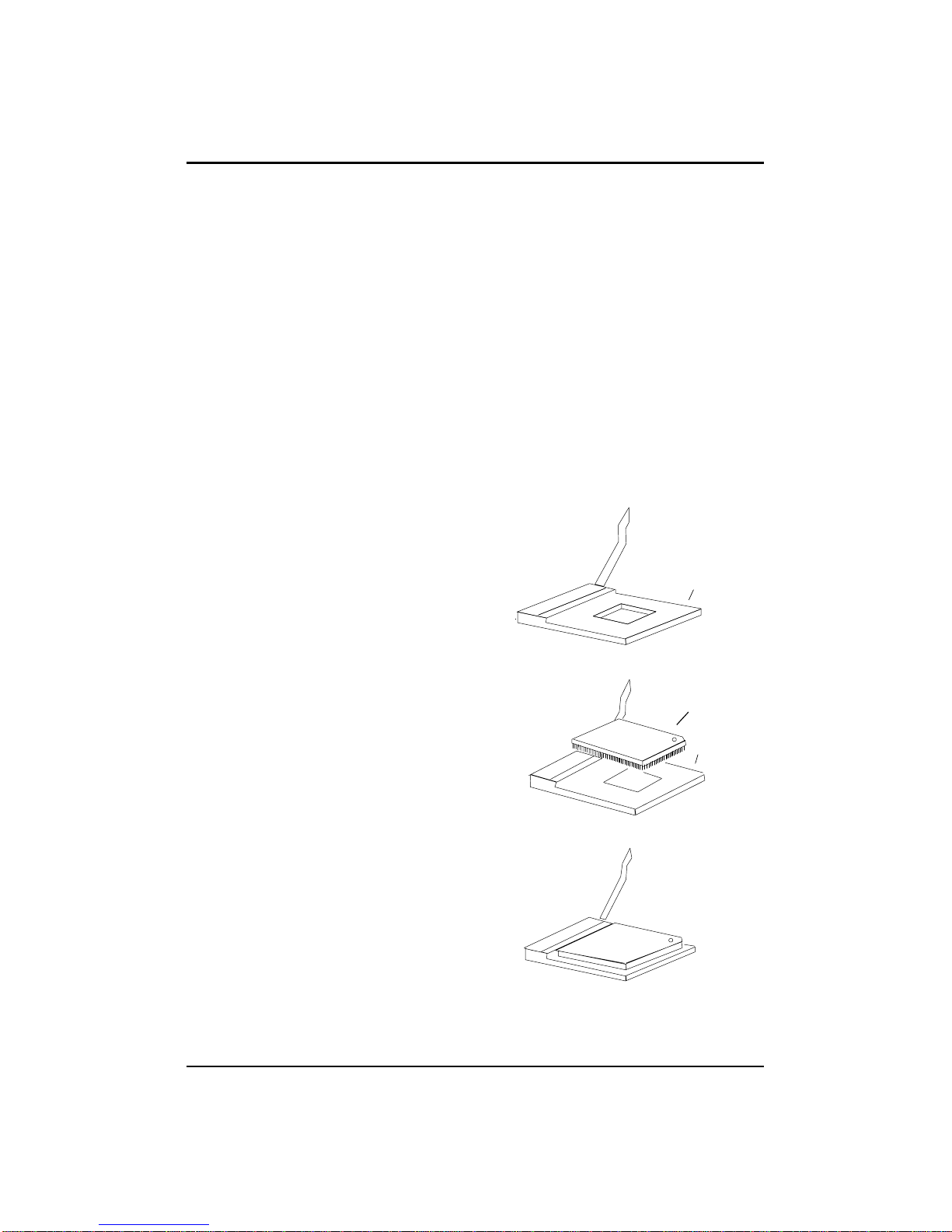

CPU Installation Procedures------------------------------------ 2-1
CPU Core Speed Derivation Procedure----------------------- 2-2
Overclocking Jumper : J25------------------------------------ 2-2
Fan Power Connector: CPUFAN------------------------------ 2-3
Clear CMOS Jumper: JBAT1/J26---------------------------------- 2-4
Memory Installation--------------------------------------------------- 2-5
Memory Bank Configuration----------------------------------- 2-5
Memory Installation Procedures-------------------------------- 2-6
Memory Population Rules--------------------------------------- 2-7
Case Connector : JFP1----------------------------------------------- 2-8
Floppy Disk Connector: FDD-------------------------------------- 2-10
Hard Disk Connectors: IDE1 & IDE2------------------------------ 2-11
Power Supply----------------------------------------------------------- 2-12

vi
ATX 20-pin Power Connector: JPWR1---------------------- 2-12
IrDA Infrared Module Connector: J9------------------------------ 2-13
Serial Port Connectors: COM A & COM B ---------------------- 2-14
Parallel Port Connector: LPT1-------------------------------------- 2-15
Mouse and Keyboard Connector: JKBMS1---------------------- 2-16
Joystick/Midi Connectors-------------------------------------------- 2-17
Audio Port Connectors----------------------------------------------- 2-17
USB Connectors------------------------------------------------------- 2-18
Power Saving Switch Connector: JGS1----------------------------- 2-19
Power Saving LED Connector: JGL1------------------------------ 2-20
Wake-Up on LAN Connector: JWOL1----------------------------- 2-21
Modem Wake Up Connector: JMDM1---------------------------- 2-22
Modem-In: J6-------------------------------------------------------- 2-23
AUX Line In Connector: J5----------------------------------------- 2-24
CD-In Connector: J8------------------------------------------------- 2-25
Keyboard Power: JKBV1------------------------------------------- 2-26
Chassis Intrusion Switch Case: J10(optional)--------------------- 2-27
BIOS Flash Jumper: JP3--------------------------------------------- 2-28
Onboard Audio Enabled/Disabled Jumper: JP4------------------ 2-29

vii
Case Speaker to Audio Speaker Jumper: J15--------------------- 2-30
SPDIF Connector: J22(optional) ---------------------------------- 2-31
AMR (Audio Modem Riser)----------------------------------------- 2-32
PTI (PanelLink TV-Out Interface)---------------------------------- 2-33
Chapter 3 Award®BIOS SETUP 3-1
Entering Setup---------------------------------------------------------- 3-2
Getting Help------------------------------------------------------------ 3-2
The Main Menu------------------------------------------------------- 3-3
Standard CMOS Setup----------------------------------------------- 3-5
Advanced BIOS Features-------------------------------------------- 3-8
Advanced Chipset Features------------------------------------------ 3-12
Integrated Peripherals------------------------------------------------ 3-15
Power Management Setup------------------------------------------- 3-20
PnP/PCI Configuration Setup--------------------------------------- 3-24
PC Health Status (optional)------------------------------------------ 3-26
Frequency/Voltage Control------------------------------------------ 3-28
Load Fail-Safe/Optimized Defaults--------------------------------- 3-29
Set Supervisor/User Password--------------------------------------- 3-30

Chapter 4 Intel 810 Integrated Graphics Controller 4-1
Overview--------------------------------------------------------------- 4-1
Intel 810 VGA Driver Setup & Usage Procedures--------- 4-3
Chapter 5 ICH AUDIO DRIVER 5-1
Overview--------------------------------------------------------------- 5-1
Audio Driver Setup & Usage Procedures---------------------- 5-2

CHAPTER 1INTRODUCTION
1-1
TheMS-6178MICROATXWH5mainboardis ahigh-performancecomputer
mainboard based on Intel®810 chipset. The MS-6178 is designed for the
Intel®CeleronTM (PPGA) processor for inexpensive business/personal
desktop markets.
The Intel®810 chipset is the first generation Integrated Graphics chipset for
the Intel®CeleronTM processor. The graphics accelerator architecture
consists of dedicated multi-media engines executing in parallel to deliver
high performance 3D, 2D, and motion compensation video capabilities. An
integrated centralized memory arbiter allocates memory bandwidth to
multiple system agents to optimize system memory utilization. A new
chipset component interconnect, the hub interface, is designed into the Intel
810 chipset to provide an efficient communication channel between the
memory controller hub and I/O hub controller.
The Intel®810 chipset contains three core components: the Graphics and
MemoryController Hub (GMCH),theI/O Controller Hub(ICH0)
andthe Firmware Hub (FWH). The GMCH integrates a 66/100MHz, P6
family system bus controller, integrates 2D/3D graphics accelerator, 100MHz
SDRAM controller and high-speed hub interface for communication with the
ICH0/ICH. TheICH0 integrates an UltraATA/33(ICH0),USB host controller,
LPC interface controller,FWHinterface controller, PCI interfacecontroller,
AC’97digital controllerand ahubinterface for communication with theGMCH.
The Intel®82802 Firmware Hub (FWH) component is part of the Intel®810
chipset. The FWH is key to enabling future security and manageability
infrastructure for the PC platform.
Chapter 1
INTRODUCTION

CHAPTER 1INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSupport Socket370 for Intel®CeleronTM processor.
lSupport300MHz,333MHz, 366MHz,400MHz, 433MHz,466Mhz,500MHz orhigher
Chipset
lIntel®810(GMCH)chipset. (421BGA)
- Integrated Graphics Controller
- Intel DDM Architecture
- SDRAM memory Independent of System Bus
- Support 4MB Display Cache (only for GMCH)
lIntel®ICH0chipset. (241BGA)
- AC’97 Controller Integrated
- 2 full IDE channels
-LowpincountinterfaceforSIO
FrontSide Bus (FSB)
l66/100MHzclocks are supported.
MainMemory
lSupport two 168-pin DIMM sockets.
lSupporta maximum memory size of256MB(64Mbittechnology) or
512MB(128Mbittechnology) SDRAM.
Slots
lOne AMR (Audio Modem Riser) and one PTI (PanelLink TV-Out Inter-
face).
lThree 32-bit Master PCI Bus slots.
lSupport 3.3v/5v PCI bus Interface.
On-BoardIDE
lAnIDEcontrolleron the ICH/ICH0 chipset provides IDE HDD/CD-ROM
with PIO, Bus Master, Ultra DMA/33 .
lCan connect up to four IDE devices.

CHAPTER 1INTRODUCTION
1-3
On-BoardPeripherals
lOn-BoardPeripheralsinclude:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
-1 serial port (COMA + COMB optional)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports and 1 USB connector
-1IrDA connector for SIR.
-1 VGAport
Video
lGMCH chip integrated
l2D/3DGraphics
Audio
lICH chip integrated (Software Audio)
-AC’97 Compliant
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
Dimension
lMicroATX Form Factor
Mounting
l6 mounting holes.

CHAPTER 1INTRODUCTION
1-4
SystemHardwareMonitor
lCPU Fan Revolution Detect
lCPU Fan Control (the fan will automatically stop when the system enters
suspend mode)
lSystemVoltage Detect
lCPUOverheatWarning.
lDisplayActualCurrent Voltage
OtherFeatures
lLANWake-Up
lInternal/ExternalModem Wake-Up

CHAPTER 1INTRODUCTION
1-5
1.2 Mainboard Layout
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
Intel
810
chipset
(GMCH)
Socket 370
DIMM 2
Top: mouse
Bottom:
keyboard
Top:Port1
USB
DIMM 1
IDE2
Bottom:
Port2
IDE1
FDD
ICH
JMDM1
JP4
JFP1
JGS1
JBAT1JWOL1
CD_IN
AUX_IN
COM B
Top: LPT
Bottom:
COMA
VGAPort
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
MS-6178MICROATXWH5Mainboard
MODEM_IN
CPUFAN
SDRAM
JKBV1
SDRAM
AMR PTI
FWH
JGL1
J15
JP3
J10
J9
J25
Aureal
Vortex8810
(optional)
J22 (Optional)
BATT
+
CODEC
J26

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-1
CPU
CPU
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
The mainboard operates with Intel®CeleronTM processor. The mainboard
uses a CPU socket called Socket 370 for easy CPU installation. The CPU
should always have a Heat Sink and a cooling fan attached to prevent
overheating.
3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
OpenLever
Pin1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Pin1
2.1-1 CPU Installation Procedures

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-2
The mainboard CPU Bus Frequency can be set through BIOS setup
If CPUClock = 66MHz
Core/Bus ratio = 3.5
then CPU core speed = Host Clock x Core/Bus ratio
= 66MHzx3.5
= 233MHz
2.1-2 CPU Core Speed Derivation Procedure
J25
J25 Function
Short
Open
Automatically detect CPU
Bus Frequency
Allows CPU overclocking.
Set 66MHz to 150Mhz
2.1-3 Overclocking Jumper: J25
Overclocking is operating a CPU/Processor beyond its specified
frequency. J25 jumper is used for overclocking.

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-3
2.1-4 Fan Power Connector: CPUFAN
This connector support system cooling fan with + 12V. It supports three pin
head connector. When connecting the wire to the connector, always take
note that the red wire is the positive and should be connected to the +12V,
the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control. You can install PC Alert
utility. This will automatically control the CPU FAN Speed according
to the actual CPU temperature.
CPUFAN
CPUFAN: Processor Fan
+12V
SENSOR
GND

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-4
2.2 Clear CMOS Jumper: JBA2.2 Clear CMOS Jumper: JBA
2.2 Clear CMOS Jumper: JBA2.2 Clear CMOS Jumper: JBA
2.2 Clear CMOS Jumper: JBAT1/J26T1/J26
T1/J26T1/J26
T1/J26
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1/J26 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
J26
13
JBAT1
13

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-5
2.3 Memory Installation2.3 Memory Installation
2.3 Memory Installation2.3 Memory Installation
2.3 Memory Installation
2.3-1 Memory Bank Configuration
Themainboard supports a maximum memory size of 256MB(64-bit technol-
ogy) or 512MB(128-bit technology for SDRAM: It provides two 168-pin
unbufferedDIMMs (Double In-Line Memory Module) sockets. It supports
8 MB to 128 Mbytes DIMM memory module.
DIMM1(Bank0+ Bank1) DIMM2(Bank2+Bank3)

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-6
A. HowtoinstallaDIMMModule
1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the
DIMM memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.
3. The plastic clip at the side of the DIMM slot will automatically
close.
Single Sided DIMM
Double Sided DIMM
VOLTDRAM
2.3-2 Memory Installation Procedures

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-7
1. Supports only SDRAM DIMM.
2. To operate properly, at least one 168-pin DIMM module must be in-
stalled.
3. This mainboard supports Table Free memory, so memory can be installed
on DIMM1 or DIMM 2 in any order.
4. Supports 3.3 volt DIMM.
5. The DRAM addressing and the size supported by the mainboard is
shown below:
2.3-3 Memory Population Rules
Table 2.3-1 SDRAM MemoryAddressing
16M 1Mx16 ASYM 11 8 8MBx4 16MBx8
2Mx8 ASYM 11 9 16MBx8 32MBx16
64M 2Mx32 ASYM 11 9 32MBx2 64MBx4
2Mx32 ASYM 12 8 16MBx2 32MBx4
4Mx16 ASYM 11 10 32MB 64MB
4Mx16 ASYM 13 8 32MB 64MB
8Mx8 ASYM 13 9 64MB 128MB
64M 2Mx32 ASYM 11 8 16MB 32MB
4Mx16 ASYM 12 8 --- ---
8Mx8 ASYM 12 9 --- ---
DRAM
Tech.
DRAM
Density &
Width
DRAM
Addressing Address Size MB/DIMM
Row Column Single
Side(S) Double
Side(D)
no.
pcs. no. pcs.
