FULGOR milano 700 series User manual

F7RT24*1
F7RT30*1
EN INSTALLATION INSTRUCTIONS
FR INSTRUCTIONS D’INSTALLATION
ES INSTRUCCIONES DE INSTALLACIÓN
ELECTRIC COOKTOP
CUISINIER ÉLECTRIQUE
COCINA ELÉCTRICA

Dear Customer,
Thank you for purchasing a Fulgor Milano product. Fulgor Milano is committed to
excellence and our signature technologies provide you with professional tools for
your kitchen. One of our central philosophies is continuous investment in research that
is rooted in developing life enhancing technology. Our goal is to deliver products
that are worthy of your family recipes and that will breathe life into your kitchen, the
heart of your home. We invite you to enjoy your new Fulgor Milano product with
same amount of care and attention that we have put into creating it.
Your Life | Our Passion

EN
1
TABLE OF CONTENTS PAGE
1 - Special Warnings 2
Before Starting Installation 2
2 - Product Dimensions and Cutout Requirements 3
Important Preparation Suggestions 4
3 - Cooktop Installation 5
4 - Electrical Connections 8
General information 8
Connect with copper wire only 8
3 - Wire branch circuit 9
4-Wire branch circuit 9
IMPORTANT: Save these instructions for the local electrical
inspector use.
INSTALLER: Please leave this manual with owner for future
reference.
OWNER: Please keep this manual for future reference.
Pay attention to these symbols present in this manual
DANGER
You can be killed or seriously injured if you don’t
IMMEDIATELY follow instructions.
WARNING
• This is the safety alert symbol. This symbol alerts you to
potential hazards that can kill or hurt you and others.
• You can be killed or seriously injured if you don’t follow
these instructions.
READ AND SAVE THESE INSTRUCTIONS.
To installer:
Leave these instructions with the appliance.
To customer:
Retain these instructions for future reference.
WARNING
• If the information in this manual is not followed exactly, a
fire or explosion may result in personal injury or death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.

EN
2
1 - Special Warnings
Special Warnings
Please read all instructions before using this appliance
Proper installation is your responsibility. Have a qualified
technician install this cooktop.
IMPORTANT
• Observe all governing codes and ordinances.
• Write down the model and serial numbers before
installing the cook top. Both numbers are on the serial
rating plate located on bottom of cooktop box.
Before Starting Installation
WARNING
It is the customer’s responsibility to contact a qualified
electrical installer. To assure that the electrical installation is
Adequate and in conformity with national electrical code:
ANSI/NFPA 70-latest edition** or CSA standards C22.1-
94, Canadian Electrical Code, part No.0- M91 - latest
edition*** and all local codes and ordinances.
Copies of the standards listed may be obtained from:
** National Fire Protection Association One Batterymarch
Park Quincy, Massachusetts 02269
*** CSA International 8501 East Pleasant Valley Rd.
Cleveland, OH 44131-5575
To eliminate the risk of burns by reaching over heated surface
units, cabinet storage space located above the surface units
should be avoided. If he cabinet storage is to be provided, the
risk can be reduced by installing a range hood that projects
horizontally a minimum of 5” (12,7 cm) beyond the bottom of
cabinet.

EN
3

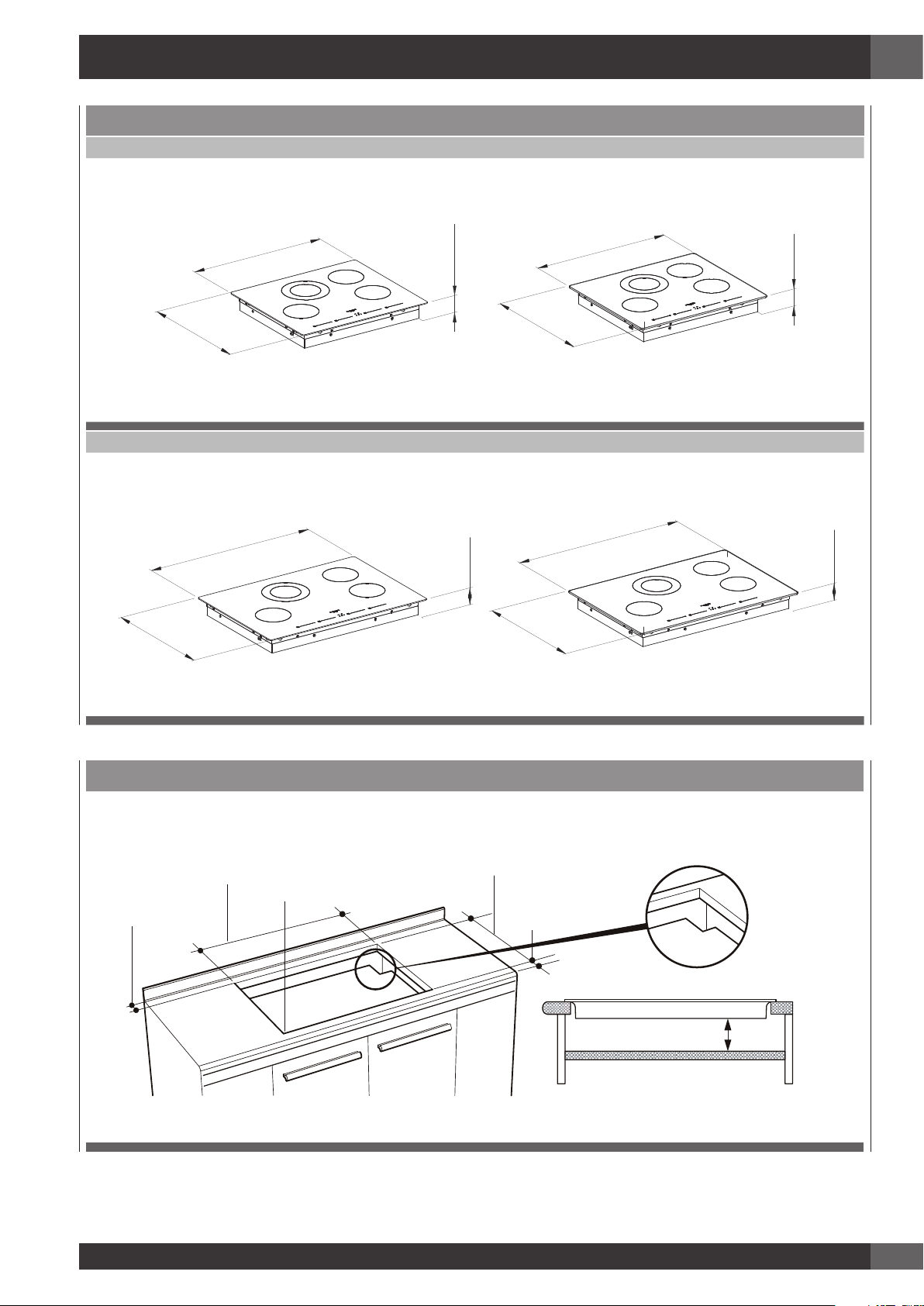

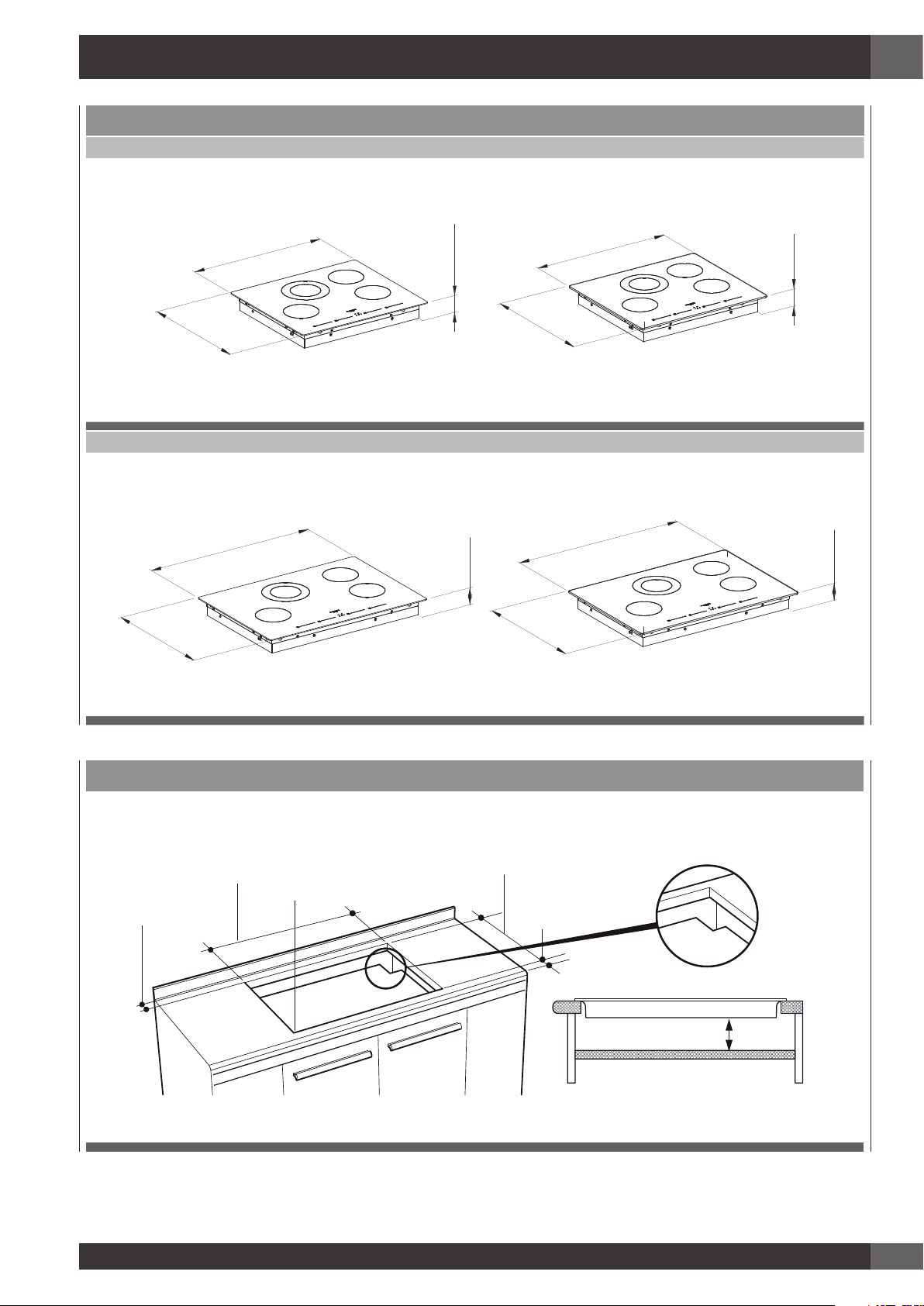

2 - Product Dimensions and Cutout Requirements
FIGURE 1  PRODUCT DIMENSIONS
24’’ - 24’’ FRAME
30 1/4”
(767)
21 1/8”
(538)
21”
(533)
21”
(533)
21 1/8”
(538)
24 1/8”
(613)
30 3/8”
(771)
3”
(75)
24 1/4”
(617)
3”
(75)
3”
(75)
3”
(75)
30’’ - 30’’ FRAME
30 1/4”
(767)
21 1/8”
(538)
21”
(533)
21”
(533)
21 1/8”
(538)
24 1/8”
(613)
30 3/8”
(771)
3”
(75)
24 1/4”
(617)
3”
(75)
3”
(75)
3”
(75)
FIGURE 2  CUTOUT DIMENSIONS
LENGTH OFF CUT
A
LENGTH OFF CUT
B
1-1/2” (3.8CM)
MIN CLEARANCE
SEE NOTE
RFROM EDGE OF CUTOUT
AND FRONT EDGE OF
COUNTERTOP
2-1/2” (6.5 cm)
SLOT FOR
CABLE
ROUTING
3-1/2” (9 cm)
2-1/2” (6.5 cm)
1-1/4” (3,2 cm) Canadian
2-1/4” (5,7cm) US

EN
4
FIGURE 3  CUTOUT REQUIREMENTS
D
G
C
E
F
WALL COVERING CABINETS,
AND COUNTERTOP MUST
WITHSTAND HEAT UP TO 93° C (200° F)
24” (60 cm) 30” (76.2 cm)
A22 5/8” (57.4 cm)
22 13/16” (58.0 cm)
28 11/16” (72.9 cm)
28 15/16” (73.5 cm)
B19 1/4” (49.0 cm)
19 9/16” (49.7 cm)
19 1/4” (49.0 cm)
19 5/8” (49.8 cm)
C24” (60 cm) min 30” (76.2 cm) min
D18” (45.7 cm) min Height from countertop to nearest cabinet on either side of until
E30” (76.2 cm) min. (see note*) Clearance from countertop to unprotected overhead surface
F2” (5 cm) Clearance from cutout to side wall on the left and right of the until
G13” (33 cm) Depth of unprotected overhead cabinets
IMPORTANT:
Under the cooktop it is necessary to install a partition as shown in figure2-3.
* NOTE:
- 24” (61 cm) min. clearance if bottom of wood or metal cabinets is protected by not less than 1/4” (0.6 cm) flame retardant
millboard covered with no less than No. 28 MSG sheet steel 0.015” (0.04 cm) stainless steel, or 0.024” (0.06 cm) aluminum
or 0.020” (0.05cm) copper.
- 30”(76.2 cm) min. clearance between top of cooking platform and bottom of unprotected wood or metal cabinet.
Important Preparation Suggestions
1. Chamfer all exposed edges of decorative laminate to
prevent damage from chipping.
2. Radius corners of cutout and file to Insure smooth edges and
prevent corner cracking. Recommend 1/4“or 3/8“diameter
drill In each corner.
3. Rough edges, inside corners which have not been rounded
and forced fits can contribute to cracking of the countertop
laminate.
This cooktop has been designed with wide tolerances of cut-
out to cover possible replacement with other brands. We
recommend to that you consider the minimum dimension of cut-
out size In the case of new Installation.
Some cut out sizes for possible replacements:
Dim. Inches cm
24” 22 13/16” x 19-9/16” 58,0 x 49,7
30” 28-15/16” x 19-9/16” 73,5 x 49,7

EN
5
WARNING
• Excessive Weight Hazard
Use two or more people to move and install cooktop.
Failure to do so can result in back or other injury.
• Cut Hazard
Beware of sharp edges. Use the polystyrene ends when
carrying the product. Failure to use caution could result in
minor injury or cuts.
• Always consult the countertop manufacturer for specific
instructions.
• Ensure the countertop is square and level and ensure no
structural members interfere with space requirements.
• Prepare the cut-out according to the instructions (see cut-
out dimensions).
• Make sure the wall coverings, countertop and cabinets
around the cooktop can withstand heat (up to 200 °F /
93 °C).
FIGURE 4  TOOLS YOU WILL NEED
Step 1
Remove packaging materials and literature package from the
cooktop before beginning installation.
Remove Installation Manual from literature pack and read them
carefully before you begin.
FIGURE 5  PARTS
MANUAL
GASKET
SCRAPER
CARDBOARD
TOP PACKAGING
COOKTOP
SIDE
PACKAGING
Step 2
Place a towel or table cloth onto the counter top. Lay the
cooktop upside down onto the protected surface.
FIGURE 6
3 - Cooktop Installation

EN
6
Step 3
A foam tape is provided to seal the cooktop edges to the
countertop. Apply tape approximately 1/16” (1.5 mm) from
the glass edge to the underside of the cooktop glass. Use tape
around the entire glass perimeter. Cut off excess where tape
ends butt.
FIGURE 7
Step 4
Insert the cooktop centered into the cutout opening.
Make sure the front edge of the counter top is parallel to the
cooktop. Make final check that all required clearances are met.
FIGURE 8
Step 5
Four clamp brackets are provided to clamp the cooktop to
the countertop. Tighten screws just enough to hold brackets in
place when cooktop is put into cutout.
Tighten screws securely.
FIGURE 9
