SERVICE MANUAL
N4S Paka paka machine
FCC ID:2AUBO43014
Model:43014
Isuue date: Aug. 27, 2019
Caution
★Please read the manual carefully and keep it in mind before
using this machine .
★Put this manual within touch of your reference in anytime .

- 2 -
Thefollowing safetyprecautions are given throughout thismanual. They mustbe strictly followedtoprotect
those who install, use or maintain this product as well as to protect players, visitors and property.
When setting up the machine, be sure to consult industry experts.
It is not possible to set up machines for people other than industry
experts.
When installing this product, make sure that four feet are evenly
placed on the floor, and ensure that the product is installed in a
stable horizontal position. Instability of installation may result in
machine injury or accident
When installing this product, do not overexert the movable parts.
Otherwise, it will damage the product or cause injury or accident to
people.
This product is only for indoor use.
You can't put the game console near the emergency exit.
Protect game consoles from the following effects:
1. Rain or damp places.
2. Where the sun shines.
3. Hazardous Flammable Material Places.
Do not place chemicals or beverage solutions above or near the
game console.
Do not place objects near vents.
Do not stretch or twist the power cord.
Do not insert or pull out the power box by hand in wet condition.
Voltage requirements must be used within the specified range.
The power outlet must insert multiple power lines at one time.
Do not place the power cord where the passer-by passes.
Be sure to read the contents of the product instructions
thoroughly.
Don't use too much force when moving a machine.
For proper ventilation, keep the game machine 300 mm away from
the wall.
You can't change the system or plug-in head of the machine
privately. Once some parts of the machine are changed, the machine
will cause irreparable damage.

- 3 -
CONTENTS
1.DIMENSION·····························P04
2.SPECIFICATION·····························P04
3.NAME OF PARTS·····························P04
4.LABEL LOCATION·····························P07
4-1CAUTION LABEL LOCATION···························P07
4-2FUCTION LABEL LOCATION···························P09
5.COMPOMENTS·····························P10
6.INSTALLATION·····························P11
6-1INSTALLATION SPACE····························P11
6-2HOW TO INSTALL····························P11
6-3HOW TO FILL IN TOYS INTO TOP····························P12
7.HOW TO REPLACE MAJOR COMPONENTS····························P14
7-1REPLACING TOP····························P14
7-2REPLACING DIAL····························P16
7-3REPLACING MAIN STRUCTURE····························P18
7-4HOW TO DISASSEMBLE TOP AND LIFT····························P21
8.HOW TO PLAY····························P22
8-1LOOP VIDEO·····························P23
8-2 MAIN INFO·····························P23
8-3PURCHASING INTERFACE·····························P24
8-4 Info INTERFACE·····························P25
8-5POINT FOR PURCHASE·····························P26
8-6TOYS DETAILS·····························P26
8-7SET UP·····························P27
8-8 WIFI SETTING·····························P28
8-9SERVER ADDRESS SETTING·····························P28
8-10 HARDWARE TEST·····························P29
8-11HARDWARE TESTING STEPS AND FAULT HANDING····················P29
8-12PURCHASE RECORD·····························P31
9.HOW TO UPDATED THE SOFTWARE·····························P41
10.HOW TO UPDATED THE VIDEO·····························P42
11.REPLACING MAINBOARD·····························P43
12.CIRCUIT DIAGRAM·····························P45

- 4 -

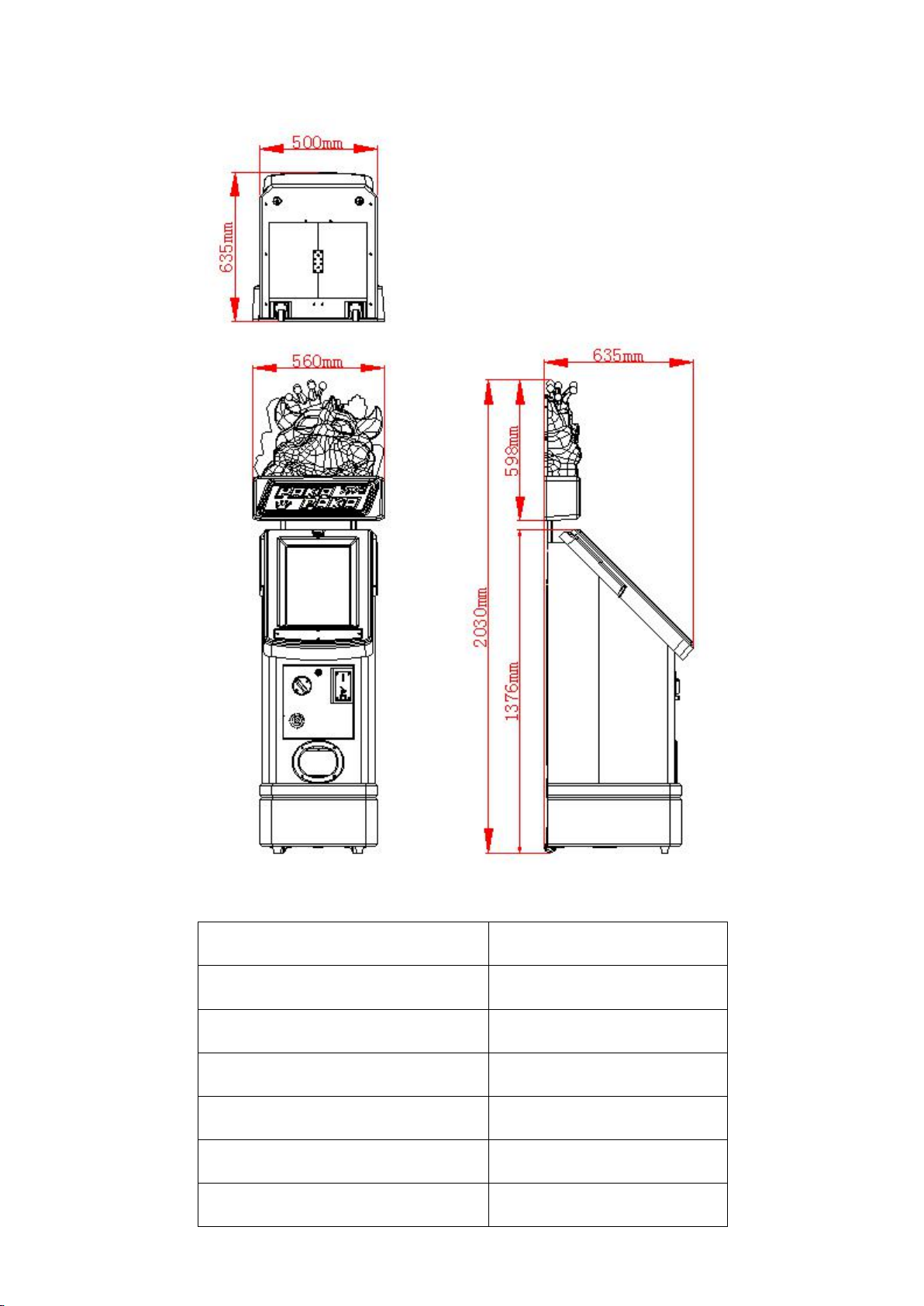

1. DIMENSION
2．SPECIFICATION
DIMENSION（W*D*H）
500*635*2030(mm)
PACKING DIMENSION（W*D*H）
680*600*1570（mm）
GW(KG)
76.4KG
NW(KG)
68.4KG
VOLTAGE
120V
FREQUENCY RANGE
60Hz
CONSUMPTION
50W

- 5 -
3．NAME OF PARTS

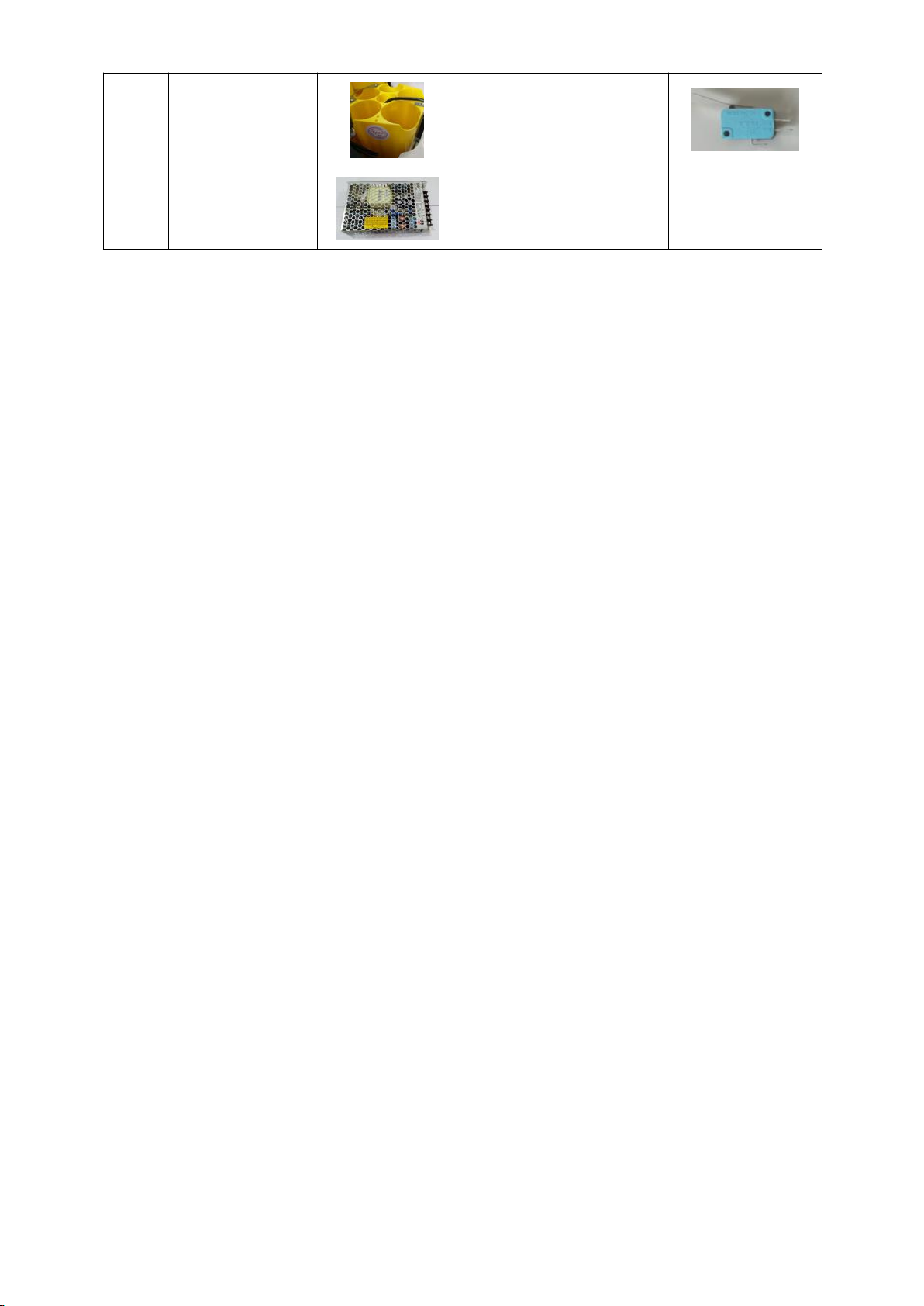

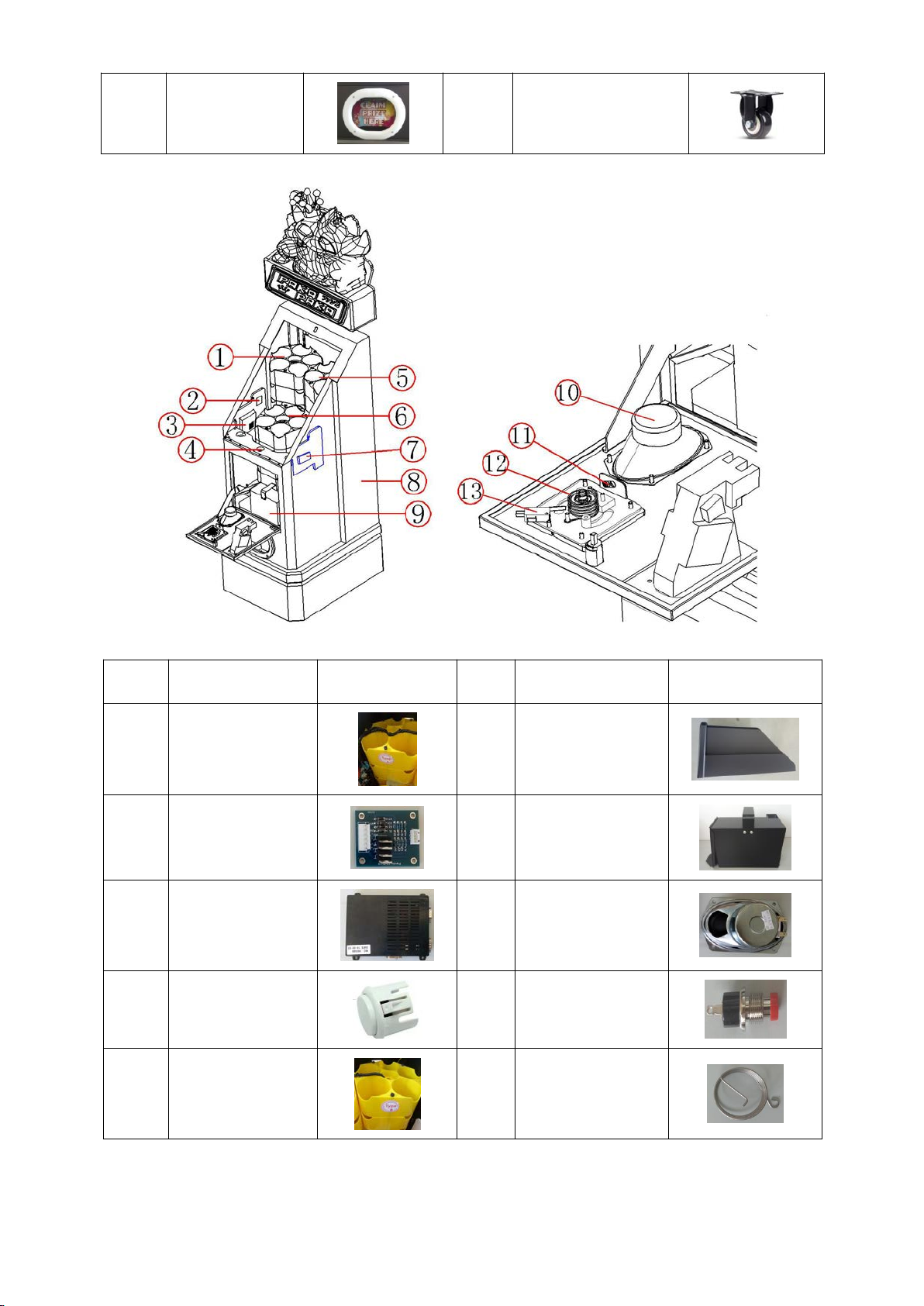

NO.
PART NAME
NO.
PART NAME
1
billboard
9
lift
2
lock
10
Toys door
3
screen
11
Top rear board
4
Screen
cover
12
Top holder
5
dial
13
handle
6
Coin
selector
14
Rear door
7
volumn
15
AC input part

- 6 -
8
Capsule toy
door
16
wheel
NO.
PART NAME
NO.
PART NAME
1
TYPE A
8
Main cabinet
2
Motor drive
board
9
Token box
3
Mainboard
10
loudspeaker
4
Repair
button
11
Setup part
5
TYPE B
12
Dial spring

- 7 -
6
TYPE C
13
Dial switch
7
Power box

- 8 -
4.LABEL LOCATION

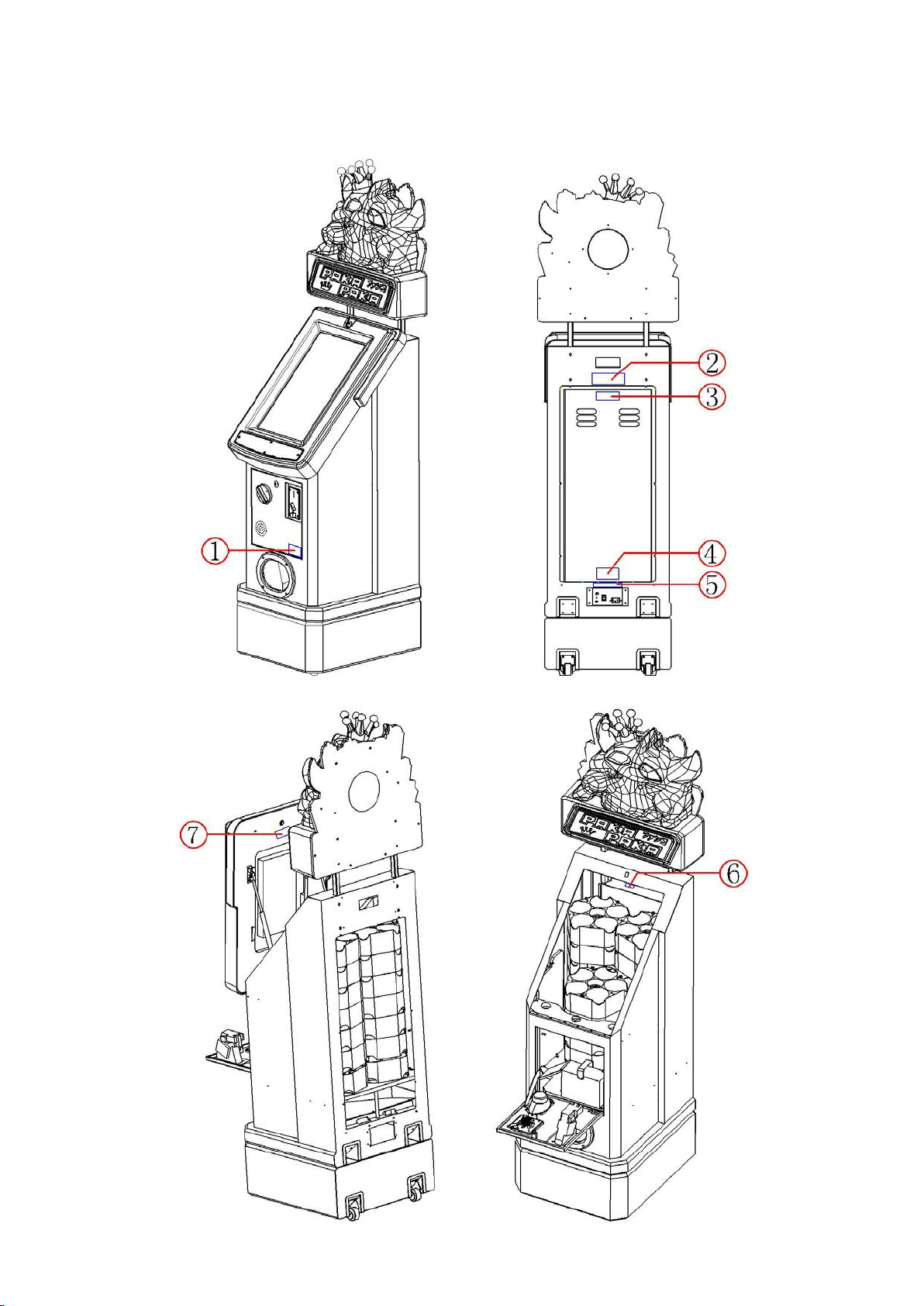

4-1CAUTION LABEL LOCATION

- 9 -
NO.
PART NAME
LABEL SIZE
1
nameplate
L90mm*W63mm
2
FCC
L121mm*W50mm
3
Do not open this
door for
non-professional
s
L100mm*W65mm
4
Indoor use only
L133mm*W65mm
5
Unplug before
maintain
L80mm*W18mm
6
careful the clip
hand
L120mm*W50mm

- 10 -
7
Maintenance
outages
L100mm*W65mm
4-2 FUNCTION LABEL LOCATION
NO.
PART NAME
标签尺寸
1
Insert token
L60mm*W37mm

- 11 -
2
Turn dial
Ø127mm
3
Ground terminal
L47mm*W37mm
4
Type A
Ø50mm
5
Type B
Ø50mm
6
Type C
Ø50mm
7
Repair button
Ø35mm
8
Set up
L51mm*W27mm
5．COMPOMENTS
NO.
PART NAME
SPEC.
QTY
UNIT
REMARK
1
POWER LINE
1.5M
1
strip
2
PROTECTIVE
TUBE
ø6-20mm
1
pcs
110V/220 6A
3
MANUAL
A4
1
pcs

- 12 -

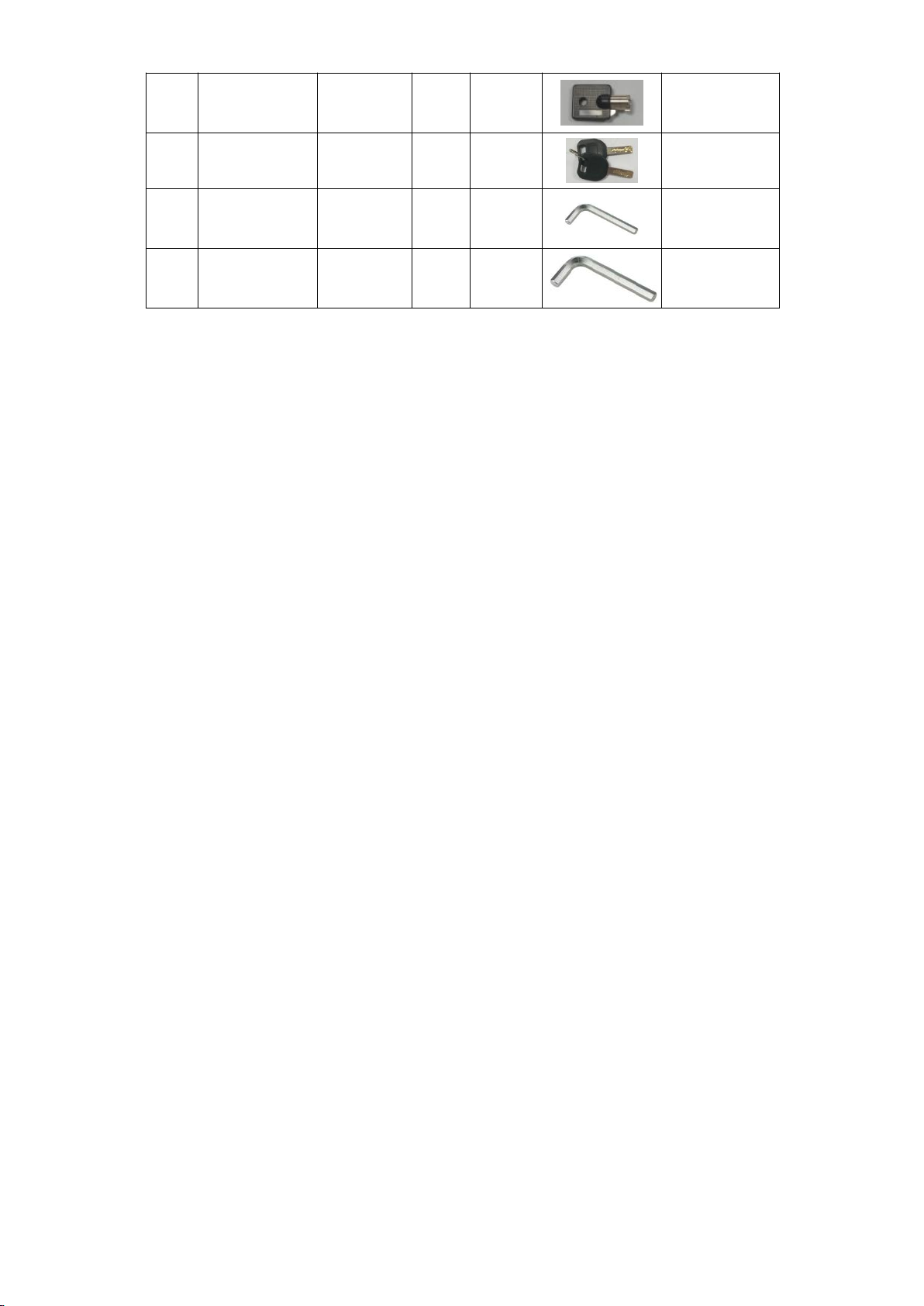

4
MACHINE
KEYS
LG01
2
pcs
5
LOCK KEYS
LG02
2
pcs
6
HEXAGON
WRENCH
4mm
1
pcs
7
HEXAGON
WRENCH
5mm
1
个 pcs

- 13 -
6.INSTALLATION
6-1 INSTALLATION SPACE
Need to have installation place. Maintenance Zone& Play zone should at least 1500mm*1600mm
each.
Once you set up the machine with required game-play area, when installing this
product, set the 4 leg levelers evenly on the floor and make sure that the product is
installed stably in a horizontal position.
Installation of this product to ensure that the surrounding environment must be
dry, ventilated, not damp
The installation process and precautions must be carefully read when installing
this product.
6-2.HOW TO INSTALL
LOOSEN TOP HOLDER TUBE SCREW(TOTAL 8PCS)
set the 4 leg levelers evenly on
the floor and make sure that
the product is installed stably
in a horizontal position
1
2

- 14 -
CHOOSE THE 4PCS SCREW ,USE THE HEXAGON WRENCH CONNECT THE TUBE WITH BLACK BOARD.
HOLD THE TOP BOX WITH TUBE INSERTED BETWEEN THE HOLES.
CHOOSE THE 4PCS SCREW ,USE THE HEXAGON WRENCH CONNECT THE TUBE WITH THE MAIN
CABINET.
6-3 HOW TO FILL IN TOYS INTO TOP?
USE THE SCREWDRIVER LOOSEN THIS 4 PCS SCREW.
REMOVE THE CIRCULAR PLATE
3
4
1
2

- 15 -
PUT CAPSULE TOYS INSIDE THE HOLE.
SHOW AS FULL TOYS INSIDE .
COVER CIRCULAR PLATE
USE THE SCREWDRIVER LOCK THIS 4 PCS SCREW
5
3
4
6

- 16 -
7. HOW TO REPLACE MAJOR COMPONENTS

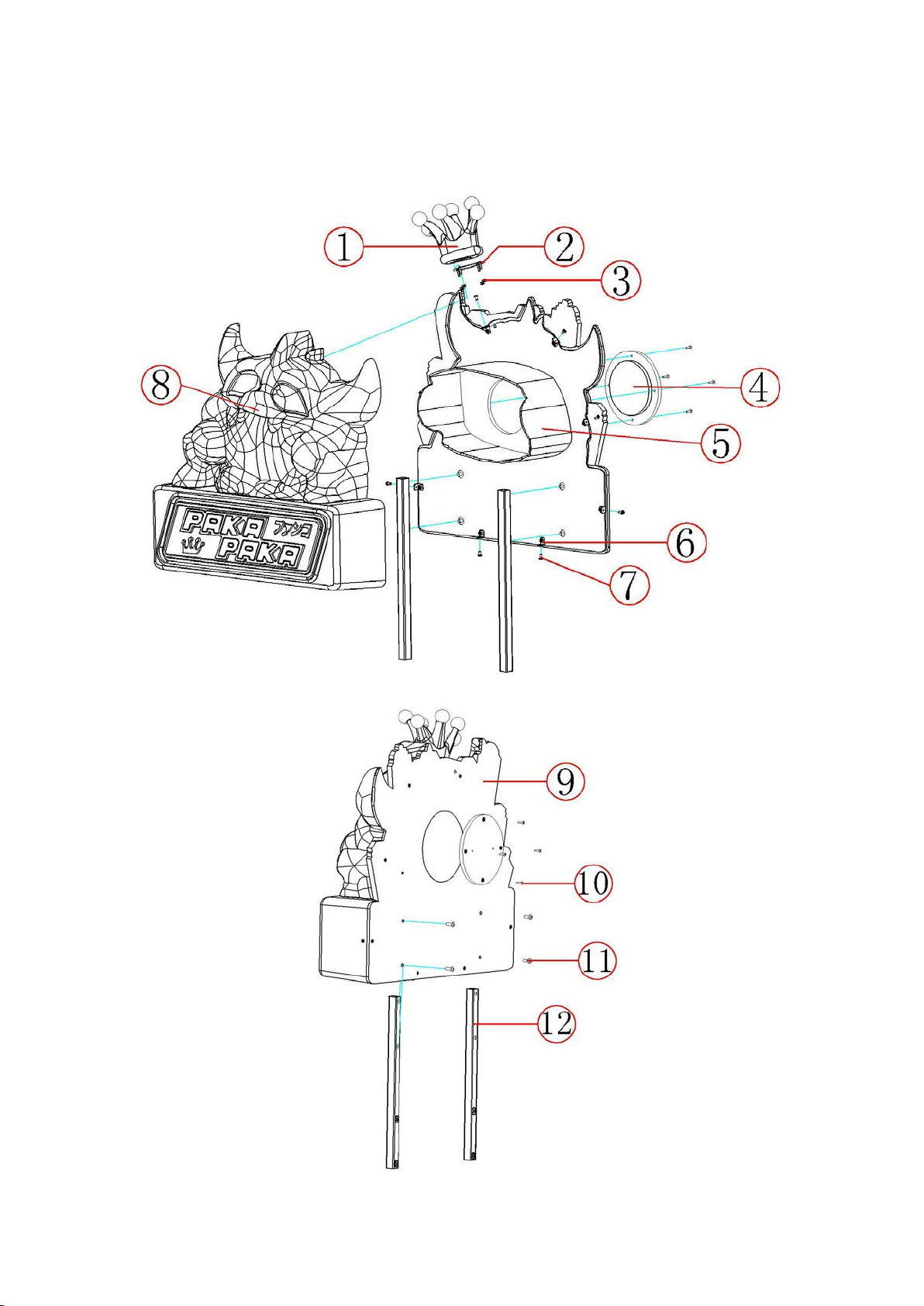

7-1TOP PART INSTALLATION DISGRAM

- 17 -
NO.
PART NAME
SPEC
QTY
REMARK
1
crown
pvc
1
2
Crown Baseplate
1
SN.03-17
3
lock nut
M3
4
4
Cover plate
Black MDF 9mm
thick
1
5
pvc foam board
white
1
6
Corner code of
plastic-absorb
ing cover
201 Stainless
steel
1
7
Hexagonal screw
in round cup
M4*8mm
8
SN.03-06
8
Box shape
Plastic-absorb
ing transparent
organic cover
8
9
Back panel of
box
Black MDF 9mm
thick
1
10
Large flat head
machine silk
M3*14mm
4
11
Hexagonal
machine wire in
disk head
M6*14mm
4
12
Iron square
tube
20*20*1.2mm
2
SN.07-04

- 18 -
7-2 DIAL PART INSTALLATION DISGRAM
Drawing after
Installation

- 19 -
NO.
PART NAME
SPEC
QTY
REMARK
1
Hexagonal wire
in round cup
M4*16
1
2
dial
Fluorescent
Green Acrylic
1
SN.06-05
3
Dial bottom
plate
6mm Milk-white
nylon board
1
SN.06-06
4
Dial Rotating
plate
Q235 Galvanized
1
SN.02-05
5
Deep groove
bearing
699ZZ
2
6
Dial bottom
plate
Q235 Galvanized
1
SN.02-06
7
Dial cushion
gum
Yellow
polyurethane
1
SN.06-07
8
lock nut
M4
3
9
circlip
Ø8mm
2
10
Dial spring
diameter 1.2
Stainless steel
wire
1
SN.07-03
11
Large flat head
machine silk
M4*16mm
2
12
Micro switch
Long shape
1

- 20 -

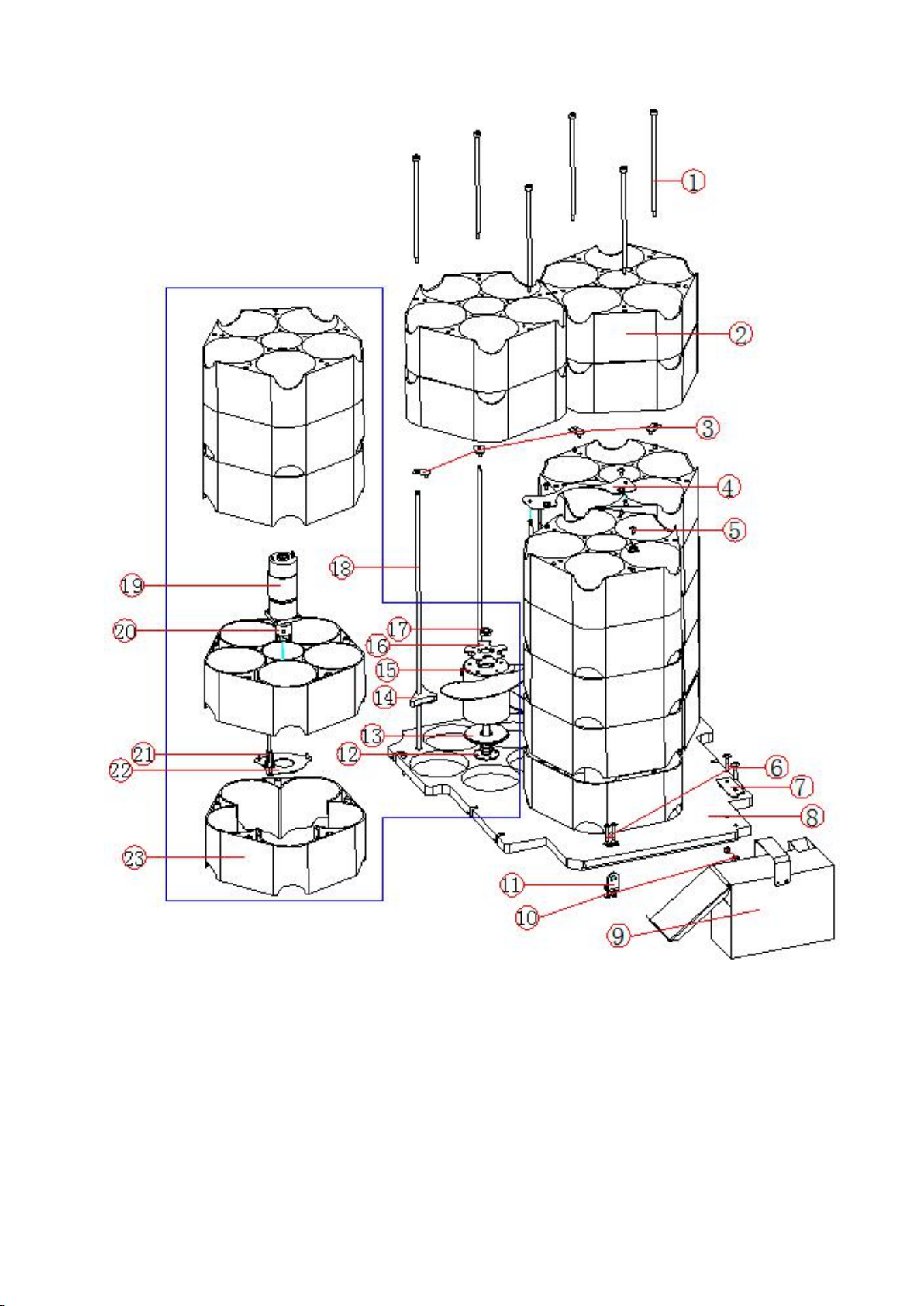

7-3 CAPSULE TOYS STRUCTURE PART INSTALLATION DISGRAM
