Furniture Solutions ARCADIA 17ARCS12 User manual

INSTRUCTION MANUEL
PRODUCT: ARCADIA SUN LOUNGE
ITEM CODE: 17ARCS12
MADE IN CHINA
Furniture Solutions (Aust) Pty Ltd
10-16 Daisy St,
Revesby, NSW. 2212
www.furnituresolutions.com.au

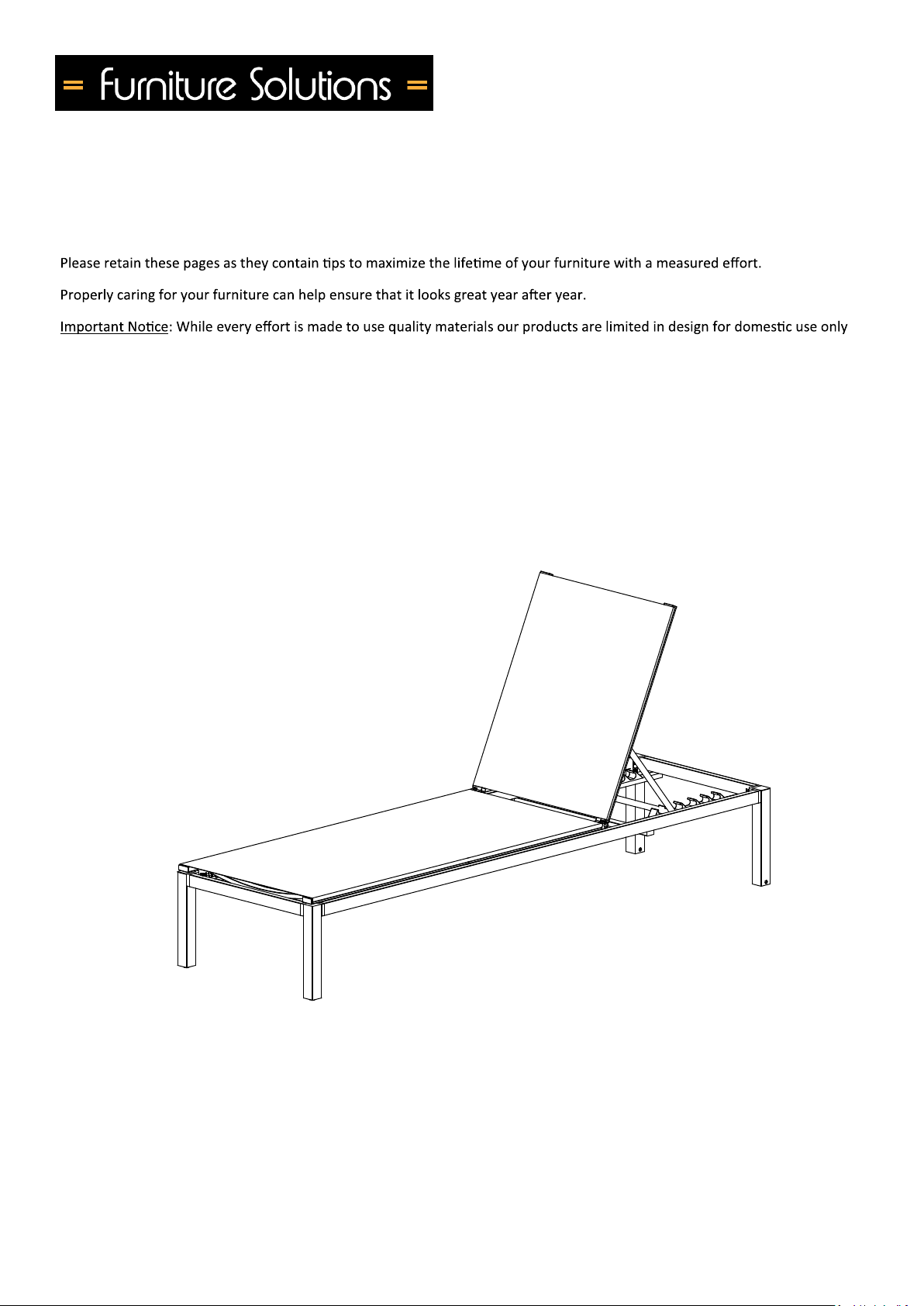

Arcadia Sun Lounge KD
& are not suitable for commercial use.

PRE ASSEMBLY PREPARATION
Before you start:
1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that
may damage the product
2.
the point of use
3. Ensure that you have all required contents for complete assembly
4.
5. Keep all hardware parts and packaging out of reach of small children
6.
20
MINUTES
ALLOW 20 MINUTES 2 PEOPLE REQUIRED
X2
For any assistance with assembly or missing parts please contact:
Customer Service (Australia) Phone– 1300794 188
Email–

Sun Lounge Parts List
A: x 1
Sun Lounge Carcass
B: x 2
Front Leg
C: x 1
Back Leg with Wheel
E: x 8
Bolt
D: x 1
Back Leg with Wheel
F: x 8
Washer
G: x 8
Washer
H: x 8
Bolt Cover
I: x 1 Tool
Spanner

Assembly Instructions

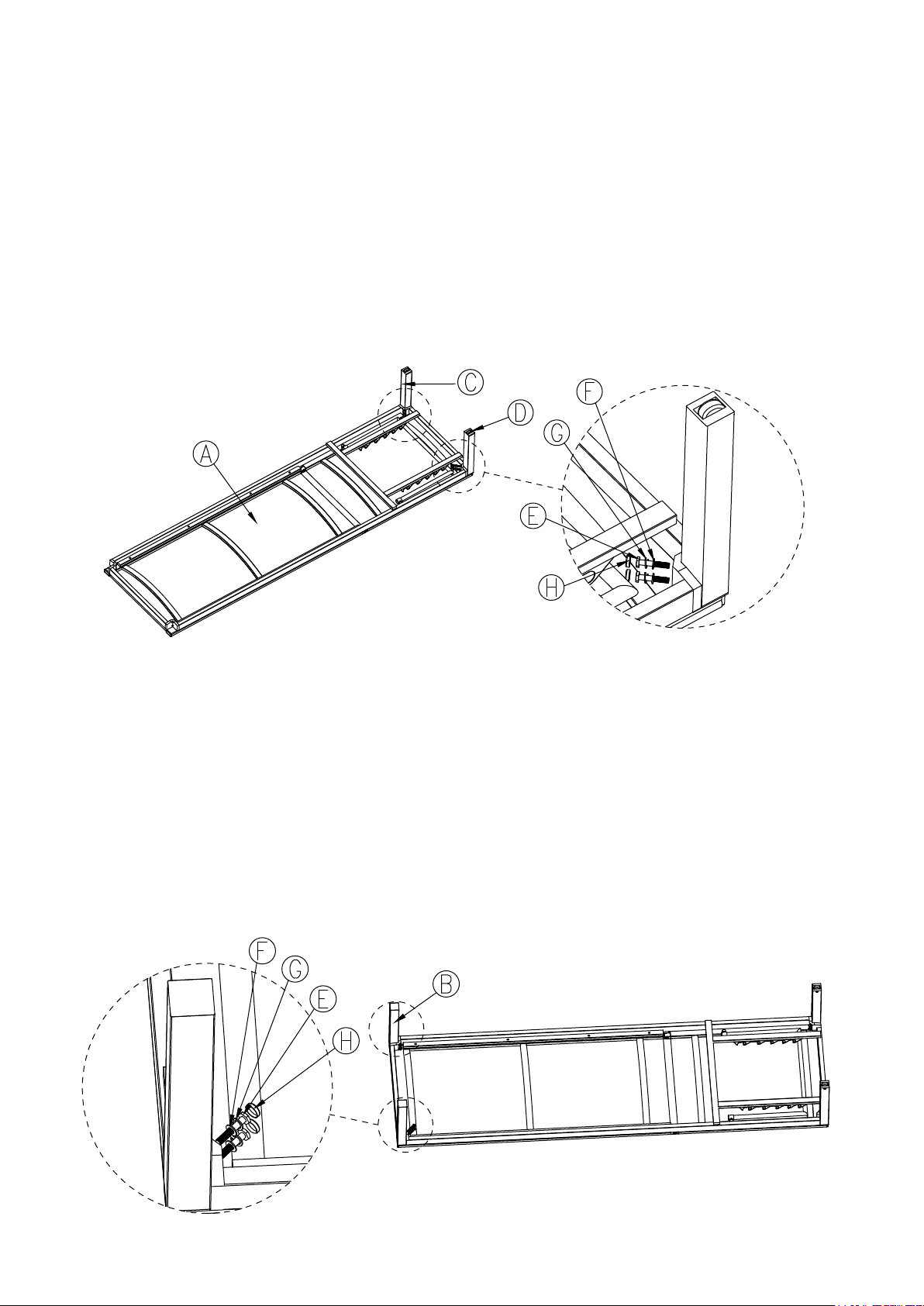

STEP 1– Fit Back Leg [C] and Back Leg [D]
The back legs look same, but have the difference of left and right. The way to identify
them is that if the leg is in right side the wheel is in the same direction with the long side
seat tube. Use this method take one back leg, find the right side, aline threaded holes in
leg with holes in corner of Sun Lounge Carcass [A]. Take Bolt [E] with spring washer [G]
and washer [F] in that order insert into hole into thread ensure to seat thread properly by
hand turn 2-3 times to ensure a good grip. Do not tighten yet. Add second bolt, washers
and follow above instruction. Once both seated correctly, take tool [I] to tight till firm and
washer is flat. Note do not over tighten as this may cause damage to thread. Now add bolt
cover [H]. Repeat this operation for another back leg. Move to step 2.
STEP 1– Fit Front Leg [B]
Note that front legs are exact the same. Take front leg [B] and as per diagram, aline
threaded holes in leg with holes in corner of Sun Lounge Carcass [A]. Take Bolt [E] with
spring washer [G] and washer [F] in that order insert through leg thread and seat thread
properly, by hand turn 2-3 times to ensure a good grip. Do not tighten yet. Add second
bolt, washers and follow above instruction. Once both seated correctly, take tool [I] and
tighten till firm and washer is flat. Note do not over tighten as this may cause damage to
thread. Now add bolt cover [H]. Repeat this operation for other leg. Assembly completed.
With the help of another person, lift and turn over sun lounge onto feet.

PRODUCT CARE & MAINTENANCE
Textilene Sling Information
The Textilene sling is a synthetic material made from a mixture of fibres of polyester covered
with a sheath of PVC, able to withstand compressive stresses, strains, atmospheric agents and UV
rays.
For Outside use properties of material have a proven track record, while still subject to fading
strength will remain even after colour starts to fade. Shelf life again depends on location &
environment, regular cleaning & storage for best results for longevity.
Textilene Sling Maintenance
Use a bucket filled with warm water & a soft soap, sponge over frame till clean, once clean rinse
off with a hose, pat dry with a soft clean cloth before use. Every 4-6 weeks. Ensure not left wet
for long periods of time to avoid mould build up.
Aluminium Frame Information
The majority of frames are mainly produced from aluminium, with the main benefit being a light
weight product for easier use. Some designs require steel to be used in certain sections for added
strength. While aluminium is rust resistant, bare metal can show signs of oxidation (red film) this
does not constitute rust. Simply you are able to wipe or sand surface to remove oxidation mark.
Note you will need to touch up affected area with paint to stop from reoccurring. Steel itself has a
lower resistance to elements than aluminium and will show signs of rust as it ages. Limited
exposure & maintenance are best solutions for adding life to any furniture used in outside areas.
Aluminium Frame Maintenance
Use a bucket filled with warm water & a soft soap, sponge over frame till clean, once clean rinse
off with a hose, pat dry with a soft clean cloth before use. Every 4-6 weeks.
Note when cleaning if you find scratches in paint please cover with a paint to prevent oxidation.

WARNING SAFETY & ADVICE
Please be aware materials used in your furniture are not impervious to neglect, acts of god, abuse,
alcohol spills, improper use of chemicals such as bleach or any solvent based product, products
are limited in design for residential use only and not suitable for commercial use.
Please be aware that heat generated from barbeques and heaters will have an adverse effect on
your furniture do not place furniture in close proximity to heat sources.
When moving tables, chairs, sofas or bench’s always lift off the floor never drag. Most tables
would require a 2 person lift doing so benefits yourself and furniture as dragging may cause
damage to furniture and or surface on flooring.
Do not stand on furniture for your own safety & for the sake of the furniture
Never strike glass
Never drag or lean back chair, sofa, benches whilst sitting on them
Tables, chairs, sofas & benches are not work benchers please only use as intended.
Fitting; bolts, nuts & screws should be checked periodically to ensure they are still firm. Note do
not over tighten.
Please secure furniture during in climatic weather, as lightweight aluminium can become a
projectile.
Please be aware of staining fabric; Suntan oil, alcohol, juices & other chemical may do
permanent damage to your covering, should be cleaned immediately.
General wear & tear on cushions, please rotate cushions were possible as filling will soften with
use, replacement cushion fillings can be purchased from local upholster if required in future.
General wear & tear fabrics, most synthetic fabric resist pilling but pilling can occur from
transference from other fabric that come in contact with material IE: Cotton clothing & or towels.
Do not allow children to play under tables.
In summary outdoor furniture products require care to provide you with many years of use. Best
results are to combine maintenance and protection from environment + the use of an outdoor
cover can give you better result with least amount of effort.

WARRANTY DETAILS
1 Year Warranty
A one (1) year warranty applies to product against any defect associated with faulty
workmanship for a period of (1) year from date of purchase.
Furniture Solutions accepts no responsibility for defects caused by incorrect assembly,
mishandling, acts of god, general wear & tear, stains from spills/vegetation, chipping / scratching,
and exposure to extreme heat/cold, mould/mildew, hardware corrosion, misuse of the products &
defects caused by failure in duty of care for the product in accordance with the care instructions.
Warranty only extends to original purchaser and is not transferable, except when given as a gift.
Duty of care:
While every attempt is made to supply product using quality components there is always a need
from consumer to help ensure a long life of use for product.
* Proper use of item, only what it is designed to do
* Regular maintenance and cleaning
*Protecting product from the harsh environment: Pollution, mould, heat.
To extend the life of your outdoor furniture we recommend the following
Furniture covers should be used on furniture which is used in areas not protected from
elements. Caution should be used when using oils, lotions & other chemicals such as chlorine.
Instruction Manual – Have been written to suit individual materials used in construction, please
retain for future use for duty of care, assembly, parts & component sizing.
Claim management:
To make a warranty claim, customers can either contact the retailer where the purchase was made
or Furniture Solutions on contact details on page 2. Proof of purchase will be required before
proceeding with any claim. In the case of product defects providing photos may be able to speed
up processing of the claim. If missing parts please refer to assembly instructions for identification
of said part and contact either of the above.
“Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure”.
