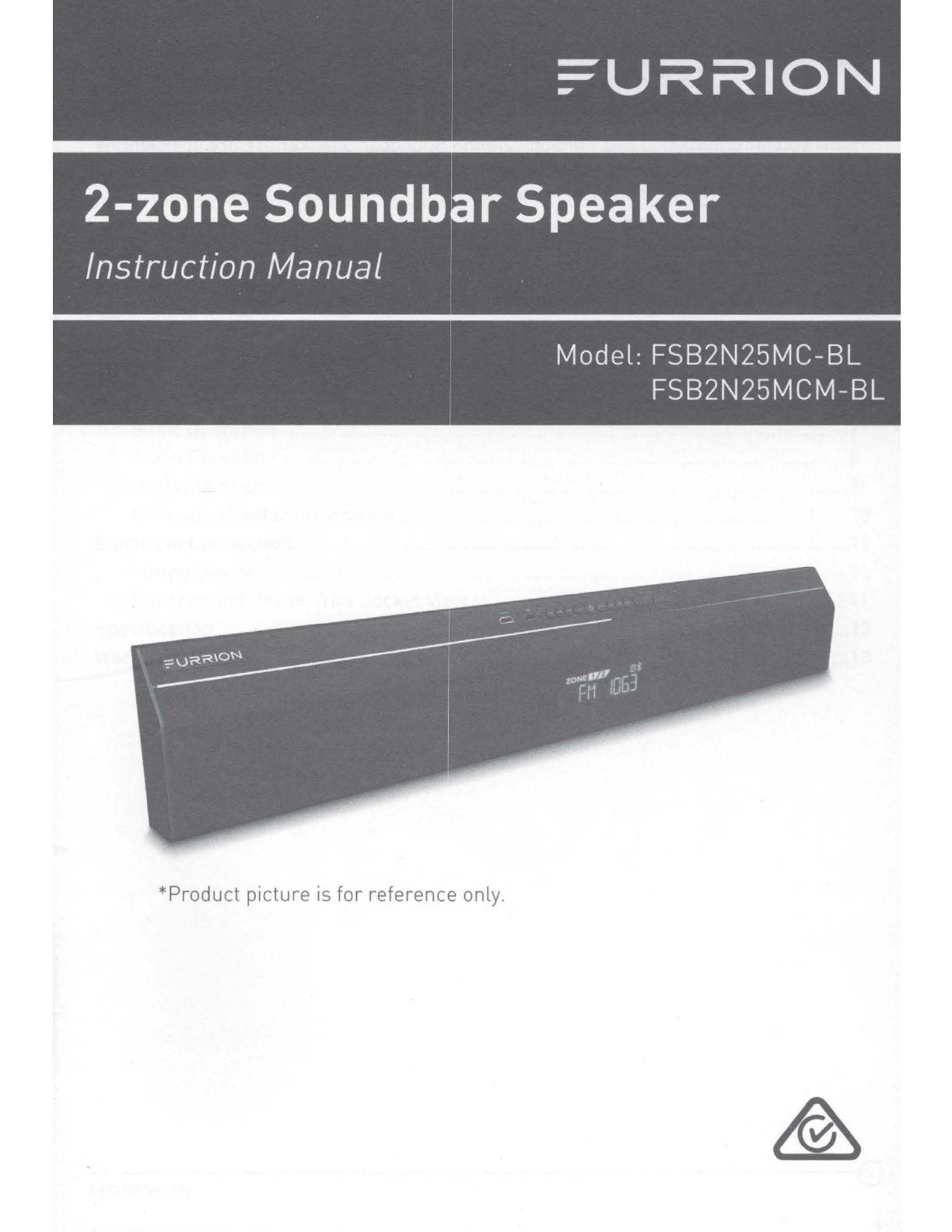

Furrion FSB2N25MC-BL User manual

*Product picture is for reference only.

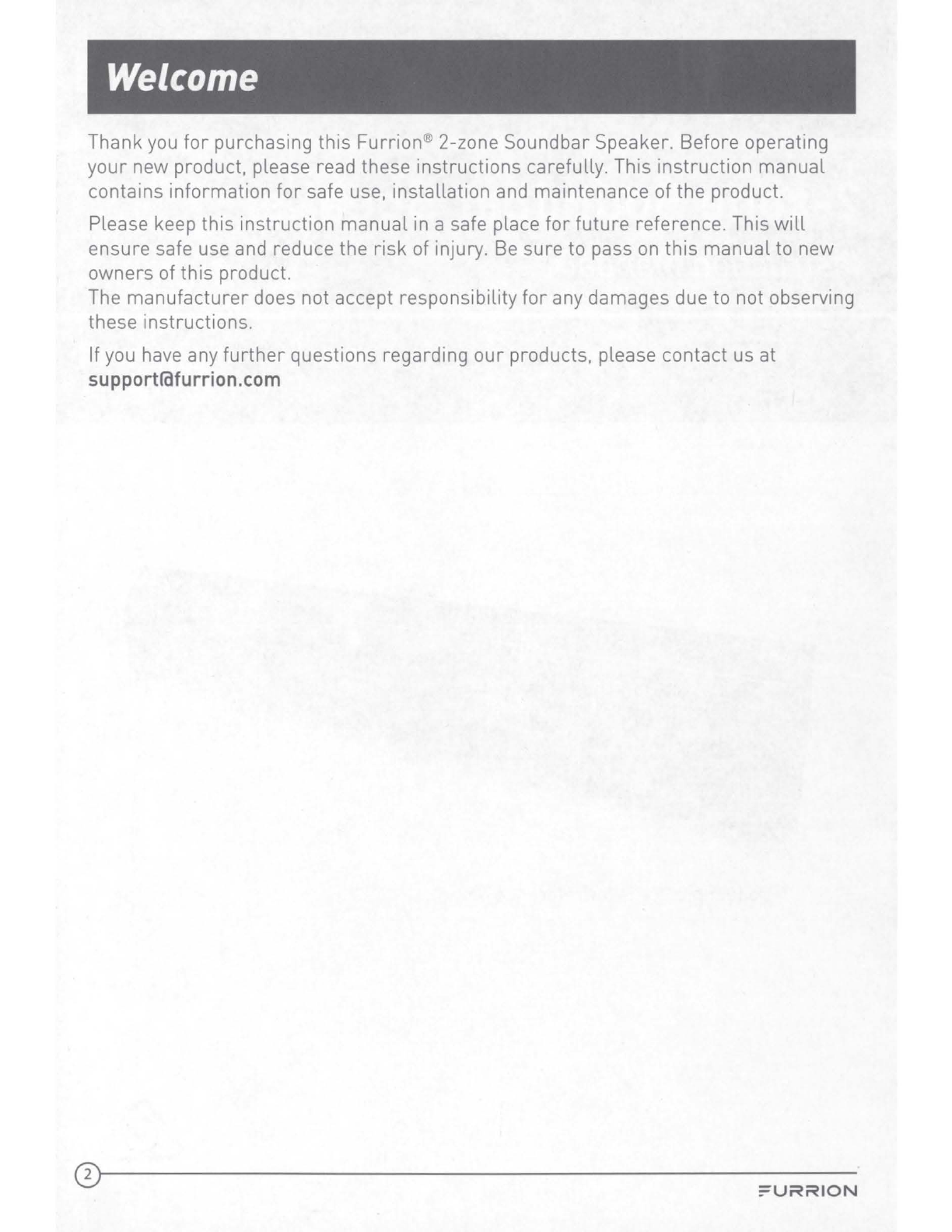

Welcome
Thank you for purchasing this Furrion ®2-zone Soundbar Speaker. Before operating
your new product, please read these instructions carefully. This instruction manual
contains information for safe use, installation and maintenance of the product.
Please keep this instruction manual in a safe place for future reference. This will
ensure safe use and reduce the risk of injury. Be sure to pass on this manual to new
owners of this product.
The manufacturer does not accept responsibility for any damages due to not observing
these instructions.
If you have any further questions regarding our products, please contact us at
[email protected]
0--------------------
:=- u RR ION

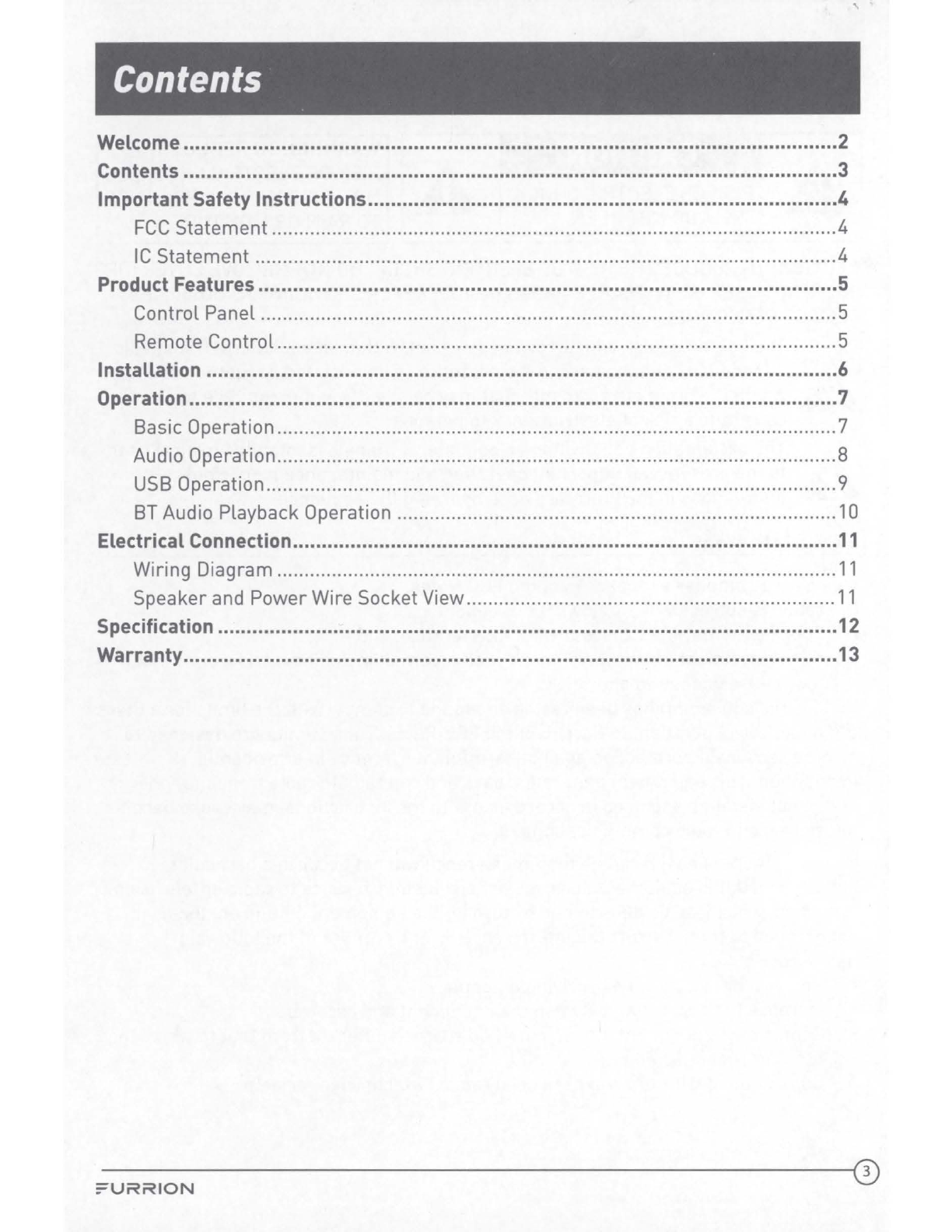

Contents
Welcome ..................................................................................................................2
Contents ..................................................................................................................3
ImportantSafety lnstructions..................................................................................4
FCC Statement........................................................................................................4
IC Statement ...........................................................................................................4
Product Features .....................................................................................................5
Control Panel ..........................................................................................................5
Remote Control.......................................................................................................5
Installation ..............................................................................................................6
Operation.................................................................................................................7
Basic Operation.......................................................................................................7
Audio Operation.......................................................................................................8
USB Operation.........................................................................................................9
BT Audio Playback Operation ................................................................................. 10

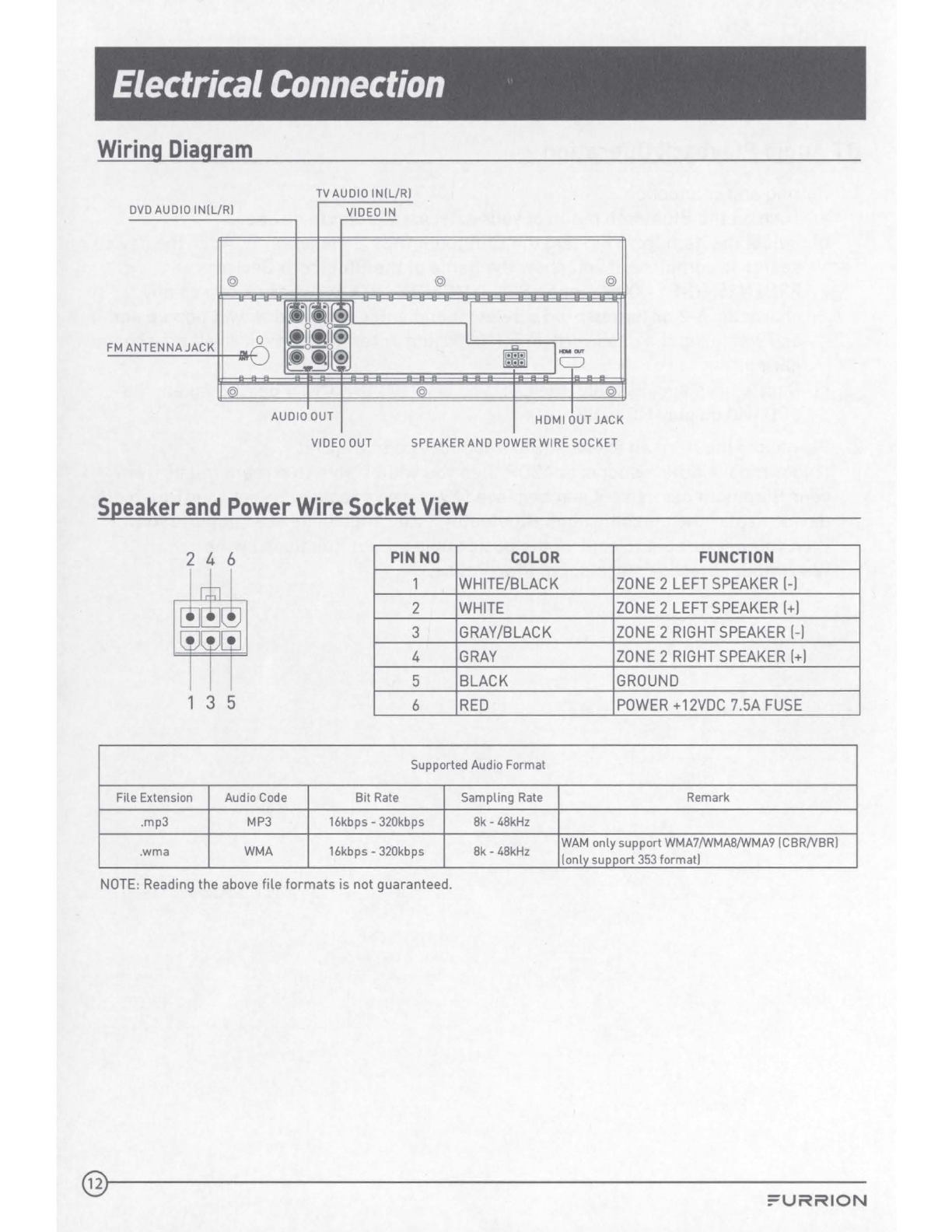

Electrical Connection ............................................................................................... 11
Wiring Diagram ....................................................................................................... 11
Speaker and Power Wire Socket View .................................................................... 11
Specification ............................................................................................................ 12
Warranty..................................................................................................................13
---------------------------------------------f3
:=-URRION

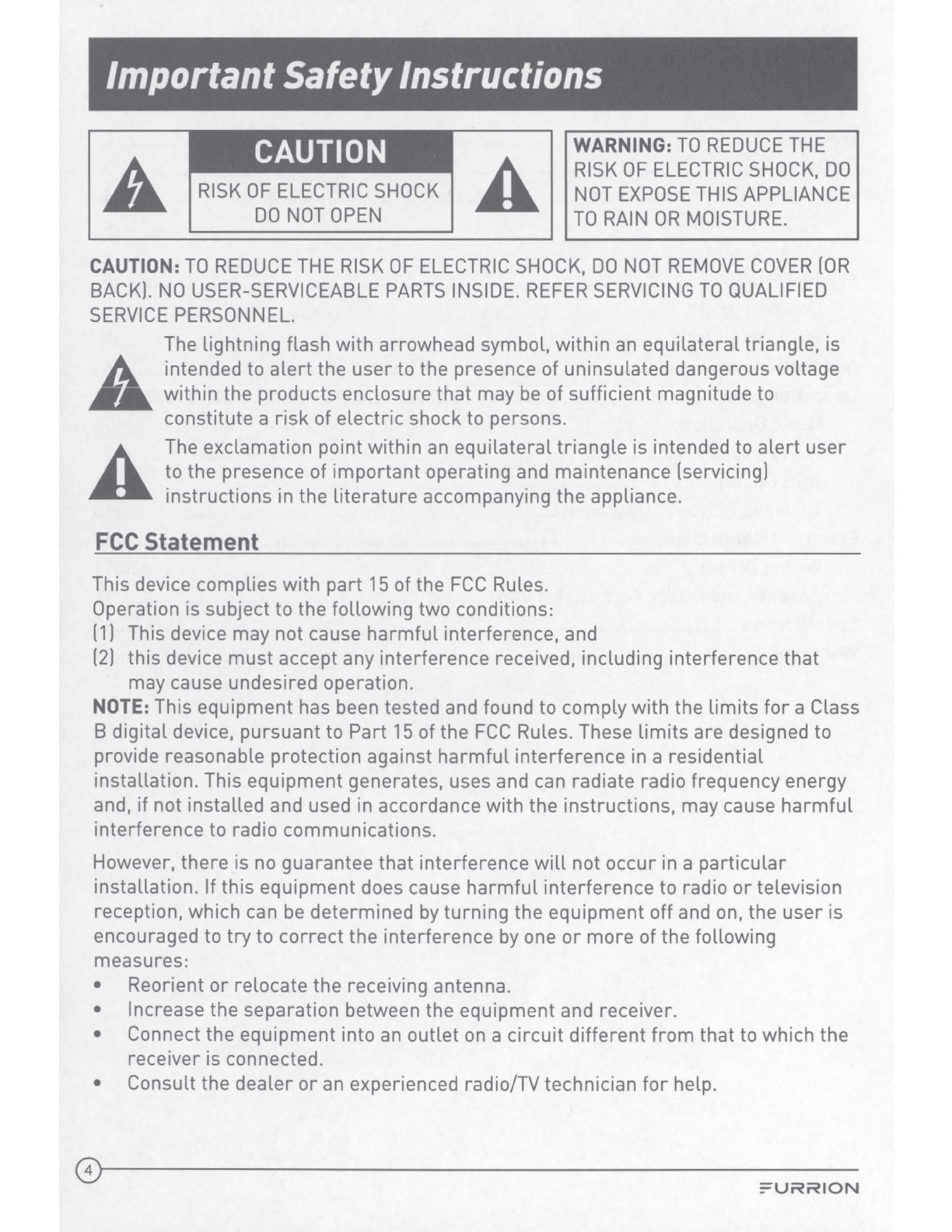

I ImportantSafetyInstructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
A
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER [OR
BACK]. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
A The lightning flash
with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated dangerous voltage
within the products enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
A The exclamation point
within an equilateral triangle is intended to alert user
to the presence of important operating and maintenance [servicing)
instructions in the literature accompanying the appliance.
FCC Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
11) This device may not cause harmful interference, and
12) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
4i---------------------------------

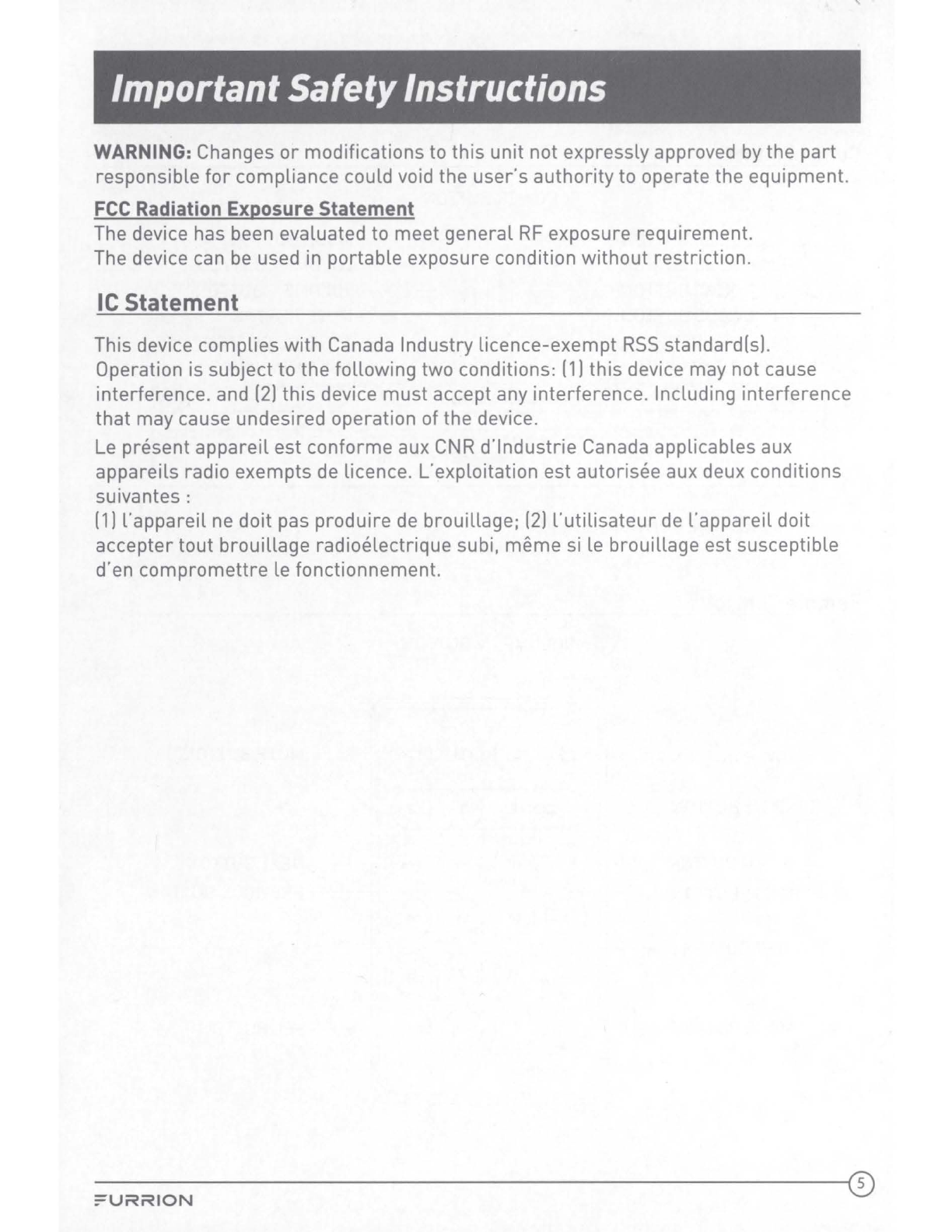

ImportantSafetyInstructions
WARNING: Changes or modifications to this unit not expressly approved by the part
responsible for compliance could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
IC Statement
This device complies with Canada Industry licence-exempt RSS standard[sl.
Operation is subject to the following two conditions: [1] this device may not cause
interference. and (21 this device must accept any interference. Including interference
that may cause undesired operation of the device.
Le present appareil est conforme aux CN R d'lndustrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions
suivantes :
(1] l'appareil ne doit pas produire de brouillage; [2] l'utilisateur de l'appareil doit
accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible
d'en compromettre le fonctionnement.
--------------------------------15

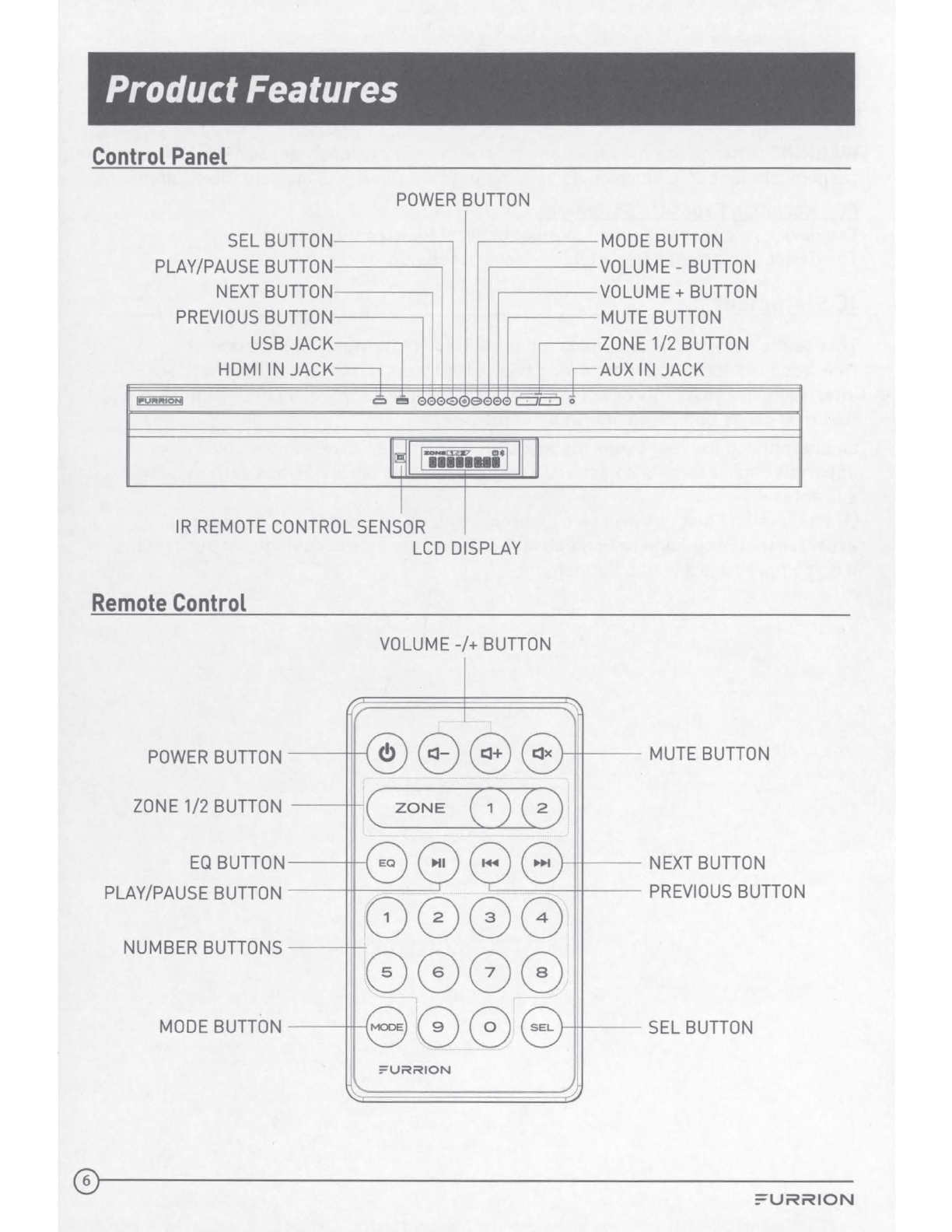

Product Features
Control Panel
POWER BUTTON
SEL BUTTON
MODE BUTTON
PLAY/PAUSE BUTTON VOLUME - BUTTON
NEXT BUTTON
VOLUME+ BUTTON
PREVIOUS BUTTON MUTE BUTTON
USB JACK ZONE 1/2 BUTTON
HDMI IN JACK
I 1
AUX IN JACK
~
a ~ •n•n•n-,~ .. -~,- •• cz::im t
11 ~~1 ■■ u ■ ui· 11
IR REMOTE CONTROL SENSOR
LCD DISPLAY
Remote Control
VOLUME-/+ BUTTON
POWER BUTTON
88
EQ BUTTON ---+tf--i f-f++-- NEXT BUTTON
PLAY /PAUSE BUTTON --- ,0 -1 -------
0
-='
2 0
~.......,
0
.....,,
4
---------ltt-- PREVIOUS BUTTON
NUMBER BUTTONS --+tt-'- ,0 0 0 0
MODE BUTTON ---+tf--i ~ 0 0
?'URRION
61------------------------------

Installation
• Before finally installing the unit, connect the wiring temporarily and make sure
the unit and the system work properly.
• Fix the unit with screws according to following diagram.
Wooden Wall
Net Cover
1. Remove the Net Cover from the main unit.
2. Fix the unit with 8 pieces [#8] pan-head self-tapping screws.
3. Put the Net Cover back on the main unit.
-----------------------------,0
::=u~~ION

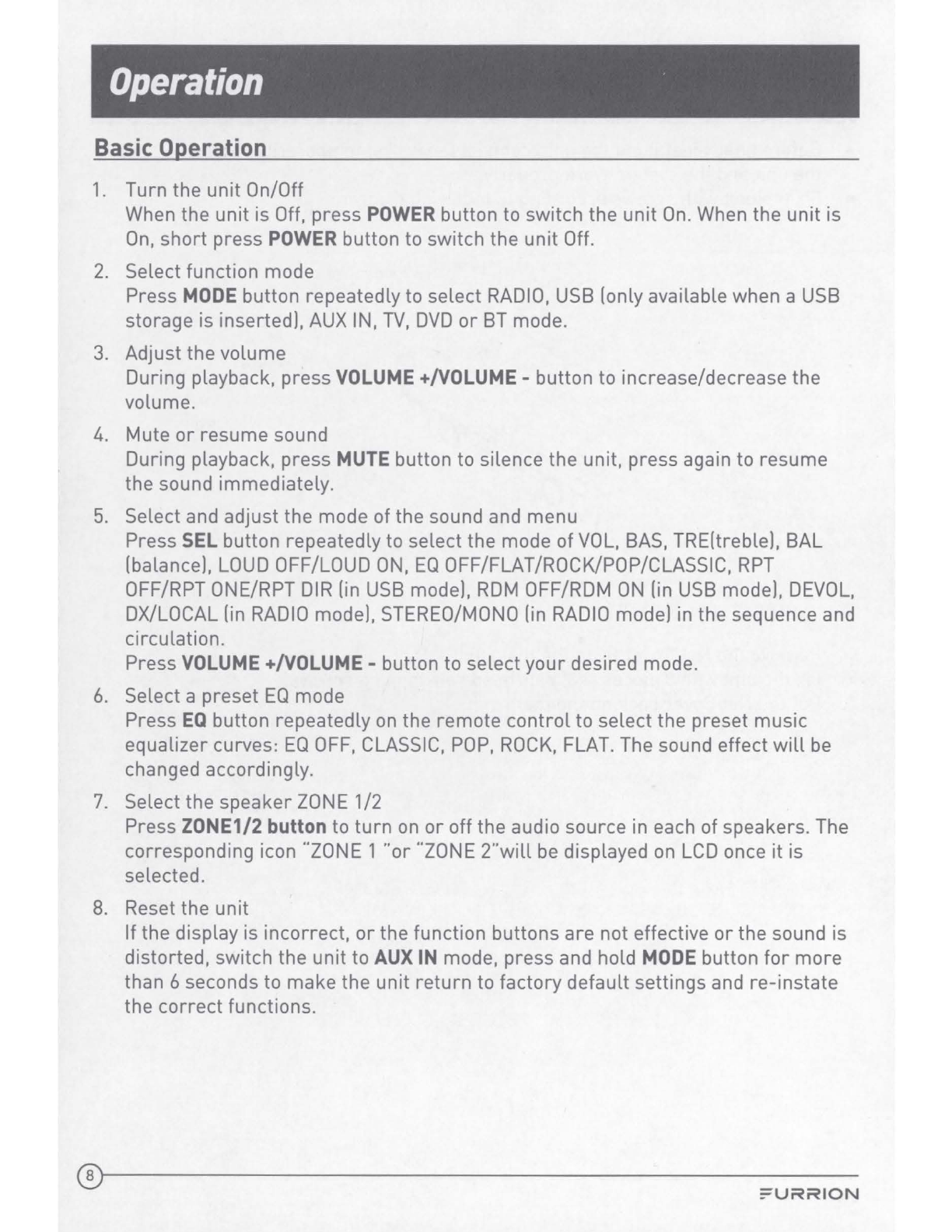

Operation
Basic Operation
1. Turn the unit On/Off
When the unit is Off, press POWER button to switch the unit On. When the unit is
On, short press POWER button to switch the unit Off.
2. Select function mode
Press MODE button repeatedly to select RADIO, USB (only available when a USB
storage is inserted], AUX IN, TV, DVD or BT mode.
3. Adjust the volume
During playback, press VOLUME +NOLUME -button to increase/decrease the
volume.
4. Mute or resume sound
During playback, press MUTE button to silence the unit, press again to resume
the sound immediately.
5. Select and adjust the mode of the sound and menu
Press SEL button repeatedly to select the mode of VOL, BAS, TRE(treblel, BAL
(balance], LOUD OFF/LOUD ON, EQ OFF/FLAT/ROCK/POP/CLASSIC, RPT
OFF/RPT ONE/RPT DIR [in USB model, ROM OFF/ROM ON (in USB model, DEVOL,
DX/LOCAL (in RADIO model, STEREO/MONO (in RADIO mode) in the sequence and
circulation.
Press VOLUME +/VOLUME -button to select your desired mode.
6. Select a preset EQ mode
Press EQ button repeatedly on the remote control to select the preset music
equalizer curves: EQ OFF, CLASSIC, POP, ROCK, FLAT. The sound effect will be
changed accordingly.
7. Select the speaker ZONE 1/2
Press ZONE1/2 button to turn on or off the audio source in each of speakers. The
corresponding icon "ZONE 1 "or "ZONE 2"will be displayed on LCD once it is
selected.
8. Reset the unit
If the display is incorrect, or the function buttons are not effective or the sound is
distorted, switch the unit to AUX IN mode, press and hold MODE button for more
than 6 seconds to make the unit return to factory default settings and re-instate
the correct functions.
s-------------------------------
:=-URRION

Operation ,
Audio Operation
1. FREQUENCY SELECT
In RADIO mode: Press and hold SEL button for about 2seconds to switch to radio
region selection mode, then press VOLUME+ or VOLUME -to select AREA USA/
AREA EUR for model FSB2N25MC-BL [orselect AREA AUS/ AREA EUR for model
FSB2N25MCM-BLI.
2. TUNE/SEARCH UP/DOWN
In RADIO mode:
11 Press and hold I~ or...- button on the front panel or press and hold ~or..._
button on the remote control to automatically search up or down for an
available station from the current frequency.
2) Press~ or...- button on the front panel or press M ◄ or...- button on the
remote control to manually search up or down step by step for your desired
station from the current frequency.
3. AS & PS FUNCTION
In RADIO mode:
11 Press and hold ZONE 1button on the front panel to automatically search the
radio frequency from the lowest frequency till the search cycle is finished.
Then 10 of the strongest stations are automatically stored in the correspond-
ing preset memory band IFM0~FM91.
When the AS [Automatic Storage) operation is complete, the radio station will
resume to the previous played station.
2) Press and hold ZONE 2 button on the front panel to automatically search
each preset stations from FM0 to FM9.
When the search cycle of PS [Preset Scan) is complete, the radio station will
resume to the previous played station.
4. PRESET STATION AND PRESET NUMBER [ 0-9] BUTTONS
In RADIO mode:
1) To memorize the current frequency station:
al Press and hold one of the 10 number buttons (0-9) on the remote control to
store the current station.
bl Press and hold the PLAY/PAUSE button until the preset number flashes,
then press PLAY/PAUSE button repeatedly to select the preset numbers
from Oto 9. Press and hold PLAY/PAUSE to confirm the selection.
2) To recall the preset memory on the current band, press one of the 10 number
buttons I0-9) on the remote control to broadcast the corresponding preset
station.
--------------------------®
:=UR RION

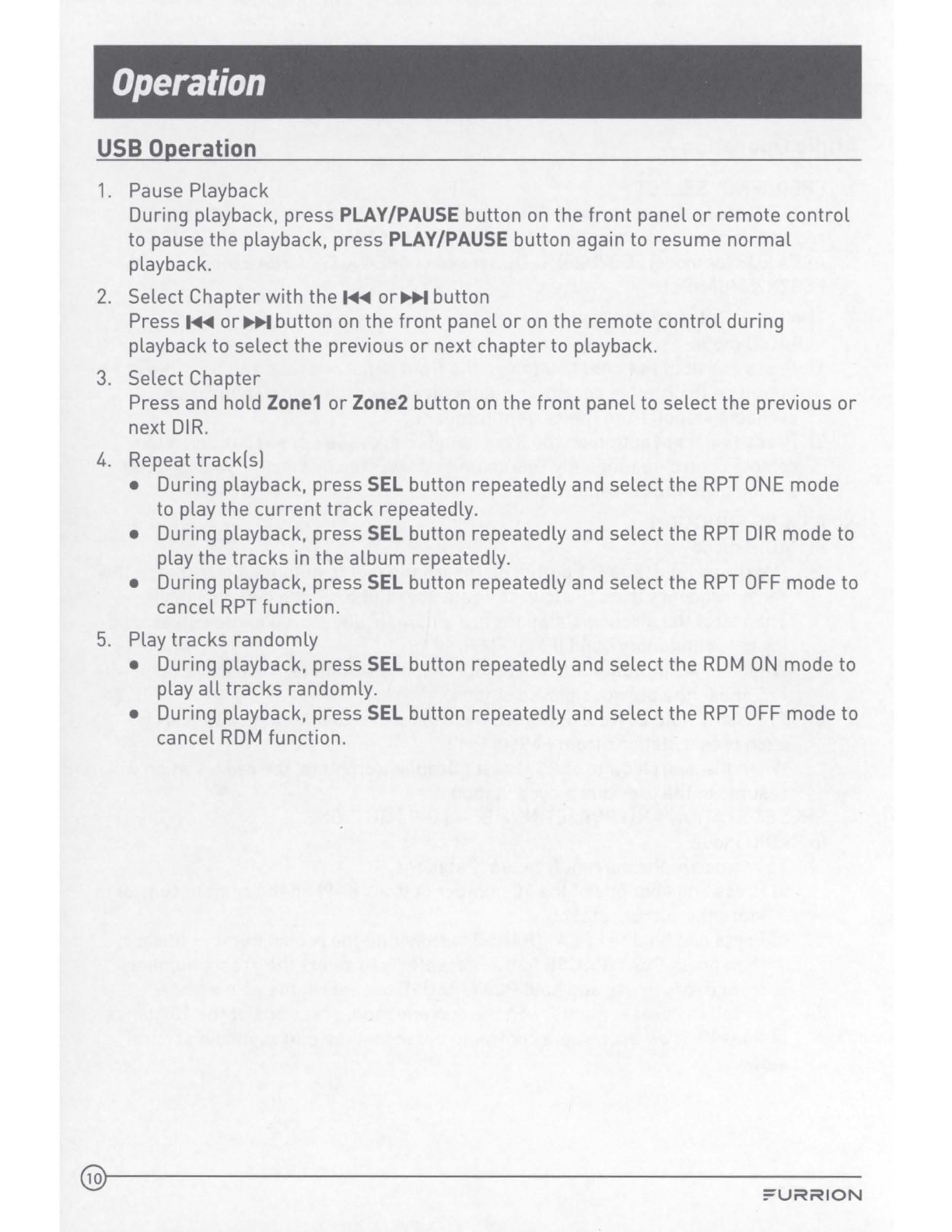

Operation
USB Operation
1. Pause Playback
During playback, press PLAY/PAUSE button on the front panel or remote control
to pause the playback, press PLAY/PAUSE button again to resume normal
playback.
2. Select Chapter with the l+ill or~ button
Press l+ill or~ button on the front panel or on the remote control during
playback to select the previous or next chapterto playback.
3. Select Chapter
Press and hold Zone1 or Zone2 button on the front panel to select the previous or
next DIR.
4. Repeat track[sl
• During playback, press SEL button repeatedly and select the RPT ONE mode
to play the current track repeatedly.
• During playback, press SEL button repeatedly and select the RPT DIR mode to
play the tracks in the album repeatedly.
• During playback, press SEL button repeatedly and select the RPT OFF mode to
cancel RPT function.
5. Play tracks randomly
• During playback, press SEL button repeatedly and select the ROM ON mode to
play all tracks randomly.
• During playback, press SEL button repeatedly and select the RPT OFF mode to
cancel ROM function.
10-------------------------------

Operation

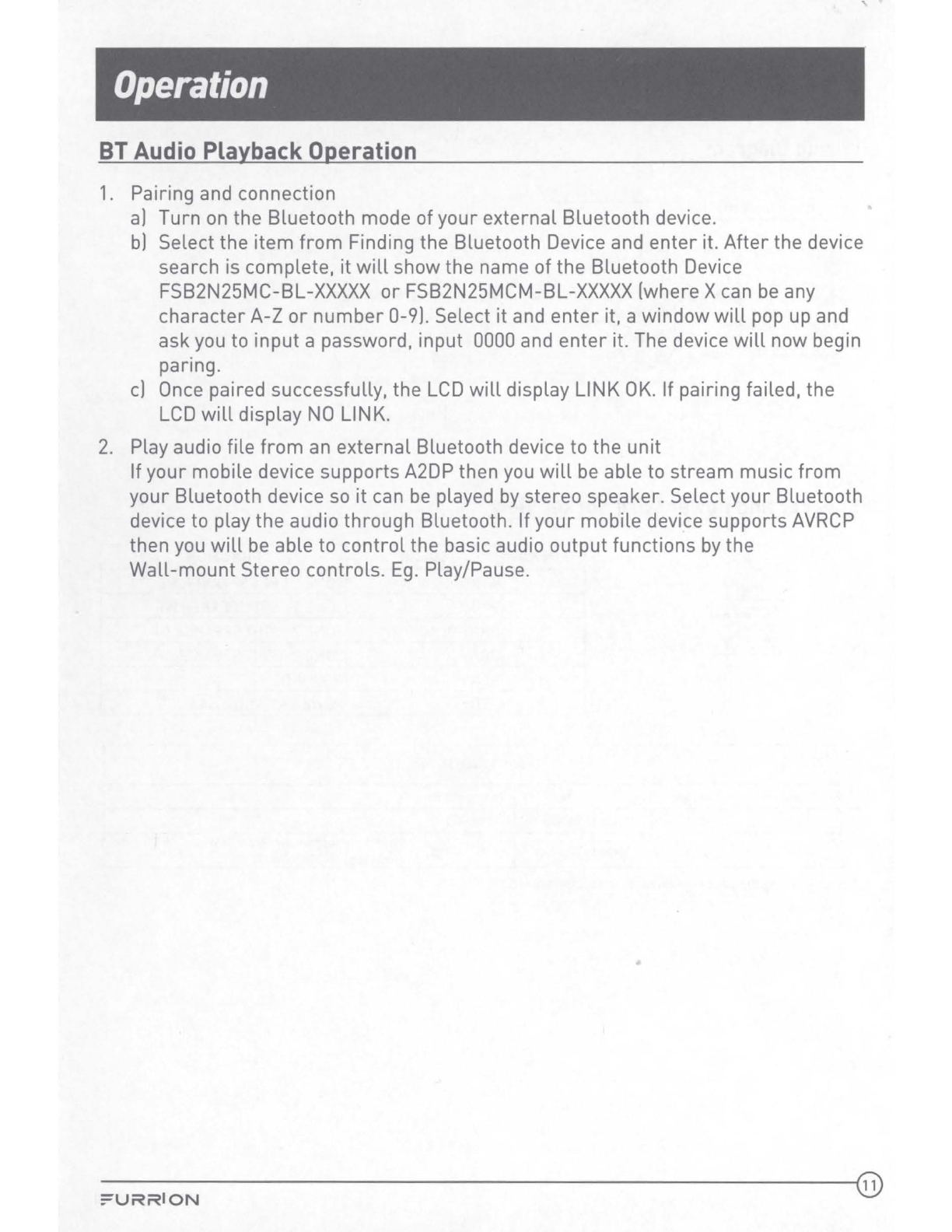

BT Audio Playback Operation
1. Pairing and connection
al Turn on the Bluetooth mode of your external Bluetooth device.
bl Select the item from Finding the Bluetooth Device and enter it. After the device
search is complete, it will show the name of the Bluetooth Device
FSB2N25MC-BL-XXXXX or FSB2N25MCM-BL-XXXXX (where Xcan be any
character A-Z or number 0-9). Select it and enter it, a window will pop up and
ask you to input a password, input 0000 and enter it. The device will now begin
paring.
cl Once paired successfully, the LCD will display LINK OK. If pairing failed, the
LCD will display NO LINK.
2. Play audio file from an external Bluetooth device to the unit
If your mobile device supports A2DP then you will be able to stream music from
your Bluetooth device so it can be played by stereo speaker. Select your Bluetooth
device to play the audio through Bluetooth. If your mobile devi_ ce supports AVRCP
then you will be able to control the basic audio output functions by the
Wall-mount Stereo controls. Eg. Play/Pause.
•
---------------------------,@
~URRION

ElectricalConnecllon
Wiring Diagram
TV AUDIO IN(L/R)
DVD AUDIO IN(L/R) VIDEO IN
@ @ @
i} 'if(-111
0 11
e11@
I
FM ANTENNA JACK -o- o •
la
..
•.~L~
. - - -
(o) I (o) (o)
I
AUDIO OUT
HDMIOUTJACK
VIDEO OUT
SPEAKER AND POWER WIRE SOCKET
Speaker and Power Wire Socket View
2 4 6 PINNO
COLOR
FUNCTION
1 WHITE/BLACK
ZONE 2 LEFT SPEAKER [-I
2 WHITE
ZONE 2 LEFT SPEAKER [+I
3
GRAY/BLACK ZONE 2 RIGHT SPEAKER (-1
4 GRAY ZONE 2 RIGHT SPEAKER (+I
5 BLACK
GROUND
1 3 5 6
RED POWER+ 12VDC 7.5A FUSE
Supported Audio Format
File Extension Audio Code
Bit Rate
Sampling Rate Remark
.mp3 MP3 16kbps -320kbps 8k -48kHz
. wma
WMA 16kbps -320kbps 8k -48kHz
WAM only support WMA7/WMA8/WMA9 (CBRNBR]
(only support 353 format)
NOTE: Reading the above file formats is not guaranteed.
@r----------------------------
~ UR RION

Specification
GENERAL
Supply Voltage DC 12V
Current Consumption
Max. 7.5A
Power Output 4x
10W + 20W
Numberof channels 2 STEREO Channels
Dimensions IW x Hx DI 3F/a" X 41 /16" X 47/a" / 810 X 124 X 103.8mm
FM SECTION
Frequency Range
For FSB2N25MCM-BL:
87.5Mhz -108Mhz [AUS)/87.5Mhz - 108Mhz [EU)
For FSB2N25MC-BL:
87.5Mhz - 107. 9Mhz [USA)/87.5Mhz - 108Mhz (EU)
use PLAYBACK
System
MP3 Audio System
Frequency Characteristics
20Hz - 1 00Hz <=5d8
20Hz - 20KHz <=5d8
Signal to Noise IUSBI 50d8
[1 KHz]
Video In/Out Level 1Vp-p
-----------------------------1@)
?'URRION

Warranty
Furrion warrants for a period of 1 year from date of retail purchase by the original
end-use purchaser, that this product, when delivered to you in new condition, in
original packaging, from a Furrion authorized reseller and used in normal conditions,
is free from any defects in manufacturing, materials, and workmanship. In case of
such defect, Furrion shall replace or repair the product at no charge to you. This
warranty does not cover: products where the original serial numbers have been
removed, altered or cannot readily be determined; damage or loss caused by
accident, misuse, abuse, neglect, product modification, failure to follow instructions
in instruction manual, commercial or industrial use; damage or loss caused to the
decorative surface of product; to any data, software or information; and normal wear
and tear. This warranty only protects the original end-user ("you"] and is not trans-
ferable; any attempt to transfer this warranty shall make it immediately void. This
warranty is only valid in the country of purchase.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR
WRITTEN, EXPRESS OR IMPLIED. FURRION SPECIFICALLY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF FURRION
CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED
WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO
THE DURATION OF THIS WARRANTY.
No Furrion reseller, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.
14)--------------------------------

Warranty
FURRION IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPEClAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED
TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF ANY
EQUIPMENT OR PROPERTY, ANY COSTS OF RECOVERING, REPROGRAMMING, OR
REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH FURRION
PRODUCTS. FURRION'S TOTAL LIABILITY IS LIMITED TO THE REPAIR OR REPLACE-
MENT OF THIS PRODUCT PURSUANT TO THE TERMS OF THIS WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR EXCLUSIONS OR LIMITATIONS ON THE DURATION
OF IMPLIED WARRANTIES OR CONDITIONS, SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR
(WHERE APPLICABLE IN THE COUNTRIES WHERE FURRION HAS NON-US/CANADI-
AN AUTHORIZED DEALERS) COUNTRY . NO ACTION OR CLAIM TO ENFORCE THIS
WARRANTY SHALL BE COMMENCED AFTER THE EXPIRATION OF THE WARRANTY
PERIOD .
Keep your receipt, delivery slip, or other appropriate payment record to establish the
warranty period. Service under this warranty must be obtained by contacting Furrion
at [email protected]
Product features or specifications as described or illustrated are subject to change
without notice.
:=URRION 19050023 @)

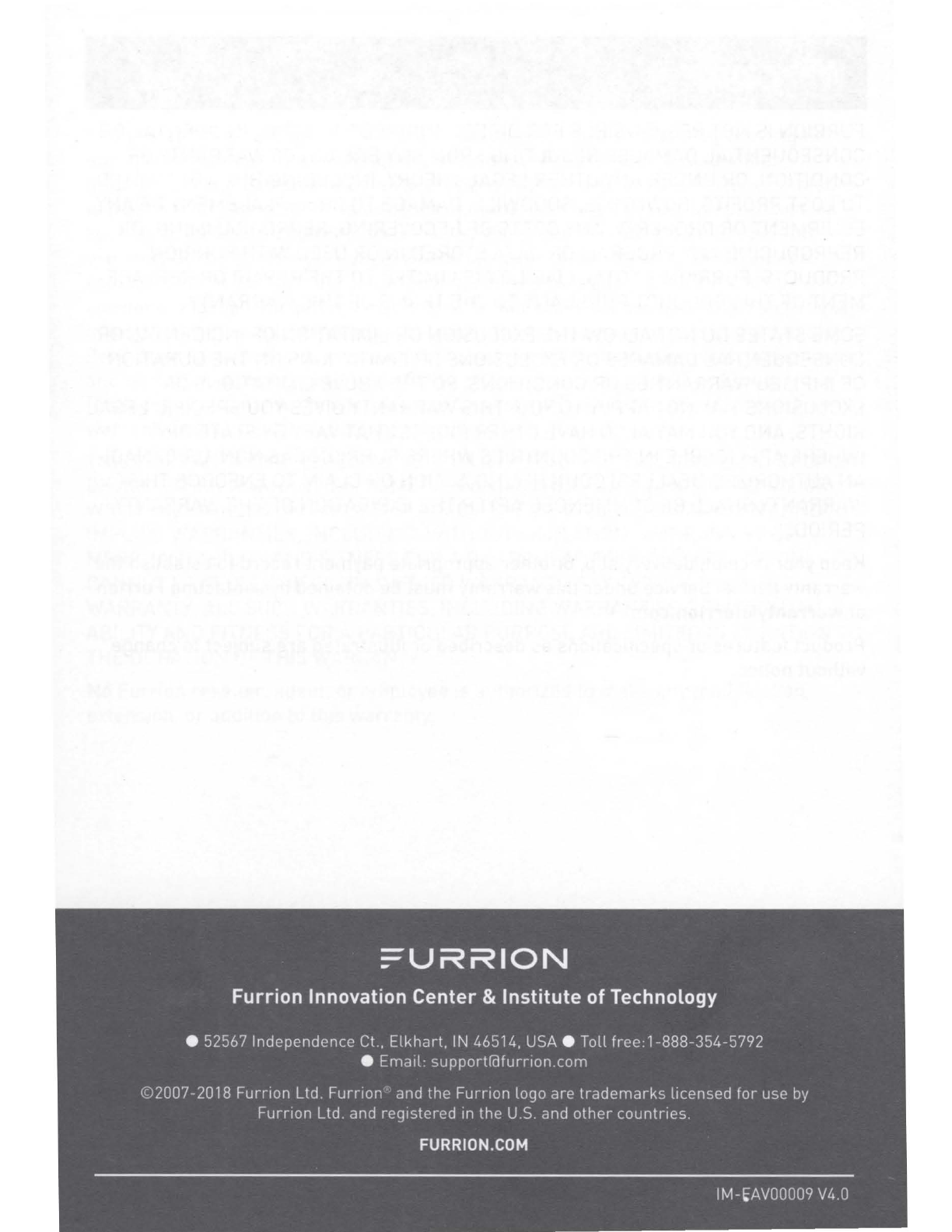

:=URRION
Furrion Innovation Center & Institute of Technology
e 52567 lndcpcndcncc Ct, Elkhcirt. IN 46514. USA e Toll free 1-888-354-5792
• Email: support@fumon com
i J2007-2018 Fumon Ltd. Fumon cind the Fumon logo arc trademarks licensed for use by
Furrion Ltd. cind registered in the US ,rnd other countries.
FURRION . COM
IM-~AV00009 V4.0

FSB2N25MC-BL
2-ZONE ENTERTAINMENT SOUNDBAR
• Digital FM tuner with 10 presets
• 2-zone audio distribution (1 internal, 1 external)
• 2-zone video distribution
• 2 analog stereo inputs on rear panel
AUXILIARY
IN
USB
INTERFACE
IR SENSOR
FRONT ACCESS
HDMI
WORKS WITH
UNIMOTE

MS-FSB2N25MC-BL-V.1.5
FSB2N25MC-BL
|
2-ZONE ENTERTAINMENT SOUNDBAR
Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries. © 2007-2019 Furrion Ltd.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Furrion Ltd. is under license. Other trademarks and trade names are those of their respective owners.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
USA Innovation Center & Institute of Technology: 52567 Independence Ct. Elkhart, IN 46514
Customer Service & Technical Support: Email: [email protected] Tel : [phone] www.furrion.com
Specifications
Operating Voltage DC9-16V
Max Power Consumption 70.5W
Max Power Output Full range: 10W x 2
Subwoofer: 20W
Z2: 10W X 2
USB Charging Max 2.1A
USB Port Support high speed USB 2.0 flash drive
# of RCA (Audio LR) Outputs 1
# of Video Inputs 1
# of Video Outputs 2
# of HDMI Outputs 1
# of HDMI Inputs 1
# of 3.5mm AUX-IN 1
# of Zone Audio Outputs 2 (Internal x 1 , External x 1)
Radio Coverage FM 87.5 -107.9 MHZ
Bluetooth Effective Range Up to 30 feet
Operating Temperature -20 °C to 60 °C /-4 °F to 140 °F
Packaging Information
Packaging Type Brown Box
Quantity Per Box (pcs) 1
Individual Packaging Dimensions (L x H x W) 33⁄” x 5⁄” x 7⁄”
(858 x 145 x 190mm)
Individual Packaging Gross Weight (kg/lbs) 2.6/5.7
Individual Packaging Net Weight (kg/lbs) 2.2/4.8
Master Carton
Packaging Type Master Carton Box
Quantity Per Box (pcs) 4
Master Carton Dimensions ( L x H x W) 34⁄” x 12⁄” x 15⁄”
(858 x 315 x 398mm)
Master Carton Gross Weight (kg/lbs) 12/26.5
Master Carton Net Weight (kg/lbs) 8.8/19.4
31⁄” (810mm)
4⁄” (124mm)
2⁄” (59.3mm)
1⁄” (39mm)
25⁄” (656mm)
16⁄” (420mm)
10⁄” (276.6mm)

_ URRION
WARRANTY LEAFLET....................................... ENGLISH (EN)
LIVRET DE GARANTIE....................................... FRAN~AIS (FR)
FOLLETO DE LA GARANT(A ............................ ESPANOL (ES)
I FSB2N25MC- BL
m 111u 11 1 11111111 u111 1 1111111 11 ~111
1911900556-012020-02325 _j

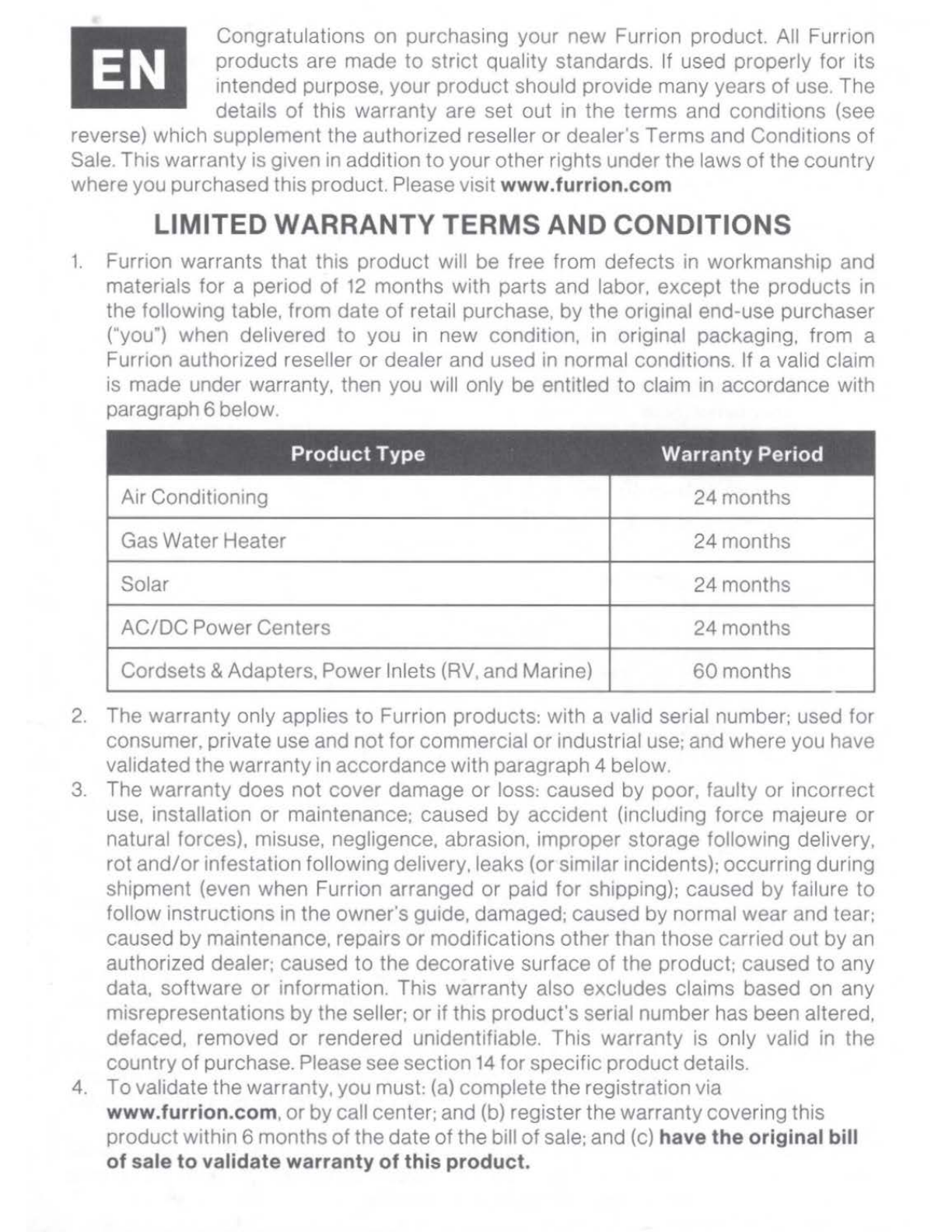

Congratulations on purchasing your new Furrion product. All Furrion
products are made to strict quality standards. If used properly for its
intended purpose, your product should provide many years of use. The
details of this warranty are set out in the terms and cond1t1ons (see
reverse) which supplement the authorized reseller or dealer's Terms and Cond1t1ons of
Sale. This warranty is given in addition to your other rights under the laws of the country
where you purchased this product. Please visit www.furrion.com
LIMITED WARRANTY TERMS AND CONDITIONS
1. Fumon warrants that this product will be free from defects in workmanship and
materials for a period of 12 months with parts and labor, except the products in
the following table, from date of retail purchase, by the original end-use purchaser
("you") when delivered to you in new condition, in original packaging, from a
Furrion authorized reseller or dealer and used in normal conditions. If a valid claim
is made under warranty, then you will only be entitled to claim in accordance with
paragraph 6 below.
Product Type Warranty Period
Air Conditioning 24months
Gas Water Heater 24months
Solar 24months
AC/DC Power Centers 24 months
Cordsets &Adapters, Power Inlets (RV, and Marine)
60 months
2. The warranty only applies to Furrion products: with a valid serial number; used for
consumer, private use and not for commercial or industrial use; and where you have
validated the warranty in accordance with paragraph 4 below.
3. The warranty does not cover damage or loss: caused by poor, faulty or incorrect
use, installation or maintenance; caused by accident (including force majeure or
natural forces), misuse, negligence, abrasion, improper storage following delivery,
rot and/orinfestation following delivery, leaks (or similar incidents); occurring during
shipment (even when Furrion arranged or paid for shipping); caused by failure to
follow instructions in the owner's guide, damaged; caused by normal wear and tear;
caused by maintenance, repairs or modifications other than those carried out by an
authorized dealer, caused to the decorative surface of the product; caused to any
data, software or information. This warranty also excludes claims based on any
misrepresentations by the seller; or if this product's serial number has been altered,
defaced, removed or rendered unidentifiable. This warranty is only valid in the
countryof purchase. Please see section 14 for specific productdetails.
4. To validate the warranty, you must: (a) complete the registration via
www.furrion.com, or by call center; and (b) register the warranty covering this
productwithin 6 months ofthe date ofthe bill of sale; and (c) have the original bill
of sale to validate warranty of this product.
