4-zone Soundbar Speaker
Instruction Manual
Model: FSBN25M-BL

Welcome
Thank you for purchasing this Furrion®4-zone Soundbar Speaker. Before operating
your new product, please read these instructions carefully. This instruction manual
contains information for safe use, installation and maintenance of the product.
Please keep this instruction manual in a safe place for future reference. This will
ensure safe use and reduce the risk of injury. Be sure to pass on this manual to new
owners of this product.
The manufacturer does not accept responsibility for any damages due to not observing
these instructions.
If you have any further questions regarding our products, please contact us at
[email protected]
2

3
Contents
Welcome ..................................................................................................................2
Contents ..................................................................................................................3
Important Safety Instructions..................................................................................4
FCC Statement ........................................................................................................4
IC Statement ...........................................................................................................5
Product Features .....................................................................................................6
Control Panel ..........................................................................................................6
Remote Control .......................................................................................................6
Installation ..............................................................................................................7
Operation.................................................................................................................8
Basic Operation.......................................................................................................8
Audio Operation.......................................................................................................9
USB Operation.........................................................................................................10
BT Audio Playback Operation .................................................................................11

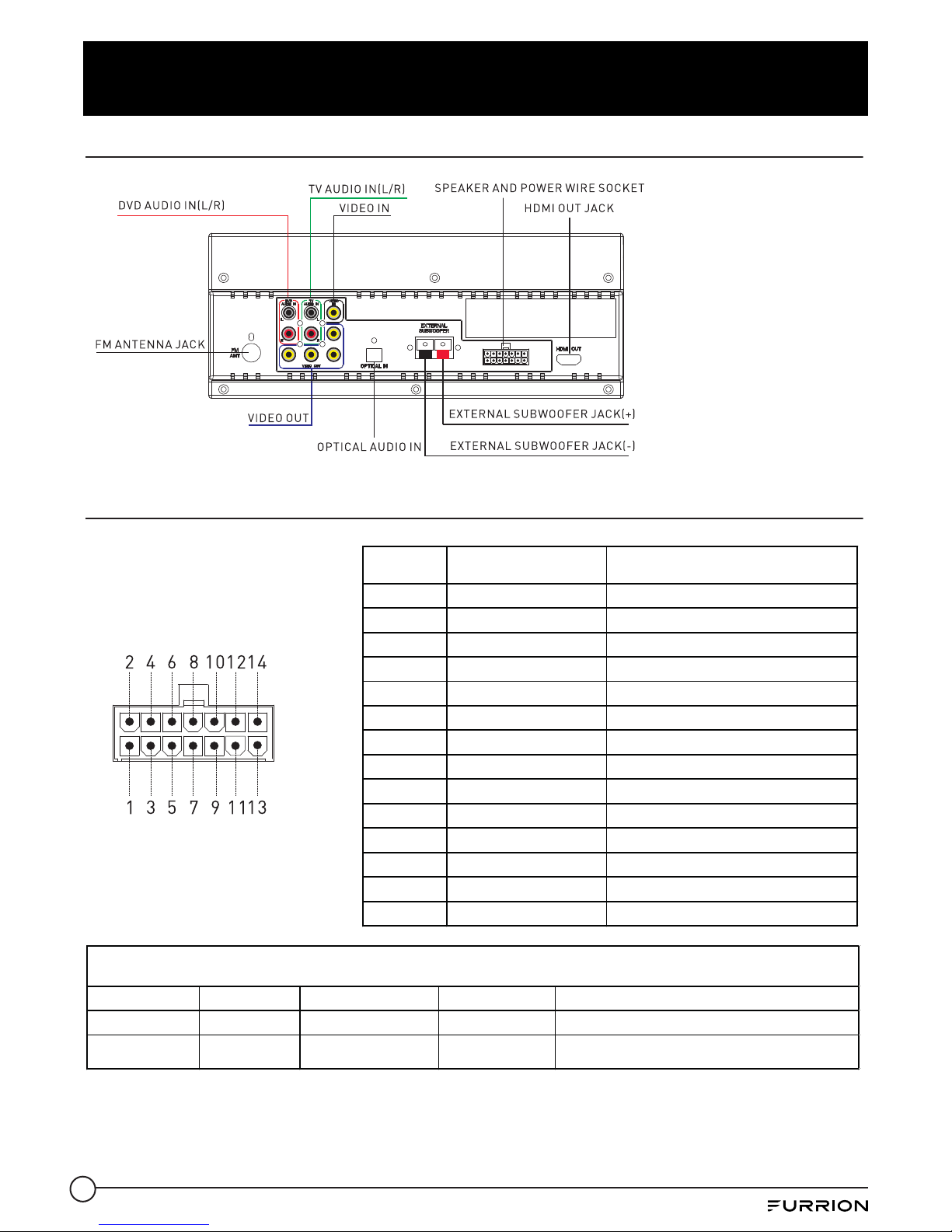

Electrical Connection...............................................................................................12
Wiring Diagram .......................................................................................................12
Speaker and Power Wire Socket View....................................................................12
Specification ............................................................................................................13
Warranty..................................................................................................................14

FCC Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
4
Important Safety Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated dangerous voltage
within the products enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.

IC Statement
This device complies with Canada Industry licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference. and (2) this device must accept any interference. Including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
WARNING: Changes or modifications to this unit not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
FCC Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
5
Important Safety Instructions

Product Features
POWER BUTTON
SEL BUTTON
PREVIOUS BUTTON
NEXT BUTTON
ZONE 1/2/3/4 BUTTON
MUTE BUTTON
MODE BUTTON
NUMBER BUTTONS
PLAY/PAUSE BUTTON
EQ BUTTON
POWER BUTTON
VOLUME -/+ BUTTON
IR REMOTE CONTROL SENSOR
LCD DISPLAY
SEL BUTTON MODE BUTTON
VOLUME - BUTTON
VOLUME + BUTTON
MUTE BUTTON
ZONE 1/2/3/4 BUTTON
AUX IN JACK
PLAY/PAUSE BUTTON
NEXT BUTTON
PREVIOUS BUTTON
USB JACK
HDMI IN JACK
Control Panel
Remote Control
6

Installation
Wooden Wall
8 Screws
Net Cover
●Before finally installing the unit, connect the wiring temporarily and make sure
the unit and the system work properly.
●Fix the unit with screws according to following diagram.
1. Remove the Net Cover from the main unit.
2. Fix the unit with 8 piece (#8) pan-head self-tapping screws.
3. Put the Net Cover back on the main unit.
7

Basic Operation
1. To turn the unit On/Off
When the unit is Off, it may be switched On by pressing POWER button. When the
unit is On, short press POWER button to switch the unit Off.
2. To select function mode
Press MODE button repeatedly to select RADIO, USB (only available when a USB
storage is inserted), AUX IN, OPTICAL, TV, DVD or BT mode.
3. To adjust the volume
During playback, press VOLUME +/VOLUME - button to increase/decrease the
volume.
4. To mute or resume sound
During playback, press MUTE button to silent the unit, press again to resume the
sound immediately.
5. To select and adjust the mode of the sound and menu
Press SEL button repeatedly to select the mode of VOL, BAS, TRE(treble), BAL
(balance), SUB IN/SUB EXT, LOUD OFF/LOUD ON, EQ OFF/FLAT/ROCK/POP/-
CLASSIC, RPT OFF/RPT ONE/RPT DIR (in USB mode), RDM OFF/RDM ON (in USB
mode), DEVOL, DX/LOCAL (in RADIO mode), STEREO/MONO (in RADIO mode) in
the sequence and circulation.
Press VOLUME +/VOLUME - button to select your desired mode.
6. To select a preset EQ mode
Press EQ button repeatedly on the remote control to select the preset music
equalizer curves: EQ OFF, CLASSIC, POP, ROCK, FLAT. The sound effect will be
changed accordingly.
7. ZONE 1/2/3/4 Button
Press ZONE1/2/3/4 button will turn on or off the audio source in each of speak-
ers. The corresponding icon “ZONE 1 ” “ZONE 2”, “ZONE 3”, or “ZONE 4” will be
displayed on LCD once it is selected.
8. To reset the unit
If the display is incorrect, or the function buttons are not effective or the sound is
distorted. Switch the unit to AUX IN mode, press and hold MODE button for more
than 6 seconds to make the unit return to factory default settings and re-instate
the correct functions.
Operation
8

Operation
Audio Operation
1. FREQUENCY SELECT
In RADIO mode. Press and hold SEL button for about 2 seconds to switch to radio
region selection mode, then press VOLUME + or VOLUME - to select AREA USA or
AREA EUR.
2. TUNE/SEEK UP/DOWN
In RADIO mode:
1) Press and hold or button on the front panel or press and hold or
button on the remote control to automatically search up or down for an
available station from the current frequency.
2) Press or button on the front panel or press or button on the
remote control to manually search up or down step by step for your desired
station from the current frequency.
3. AS & PS FUNCTION
In RADIO mode:
1) When pressing and holding ZONE 1 button on the front panel, the radio searches
from the lowest frequency and checks the signal strength until one cycle search
is finished, then the 10 strongest stations are saved to the corresponding preset
number memory band (FM0~FM9).
When the AS operation is finished, it will resume broadcasting the previous radio
station.
2) When pressing and holding ZONE 2 button on the front panel, the radio searches
for each preset station from FM0. If the signal strength of the field is stronger
than the current station, the radio holds at that station for a few seconds with
releasing mute, and then searches again.
After PS operation is finished, it will resume broadcasting the previous radio
station.
4. PRESET STATION AND PRESET NUMBER [ 0-9 ] BUTTONS
In RADIO mode:
1) To memorize the current frequency station:
a) Press and hold one of the 10 number buttons (0-9) on the remote control to
store the current station.
b) Press and hold the PLAY/PAUSE button until the preset number flashes,
then press PLAY/PAUSE button repeatedly to select the preset numbers
from 0 to 9. Press and hold PLAY/PAUSE to confirm the selection.
2) To recall the preset memory on the current band, press one of the 10 number
buttons (0-9) on the remote control to broadcast the corresponding preset
station.
9

Operation
USB Operation
1. Pause Playback
During playback, press PLAY/PAUSE button on the front panel or remote control
to pause the playback, press PLAY/PAUSE button again to resume normal
playback.
2. Select Chapter
During playbak, press or button on the front panel or on the remote
control to select the previous or next chapter to playback, press the number
buttons on the remote control of playing the selected chapter directly. Under RPT
DIR mode, press the number buttons from currently DIR.
3. Select Chapter
Press and hold Zone1/2 or Zone3/4 button on the front panel to select the
previous or next DIR.
4. To repeat track(s)
●During playback, press SEL button repeatedly and select the RPT ONE mode
to play the current track repeatedly.
●During playback, press SEL button repeatedly and select the RPT DIR mode to
play the tracks in the album repeatedly.
●During playback, press SEL button repeatedly and select the RPT OFF mode to
cancel RPT function.
5. To play tracks in random
●During playback, press SEL button repeatedly and select the RDM ON mode to
play all tracks in random.
●During playback, press SEL button repeatedly and select the RPT OFF mode to
cancel RDM function.
10

Operation
BT Audio Playback Operation
1. Pairing and connection
a) Turn on the Bluetooth mode of your external Bluetooth device.
b) Select the item from Finding the Bluetooth Device and enter it. After the device
search is complete, it will show the name of the Bluetooth Device
FSBN25M-BL-XXXXX (where X can be any character A-Z or number 0-9).
Select it and enter it, a window will pop up and ask you to input a password,
input 0000 and enter it. Then it will tell you pair OK.
c) Once paired successfully, the LCD will display LINK OK. If pairing failure, the
LCD will display NO LINK.
2. To play audio file from an external Bluetooth device to the unit
If your mobile device supports A2DP then you will be able to stream music from
your Bluetooth device so it can be played by stereo speaker. Select your Bluetooth
device to play the audio through Bluetooth. If your mobile device supports AVRCP
then you will be able to control the basic audio output functions by the
Wall-mount Stereo controls. Eg. Play/Pause.
11

Electrical Connection
NOTE: Reading the above file formats is not guaranteed.
Wiring Diagram
Speaker and Power Wire Socket View
PIN NO COLOR FUNCTION
1 ORANGE/BLACK ZONE 4 LEFT SPEAKER (-)
2 ORANGE ZONE 4 LEFT SPEAKER (+)
3 BLUE/BLACK ZONE 4 RIGHT SPEAKER (-)
4 BLUE ZONE 4 RIGHT SPEAKER (+)
5 GREEN/BLACK ZONE 3 LEFT SPEAKER (-)
6 GREEN ZONE 3 LEFT SPEAKER (+)
7 VIOLET/BLACK ZONE 3 RIGHT SPEAKER (-)
8 VIOLET ZONE 3 RIGHT SPEAKER (+)
9 WHITE/BLACK ZONE 2 LEFT SPEAKER (-)
10 WHITE ZONE 2 LEFT SPEAKER (+)
11 GRAY/BLACK ZONE 2 RIGHT SPEAKER (-)
12 GRAY ZONE 2 RIGHT SPEAKER (+)
13 BLACK GROUND
14 RED POWER +12VDC 10A FUSE
File Extension Audio Code Bit Rate Sampling Rate Remark
.mp3 MP3 16kbps - 320kbps 8k - 48kHz
.wma WMA 16kbps - 320kbps 8k - 48kHz
WAM only support WMA7/WMA8/WMA9 (CBR/VBR)
(only support 353 format)
Supported Audio Format
12

Specification
13
Supply Voltage DC 12V
Current Consumption Max. 10A
Power Output 8 x 10W + 20W + 10.5W
Number of Channels 4 STEREO Channels
Dimensions (W x H x D) 31⁄" x 4⁄" x 4⁄" / 810 x 124 x 103.8mm
87.5Mhz - 107.9Mhz (USA)
87.5Mhz - 108Mhz (EUR)
System MP3 Audio System
20Hz - 100Hz <=5dB
20Hz - 20KHz <=5dB
Signal to Noise (USB) 50dB [1KHz]
Video In/Out Level 1Vp-p
Frequency Characteristics
Frequency Range
USB PLAYBACK
GENERAL
FM SECTION

Furrion warrants for a period of 1 year from date of retail purchase by the original
end-use purchaser, that this product, when delivered to you in new condition, in
original packaging, from a Furrion authorized reseller and used in normal conditions,
is free from any defects in manufacturing, materials, and workmanship. In case of
such defect, Furrion shall replace or repair the product at no charge to you. This
warranty does not cover: products where the original serial numbers have been
removed, altered or cannot readily be determined; damage or loss caused by
accident, misuse, abuse, neglect, product modification, failure to follow instructions
in instruction manual, commercial or industrial use; damage or loss caused to the
decorative surface of product; to any data, software or information; and normal wear
and tear. This warranty only protects the original end-user (“you”) and is not trans-
ferable; any attempt to transfer this warranty shall make it immediately void. This
warranty is only valid in the country of purchase.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR
WRITTEN, EXPRESS OR IMPLIED. FURRION SPECIFICALLY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF FURRION
CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED
WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO
THE DURATION OF THIS WARRANTY.
No Furrion reseller, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.
14
Warranty

FURRION IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED
TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF ANY
EQUIPMENT OR PROPERTY, ANY COSTS OF RECOVERING, REPROGRAMMING, OR
REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH FURRION
PRODUCTS. FURRION’S TOTAL LIABILITY IS LIMITED TO THE REPAIR OR REPLACE-
MENT OF THIS PRODUCT PURSUANT TO THE TERMS OF THIS WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR EXCLUSIONS OR LIMITATIONS ON THE DURATION
OF IMPLIED WARRANTIES OR CONDITIONS, SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR
(WHERE APPLICABLE IN THE COUNTRIES WHERE FURRION HAS NON-US/CANADI-
AN AUTHORIZED DEALERS) COUNTRY. NO ACTION OR CLAIM TO ENFORCE THIS
WARRANTY SHALL BE COMMENCED AFTER THE EXPIRATION OF THE WARRANTY
PERIOD.
Keep your receipt, delivery slip, or other appropriate payment record to establish the
warranty period. Service under this warranty must be obtained by contacting Furrion
at [email protected]
Product features or specifications as described or illustrated are subject to change
without notice.
15
Warranty

Furrion Innovation Center & Institute of Technology
52567 Independence Ct., Elkhart, IN 46514, USA Toll free:1-888-354-5792
Email: [email protected]
©2007-2018 Furrion Ltd. Furrion®and the Furrion logo are trademarks licensed for use by
Furrion Ltd. and registered in the U.S. and other countries.
FURRION.COM
IM-FAV00008 V1.2
