SAFETY INSTRUCTIONS
The installer must read the safety instructions before attempting to install the equipment.
WARNING
ELECTRICAL SHOCK HAZARD
Do not open the equipment unless
totally familiar with electrical circuits
and service manual.
Only qualified personnel are allowed to
work inside the equipment.
Mandatory Action
Prohibitive Action
WARNING
CAUTIOCAUTION
Warning, Caution
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
could result in minor or moderate injury.
CAUTION
Ground the equipment to prevent
mutual interference.
Standard
compass
Steering
compass
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
For wooden or FRP vessel using a
steel tank, attach a zinc plate to the
hull to prevent electrolytic corrosion.
Electrolytic corrosion can, in the worst
case, result in loss of the transducer.
Install the transducer according to the
installation instructions.
Failure to install the transducer correctly
may result in water leakage and damage
to the ship’s hull.
Be sure no water leaks in at the
transducer mounting location.
Water leakage can sink the vessel. Also,
confirm that vibrations will not loosen the
transducer. The installer of the equipment
is solely responsible for the proper
installation of the equipment. FURUNO
will assume no responsibility for any
damage associated with improper
installation.
Use the proper cable and fuse.
Use of an incorrect cable and fuse can
damage the equipment and cause fire.
Do not transmit with the transducer
out of water.
The transducer may become damaged.
Observe the following compass safe
distance to prevent interference to a
magnetic compass:
Unit
Processor Unit
(FSS-301)
Transceiver Unit
(FSS-302)
Trackball Control Unit
(RCU-026)
2.15 m 1.35 m
1.95 m 1.20 m
0.30 m 0.30 m
DVI/USB Repeater
( TM000-FDX06 )0.35 m 0.30 m

SAFETY INSTRUCTIONS
ii
CAUTION
The transducer cable must handled
carefully, following the guidelines
below.
- Keep the cable away from oil and fuels.
- Keep the cable away from locations
where it may be damaged during the
installation.
- Do not paint the cable.
The cable sheath is made of chloro-
prene or vinyl chloride, which are easily
damaged by plastic solvents such as
toluene. Locate the cables away from
plastic solvents.
- Do not shorten the transducer cable.
- Do not carry the transducer using only
the cable.
The cable may become damaged or
disconnected.
Do not cover the transducer with FRP
resin.
The heat generated when the resin
hardens may damage the transducer.
Do not install the transducer on the
inner side of the hull.
The signal strength is reduced and may
affect the accuracy of measurements.

iii

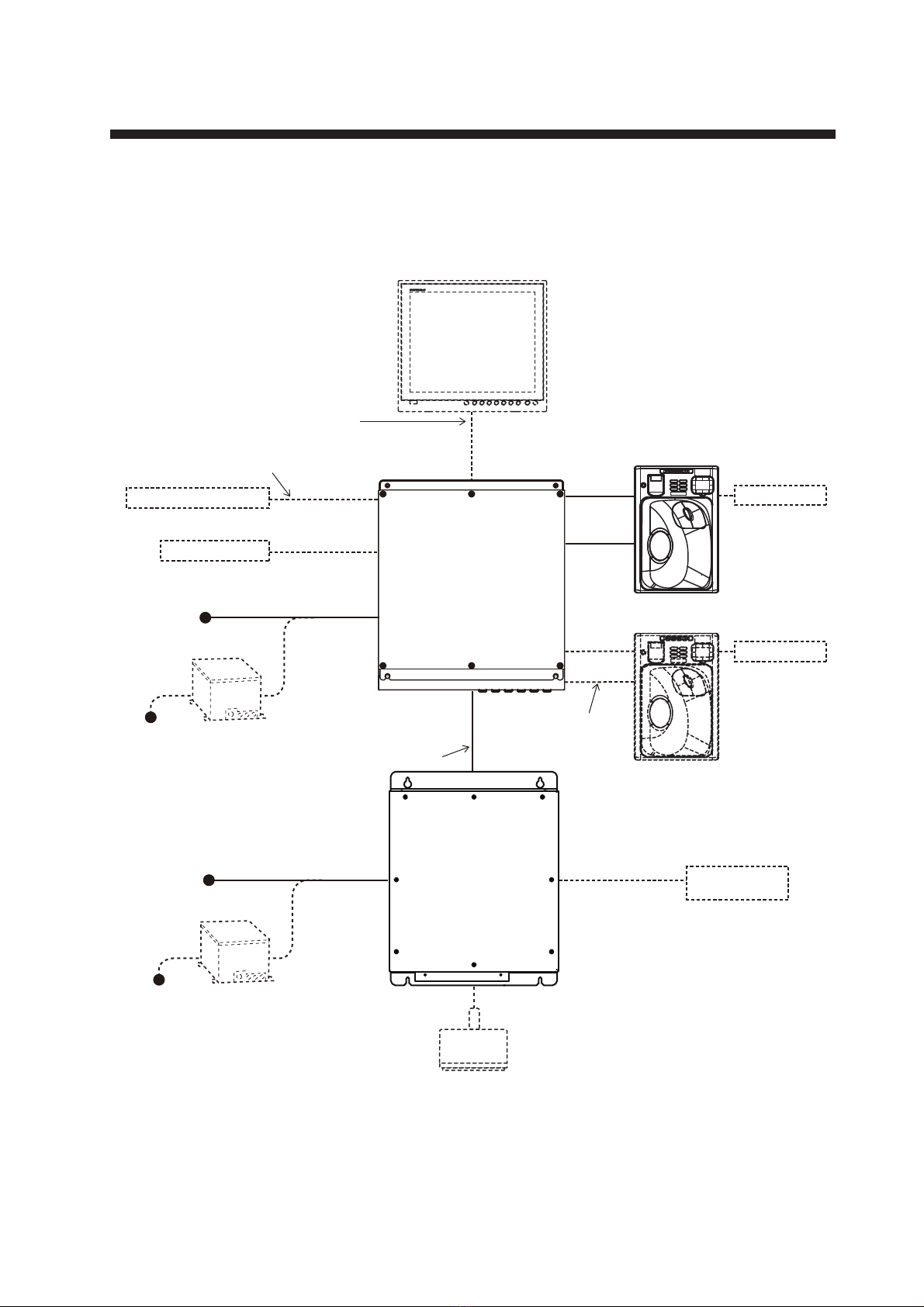

SYSTEM CONFIGURATION
Note: The sub monitor cannot display the same screen as the main monitor.
: Standard supply
: Optional/local supply
Monitor Unit
*3
Processor Unit
FSS-301
USB Device
*2
HDMI
2 ports
NMEA0183
5 ports
USB
USB3.0: 2 ports
USB2.0: 2 ports
USB Device
*1, *3
(USB Mouse,
USB Flash Memory,
External HDD, etc.)
Trackball Control Unit
RCU-026
Trackball Control Unit
RCU-026
RS-485
USB
*2
RS-485
USB
*2
*1
: A maximum of four USB devices including RCU-026 can be connected to the processor unit.
*2
: To use the USB port on the RCU-026, connect the RCU-026 to the USB port on the processor unit, using
the USB cable supplied with the RCU-026. If you do not use the USB port on the RCU-026, the USB
connection between the RCU-026 and processor unit is not required.
*3
: To extend the distance between the processor unit and the monitor unit/USB device, use the optional
DVI/USB repeater.
LAN
Transceiver Unit
FSS-302
Transducer
USB Device
*2
Navigation equipment,
Radio communication,
Net sonde, etc.
12-24 VDC
100/110/115/220/230 VAC,
1
Ø , 50/60 Hz
Rectifier
RU-1746B-2
12-24 VDC
100/110/115/220/230 VAC,
1
Ø , 50/60 Hz
Rectifier
RU-1746B-2
External KP

iv
EQUIPMENT LISTS
Standard Supply
Option
Name Type Code No. Qty Remarks
Processor Unit FSS-301 - 1
Transceiver Unit FSS-302 - 1
Trackball Control Unit RCU-026 - 1
Installation Materials
CP10-09700 000-036-275 1 For processor unit
CP02-09700 000-037-337 1 For transceiver unit
CP24-02300 000-027-673 1 For trackball control unit
Accessories FP24-00801 001-418-410 1 For trackball control unit
Spare Parts SP26-00301 001-080-860 1 For processor unit
SP02-05901 001-568-430 1 For transceiver unit
Name Type Code No. Remarks
Transducer CM265LHG - For details about transducer
specifications, see page 1-8.
CM265LM -
CM275LHW -
CM599LHG -
CM599LM -
CM599LHW -
PM111LHG -
PM111LM -
PM411LWM -
Trackball Control
Unit RCU-026 -
Rectifier Unit RU-1746B-2 -
DVI/USB Repeater TM000-FDX06_TXRX_30M - Transmitter and receiver units
with LAN cable (30 m)
TM000-FDX06_TXRX_50M - Transmitter and receiver units
with LAN cable (50 m)
TM000-FDX06_TXRX100M - Transmitter and receiver units
with LAN cable (100 m)
TM000-FDX06_TXRX - Transmitter and receiver units
TM000-FDX06_RX - Transmitter unit
TM000-FDX06_TX - Receiver unit
Flush Mount OP24-27 001-171-820 For RCU-026
Cable Assembly HDMI-TO-DVI-L=5.3M 001-407-180 DVI-HDMI cable 5.3 m
HDMI-TO-DVI-L=10.3M 001-407-170 10.3 m
6TPSH-XH12X2-L5.0SP2 001-186-310-10 For RCU-026 5 m
6TPSH-XH12X2-L10SP2 001-186-320-10 10 m
MJ-A3SPF0024-035C 000-157-943-10 Power cable for
DVI/USB repeater
3.5 m
RNS-08-132 001-107-540-10 USB cable for the
transmitter unit of
the DVI/USB re-
peater
5 m

EQUIPMENT LISTS
v
Cable Assembly PARTS_WO2511 001-578-140 LAN cable for DVI/
USB repeater
30 m
PARTS_WO2512 001-578-150 50 m
PARTS_WO2513 001-578-160 100 m
Extension Cable C44-02 30M 001-374-620 For transducer 30 m
C44-02 50M 001-374-580 50 m
Installation
Materials
CP10-10100 000-036-244 LAN cable 10 m
CP10-10110 000-036-245 15 m
CP10-10120 000-036-246 30 m
CP10-10130 000-036-247 40 m
CP10-10140 000-036-248 50 m
CP10-10150 000-036-722 100 m
Name Type Code No. Remarks

EQUIPMENT LISTS
vi
This page is intentionally left blank.

1-1
1. MOUNTING
1.1 Processor Unit
The processor unit can be installed on a deck or bulkhead.
Mounting considerations
Select a mounting location, keeping in mind the following points:
• Locate the unit out of direct sunlight and away from heat sources.
• Locate the unit away from places subject to water splash and rain.
• Select a mounting location considering the length of the cables to be connected to
the unit.
• Select a location where shock and vibration are minimal.
• Be sure the mounting location is strong enough to support the weight of the unit.
• Referring to the outline drawings at the back of this manual, allow sufficient space
for maintenance and service.
• A magnetic compass will be affected if the unit is placed too close to the magnetic
compass. Observe the compass safe distances at the front of this manual to prevent
interference to a magnetic compass.
• For bulkhead installations, secure the unit so that the cable entrance faces down-
ward.
NOTICE
Do not apply paint, anti-corrosive sealant or contact
spray to coating or plastic parts of the equipment.
Those items contain organic solvents that can damage
coating and plastic parts, especially plastic connectors.

1. MOUNTING
1-2
1.1.1 Deck mount
1. Drill four pilot holes in the mounting location for mounting bolts, referring to the
outline drawing at the back of this manual.
2. Secure the unit using the four hex head slot bolts (M6×20, supplied).

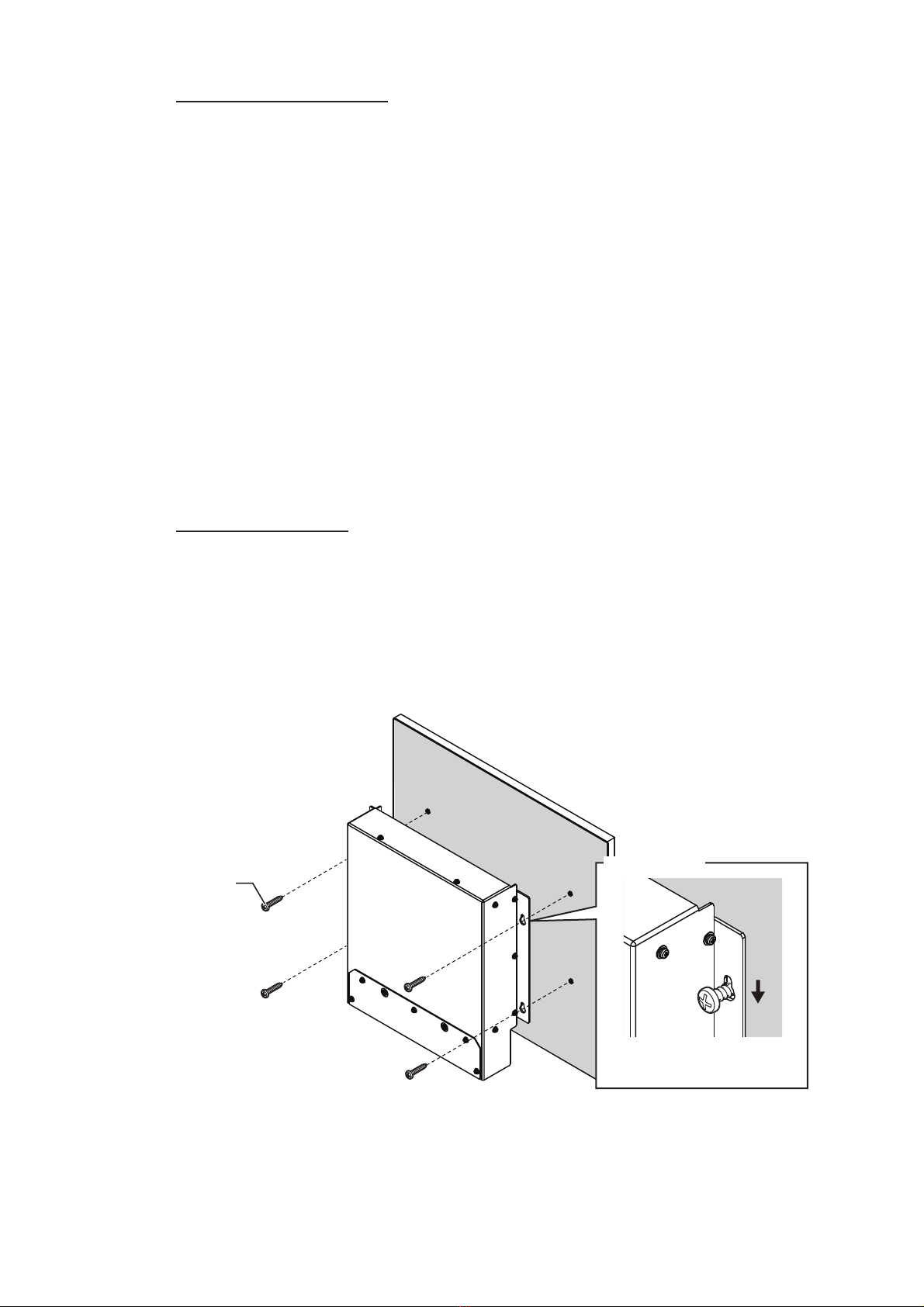

1.1.2 Bulkhead mount
1. Drill four pilot holes in the mounting location for mounting bolts (M6×20, supplied),
referring to the outline drawing at the back of this manual.
2. Screw the two hex head slot bolts into the lower pilot holes. Leave 5 mm of thread
visible.
3. Set the notches of the unit onto the bolts fastened at step 2.
4. Screw the two hex head slot bolts into the upper fixing holes.
5. Fasten all bolts tightly to secure the unit in place.
Hex head slot bolt
(M6×20, 4 pcs䠅
Detailed view
Set the notches of the unit
to the bolts.
Hex head slot bolt
(M6×20, 4 pcs䠅

1. MOUNTING
1-3
1.2 Transceiver Unit
The transceiver unit can be installed on a deck or bulkhead.
Mounting considerations
Select a mounting location, keeping in mind the following points:
• Locate the unit out of direct sunlight and away from heat sources.
• Select an installation location that is well ventilated.
• Locate the unit away from places subject to water splash and rain.
• Select a mounting location considering the length of the cables to be connected to
the unit.
• Select a location where shock and vibration are minimal.
• Be sure the mounting location is strong enough to support the weight of the unit.
• Referring to the outline drawings at the back of this manual, allow sufficient space
for maintenance and service.
• A magnetic compass will be affected if the unit is placed too close to the magnetic
compass. Observe the compass safe distances at the front of this manual to prevent
interference to a magnetic compass.
• For the bulkhead installations, secure the unit so that the cable entrance faces
downward.
1.2.1 Deck mount
1. Drill four pilot holes in the mounting location for self-tapping screws (φ5×20, sup-
plied), referring to the outline drawing at the back of this manual.
2. Secure the unit using the four self-tapping screws.
Self-tapping screw
(Ø5×20, 4 pcs)

1. MOUNTING
1-4
1.2.2 Bulkhead mount
1. Drill four pilot holes in the mounting location for self-tapping screws (φ5×20, sup-
plied), referring to the outline drawing at the back of this manual.
2. Screw two self-tapping screws into the upper pilot holes. Leave 5 mm of thread
visible.
3. Hang the unit onto the screws fastened at step 2.
4. Screw two self-tapping screws into the lower fixing holes.
5. Fasten all screws tightly to secure the unit in place.
1.3 Trackball Control Unit
The trackball control unit can be installed on a desktop or flush mounted in a console.
For the desktop installation, the unit can laid flat or tilted.
Mounting considerations
• Select a location where the trackball control unit can be operated easily.
• Locate the unit away from heat sources.
• Locate the unit away from places subject to water splash and rain.
• Referring to the outline drawings at the back of this manual, allow sufficient space
for maintenance and service.
• Select a mounting location considering the length of the cables to be connected to
the unit.
• Select a location where shock and vibration are minimal.
• A magnetic compass will be affected if the unit is placed too close to the magnetic
compass. Observe the compass safe distances at the front of this manual to prevent
interference to a magnetic compass.
Self-tapping screw
(Ø5×20, 4 pcs䠅
Detailed view
Hang the unit onto the screws.

1. MOUNTING
1-5

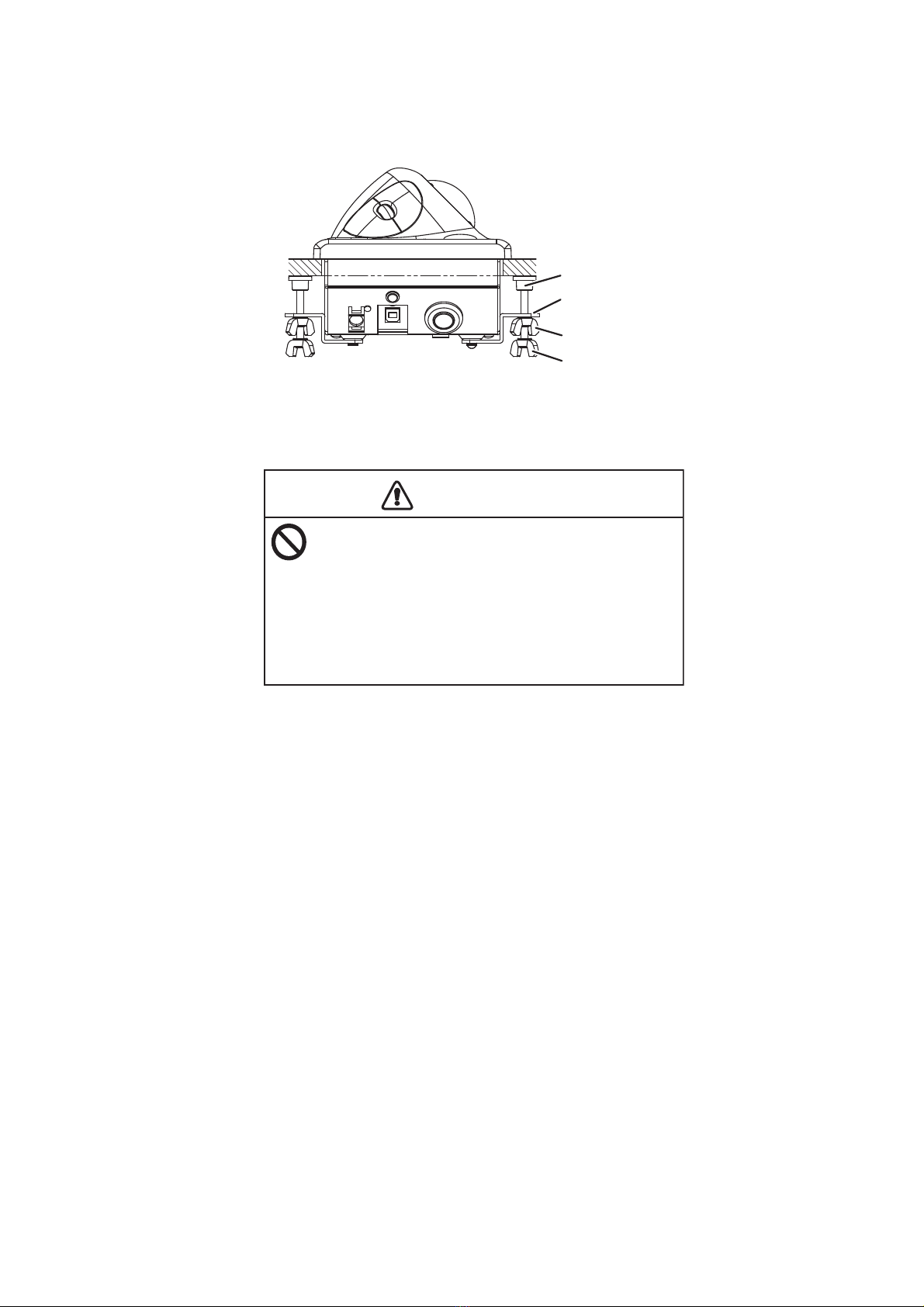

1.3.1 Desktop mount
You can install the unit flat on the desktop, or use the fixing plate for a tilted installation.
How to mount the unit tilted
Use the supplied desktop fixing plate to mount the unit tilted.
1. Attach the desktop fixing plate to the trackball control unit, using the two washer
head screws (M3×8, supplied).
2. Secure the unit using the two self-tapping screws (φ5×20, supplied).
How to install the unit flat on the desktop
Secure the trackball control unit without the desktop fixing plate to install the unit flat
on the desktop.
1. Drill four mounting holes of 4 mm diameter referring to the outline drawing at the
back of this manual.
Desktop fixing plate
Washer head screw
(M3×8, 2 pcs)
Self-tapping screw
(Ø5×20, 2 pcs)

1. MOUNTING
1-6
2. Secure the unit with the four washer head screws (M3×12, supplied) from the un-
derside of the desktop.
1.3.2 Flush mount
Note: For flush mounting in a panel, the mounting surface must be flat. Do not install
the unit on an uneven surface.
Prepare the optional flush mount kit (OP24-27) for flush mounting the trackball control
unit.
1. Make a mounting hole in the mounting location, referring to the outline drawing at
the back of this manual.
2. Set the unit to the mounting hole.
3. Attach the four FM fixing plates to the unit from the rear side, using the washer
head screws (M3×8).
Washer head screw
(M3×12, 4 pcs)
FM fixing plate
(4 pcs)
Washer head screw
(M3×8, 4 pcs)

1. MOUNTING
1-7
4. Fasten each wing bolt until the protector for the screw is firm against the mounting
panel.
5. Fasten each wing nut tightly to secure the unit.
1.4 Transducer
The performance of the fish finder depends on the transducer position. When select-
ing a mounting location, keep in mind following points.
• A place least affected by air bubbles should be selected since turbulence blocks the
sounding path.
• Select a place least influenced by engine noise.
• Install the transducer face parallel to the sea surface.
It is known that air bubbles are fewest at the place where the bow first falls and the
next wave raises, at usual cruising speed. In small, slow-speed boats, the position be-
tween 1/2 and 2/3 of the ship’s length from the bow is usually a good place.
Protector
Wing bolt
Wing nut
FM fixing plate
• Do not cover the transducer with FRP resin.
The heat generated when the resin hardens may
damage the transducer.
• Do not install the transducer on the inner side
of the hull.
The signal strength is reduced and may affect the
accuracy of measurements.
CAUTIO
CAUTION

1. MOUNTING
1-8
Specifications for optional Airmar transducer
*1: Fish size histogram and IDENTI-FISH™feature compatible.
*2: Fish size histogram compatible.
Note 1: For how to install the Airmar transducer, see the installation instructions sup-
plied with the transducer. If the transducer is not installed correctly, the transducer
may be damaged due to overheating.
Note 2: Do not remove the warranty label that is attached on the transducer cable. If
removed, the transducer may not be covered by Airmar product warranty.
Note 3: Do not cut the transducer cable.
Transducer Output Frequency Cable
length
Hull
Material
Thru-hull
pipe Tank
CM265LHG*1 1 kW/
1 kW
42 to 65 kHz/
130 to 210 kHz
12 m Steel TFB-7000 (1) T-711
FRP - T-711F
CM265LM 1 kW/
1 kW
42 to 65 kHz/
85 to 135 kHz
12 m Steel TFB-7000 (1) T-711
FRP - T-711F
CM275LHW 1 kW/
1 kW
42 to 65 kHz/
150 to 250 kHz
12 m Steel TFB-7000 (1) T-711
FRP - T-711F
CM599LHG*1 3 kW/
2 kW
28 to 60 kHz/
130 to 210 kHz
15 m Steel TFB-7000 (1) T-712
FRP TRB-1100 (1) T-712F
CM599LM 3 kW/
2 kW
28 to 60 kHz/
80 to 130 kHz
15 m Steel TFB-7000 (1) T-712
FRP TRB-1100 (1) T-712F
CM599LHW 3 kW/
1 kW
28 to 60 kHz/
130 to 210 kHz
15 m Steel TFB-7000 (1) T-712
FRP TRB-1100 (1) T-712F
PM111LHG*2 2 kW/
2 kW
38 to 75 kHz/
130 to 210 kHz
15 m Steel TFB-7000 (1) T-712
FRP TRB-1100 (1) T-712F
PM111LM 2 kW/
2 kW
38 to 75 kHz/
80 to 130 kHz
15 m Steel TFB-7000 (1) T-712
FRP TRB-1100 (1) T-712F
PM411LWM 2 kW/
2 kW
40 to 60 kHz
80 to 130 kHz
15 m Steel TFB-7000 (1) T-712
FRP TRB-1100 (1) T-712F

1. MOUNTING
1-9
1.5 DVI/USB Repeater (Option)
To extend the distance between the display unit and the processor unit/USB device,
use the optional DVI/USB repeater. Cable extension without the repeater can result in
signal loss and incorrect data display.
The DVI/USB repeater has two units, one transmitter unit and one receiver unit. The
following figure shows the general connection for the DVI/USB repeater.
The processor unit can be installed on a deck or bulkhead. Cable connection is slightly
different between transmitter and receiver unit. For this reason, it is important that you
identify each unit before mounting. The following table and figure show how to identify
the units.
Unit What to look for
Receiver Unit Female SRCN connector, USB type A connector ×2
Transmitter Unit Male SRCN connector, USB type B connector
USB Device
(Max. 2 units)
Monitor
Unit
DVI/USB
Repeater
Receiver
Unit
DVI/USB
Repeater
Transmitter
Unit
Processor
Unit
HDMI
USB
(Type A)
USB
(Type B)
DVILANLANDVIDVI
USB
(Type A)
Receiver Unit
LAN
DVI-D
Ground
terminal
Power
Transmitter Unit
SRCN2A
Male connector
SRCN2A
Female connector
USB
(Type B)
LAN
DVI-D
Ground
terminal
Power
USB
(Type A)

1. MOUNTING
1-10
Mounting considerations
• Locate the unit away from heat sources.
• Locate the unit away from places subject to water splash and rain.
• Select a mounting location considering the length of the cables to be connected to
the unit.
• Select a location where shock and vibration are minimal.
• Referring to the outline drawings at the back of this manual, allow sufficient space
for maintenance and service.
• A magnetic compass will be affected if the unit is placed too close to the magnetic
compass. Observe the compass safe distances at the front of this manual to prevent
interference to a magnetic compass.
• For bulkhead installations, secure the unit so that the cable entrance faces down-
ward.
• The maximum cable length for the video signal cable is as follows:
• HDMI-TO-DVI-L cable between processor unit and transmitter unit: 5.3 m
• DVI-D/D S-LINK cable between receiver unit to monitor unit: 5 m
Mounting procedure
1. Drill four pilot holes in the mounting location for mounting screws (φ5×20, local
supply), referring to the outline drawing at the back of this manual.
2. Screw the four self-tapping screws into the pilot holes. Leave 5 mm of thread vis-
ible.
3. Hang the unit onto the screws fastened at step 2.
4. Fasten all screws tightly to secure the unit in place.
Self-tapping screw
(ø5×20, 4 pcs)
Detailed view
Hang on the unit onto the
self-tapping screws.

1. MOUNTING
1-11
1.6 Monitor Unit (Local Supply)
You can connect a FURUNO MU series monitor or a commercial monitor as a monitor
unit. The monitor unit mus have the following specifications.
• Video signal: HDMI (type A) or DVI-D* (Single link)
*: The optional HDMI-TO-DVI-L cable is required for DVI-D.
• Resolution: XGA (1024 x 768), SXGA (1280 x 1024), Full-HD (1920 x 1080), UXGA
(1600 x 1200) or WUXGA (1920 x 1200) are available.
For how to install the monitor unit, see the installation instructions of the monitor.

1. MOUNTING
1-12
This page is intentionally left blank.

2-1
2. WIRING
The following figure shows the general connection for the FSS-3BB. For detailed in-
formation, see the interconnection diagram. Many of the cables mentioned are JIS
(Japan Industrial Standards) cables. If not available locally, use the equivalent. See
the cable guide in the Appendix for how to select equivalent cables.
Processor Unit
FSS-301
HDMI cable/
HDMI-TO-DVI-L, 5.3/10.3 m
Navigation Equipment
USB Device*1,
*3
TTYCSLA-1Q
MJ-A3SPF0018-050ZC, 5 m
RS-485
USB*
RS-485
USB*
LAN
TS-20-071-1,
5 m
HDMI
2 ports
MPYCSLA-4
MJ-A3SPF0018-050ZC, 5 m
DTIC5E350SLABVCVxxT,
Max 100 m
Trackball Control Unit
RCU-026
Trackball Control Unit
RCU-026
NMEA0183
5 ports
12-24 VDC
100/110/115/220/230 VAC,
1
Ø , 50/60 Hz
Rectifier
RU-1746B-2
Transducer
Transceiver Unit
FSS-302
External KP
USB
USB3.0: 2 ports
USB2.0: 2 ports
USB Device*2
USB Device*2
*1: A maximum of four USB devices including RCU-026 can be connected to the processor unit.
*2: To use the USB port on the RCU-026, connect the RCU-026 to the USB port on the processor unit, using
the USB cable supplied with the RCU-026. If you do not use the USB port on the RCU-026, the USB
connection between the RCU-026 and processor unit is not required.
*3: To extend the distance between the processor unit and the monitor unit/USB device, use the optional
DVI/USB repeater.
Monitor Unit*3
12-24 VDC
100/110/115/220/230 VAC,
1
Ø , 50/60 Hz
Rectifier
RU-1746B-2

2. WIRING
2-2
2.1 Processor Unit
2.1.1 Connectors
*1: Fabricate the cable referring to section 2.1.3.
*2: To connect a USB device, use the lower USB port first.
Secure the USB, HDMI and LAN cables to the cable clamp with a cable tie (local sup-
ply). For the USB cables, use two cable ties to secure the cable.
Note 1: The cable clamp can be adjusted to allow larger connectors, such as USB or
HDMI, to be connected.
Note 2: The maximum cable length for USB2.0 and USB3.0 is as follows. To extend
the USB cable, the optional DVI/USB repeater is required. If you extend the USB cable
without the DVI/USB repeater, the USB device operation is not guaranteed.
• USB2.0: Max. 5 m • USB3.0: Max. 3 m
USB2.0
Not used
12/24 VDC
Not used
NETWORK1
To Transceiver Unit
Note: Use NETWORK1 port
for connection with the
transceiver unit.
HDMI2 To Monitor Unit (Sub)
HDMI1 To Monitor Unit (Main)
USB4
*2
USB3.0
USB2
*2
USB3
*2
USB1
*2
USB3.0
USB2.0
POWER
To ship’s ground
Ground Terminal
Cable entrance
HDMI cable or
HDMI-TO-DVI-L cable, 5.3/10.3 m
USB cable
DTIC5E350SLABVCVxxT
*1
,
Max 100 m
USB cable
MJ-A3SPF0018-050ZC,
5 m
IV-8sq.
Secure each cable
using a cable tie.
Unfasten the indicated screws to
adjust the cable clamp. Refasten the
screws to secure the cable clamp after
adjustment.
